Your Browser’s UI thread is overloaded, underpaid, and begging your help
GapLo.Tech
Overworked
60 fps
16.67 ms
Virual DOM Reconciliation
Rendering
Painting
System
0ms
5ms
10ms
15ms
20ms
Why 99% of the Browsers’ UI threads are overworked?
State Management
Ideal
Virual DOM Reconciliation
Rendering
Painting
System
Why 99% of the Browsers’ UI threads are overworked?
State Management
Actual
Remote API Response Massage
0ms
5ms
10ms
15ms
20ms
Virual DOM Reconciliation
Rendering
Painting
System
Why 99% of the Browsers’ UI threads are overworked?
State Management
Actual
Remote API Response Massage
0ms
5ms
10ms
15ms
20ms
Tracking Analytic Event
Virual DOM Reconciliation
Rendering
Painting
System
Why 99% of the Browsers’ UI threads are overworked?
State Management
Actual
Remote API Response Massage
0ms
5ms
10ms
15ms
20ms
Tracking Analytic Event
Persisting Data and Creating in-Memory Store
Why 99% of the Browsers’ UI threads are overworked?
Actual
0ms
5ms
10ms
15ms
20ms
Drop frame
UI Thread's Performance is Unpredictable
Why 99% of the Browsers’ UI threads are overworked?
Actual - Intel i9 9900k
0ms
5ms
10ms
15ms
20ms
Drop frame
Why 99% of the Browsers’ UI threads are overworked?
Actual - SnapDragon 632 (2018)
104ms
< 10 fps !
Drop frame
"Web App is poor"
Underpaid
Judged by Comparing
other platform's UI Development
let nameLabel = UILabel()
DispatchQueue.global(qos: .background).async {
getRemoteUser(id: 1) { data in
DispatchQueue.main.async {
nameLabel.text = data.username
}
}
}Why the UI thread is underpaid?
iOS Development
val nameText = TextView()
GlobalScope.launch(Dispatchers.IO) {
val data = getRemoteUser(id = 1) // suspend function
GlobalScope.launch(Dispatchers.Main) {
nameText.text = data.username
}
}Why the UI thread is underpaid?
Android Development
const nameElem = document.getElementById('name')
// wait and process on main(UI) thread
const data = await getRemoteUser(1)
nameElem.innerHTML = data.username
Why the UI thread is underpaid?
Web Development
60Hz
90Hz
120Hz
16.67ms
11.11ms
8.33ms
Why the UI Thread is underpaid?
Actual - iPad Pro (60Hz)
0ms
5ms
10ms
15ms
20ms
Drop frame
Why the UI Thread is underpaid?
Actual - iPad Pro (120Hz)
0ms
5ms
10ms
15ms
20ms
Drop frame

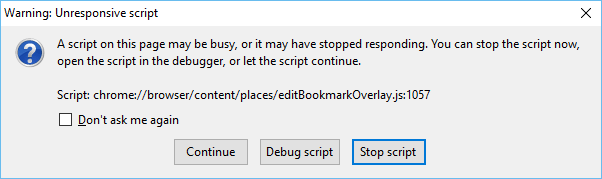

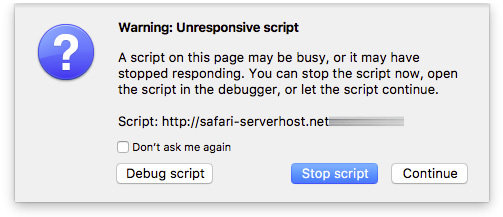

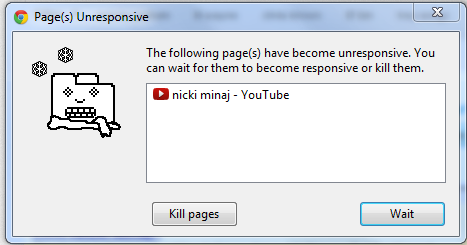

SOS Signal

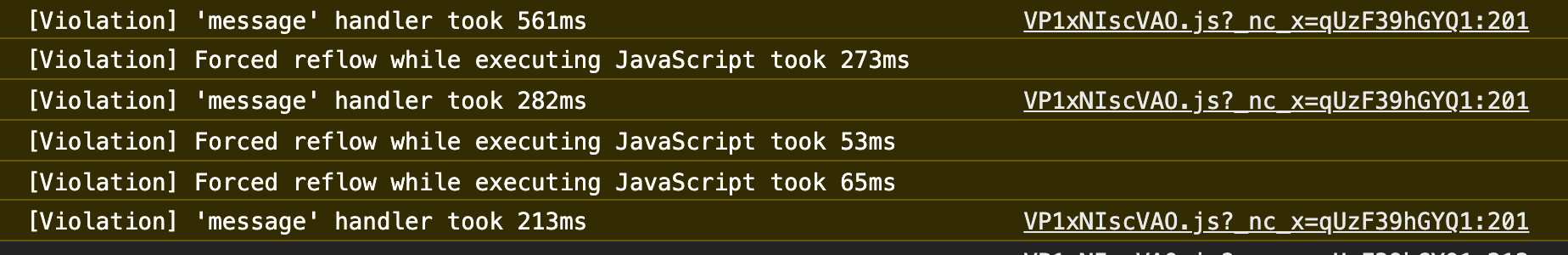

via Console
via Profiler
Live Demo
Rescure
We are not writing
a 120Hz game!

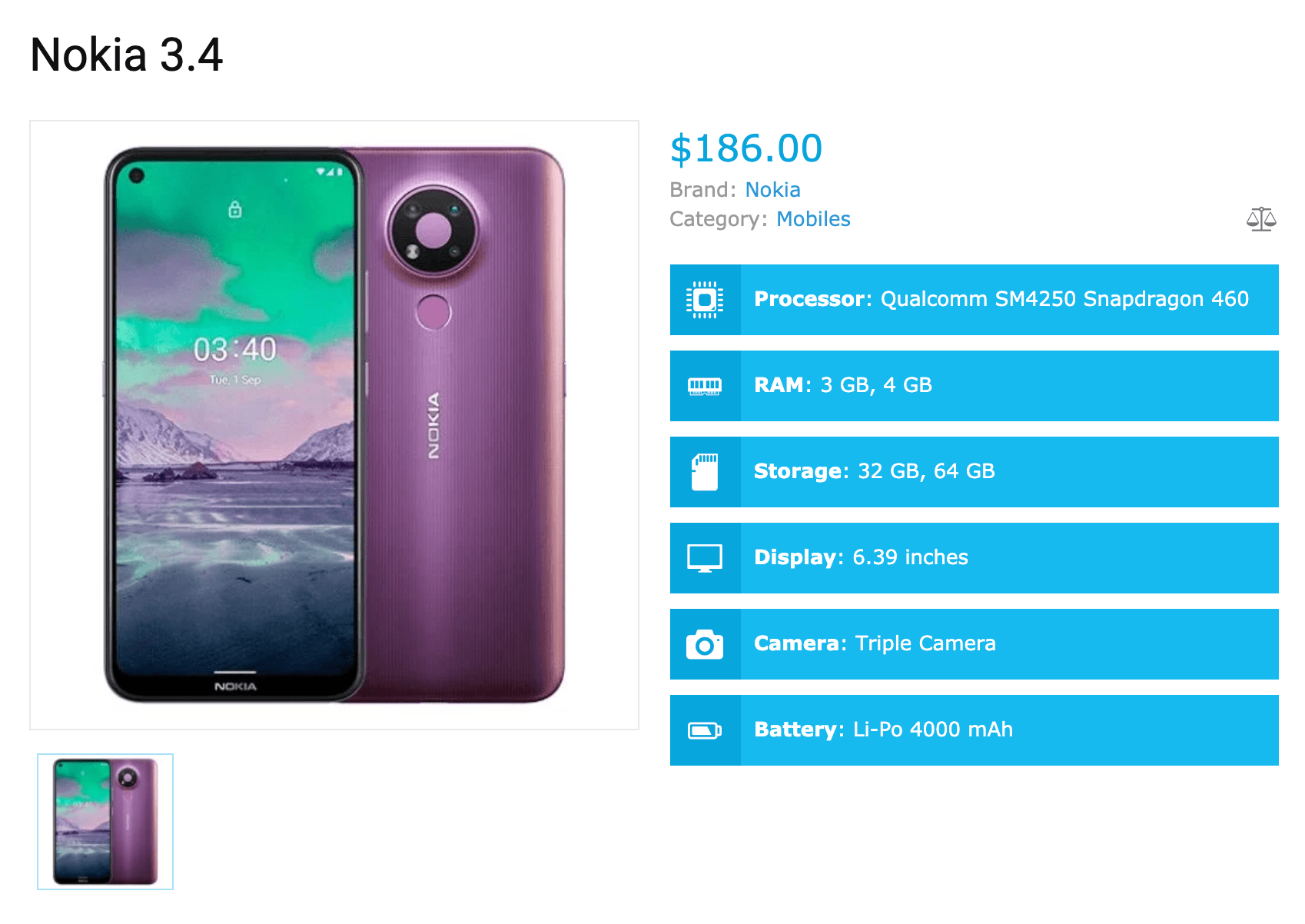

Nokia 3.4, Released on September 2020
SnapDragon 460
- Equiv. to iPhone 5s
(7 year ago)
- Equiv. to Nexus 5X
(5 year ago)
Single Core Performance of 2020 Budget Phone
writing a smooth web app for everyone!
Off-Main-Thread Architecture
View
Action
Store
Dispatchers
Action
Flux
Main Thread
View
Action
Store
Dispatchers
Action
Flux (Simple)
Web Worker
Main Thread
Worker Thread
View
Action
Store
Dispatchers
Action
Flux (Aggresive)
Web Worker
Main Thread
Worker Thread
Web Worker Challenages
- No Shared Memory
- No DOM Access
- No USB, Media, WebRTC, Bluetooth
- Isolated Scope, Difficult to Import libraries
- Completely Message Driven
// app.js
const nameElem = document.getElementById('name')
// wait and process on main(UI) thread
const data = await getRemoteUser(1)
nameElem.innerHTML = data.username// app.js
const nameElem = document.getElementById('name')
const worker = new Worker('./worker.js')
worker.postMessage({ topic: 'getRemoteUser', data: { id: 1 }})
worker.addEventListener('message', event => {
nameElem.innerHTML = event.data.username
})
// worker.js
async function getRemoteUser(id) {
return fetch(..)
}
addEventListener('message', async event => {
switch(event.data.topic) {
case 'getRemoteUser':
const data = await getRemoteUser(event.data)
postMessage(data)
default:
throw new Error('not supported message')
}
})Introducing
Comlink Loader (Webpack)
Turning Message-driven to RPC
import { getRemoteUser } from './userApi.worker.singleton.js'
const nameElem = document.getElementById('name')
// now process on worker thread!
const data = await getRemoteUser(1)
nameElem.innerHTML = data.username
// userApi.worker.singleton.js
export async function getRemoteUser(id) {
return fetch(..)
}
Live Demo
Thanks!
Your Browser’s UI thread is overloaded, underpaid, and begging your help
By Gap撈Tech
