CHANGING PILLARS OF online AUTHENTICATION

who am i?

NoT EveryONE perceives the same about us

IDENTITY = set of attributes related to an entity

(ISO 29115)

He is a singer

He has a deep warm voice

He plays the ukulele, guitar

He is the front man of Pearl Jam

He is a father

He loves baseball

He supports the Chicago Cubs

HOW DO WE COME TO HERE?

Too many passwords to remember,

difficult to type and not secure

REUSED

PHISHED

KEYLOGGED

Passwords are a PROBLEM FOR USERS

Security BREACHES: A SERVICE PROVIDERS PROBLEM

REGULATORY CHANGES

• ECB draft Recommendation on the security of mobile payments

  • Ensure the security of mobile payments
  • Recommendations impose proportionate authentication only on licensed financial service providers

• eIDAS regulation

  • Mutual recognition across EU Member States

  • Replacing the existing e-Signature Directive 1993/99 covering authentication, identification and e-signature

¡ATTRIBUTE SHARING!

• We could provide a verified identity
• Banks need mechanism to improve the onboarding process
  • Need to check the physical identity of the user
  • This slows down the time to have the new product available
  • A lot of times the user drops out the process in the meantime

authenticators

CURRENT AVAILABLE AUTHENTICATORS  HAVE DRAWBACKS

• User/password

• SMS OTPs

• Code cards

• PKI based solutions

• . . .

What OTHERS DO

FIDO ALLIANCE BOARD

FIDO ALLIANCE BASIC ARCHITECTURE

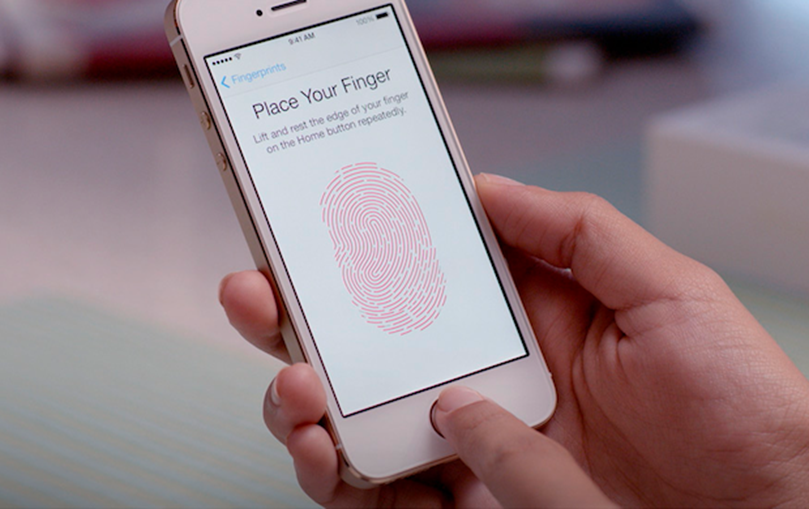

PROPRIETARY SOLUTIONS

WHAT WE TRY TO DO

GSMA MOBILE CONNECT

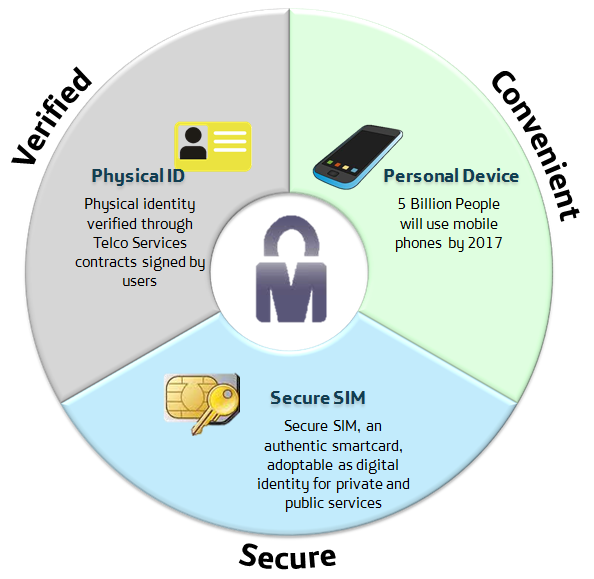

IDENTITY SERVICES BASED ON MNO ASSETS

mobile connect

ARcHITECTURE GUIDELINES

• Plugable authenticators

• Standard definition of LoA (Level of Assurance)

• OpenID Connect, as the interface with the service providers

• Authenticator selected based on the LoA requested

Level OF ASSURANCE (ISO/IEC 29115)

What the mobile connect is about?

mobile connect

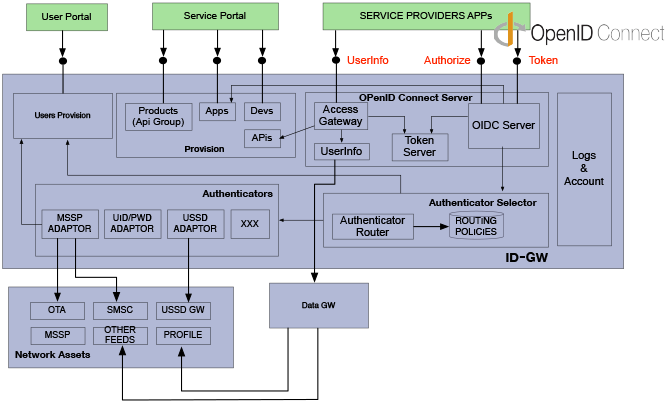

ARCHITECTURE

logical components

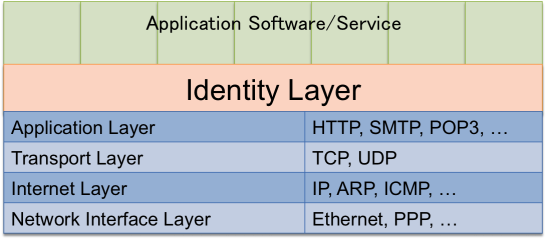

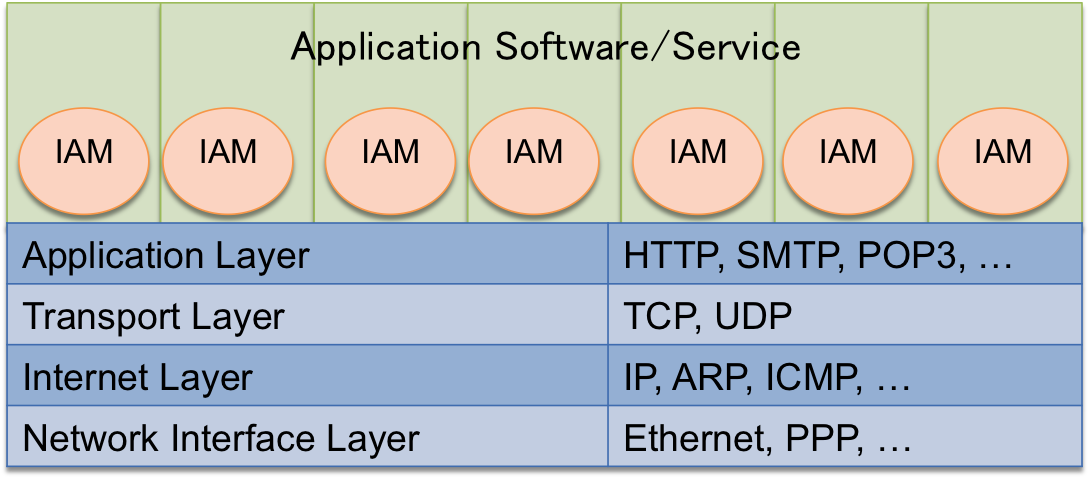

Identity Layer on Top of OAuth 2.0

INTEROPERABLE

- Standard scopes: openid, profile, email, address, phone

- Standard UserInfo endpoint and Indiviual Claims (granularity)

- Id_token: info about the authenticated user

SIMPLE

- JSON based & REST Friendly

SECURE

- Scale thanks to LoA (ISO/IEC 29115 Entity Authentication Assurance)

- Encryption

CURRENT DISCOVERY process

logical components: interaction

HTTP/1.1 302 Found
Location: https://server.example.com/authorize?
  response_type=code
  &client_id=s6BhdRkqt3
  &redirect_uri=https%3A%2F%2Fclient.example.org%2Fcb
  &scope=openid%20profile
  &state=af0ifjsldkj

GET /authorize?
    response_type=code
    &client_id=s6BhdRkqt3
    &redirect_uri=https%3A%2F%2Fclient.example.org%2Fcb
    &scope=openid%20profile
    &state=af0ifjsldkj HTTP/1.1
  Host: server.example.com

HTTP/1.1 302 Found
  Location: https://client.example.org/cb?
    code=SplxlOBeZQQYbYS6WxSbIA
    &state=af0ifjsldkj

HTTP 302 redirect response sent by the Client to the UA

Authentication Request sent by the UA to the Authorization Endpoint

End-user Authentication: a challenge is sent to the user's SIM applet

After obtaining the user consent a response with the auth_code is sent back to the user

AUTHENTICATION request

POST /token HTTP/1.1
  Host: server.example.com
  Authorization: Basic czZCaGRSa3F0MzpnWDFmQmF0M2JW
  Content-Type: application/x-www-form-urlencoded
  grant_type=authorization_code&code=SplxlOBeZQQYbYS6WxSbIA
    &redirect_uri=https%3A%2F%2Fclient%2Eexample%2Ecom%2Fcb

  HTTP/1.1 200 OK
  Content-Type: application/json
  Cache-Control: no-store
  Pragma: no-cache

  {
   "access_token": "SlAV32hkKG",
   "token_type": "Bearer",
   "refresh_token": "8xLOxBtZp8",
   "expires_in": 3600,
   "id_token": "eyJhbGciOiJSUzI1NiIsImtpZCI6IjFlOWdkazcifQ.ewogImlzc
     yI6ICJodHRwOi8vc2VydmVyLmV4YW1wbGUuY29tIiwKICJzdWIiOiAiMjQ4Mjg5
     NzYxMDAxIiwKICJhdWQiOiAiczZCaGRSa3F0MyIsCiAibm9uY2UiOiAibi0wUzZ
     fV3pBMk1qIiwKICJleHAiOiAxMzExMjgxOTcwLAogImlhdCI6IDEzMTEyODA5Nz
     AKfQ.ggW8hZ1EuVLuxNuuIJKX_V8a_OMXzR0EHR9R6jgdqrOOF4daGU96Sr_P6q
     Jp6IcmD3HP99Obi1PRs-cwh3LO-p146waJ8IhehcwL7F09JdijmBqkvPeB2T9CJ
     NqeGpe-gccMg4vfKjkM8FcGvnzZUN4_KSP0aAp1tOJ1zZwgjxqGByKHiOtX7Tpd
     QyHE5lcMiKPXfEIQILVq0pc_E2DzL7emopWoaoZTF_m0_N0YzFC6g6EJbOEoRoS
     K5hoDalrcvRYLSrQAZZKflyuVCyixEoV9GfNQC3_osjzw2PAithfubEEBLuVVk4
     XUVrWOLrLl0nx7RkKU8NXNHq-rvKMzqg"
  }

Client makes a Token Request by presenting its Authorization Grant

If code is validated successfully then Client receives Tokens

  HTTP/1.1 400 Bad Request
  Content-Type: application/json
  Cache-Control: no-store
  Pragma: no-cache

  {
   "error": "invalid_request"
  }

Error Response

TOKENS

Attribute Verification

Attribute Request

AntiFraud

Contextual-setup Authentication

Commerce Fullfilment

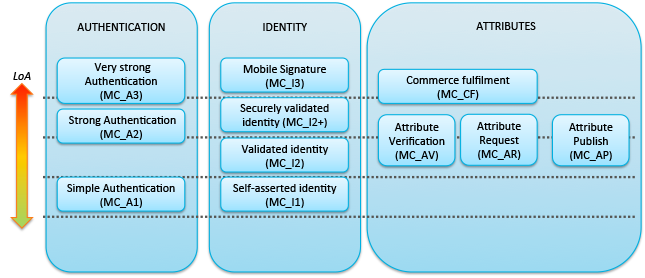

the attributes enhance digital transactions

Objective: Provide a selection of attributes and attribute verification services

  {
   "iss": "http://mobileconnect.tid.es",
   "sub": "as7654098289126",
   "aud": "z3GdrS2Qbs",
   "nonce": "n-0S6_WzA2Mj",
   "exp": 1311281970,
   "iat": 1311280970,
   "acr": "urn:mace:incommon:iap:gold",
   "amr": ["password", "SIM-PIN-Applet"],
   "name": "Gonzalo Fernández",
   "given_name": "Gonzalo",
   "family_name": "Fernández",
   "gender": "male",
   "birthdate": "1971-09-28",
   "email": "gfr@tid.es",
   "picture": "http://mobileconnect.tid.es/gfr/me.jpg"
  }

HTTP/1.1 302 Found
Location: https://mobileconnect.tid.es/authorize?
  response_type=code
  &client_id=z3GdrS2Qbs
  &redirect_uri=https%3A%2F%2Fcollosus.bank.tid.es%2Fcb
  &scope=openid%20profile
  &acr_values=urn:mace:incommon:iap:gold urn:mace:incommon:iap:silver
  &state=gd0ai2mqzpt

Initial Authentication Request

Id_Token: control claims + acr value + personal data

id_token

UserInfo endpoint

GET /userinfo HTTP/1.1
Host: server.example.com
Authorization: Bearer SlAV32hkKG

HTTP/1.1 200 OK
  Content-Type: application/json

  {
   "sub": "248289761001",
   "name": "Jane Doe",
   "given_name": "Jane",
   "family_name": "Doe",
   "preferred_username": "j.doe",
   "email": "janedoe@example.com",
   "picture": "http://example.com/janedoe/me.jpg"
  }

INDIVIDUAL CLAIMS

  {
   "userinfo":
    {
     "given_name": {"essential": true},
     "nickname": null,
     "email": {"essential": true},
     "email_verified": {"essential": true},
     "picture": null,
     "http://example.info/claims/groups": null
    },
   "id_token":
    {
     "auth_time": {"essential": true},
     "acr": {"values": ["urn:mace:incommon:iap:silver"] }
    }
  }

MOBILE CONNECT

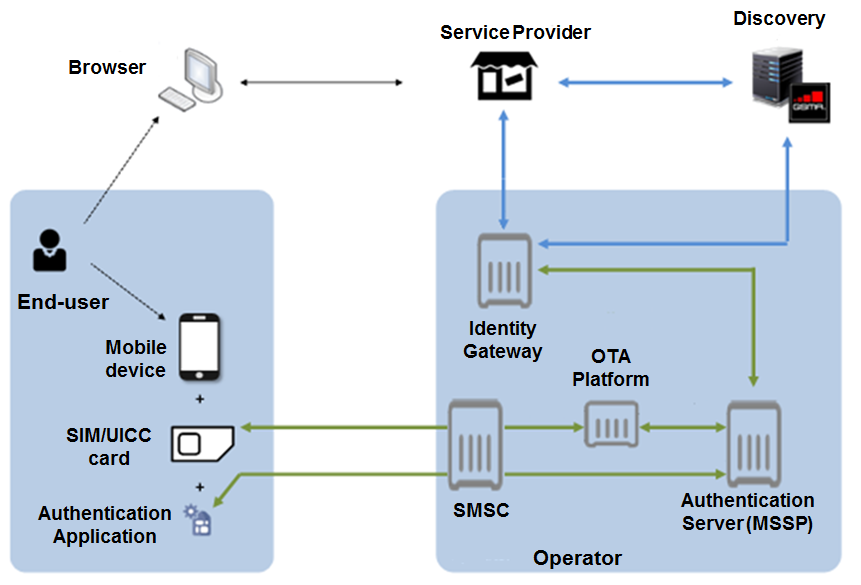

SIM BASED AUTHENTICATOR

SIM BASED AUTHENTICATOR

MSSP: Mobile Signature Service Provider

• Authentication server based on ETSI TS 102 204

  • Northbound Interface is based on web services, allows to the ID Gateway to send auth request independtly of the underlying authenticators

  • Southbound interface connect with the authenticators, isn't specified

• Mobile Connect defines the southbound interface to talk with the SIM authentication application

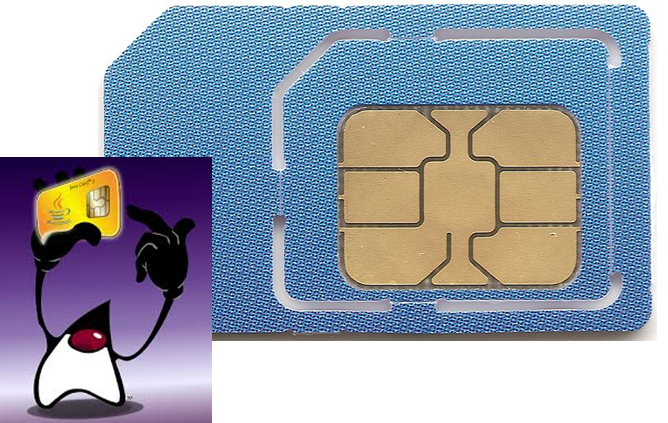

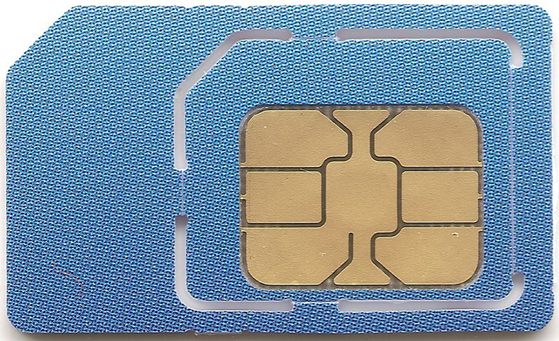

THE SIM IS A SEcURE ELEMENT

• Tamper-resistant platform
  • you need the keys to access the system.

• Connected directly to baseband  (OTA secure channel)

• Includes a framework to run applications (JavaCard)

  • Very limited subset of Java

  • Remotely deployable applications, called applets

  • SimToolKit

    • allows to create text based user interfaces

    • compatible with almost any existing mobile phone

Mobile CoNNECT APPLET

• Two user journeys:

  • Click OK -> LoA 2

  • Insert Personal Code -> LoA3

• Several authenticator handlers

  • 3DES

  • AES

  • OATH OCRA

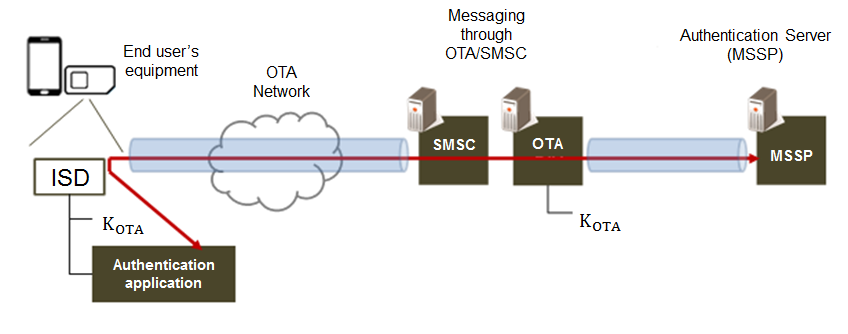

COMMUNICATIONS ThROUGH OTA

COMUNICATIONS WITHOUT OTA
