Photonic Multilayers for Broadband and Large Area Superchiral Surface Waves
Pellegrini G., Mogni E., Jil-Rostra J., Yubero F., Simone G., Fossati S., Dostálek J., Martinez Vázquez R., Osellame R., Celebrano M., Finazzi M., Biagioni P.
Chirality (in Nature)
Dipartimento di Fisica - Università di Pavia
ICTON2023, 2-6 July 2023, Bucharest, Romania
Molecules
DNA
Proteins
Left Enantiomer
Right Enantiomer
Probing Chirality with Electromagnetic Fields
Dipartimento di Fisica - Università di Pavia
ICTON2023, 2-6 July 2023, Bucharest, Romania
TM Polarization
Left = TE + i*TM
Right = TE - i*TM

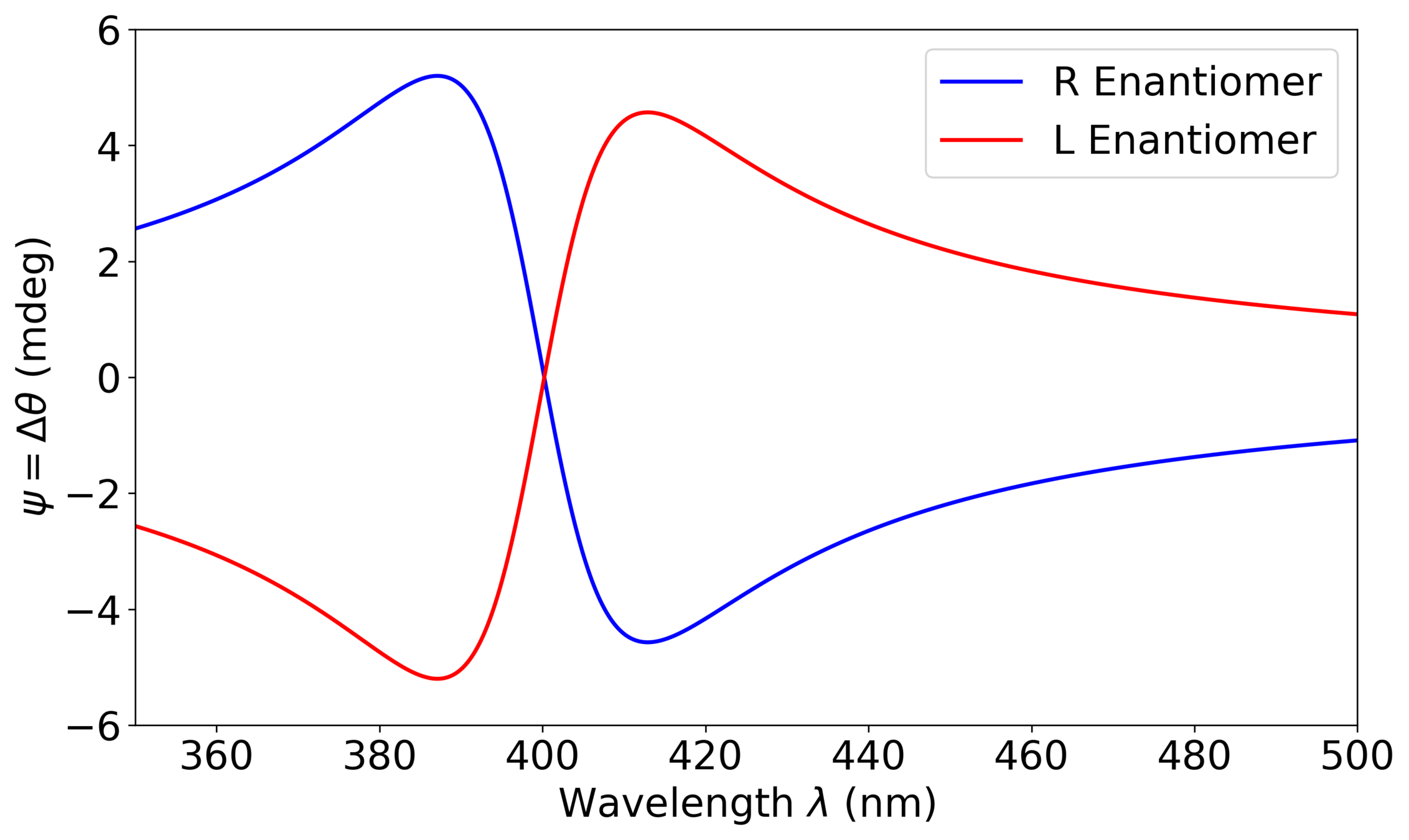

Optical Rotation (OR)

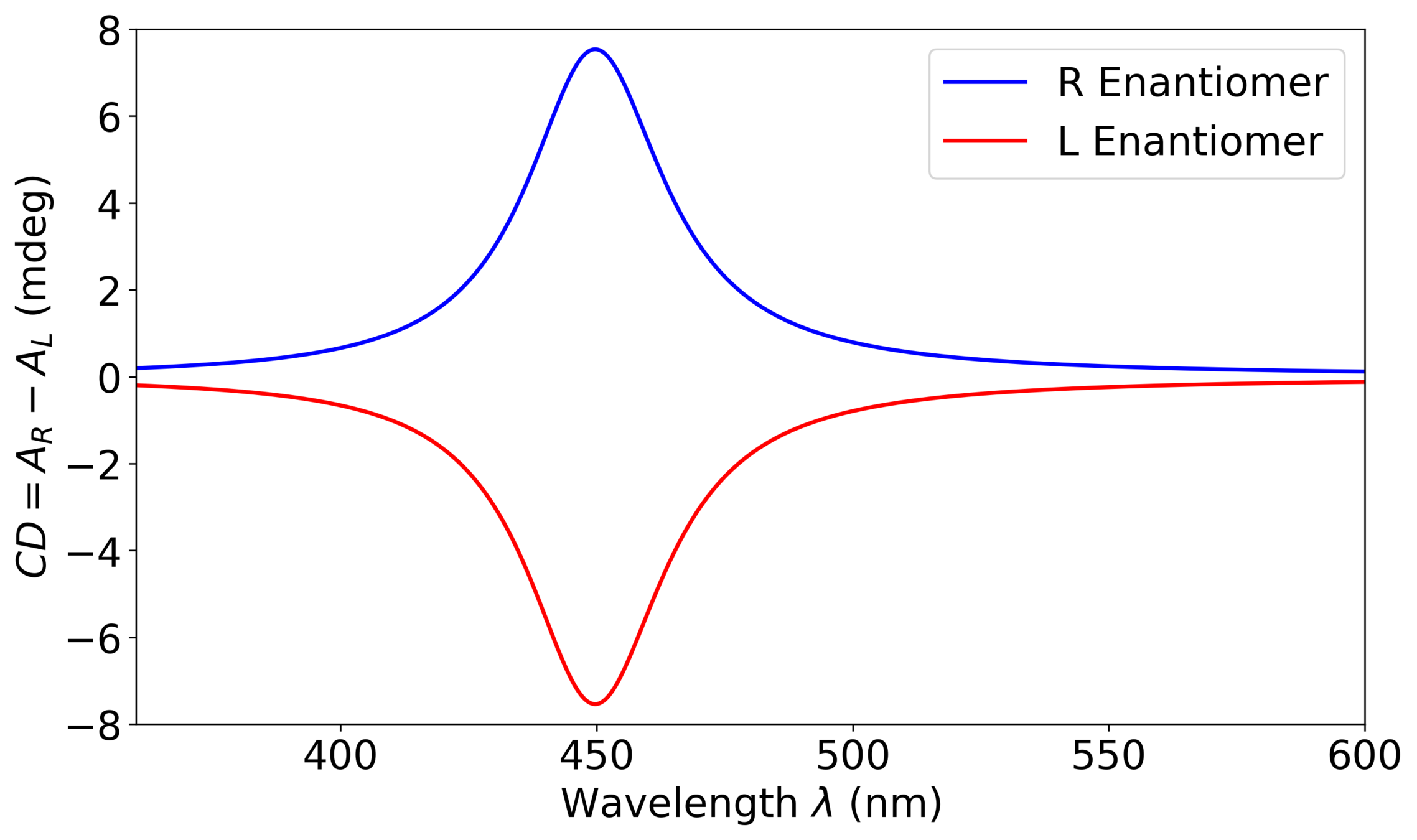

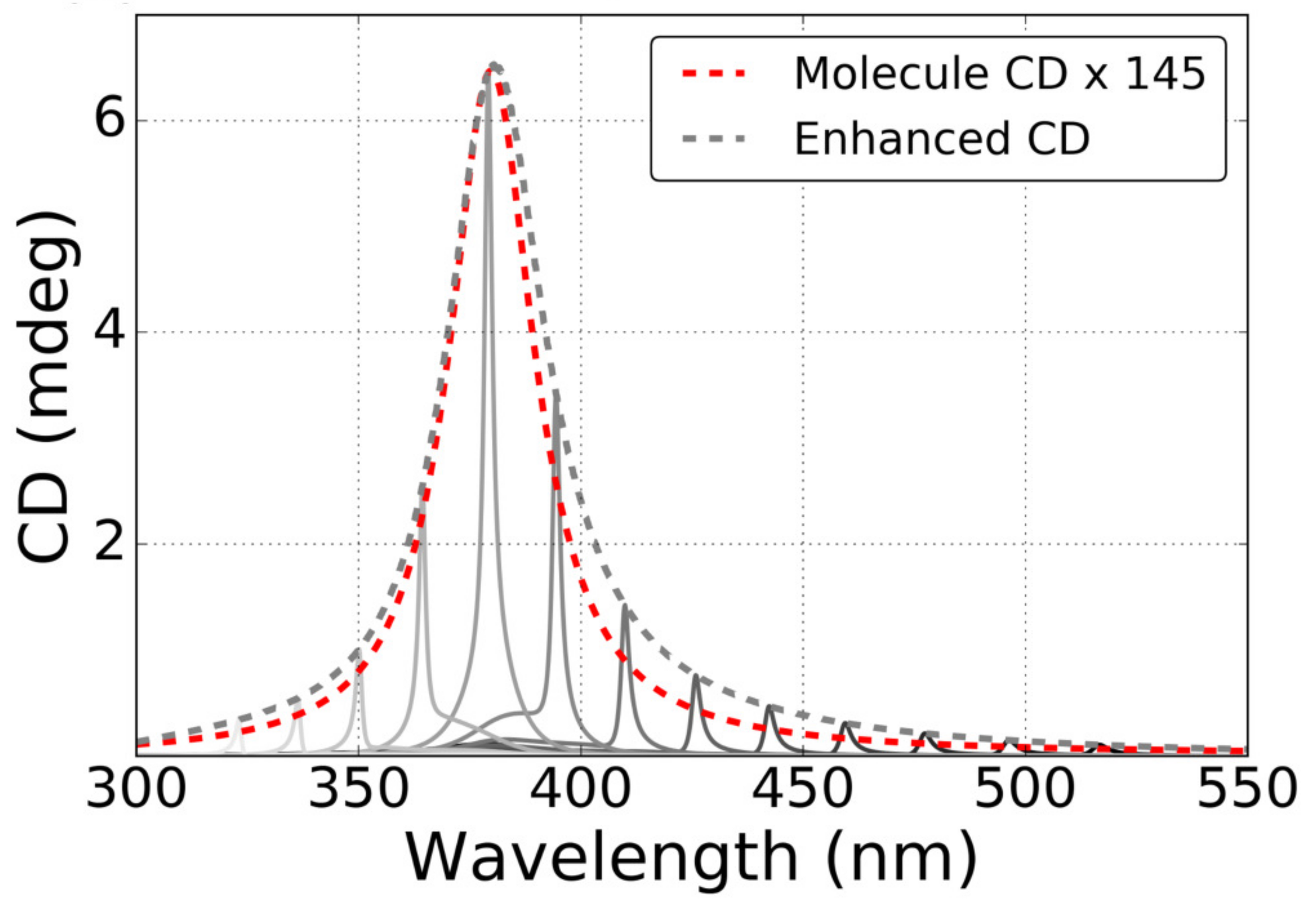

Circular Dichroism (CD)
\[\mathrm{CD = A_{R}-A_{L}}\]
\[\mathrm{\psi = \Delta \theta} \]
TE Polarization

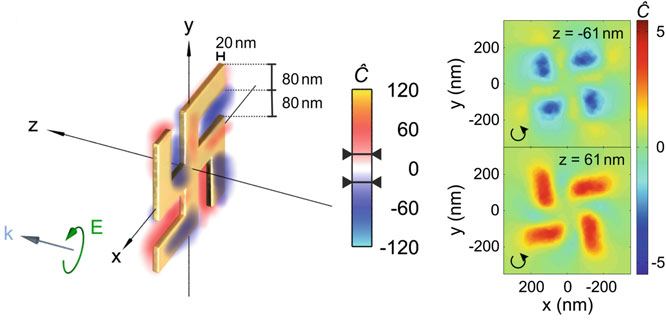

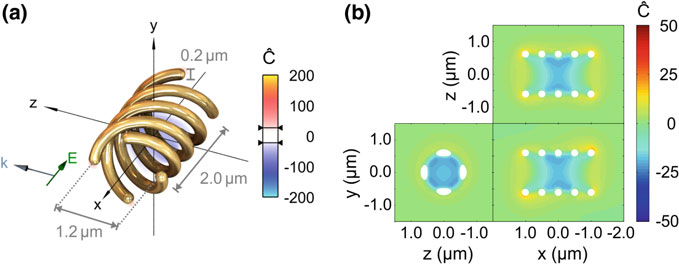

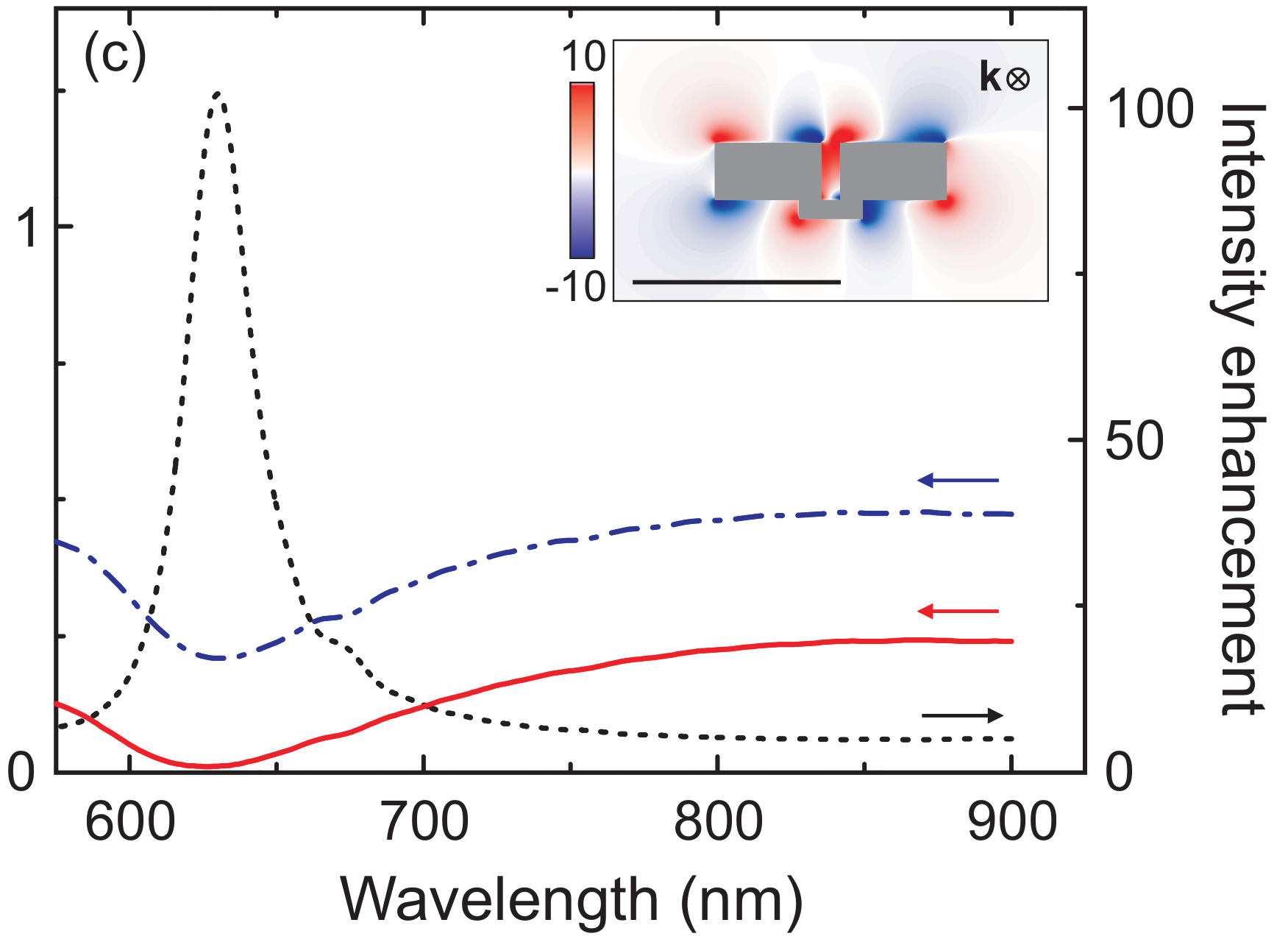

Superchiral Light: Enhancing Chiral Light-Matter Interaction
Dipartimento di Fisica - Università di Pavia
Finazzi, Marco, et al. "Quasistatic limit for plasmon-enhanced optical chirality." Physical Review B 91.19 (2015): 195427.
Schäferling, Martin. "Chiral nanophotonics." Springer Series in Optical Sciences 205 (2017): 159.
C = -\frac{\varepsilon_{0} \omega}{2} Im(\mathrm{\mathbf{E}}^{*} \cdot \mathrm{\mathbf{B}})
ICTON2023, 2-6 July 2023, Bucharest, Romania
Mattioli, F. et al. Plasmonic Superchiral Lattice Resonances in the Mid-Infrared. ACS Photonics 7, 2676–2681 (2020)
Superchiral Light with a Planar Geometry
Dipartimento di Fisica - Università di Pavia
-
Large optical chirality enhancement
-
Uniformity over large areas
-
Optical chirality switching
-
Broadband operation
-
Flat spectral response
Planar Geometries as an Ideal Candidate
ICTON2023, 2-6 July 2023, Bucharest, Romania
A Planar Geometry for Superchiral Light: Take 1
Dipartimento di Fisica - Università di Pavia
ICTON2023, 2-6 July 2023, Bucharest, Romania
TE ± i*TM
TE ± i*TM
Surface Plasmon
A Planar Geometry for Superchiral Light: Take 2
Dipartimento di Fisica - Università di Pavia
ICTON2023, 2-6 July 2023, Bucharest, Romania

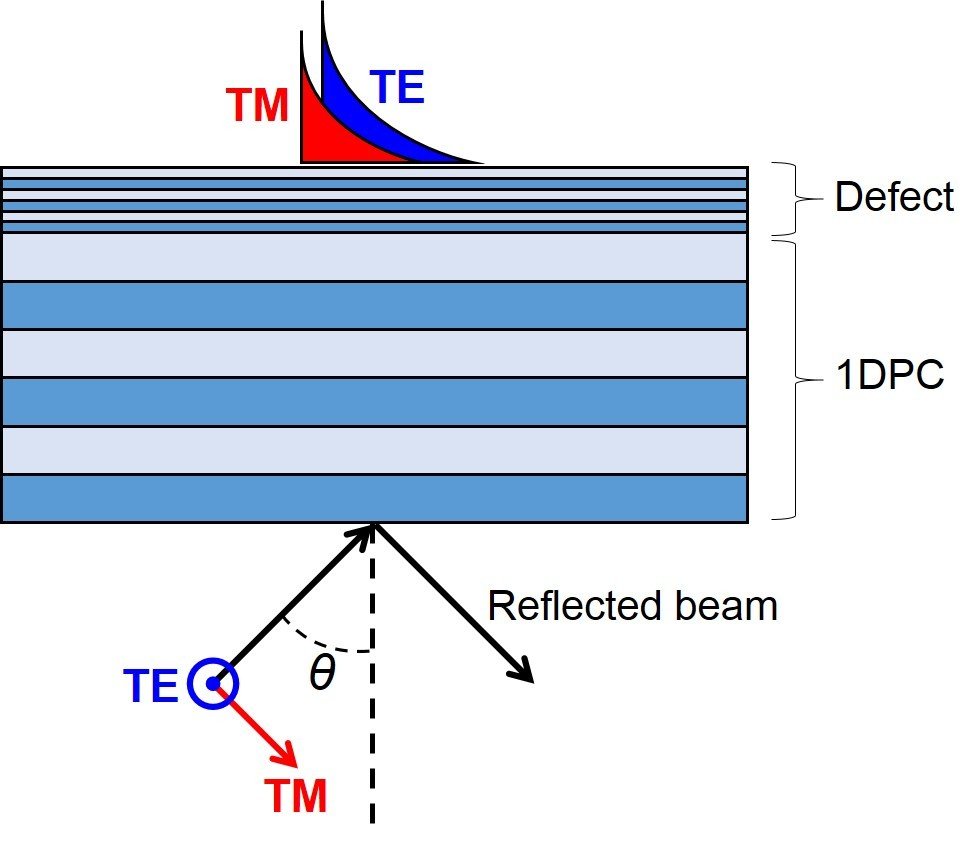

Bloch Surface Waves (BSW)
TE ± i*TM
TE ± i*TM

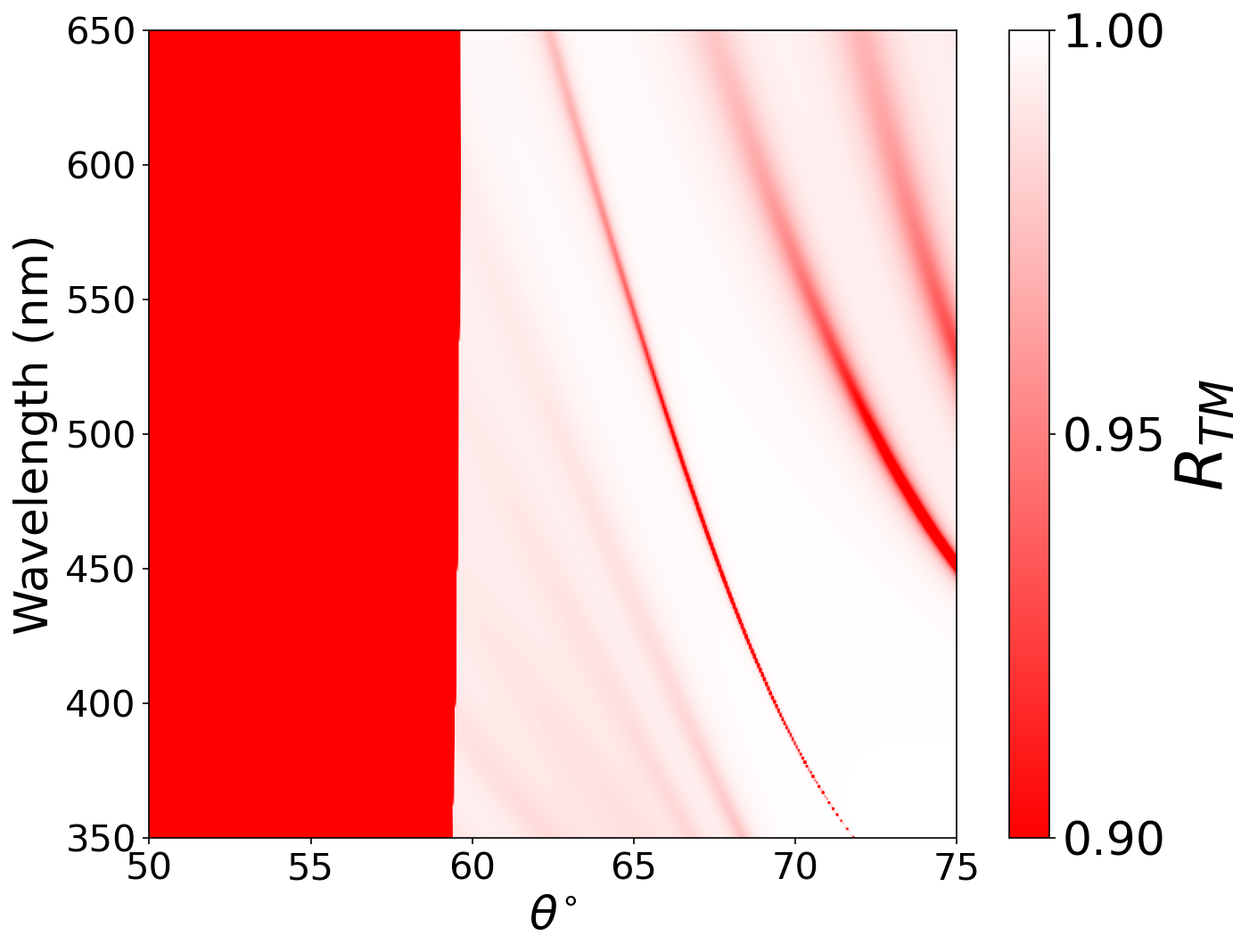

\[ \mathrm{ (\lambda_{TM},\theta_{TM})} \]
\[ \mathrm{ (\lambda_{TE},\theta_{TE})} \]
\[ \mathrm{ (\lambda_{TM},\theta_{TM})} \neq \mathrm{ (\lambda_{TE},\theta_{TE})} \]

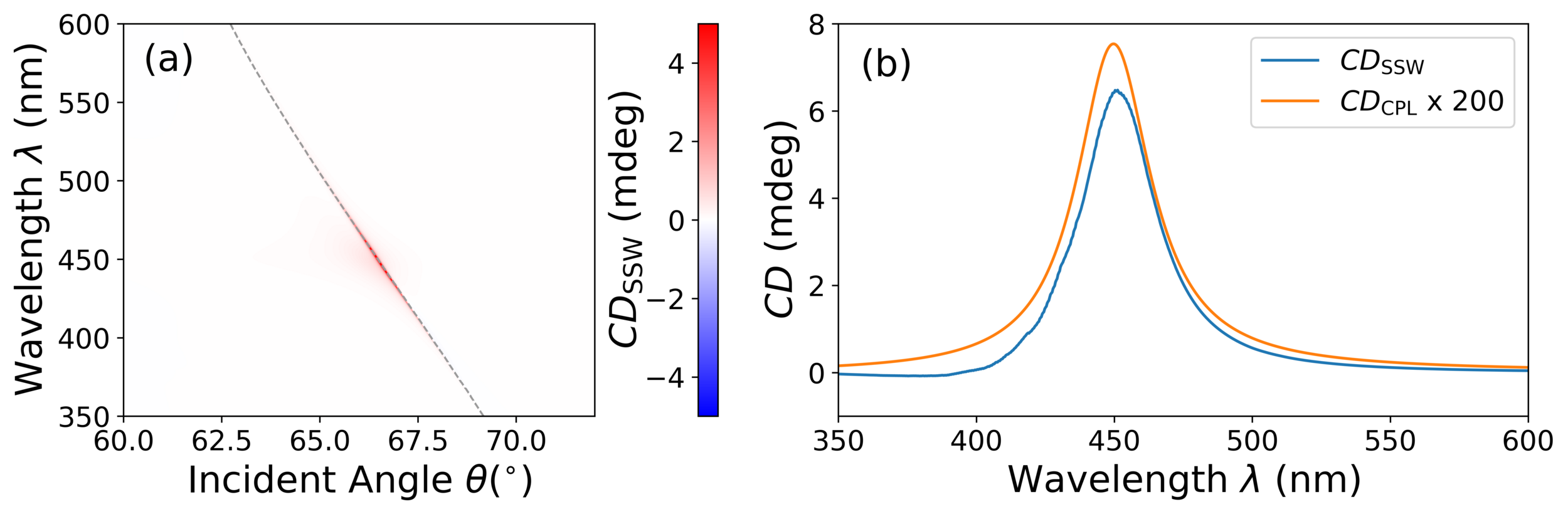

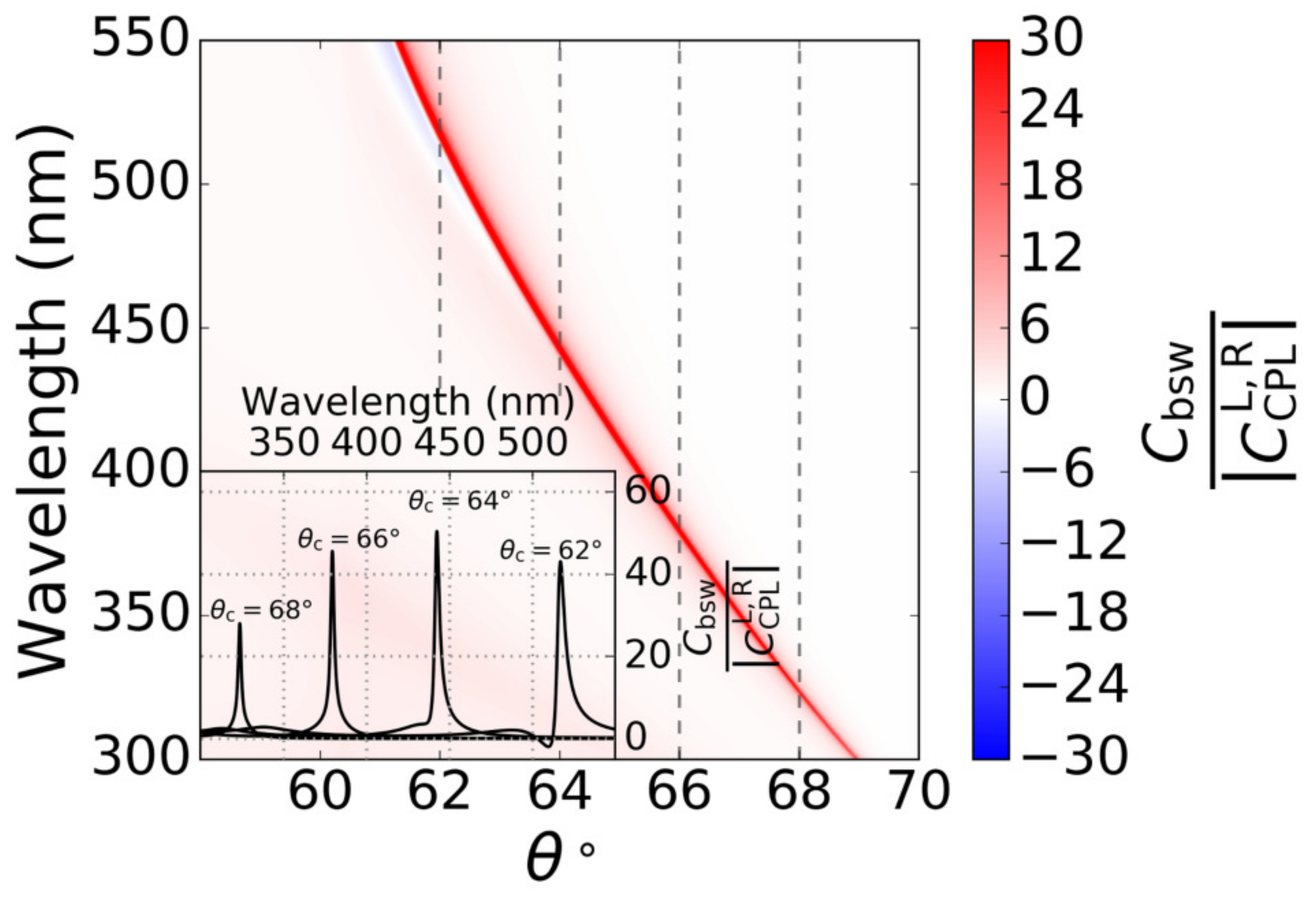

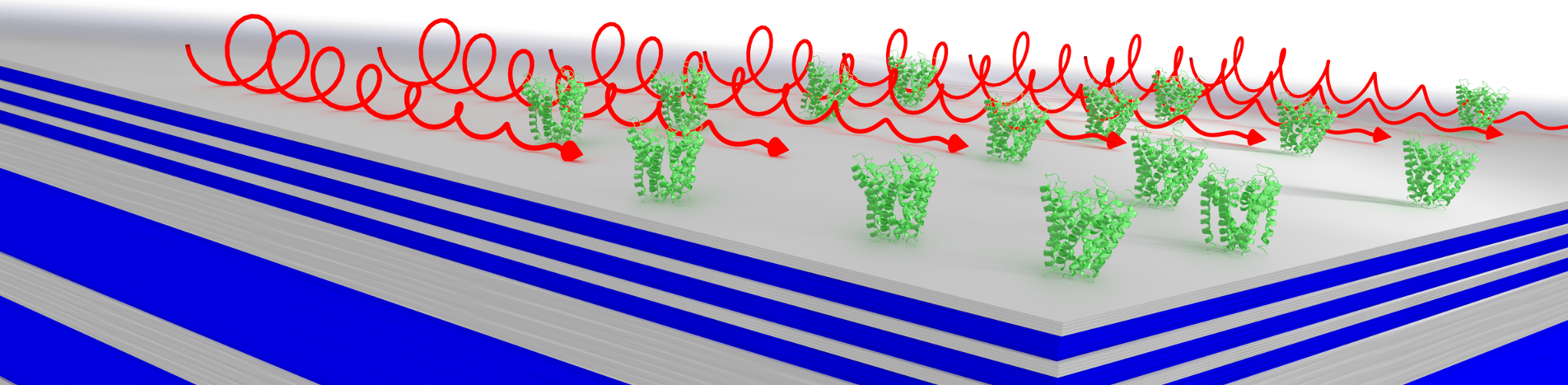

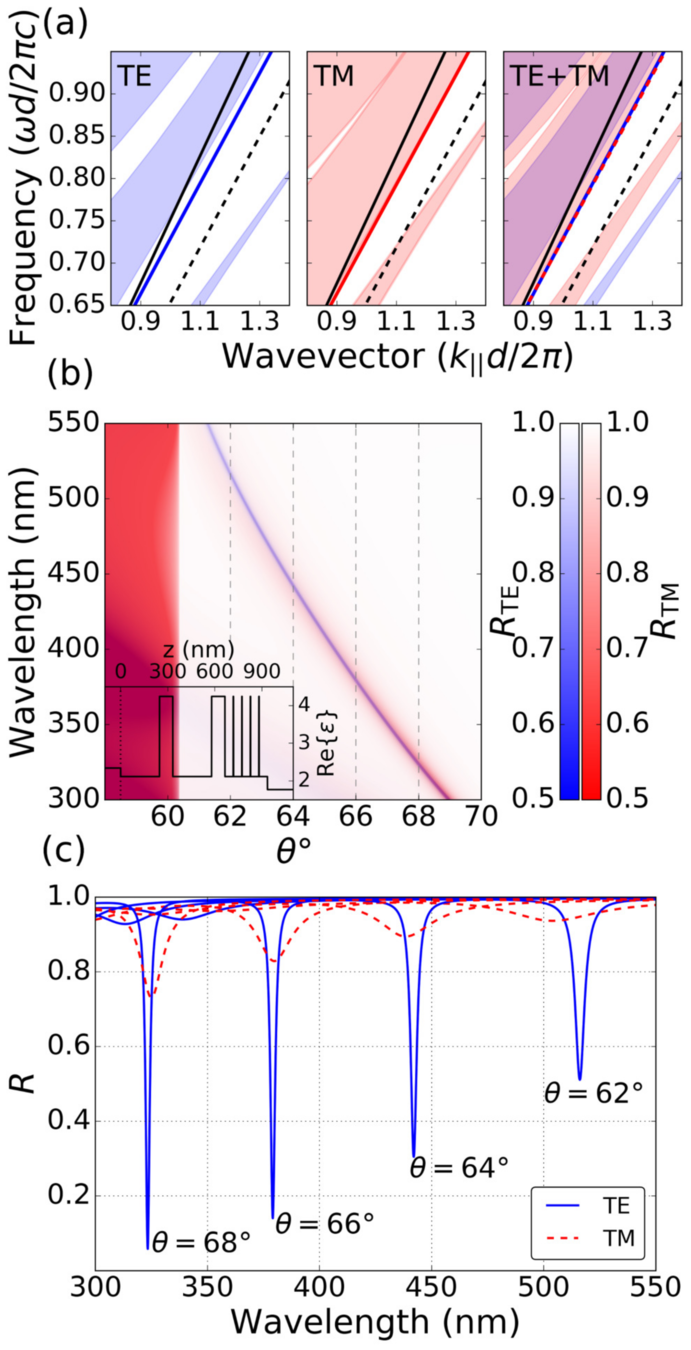

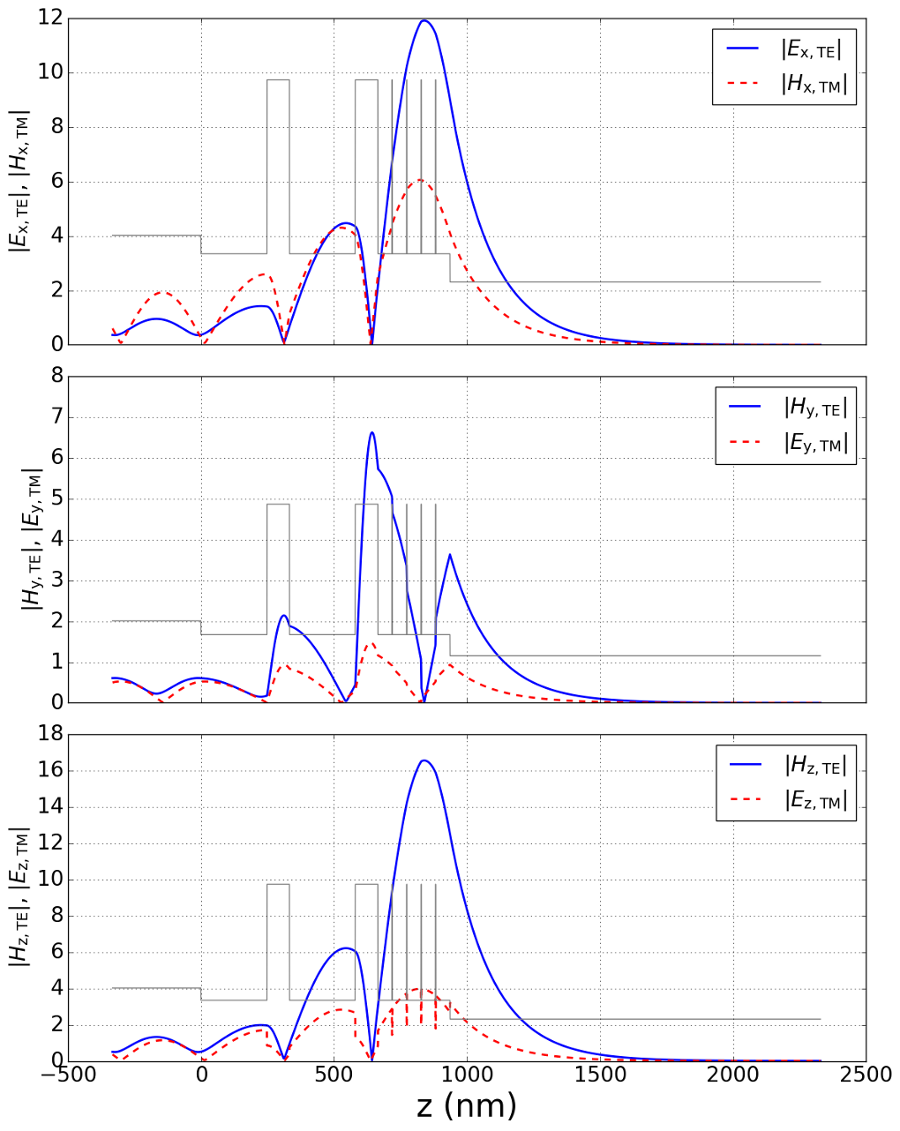

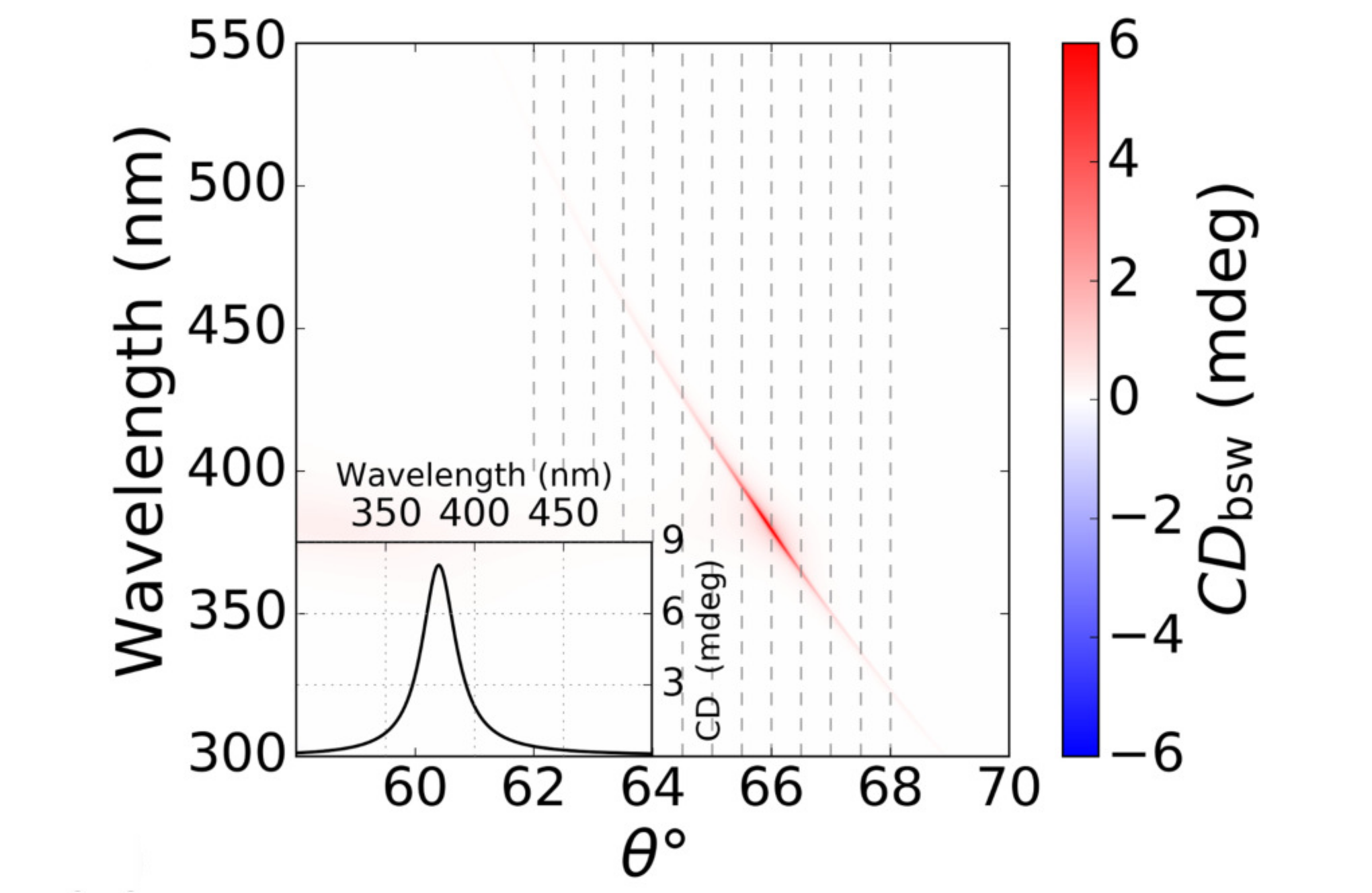

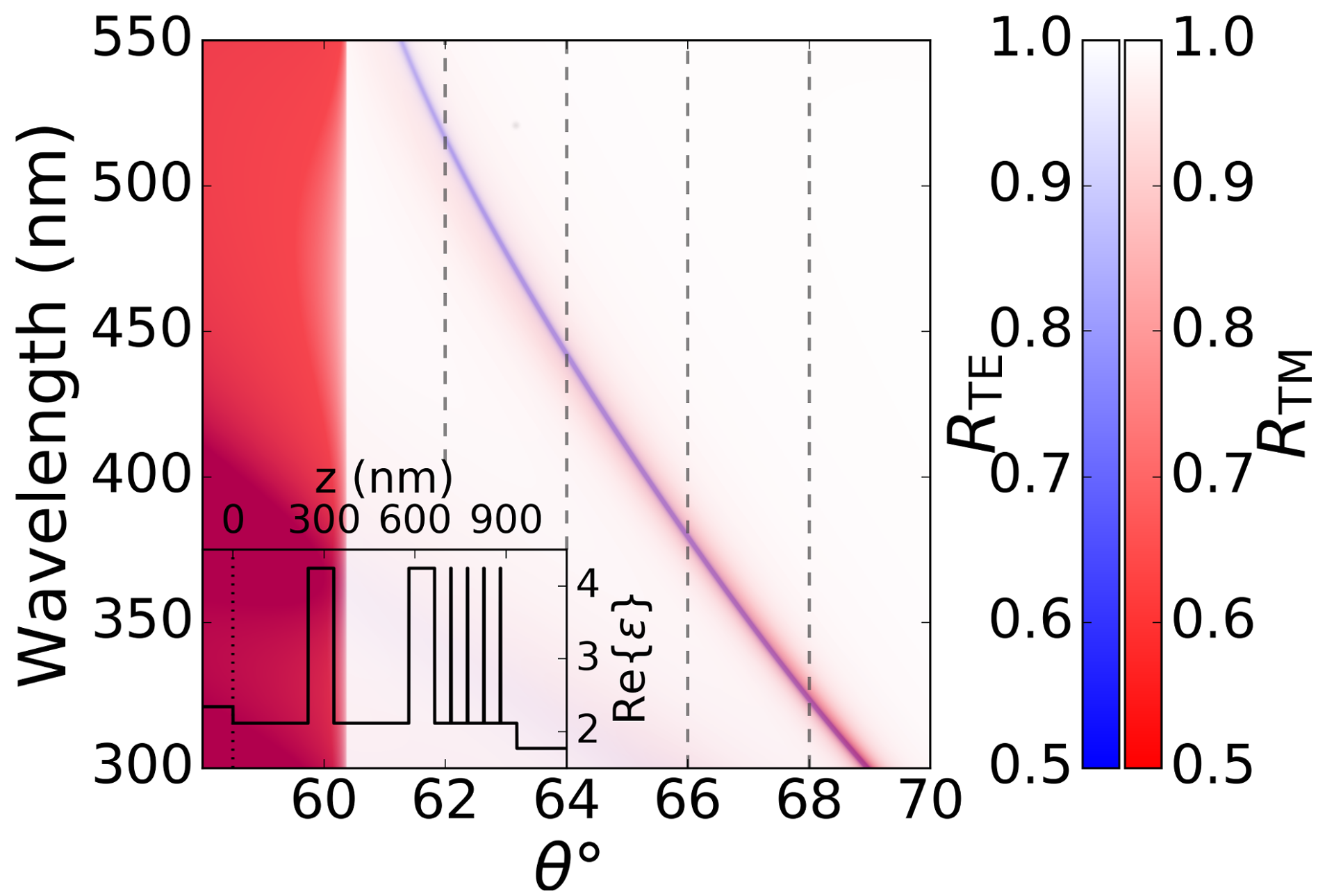

Superchiral Surface Waves with SiO2-Ta2O5 1PDC
Dipartimento di Fisica - Università di Pavia
-
Pellegrini, Giovanni, et al. "Chiral surface waves for enhanced circular dichroism." Physical Review B 95.24 (2017): 241402.
-
Pellegrini, Giovanni, et al. "Surface‐enhanced chiroptical spectroscopy with superchiral surface waves." Chirality 30.7 (2018): 883-889.
-
Pellegrini, Giovanni, et al. "Superchiral surface waves for all-optical enantiomer separation." The Journal of Physical Chemistry C 123.46 (2019): 28336-28342.
ICTON2023, 2-6 July 2023, Bucharest, Romania

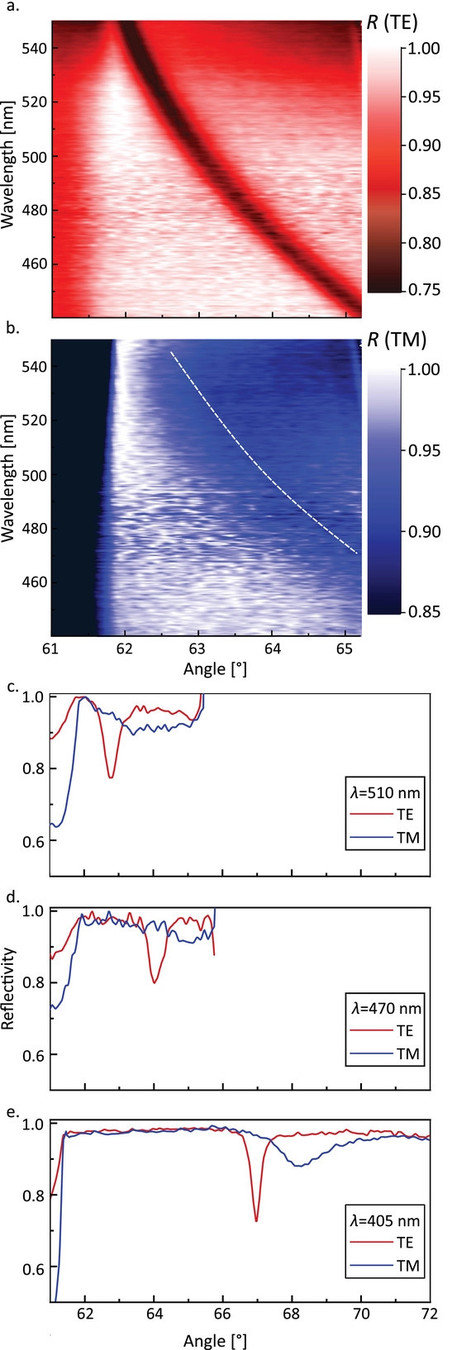

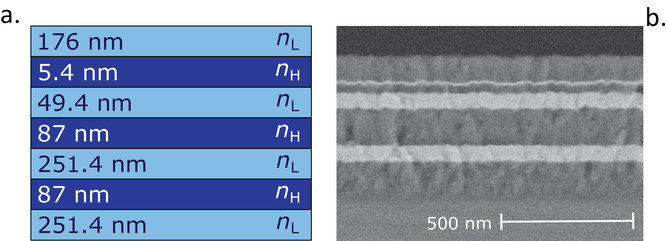

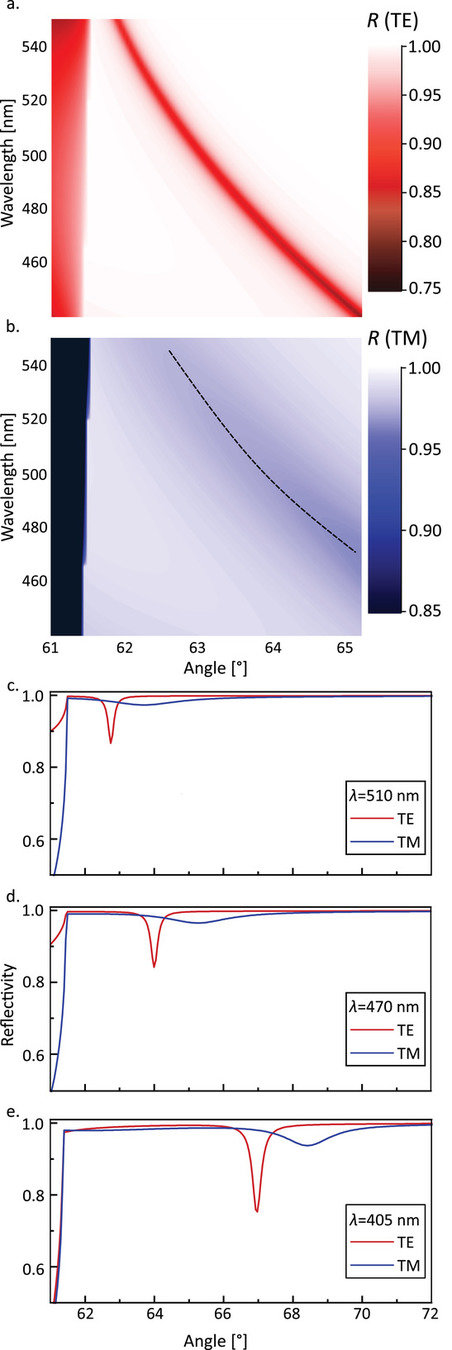

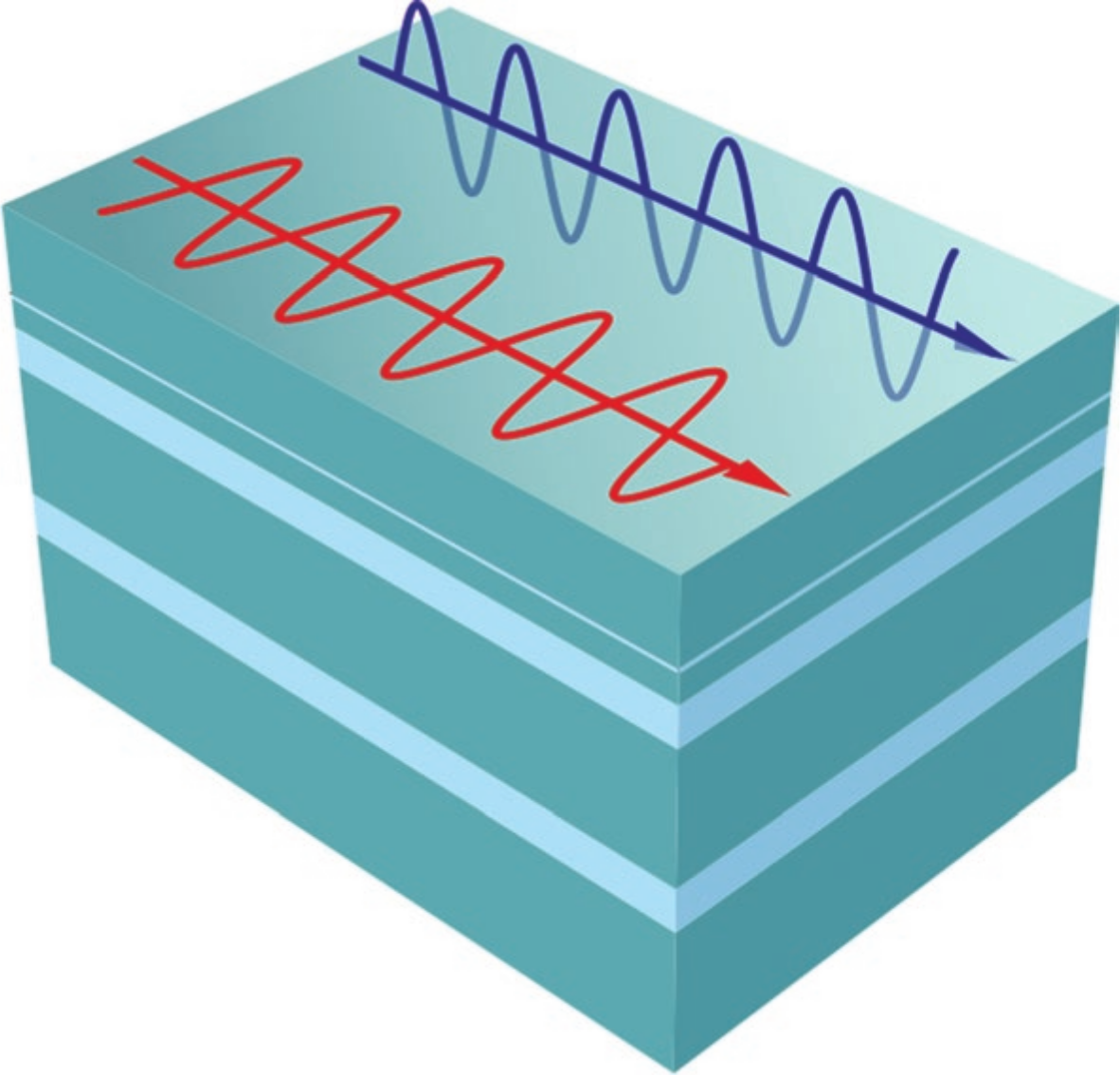

Towards Surface Mode Polarization Control
Dipartimento di Fisica - Università di Pavia
Mogni, Erika, et al. "One‐Dimensional Photonic Crystal for Surface Mode Polarization Control." Advanced Optical Materials (2022): 2200759.
ICTON2023, 2-6 July 2023, Bucharest, Romania

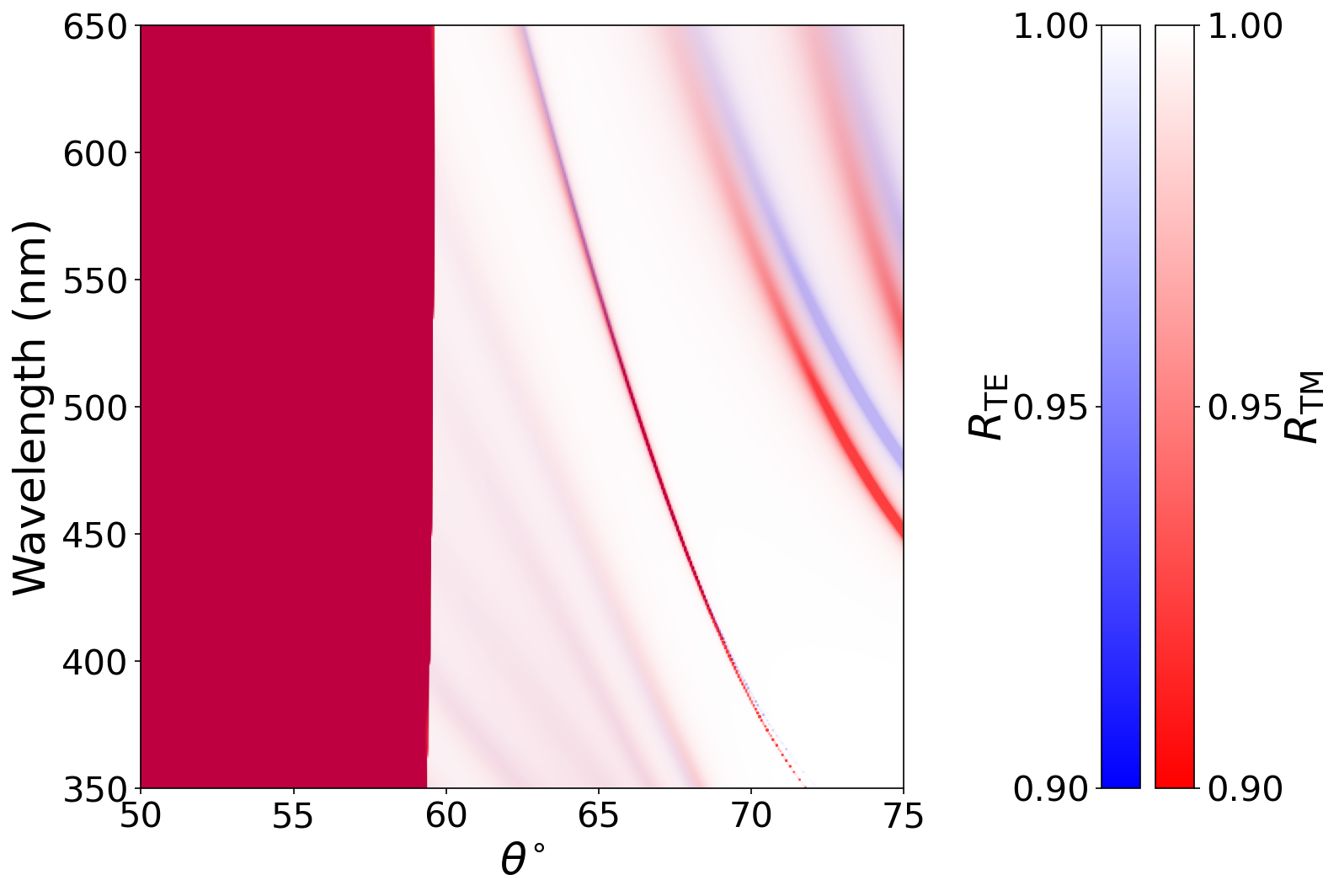

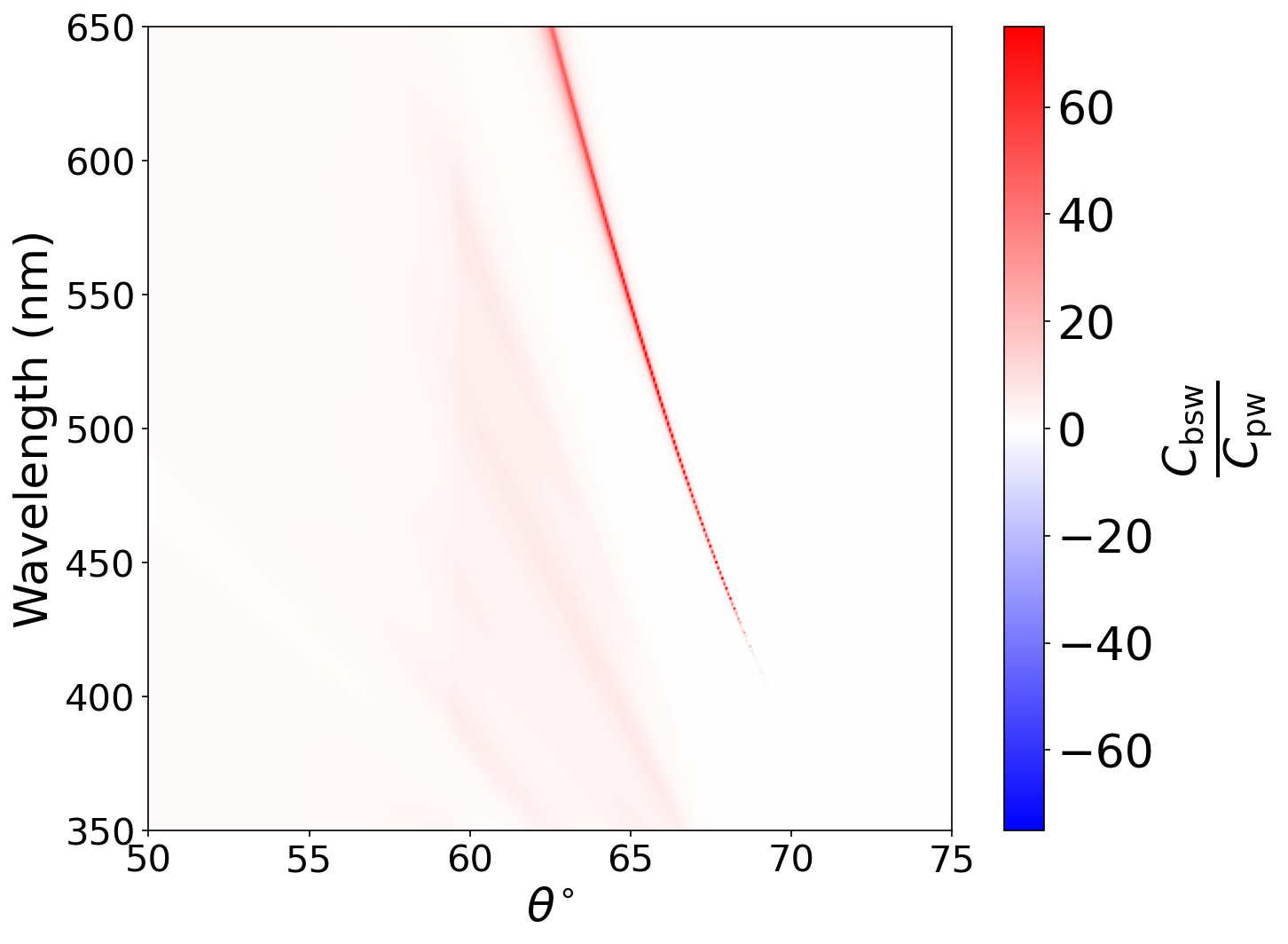

Genetically Evolved Superchiral Photonics Crystals
Dipartimento di Fisica - Università di Pavia
ICTON2023, 2-6 July 2023, Bucharest, Romania
SiO\(_{2}\)
Ta\(_{2}\)O\(_{5}\)
Genetically Evolved Organic Superchiral Photonics Crystals
Dipartimento di Fisica - Università di Pavia
Polystyrene
Cellulose
ICTON2023, 2-6 July 2023, Bucharest, Romania
Pellegrini G., Mogni E., Jil-Rostra J., Yubero F., Simone G., Fossati S., Dostálek J., Martinez Vázquez R., Osellame R., Celebrano M., Finazzi M., Biagioni P.
