• Device management + data routing, all based on nRF9160dk

• Use cases from sending temperature data, to air quality monitoring, CAN bus, Modbus, etc.

Golioth Air Quality Monitor

Features of every Golioth Reference Design:

• Secure connection (PSK or certificate authentication)
• Over the Air (OTA) firmware update
• Time-series data to cloud
• Stateful data (bi-directional)
• Fleet settings
• Remote procedure call (RPC)
• Remote logging

• Reference Design: projects.golioth.io

• Golioth DevRel: devrel@golioth.io

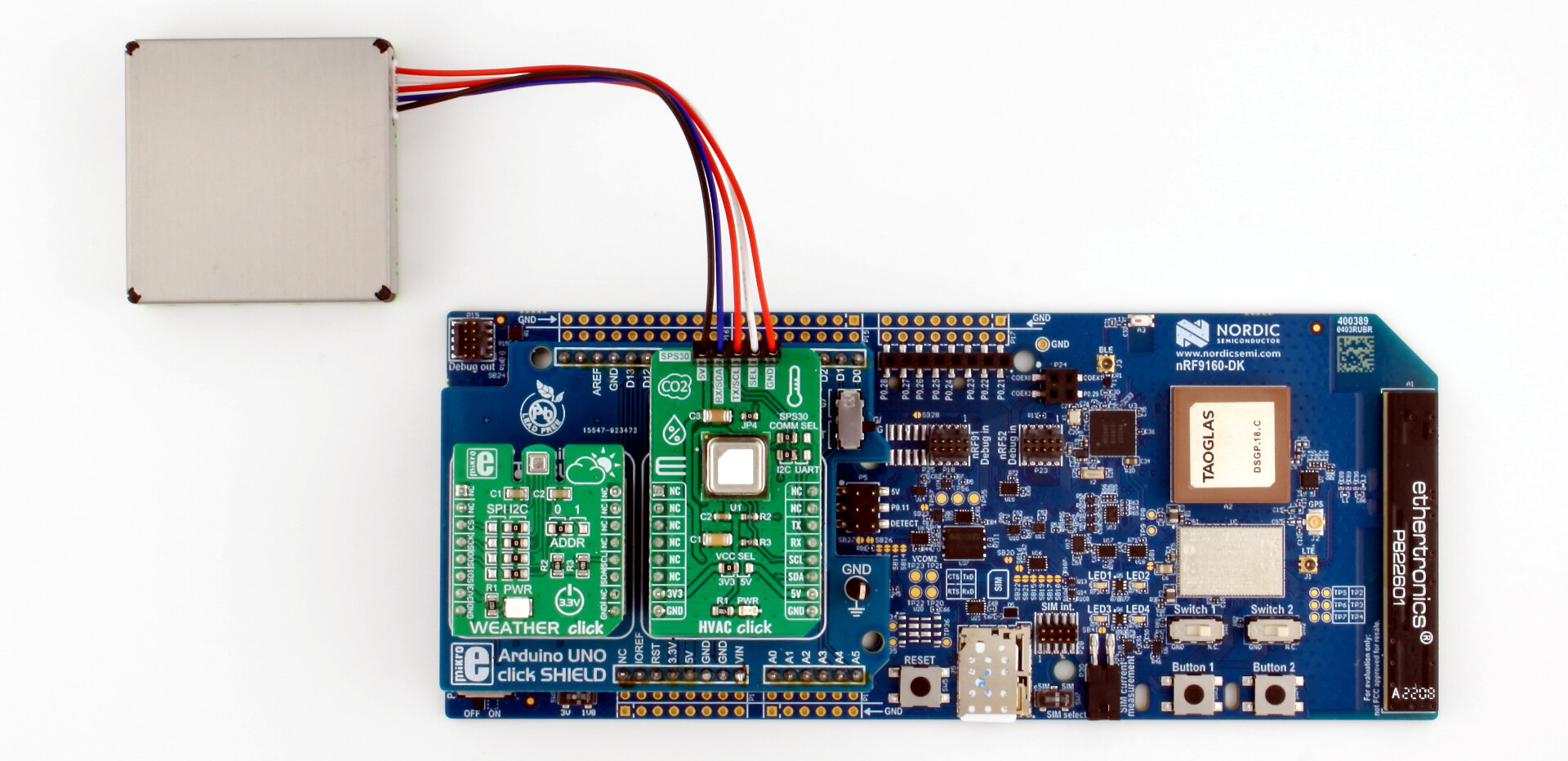

nRF9160-DK + BME280 + SCD41 + SPS30

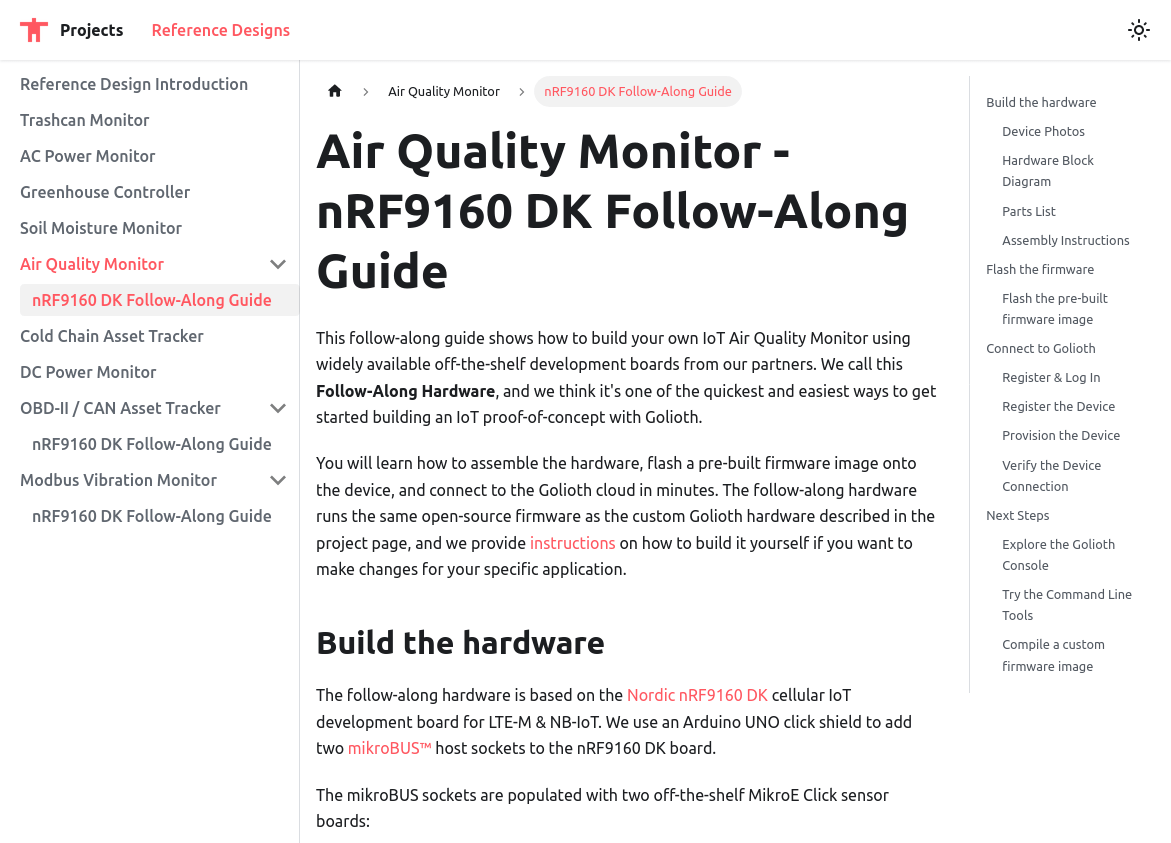

Follow the guide to setup and flash

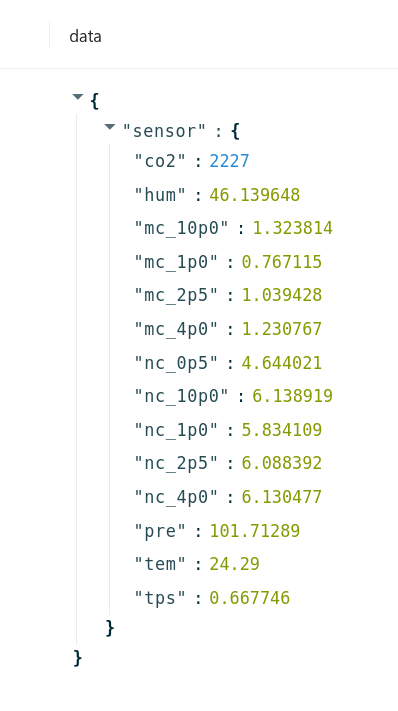

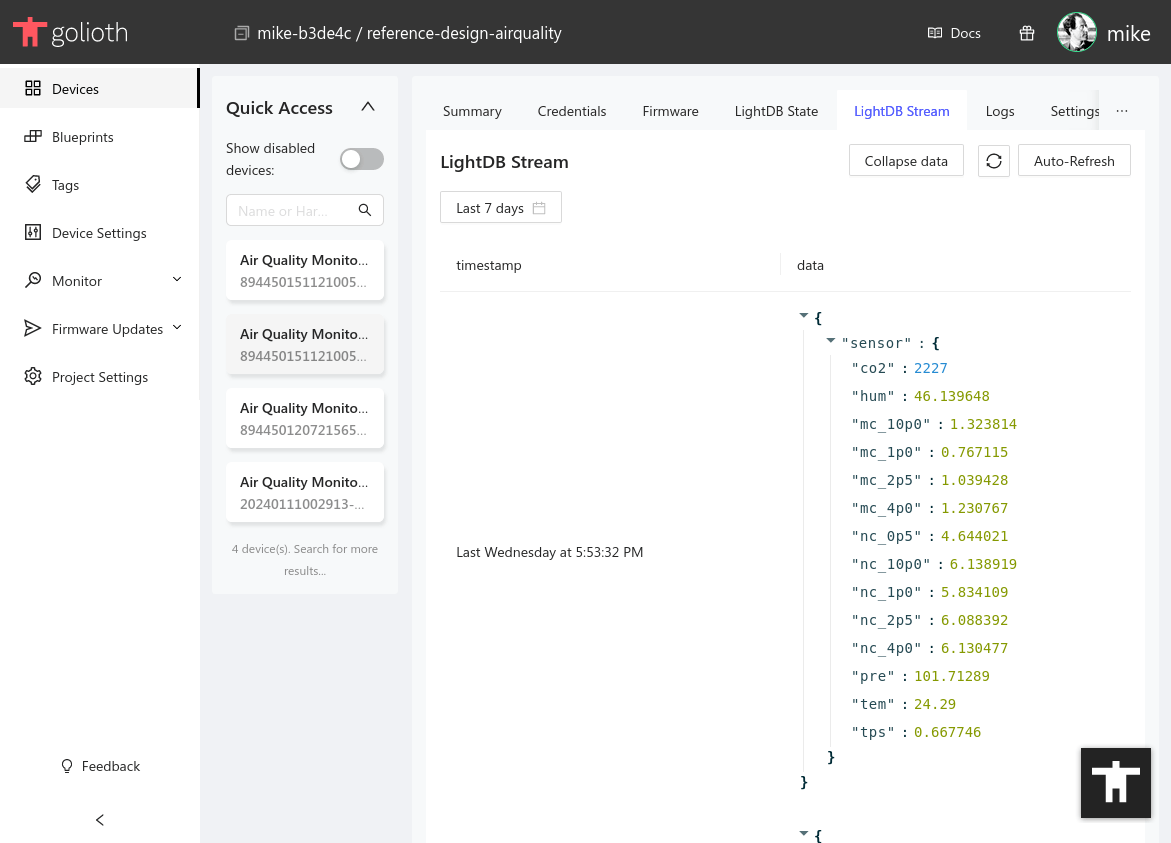

Sensor data immediately available

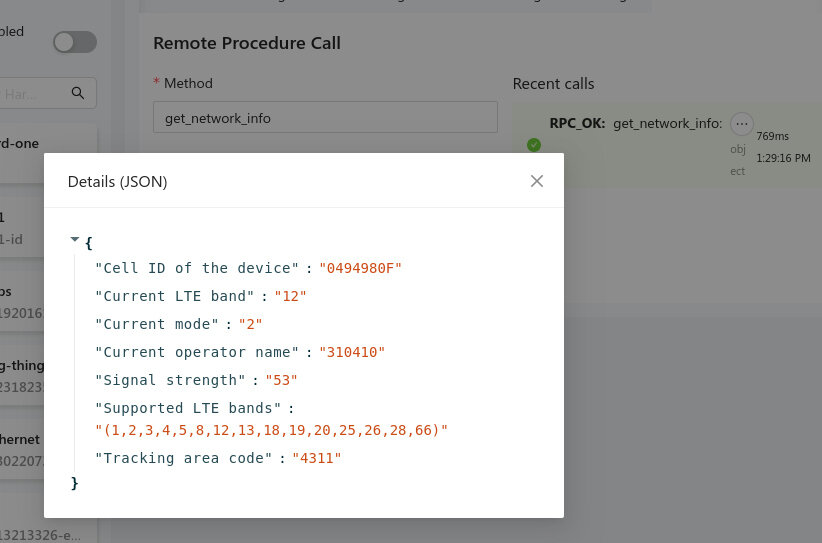

Remote procedure calls

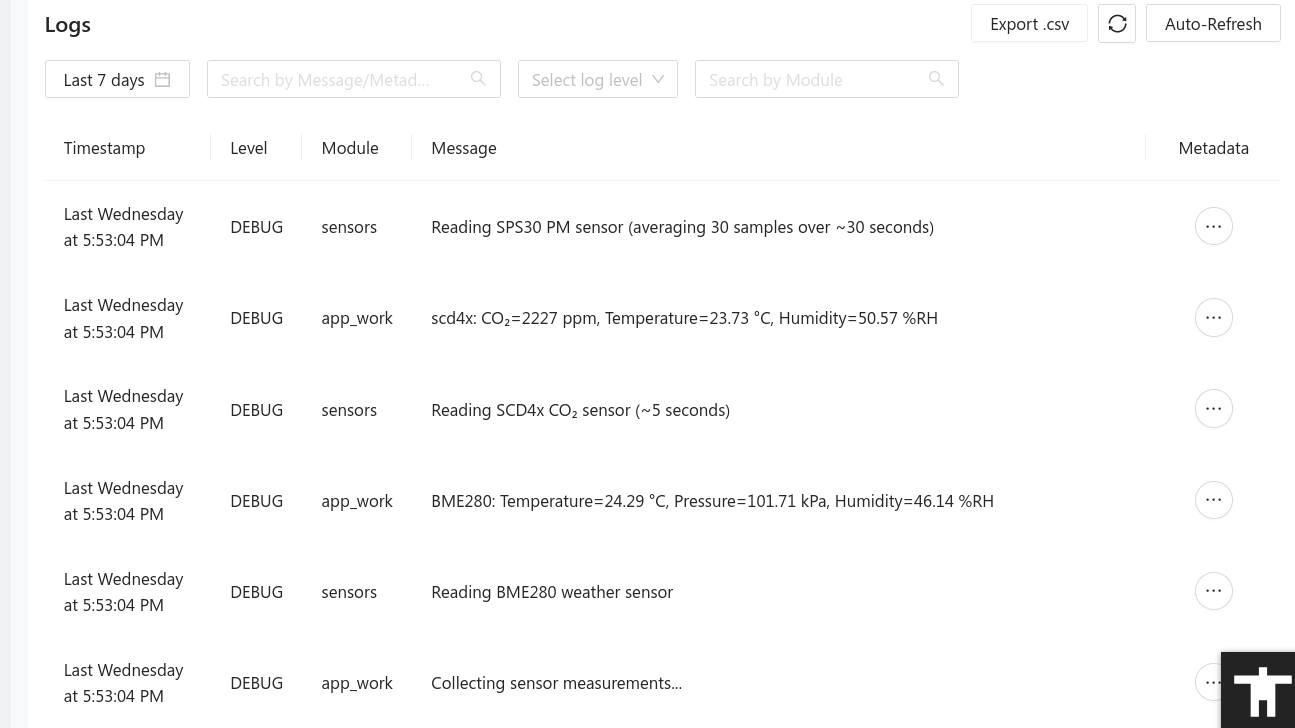

Remote logging

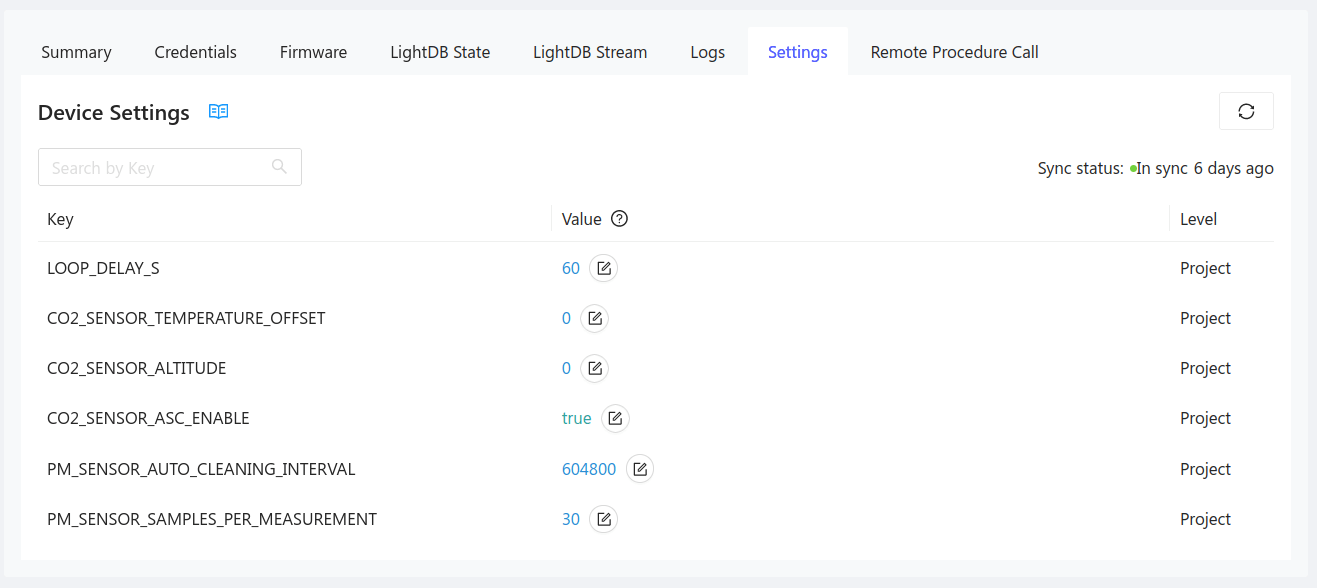

Fleet-wide settings service

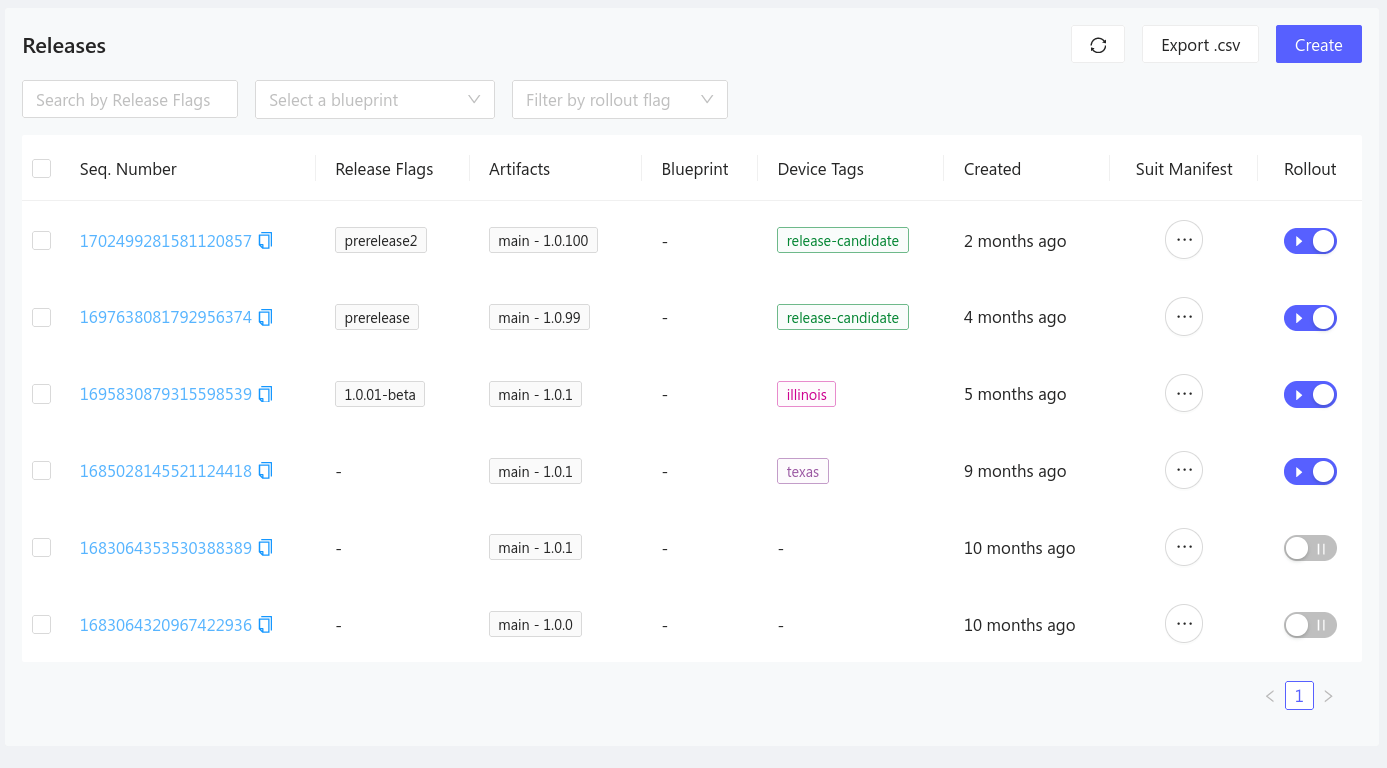

Over-the-Air Updates

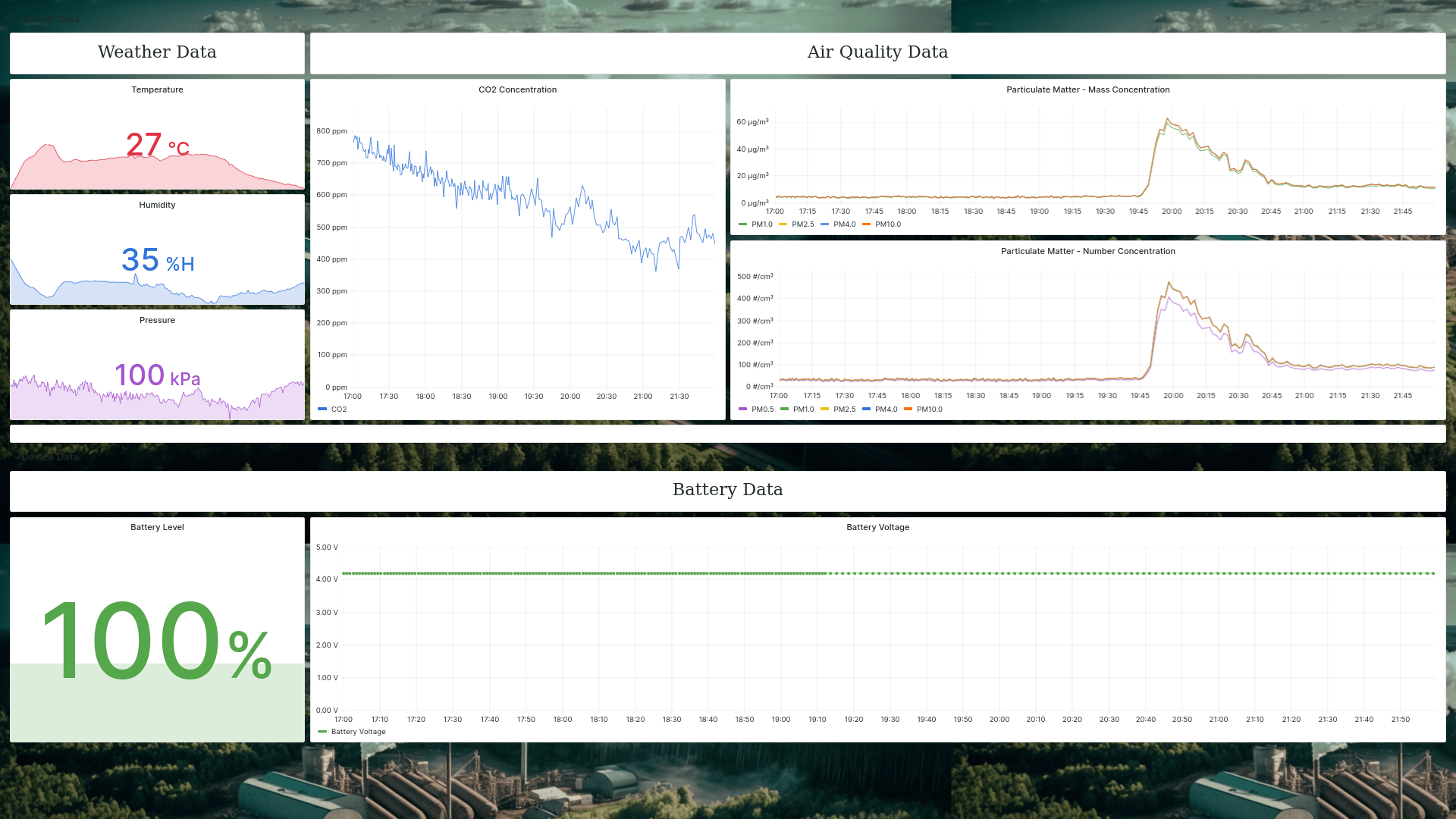

Data where you need it (Grafana for visualization)

Hardware // Firmware // Cloud

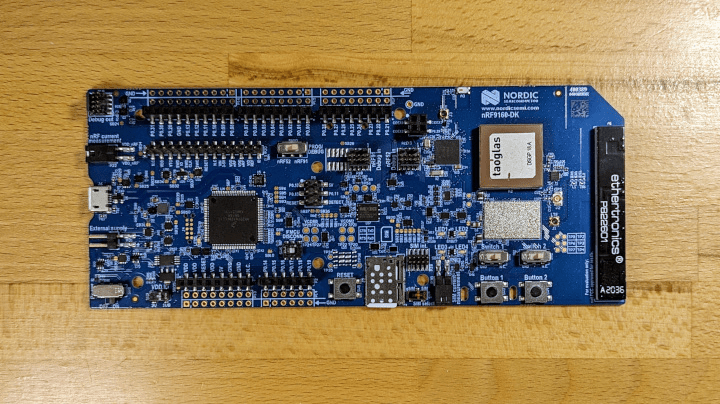

Hardware: nRF9160 Development Kit

Firmware: Reference Design Template

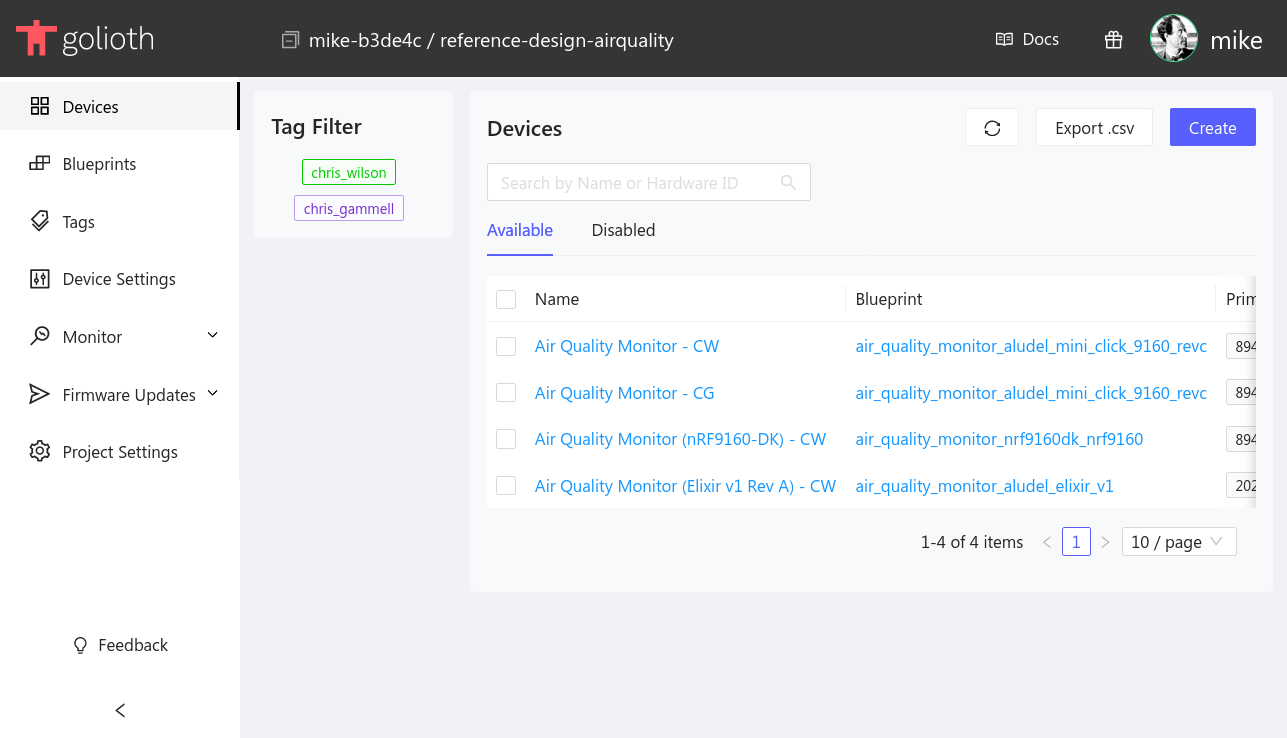

Golioth cloud: Device management and data routing

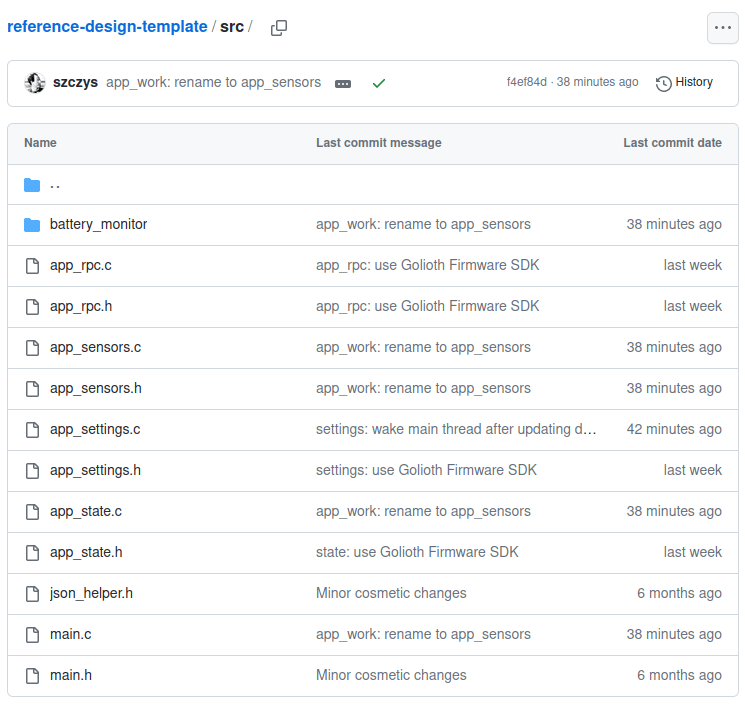

Golioth services are split into files

• Network connection: main.c
• OTA Firmware update: main.c
• Remote procedure call: app_rpc.c
• Device settings: app_settings.c
• Stateful data: app_state.c
• Time-series data: app_sensors.c

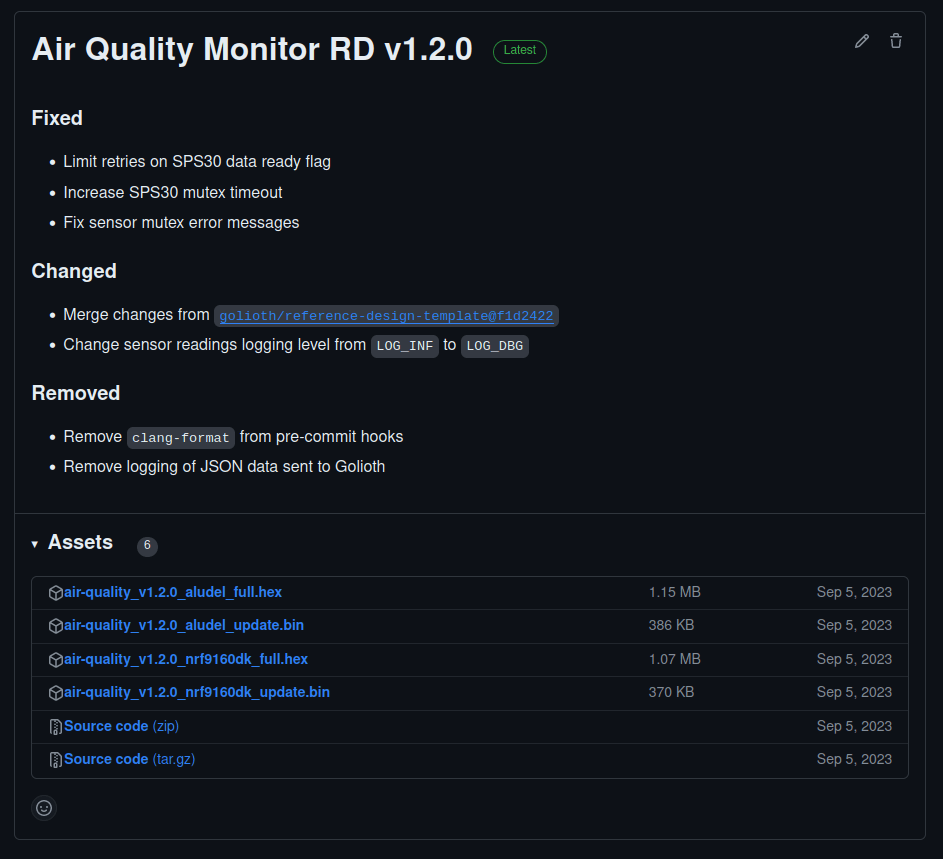

• Reference designs have pre-compiled binaries ready to run

• Golioth Reference Designs are already in the Application Index for the Noric VS Code extensions

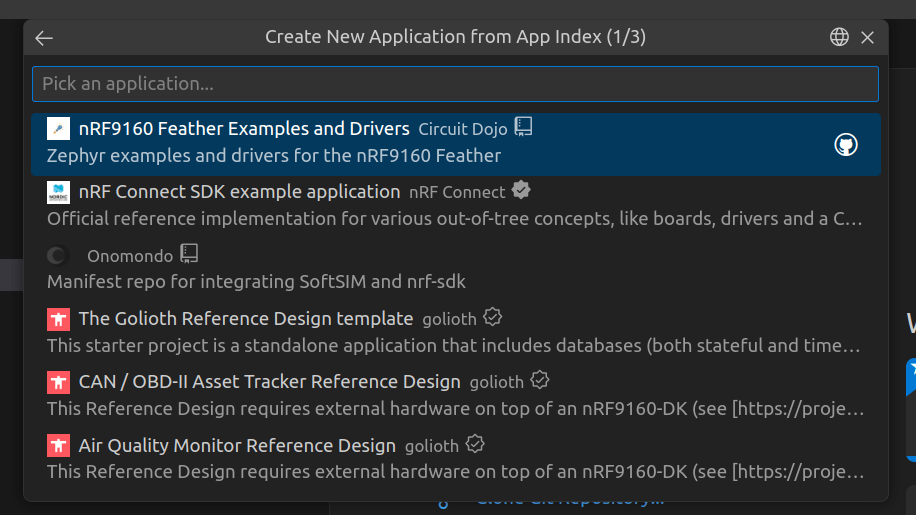

In VS Code click:

1. Create New Application
2. Browse Application Index
3. The Golioth Reference Design Template

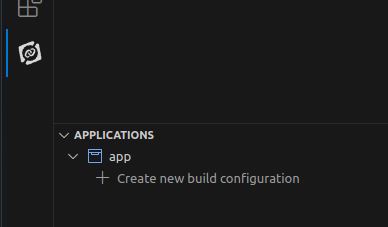

Add a build configuration

1. Click the nRF Connect button
2. Look for the Applications section
3. Click on: Create New Build Configuration

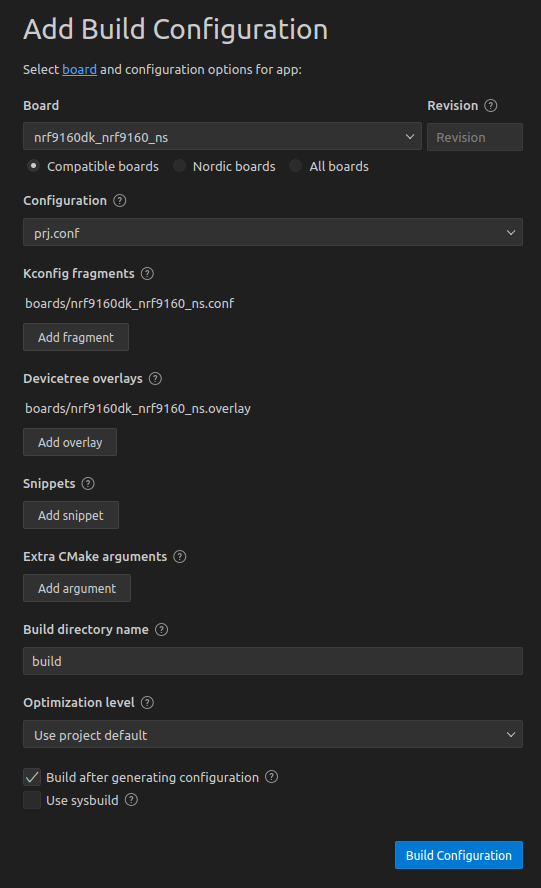

Build Configuration

1. Board:
   nrf9160dk_nrf9160_ns
2. Configuration:
   prj.conf
3. Kconfig fragments:
   boards/nrf9160dk_nrf9160_ns.conf
4. Devicetree overlays:
   boards/nrf9160dk_nrf9160_ns.overlay
5. Click: Build Configuration

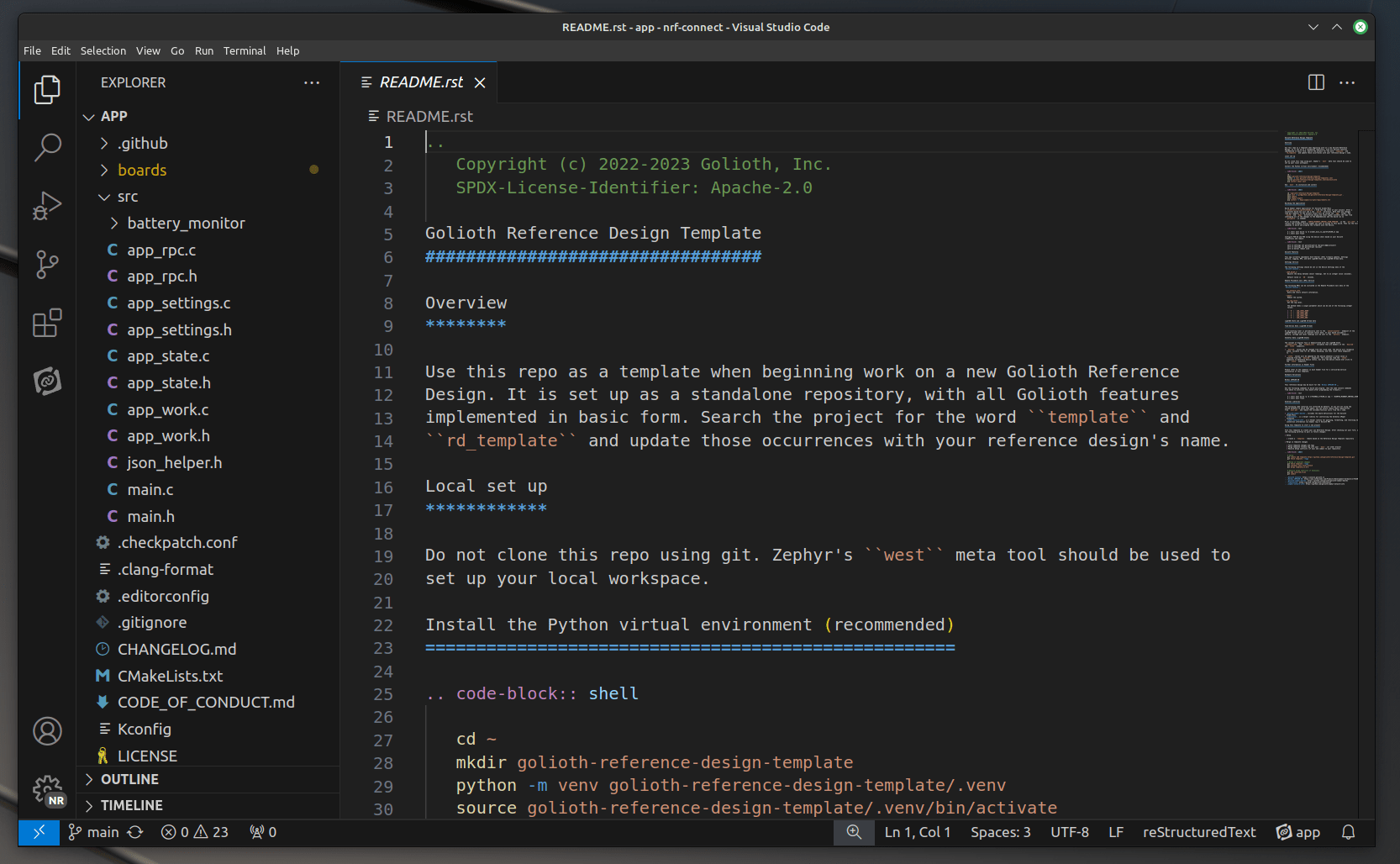

Reference Design build environment in VS Code is ready to use

Basing project on the

Reference Design Template

1. All reference designs may be forked
   • Automatically have a common history
2. Remove .git folder from app directory and start a new repo
   • Add the reference design repo as a remote for option to merge  future upstream changes

• Showcase: projects.golioth.io

• Golioth web console: console.golioth.io

• Golioth pricing: golioth.io/pricing

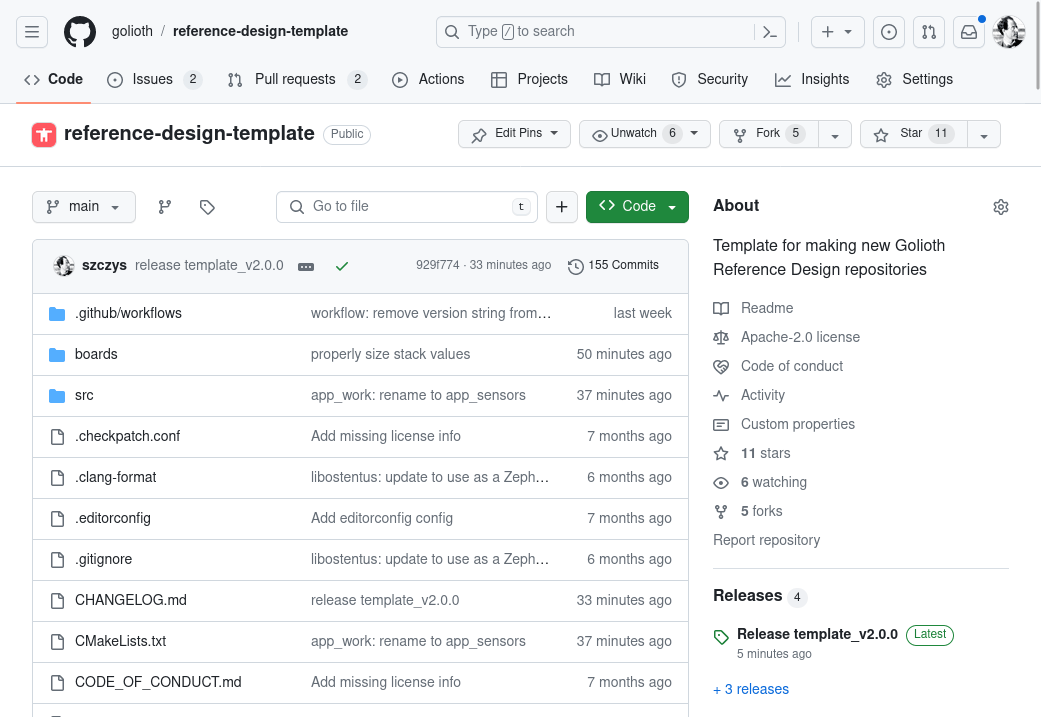

• Reference Design Template:
  https://github.com/golioth/reference-design-template

• Golioth is running some new experiments related to Bluetooth. We'd love to talk to FAEs about needs!
