ME & EXPECTATIONS

agent able to imitate and have human-like conversations that may result in the execution of actions

What is a bot

productivity tools, automate tasks, book flights, get recommendations, find restaurants, personal assistant, customer service, etc

MANY UseLESS cases IN DIFFERENT DOMAINS

JUST ANOTHER PRESENTATION LAYER...

...WITH A Natural User Experience

• Natural Language
• Known Tools (no new apps)

No need to learn anything new

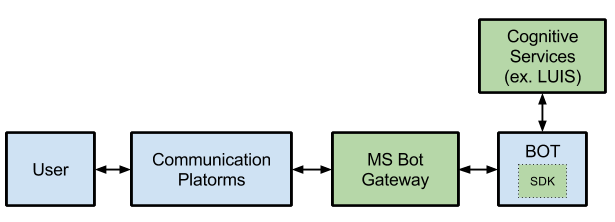

Overall architecture

ARCHITECTURE: Adapter

• Speech To Text
• Spell Check
• Input normalization
• Authorization
• Analytics
  • Language detection
  • Sentiment analysis
  • Language style (formal, informal, slang, ...)

ex. "ber mifatura"

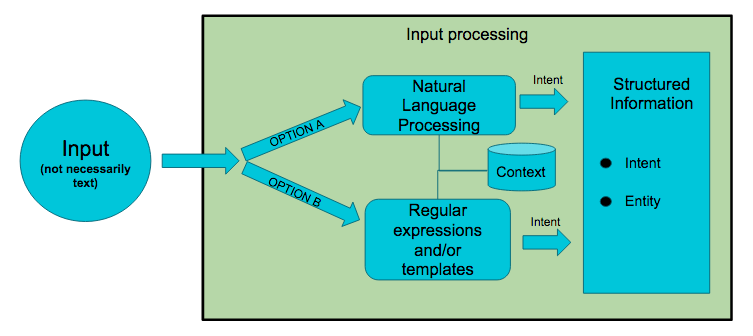

ARCHITECTURE: Input processing

extract intent + entities

a. Regular expressions

robot.respond /switch off the (.*)/i, (res) ->
    device = res.match[1]
    if device is "television"
	// do something with intent “switch off” and
        // entity “television”
    else
	// do something else

a. TEMPLATES / AIML / ...

<aiml>
<category>
    <pattern>WHAT ARE YOU</pattern>
    <template>
        <think><set name="topic">Me</set></think>
        I am the latest result in artificial intelligence.
    </template>
</category>
</aiml>

B. Natural Language Processing (NPL)

"Ey bot, switch off the television"

intent: turn_off_device
entities: [device = television]

model trained

with a "large" data set

NLP cloud players

• Microsoft · https://luis.ai
  (Language Understanding Intelligent Service)
• Facebook · https://wit.ai
• Google · https://api.ai
• IBM Watson
• Also related:
  • Siri (Apple)
  • Alexa (Amazon)
  • Cortana (Microsoft)

LUIS DEMO

1. Create LUIS app
2. Define intents and entities
3. Train
4. Publish app

• Retrieval-based (tree, if/else)
  • Boring UX
  • No grammatical mistakes

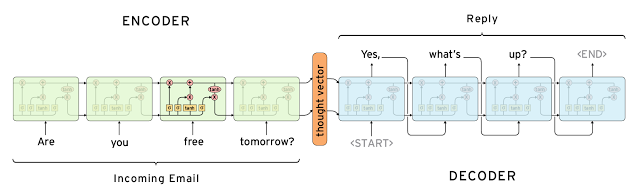

• Generational (machine translation, deep learning)

ARCHITECTURE: OUTPUT GENERATION

"A Neural Conversational Model", Google 2015

Challenges

• Add facts.
• Reasoning, inferences.
• Integrate knowledge in the conversation.

ARCHITECTURE: Context !

- Who is the president of the US?

- Donald Trump

- How old is he?

pros

Multichannel support

SDK available in node.js / .net

Support from microsoft

Cognitive Services suite

cons

Additional network element

Always doing catch up

REGISTER

DEVELOP
DEPLOY

const restify = require('restify');
const builder = require('botbuilder');

// Setup HTTP Server
let server = restify.createServer();
server.listen(8080, () => {
   console.log('server listening');
});

// Create chat bot
let connector = new builder.ChatConnector({
    appId: process.env.MICROSOFT_APP_ID,
    appPassword: process.env.MICROSOFT_APP_PASSWORD
});
let bot = new builder.UniversalBot(connector);
server.post('/api/messages', connector.listen());

// Add dialogs
bot.dialog('/', (session) => {
    session.send("Hello World");
});

http server + dialogs

Limitations

• No Context.
• Still retrieval-based responses (tree).
• Difficult to work in parallel
• No CLI training tools
• No voice support

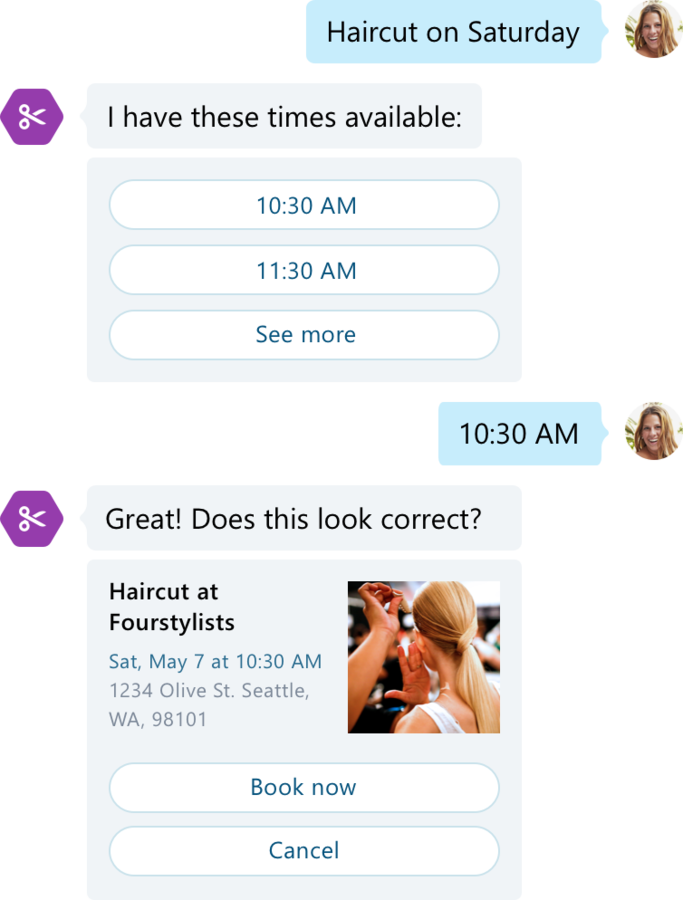

• Limited multimedia tooling
• No automatic language detection
• HTTP server management

THIN LAYER ON TOP OF MS BOT FRAMEWORK

Optional

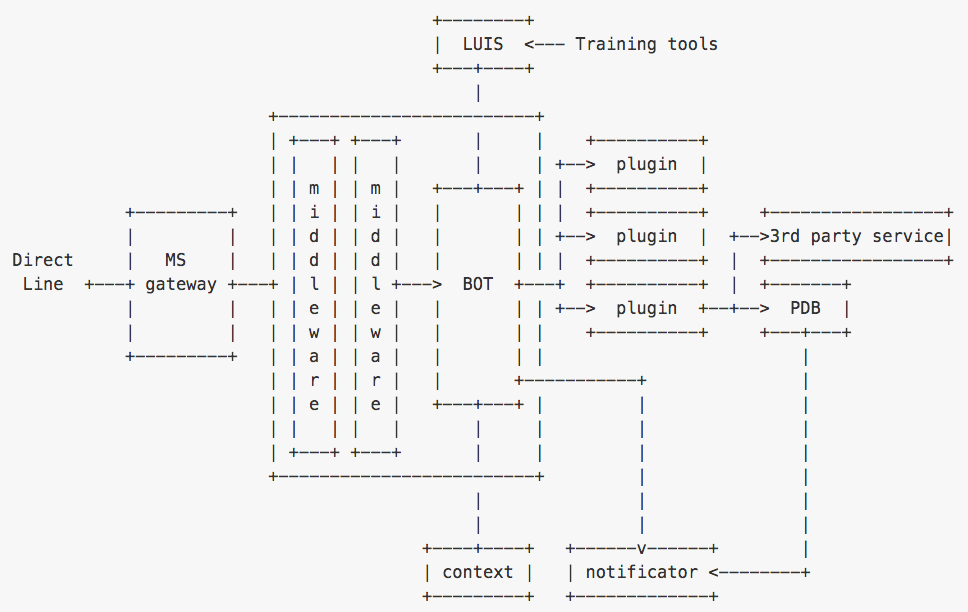

Architecture

• Plugin mechanism
• Predefined set of middlewares
  • Language detection
  • Audio support
  • Slack integration
• Multimedia support (audio / images) integrated with S3
• Training tools
• MS Bot SDK extensions
  • Break dialogs/prompts anytime.
• Support from TDAF Team :)

COMES WITH some benefits

DEMO

build a bot FROM A SEED PROJECT

git clone git@github.com/Telefonica/seed-bot.git
cd seed-bot

npm login # request access to tdaf@tid.es
npm install
npm run dev

https://github.com/Telefonica/seed-bot

build a bot FROM SCRATCH

import { Bot, BotConsoleRunner } from '@telefonica/bot-core';

const bot = new Bot({
    plugins: [ 'bot-plugin-helloworld' ],
    modelMapSet: [{
        'en-us': 'your-luis-app-url'
    }];
});

new BotConsoleRunner({ bot }).start();

Create a plugin

import { BotBuilder } from '@telefonica/bot-core';

let plugin = new BotBuilder.Library('notes');

plugin.dialog('builtin.intent.note.create', create);

function create(session: BotBuilder.Session) {
    session.endDialog('Note created');
}

export default plugin;

Future ideas

• From DB to Knowledge Graph
• Stream processing
• Delegate conversation to other bots/people
• Understand different inputs: images, positions, etc
• Improve multilanguage support
• Understand negative sentences

Rufus - es_un - perro
perro - numero_patas - 4

Knowledge Base: RDF, SPARQL

SELECT *
WHERE {
    Rufus es_un ?animal .
    ?animal numero_patas ?patas .
}

- Cuántas patas tiene Rufus?

- 4

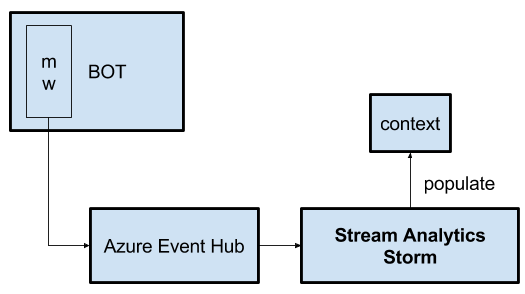

STREAM PROCESSING

Sentiment Analysis, Language Classification
