👋🏾 Hi there,

I'm Karthick.

Featured on the NASDAQ tower during the bell-ringing ceremony*

My Responsibilities 👨🏾‍💻

• Owned Infra @ (Marketing automation Suite)
• Improving Engineering Productivity
• Improve Infra Security/Scalability/HA/Reliability/Resilience
• Involve in System Design
• AWS Cost Budgeting & Capacity Planning
• Production Uptime - Maintaining SLA/SLO, Define RTO/RPO, RCA/PostMortem & Post-Incident Handling.
• Manage and Mentor 3 SRE Engineers

Timeline⏳

• Jul 2016: Full-Stack Engineer @ Zarget - 10th Engineer
• Oct 2016: Saw Opportunity: Started Integration Team
• Aug 2017: Got Acquired by Freshworks
  • Rebranded Zarget to Freshmarketer
• Dec 2017: Saw Opportunity: Dev -> DevOps/SRE
• First tasks: Rewrote Gradle tasks, introduced hot-swap, Improved Build time, Setup a new AWS Staging account.
• Apr 2018: Gave my first tech talk on DevOps in Vietnam.
• Rest is history!!!

Why I left Freshworks? 💔

✈️

Why ?

• Startup -> Mid-Market -> Enterprise??
• Job Fit
  • DevOps, CI/CD, Jenkins, Secret Mgt, Container Registry
  • AWS, Docker, Kubernetes
  • Scripting with Python, BASH
  • Tomcat/Gretty(jetty), Gradle, Nginx, Chef, Github
• Culture Fit
  • Continuous Improvement and the Pursuit of Excellence
  • Respect and Invest
  • Rational Workplace

  • Learning and Self-Improvement

  • Credibility and Integrity

What am I looking in my new role?

• Freedom to explore Multiple Technologies.
• Career is like a Tripod
  • Solve interesting challenges (Happy work)
  • Career growth/promotion
  • Compensation, Rewards/Recognition

    All three need to be balanced for stability

Let's talk tech!

Project: Simplifying DB Migration with FlywayDB

The Problem? 😩

• Tale of Manual DB Migration - Incident
• No track, if migration has been applied/not.
• Migration files were spread out!!
• What about Data Migration?

Ways to Solve? 💡

What is FlywayDB ? 🤩

• Open source tool to manage DB migration
• Conventions over Configuration
• Supports Plain SQL/Java-based Migration.
• 6 Major commands: Info, Migrate, Repair, Clean, Baseline & Validate.
• Multiple & Simple Setup - gradle, maven, ANT etc.

Our use-case? 🤔

• Usually, Contain DDL Statements
• Or Reference data, data fixes
  • Did we change the country code (or currency) table in this machine?
• Use JDBC code for complex migration
  • Not Checksummed by default, unlike SQL migration.

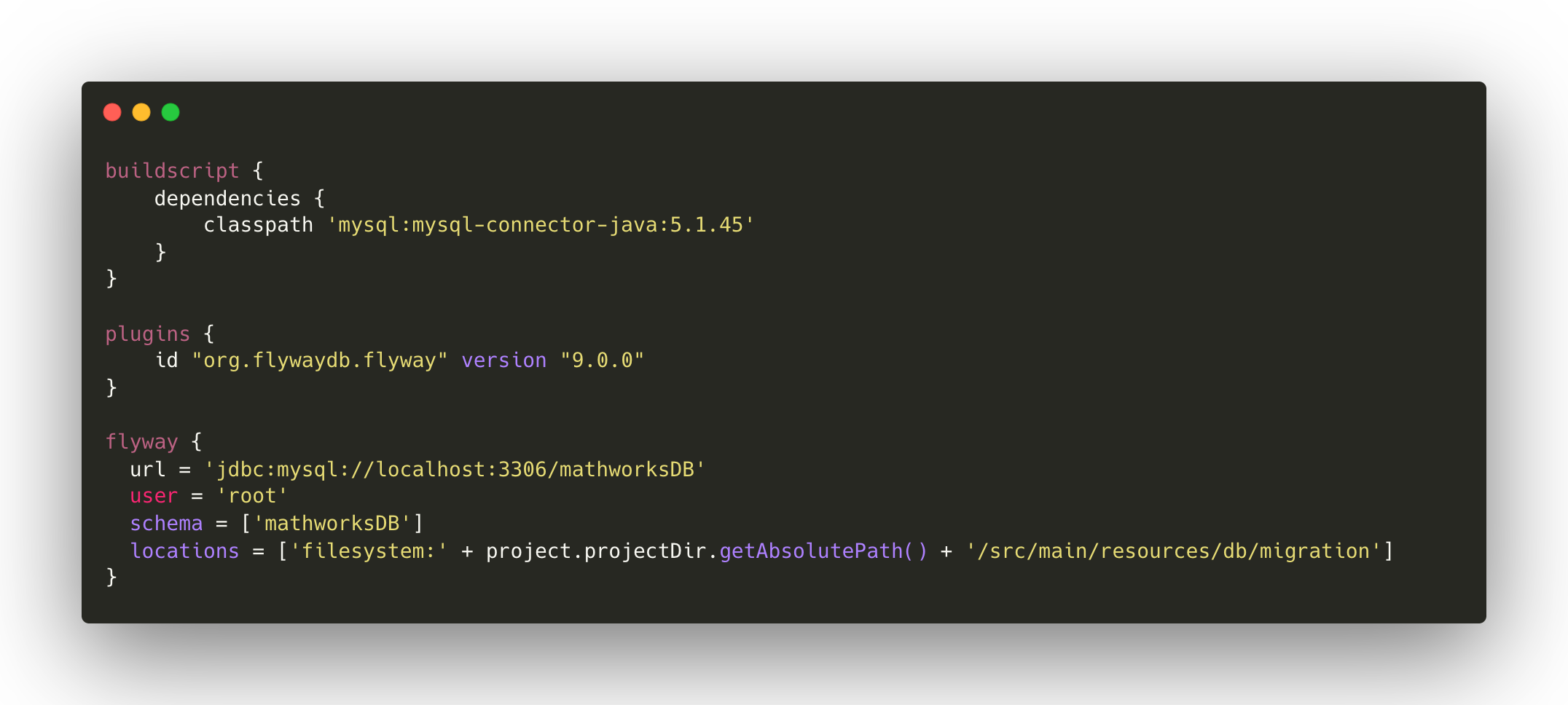

build.gradle

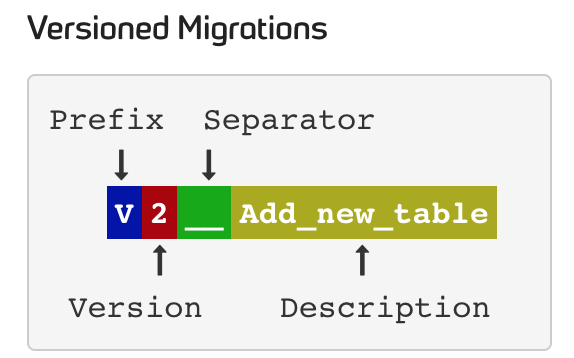

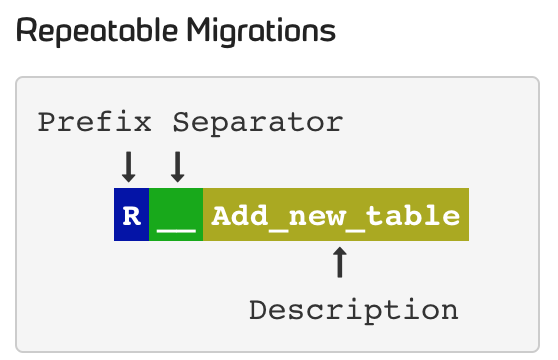

Naming Conventions

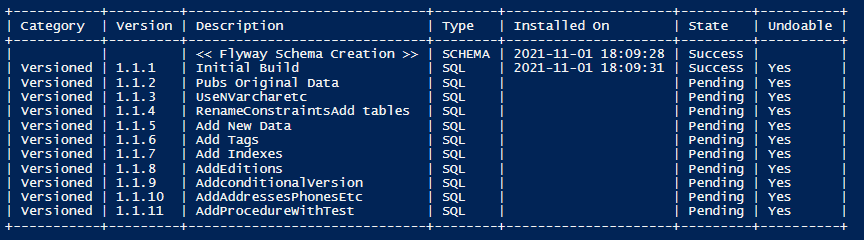

FlywayInfo Meta table

The Challenges? 😵‍💫

1. Working with Maintenance Branch.
2. Working with Feature Branch.
3. Working with Lots of Migrations.

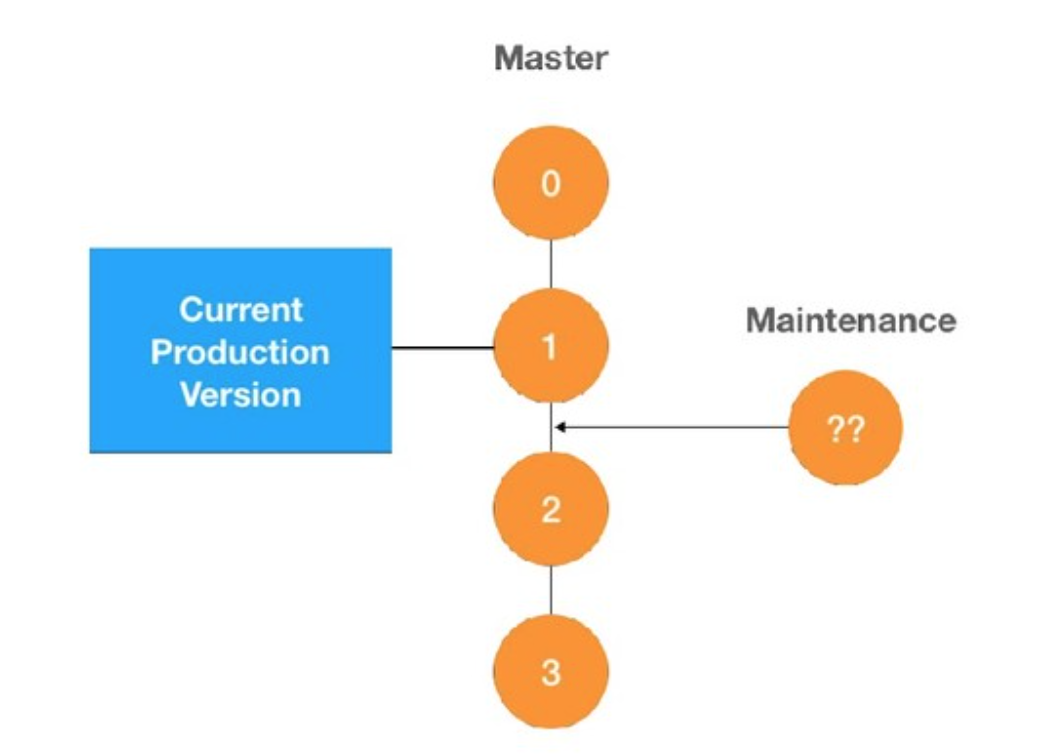

#1: Working with Maintenance Branches

• DB Prod Schema evolves linearly.
• Ensure maintenance migrations happen before migrations belonging to later releases.
• Use major.minor version scheme for maintenance
  • V1.1 comes after V1 but before V2.
  • In practice:
    V001_01__increase_comment_size.sql

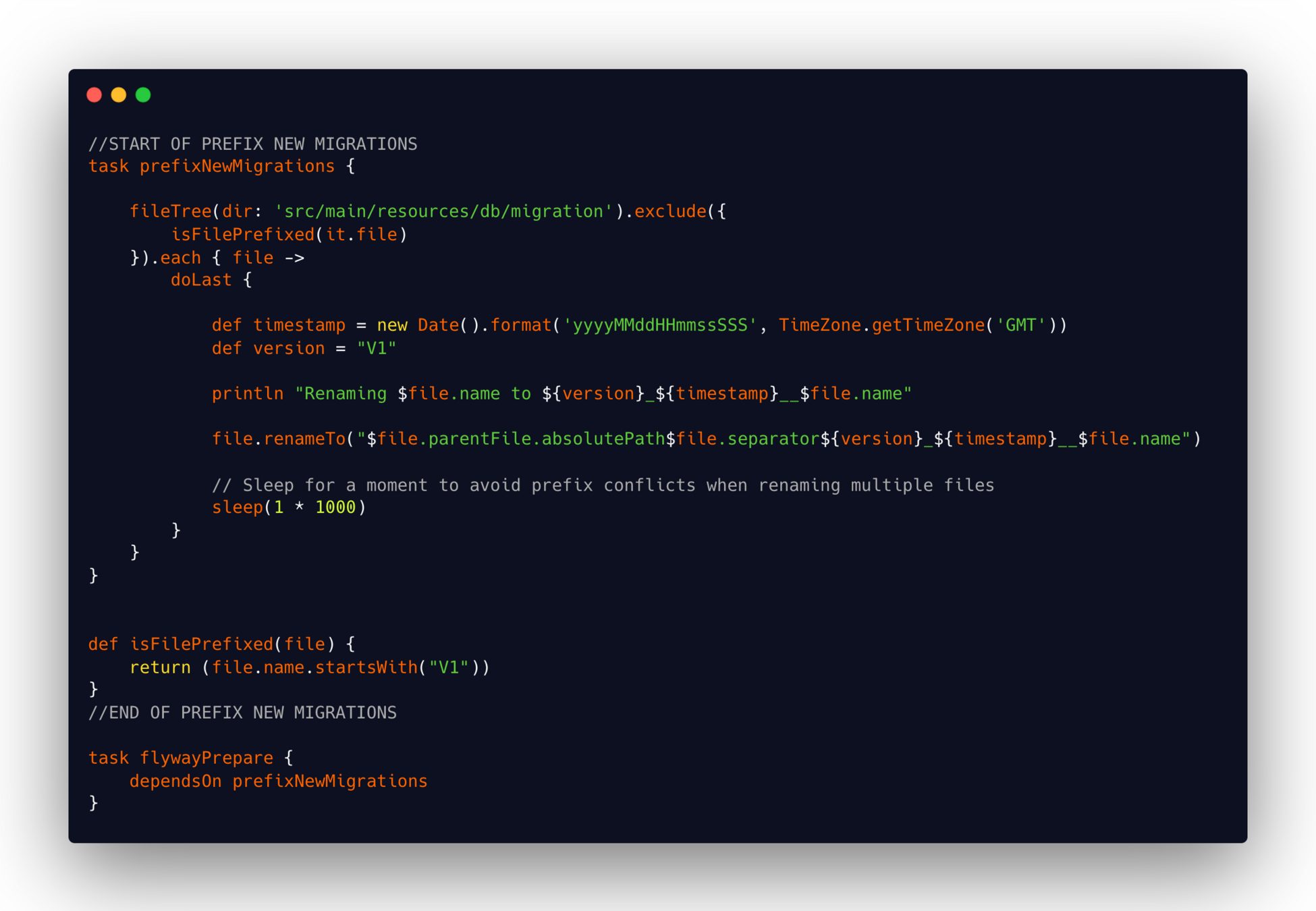

#2: Working with Feature Branches

#3: Working with Lots of Migrations

• Squashing Migrations
• Squash all applied migrations to one or two files
  • DDL + Reference Data
• Use baseline command​​​​​​
  gradle flywaybaseline -Dflyway.baselineVersion= <version>

What happened next?

Was invited to Vietnam to deliver a talk on FlywayDB.

"Engineering Award" During All hands

Many teams in Freshworks adopted FlywayDB

But.

All happy stories has a twist! 😵

~2.5years later...

The Incident 🤯

• QA deleted the flyway_schema_history table instead of dropping it to baseline. - Software Malfunction.
• During Squash migration - The schema dump init migration contained:

  DROP TABLE IF EXISTS table1;

• Tables started dropping off from Production. ☠️
• PagerDuty Alerts bombarded.
• Force-Set ALB rule to show Maintenance message.
• Used Point-in-time-recovery (PITR) immediately to restore DB to the time just before the incident.
• It took 2.5 hours to recover - Partial Downtime 😞

Friday 8:00 PM

"Incidents like these do happen; that's fine. But why did it take 2.5 hours to recover a DB?"

- Senior Director of Engineering

Lessons and Action items:

• Upgraded Flyway to the latest version. (the issue was resolved in latest version)
  • Maintained a list of all the dependencies/frameworks we use and upgraded whichever was required. Quarterly Audit.
• Introduced Delayed Read-Replica in RDS. (DB Recovery can be made < 5 minutes)

  • call mysql.rds_set_source_delay (3600); //1hour

• Enforce Idempotent Scripts
  • All PR containing migration files will automatically include SREs for review.
• No Late Deployments
  • Deployments on Tue & Thur < 4 PM - so Devs can look into them in case of post-deployment issues.
• FlywayInfo - The script will run this before running the migration.
• Created a new RDS user without DROP privileges.

The Good Stuff!

• PagerDuty (Datadog Integration) was in place to alert on time. ✅
• Enabled Cloudwatch logging in RDS that showed us what caused this issue. ✅
• Automatic Snapshot/ PITR was in place. ✅
• Configured Internal DNS for RDS Endpoints - Switching endpoints was easy. ✅

Project: Migrating Microservices to EKS

Architecture

Execution

Plan

• List the microservices to be split from the monolith

• Created a separate GitHub repository, separating all dependencies

• Made Action Items with mini milestones:

  • Create a new VPC - in parallel to existing

    • Multi NAT

    • DR subnets

    • Public & Private subnets in at least 3 AZ

  • Dockerizing Containers (Write Dockerfile)

  • VPC peering with Platform Services **

  • Moving Secrets to AWS Secret Manager

  • Create ECR Repo for each microservices

  • Setting up Codebuild - Wrote buildSpec.yml

    • Push Commit hash along with the "latest" tag to identify the revision

  • Setup EKS Cluster and configure Nodegroups

  • Install Istio to the k8s cluster and attach ALB.

• Moved all microservices to EKS on Staging. Requested QA to use the setup for a month and raise issues.

  • Most issues related to - VPC peering with platform services

• We are in 4 regions

  • US-east-1

  • eu-central-1

  • ap-south-1

  • ap-southeast-2

• We moved to one of the regions with the lowest traffic.

• Later, we slowly migrated to other regions. At last, we migrated our primary region(US) to EKS.

• Train QA & Dev

• Provide Documentation on Deployment (B/G, scaling etc)

• Provide access for Devs to the EKS cluster.

• KT session on using the platform introduced tools like the "lens" (Fav ❤️) and k9s to view the k8s cluster without using the command line.

Execution

Plan

(continued...)

Mathworks | April 11, 2023
