Streaming Applications

with

geekcamp Indonesia - 15 July 2017

About Me

Senior Software Engineer at Citadel Technology Solutions

Currently working in:
- Scala
- Kotlin

Currently 'spiking' in:
- Elixir
- Elm
- Dart

Giving back to the community:
- OSS project maintainer
- Singapore Scala Meetup group organiser
- Engineers.SG volunteer

_hhandoko

hhandoko

hhandoko.com

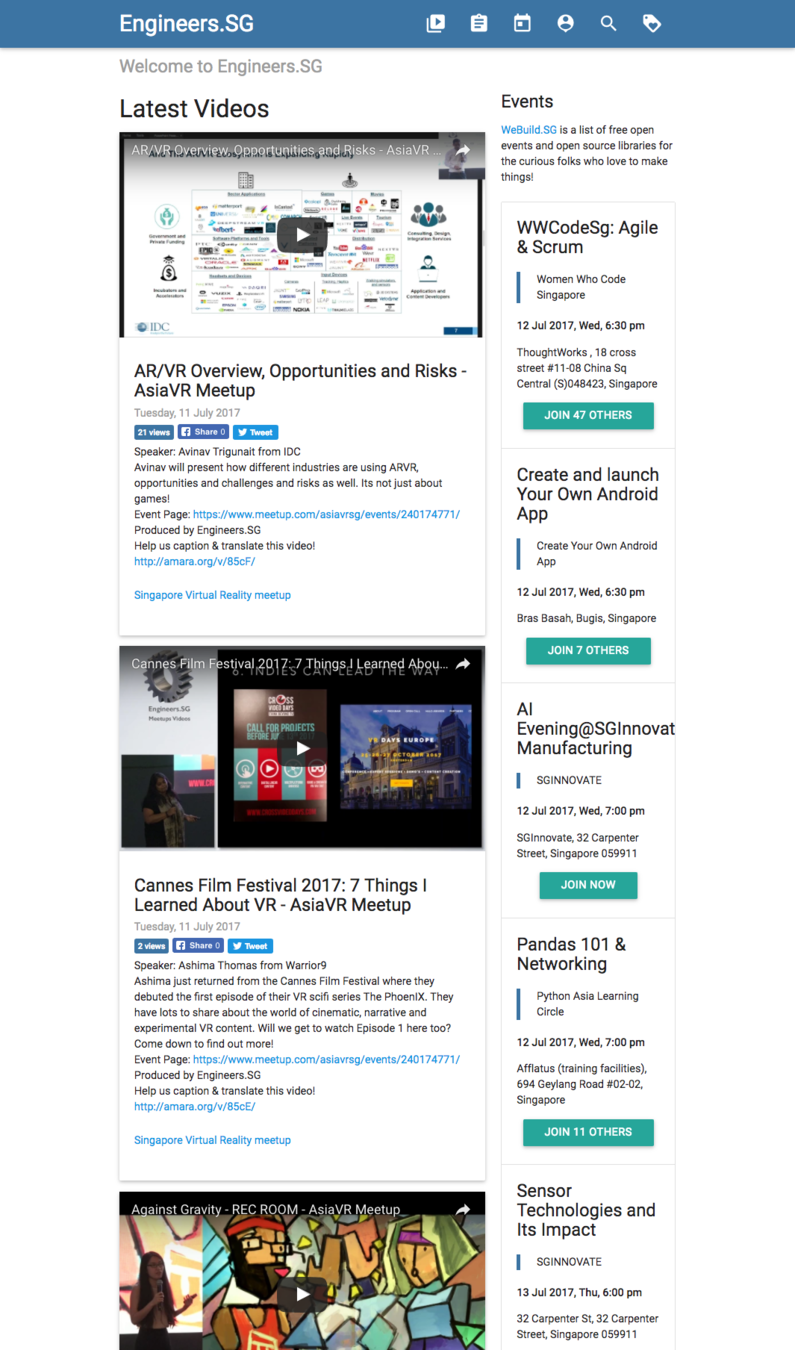

Engineers.SG

Community initiative to help document Singapore's tech and startup scene

1800+ videos of local Meetups, conferences, and other developer events

Support Michael on Patreon!
https://www.patreon.com/coderkungfu

Who? What?

[1] - https://twitter.com/FoodsTiny/status/881285040805687297

Target Audience

Anyone interested in streaming applications or stream processing:
- Developers
- Solutions Architect
- Product Managers
- etc.

Helpful to have some programming experience, but no prior Scala or Akka knowledge necessary

Agenda and Objectives

Let's agree on some terms and definitions...

What problems are streaming applications solving?

What can Akka offer stream processing?

Show me the money! (or just a demo...)

What else is out there?

Do you mean...?

[1] - https://twitter.com/FoodsTiny/status/879040293084987393

Streams

A sequence of data elements made available over time

Processed differently from batch data

Streams are codata (potentially unlimited / infinite)

Streams are everywhere:
- Event streams
- Real-time metrics
- Streaming media
- etc.

[1] - https://en.wikipedia.org/wiki/Stream_(computing)

Stream Processing

"Given a sequence of data (a stream), a series of operations is applied to each element in the stream."

A computer programming paradigm:
- Dataflow programming
- Event stream processing
- Reactive programming

Think about how map operation works against a collection

[1] - https://en.wikipedia.org/wiki/Stream_processing

Streaming (Data) Application

"A non-hard real-time system that makes its data available at the moment a client application needs it."

[1] - Psaltis, A.G., 2017, Streaming Data, Manning Publishing, pp.8-9

Fast Data

"Depending on use types, the speed at which organizations can convert data into insight and then to action is considered just as critical as the ability to leverage big data, if not more so. In fact, more than half (54%) of respondents stated that they consider leveraging fast data to be more important than leveraging big data."

Big Data

[1] - https://www.capgemini.com/thought-leadership/big-fast-data-the-rise-of-insight-driven-business

Fast Data

Infinite / ephemeral flow

Per-element

Tactical

Proactive

Data in-motion

Big Data

Finite

Batch

Strategic

Reactive

Data at rest

and

What's all this?

[1] - https://twitter.com/FoodsTiny/status/884908920921260032

Akka

"Coarse-grained concurrency library and runtime, emphasizing actor-based concurrency with inspiration drawn from Erlang."

Actors are stateful entities which communicates via message passing:
- Concurrent and parallel
- Asynchronous and non-blocking
- Supervision and monitoring

[1] - http://doc.akka.io/docs/akka/current/scala/guide/actors-intro.html

[2] - http://doc.akka.io/docs/akka/current/scala/general/terminology.html

Actor and Streams

Actors model stream processing well:
- Receive (and send) messages
- Uses (bounded) mailbox
- Process messages sequentially

However, not without challenges:
- Buffer (and mailbox) overflows
- Wiring errors
- Hard to conceptualise flow at higher level
- Actors do not compose like normal functions

[1] - http://doc.akka.io/docs/akka/current/scala/stream/stream-introduction.html

[2] - http://tinyurl.com/AkkaStreamsNdc3

Akka Streams

Provides a way to express and run a chain of async processing steps acting on a sequence of elements

Frees developer to think about the bigger picture, composing a pipeline of functions (with actors)

Bounded resource usage via Reactive Streams
- Limit buffering
- Slow down producers if consumers cannot keep up (backpressure)

[1] - https://blog.redelastic.com/diving-into-akka-streams-2770b3aeabb0

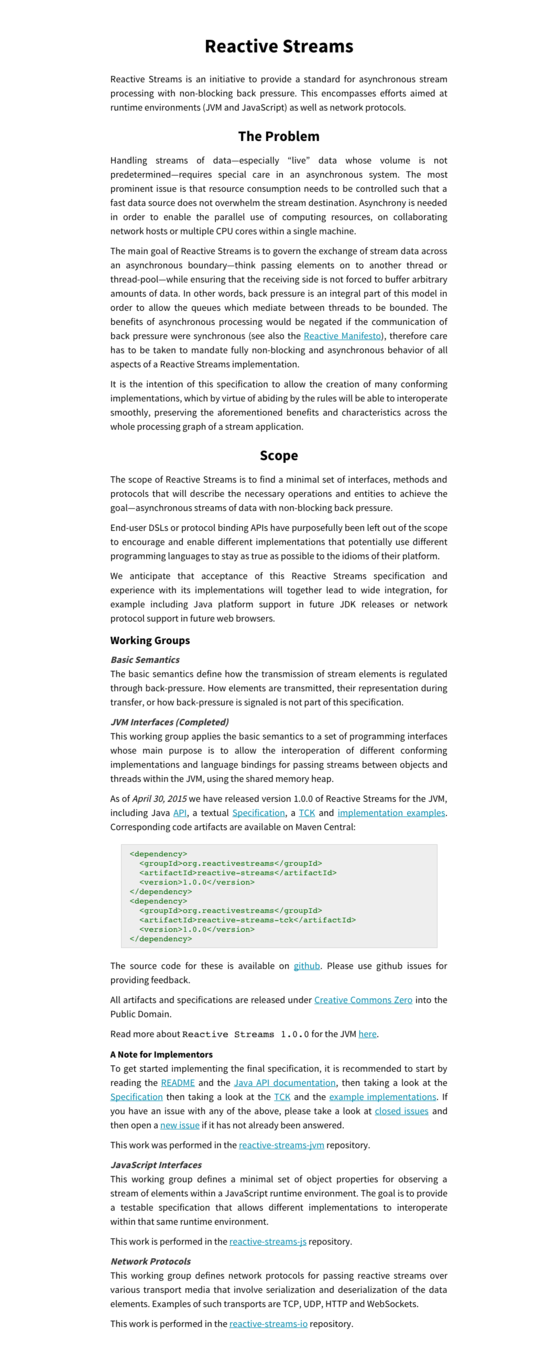

Reactive Streams

Initiative to provide a standard for async stream processing

In essence:
- Process a potentially unbounded number of elements
- in a sequence
- asynchronously passing elements between components
- with mandatory non-blocking backpressure

[1] - http://www.reactive-streams.org/

Backpressure

Signalling (notify demand to the producer)

Makes sure the publisher can give messages at the rate of the subscriber can consume

[1] - https://data-artisans.com/blog/how-flink-handles-backpressure

Akka Streams Primer

ActorSystem

A hierarchical group of actors which share common configuration, e.g. dispatchers, deployments, remote capabilities and addresses

The entry point for creating or looking up actors

[1] - http://doc.akka.io/api/akka/2.5.3/akka/actor/ActorSystem.html

Materializer

The magic behind the scenes

Converts a list of akka.stream.scaladsl.Flow into org.reactivestreams.Processor instances

Applies 'Operator Fusion' optimisations

[1] - http://doc.akka.io/docs/akka/2.5.3/scala/stream/stream-flows-and-basics.html

[2] - http://doc.akka.io/api/akka/2.5.3/akka/stream/ActorMaterializer.html

Source[+Out, M1]

The starting point of the stream, where the data flowing through the stream originates from

val sourceFromRange = Source(1 to 1000)
val sourceFromIterable = Source(List(1,2,3))
val sourceFromFuture = Source.fromFuture(Future.successful("hello"))
val sourceWithSingleElement = Source.single("just one")
val sourceEmittingTheSameElement = Source.repeat("again and again")
val emptySource = Source.empty

Has one output but no input

[1] - https://opencredo.com/introduction-to-akka-streams-getting-started/

Flow[-In, +Out, M2]

A processing step within the stream, which combines one incoming channel and one outgoing channel and applies some transformation

val flowDoublingElements = Flow[Int].map(_ * 2)
val flowFilteringOutOddElements = Flow[Int].filter(_ % 2 == 0)
val flowBatchingElements = Flow[Int].grouped(10)
val flowBufferingElements = Flow[String].buffer(1000, OverflowStrategy.backpressure)

Has one input and one output

[1] - https://opencredo.com/introduction-to-akka-streams-getting-started/

Sink[-In, M3]

The ultimate destination of all the messages flowing through the stream

val sinkPrintingOutElements = Sink.foreach[String](println(_))
val sinkCalculatingASumOfElements = Sink.fold[Int, Int](0)(_ + _)
val sinkReturningTheFirstElement = Sink.head
val sinkNoop = Sink.ignore

Has one input but no output

[1] - https://opencredo.com/introduction-to-akka-streams-getting-started/

What does it look like?

[1] - https://twitter.com/FoodsTiny/status/885271319633383425

FizzBuzz

Task:
Write a program that prints the integers from 1 to 1000 (inclusive).

But:
- for multiples of three, print Fizz (instead of the number)
- for multiples of five, print Buzz (instead of the number)
- for multiples of both three and five, print FizzBuzz (instead of the number)

[1] - https://en.wikipedia.org/wiki/Fizz_buzz

[2] - https://rosettacode.org/wiki/FizzBuzz

FizzBuzz: Start

Create a minimal runnable flow

object FizzBuzz extends App {
  implicit val sys = ActorSystem("fizzbuzz")
  implicit val mat = ActorMaterializer()

  val rangeSource  = Source(1 to 1000)
  val printlnSink  = Sink.foreach[Int](println)

  rangeSource
    .to(printlnSink)
    .run()

  sys.terminate()
}

Source from a range of Int
Sink that performs println(…)

FizzBuzz: Flow

Add 'FizzBuzz' detector as transformation step

object FizzBuzz extends App {
  // ...
  val fizzBuzzFlow = Flow[Int].map {
    case i if i % 15 == 0 => "FizzBuzz"
    case i if i % 5 == 0  => "Buzz"
    case i if i % 3 == 0  => "Fizz"
    case i                => i.toString
  }
  // ...
  rangeSource
    .via(fizzBuzzFlow) // New step added!
    .to(printlnSink)
  // ...
}

Flow takes a simple function:
Int => String

Akka Streams Primer (cont'd)

Graph is a processing stage built from Source, Flow, and Sink

RunnableGraph is a processing stage with no inputs and outputs, closed shape ready to run

FizzBuzz: Compose

Create composites by combining shapes together

object FizzBuzz extends App {
  // ...
  val nestedSource = rangeSource.via(fizzBuzzFlow) // Nest the source and flow
  // ...
  val nestedFlow   = prefixFlow.via(suffixFlow).via(uppercaseFlow) // Nest FizzBuzz transformations
  val nestedSink   = nestedFlow.to(printlnSink) // Nest transformations and sink

  nestedSource
    .to(nestedSink)
    .run()
  // ...
}

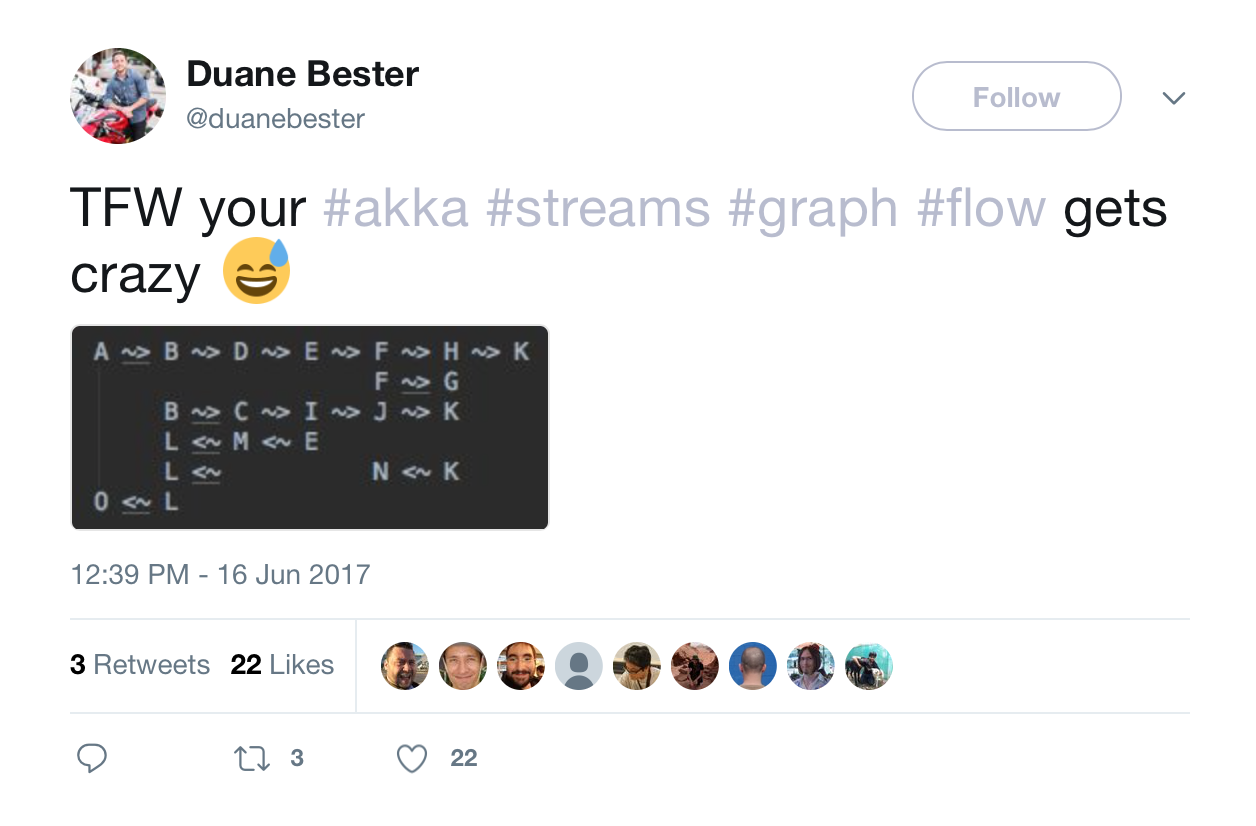

FizzBuzz: Visualise

GraphDSL helps to model (more) complex flows

object FizzBuzz extends App {
  // ...
  val graph = GraphDSL.create() { implicit builder =>
    // ...
    import GraphDSL.Implicits._
    rangeSource ~> fizzBuzzFlow ~> prefixFlow ~> suffixFlow ~> uppercaseFlow ~> printlnSink

    ClosedShape
  }

  RunnableGraph.fromGraph(graph)
    .run()
  // ...
}

FizzBuzz: Combine

PartialGraph can be linked to other graphs or shapes

object FizzBuzz extends App {
  // ...
  val graph = GraphDSL.create() { implicit builder =>
    // ...
    import GraphDSL.Implicits._
    SourceGraph.g ~> TransformGraph.g ~> sink

    ClosedShape
  }

  RunnableGraph.fromGraph(graph)
    .run()
  // ...
}

Fan-out

Broadcast[T]
(1 input, N outputs)
Balance[T]
(1 input, N outputs)
UnzipWith[In, A, B, ...]
(1 input, N outputs)
UnZip[A, B]
(1 input, 2 outputs)

Fan-in

Merge[In]
(N inputs, 1 output)
MergePreferred[In]
(N inputs, 1 output)
MergePrioritized[In]
(N inputs, 1 output)
ZipWith[A, B, ...]
(N inputs, 1 output)
Zip[A, B]
(2 inputs, 1 output)
Concat[A]
(2 inputs, 1 output)

FizzBuzz: Enhance!

Use predefined shapes to create complex flows

object FizzBuzz extends App {
  // ...
  val graph = GraphDSL.create() { implicit builder =>
    // ...
    import GraphDSL.Implicits._
    SourceGraph.g ~> TransformGraph.g ~> sink

    ClosedShape
  }

  RunnableGraph.fromGraph(graph)
    .run()
  // ...
}
