Consume geospatial data

3rd-party data sources

Different data providers and data services

Living Atlas of the World

PetaBytes of geospatial data from authoritative data providers

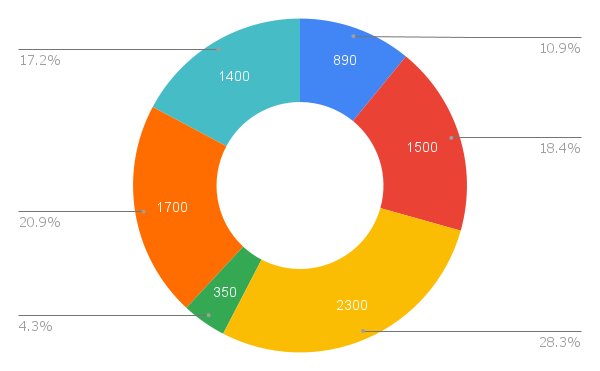

Data services distribution by category

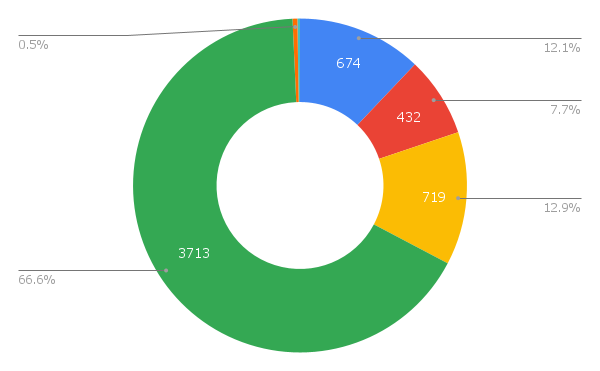

Data services distribution by service type

Living Atlas of the World (LAW) is a subset of data available in the ArcGIS Platform

Demo: LAW quick overview

You can browse it through livingatlas.arcgis.com or the "LAW Search" group in arcgis.com.

Tile layers

Service type: Tile Map Service (x, y, z), Web Map Tile Service (WMTS) & Esri Tile Layers | Data type: raster or vector

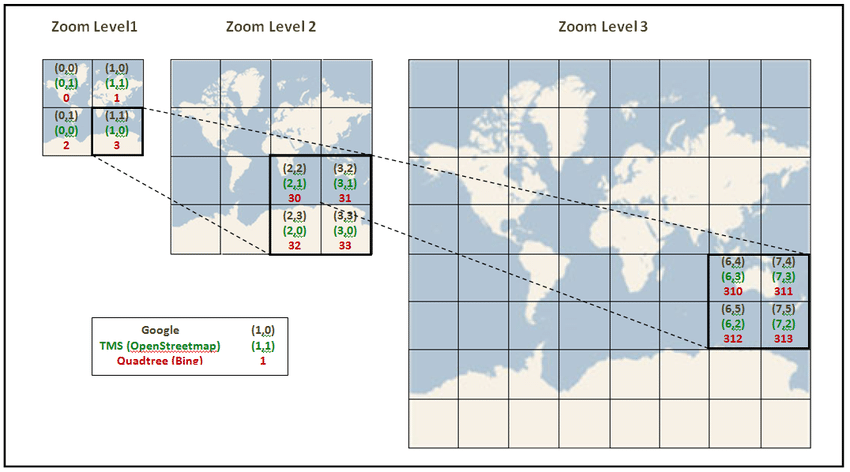

The method of tile indexing used by the major online map providers.

Folders in HD with raster tiles
Entire world can take ~20 TB (raster) vs ~13 GB (vector)

Principle of vector tiling

Main purpose: provide context to data & technical performance: storage and load times.

Example: basemaps (satellite, roads, ...), aerial pictures, large data, ...

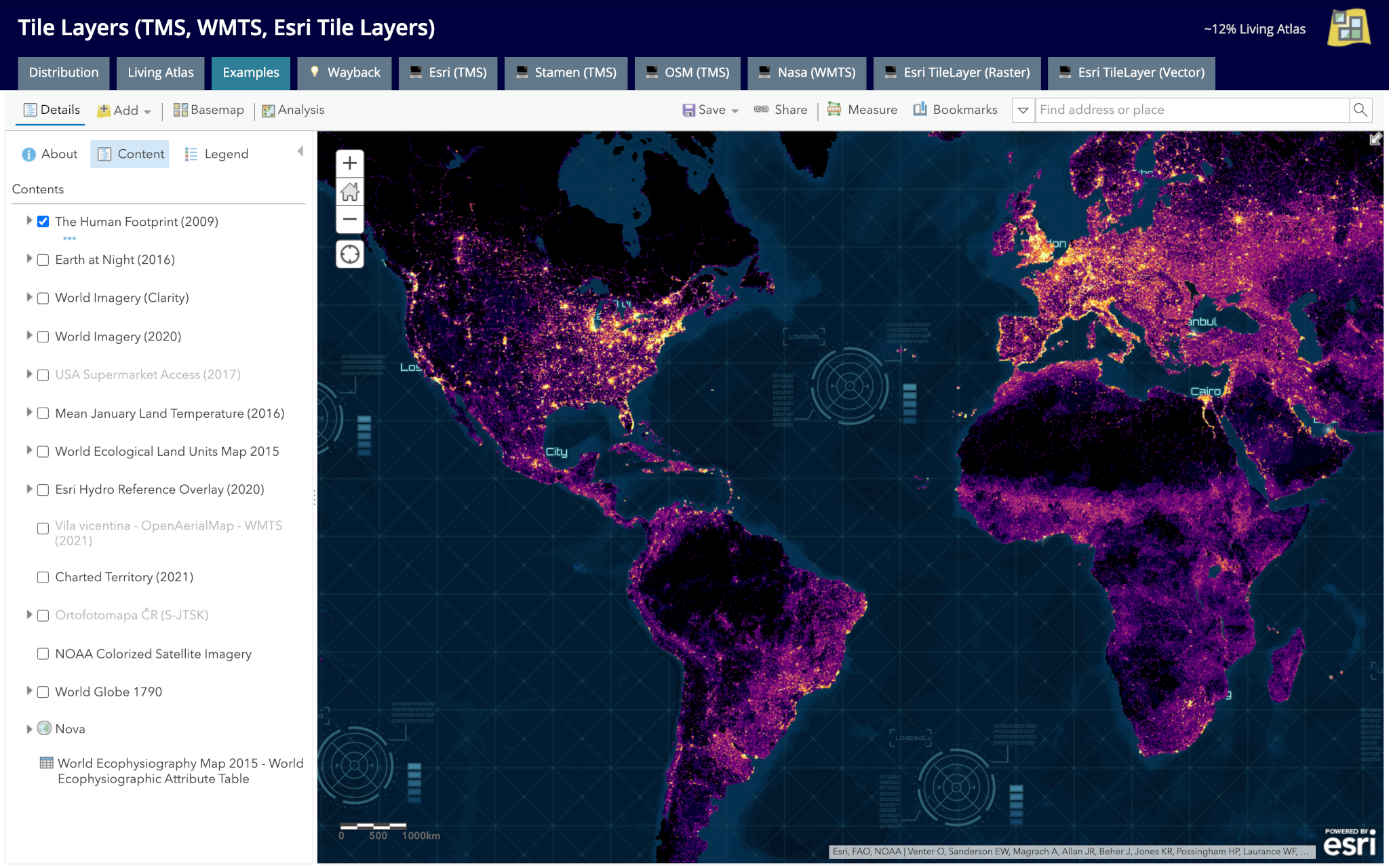

Demo: filter Tile Layers in the Living Atlas

Tile Layers distribution by category

Note: Tile layers are ~12% of the content in the Living Atlas

URL: https://bit.ly/TCTileLayers

Feature layers

For spatial raw vector data. Similar to GeoJSON, KML, GPX ... but it is managed through a REST API.
 Esri Hosted Feature Layers are optimized, supporting: data tiling, caching, protocol buffers, cartographic generalization, http2, CDNs, and more.

Service type: Esri Feature Layers, Web Feature Service (WFS) | Data type: vector (alphanumberic + shape/geometry)

Main purpose: access, query, and edit raw data interactively

Example: buildings, POIs, roads, live alerts, boundaries, ...

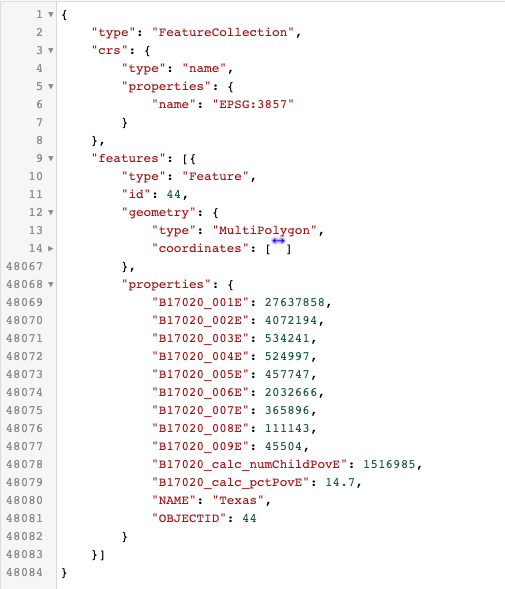

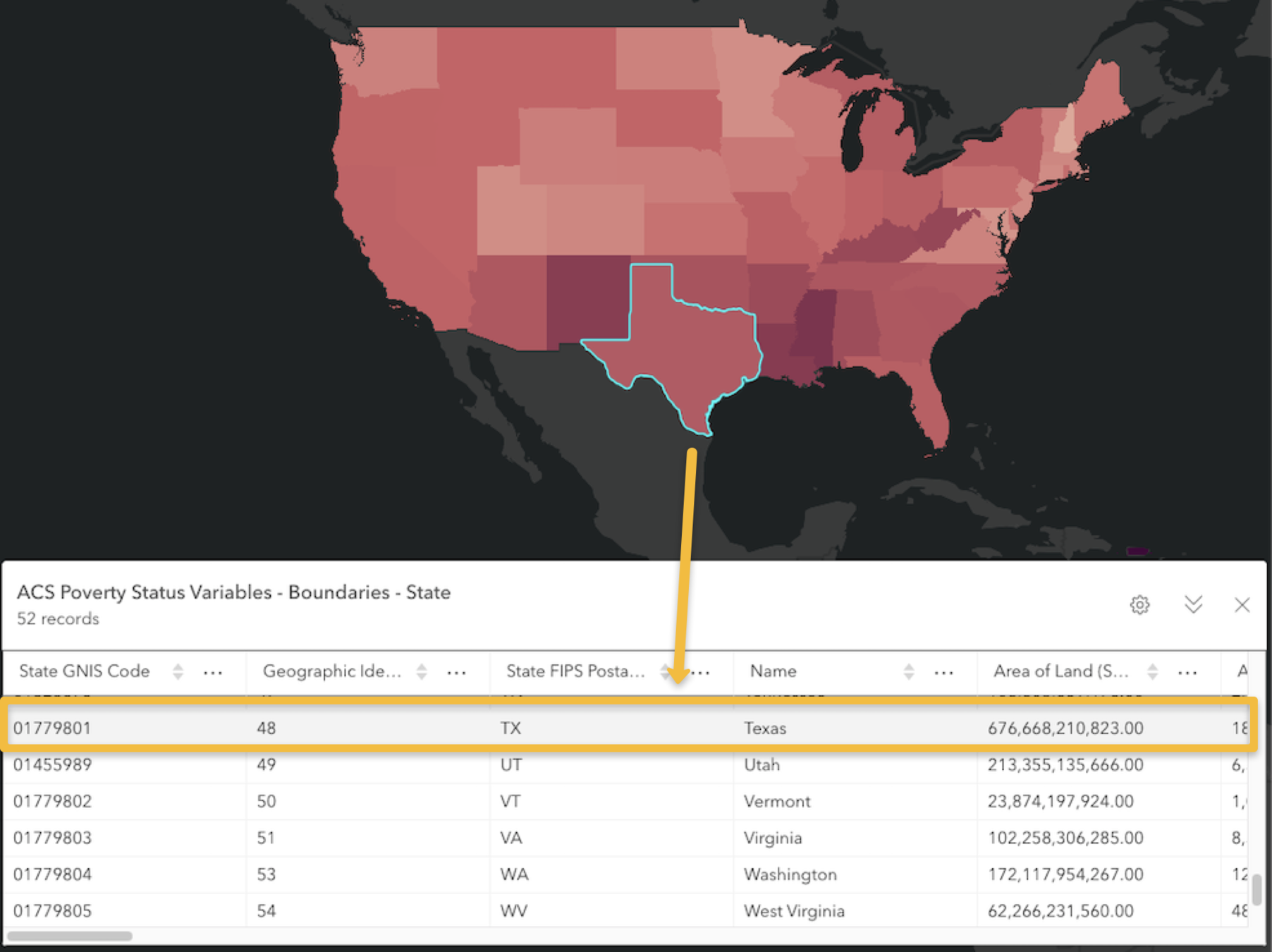

Geometry as GeoJSON

Each shape/geometry (point, line or polygon) as a tuple associated with it

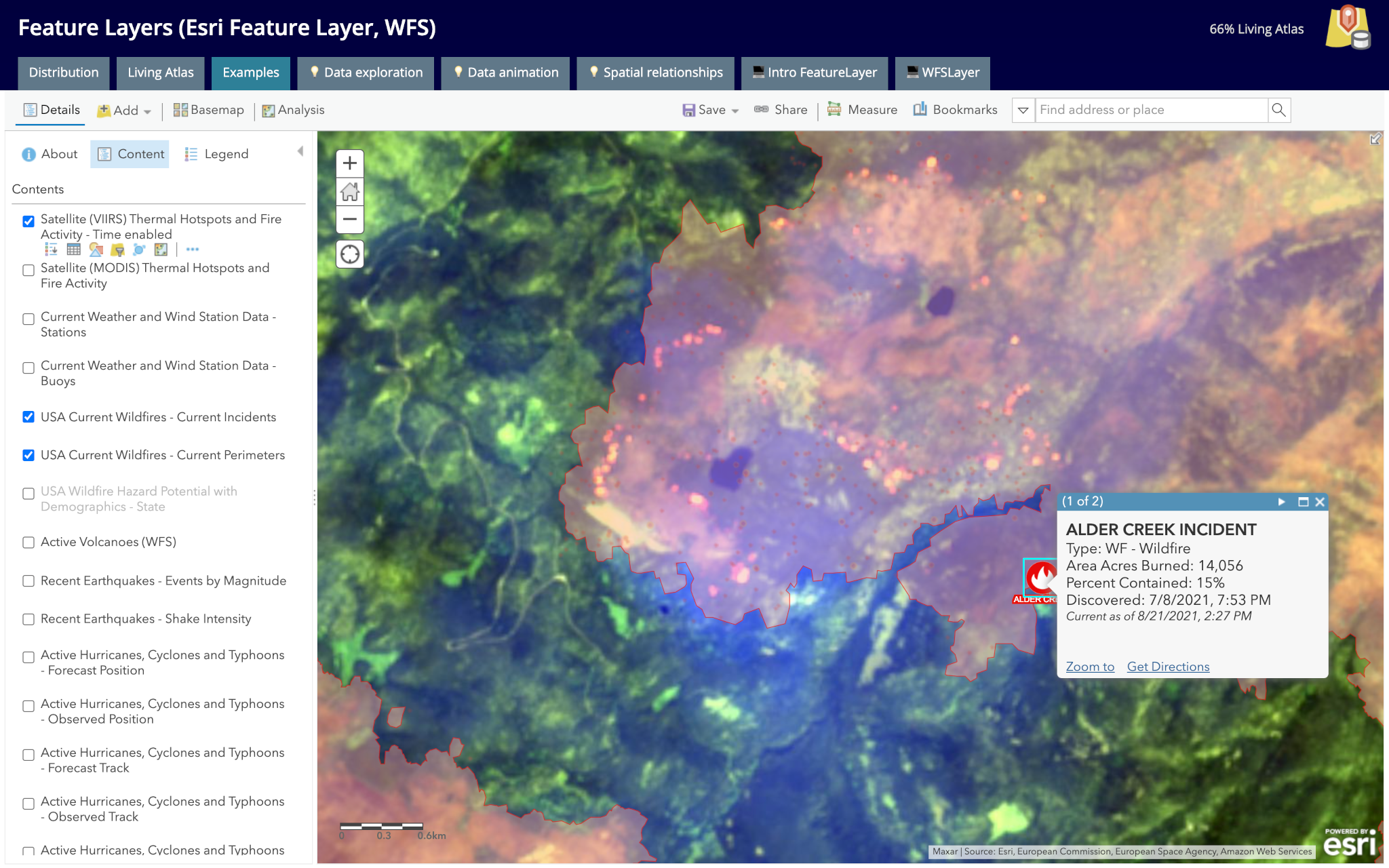

Demo: filter Feature Layers in the Living Atlas

Feature Layers distribution by category

Note: Feature layers are ~66% of the content in the Living Atlas

URL: https://bit.ly/TCFeatureLayers

Live Feeds Status: livingatlas.arcgis.com/livefeeds-status/

Map Image Layers

Service type: Map Service, Web Map Service (WMS)| Data type: can include both feature and non-feature layers as sublayers

Main purpose: combine the best of raster and vector in a single service

Example: interactive large datasets: demographics by county, large water or traffic models, ...

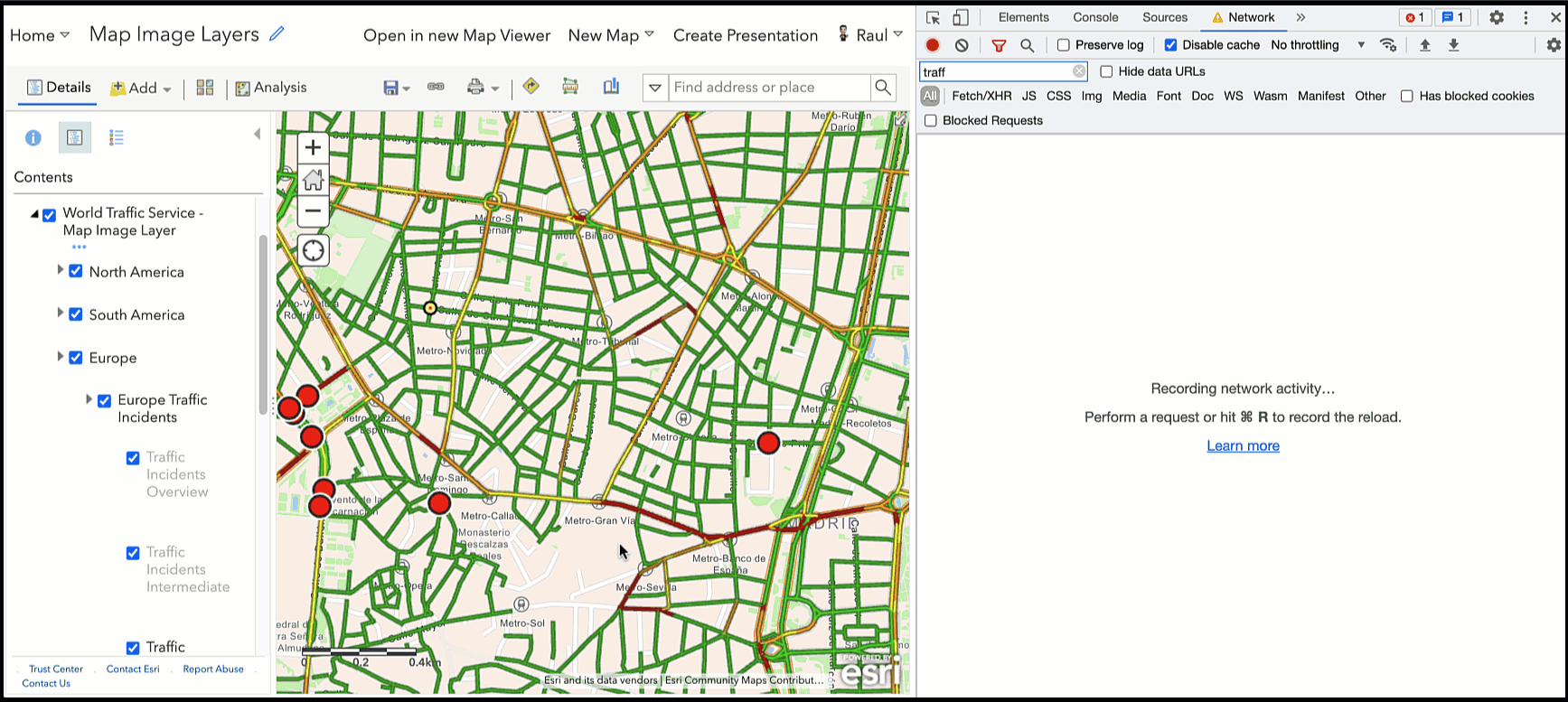

World Traffic Service - Serving road congestion as a dynamic image and traffic incidents as a queryable layer

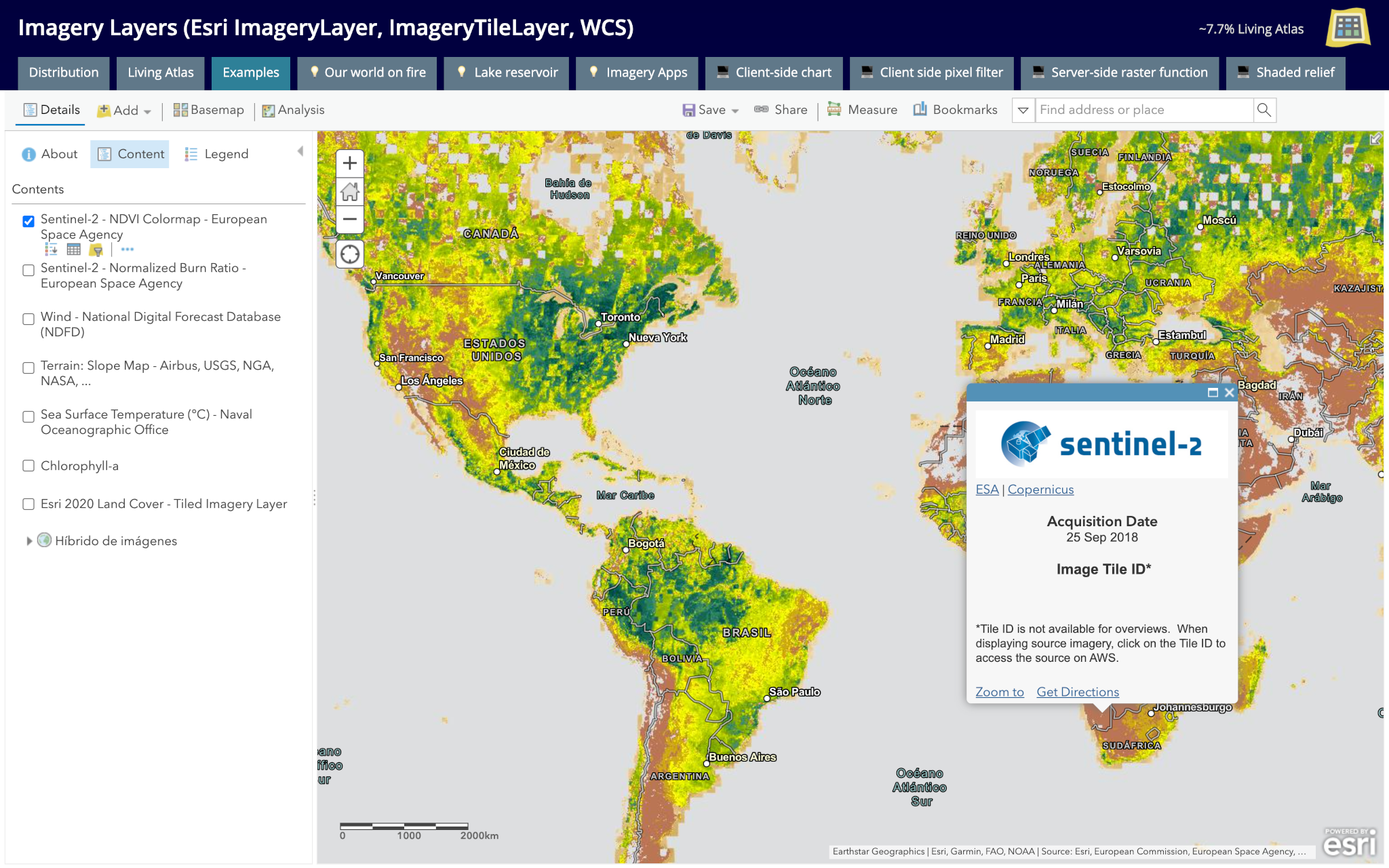

Imagery Layers

Service type: Esri dynamic imagery layers (a.k.a. raster layers), Web Coverage Service (WCS) | Data type: raster

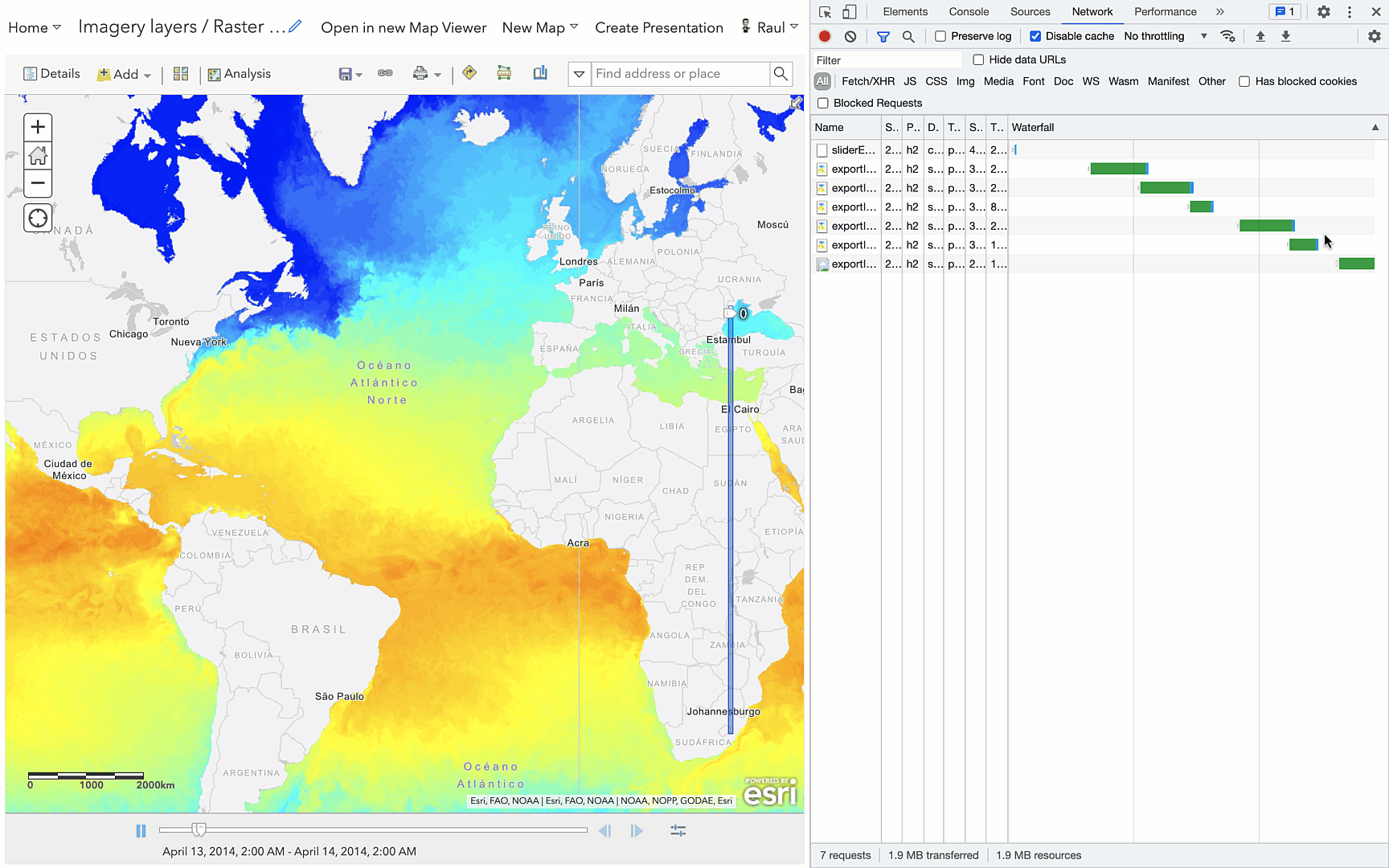

Raster Layer - Export image - Time Animation

Main purpose: process and analyze large continuous space/time-varying data.

Example: weather data, land cover, vegetation index, elevation data, slopes, ...

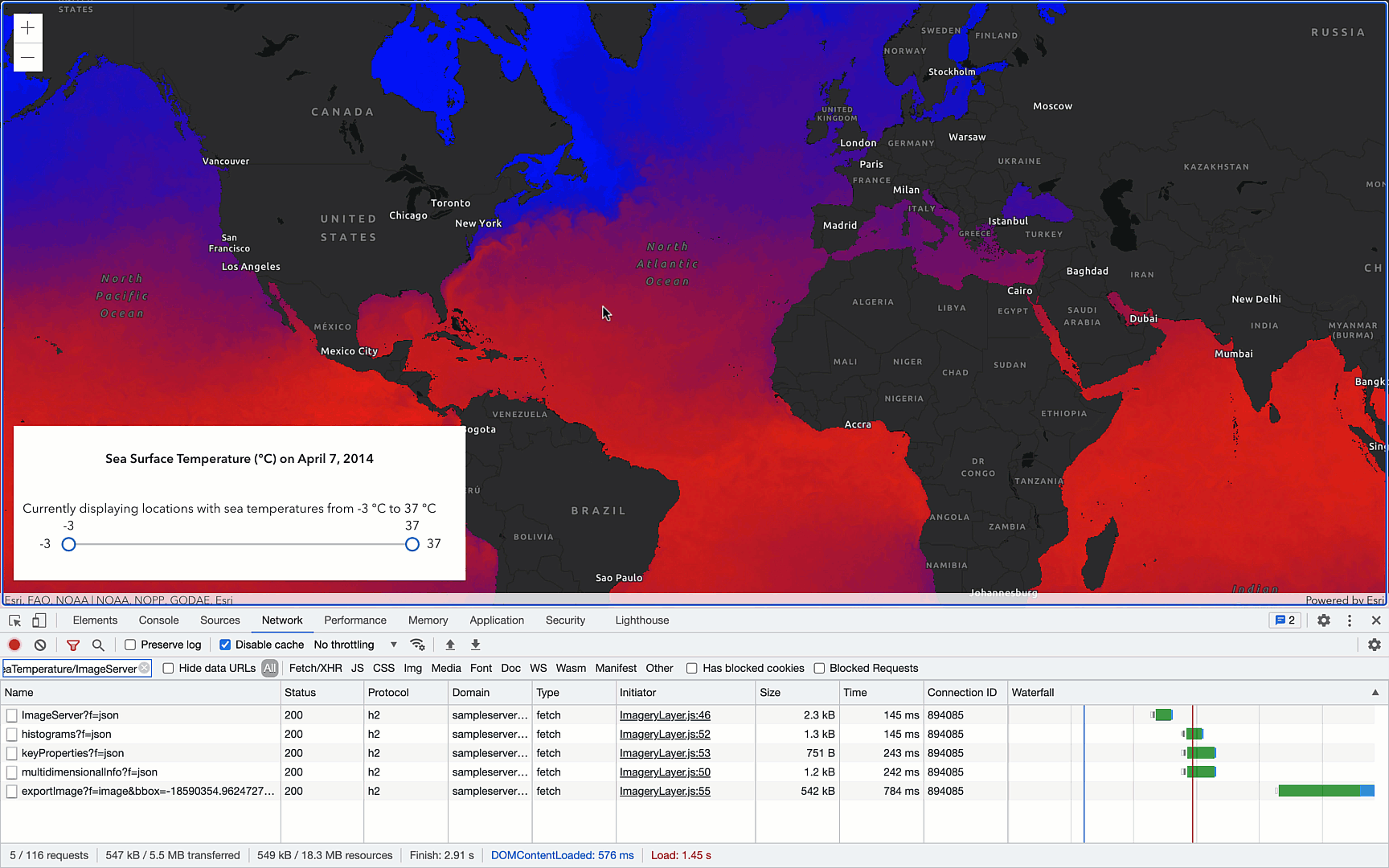

Raster Layer - Client Side raw data filtering

URL: https://bit.ly/TCImageryLayer​

Disclaimer

• Remember, we have reviewed the four most common data types of services, but ArcGIS Platform supports many more (scene services, stream service, KML services, geodata services, etc.).

• Living Atlas data layers access considerations:

  • Default layers (~5900): free to access and use (no login required).

  • Subscription layers (~1000): free to access and use (login required).

  • Premium layers (~500): paid pers use (demographic layers mainly).

• Not all data can be downloaded, read Deployment > Content and data.

Other data sources

• ArcGIS Open Datasets (+150K layers): hub.arcgis.com/search
• All ArcGIS Platform data layers (+1M layers): arcgis.com/home/search.html
  Reverse engineer: Story Maps, Maps We Love, Cool Maps, ...
• ArcGIS Platform Location Services: GeoEnrichment, Geocoding (POIs), ...
• Open Street Map: openstreetmap.org/export
• Awesome Public Datasets:
  • github.com/awesomedata/awesome-public-datasets
  • github.com/sshuair/awesome-gis#data
• Open Data Portals:
  • data.opendatasoft.com/explore/
  • www.kaggle.com/datasets
• ... (search organizations near to you)

Learn more

Feature Layers

Guide:        Hosted feature layers

Tutorials:   Add a feature layer, Query a feature layer (SQL)

                    Query a feature layer (spatial).

Videos:       Using the ArcGIS REST Query Page

Learn more about item, item types and search.

Guides:    Intro to imagery and remote sensing

Code samples: Intro to Imagery layers

Videos:  Hosted Imagery + ArcGIS API for JS

Imagery Layers

Tile Layers

Map Image Layers

Guide:      Image Tile Service, Vector Tile Service

Tutorials: Add a vector tile layer, Add an image tile layer

Videos:

Guides:

Code samples: Intro to MapImageLayer

Videos:

Load, plug and manage data

Integration, manipulation, exploration, ...

•
• Koop Playlist

Load data

Plug data

Manage data

• Store, manage and access your data
• Upload/sync feature data programmatically

Find more resources at:

github.com/Esri/awesome-arcgis-developer
