Front-End Tutoring Materials
Browser Rendering

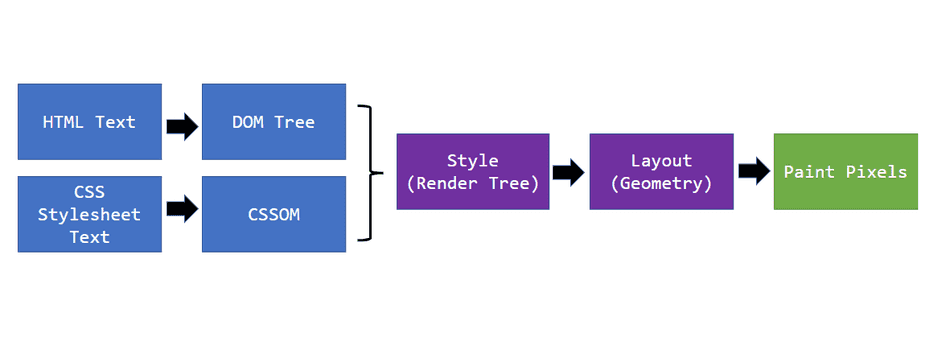

Overall Process
HTML Parsing
CSS Parsing

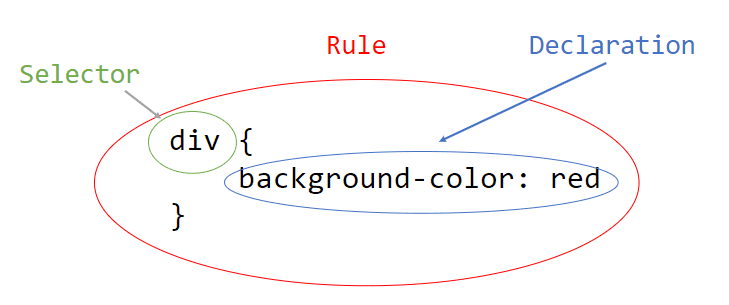

CSS Object Model (CSSOM)
How about inline CSS?
While HTML defines the structure of the document, it may also reference CSS Stylesheets to define the visual presentation of the document.
1. <link rel="stylesheet" />
2. inline <style>
Once the DOM and CSSOM are constructed, the browser can begin the next phase of the pipeline: Style. This phase is sometimes called Recalculate Style or a Render Tree Update.

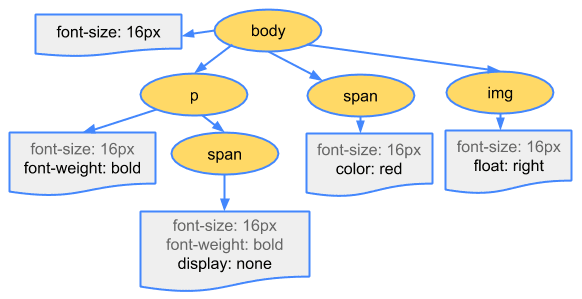

Render Tree (Layout Tree)
-
A browser-internal C++ data structure that web developers don't directly modify.
-
It is a separate tree from the DOM but often mirrors its structure.
-
Each node typically references a DOM node and a Computed Style.
-
It's essentially composed of every DOM node that should be presented visually on the user's screen.
All the styles that applies to the element, even if there is no CSS specified for that element.
- Querying the CSS selectors in the CSSOM for the target DOM element to get the applicable rules.
- Resolving any CSS specificity conflicts to the final set of declarations applied:
- Overrides styles
- Default styles defined by the browser
CSS Specificity
Although the Render Tree contains all the CSS declarations for widths, heights, colors, etc. for each visual element on the page, the browser has not assigned any geometry or coordinates to the elements.
- Create and position boxes for each node in the Render Tree.
- Recursively traverses the newly constructed/updated Render Tree and assigns precise floating-point positions and geometry.
- Layout is a very deep and complex topic!
- https://www.youtube.com/watch?v=ZTnIxIA5KGw
Layout (Reflow)
The browser utilizes a computational graphics library to draw the Render Tree nodes programmatically as pixels.
The browser traverses the newly positioned Render Tree recursively, and executes instructions to draw each Render Tree node.
Reflow and Repaint
- The Repaint occurs when changes are made to the appearance of the elements that change the visibility, but doesn't affect the layout.
e.g. Visibility, background color, outline - Reflow means re-calculating the positions and geometries of elements in the document. The Reflow happens when changes are made to the elements, that affect the layout of the partial or whole page. The Reflow of the element will cause the subsequent reflow of all the child and ancestor elements in the DOM.
e.g. width, height, font-size
Both Reflow and Repaints are an expensive operation!
Performance Optimization
- transform
- opacity
- will-change
- Less DOM manipulations by JS
DOMContentLoaded Vs. Load Events
- DOMContentLoaded Time represents the time it takes to load the HTML structure of the document.
- Load Time represents the total time it takes to download everything else necessary to display the HTML page.
JS Functions
Ways we declare functions
- Function Declaration
- Function Expression
- The Function() Constructor
function functionName(parameters) {
// code to be executed
}
const x = function (a, b) {return a * b};
const myFunction = new Function("a", "b", "return a * b");
let x = myFunction(4, 3);
Anonymous Function
const x = function (a, b) {return a * b};
- These functions cannot be reused.
- Debugging is tough because you don’t know the function's name in the call stack.
Self-Invoking Functions (a.k.a. IIFE)
(function () {
let x = "Hello!!"; // I will invoke myself
})();
Using self-invoking functions we will perform the initialization work only once because after the execution we’ll loose the reference to the function.
(function () {
// body
}());
(function () {
// body
})();
var module = (function () {
// private
return {
// public
};
}());

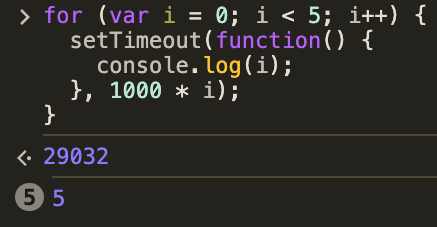

Let's say we want to print from 0 to 5 by a timer. How to fix it?
Closures
https://medium.com/@samueldinesh/javascript-closures-in-2-mins-36d0f3817a0f
function
foo() {
var
x =
'Hello'
;
// local variable
function
bar() {
// local function
console.log(x);
// referring to local variable
};
return
bar;
}
var
func = foo();
// get the inner function
func();
// prints ‘Hello’
https://rahuldotout.wordpress.com/2011/05/15/professional-javascript-part-5-closures/
Closures are formed when the scope chain of an object survives outside its creation scope.
Why we need closures?
A closure gives you access to an outer function's scope from an inner function.
https://itnext.io/javascript-closure-for-privacy-8a40c274192e
https://developer.mozilla.org/en-US/docs/Web/JavaScript/Closures
A Counter Dilemma
// Initiate counter
let counter = 0;
// Function to increment counter
function add() {
counter += 1;
}
// Call add() 3 times
add();
add();
add();
myFunction(5);
function myFunction(y) {
return y * y;
}
Why this works?
Let's move on!
Function Hoisting
- Hoisting is JavaScript's default behavior of moving declarations to the top of the current scope.
- Hoisting applies to function declarations and also to variable declarations.
Hoisting & Call Stack
Before we dive into hoisting, let's understand how does Call Stack work in JS.
When a JavaScript programme starts running, the engine creates a Global Execution Context (GEC) and pushes it onto the Call Stack.
https://medium.com/@dhr8v/understanding-javascript-call-stack-event-loop-and-asynchronous-patterns-c4a45f6c78fe
Guess the output.
Exercise 1
var temp = 'hi';
function display() {
var temp;
console.log(temp);
temp = 'bye';
}
display();
It will work just like this way:
Guess the output.
Exercise 2

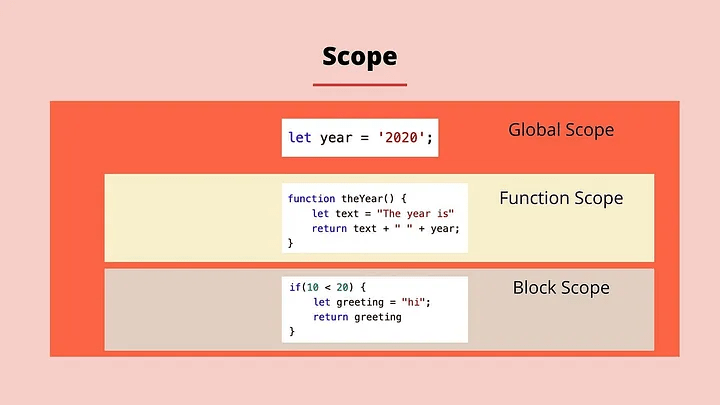

https://medium.com/@mohdtalib.dev/scope-in-javascript-1cb380bba2a3
Semantic HTML
Semantic HTML Tags
Tags that define the meaning of the content they contain.
Why Do I Need to Use Semantic HTML Tags?
- Accessibility
- SEO
- Code readability
Common tags we often use
- header
- h1~h6
- hgroup
- nav
- main

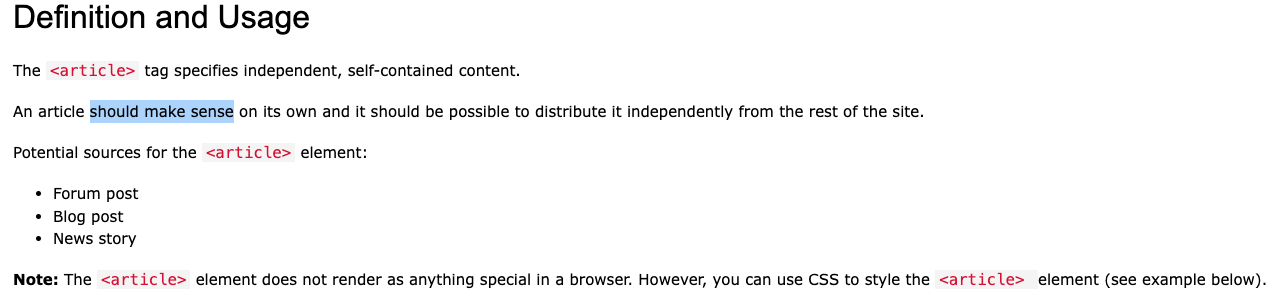

- article
- section
- aside
- details
- time
- footer
- figure
- figcaption
Optimizing Performance (General)

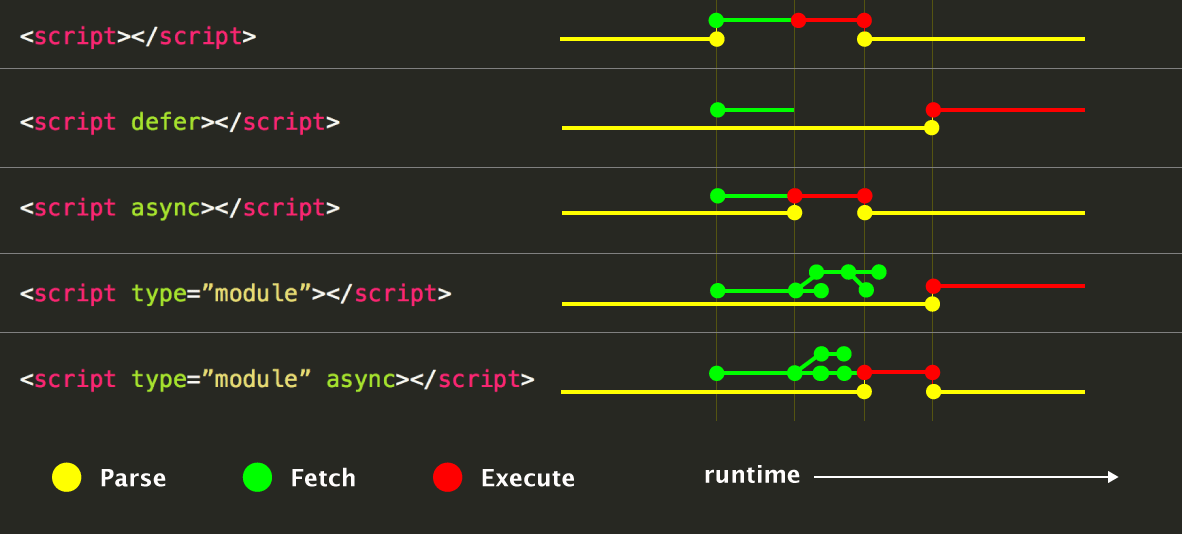

Async & Defer
Trim JavaScript Bundles
Webpack
Measurements
Debugging:
Useful Tips
- debugger
- console.table
- console.timeEnd
- Break on node change
- Find your DOM elements quickly
- Unminify code
2. console.table
3. console.timeEnd
4. Break on change

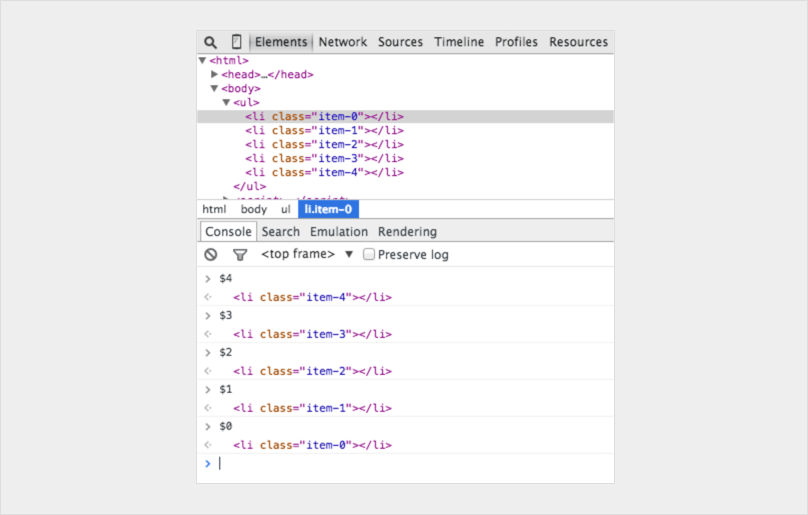

5. Find your DOM elements quickly
6. Unminify Code
Debugging:
Common Mistakes
- Relying solely on console.log statements for debugging
- Not testing changes incrementally
- Neglecting to document the debugging process
- Overlooking error messages
- Not testing code in different browsers
Optimizing Performance
(React)
Code Splitting in React
- Dynamic Import with Webpack
- React.lazy() with Suspense
Avoid Reconciliation
Reconciliation Pitfalls
- Avoid Inefficient Rendering: Be cautious with overly complex components or excessive use of useEffect.
- Immutable Data: Using immutable data structures can simplify reconciliation.
- React DevTools: Utilize React DevTools to inspect component hierarchies, identify potential reconciliation bottlenecks, and optimize your application's performance.
List Virtualization
Lazy Loading Images
Profiler API
GraphQL with React
GraphQL Structure
Apollo GraphQL

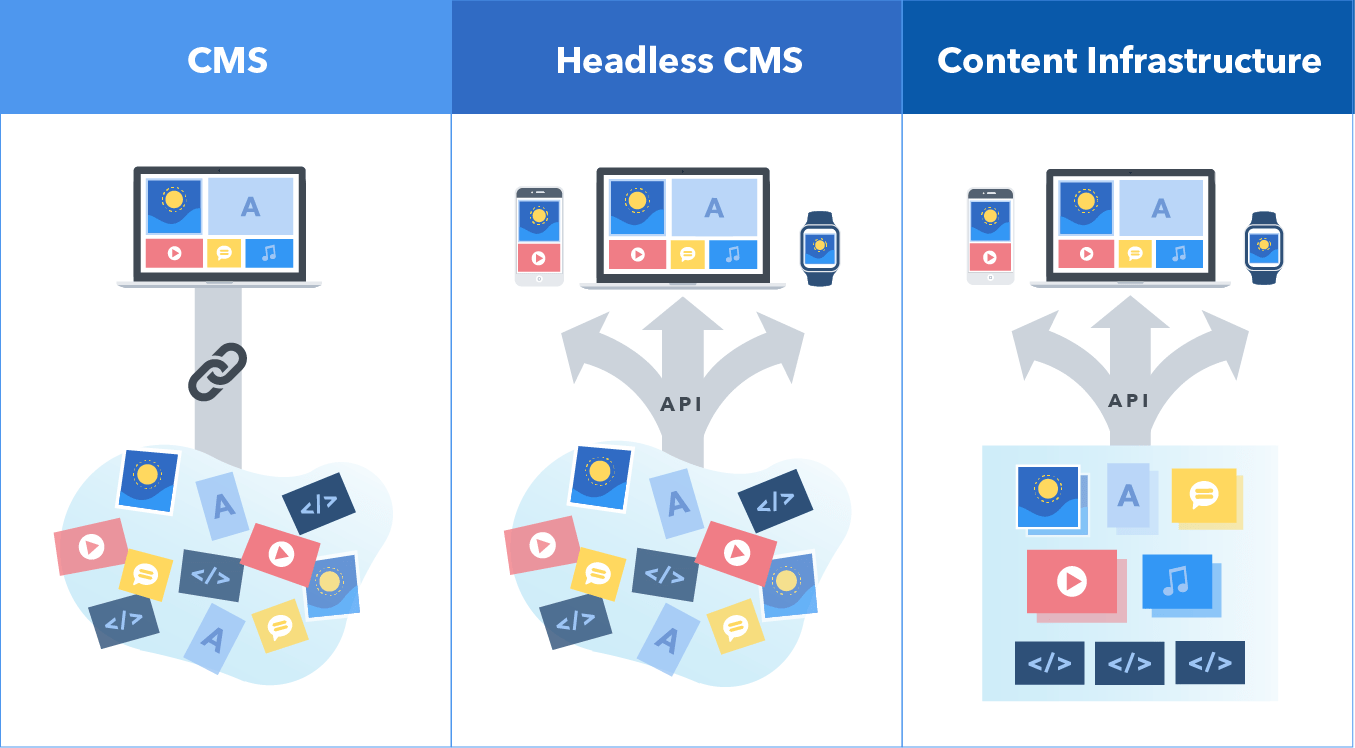

Contentful CMS
Contentful API
Why Apollo Client
HTTP Caching
Caching
https://www.azion.com/en/blog/what-is-http-caching-and-how-does-it-work
HTTP Caching
Advantages to Reusability:
- Faster response
- Reduces the load on the server
The HTTP cache stores a response associated with a request and reuses the stored response for subsequent requests.
How to setup

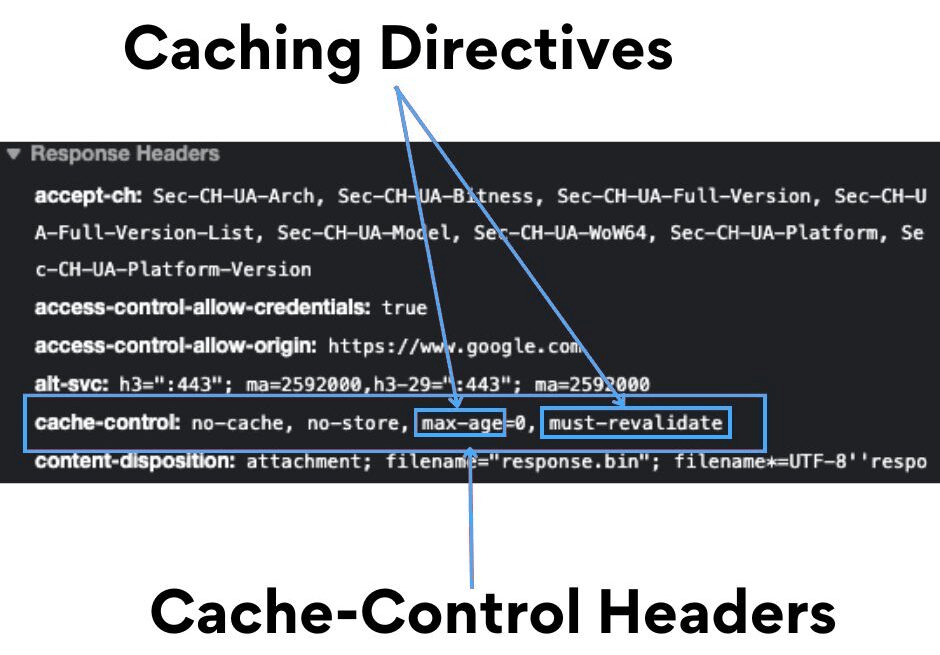

HTTP Header
1. Expires

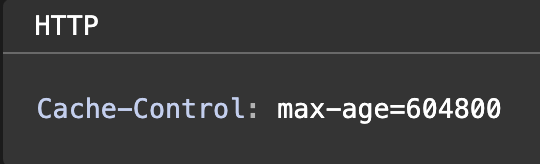

2. cache-control
Quiz
- If you only want the client-side to cache, and not intermediate layers like proxy servers, what should you use?
- Conversely, if you want proxy servers to also be able to cache data from the backend, what should you use?
- Because browsers might automatically cache, if you want absolutely no caching and always want the content to be the latest, what should you use?
- What's the difference between cache-control: no-store and cache-control: no-cache?

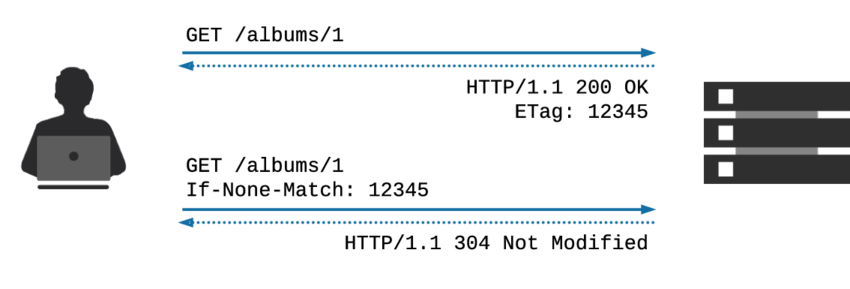

Cache Validation:
using ETag
with If-None-Match
Cache Validation: using Last-Modified
with If-Modified-Since
Cybersecurity
XSS
- An XSS (Cross-Site Scripting) attack occurs when a malicious user injects attack scripts from the client side to achieve certain goals, such as stealing cookies, session information, passwords, etc.
- The most common form of XSS attack involves injecting JavaScript scripts into input fields.

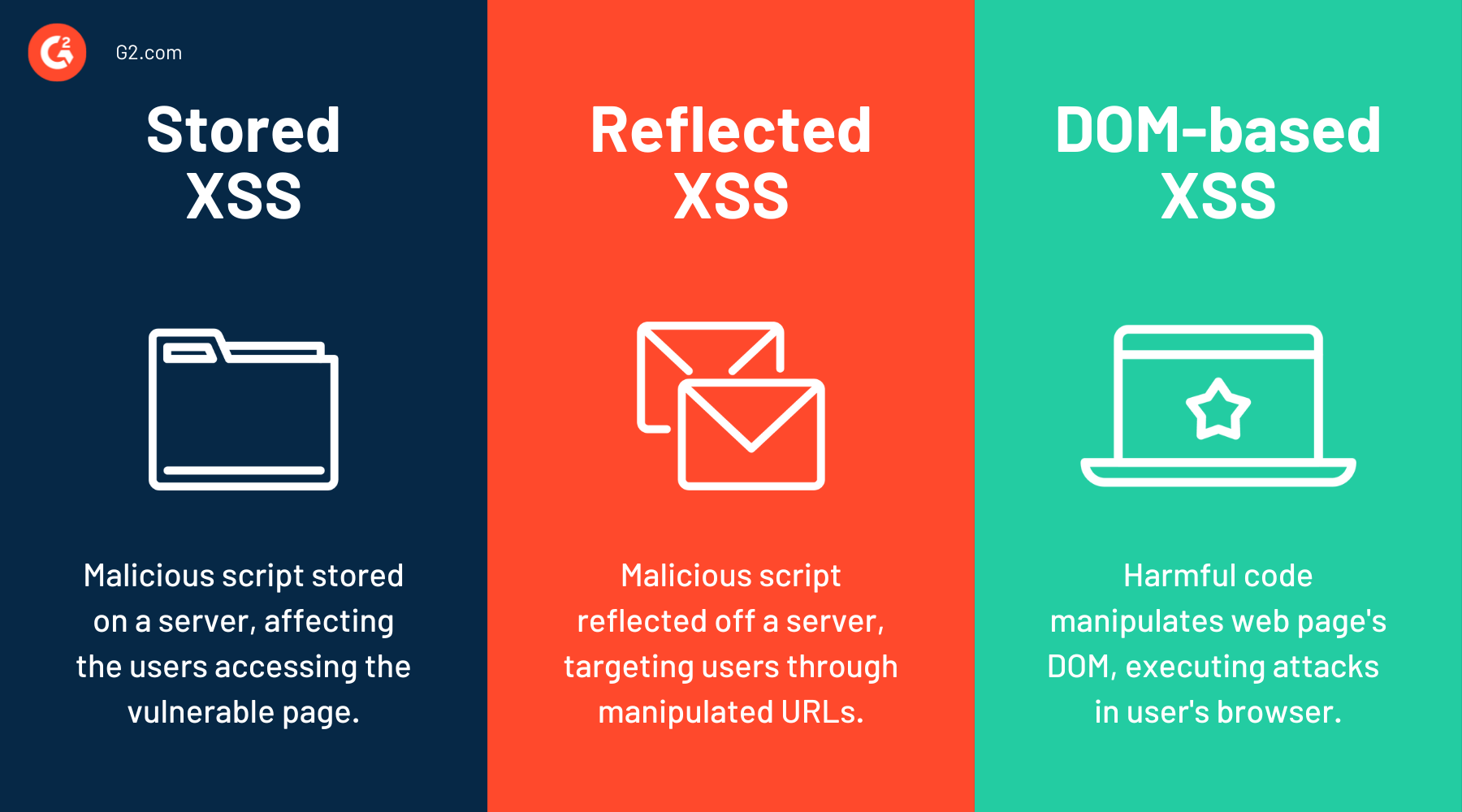

Stored XSS
Reflected XSS
DOM-based XSS
XSS Solutions
-
Preventing Stored and Reflected XSS on backend:
- Removing keywords related to potential attacks, such as
<script>
andonerror
on backend
- Removing keywords related to potential attacks, such as
-
DOM-based XSS:
-
(HTML Entity for inputs) convert
<
to<
-
(HTML Entity for inputs) convert
-
Ensure scripts from users are not executed:
- implementing a CSP (Content Security Policy)
CSRF
CSRF Solutions
- Captcha
- Avoid sensitive requests via GET
- HTTP Header: Referrer

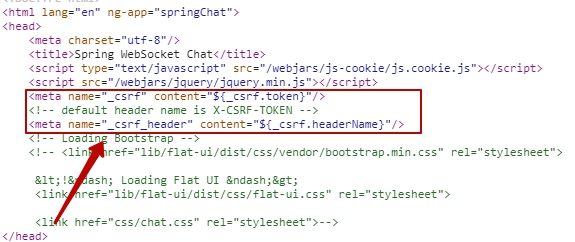

- CSRF token
- SameSite cookies
