用 ReactXP

加速跨平台開發

黃 胤翔

Ben

• Web 全端開發
• 趨勢科技
• CTJS Conf Staff
• React Native Taiwan
• https://github.com/hinxcode

Slides Link

slides.com/hinx/reactxp

身為一個

Web Developer

一個會 React

的前端工程師

Learn once,

write anywhere

View maps directly to the native view equivalent on whatever platform React Native is running on, whether that is a UIView, <div>, android.view, etc.

https://facebook.github.io/react-native/docs/view.html

Is it possible compatible with Web?

Android

iOS

Web

Non-Platform

Specific

A Library For Building Cross-Platform Apps

ReactXP

ReactXP

X-Platform

https://microsoft.github.io/reactxp/docs/faq.html

ReactXP builds upon React Native. ReactXP’s components and APIs are inspired by React Native.

AppRegistry

import { AppRegistry } from 'react-native';
import App from './App';

AppRegistry.registerComponent('MyApp', () => App);

https://github.com/Microsoft/reactxp/blob/master/samples/hello-world-js/src/index.js

https://github.com/Microsoft/reactxp/blob/master/src/native-common/App.ts

import React from 'react';
import RX from 'reactxp';
import App from './App';

RX.initialize(true, true);
RX.UserInterface(<App />);

import RN from 'react-native';

...

initialize(debug: boolean, development: boolean) {
    super.initialize(debug, development);
    window['rxdebug'] = debug;
    RN.AppRegistry.registerComponent('RXApp', () => RootView);
}

...

API

Props

Styles

Attributes

Animation Interface

Components

Android

iOS

Web

React Native

ReactXP

React Native

ReactXP

Android

iOS

Web

React

Webpack

Platform Support

• iOS (React Native)

• Android (React Native)

• Web (React)

• Desktop (Electron)

Browser Support

• Chrome

• IE (9 and newer)

• Edge

• Firefox

• Safari

• Other HTML5 browsers

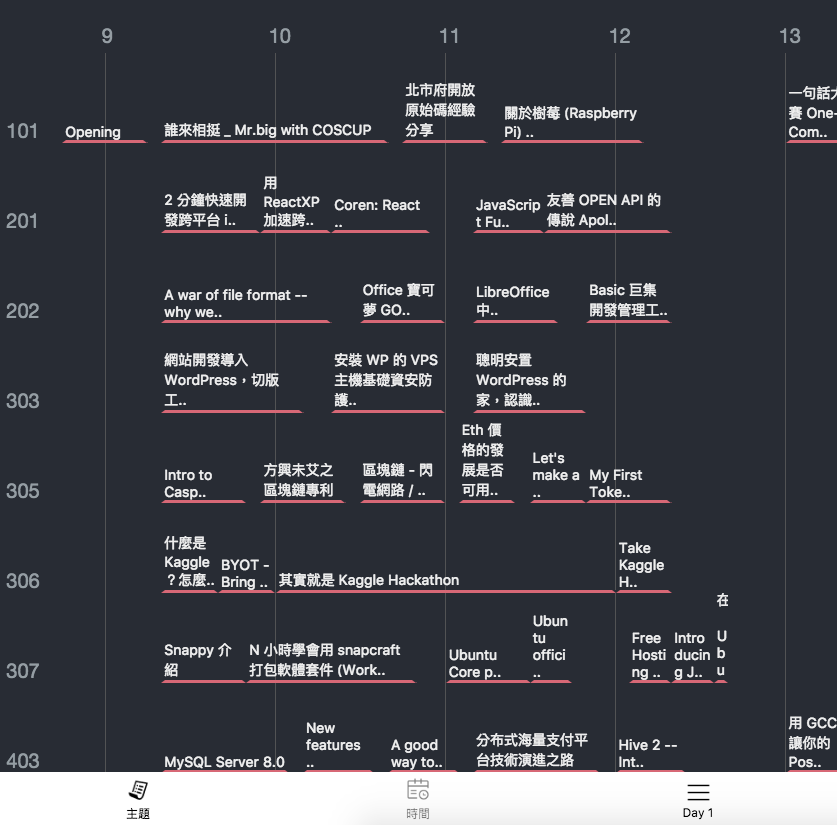

DEMO

https://github.com/hinxcode/coscup-schedule-app

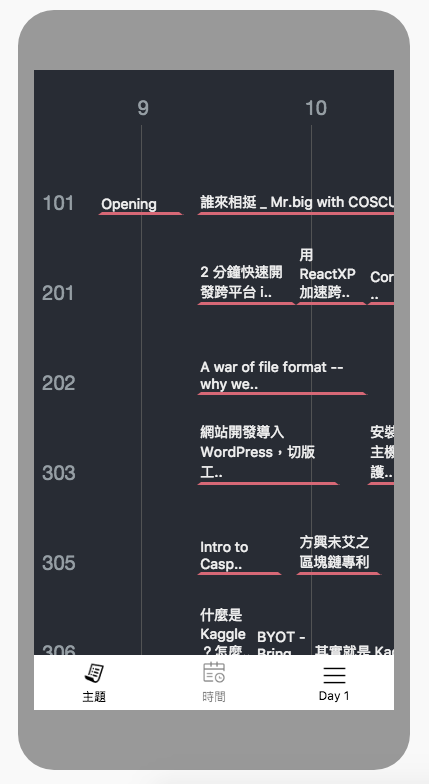

iOS App

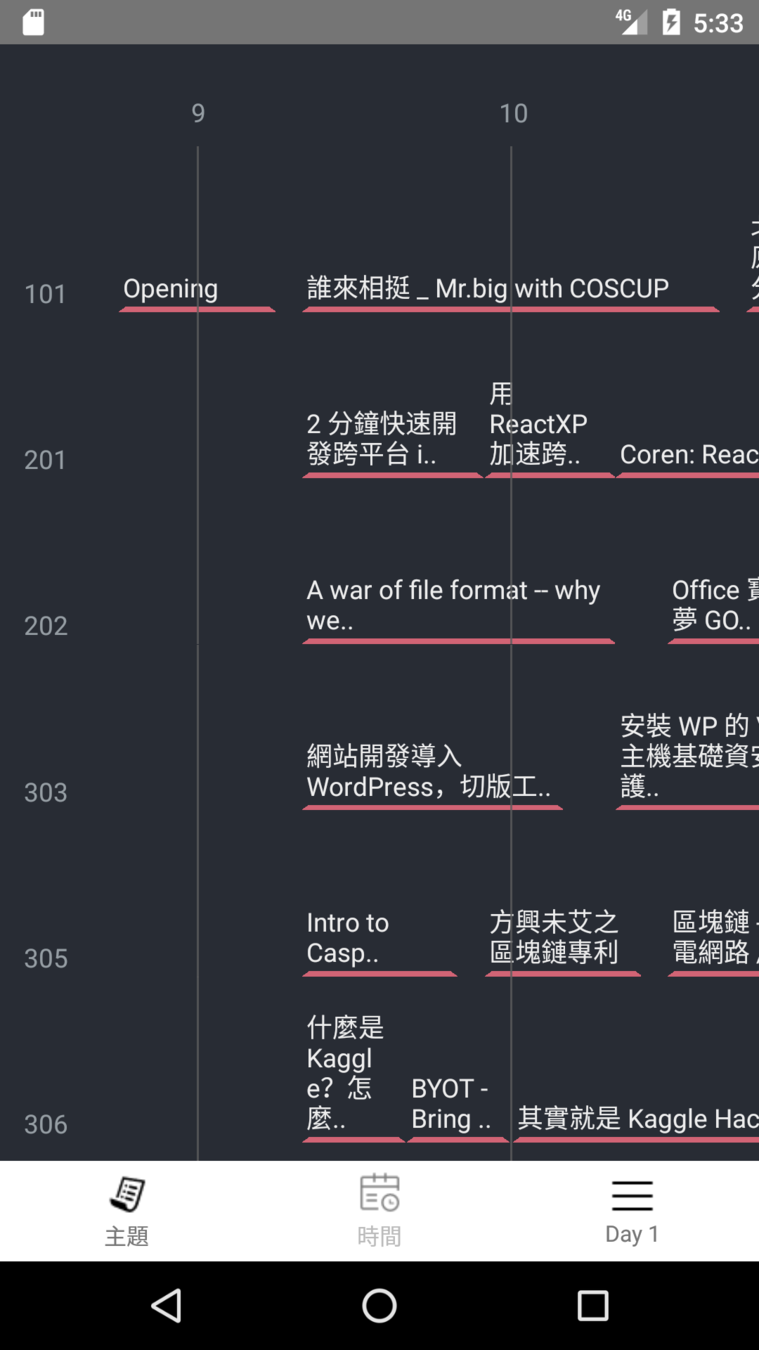

Android App

Mobile Web

Desktop Web

Live Demo

跨三平台  成功！

ReactXP Overview

https://github.com/Microsoft/reactxp

https://microsoft.github.io/reactxp

Repo

Docs

Use ReactXP

Without TS ?

Components

• ActivityIndicator
• Button
• GestureView
• Image
• Link
• Navigator

• Picker
• ScrollView
• Text
• TextInput
• View
• WebView

ActivityIndicator

https://github.com/Microsoft/reactxp/blob/master/src/native-common/ActivityIndicator.tsx

return (
    <RN.ActivityIndicator
        animating={ this.state.isVisible }
        color={ this.state.isVisible ? this.props.color : 'transparent' }
        size={ size }
    />
);

GestureView

• Tapping

• Double-tapping

• Panning

• Pinching

Navigator

• Stack

• cardStyle

• transitionCompleted()

• renderScene()

Picker

• items

• onValueChange

Styles

const myViewStyle = RX.Styles.createViewStyle({
    backgroundColor: '#fff'
});


<RX.View style={myViewStyle} />

createXXXStyle()

/*
    { backgroundColor: '#fff' } <-- ruleSet
*/

createViewStyle(ruleSet: Types.ViewStyle, cacheStyle: boolean = true): Types.ViewStyleRuleSet {

    return this._adaptStyles(ruleSet, cacheStyle);
}

https://github.com/Microsoft/reactxp/blob/master/src/native-common/Styles.ts#L71

Types

export interface ViewStyle extends ViewAndImageCommonStyle {
    borderStyle?: 'solid' | 'dotted' | 'dashed' | 'none';
    ...
}

export interface ViewAndImageCommonStyle extends FlexboxStyle, TransformStyle {
    borderWidth?: number;
    borderColor?: string;
    borderRadius?: number;
    ...
}

export interface FlexboxStyle {
    ...
}

https://github.com/Microsoft/reactxp/blob/master/src/common/Types.ts

createViewStyle(ruleSet: Types.ViewStyle, cacheStyle: boolean = true): Types.ViewStyleRuleSet {

    return this._adaptStyles(ruleSet, cacheStyle);
}

_adaptStyles()

private _adaptStyles<S extends Types.ViewAndImageCommonStyle>(def: S, cacheStyle: boolean): Types.StyleRuleSet<S> {
    let adaptedRuleSet = def as ReactNativeViewAndImageCommonStyle<S>;

    ...

    // Convert text styling
    let textStyle = adaptedRuleSet as Types.TextStyle;
    if (textStyle.font) {
        if (textStyle.font.fontFamily !== undefined) {
            textStyle.fontFamily = textStyle.font.fontFamily;
        }
        if (textStyle.font.fontWeight !== undefined) {
            textStyle.fontWeight = textStyle.font.fontWeight;
        }
        if (textStyle.font.fontStyle !== undefined) {
            textStyle.fontStyle = textStyle.font.fontStyle;
        }
        delete textStyle.font;
    }

    if (def.flex !== undefined) {
        var flexValue = def.flex;
        delete adaptedRuleSet.flex;
        if (flexValue > 0) {
            // p 1 auto
            adaptedRuleSet.flexGrow = flexValue;
            adaptedRuleSet.flexShrink = 1;
        } else if (flexValue < 0) {
            // 0 -n auto
            adaptedRuleSet.flexGrow = 0;
            adaptedRuleSet.flexShrink = -flexValue;
        } else {
            // 0 0 auto
            adaptedRuleSet.flexGrow = 0;
            adaptedRuleSet.flexShrink = 0;
        }
    }

    ...

   return adaptedRuleSet;
}

https://github.com/Microsoft/reactxp/blob/master/src/native-common/Styles.ts#L135

cacheStyle

let dynamicViewStyle = RX.Styles.createViewStyle({
    backgroundColor: userColor
}, false);

createViewStyle(ruleSet: Types.ViewStyle, cacheStyle: boolean = true): Types.ViewStyleRuleSet {

    return this._adaptStyles(ruleSet, cacheStyle);
}

Animations

Animated Value

constructor(props) {
    ...

    this._translationValue = new RX.Animated.Value(-100);
}

Animated Styles

constructor(props) {
    ...

    this._animatedStyle = RX.Styles.createAnimatedTextStyle({
        transform: [{
            translateY: this._translationValue
        }]
    });
}

render() {
    <RX.Animated.Text style={ this._animatedStyle }>
        Hello World
    </RX.Animated.Text>
}

Timing Animations

constructor(props) {
    ...

    this._translationValue = new RX.Animated.Value(-100);
}

componentDidMount() {
    let animation = RX.Animated.timing(this._translationValue, {
            toValue: 0,
            easing: RX.Animated.Easing.OutBack(),
            duration: 500
        }
    );

    animation.start();
}

Composite Animations

let compositeAnimation = RX.Animated.parallel([
    RX.Animated.timing(animatedScaleValue,
        { toValue: 0.0, duration: 250, easing: RX.Animated.Easing.InOut() }
    ),
    RX.Animated.timing(animatedOpacityValue,
        { toValue: 1.1, duration 250, easing: RX.Animated.Easing.Linear() }
    )
]);

compositeAnimation.start();

Sometimes it’s useful to execute multiple animations in parallel or in sequence.

import RN = require('react-native');

...

export var Animated = {
    ...
    delay: RN.Animated.delay,
    parallel: RN.Animated.parallel,
    sequence: RN.Animated.sequence
};

https://github.com/Microsoft/reactxp/blob/master/src/native-common/Animated.tsx#L194

Composite Animations

APIs

• Accessibility
• Alert
• App
• Clipboard
• Input
• International
• Linking
• Location

• Modal
• Network
• Platform
• Popup
• StatusBar
• Storage
• UserInterface
• UserPresence

App

/* Methods */
initialize(debug: boolean, development: boolean): void;

getActivationState(): AppActivationState;

...

https://microsoft.github.io/reactxp/docs/apis/app.html

import React from 'react';
import RX from 'reactxp';
import App from './App';

RX.App.initialize(true, true);
RX.UserInterface.setMainView(<App />);

UserInterface

/* Methods */
setMainView(element: React.ReactElement<any>): void;

useCustomScrollbars(enable: boolean): void;

isHighPixelDensityScreen(): boolean;

getContentSizeMultiplier(): SyncTasks.Promise<number>;

getMaxContentSizeMultiplier(): SyncTasks.Promise<number>;

setMaxContentSizeMultiplier(maxContentSizeMultiplier: number): void;

dismissKeyboard(): void;

isNavigatingWithKeyboard(): boolean;

...

https://microsoft.github.io/reactxp/docs/apis/userinterface.html

Linking

/* Types */
interface SmsInfo {
    phoneNumber?: string;
    body?: string;
}

interface EmailInfo {
    to?: string[];
    cc?: string[];
    bcc?: string[];
    subject?: string;
    body?: string;
}

interface LinkingErrorInfo {
    code: LinkingError;
    url: string;
    error?: string;
}

enum LinkingErrorCode {
    NoAppFound = 0,
    UnexpectedFailure = 1,
    Blocked = 2,
    InitialUrlNotFound = 3
}

/* Methods */
openUrl(url: string): SyncTasks.Promise<void>;

launchSms(smsData: SmsInfo): SyncTasks.Promise<void>;

launchEmail(emailData: EmailInfo): SyncTasks.Promise<void>;

...

https://microsoft.github.io/reactxp/docs/apis/linking.html

Network

/* Types */
enum DeviceNetworkType {
    Unknown,
    None,
    Wifi,
    Mobile2G,
    Mobile3G,
    Mobile4G
}

/* Methods */
isConnected(): SyncTasks.Promise<boolean>;

getType(): SyncTasks.Promise<DeviceNetworkType>;

/* Events */
connectivityChangedEvent: SubscribableEvent<(isConnected: boolean) => void>;

https://microsoft.github.io/reactxp/docs/apis/network.html

Platform

/* Types */
type PlatformType = 'web' | 'ios' | 'android' | 'windows';

/* Methods */
getType(): Types.PlatformType;

https://microsoft.github.io/reactxp/docs/apis/platform.html

UserPresence

/* Methods */
isUserPresent(): boolean;

/* Events */
userPresenceChangedEvent: SubscribableEvent<
    (isPresent: boolean) => void>();

https://microsoft.github.io/reactxp/docs/apis/userpresence.html

Extensions

• ImageSvg

• Video

• VirtualListView

Primitive Extensions

import RXVideoPlayer from 'reactxp-videoplayer';

class MyVideoPanel extends RX.Component<null, null> {
    render() {
        return (
            <RXVideoPlayer
                source={ this.props.source }
                showControls={ true }
                onProgress={ this._onVideoProgress }
                onEnded={ this._onVideoEnded }
            />
        );
    }
}

Higher-level

Component

Contain no platform-specific code but build upon the lower-level primitives

Other Solutions

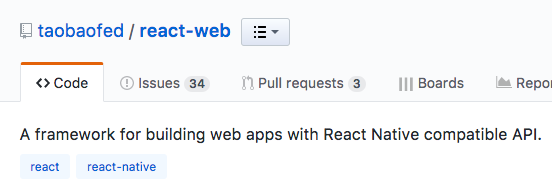

react-web

https://github.com/taobaofed/react-web

react-primitives

https://github.com/lelandrichardson/react-primitives

react-native-web

https://github.com/necolas/react-native-web

ReactXP Project Generator

https://github.com/react-native-training/create-xp-app
