Object-Oriented Design Patterns

What is OOP

Classes , Objects and code reuse

OOP Principles

  • Encapsulation
  • Inheritance , Composition and Delegation
  • Polymorphism

Encapsulation

Encapsulation is used to hide the values or state of a structured data object inside a class, preventing unauthorized parties to direct access them

class Program {
	public class Account {
		private decimal accountBalance = 500.00m;

		public decimal CheckBalance() {
			return accountBalance;
		}
	}

	static void Main() {
		Account myAccount = new Account();
		decimal myBalance = myAccount.CheckBalance();
	}
}

Inheritance and Composition

Inheritance, a mechanism for code reuse

in C# and Java:

  • All classes inherit from the base class Object (System.Object and java.lang.Object)
  • Multiple class inheritance is not possible



Interfaces provide definitions of methods and values which the objects agree upon in order to co-operate.

Inheritance and Composition

Inheritance, a mechanism for code reuse

in C# and Java:

  • All classes inherit from the base class Object (System.Object and java.lang.Object)
  • Multiple class inheritance is not possible
abstract class Animal {
    private string biologicalFamily;
    abstract String biologicalFamily();
}

class Cat extends Animal {
    private string biologicalFamily = "felidae";
    public String getBiologicalFamily()
      {
        return biologicalFamily;
      }
}

class Dog extends Animal {
    private string biologicalFamily = "canidae";
    public String biologicalFamily()
      {
        return biologicalFamily;
      }
}

void printBiologicalFamily(Animal a) {
    println("This animal is a " + a.biologicalFamily());
}

void main() {
    printBiologicalFamily(new Cat());
    printBiologicalFamily(new Dog());
}

Inheritance and Composition

Composition : objects of one class contain objects of another class

class Address {
    private string line1;
    private string line2;
    private string postCode;
    private string coutrycode;
    ...
}

class Employee {
    private string firstname;
    private string surname;
    private Address adrc;
    ...
}

Polymorphism

  • Ad hoc Polymorphism or function overloading
static void MakeAtLeast<T>(T[] list, T lowest) where T : IComparable<T>
    {
        for (int i = 0; i < list.Length; i++)
            if (list[i].CompareTo(lowest) < 0)
                list[i] = lowest;
    }
static void FindEmployee(String employeeName)
    {
        //search the employee list by name
    }
static void FindEmployee(Int employeeID)
    {
        //search the employee list by ID
    }
  • Parametric Polymorphism or generic programming

Polymorphism

  • Subtype polymorphism
abstract class Shape {
    abstract String draw();
}

class Circle extends Shape {
    String draw() {
        return "I am a circle.";
    }
}

class Square extends Shape {
    String draw() {
        return "This is a square.";
    }
}

void letsDraw(Shape aShape) {
    println(aShape.draw());
}

What is a design pattern?

Christopher Alexander says, "Each pattern describes a problem which occurs over and over again in our environment, and then describes the core of the solution
to that problem, in such a way that you can use this solution a million times over, without ever doing it the same way twice"

DP Classificaton : purpose and scope

Creational Structural Behavioral
Class Factory Method Adapter Interpreter
Template Method
Object Abstract Factory
Builder
Prototype
Singleton
 		 Adapter
Bridge
Composite
Decorator
Facade
Flyweight
Proxy		 Chain of Responsibility
Command
Iterator
Mediator
Memento
Observer
State
Strategy
Visitor

The Factory Method

AKA Virtual Constructor

Define an interface for creating an object, but let subclasses decide which class
to instantiate. Factory Method lets a class defer instantiation to subclasses

Intent

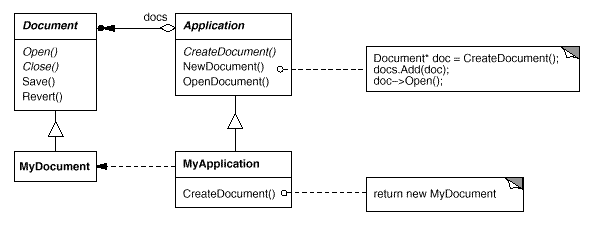

The Framework dilemma : The framework must instantiate classes, but it only knows about abstract classes, which it cannot instantiate

The Factory Method's solution encapsulates the knowledge of which Document subclass to create and moves this knowledge out of the framework

Motivation

Use the Factory Method pattern when


• a class can't anticipate the class of objects it must create.
• a class wants its subclasses to specify the objects it creates.
• classes delegate responsibility to one of several helper subclasses, and
you want to localize the knowledge of which helper subclass is the delegate

Applicability

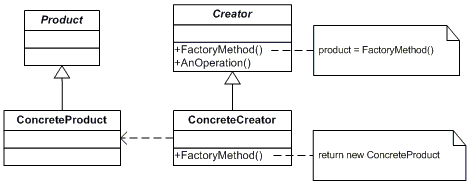

Structure

Participants

Product (Document) : defines the interface of objects the factory method creates.



ConcreteProduct (MyDocument) : implements the Product interface.


Creator (Application) : declares the factory method, which returns an object of type Product. Creator may also define a default implementation of the factory method that returns a default ConcreteProduct object. May call the factory method to create a Product object.


ConcreteCreator (MyApplication) : overrides the factory method to return an instance of a ConcreteProduct.



Collaborations and Consequences

  • Creator relies on its subclasses to define the factory method so that it returns an instance of the appropriate ConcreteProduct.



  • Factory methods eliminate the need to bind application-specific classes into your code
  • A potential disadvantage of factory methods is that clients might have to subclass the Creator class just to create a particular ConcreteProduct object
  • Factory Method gives subclasses a hook for providing an extended version of an object

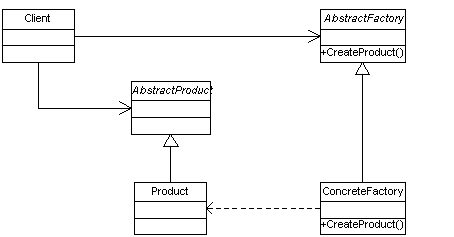

Factory Method Implementation


public class VehicleFactory {

    public CarFactory() {
        Vehicle car1 = makeVehicle();
        Vehicle car2 = makeVehicle();
        this.addCar(car1);
        this.addCar(car2);
    }

    protected Vehicle makeVehicle() {
        //This is a default implementation of the makeVehicle factory method
        return new Car();
    }
}

public class MotorcycleFactory extends VehicleFactory {
    @Override
    protected Vehicle makeVehicle() {
        return new Motorcycle();
    }
}


public interface Vehicle{}
public class Car implements Vehicle{}
public class Motorcycle implments Vehicle{}
interface VehicleFactory {
    public function makeVehicle();
}
interface Vehicle {
    public function getType();
}

/* Concrete implementations of the factory and car */

class CarFactory implements VehicleFactory {
    public function makeVehicle() {
        return new Car();
    }
}
class MotorcycleFactory implements VehicleFactory {
    public function makeVehicle() {
        return new Motorcycle();
    }
}

class Car implements Vehicle {
    public function getType() {
        return '4 wheels car';
    }
}
class Motorcycle implements Vehicle {
    public function getType() {
        return '2 wheels Motorcycle';
    }
}
/* Client */
if(SelectedType == "Car"){
    $factory = new CarFactory();
// returns an object of type Car
    $car = $factory->makeVehicle();
    print $car->getType();
}

Links

  • http://www.newthinktank.com/2012/09/factory-design-pattern-tutorial/
  • http://www.dofactory.com/net/factory-method-design-pattern
  • https://en.wikipedia.org/wiki/Factory_method_pattern
  • https://en.wikipedia.org/wiki/Software_design_pattern#Classification_and_list
