HTML and CSS

HTML

Hyper Text Markup Language

HTML

Sederhananya, cuma simpel teks file yang berekstensi `.html`

Buat teks dan simpan dengan nama halo.html

Ini adalah html web page

Apa kesimpulan dari slide sebelumnya?

Browser parsing & evaluating this file is a text and valid html

Commenting text

The browser will ignore and not display the text

Comment syntax

<!-- tidak di tampilkan oleh browser -->
<!-- berguna untuk memberi komentar /dokumentasi saat development -->

Tags, Attributes and Elements

<!DOCTYPE html>
<html>
<body>
    ini adalah html web page
</body>
</html>

Perbarui file sebelumnya

Document type Declaration

  • <DOCTYPE html>
<!DOCTYPE html>

Hanya menginformasikan ke browser bahwa kita menggunakan HTML5

Opening Tag

  •  <html>
  •  <body>
<html>
<body>

Closing Tag

  •  <html>
  •  <body>
</html>
</body>

Attributes

  •  <tag attribute="value"></tag>
<tag attribute="value"></tag>

<div id="container" class="initial"></div>

Opening Tag

Closing Tag

Attributes

HTML

Elements

  •  <title>Ini disebut element title</title>
<title>Ini disebut element title</title>

Apa yang ingin kita lihat di web browser itu disebut element

Page Title

<head>
    <title>My web page</title>
</head>
<!DOCTYPE html>
<html>
<head>
    <title>My web page</title>
</head>
<body>
    ini adalah html web page
</body>
</html>
<!DOCTYPE html>
<html>
<head>
    <title>My web page</title>
</head>
<body>
    <p>ini adalah html web page</p>
</body>
</html>

Types of Body Tag

  • Text
  • Links
  • Lists
  • Tables
  • Images

Tag / Element to show a text

  • Headings with abbrev h1-h6
  • Paragraph with abbrev p

Headings

  • <h1></h1>
  • <h2></h2>
  • <h3></h3>
  • <h4></h4>
  • <h5></h5>
  • <h6></h6>
0
 Advanced issue found
▲


Headings

  • H1 is primary

  • H1 should only once in page

  • H2-H6 is a secondary element

0
 Advanced issue found
▲


Paragraph

<p>Ini paragraph teks</p>
<!DOCTYPE html>
<html>
<head>
    <title>My web page</title>
</head>
<body>
    <h1>My first web page</h1>

    <h2>What this is</h2>
    <p>A simple page put together using HTML</p>

    <h2>Why this is</h2>
    <p>To learn HTML</p>
    <p>ini adalah html web page</p>
</body>
</html>

Fact:

Browser don't care about how many white spaces in html

Two kinds of types element

  • Block type such as div element
  • Inline type such as span element
<div>
  ini element block
  <p>
    ini paragraf
    <span>ini inline span didalam pargraf</span>
  </p>
</div>

Line break `<br>`

<strong>Ini bold teks</strong><br>
<p>Ini adalah html web page</p>

Line separator `<hr>`

<p>Ini bold teks</p>
<hr>
<p>Ini adalah html web page</p>

Lists

  • ul > li untuk unordered lists
  • ol > li untuk ordered lists
  • dl > dt, dd untuk definition lists
<!DOCTYPE html>

<html>

<head>
    <title>My first web page</title>
</head>

<body>
    <h1>My first web page</h1>

    <h2>What this is</h2>
    <p>A simple page put together using HTML</p>

    <h2>Why this is</h2>
    <ul>
        <li>To learn HTML</li>
        <li>To show off</li>
        <li>Because I've fallen in love with my computer and
         want to give her some HTML loving.</li>
    </ul>

</body>

</html>
<!DOCTYPE html>

<html>

<head>
    <title>My first web page</title>
</head>

<body>
    <h1>My first web page</h1>

    <h2>What this is</h2>
    <p>A simple page put together using HTML</p>

    <h2>Why this is</h2>
    <ul>
        <li>To learn HTML</li>
        <li>
          To show off
          <ol>
            <li>To my boss</li>
            <li>To my friends</li>
            <li>To my cat</li>
            <li>To the little talking duck in my brain</li>
          </ol>
        </li>
        <li>Because I've fallen in love with my computer and
         want to give her some HTML loving.</li>
    </ul>

</body>

</html>

Common Characters (charsets) encoding:

  • &nbsp;

  • &lt;

  • &gt;

  • &copy

  • &mdash;

Types of meaning element and used the same as block element div:



  • header element

  • section element

  • article element

  • footer element

  • hgroup element

  • nav element

  • figure element

  • address element

href

  • bisa link ke berbeda alamat web
  • bisa link ke page yang sama

Images

  • To show an image in web page
<img src="https://www.xcidic.com/static/xcidic-logo.svg" width="120" height="90" alt="Xcidic.com">

html

head

body

title

style

script

meta

link

h1

div


footer

ul

text

span

a

p

text

li

li

script

Hierarchy

HTML Structure

Other inline & formatting elements:

  • Element <em>

  • Element <strong>

  • Element <i>

  • Element <b>

  • Element <q>

  • Element <blockquote>

  • Element <cite>

  • Element <abbr>

  • Element <sub>

  • Element <sup>

0
 Advanced issue found
▲


Let's try

Strong

<strong>Ini bold teks</strong>

Emphasis

<em>Ini italic teks</em>

Links

  • All links together

The “H” and “T” in “HTML” stand for “hypertext”, which basically means a system of linked text.

<a href="https://www.google.com">Google</a>

Tables

  • table
  • tr
  • td
  • th
  • caption
  • thead
  • tbody
  • tfoot
<table>
    <tr>
        <td>Row 1, cell 1</td>
        <td>Row 1, cell 2</td>
        <td>Row 1, cell 3</td>
    </tr>
    <tr>
        <td>Row 2, cell 1</td>
        <td>Row 2, cell 2</td>
        <td>Row 2, cell 3</td>
    </tr>
    <tr>
        <td>Row 3, cell 1</td>
        <td>Row 3, cell 2</td>
        <td>Row 3, cell 3</td>
    </tr>
    <tr>
        <td>Row 4, cell 1</td>
        <td>Row 4, cell 2</td>
        <td>Row 4, cell 3</td>
    </tr>
</table>
<table>
  <thead>
    <tr>
      <th>Month</th>
      <th>Savings</th>
    </tr>
  </thead>
  <tbody>
    <tr>
      <td>January</td>
      <td>$100</td>
    </tr>
    <tr>
      <td>February</td>
      <td>$80</td>
    </tr>
  </tbody>
  <tfoot>
    <tr>
      <td>Sum</td>
      <td>$180</td>
    </tr>
  </tfoot>
</table>

Forms

  • form
  • input
  • textarea
  • select
  • option
<form action="contactus.php" method="post">

    <p>Name:</p>
    <p><input type="text" name="name" value="Your name"></p>

    <p>Species:</p>
    <p><input name="species"></p>
    <!-- remember: 'type="text"' isn't actually necessary -->

    <p>Comments: </p>
    <p><textarea name="comments" rows="5" cols="20">Your comments</textarea></p>

    <p>Are you:</p>
    <p><input type="radio" name="areyou" value="male"> Male</p>
    <p><input type="radio" name="areyou" value="female"> Female</p>

    <p><input type="submit"></p>

</form>

CSS

Cascading Style Sheets

Menerapkan CSS

  • Inline
  • internal
  • external

Inline

  • <p style="color: red">text</p>

Internal

<!DOCTYPE html>
<html>
<head>
<title>CSS Example</title>
<style>

    p {
        color: red;
    }

    a {
        color: blue;
    }

</style>

External

p {
    color: red;
}

a {
    color: blue;
}
  • css file (style.css)
<!DOCTYPE html>
<html>
<head>
    <title>CSS Example</title>
    <link rel="stylesheet" href="style.css">
  • import di html file

Selectors, Properties and Values

body {
    font-size: 14px;
    color: navy;
}

Selector

property

value

opening declaration

ingat semicolon

closing declaration

Colors

  • define with color name
  • define with rgb
  • define with hexadecimal

Colors

  • red
  • rgb(255,0,0)
  • rgb(100%,0%,0%)
  • #ff0000
  • #f00

Text

  • font
  • font-family
  • font-size
  • font-weight
  • font-style
  • text-decoration
  • text-transform
  • letter-spacing
  • word-spacing
  • line-height
  • text-align
  • text-indent

Margins and Padding

  • margin (jarak antara element)
  • padding(jarak di dalam element)

Box Model

Margin box
Border box
Padding box
Element box

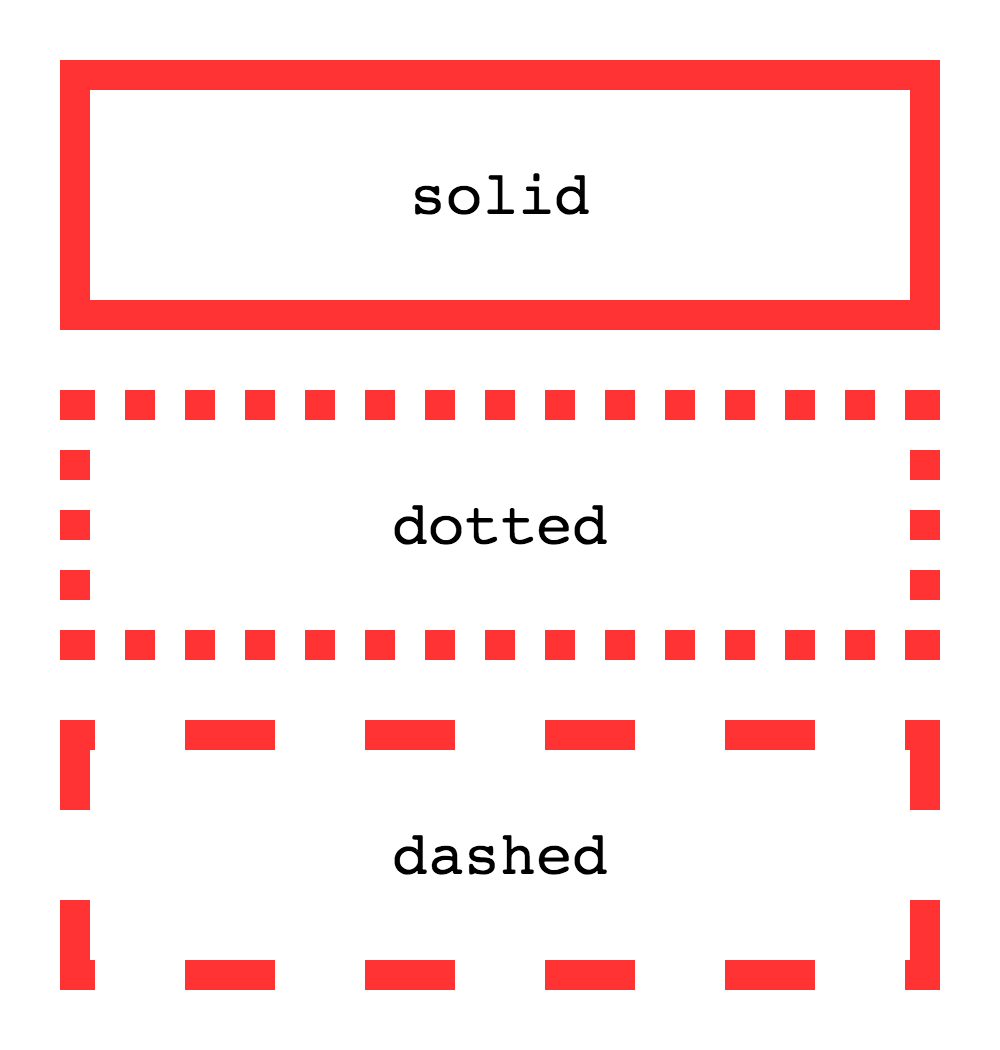

Border

Good to Read:
