Dengue Virus Typing from Shotgun and Targeted Metagenomics

Computational Biology and Bioinformatics Seminars

Inês Mendes

@ines_cim

cimendes

The dengue virus

| Introduction

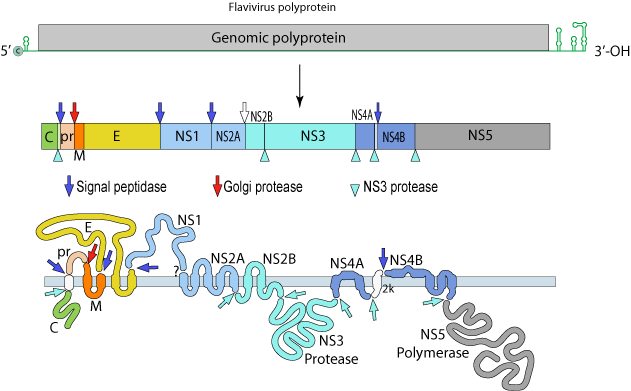

DENV: (+)ssRNA (~11Kb; 1 ORF)
The single polyprotein encodes:
- Structural Proteins:
  - C – capsid
  - prM – pre-membrane
  - M - membrane
  - E - envelope
- Non-Structural Proteins:
  - NS1, NS2A, NS2B, NS3, NS4A, NS4B and NS5

| Introduction

Can be classified into 4 serotypes:

DENV-1 - genotypes I-V
DENV-2 - genotypes Asian I, Asian II, Cosmopolitan, American, Asian/American & Sylvatic
DENV-3 - genotypes I-V
DENV-4 - genotypes I - III & Sylvatic

The dengue virus

| Introduction

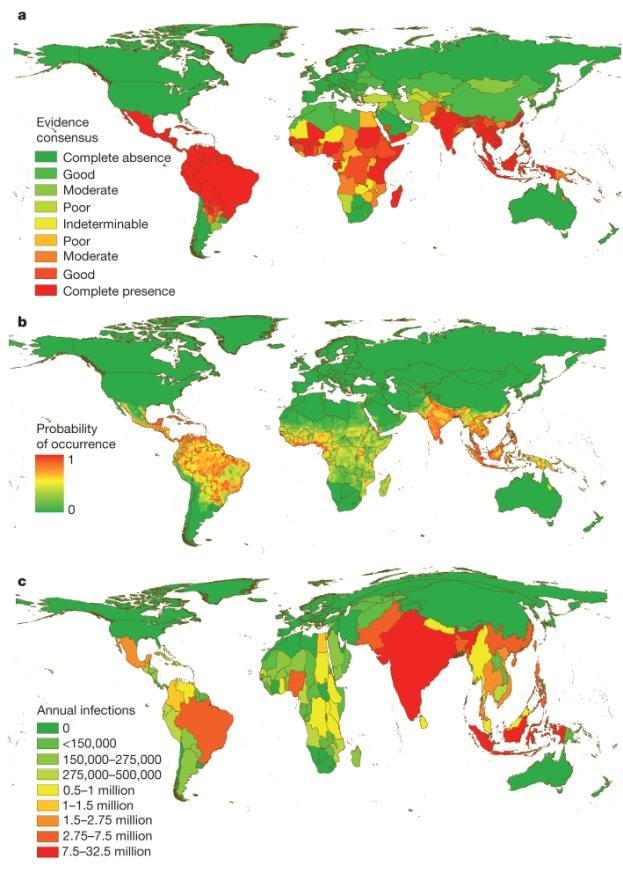

The control of dissemination and characterization of DENV through the use of HTS presents the most promising strategy to understand transmission and disease in populations where it’s infection is endemic.

The dengue virus

| Introduction

The dengue virus

DEN-IM

| The workflow

What is it?

A ready-to-use one-stop and reproducible bioinformatic analysis workflow for the processing and phylogenetic analysis of DENV using paired-end raw sequencing data.

What for?

Empower the use of HTS to monitor the dissemination of the disease directly from patient samples.

DEN-IM

| The workflow

What do I need?

Git, Nextflow (java) and a container engine (Docker, singularity, shifter...).

apt-get install git

curl -s https://get.nextflow.io | bash

apt-install docker-ce

Clone (or run remotely)

git clone https://github.com/B-UMMI/DEN-IM.git

DEN-IM

| The workflow

nextflow run DEN-IM.nf --help -profile docker

N E X T F L O W  ~  version 0.32.0
Launching `DEN-IM.nf` [nice_monod] - revision: 97bee38c5e

============================================================
                 D E N - I M
============================================================


Usage:
    nextflow run DEN-IM.nf

       --fastq                     Path expression to paired-end fastq files. (default: fastq/*_{1,2}.*)
       --genomeSize                Genome size estimate for the samples in Mb. It is used to estimate the coverage and other assembly parameters andchecks (integrity_coverage;check_coverage;assembly_mapping)
       --minCoverage               Minimum coverage for a sample to proceed. By default it's setto 0 to allow any coverage (integrity_coverage;check_coverage)
       --adapters                  Path to adapters files, if any. (fastqc_trimmomatic)
       --trimSlidingWindow         Perform sliding window trimming, cutting once the average quality within the window falls below a threshold. (fastqc_trimmomatic)
       --trimLeading               Cut bases off the start of a read, if below a threshold quality. (fastqc_trimmomatic)
       --trimTrailing              Cut bases of the end of a read, if below a threshold quality. (fastqc_trimmomatic)
       --trimMinLength             Drop the read if it is below a specified length. (fastqc_trimmomatic)
       --clearInput                Permanently removes temporary input files. This option is only useful to remove temporary files in large workflows and prevents nextflow's resume functionality. Use with caution. (fastqc_trimmomatic;filter_poly;bowtie;retrieve_mapped;viral_assembly;pilon)
       --pattern                   Pattern to filter the reads. Please separate parametervalues with a space and separate new parameter sets with semicolon (;). Parameters are defined by two values: the pattern (any combination of the letters ATCGN), and the number of repeats or percentage of occurence. (filter_poly)
       --reference                 Specifies the reference genome to be provided to bowtie2-build. (bowtie)
       --index                     Specifies the reference indexes to be provided to bowtie2. (bowtie)
       --minimumContigSize         Expected genome size in bases (viral_assembly)
       --spadesMinCoverage         The minimum number of reads to consider an edge in the de Bruijn graph during the assembly (viral_assembly)
       --spadesMinKmerCoverage     Minimum contigs K-mer coverage. After assembly only keep contigs with reported k-mer coverage equal or above this value (viral_assembly)
       --spadesKmers               If 'auto' the SPAdes k-mer lengths will be determined from the maximum read length of each assembly. If 'default', SPAdes will use the default k-mer lengths.  (viral_assembly)
       --megahitKmers              If 'auto' the megahit k-mer lengths will be determined from the maximum read length of each assembly. If 'default', megahit will use the default k-mer lengths. (default: auto) (viral_assembly)
       --minAssemblyCoverage       In auto, the default minimum coverage for each assembled contig is 1/3 of the assembly mean coverage or 10x, if the mean coverage is below 10x (assembly_mapping)
       --AMaxContigs               A warning is issued if the number of contigs is overthis threshold. (assembly_mapping)
       --splitSize                 Minimum contig size (split_assembly)
       --typingReference           Typing database. (dengue_typing)
       --includeNCBI               Include NCBI DENV references in alignment. (mafft))
       --getGenome                 Retrieves the sequence of the closest reference. (dengue_typing)
       --substitutionModel         Substitution model. Option: GTRCAT, GTRCATI, ASC_GTRCAT, GTRGAMMA, ASC_GTRGAMMA etc  (raxml)
       --seedNumber                Specify an integer number (random seed) and turn on rapid bootstrapping (raxml)
       --bootstrap                 Specify the number of alternative runs on distinct starting trees (raxml)
       --simpleLabel               Simplify the labels in the newick tree (for interactive report only) (raxml)

DEN-IM

| The workflow

Quality Control:

FastQC, Trimmomatic, Prinseq

DENV Sequence Retrieval:

Bowtie2, Samtools

Assembly:

Spades, MEGAHIT

In Silico Typing:

Seq_typing (assembly); Seq_Typing reads (consensus)

Alignment:

MAFFT

Phylogenetic Inference:

RaxML

DEN-IM

| The workflow

DENV Sequence Retrieval:

3830 complete DENV genomes from the NIAID Virus Pathogen Database and Analysis Resource (ViPR)
complete genome sequence
human host (exception of DENV-1 III, monkey)
collection year (1950-2018)

In Silico Typing:

Clustered at 98% nucleotide identity, leaving 161 representative sequences of all sero and genotypes.

DEN-IM

| A case study

Paired-end short-read Illumina shotgun sequencing dataset:

9 plasma samples
13 serum samples
1 spiked sample with the 4 serotypes
Positive and Negative controls

Paired-end short-read Illumina shotgun sequencing dataset:

Pipeline execution with default parameters and resources

106 plasma samples

DEN-IM

| The report

DEN-IM

| The report

DEN-IM

| Main points

DEN-IM was design to perform a comprehensive, reproducible analysis without the requirements of extensive bioinformatics expertise
It is able to detect co-infection with multiple DENV serotypes
Can be easily customized to optimize data analysis

https://github.com/B-UMMI/DEN-IM

https://github.com/B-UMMI/DEN-IM/wiki

This work was funded by: FCT - "Fundação para a Ciência e a Tecnologia" (SFRH/BD/129483/2017) and the Abel Tasman Talent Program grant from the UMCG, University of Groningen, Groningen, The Netherland

https://doi.org/10.1101/628073

Special thanks to E Lizarazo, M P Machado, D N Silva, A Tami, M Ramirez, N Couto, J W A Rossen, J A Carriço
