Figma to Code

 A Behind-the-Scenes Look

$ whoami

Lead Software Engineer

The most important:

I like programming, JavaScript, movies, music and I'm a big fan of LOTR and Star Wars 🤓

May the Force be with you!

7 years at GlobalLogic

about 8 years in Web Development



Speaker, mentor, and Trusted Interviewer at GlobalLogic

Part of the program committee at Fwdays conference



        GitHub page

Inna Ivashchuk

Design to code workflow

Agenda

Live coding example

Design system + Design tokens

How the client (front) communicates with a server (back)

Q&A

Design to code workflow

Web technologies

Let me introduce the 3 main technologies that are used to build a website HTML, CSS, and JavaScript

HTML: website structure

The HyperText Markup Language, or HTML is the standard markup language for documents designed to be displayed in a web browser. It can be assisted by technologies such as Cascading Style Sheets (CSS) and scripting languages such as JavaScript.

CSS: website styles

Cascading Style Sheets (CSS) is a style sheet language used for describing the presentation of a document written in a markup language such as HTML.

JavaScript: website functionality

JavaScript often abbreviated as JS, is a programming language that conforms to the ECMAScript specification.  JS is lightweight, interpreted, or just-in-time compiled programming language with first-class functions.

HTML

CSS

JavaScript

The more information we have, the better end result will be

sizes

(padding, margins, dimensions)

colors

(variables)

text

(approved labels/content with ability to copy)

icons

(ability to download)

images

(ability to download)

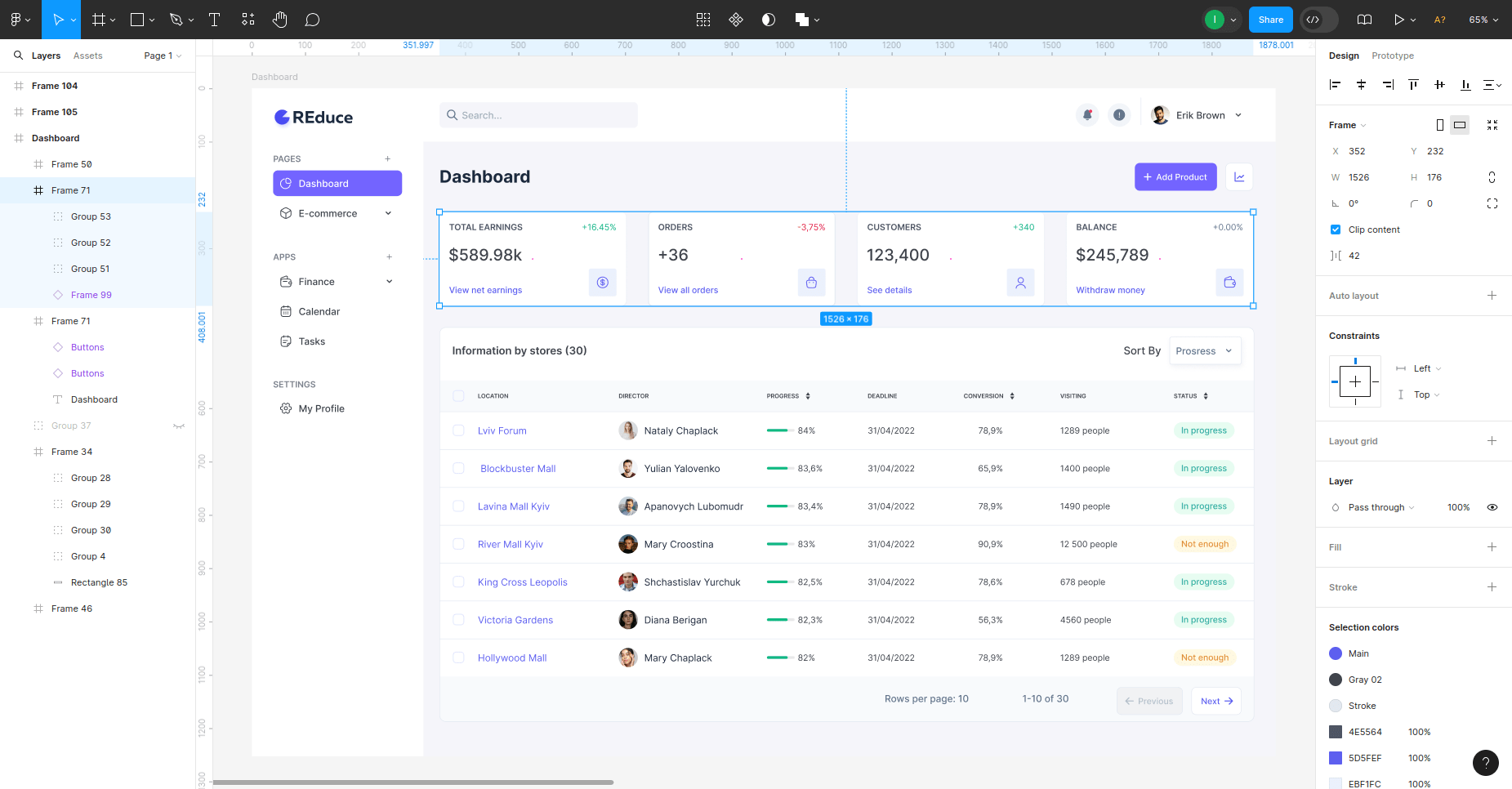

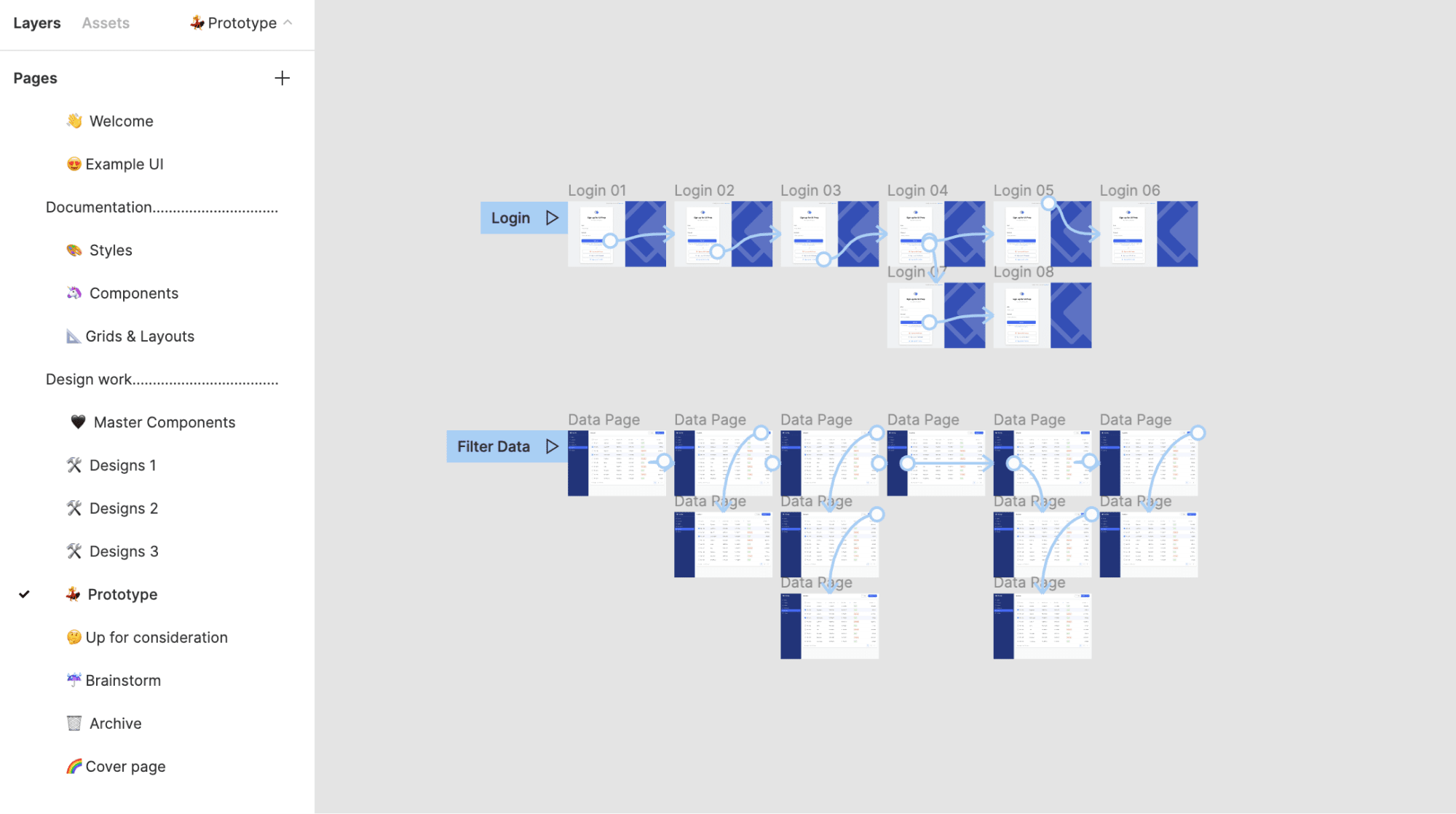

Prototypes

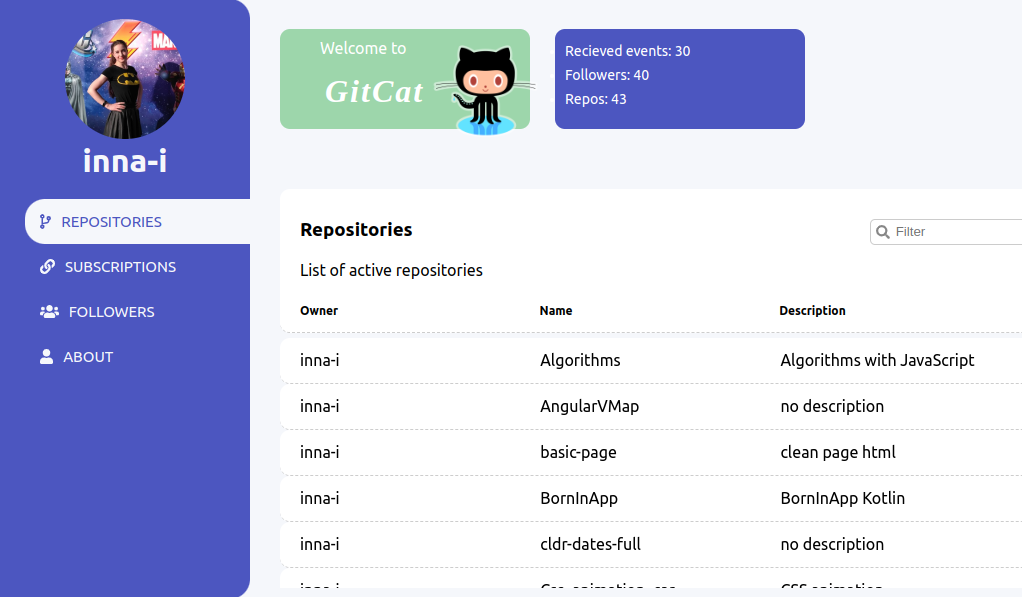

Live coding example

1

Change primary color

3

Change first column text color

5

Add permissions check to display side menu items

2

Update rows

styles

4

Show number of

items in a list

Design system +

Design tokens

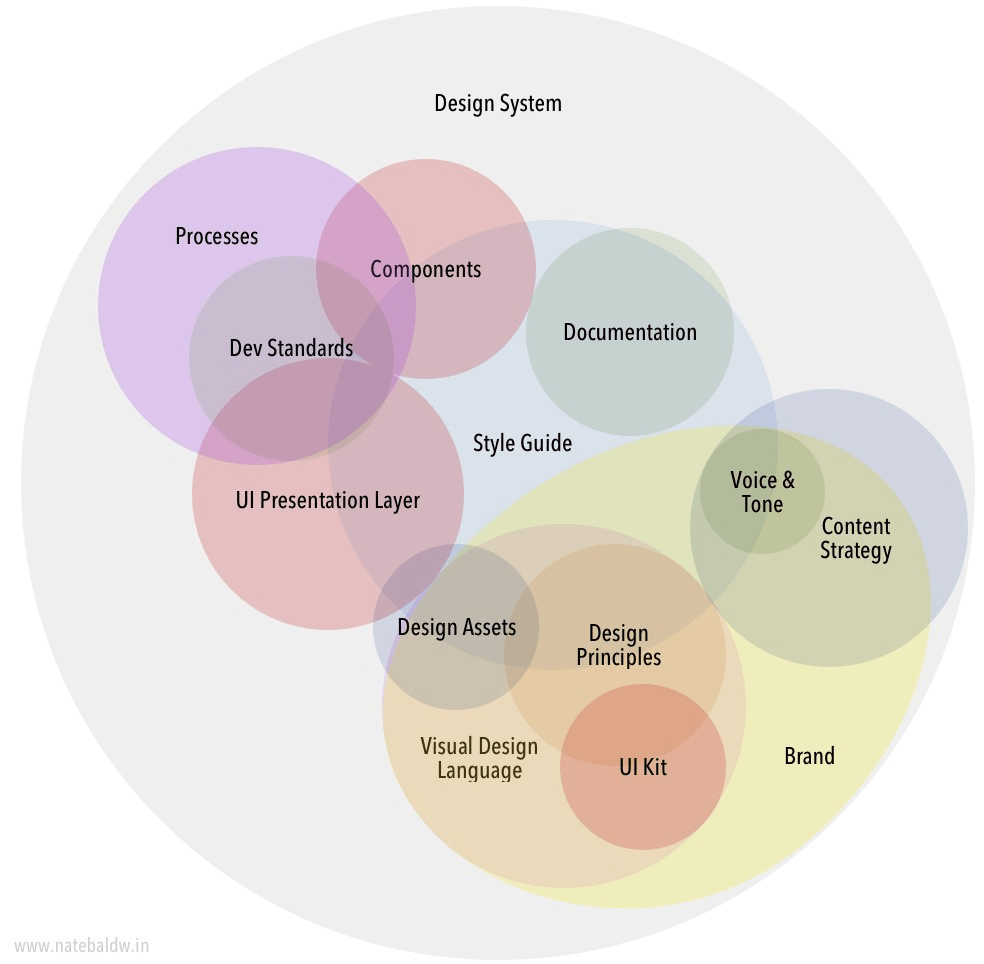

At its core, a design system is a set of building blocks and standards that help keep the look and feel of products and experiences consistent

Design system

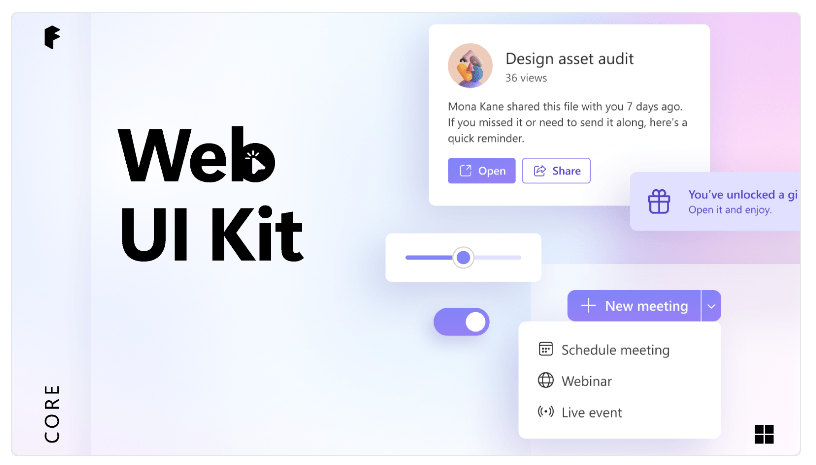

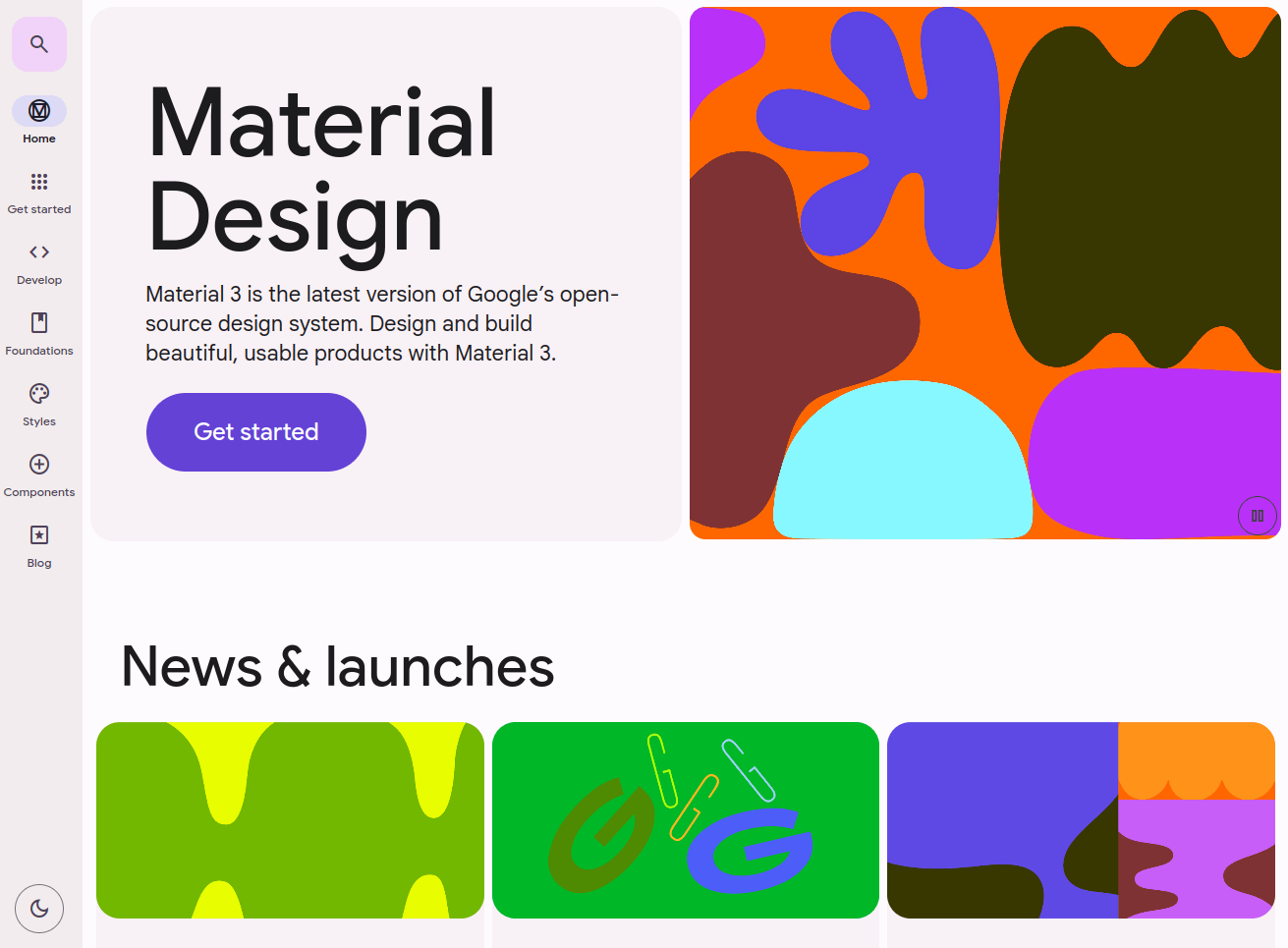

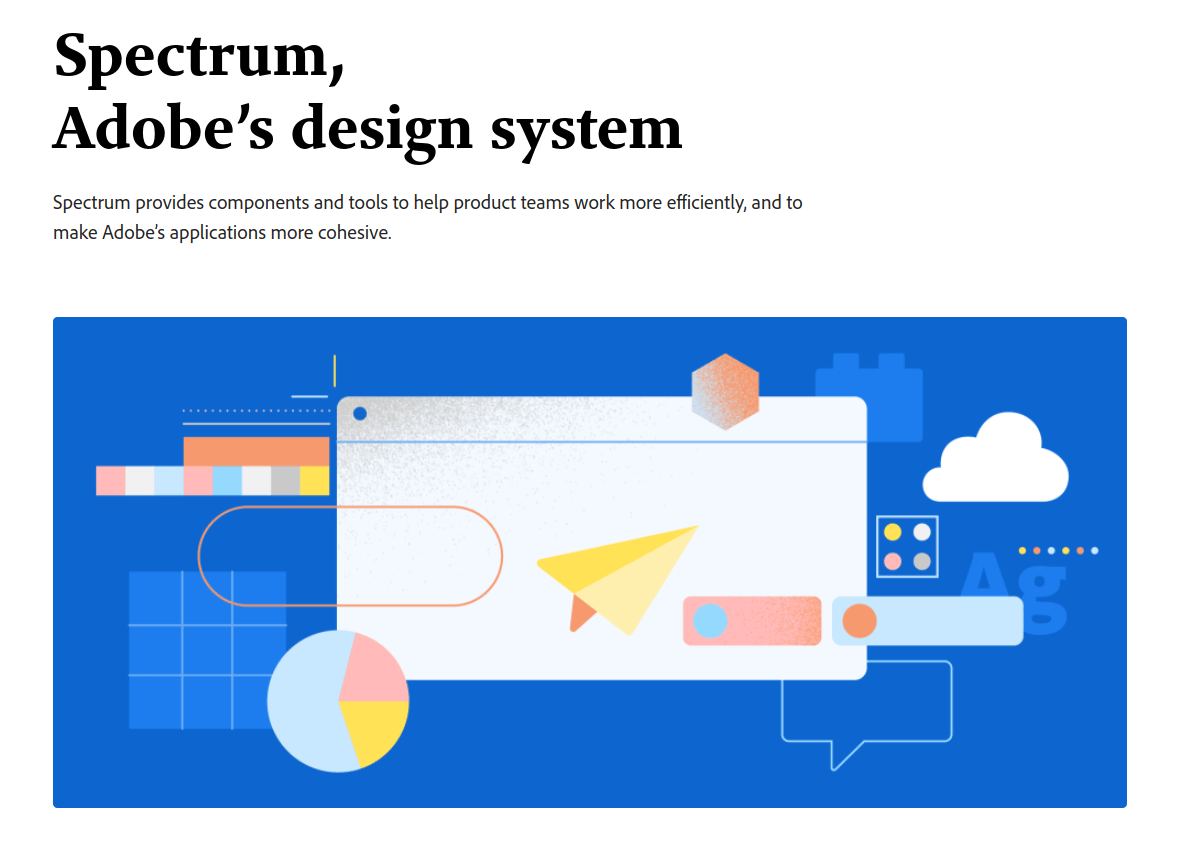

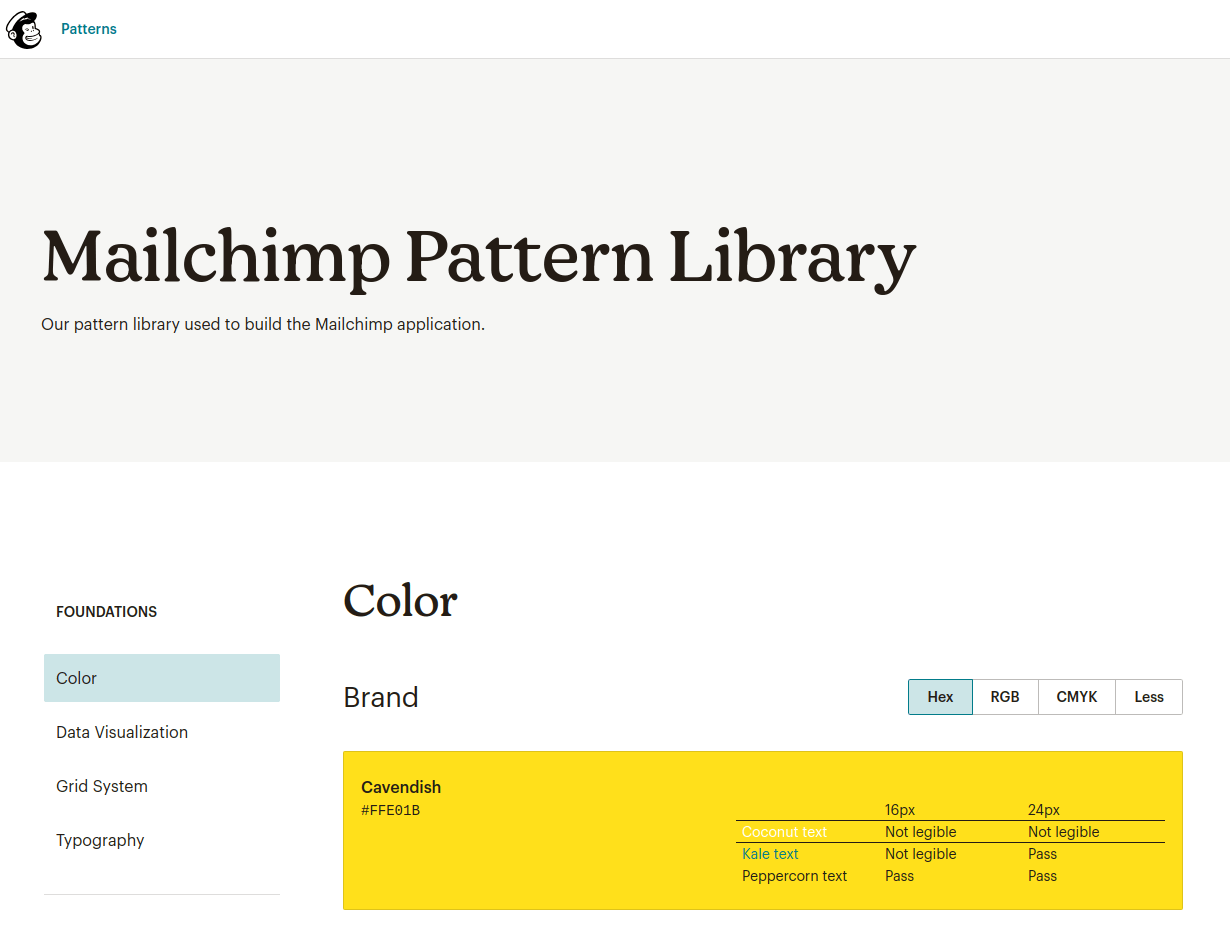

Design system examples from leading brands

Let's use as an example Talend's Design system

Design tokens are the single source of truth to name and store a design decision, distributed so teams can use it across design tools and coding languages.

Design tokens

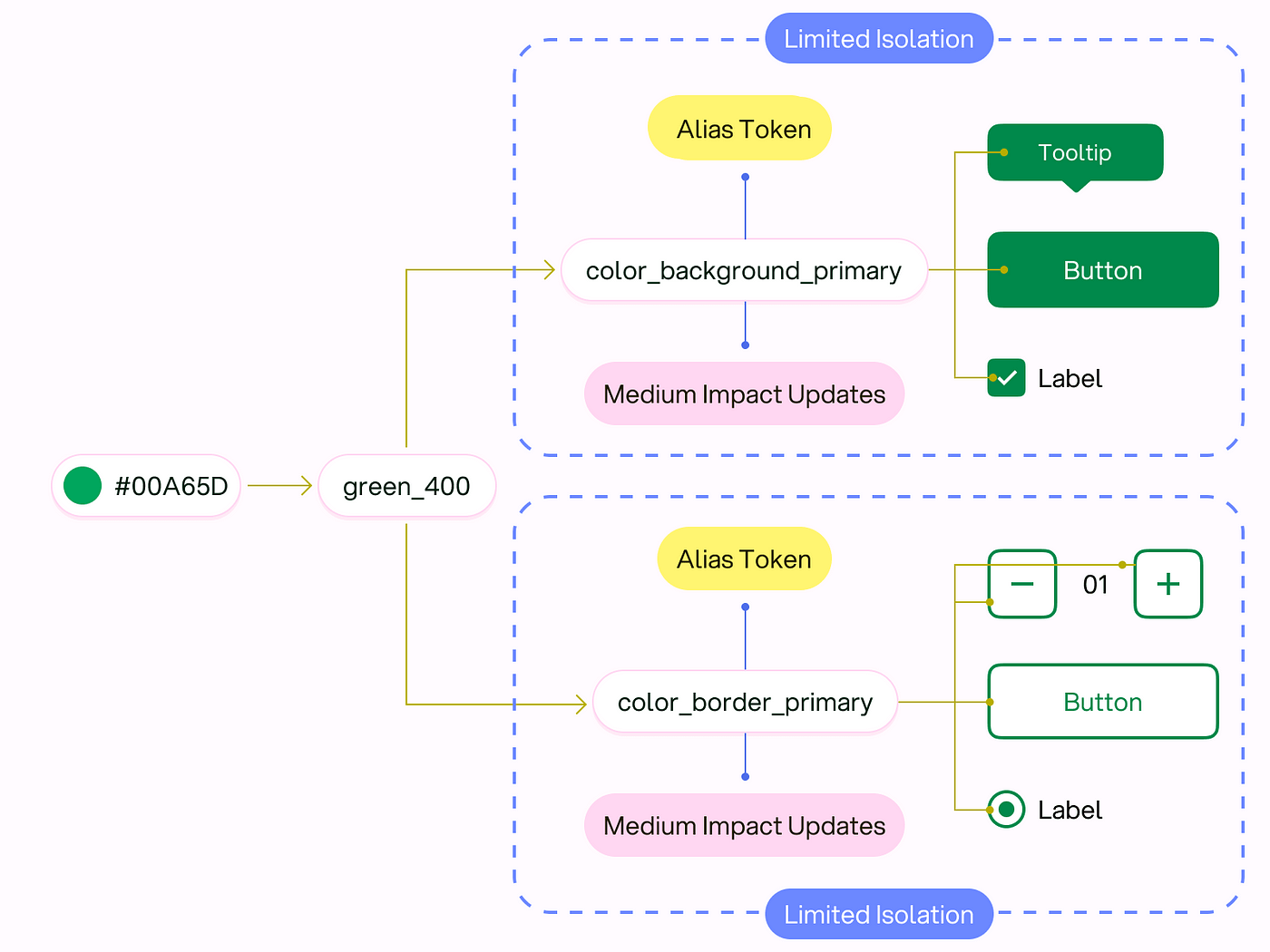

Design token types and terminology

      drop-zone-background-color

          accent-visual-color

          accent-color-800

          orange-800

Component specific token

Alias token

Alias token

Global token

Value

          #ff8866

          #ff8866

  green-800

 color-background-primary

 color-border-primary

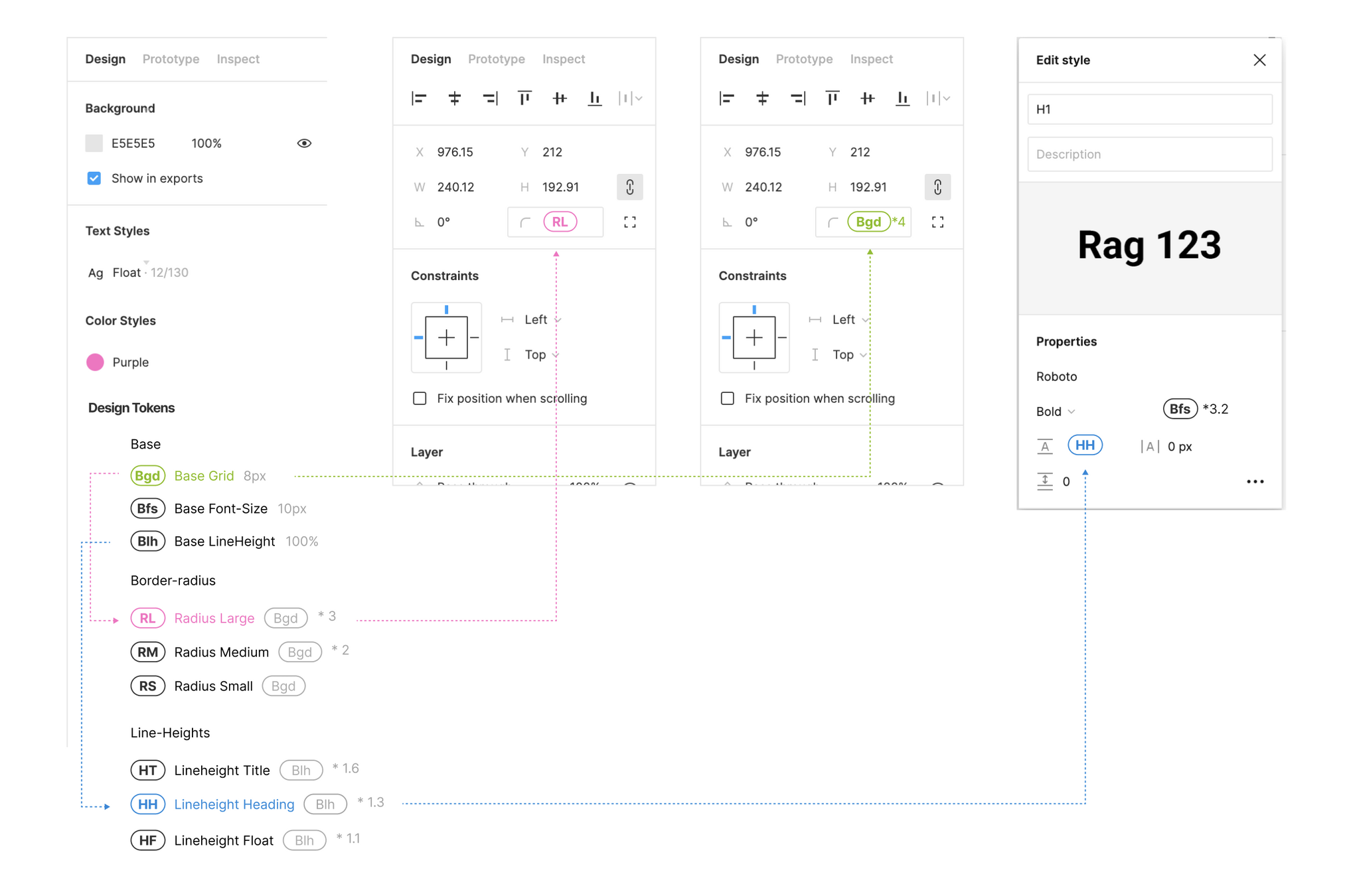

Usages in Figma

Theming

Colors palette, sizing and more

How can we extract design tokens to use in an app?

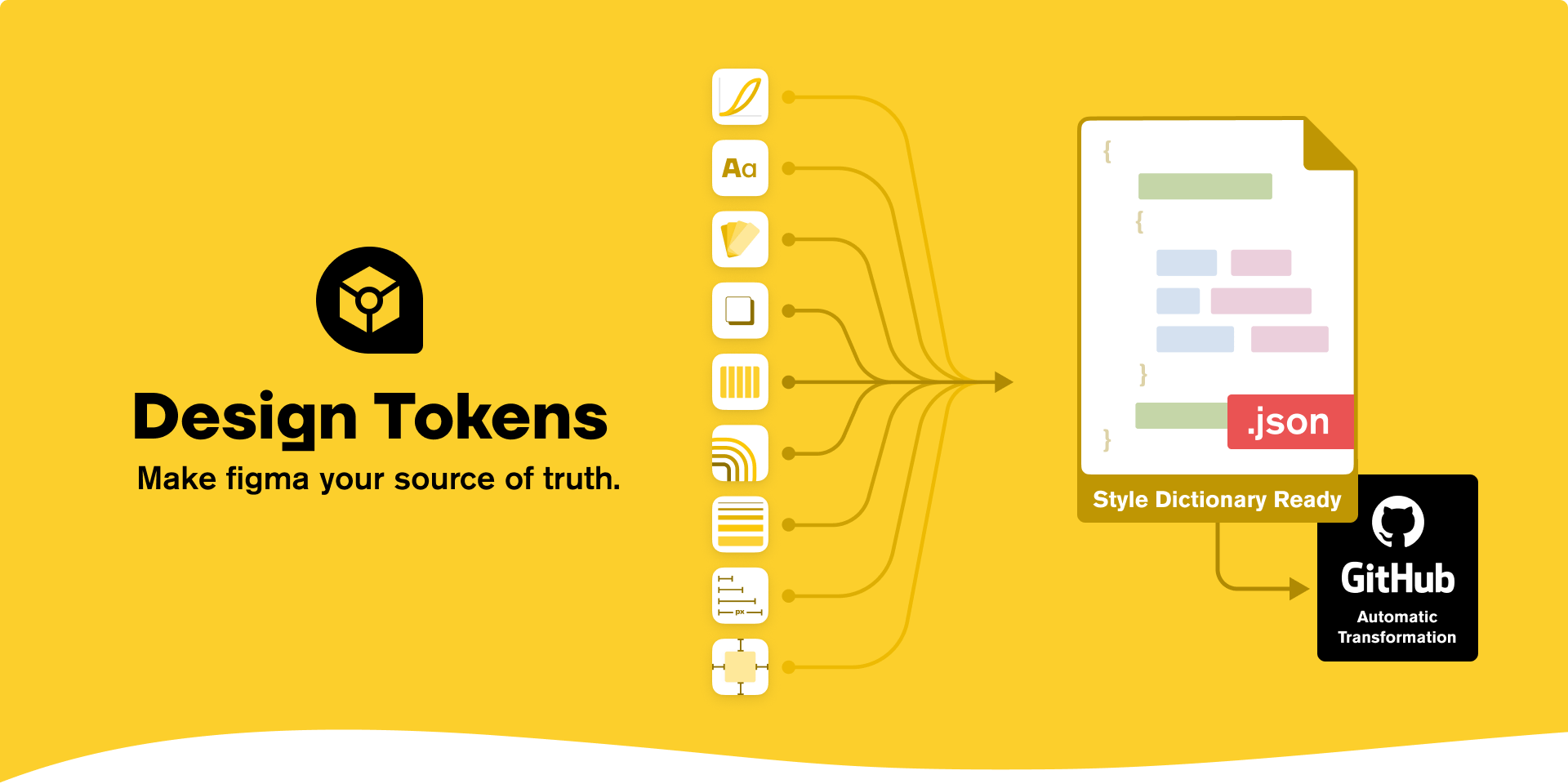

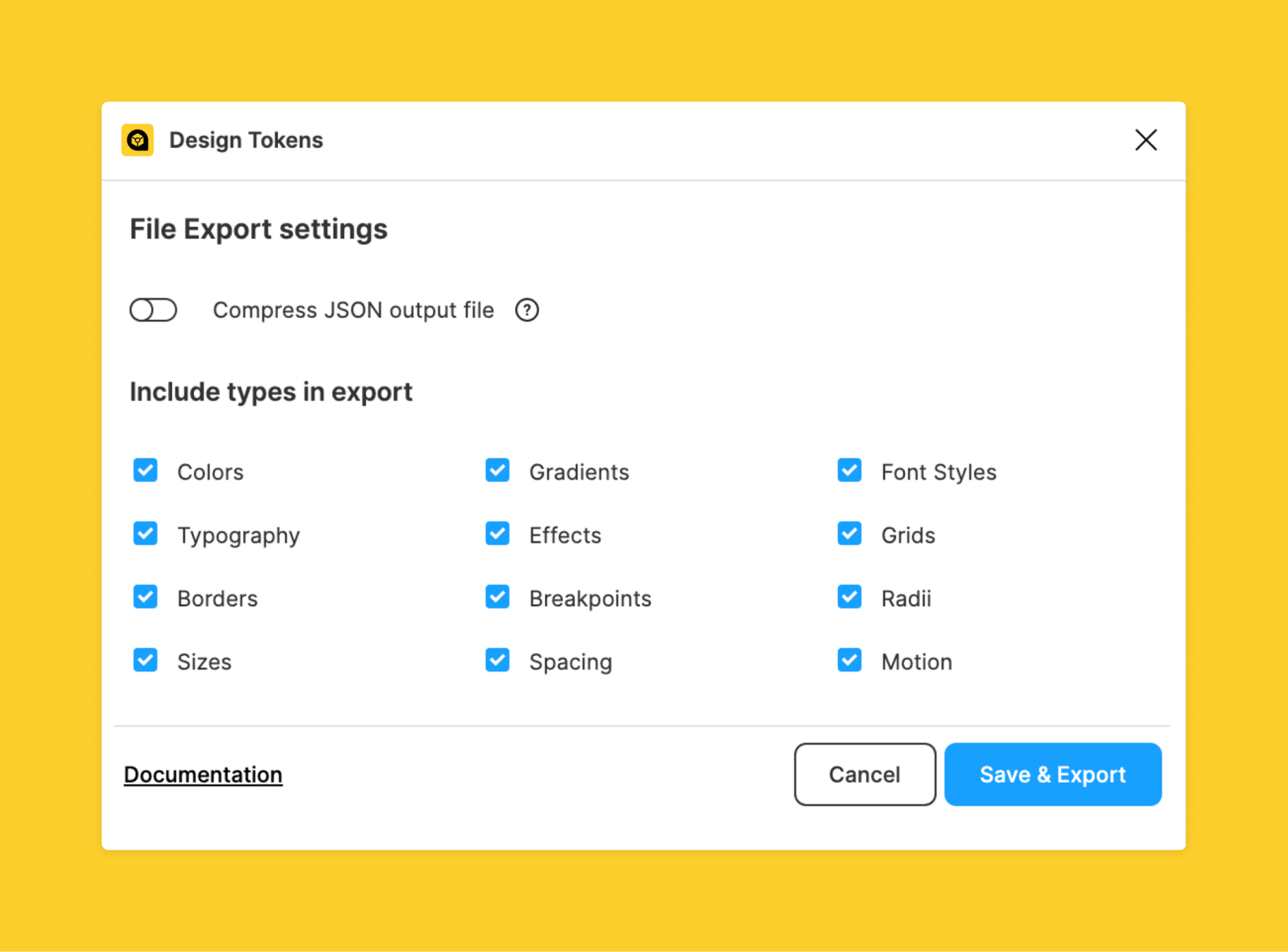

Figma plugin

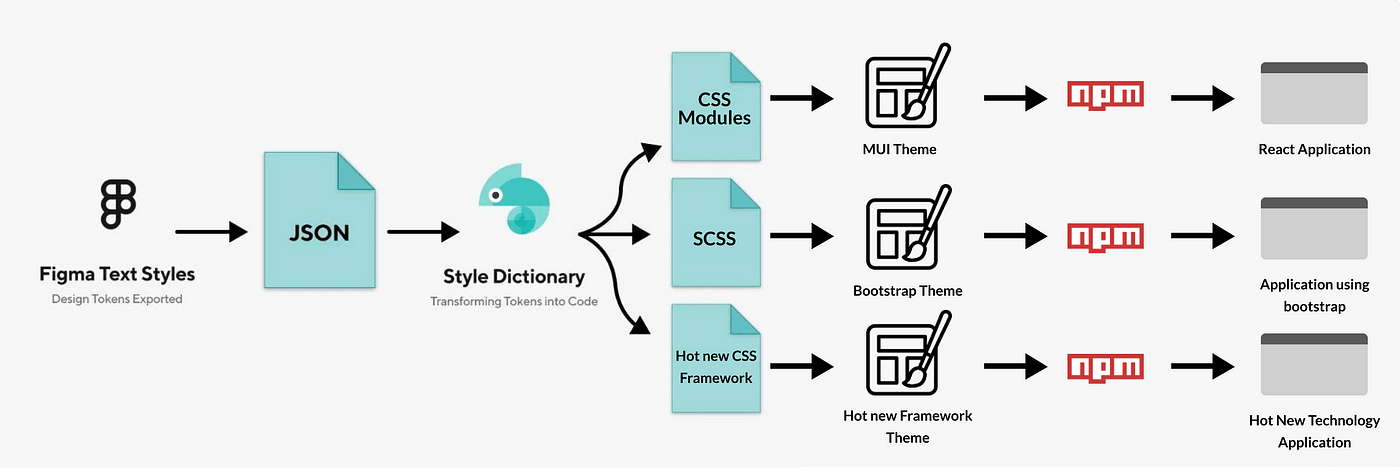

Amazon tool - Style Dictionary

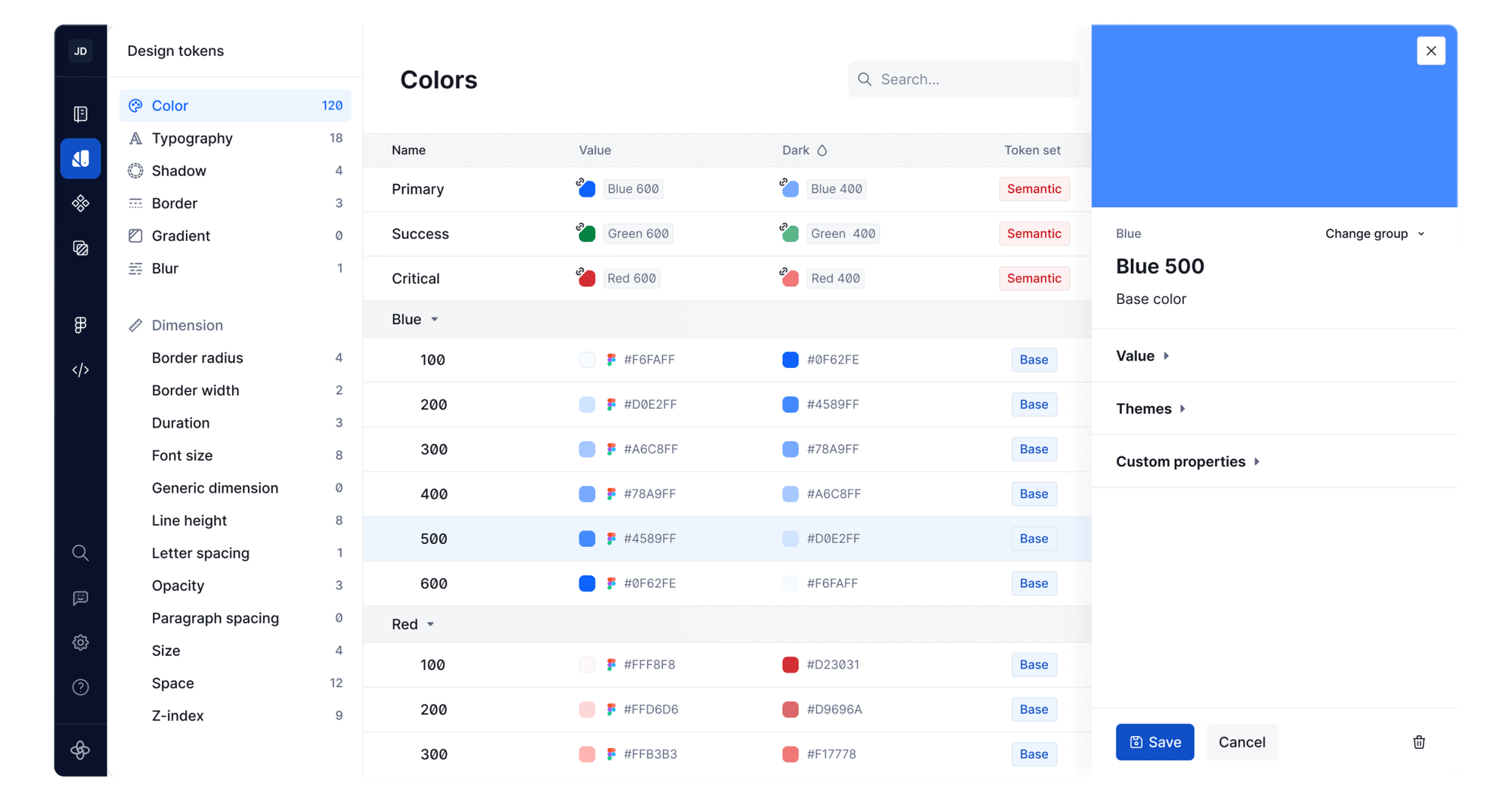

Supernova

Connect, manage, and document your design tokens — including Figma Variables — in one place. Supernova automates token imports, updates, and delivery to code.

How the client communicates with a server

Client (Front-end)

Server (Backend)

"Hey, server, let's talk?"

GET HTTP-request

HTTP-response

Client-server communication

POST HTTP-request

HTTP-response

......

HTTP and WebSocket

      Hypertext Transfer Protocol (HTTP) is an application-layer protocol for transmitting hypermedia documents, such as HTML. It was designed for communication between web browsers and web servers, but it can also be used for other purposes. HTTP follows a classical client-server model, with a client opening a connection to make a request, then waiting until it receives a response. HTTP is a stateless protocol, meaning that the server does not keep any data (state) between two requests.

      WebSocket is a computer communications protocol, providing full-duplex communication channels over a single TCP connection. The WebSocket protocol was standardized by the IETF as RFC 6455 in 2011. The current API specification allowing web applications to use this protocol is known as WebSockets

Client 2

Server

Client 3

Client 1

Client 4

WebSockets

WebSocket in TCP/IP protocol stack

WS

HTTP

DNS

FTP

TCP

UDP

IP

ICMP

ARP

DHCP

Ethernet

Wi-Fi

DSL

Application

Transport

Network

Data Link and Physical

Collect the data from the application software and format it for further processing

Packetize the data. Add sequecing and error correction info to each packet

Add source and destination IP address to each packet

Add source and destination MAC address to each packet and pass to NIC drivers

Front-end

Backend

and more

and more

Q&A

Convert design into code

By Inna Ivashchuk
