He Wang (王赫)



26th September 2025 @TianQin-SYSU

Based on arXiv:2508.03661

可解释 AI 与强化学习协同驱动的
引力波数据处理新方法探索

Interpretable Gravitational Wave Data Analysis with Reinforcement Learning and Large Language Models

hewang@ucas.ac.cn

International Centre for Theoretical Physics Asia-Pacific (ICTP-AP), UCAS

Taiji Laboratory for Gravitational Wave Universe (Beijing/Hangzhou), UCAS

动机1：需要探索空间引力波探测数据处理的新策略

He Wang | ICTP-AP, UCAS

Interpretable Gravitational Wave Data Analysis with DL and LLMs

hewang@ucas.ac.cn

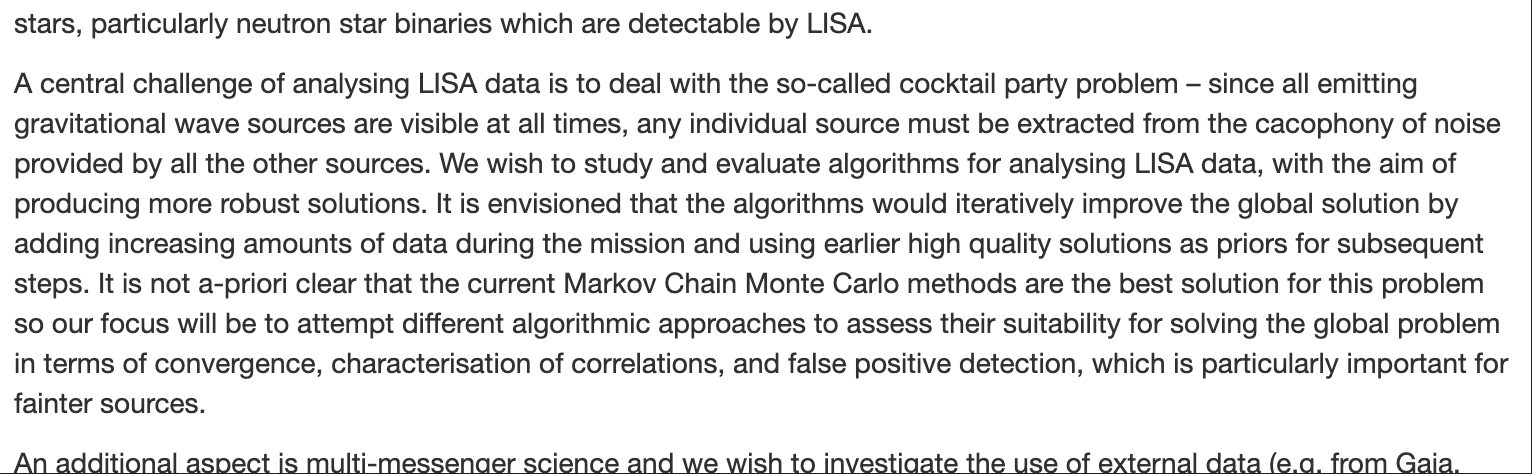

分析 LISA 数据所面临的一个核心挑战是所谓的“鸡尾酒会问题”——由于所有引力波源在观测期间始终可见，必须从众多其他源及其产生的噪声中精准提取出某一个特定信号。我们希望系统地研究和评估 LISA 数据分析算法，以开发更为稳健的全局拟合方案。我们的设想是，算法将通过迭代方式进行优化：在任务期间逐步加入更多数据，并以先前获得的高质量解作为先验信息，从而持续改善全局解。目前尚不清楚传统的马尔可夫链蒙特卡洛（MCMC）方法是否最适合解决该问题，因此我们的研究重点是探索多种算法策略，并从收敛性、参数相关性的刻画能力以及假阳性检测等角度评估它们在解决全局拟合问题时的适用性，特别是针对较微弱的信号源。

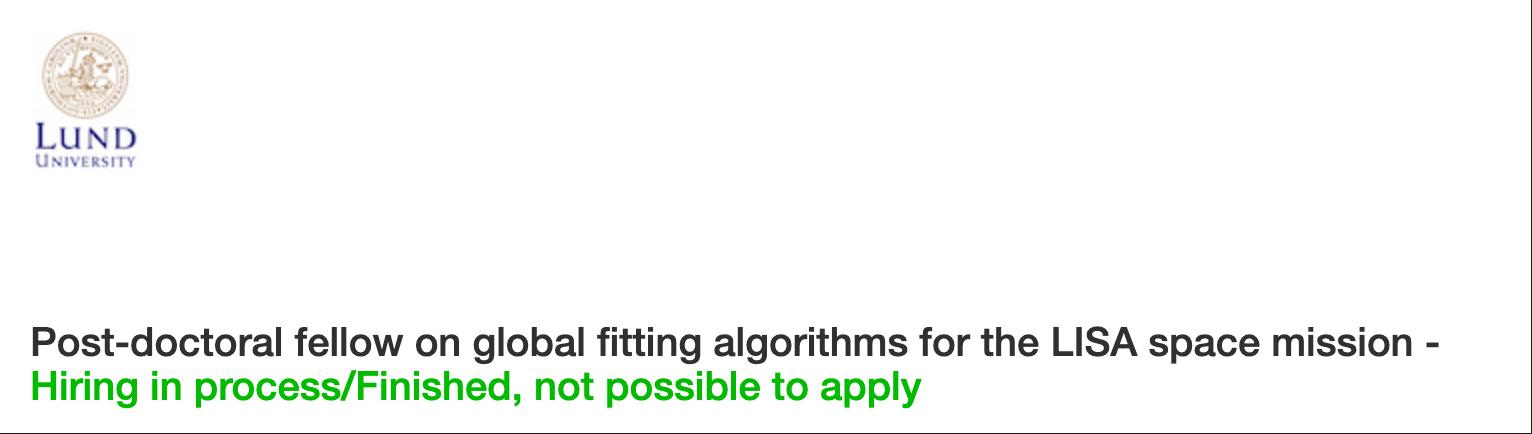

https://lu.varbi.com/en/what:job/jobID:799217

Two methods:

  1. 【全局拟合】Joint PE: the ideal case
    • Accurate in theory, although the sampler may struggle dealing with \(10^n\) space
  2. 【逐个扣除】Hierarchical Subtraction
    • Less expensive than joint PE
    • Less accurate

 (J.Janquart+, MNRAS 2023)

动机2：地面引力波实测数据   \(\Rightarrow\)   算法开发   \(\Rightarrow\)  空间引力波探测

GW Data Characteristics

LIGO-VIRGO-KAGRA

LISA Project

  • Noise: non-Gaussian and non-stationary

  • Signal challenges:

    • (Earth-based) A low signal-to-noise ratio (SNR) which is typically about 1/100 of the noise amplitude (-60 dB).

    • (Space-based) A superposition of all GW signals (e.g.: 104 of GBs, 10~102 of SMBHs, and 10~103 of EMRIs, etc.) received during the mission's observational run.

Matched Filtering Techniques (匹配滤波方法)

  • In Gaussian and stationary noise environments, the optimal linear algorithm for extracting weak signals

  • Works by correlating a known signal model \(h(t)\) (template) with the data.
  • Starting with data: \(d(t) = h(t) + n(t)\).
  • Defining the matched-filtering SNR \(\rho(t)\):
    \(\rho^2(t)\equiv\frac{1}{\langle h|h \rangle}|\langle d|h \rangle(t)|^2 \) , where
    \(\langle d|h \rangle (t) = 4\int^\infty_0\frac{\tilde{d}(f)\tilde{h}^*(f)}{S_n(f)}e^{2\pi ift}df \) ,
    \(\langle h|h \rangle = 4\int^\infty_0\frac{\tilde{h}(f)\tilde{h}^*(f)}{S_n(f)}df \),
    \(S_n(f)\) is noise power spectral density (one-sided).

Statistical Approaches

Frequentist Testing:

  • Make assumptions about signal and noise
  • Write down the likelihood function
  • Maximize parameters
  • Define detection statistic
    → recover MF

Bayesian Testing:

  • Start from same likelihood
  • Define parameter priors
  • Marginalize over parameters
  • Often treated as Frequentist statistic
    → recover MF (for certain priors)
He Wang | ICTP-AP, UCAS

Interpretable Gravitational Wave Data Analysis with DL and LLMs

hewang@ucas.ac.cn

试金石

迁移应用

Matched Filtering Techniques (匹配滤波方法)

  • In Gaussian and stationary noise environments, the optimal linear algorithm for extracting weak signals

  • Works by correlating a known signal model \(h(t)\) (template) with the data.
  • Starting with data: \(d(t) = h(t) + n(t)\).
  • Defining the matched-filtering SNR \(\rho(t)\):
    \(\rho^2(t)\equiv\frac{1}{\langle h|h \rangle}|\langle d|h \rangle(t)|^2 \) , where
    \(\langle d|h \rangle (t) = 4\int^\infty_0\frac{\tilde{d}(f)\tilde{h}^*(f)}{S_n(f)}e^{2\pi ift}df \) ,
    \(\langle h|h \rangle = 4\int^\infty_0\frac{\tilde{h}(f)\tilde{h}^*(f)}{S_n(f)}df \),
    \(S_n(f)\) is noise power spectral density (one-sided).

Statistical Approaches

Frequentist Testing:

  • Make assumptions about signal and noise
  • Write down the likelihood function
  • Maximize parameters
  • Define detection statistic
    → recover MF

Bayesian Testing:

  • Start from same likelihood
  • Define parameter priors
  • Marginalize over parameters
  • Often treated as Frequentist statistic
    → recover MF (for certain priors)
He Wang | ICTP-AP, UCAS

Interpretable Gravitational Wave Data Analysis with DL and LLMs

h_w[t]
d_w[t]
\rho[t]

线性滤波器

输入序列

输出序列

h_w[t]

脉冲响应函数：

hewang@ucas.ac.cn

Digital Signal Processing Approach

动机3：传统方法严重依赖人工经验构造滤波器与统计量

He Wang | ICTP-AP, UCAS

Interpretable Gravitational Wave Data Analysis with DL and LLMs

Nitz et al., ApJ (2017)

He Wang | ICTP-AP, UCAS

Phys. Rev. D 109, 123547 (2024)

动机4：AI 可解释性挑战: Discoveries vs. Validation

Interpretable Gravitational Wave Data Analysis with DL and LLMs

hewang@ucas.ac.cn

GW Search & Parameter Estimation Challenges with AI Models:

  • Convincing the scientific community of the pipeline's validity and the statistical significance of new discoveries remains difficult despite the model's ability to identify potential gravitational wave signals.
  • In parameter estimation, AI models' lack of interpretability requires substantial additional scientific validation to ensure credibility and acceptance of results.
  • Results from AI models often lack robustness across different noise realizations and are difficult to calibrate against established methods.
  • Scientific papers using AI methods must dedicate significant space to validation procedures, comparing against traditional methods and demonstrating reliability across multiple test cases.

Sci4MLGW@ICERM (June 2025)

Detection statistics from our AI model showing O1 events

HW et al 2024 MLST 5 015046

GW151226

GW151012

LVK. PRD (2016). arXiv:1602.03839

Phys. Rev. D 109, 123547 (2024)

AI 可解释性挑战: Discoveries vs. Validation

GW Search & Parameter Estimation Challenges with AI Models:

  • Convincing the scientific community of the pipeline's validity and the statistical significance of new discoveries remains difficult despite the model's ability to identify potential gravitational wave signals.
  • In parameter estimation, AI models' lack of interpretability requires substantial additional scientific validation to ensure credibility and acceptance of results.
  • Results from AI models often lack robustness across different noise realizations and are difficult to calibrate against established methods.
  • Scientific papers using AI methods must dedicate significant space to validation procedures, comparing against traditional methods and demonstrating reliability across multiple test cases.

Sci4MLGW@ICERM (June 2025)

Detection statistics from our AI model showing O1 events

HW et al 2024 MLST 5 015046

GW151226

GW151012

LVK. PRD (2016). arXiv:1602.03839

He Wang | ICTP-AP, UCAS

arXiv:2407.07820 [gr-qc]

Recent AI Discoveries & Validation Hurdles:

  • A recent study (arXiv:2407.07820) demonstrates how a ResNet-based (CNN) architecture with careful signal search strategy and post-processing can identify 8 new potential gravitational wave events from LIGO O3 data.
  • The absence of these events in traditional PyCBC results raises questions: could adjustments to rate priors and p_astro parameters in signal models help traditional pipelines detect these candidates (if they are real GW events)?
  • The ideal approach combines multiple diverse pipelines working in parallel to ensure comprehensive detection (requiring interpretable models) and using evidence-based detection statistics while simultaneously optimizing both real signal population (p_astro) and noise model (likelihood) fits.

Search

PE

Rate

Key Insight:

Interpretability Challenges: Discoveries vs. Validation (part 1/2)

Interpretable Gravitational Wave Data Analysis with DL and LLMs

hewang@ucas.ac.cn

He Wang | ICTP-AP, UCAS

Interpretability Challenges: Discoveries vs. Validation (part 1/2)

Recent AI Discoveries & Validation Hurdles:

  • A recent study (arXiv:2407.07820) demonstrates how a ResNet-based (CNN) architecture with careful signal search strategy and post-processing can identify 8 new potential gravitational wave events from LIGO O3 data.
  • The absence of these events in traditional PyCBC results raises questions: could adjustments to rate priors and p_astro parameters in signal models help traditional pipelines detect these candidates (if they are real GW events)?
  • The ideal approach combines multiple diverse pipelines working in parallel to ensure comprehensive detection (requiring interpretable models) and using evidence-based detection statistics while simultaneously optimizing both real signal population (p_astro) and noise model (likelihood) fits.

Search

PE

Rate

Key Insight:

Credit: DCC-XXXXXXXX

Interpretable Gravitational Wave Data Analysis with DL and LLMs

hewang@ucas.ac.cn

动机1：需要探索空间引力波探测数据处理的新策略

动机2：地面引力波实测数据\(\Rightarrow\)算法开发\(\Rightarrow\)空间引力波探测

动机3：传统方法严重依赖人工经验构造滤波器与统计量

动机4：AI 可解释性挑战: Discoveries vs. Validation

Automated Heuristic Design: Problem Definition

He Wang | ICTP-AP, UCAS

For any complex task \(P\) (especially NP-hard problems), Automated Heuristic Design (AHD) searches for the optimal heuristic \(h^*\) within a heuristic space \(H\):

\(h^*=\underset{h \in H}{\arg \max } g(h) \)

The heuristic space \(H\) contains all feasible algorithmic solutions for task \(P\). Each heuristic \(h \in H\) maps from the set of task inputs \(I_P\) to corresponding solutions \(S_P\):

\(h: I_P \rightarrow S_P\)

Performance measure \(g(\cdot)\) evaluates each heuristic's effectiveness, \(g: H \rightarrow \mathbb{R}\). For minimization problems with objective function \(f: S_P \rightarrow \mathbb{R}\), we estimate performance by evaluating the heuristic instances  \({ins}\in D \subseteq I_P\) on dataset \(D\) as follows:

\(g(h)=\mathbb{E}_{\boldsymbol{ins} \in D}[-f(h(\boldsymbol{ins}))]\)

arXiv.2410.14716

P
H
S_p
\mathbb{R}
f
I_p
h

external_knowledge
(constraint)

h
g(h)

HW & ZL, arXiv:2508.03661

hewang@ucas.ac.cn

AAD for GW detection Guided by LLM-informed Evo-MCTS

He Wang | ICTP-AP, UCAS
import numpy as np
import scipy.signal as signal
def pipeline_v1(strain_h1: np.ndarray, strain_l1: np.ndarray, times: np.ndarray) -> tuple[np.ndarray, np.ndarray, np.ndarray]:
    def data_conditioning(strain_h1: np.ndarray, strain_l1: np.ndarray, times: np.ndarray) -> tuple[np.ndarray, np.ndarray, np.ndarray]:
        window_length = 4096
        dt = times[1] - times[0]
        fs = 1.0 / dt

        def whiten_strain(strain):
            strain_zeromean = strain - np.mean(strain)
            freqs, psd = signal.welch(strain_zeromean, fs=fs, nperseg=window_length,
                                       window='hann', noverlap=window_length//2)
            smoothed_psd = np.convolve(psd, np.ones(32) / 32, mode='same')
            smoothed_psd = np.maximum(smoothed_psd, np.finfo(float).tiny)
            white_fft = np.fft.rfft(strain_zeromean) / np.sqrt(np.interp(np.fft.rfftfreq(len(strain_zeromean), d=dt), freqs, smoothed_psd))
            return np.fft.irfft(white_fft)

        whitened_h1 = whiten_strain(strain_h1)
        whitened_l1 = whiten_strain(strain_l1)

        return whitened_h1, whitened_l1, times

    def compute_metric_series(h1_data: np.ndarray, l1_data: np.ndarray, time_series: np.ndarray) -> tuple[np.ndarray, np.ndarray]:
        fs = 1 / (time_series[1] - time_series[0])
        f_h1, t_h1, Sxx_h1 = signal.spectrogram(h1_data, fs=fs, nperseg=256, noverlap=128, mode='magnitude', detrend=False)
        f_l1, t_l1, Sxx_l1 = signal.spectrogram(l1_data, fs=fs, nperseg=256, noverlap=128, mode='magnitude', detrend=False)
        tf_metric = np.mean((Sxx_h1**2 + Sxx_l1**2) / 2, axis=0)
        gps_mid_time = time_series[0] + (time_series[-1] - time_series[0]) / 2
        metric_times = gps_mid_time + (t_h1 - t_h1[-1] / 2)

        return tf_metric, metric_times

    def calculate_statistics(tf_metric, t_h1):
        background_level = np.median(tf_metric)
        peaks, _ = signal.find_peaks(tf_metric, height=background_level * 1.0, distance=2, prominence=background_level * 0.3)
        peak_times = t_h1[peaks]
        peak_heights = tf_metric[peaks]
        peak_deltat = np.full(len(peak_times), 10.0)  # Fixed uncertainty value
        return peak_times, peak_heights, peak_deltat

    whitened_h1, whitened_l1, data_times = data_conditioning(strain_h1, strain_l1, times)
    tf_metric, metric_times = compute_metric_series(whitened_h1, whitened_l1, data_times)
    peak_times, peak_heights, peak_deltat = calculate_statistics(tf_metric, metric_times)

    return peak_times, peak_heights, peak_deltat

Input: H1 and L1 detector strains, time array | Output: Event times, significance values, and time uncertainties

P
H
S_p
\mathbb{R}
f
I_p
h

external_knowledge
(constraint)

h
g(h)

Optimization Target: Maximizing Area Under Curve (AUC) in the 1-1000Hz false alarms per-year range, balancing detection sensitivity and false alarm rates across algorithm generations

Automated Heuristic Design: Problem Definition

HW & ZL, arXiv:2508.03661

MLGWSC-1 benchmark

Problem: Pipeline Workflow

  1. Conditions raw detector data (whitening)
  2. Computes time-frequency metrics
  3. Identifies peaks above background
  4. Returns event candidates with timestamps

AAD for GW detection Guided by LLM-informed Evo-MCTS

He Wang | ICTP-AP, UCAS

Algorithmic Exploration：LLM Prompt Engineering

external_knowledge
(constraint)

h
g(h)

Prompt Structure for Algorithm Evolution

This template guides the LLM to generate optimized gravitational wave detection algorithms by learning from comparative examples.

Key Components:

  • Expert role establishment
  • Example pair analysis (worse/better algorithm)
  • Reflection on improvements
  • Targeted new algorithm generation
  • Strict output format enforcement
You are an expert in gravitational wave signal detection algorithms. Your task is to design heuristics that can effectively solve optimization problems.

{prompt_task}

I have analyzed two algorithms and provided a reflection on their differences.

[Worse code]
{worse_code}

[Better code]
{better_code}

[Reflection]
{reflection}

{external_knowledge}

Based on this reflection, please write an improved algorithm according to the reflection.
First, describe the design idea and main steps of your algorithm in one sentence. The description must be inside a brace outside the code implementation. Next, implement it in Python as a function named '{func_name}'.
This function should accept {input_count} input(s): {joined_inputs}. The function should return {output_count} output(s): {joined_outputs}.
{inout_inf} {other_inf}

Do not give additional explanations.

One Prompt Template for MLGWSC1 Algorithm Synthesis

hewang@ucas.ac.cn

HW & ZL, arXiv:2508.03661

AAD for GW detection Guided by LLM-informed Evo-MCTS

Algorithmic Synergy: MCTS, Evolution & LLM Agents

He Wang | ICTP-AP, UCAS

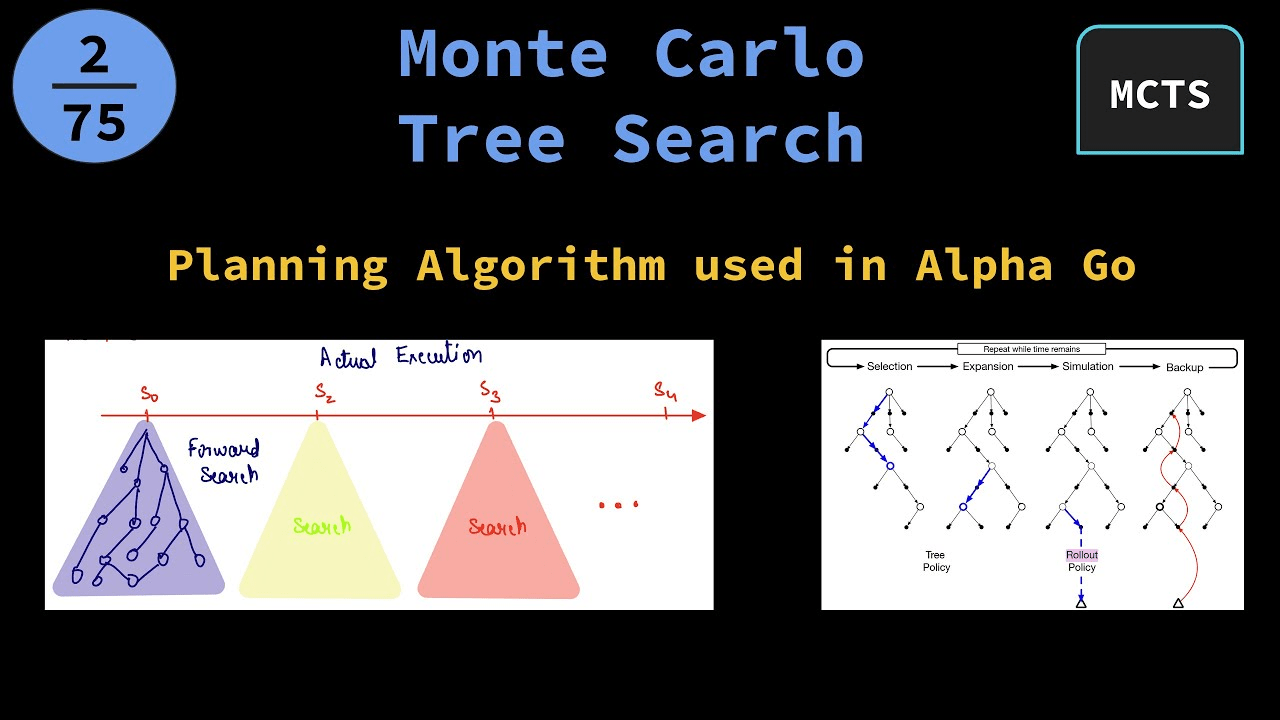

  • Within each evolutionary iteration, Monte Carlo Tree Search (MCTS) decomposes complex signal detection problems into manageable decision sequences, enabling depth-wise and path-wise exploration of algorithmic possibilities.
  • We propose four evolutionary operations for MCTS expansion: Parent Crossover (PC) combines information from nodes at the parent level, Sibling Crossover (SC) exchanges features between nodes sharing the same parent, Point Mutation (PM) introduces random perturbations to individual nodes, and Path-wise Crossover (PWC) synthesizes information along complete trajectories from root to leaf.

hewang@ucas.ac.cn

AAD for GW detection Guided by LLM-informed Evo-MCTS

Algorithmic Synergy: MCTS, Evolution & LLM Agents

He Wang | ICTP-AP, UCAS

hewang@ucas.ac.cn

  • deepseek-R1 for reflection generation
  • o3-mini-medium for code generation
  • LLM-Driven Algorithmic Evolution Through Reflective Code Synthesis.

AAD for GW detection Guided by LLM-informed Evo-MCTS

MLGWSC1 Benchmark: Optimization Performance Results

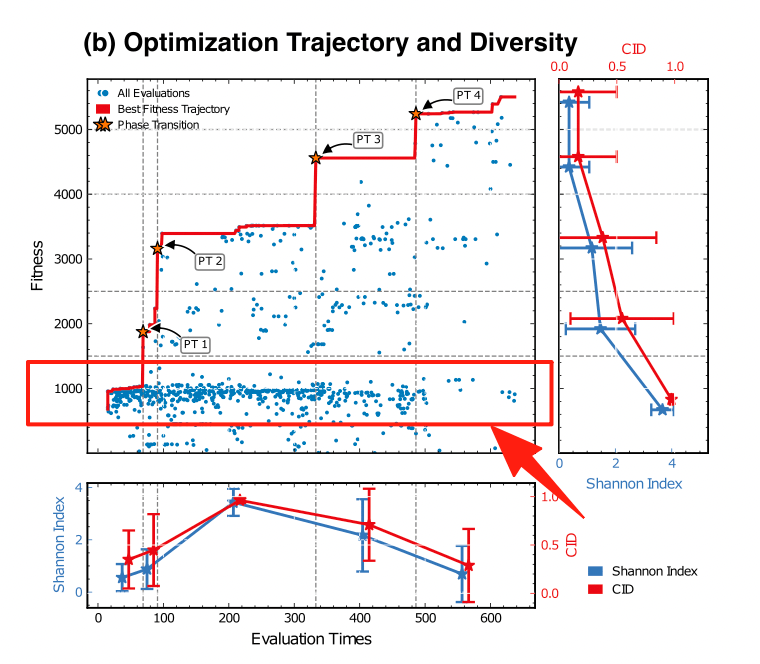

Optimization Progress & Algorithm Diversity

He Wang | ICTP-AP, UCAS

Interpretable Gravitational Wave Data Analysis with DL and LLMs

Diversity metrics:

  • Shannon index captures algorithmic variety
  • CID measures structural complexity differences.

Diversity in Evolutionary Computation

Population encoding:

  1. Removing comments and docstrings using abstract-syntax tree,
  2. standardizing code snippets into a common coding style (e.g., PEP81),
  3. Convert code snippets to vector representations using a code embedding model.

hewang@ucas.ac.cn

HW & ZL, arXiv:2508.03661

MLGWSC1 Benchmark: Optimization Performance Results

He Wang | ICTP-AP, UCAS

Refs of Benchmark Models

hewang@ucas.ac.cn

HW & ZL, arXiv:2508.03661

20.2%

23.4%

AAD for GW detection Guided by LLM-informed Evo-MCTS

Interpretability Analysis: PT Level 5

He Wang | ICTP-AP, UCAS
import numpy as np
import scipy.signal as signal
from scipy.signal.windows import tukey
from scipy.signal import savgol_filter

def pipeline_v2(strain_h1: np.ndarray, strain_l1: np.ndarray, times: np.ndarray) -> tuple[np.ndarray, np.ndarray, np.ndarray]:
    """
    The pipeline function processes gravitational wave data from the H1 and L1 detectors to identify potential gravitational wave signals.
    It takes strain_h1 and strain_l1 numpy arrays containing detector data, and times array with corresponding time points.
    The function returns a tuple of three numpy arrays: peak_times containing GPS times of identified events,
    peak_heights with significance values of each peak, and peak_deltat showing time window uncertainty for each peak.
    """
    eps = np.finfo(float).tiny
    dt = times[1] - times[0]
    fs = 1.0 / dt
    # Base spectrogram parameters
    base_nperseg = 256
    base_noverlap = base_nperseg // 2
    medfilt_kernel = 101       # odd kernel size for robust detrending
    uncertainty_window = 5     # half-window for local timing uncertainty

    # -------------------- Stage 1: Robust Baseline Detrending --------------------
    # Remove long-term trends using a median filter for each channel.
    detrended_h1 = strain_h1 - signal.medfilt(strain_h1, kernel_size=medfilt_kernel)
    detrended_l1 = strain_l1 - signal.medfilt(strain_l1, kernel_size=medfilt_kernel)

    # -------------------- Stage 2: Adaptive Whitening with Enhanced PSD Smoothing --------------------
    def adaptive_whitening(strain: np.ndarray) -> np.ndarray:
        # Center the signal.
        centered = strain - np.mean(strain)
        n_samples = len(centered)
        # Adaptive window length: between 5 and 30 seconds
        win_length_sec = np.clip(n_samples / fs / 20, 5, 30)
        nperseg_adapt = int(win_length_sec * fs)
        nperseg_adapt = max(10, min(nperseg_adapt, n_samples))

        # Create a Tukey window with 75% overlap.
        tukey_alpha = 0.25
        win = tukey(nperseg_adapt, alpha=tukey_alpha)
        noverlap_adapt = int(nperseg_adapt * 0.75)
        if noverlap_adapt >= nperseg_adapt:
            noverlap_adapt = nperseg_adapt - 1

        # Estimate the power spectral density (PSD) using Welch's method.
        freqs, psd = signal.welch(centered, fs=fs, nperseg=nperseg_adapt,
                                  noverlap=noverlap_adapt, window=win, detrend='constant')
        psd = np.maximum(psd, eps)

        # Compute relative differences for PSD stationarity measure.
        diff_arr = np.abs(np.diff(psd)) / (psd[:-1] + eps)
        # Smooth the derivative with a moving average.
        if len(diff_arr) >= 3:
            smooth_diff = np.convolve(diff_arr, np.ones(3)/3, mode='same')
        else:
            smooth_diff = diff_arr

        # Exponential smoothing (Kalman-like) with adaptive alpha using PSD stationarity.
        smoothed_psd = np.copy(psd)
        for i in range(1, len(psd)):
            # Adaptive smoothing coefficient: base 0.8 modified by local stationarity (±0.05)
            local_alpha = np.clip(0.8 - 0.05 * smooth_diff[min(i-1, len(smooth_diff)-1)], 0.75, 0.85)
            smoothed_psd[i] = local_alpha * smoothed_psd[i-1] + (1 - local_alpha) * psd[i]

        # Compute Tikhonov regularization gain based on deviation from median PSD.
        noise_baseline = np.median(smoothed_psd)
        raw_gain = (smoothed_psd / (noise_baseline + eps)) - 1.0

        # Compute a causal-like gradient using the Savitzky-Golay filter.
        win_len = 11 if len(smoothed_psd) >= 11 else ((len(smoothed_psd)//2)*2+1)
        polyorder = 2 if win_len > 2 else 1
        delta_freq = np.mean(np.diff(freqs))
        grad_psd = savgol_filter(smoothed_psd, win_len, polyorder, deriv=1, delta=delta_freq, mode='interp')

        # Nonlinear scaling via sigmoid to enhance gradient differences.
        sigmoid = lambda x: 1.0 / (1.0 + np.exp(-x))
        scaling_factor = 1.0 + 2.0 * sigmoid(np.abs(grad_psd) / (np.median(smoothed_psd) + eps))

        # Compute adaptive gain factors with nonlinear scaling.
        gain = 1.0 - np.exp(-0.5 * scaling_factor * raw_gain)
        gain = np.clip(gain, -8.0, 8.0)

        # FFT-based whitening: interpolate gain and PSD onto FFT frequency bins.
        signal_fft = np.fft.rfft(centered)
        freq_bins = np.fft.rfftfreq(n_samples, d=dt)
        interp_gain = np.interp(freq_bins, freqs, gain, left=gain[0], right=gain[-1])
        interp_psd = np.interp(freq_bins, freqs, smoothed_psd, left=smoothed_psd[0], right=smoothed_psd[-1])
        denom = np.sqrt(interp_psd) * (np.abs(interp_gain) + eps)
        denom = np.maximum(denom, eps)
        white_fft = signal_fft / denom
        whitened = np.fft.irfft(white_fft, n=n_samples)
        return whitened

    # Whiten H1 and L1 channels using the adapted method.
    white_h1 = adaptive_whitening(detrended_h1)
    white_l1 = adaptive_whitening(detrended_l1)

    # -------------------- Stage 3: Coherent Time-Frequency Metric with Frequency-Conditioned Regularization --------------------
    def compute_coherent_metric(w1: np.ndarray, w2: np.ndarray) -> tuple[np.ndarray, np.ndarray]:
        # Compute complex spectrograms preserving phase information.
        f1, t_spec, Sxx1 = signal.spectrogram(w1, fs=fs, nperseg=base_nperseg,
                                              noverlap=base_noverlap, mode='complex', detrend=False)
        f2, t_spec2, Sxx2 = signal.spectrogram(w2, fs=fs, nperseg=base_nperseg,
                                               noverlap=base_noverlap, mode='complex', detrend=False)
        # Ensure common time axis length.
        common_len = min(len(t_spec), len(t_spec2))
        t_spec = t_spec[:common_len]
        Sxx1 = Sxx1[:, :common_len]
        Sxx2 = Sxx2[:, :common_len]

        # Compute phase differences and coherence between detectors.
        phase_diff = np.angle(Sxx1) - np.angle(Sxx2)
        phase_coherence = np.abs(np.cos(phase_diff))

        # Estimate median PSD per frequency bin from the spectrograms.
        psd1 = np.median(np.abs(Sxx1)**2, axis=1)
        psd2 = np.median(np.abs(Sxx2)**2, axis=1)

        # Frequency-conditioned regularization gain (reflection-guided).
        lambda_f = 0.5 * ((np.median(psd1) / (psd1 + eps)) + (np.median(psd2) / (psd2 + eps)))
        lambda_f = np.clip(lambda_f, 1e-4, 1e-2)
        # Regularization denominator integrating detector PSDs and lambda.
        reg_denom = (psd1[:, None] + psd2[:, None] + lambda_f[:, None] + eps)

        # Weighted phase coherence that balances phase alignment with noise levels.
        weighted_comp = phase_coherence / reg_denom

        # Compute axial (frequency) second derivatives as curvature estimates.
        d2_coh = np.gradient(np.gradient(phase_coherence, axis=0), axis=0)
        avg_curvature = np.mean(np.abs(d2_coh), axis=0)

        # Nonlinear activation boost using tanh for regions of high curvature.
        nonlinear_boost = np.tanh(5 * avg_curvature)
        linear_boost = 1.0 + 0.1 * avg_curvature

        # Cross-detector synergy: weight derived from global median consistency.
        novel_weight = np.mean((np.median(psd1) + np.median(psd2)) / (psd1[:, None] + psd2[:, None] + eps), axis=0)

        # Integrated time-frequency metric combining all enhancements.
        tf_metric = np.sum(weighted_comp * linear_boost * (1.0 + nonlinear_boost), axis=0) * novel_weight

        # Adjust the spectrogram time axis to account for window delay.
        metric_times = t_spec + times[0] + (base_nperseg / 2) / fs
        return tf_metric, metric_times

    tf_metric, metric_times = compute_coherent_metric(white_h1, white_l1)

    # -------------------- Stage 4: Multi-Resolution Thresholding with Octave-Spaced Dyadic Wavelet Validation --------------------
    def multi_resolution_thresholding(metric: np.ndarray, times_arr: np.ndarray) -> tuple[np.ndarray, np.ndarray, np.ndarray]:
        # Robust background estimation with median and MAD.
        bg_level = np.median(metric)
        mad_val = np.median(np.abs(metric - bg_level))
        robust_std = 1.4826 * mad_val
        threshold = bg_level + 1.5 * robust_std

        # Identify candidate peaks using prominence and minimum distance criteria.
        peaks, _ = signal.find_peaks(metric, height=threshold, distance=2, prominence=0.8 * robust_std)
        if peaks.size == 0:
            return np.array([]), np.array([]), np.array([])

        # Local uncertainty estimation using a Gaussian-weighted convolution.
        win_range = np.arange(-uncertainty_window, uncertainty_window + 1)
        sigma = uncertainty_window / 2.5
        gauss_kernel = np.exp(-0.5 * (win_range / sigma) ** 2)
        gauss_kernel /= np.sum(gauss_kernel)
        weighted_mean = np.convolve(metric, gauss_kernel, mode='same')
        weighted_sq = np.convolve(metric ** 2, gauss_kernel, mode='same')
        variances = np.maximum(weighted_sq - weighted_mean ** 2, 0.0)
        uncertainties = np.sqrt(variances)
        uncertainties = np.maximum(uncertainties, 0.01)

        valid_times = []
        valid_heights = []
        valid_uncerts = []
        n_metric = len(metric)

        # Compute a simple second derivative for local curvature checking.
        if n_metric > 2:
            second_deriv = np.diff(metric, n=2)
            second_deriv = np.pad(second_deriv, (1, 1), mode='edge')
        else:
            second_deriv = np.zeros_like(metric)

        # Use octave-spaced scales (dyadic wavelet validation) to validate peak significance.
        widths = np.arange(1, 9)  # approximate scales 1 to 8
        for peak in peaks:
            # Skip peaks lacking sufficient negative curvature.
            if second_deriv[peak] > -0.1 * robust_std:
                continue
            local_start = max(0, peak - uncertainty_window)
            local_end = min(n_metric, peak + uncertainty_window + 1)
            local_segment = metric[local_start:local_end]
            if len(local_segment) < 3:
                continue
            try:
                cwt_coeff = signal.cwt(local_segment, signal.ricker, widths)
            except Exception:
                continue
            max_coeff = np.max(np.abs(cwt_coeff))
            # Threshold for validating the candidate using local MAD.
            cwt_thresh = mad_val * np.sqrt(2 * np.log(len(local_segment) + eps))
            if max_coeff >= cwt_thresh:
                valid_times.append(times_arr[peak])
                valid_heights.append(metric[peak])
                valid_uncerts.append(uncertainties[peak])

        if len(valid_times) == 0:
            return np.array([]), np.array([]), np.array([])
        return np.array(valid_times), np.array(valid_heights), np.array(valid_uncerts)

    peak_times, peak_heights, peak_deltat = multi_resolution_thresholding(tf_metric, metric_times)
    return peak_times, peak_heights, peak_deltat

hewang@ucas.ac.cn

HW & ZL, arXiv:2508.03661

AAD for GW detection Guided by LLM-informed Evo-MCTS

Interpretability Analysis

He Wang | ICTP-AP, UCAS

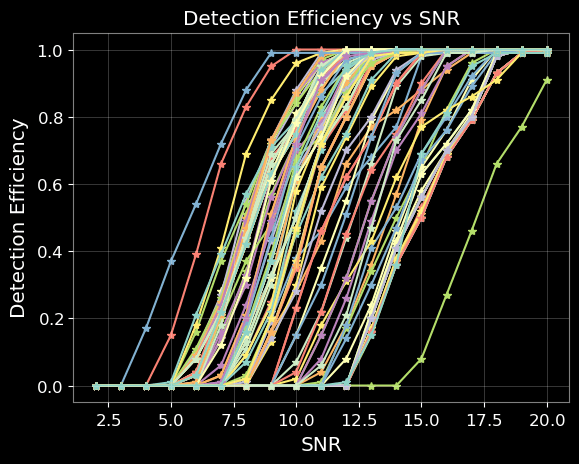

Out-of-distribution (OOD) detection

  • Generalization capability and robustness of the optimized algorithms

hewang@ucas.ac.cn

HW & ZL, arXiv:2508.03661

MCTS Depth-Stratified Performance Analysis.

  • Analyzed the relationship between MCTS tree depth and algorithm fitness across different optimization phases. The 10-layer MCTS structure was stratified into three depth groups: Depth I (depths 1-4), Depth II (depths 5-7), and Depth III (depths 8-10), representing shallow, intermediate, and deep exploration levels, respectively.

Algorithmic Component Impact Analysis.

  • A comprehensive technique impact analysis using controlled comparative methodology

AAD for GW detection Guided by LLM-informed Evo-MCTS

Interpretability Analysis

He Wang | ICTP-AP, UCAS

Interpretable Gravitational Wave Data Analysis with DL and LLMs

hewang@ucas.ac.cn

HW & ZL, arXiv:2508.03661

Algorithmic Component Impact Analysis.

  • A comprehensive technique impact analysis using controlled comparative methodology
Please analyze the following Python code snippet for gravitational wave detection and
extract technical features in JSON format.

The code typically has three main stages:
1. Data Conditioning: preprocessing, filtering, whitening, etc.
2. Time-Frequency Analysis: spectrograms, FFT, wavelets, etc.
3. Trigger Analysis: peak detection, thresholding, validation, etc.

For each stage present in the code, extract:
- Technical methods used
- Libraries and functions called
- Algorithm complexity features
- Key parameters

Code to analyze:
```python
{code_snippet}
```

Please return a JSON object with this structure:
{
  "algorithm_id": "{algorithm_id}",
  "stages": {
    "data_conditioning": {
      "present": true/false,
      "techniques": ["technique1", "technique2"],
      "libraries": ["lib1", "lib2"],
      "functions": ["func1", "func2"],
      "parameters": {"param1": "value1"},
      "complexity": "low/medium/high"
    },
    "time_frequency_analysis": {...},
    "trigger_analysis": {...}
  },
  "overall_complexity": "low/medium/high",
  "total_lines": 0,
  "unique_libraries": ["lib1", "lib2"],
  "code_quality_score": 0.0
}

Only return the JSON object, no additional text.

Interpretability Analysis

He Wang | ICTP-AP, UCAS

hewang@ucas.ac.cn

HW & ZL, arXiv:2508.03661

MCTS Algorithmic Evolution Pathway

  • Complete MCTS tree structure showing all nodes associated with the optimal algorithm (node 486, fitness=5041.4).

AAD for GW detection Guided by LLM-informed Evo-MCTS

Interpretability Analysis

He Wang | ICTP-AP, UCAS

MCTS Algorithmic Evolution Pathway

  • Complete MCTS tree structure showing all nodes associated with the optimal algorithm (node 486, fitness=5041.4).

hewang@ucas.ac.cn

HW & ZL, arXiv:2508.03661

AAD for GW detection Guided by LLM-informed Evo-MCTS

Interpretability Analysis

He Wang | ICTP-AP, UCAS

hewang@ucas.ac.cn

HW & ZL, arXiv:2508.03661

Edge robustness analysis for three critical evolutionary transitions.

  • The distributions demonstrate the stochastic nature of LLM-driven code generation while confirming the consistent discovery of high-performance algorithmic variants.

AAD for GW detection Guided by LLM-informed Evo-MCTS

52.8% achieving superior fitness with 100% Tikhonov regularization inheritance

89.3% variants exceeding preceding node performance

70.7% variants outperforming node 204, 25.0% surpassing node 485

Framework Mechanism Analysis

He Wang | ICTP-AP, UCAS

Integrated Architecture Validation

  • A comprehensive comparison of our integrated
    Evo-MCTS framework against its constituent components operating in isolation.
    • Evo-MCTS: MCTS + Self-evolve + Reflection mech.
    • MCTS-AHD: MCTS framework for CO.
    • ReEvo: evolutionary framework for CO.

Contributions of knowledge synthesis

  • Compare to w/o external knowledge
    • non-linear vs linear only

hewang@ucas.ac.cn

LLM Model Selection and Robustness Analysis

  • Ablation study of various LLM contributions (code generator) and their robustness.
    • o3-mini-medium
o1-2024-12-17
gpt-4o-2024-11-20
      claude-3-7-sonnet-20250219-thinking

59.1%

AAD for GW detection Guided by LLM-informed Evo-MCTS

MCTS-AHD (2501.08603)

ReEvo (2402.01145​)

Framework Mechanism Analysis

He Wang | ICTP-AP, UCAS

Integrated Architecture Validation

  • A comprehensive comparison of our integrated
    Evo-MCTS framework against its constituent components operating in isolation.
    • Evo-MCTS: MCTS + Self-evolve + Reflection mech.
    • MCTS-AHD: MCTS framework for CO.
    • ReEvo: evolutionary framework for CO.

Contributions of knowledge synthesis

  • Compare to w/o external knowledge
    • non-linear vs linear only

hewang@ucas.ac.cn

LLM Model Selection and Robustness Analysis

  • Ablation study of various LLM contributions (code generator) and their robustness.
    • o3-mini-medium
o1-2024-12-17
gpt-4o-2024-11-20
      claude-3-7-sonnet-20250219-thinking

HW & ZL, arXiv:2508.03661

59.1%

AAD for GW detection Guided by LLM-informed Evo-MCTS

Framework Mechanism Analysis

He Wang | ICTP-AP, UCAS

Integrated Architecture Validation

  • A comprehensive comparison of our integrated
    Evo-MCTS framework against its constituent components operating in isolation.
    • Evo-MCTS: MCTS + Self-evolve + Reflection mech.
    • MCTS-AHD: MCTS framework for CO.
    • ReEvo: evolutionary framework for CO.

Contributions of knowledge synthesis

  • Compare to w/o external knowledge
    • non-linear vs linear only

hewang@ucas.ac.cn

HW & ZL, arXiv:2508.03661

59.1%

AAD for GW detection Guided by LLM-informed Evo-MCTS

### External Knowledge Integration
1. **Non-linear** Processing Core Concepts:
    - Signal Transformation:
        * Non-linear vs linear decomposition
        * Adaptive threshold mechanisms
        * Multi-scale analysis

    - Feature Extraction:
        * Phase space reconstruction
        * Topological data analysis
        * Wavelet-based detection

    - Statistical Analysis:
        * Robust estimators
        * Non-Gaussian processes
        * Higher-order statistics

2. Implementation Principles:
    - Prioritize adaptive over fixed parameters
    - Consider local vs global characteristics
    - Balance computational cost with accuracy

Computational Resources and Parallelization

He Wang | ICTP-AP, UCAS

Interpretable Gravitational Wave Data Analysis with DL and LLMs

“东方”超算系统（ORISE，北京）

  •

hewang@ucas.ac.cn

HW & ZL, arXiv:2508.03661

第三方大模型推理服务

  • 闭源LLMs，访问外网需求，按token计费
  • ~ \(10^3\) dollars

Key Takeaways

He Wang | ICTP-AP, UCAS

Interpretable Gravitational Wave Data Analysis with DL and LLMs

hewang@ucas.ac.cn

动机1：需要探索空间引力波探测数据处理的新策略

动机2：地面引力波实测数据\(\Rightarrow\)算法开发\(\Rightarrow\)空间引力波探测

动机3：传统方法严重依赖人工经验构造滤波器与统计量

动机4：AI 可解释性挑战: Discoveries vs. Validation

Traditional Physics Approach

Input

Human-Designed Algorithm

(Based on human insight)

Output

Example: Matched Filtering,
Linear Regression

Black-Box AI Approach

Input

AI Model

(Low interpretability)

Output

Examples: CNN, AlphaGo, DINGO

Key Challenge: How can we maintain the interpretability advantages of traditional models while leveraging the power of AI approaches?

Data/
Experience

Data/
Experience

Key Trust Factors:

  • ✓ Interpretable: Parameters have physical meaning
  • ✓ Built-in uncertainties: Input uncertainties propagate to outputs
  • ✓ Model selection: Balance simplicity with accuracy
  • ✓ Scientific insight: Reduces complexity, reveals principles

Key Takeaways

He Wang | ICTP-AP, UCAS

Interpretable Gravitational Wave Data Analysis with DL and LLMs

hewang@ucas.ac.cn

动机1：需要探索空间引力波探测数据处理的新策略

动机2：地面引力波实测数据\(\Rightarrow\)算法开发\(\Rightarrow\)空间引力波探测

动机3：传统方法严重依赖人工经验构造滤波器与统计量

动机4：AI 可解释性挑战: Discoveries vs. Validation

Our Mission: To create transparent AI systems that combine physics-based interpretability with deep learning capabilities

Interpretable AI Approach

The best of both worlds

Input

Physics-Informed
Algorithm

(High interpretability)

Output

Example: Our Approach
(Evo-MCTS)

AI Model

Physics
Knowledge

Traditional Physics Approach

Input

Human-Designed Algorithm

(Based on human insight)

Output

Example: Matched Filtering, linear regression

Black-Box AI Approach

Input

AI Model

(Low interpretability)

Output

Examples: CNN, AlphaGo, DINGO

Data/
Experience

Data/
Experience

🎯 OUR WORK

Interpretable AI Approach

The best of both worlds

Input

Physics-Informed
Algorithm

(High interpretability)

Output

Example: Our Approach
(Evo-MCTS)

AI Model

Physics
Knowledge

Traditional Physics Approach

Input

Human-Designed Algorithm

(Based on human insight)

Output

Example: Matched Filtering, linear regression

Black-Box AI Approach

Input

AI Model

(Low interpretability)

Output

Examples: CNN, AlphaGo, DINGO

Data/
Experience

Data/
Experience

Key Takeaways

He Wang | ICTP-AP, UCAS

Interpretable Gravitational Wave Data Analysis with DL and LLMs

hewang@ucas.ac.cn

动机1：需要探索空间引力波探测数据处理的新策略

动机2：地面引力波实测数据\(\Rightarrow\)算法开发\(\Rightarrow\)空间引力波探测

动机3：传统方法严重依赖人工经验构造滤波器与统计量

动机4：AI 可解释性挑战: Discoveries vs. Validation

Interpretable AI Approach

The best of both worlds

Input

Physics-Informed
Algorithm

(High interpretability)

Output

Example: Our Approach
(In Preparation)

AI Model

Physics
Knowledge

任何算法的设计问题都可被看作是一个优化问题

  • 空间引力波数据处理的很多中间流程，都可以看做是“算法优化”问题，如 TDI 优化、噪声建模等等
  • 理论物理和宇宙学等中的很多解析建模和“符号回归”等方法，也都可以看做是“算法优化”问题




  • Eg:
    • AI-driven design of experiments. [Phys. Rev. X 15, 021012 (2025)]
    • RL design for multiple filters in LIGO control system. [Science (2025)]

Key Takeaways

He Wang | ICTP-AP, UCAS

Interpretable Gravitational Wave Data Analysis with DL and LLMs

hewang@ucas.ac.cn

动机1：需要探索空间引力波探测数据处理的新策略

动机2：地面引力波实测数据\(\Rightarrow\)算法开发\(\Rightarrow\)空间引力波探测

动机3：传统方法严重依赖人工经验构造滤波器与统计量

动机4：AI 可解释性挑战: Discoveries vs. Validation

空间引力波数据分析的新策略

  1. 【全局拟合】Joint PE
  2. 【逐个扣除】Hierarchical Subtraction
  3. 【动态规划】强化学习（on-going work）
    • Exploring the integration of reinforcement learning (RL) into dynamic planning strategies for global-fit problems in LISA data analysis.
He Wang | ICTP-AP, UCAS

hewang@ucas.ac.cn

for _ in range(num_of_audiences):
    print('Thank you for your attention! 🙏')

Acknowledgment:



Key Takeaways

Interpretable AI Approach

The best of both worlds

Input

Physics-Informed
Algorithm

(High interpretability)

Output

AI Model

Physics
Knowledge

Any algorithm's design problem can be viewed as an optimization challenge

  • Numerous intermediate processes in scientific data processing, like noise modeling and experimental design, can be classified as "algorithm optimization" problems
  • Several analytical modeling techniques and "symbolic regression" methods in theoretical physics and cosmology can similarly be considered "algorithm optimization" issues

Example: Evo-MCTS

Future direction

  • Our approach provides a novel framework for algorithmic optimization rather than a complete production-ready pipeline, with discovered algorithms serving as proof-of-concept demonstrations requiring further validation before operational deployment.

AAD for GW detection Guided by LLM-informed Evo-MCTS

Bonus：

  1. Can LLMs truly generate novel content beyond their training data?
  2. Why can LLMs perform reasoning in ways that remain imperceptible to us?
  3. Why should you consider applying ML to gravitational wave astrophysics?
  4. In general, how to use AI for science?

Backup

He Wang | ICTP-AP, UCAS

Interpretable Gravitational Wave Data Analysis with DL and LLMs

hewang@ucas.ac.cn

Key Questions

Q1: Can LLMs truly generate novel content beyond their training data?

Q2: Why can LLMs perform reasoning in ways that remain imperceptible to us?

He Wang | ICTP-AP, UCAS

Interpretable Gravitational Wave Data Analysis with DL and LLMs

The Rise of LLMs: How Code Training Transformed AI Capabilities

Evolution of GPT Capabilities

A careful examination of GPT-3.5's capabilities reveals the origins of its emergent abilities:

  • Original GPT-3 gained generative abilities, world knowledge, and in-context learning through pretraining
  • Instruction-tuned models developed the ability to follow directions and generalize to unseen tasks
  • Code-trained models (code-davinci-002) acquired code comprehension
  • The ability to perform complex reasoning likely emerged as a byproduct of code training

GPT-3.5 series [Source: University of Edinburgh, Allen Institute for AI]

He Wang | ICTP-AP, UCAS

GPT-3 (2020)

ChatGPT (2022)

Magic: Code + Text

Interpretable Gravitational Wave Data Analysis with DL and LLMs

Recent research demonstrates that LLMs can solve complex optimization problems through carefully engineered prompts. DeepMind's OPRO (Optimization by PROmpting) approach showcases how LLMs can generate increasingly refined solutions through iterative prompting techniques.

OPRO: Optimization by PROmpting

Example: Least squares optimization through prompt engineering

arXiv:2309.03409 [cs.NE]

Two Directions of LLM-based Optimization

arXiv:2405.10098 [cs.NE]

He Wang | ICTP-AP, UCAS

The Optimization Potential of Large Language Models

LLMs can generate high-quality solutions to optimization problems without specialized training

Interpretable Gravitational Wave Data Analysis with DL and LLMs

Theoretical Understanding of LLMs' Emergent Abilities

The Interpolation Theory

LLMs' ability to generate novel responses from few examples is increasingly understood as manifold interpolation rather than mere memorization:

  • LLMs learn a continuous semantic manifold of language during pre-training
  • Few-shot examples serve as anchor points in this high-dimensional space
  • The model interpolates between examples to generate responses for novel inputs
  • This enables coherent generalization beyond the training distribution
  • The quality of interpolation improves with model scale and training data breadth

The theory suggests that in-context learning is not "learning" in the traditional sense, but rather a form of implicit conditioning on the manifold of learned representations.

Representation Space Interpolation

He Wang | ICTP-AP, UCAS

Interpretable Gravitational Wave Data Analysis with DL and LLMs

Theoretical Understanding of LLMs' Emergent Abilities

Real-world Case: FunSearch (Nature, 2023)

  • Google DeepMind's FunSearch system pairs LLMs with evaluators in an evolutionary process
  • Discovered new mathematical knowledge for the cap set problem in combinatorics, improving on best known bounds
  • Also created novel algorithms for online bin packing that outperform traditional methods
  • Demonstrates LLMs can make verifiable scientific discoveries beyond their training data
He Wang | ICTP-AP, UCAS

Interpretable Gravitational Wave Data Analysis with DL and LLMs

Theoretical Understanding of LLMs' Emergent Abilities

Real-world Case: FunSearch (Nature, 2023)

  • Google DeepMind's FunSearch system pairs LLMs with evaluators in an evolutionary process
  • Discovered new mathematical knowledge for the cap set problem in combinatorics, improving on best known bounds
  • Also created novel algorithms for online bin packing that outperform traditional methods
  • Demonstrates LLMs can make verifiable scientific discoveries beyond their training data
He Wang | ICTP-AP, UCAS

Interpretable Gravitational Wave Data Analysis with DL and LLMs

Key Questions

Q1: Can LLMs truly generate novel content beyond their training data?

Q2: Why can LLMs perform reasoning in ways that remain imperceptible to us?

He Wang | ICTP-AP, UCAS

Interpretable Gravitational Wave Data Analysis with DL and LLMs

Iterative Inference: The New Frontier of LLM Scaling

He Wang | ICTP-AP, UCAS

📄 Google DeepMind: "Scaling LLM Test-Time Compute Optimally" (arXiv:2408.03314)

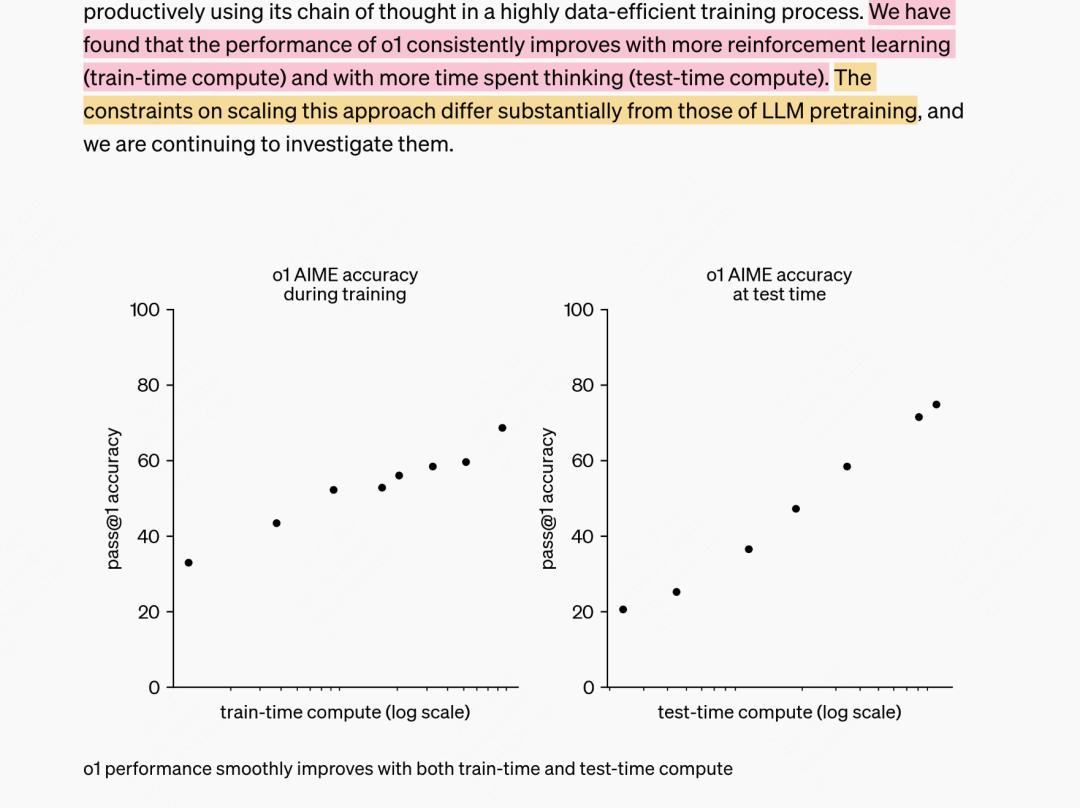

🔗 OpenAI: Learning to Reason with LLMs

Iterative refinement during inference dramatically improves reasoning capabilities without increasing model size or retraining

Performance improvements with test-time compute scaling

From pre-training to test-time:
Three scaling regimes

Different search methods for iterative reasoning

Interpretable Gravitational Wave Data Analysis with DL and LLMs

Key Questions

Q1: Can LLMs truly generate novel content beyond their training data?

Q2: Why can LLMs perform reasoning in ways that remain imperceptible to us?

He Wang | ICTP-AP, UCAS

Interpretable Gravitational Wave Data Analysis with DL and LLMs

Q3: Why should you consider applying ML to gravitational wave astrophysics?

Why should you consider applying ML to gravitational wave astrophysics?

He Wang | ICTP-AP, UCAS

Interpretable Gravitational Wave Data Analysis with DL and LLMs



我们为什么要考虑用 AI tool 来替换传统方法做研究呢？

hewang@ucas.ac.cn

He Wang | ICTP-AP, UCAS

The Rise of Machine Learning

AI is taking over the world... literally everywhere

Interpretable Gravitational Wave Data Analysis with DL and LLMs

hewang@ucas.ac.cn

He Wang | ICTP-AP, UCAS

The "Real" Reasons We Apply ML to GW Astrophysics

Let's be honest about our motivations... 😉

The perfectly valid "scientific" reasons:

  1. ✓ It sounded like a cool project
  2. ✓ My supervisor said it was a good thing to work on
  3. ✓ I will learn some really useful ML skills
  4. ✓ I'm already good at ML
  5. ✓ I want to get better at ML
  6. ✓ I want to get a high-paying job after this PhD/postdoc
  7. ✓ I want to be spared when the machines take over

Credit: Chris Messenger (MLA meeting,, Jan 2025)

Interpretable Gravitational Wave Data Analysis with DL and LLMs



严肃的讲，上述 motivation 并不应该是成为从事科学研究的思路和方向。

hewang@ucas.ac.cn

He Wang | ICTP-AP, UCAS

Why is AI/ML Everywhere in GW Research?

The core motivations behind nearly all AI+GW research

1

ML is FAST

So much data, so little time!

• Bayesian parameter estimation
• Replaces computationally intensive components

2

ML is ACCURATE*

Consistently outperforms traditional approaches

• Unmodelled burst searches
• Continuous GW searches

3

ML is FLEXIBLE

Provides deeper insights into complex problems

• Reveals patterns through interpretability
• Enables previously impractical approaches

* When properly trained and validated on appropriate datasets

Credit: Chris Messenger (MLA meeting,, Jan 2025)

Interpretable Gravitational Wave Data Analysis with DL and LLMs

hewang@ucas.ac.cn

He Wang | ICTP-AP, UCAS

Why is AI/ML Everywhere in GW Research?

The core motivations behind nearly all AI+GW research

1

ML is FAST

So much data, so little time!

• Bayesian parameter estimation
• Replaces computationally intensive components

2

ML is ACCURATE*

Consistently outperforms traditional approaches

• Unmodelled burst searches
• Continuous GW searches

3

ML is FLEXIBLE

Provides deeper insights into complex problems

• Reveals patterns through interpretability
• Enables previously impractical approaches

* When properly trained and validated on appropriate datasets

Credit: Chris Messenger (MLA meeting,, Jan 2025)

Interpretable Gravitational Wave Data Analysis with DL and LLMs

hewang@ucas.ac.cn

但杀鸡焉用牛刀？！

He Wang | ICTP-AP, UCAS

Is It Really So Simple?

The reality of ML in scientific research is more nuanced

No: We need to think more critically

  • ❓ Are we just trying to predict a function?
  • ❓ Are there any astrophysical constraints?
  • ❓ Do we need to understand how/why it works?
  • ❓ What about errors? Quality flags?
  • ❓ What happens if things go wrong?

Twitter: @DeepLearningAI_

Interpretable Gravitational Wave Data Analysis with DL and LLMs

hewang@ucas.ac.cn

本质上，都可以归结为“黑箱”或“可解释性差”的问题

He Wang | ICTP-AP, UCAS

Why Even Use AI?

The mathematical inevitability and the path to understanding

Universal Approximation Theorem

The existence theorem that guarantees solutions

  • Neural networks with sufficient hidden layers can approximate any continuous function on compact subsets of \(\mathbb{R}^n\)
  • Ref: Cybenko, G. (1989), Hornik et al. (1989)

The solution is mathematically guaranteed — our challenge is finding the path to it

1

Machine learning will win in the long run

AI models still have vast potential compared to the human brain's efficiency. Beating traditional methods is mathematically inevitable given sufficient resources.

2

The question is not if AI/ML will win, but how

Understanding AI's inner workings is the real challenge, not proving its capabilities.

That's where we can learn something exciting with Foundation Models.

Interpretable Gravitational Wave Data Analysis with DL and LLMs

hewang@ucas.ac.cn

尽管种种，还是应该报以理性的期待和足够的乐观

Key Questions

Q1: Can LLMs truly generate novel content beyond their training data?

Q2: Why can LLMs perform reasoning in ways that remain imperceptible to us?

He Wang | ICTP-AP, UCAS

Interpretable Gravitational Wave Data Analysis with DL and LLMs

Q4:In general, how to use AI for science?

Q3: Why should you consider applying ML to gravitational wave astrophysics?

Application of AI

Interpretable Gravitational Wave Data Analysis with DL and LLMs

He Wang | ICTP-AP, UCAS

hewang@ucas.ac.cn

https://github.com/Nikasa1889/HistoryObjectRecognition

Gebru et al. ICCV (2017)

Zhou et al. CVPR (2018)

Shen et al. CVPR (2018)

Image courtesy of Tesla (2020)

从AI应用的原理理解技术相同点

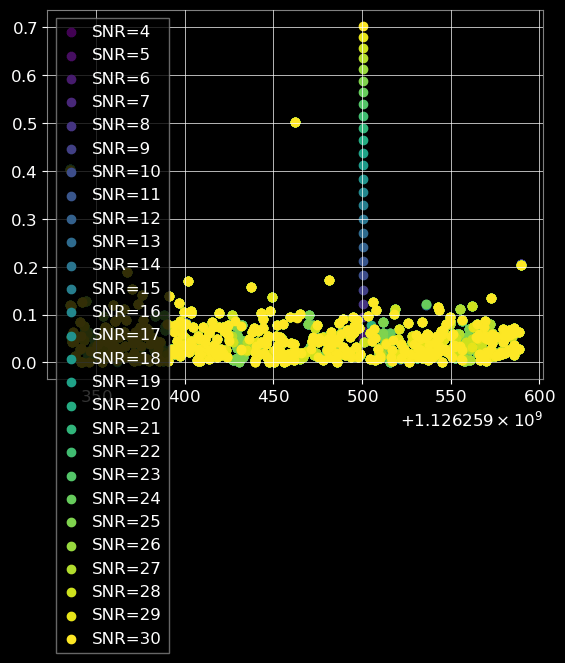

eg: GW search

Representation Space Interpolation

Core Insights: Generative models' ability to perform accurate statistical inference can be understood as manifold learning rather than mere density estimation:

  • Models learn a continuous latent manifold of data distributions
  • Statistical parameters act as coordinates in this space
  • Inference occurs through latent space navigation
  • Enables robust generalization for complex distributions
He Wang | ICTP-AP, UCAS

Theoretical Understanding of Generative Models

Generative models don't memorize examples, but learn a continuous manifold
where similar concepts lie near each other. Statistical inference becomes
a form of navigation through this learned representation space.

Deep Learning is Not As Impressive As you Think, It's Mere Interpolation.

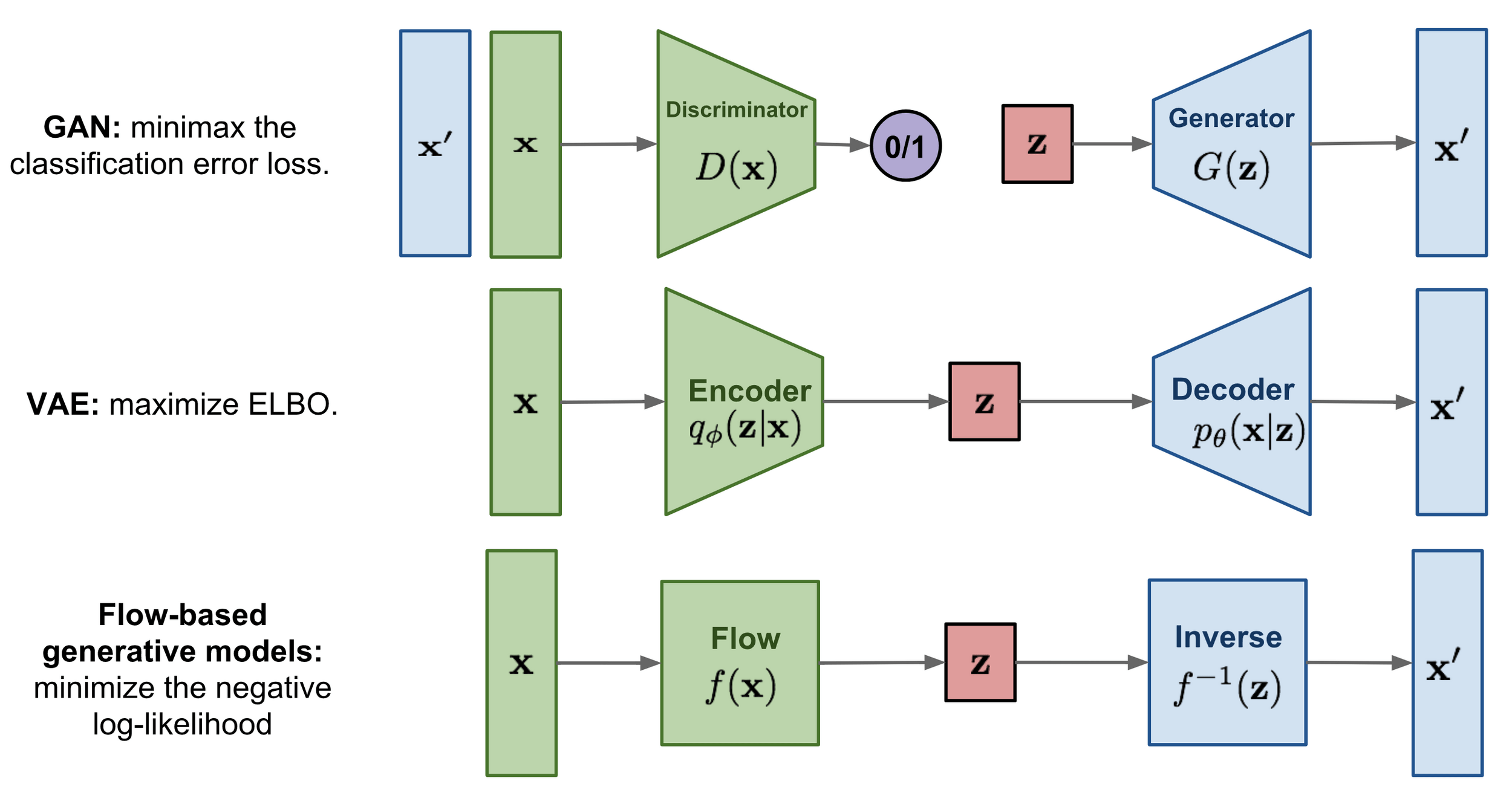

CVAE

Encodes data into latent space, enabling conditional generation

Flow-based

Transforms simple distributions into complex ones via invertible mappings

Interpretable Gravitational Wave Data Analysis with DL and LLMs

hewang@ucas.ac.cn

AI for Science

The core driving force of AI4Sci largely lies in its “interpolation” generalization capabilities, showcasing its powerful complex modeling abilities.

From 李宏毅

Interpretable Gravitational Wave Data Analysis with DL and LLMs

He Wang | ICTP-AP, UCAS

hewang@ucas.ac.cn

The core driving force of AI4Sci largely lies in its “interpolation” generalization capabilities, showcasing its powerful complex modeling abilities.

AI for Science

Interpretable Gravitational Wave Data Analysis with DL and LLMs

He Wang | ICTP-AP, UCAS

Test of General Relatively

2403.18936

hewang@ucas.ac.cn

2407.07229

2103.01641

可解释 AI 与强化学习协同驱动的引力波数据处理新方法探索

By He Wang

可解释 AI 与强化学习协同驱动的引力波数据处理新方法探索

2025/09/20 10:00-11:00 @TianQin center

  • 6

More from He Wang

  • 面向引力波信号探测的可解释AI新范式：大模型驱动的算法重构
    He Wang
    9
  • Automated Algorithmic Discovery for Gravitational-Wave Detection Guided by LLM-Informed Evolutionary Monte Carlo Tree Search
    He Wang
    7
  • 基于可控自进化大模型实现的引力波信号搜索算法优化
    He Wang
    9
  • 可解释 AI 与强化学习协同驱动的引力波数据处理新方法探索
    He Wang
    7
