Building a Web Component in Polymer

James Milner

@JamesLMilner

jmilner@esriuk.com

Firstly a brief overview of Web Components

"Web components aim to provide the user a simple element interface that is rendered with complexity hidden under the hood."

<vine-video></vine-video>

Custom Elements

HTML Templates

Shadow DOM

HTML Imports

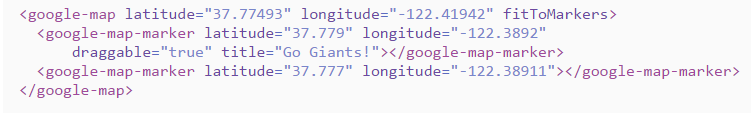

The Web Components Secret Sauce

webcomponents.js

"webcomponents.js is a set of polyfills built on top of the Web Components specifications. It makes it possible for developers to use these standards today across all modern browsers."

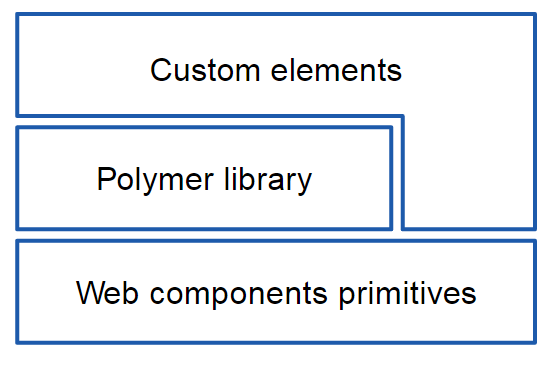

"Polymer is designed to make it easier and faster for developers to create great, reusable components for the modern web."

How I got started with Polymer

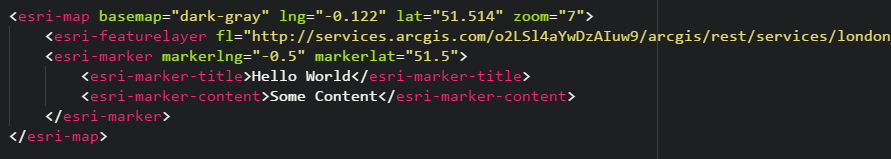

Feature Layer?

 v1.0 -What's changed: House Keeping

• Rebuilt from the ground up for speed! (~3x-4x faster)
• Data binding is now one-way by default
• No more whitespace in binding i.e. <p>{{variable}}</p>
• Polyfill library reduced (web-components-lite.js)
• Default is now Shady DOM not Shadow DOM

Shady DOM?

• Polyfilling shadow DOM is hard
• Shady DOM is a super-fast shim for shadow DOM that provides tree-scoping, but has drawbacks.

Why Shady DOM?

• Provides enough tree-scoping for Polymer to act as if shadow DOM is available on all platforms.
• It does this without compromising performance.
• Greater support == growing mindshare
• But... it leaks details and it introduces CSS scoping issues

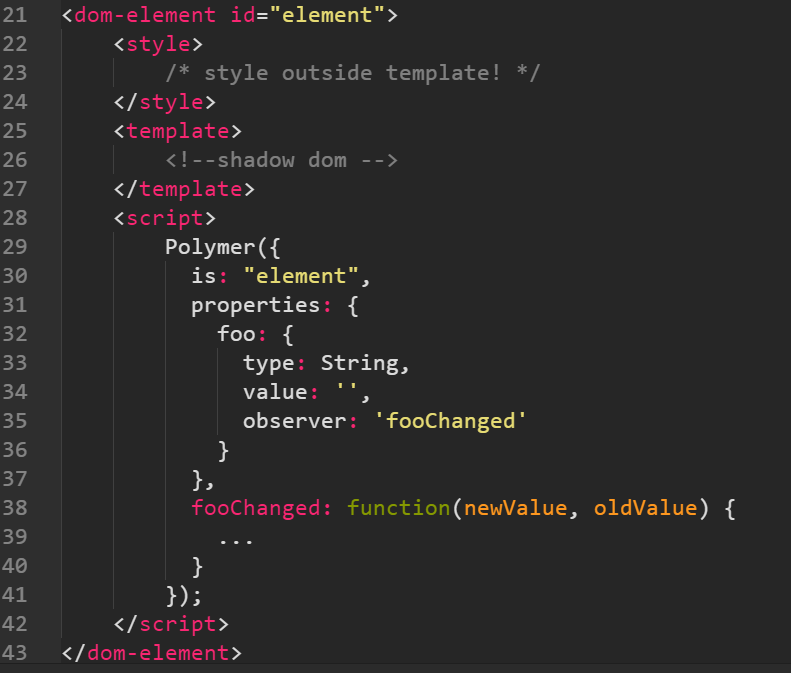

• Register via <dom-element> not <polymer-element>
• CSS styles outside template

• Now define properties via config object
• Attributes case sensitivity is super important now
• Observers stated explicitly in config
• Observer parameters now switched (GRR!!!)

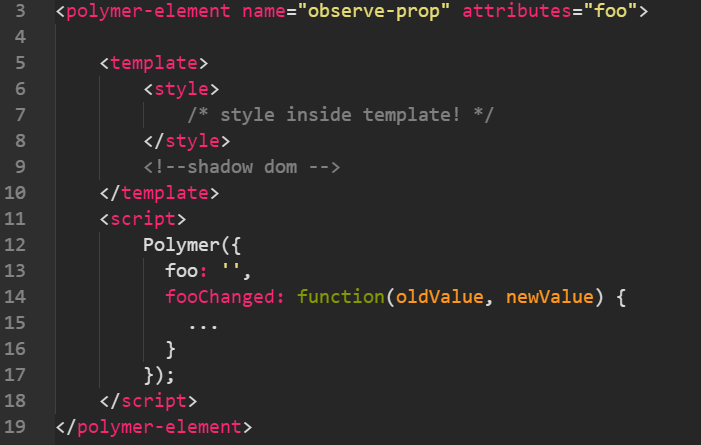

v1.0 - Whats changed: Element Registration & Config

What's changed: Things that got glossed over a little

• <content> for light children in  parent custom components
• Lifecycling and timing issues!
• Light Element Changes - Use MutationObservers!

Switching to 1.0

Demo

Where I'd like to take it next

• More robust elements
• what3words integration (???)
• Renderer options
• 3D Scene intergration

GeoHackDay

5th of September

www.geohackdays.com

More Info

• Polymer Official
• Official 0.5 - 1.0 Migration guide
•  Another 3rd party guide
• webcomponents.org
• Esri ArcGIS APIs
• esri-polymer
