Rethinking

Best Practices of F2E



React.js + Node.js = Isomorphic JavaScript





Agenda

  • What's wrong with Html+JavaScript+CSS ?
  • View and Display logic ?
  • Isomorphic JavaScript
  • Pros and Cons
  • Q&A

Best Practice

Separation of Concerns

Reduce coupling, Increasing cohesion

F2E is All about Views

and all about display logics

What's wrong with Html+JavaScript+CSS ?

Reduce coupling, Increasing cohesion ?

HTML

HTML

HTML

CSS

JavaScript

CSS

JavaScript

CSS

JavaScript

We are separating

technologies

not separating the concerns...

How about

View and Display Logic?

Controller = Display Logic

View = Template







Is this correct?

Long Time ago..

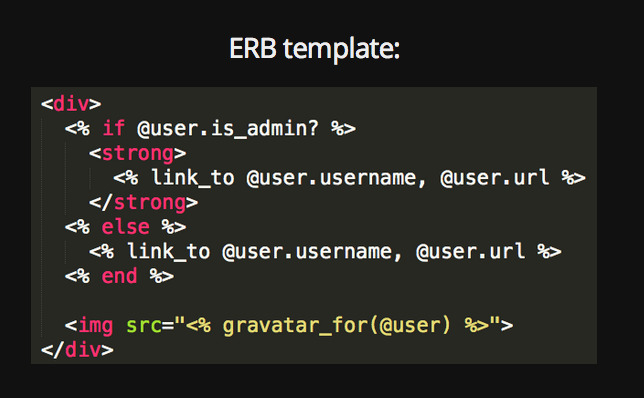

Template

"No logic in template!"

The code becomes a mess so..

But...

"No business logic in template!"

 we wanted a little bit of flexibility, so...

(but the occasional loop or conditional is ok...)

"view logic belongs in ViewModels, not templates!"

Sometimes we need to do string manipulation, or sorting...

a.k.a MVVM

 the React.js team at Facebook

Template encourages poor separation of concerns

It only separates

View and Display Logic...

Quick Take Away

1. HTML+CSS+JS should be cohisive



2. View and Display Logic should be coupled.



1. HTML+CSS+JS should be cohisive



Component

Component

Component

Our Goal..

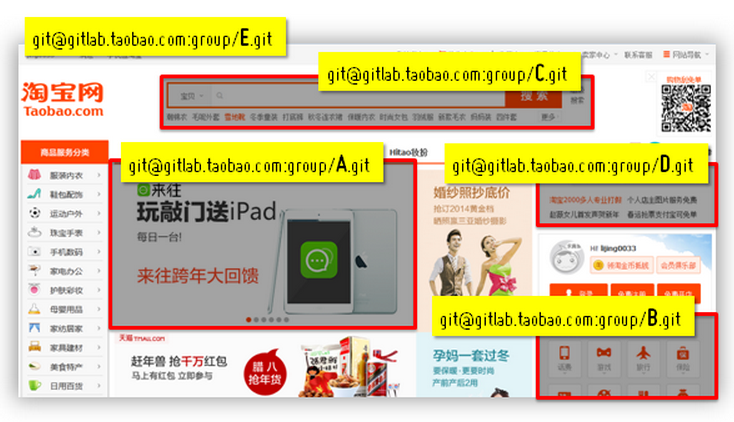

So does Taobao did!

How do JavaScript Frameworks solve this problem?

Ember.JS


/*JavaScript*/
App.ConfirmButtonComponent = Ember.Component.extend({
  actions: {
    showConfirmation: function() {
      this.toggleProperty('isShowingConfirmation');
    },

    confirm: function() {
      this.toggleProperty('isShowingConfirmation');
      this.sendAction('action', this.get('param'));
    }
  }
});
<!--html-->
{{#if isShowingConfirmation}}
  <button {{action "confirm"}}>Click again to confirm</button>
{{else}}
  <button {{action "showConfirmation"}}>{{title}}</button>
{{/if}}

HTML and JavaScript are not cohesive

Also the biggest problem is that the components are not composable.



Ember.JS

<!--html-->
{{#if isShowingConfirmation}}
  <button {{action "confirm"}}>Click again to confirm</button>
{{else}}
  <button {{action "showConfirmation"}}>{{title}}</button>
{{/if}}

How could you compose those ugly HTML templates

with the correct variable scope?



{{#each todo in todos}}
      <p>{{todo.title}} {{confirm-button title="Delete" action="deleteTodo" param=todo}}</p>
    {{/each}}

(YUI, Backbone, Taobao Kissy have the same problem, too.)

Angular.JS

angular.module('docsTransclusionExample', [])
.controller('Controller', ['$scope', function($scope) {
  $scope.name = 'Tobias';
}])
.directive('myDialog', function() {
  return {
    restrict: 'E',
    transclude: true,
    scope: {},
    templateUrl: 'my-dialog.html',
    link: function (scope, element) {
      scope.name = 'Jeff';
    }
  };
});

HTML and JavaScript are not cohesive

But the components are composable!

Angular.js build its own scope system in each component

Angular.JS

<html>
    <body>
    <parent>
         <child><child>
    </parent>
  </body>
</html>
angular.directive("child",function(){
    restrict:'E',
  templateUrl:'child.html',
  scope:true
});
angular.directive("child",function(){
    restrict:'E',
  templateUrl:'child.html',
  //scope參數不要設定
});
angular.directive("child",function(){
    restrict:'E',
  templateUrl:'child.html',
  scope:{}
});

Isolated scope

Inherited scope

Shared scope

Angular.JS is great, but HTML and JavaScript are still not cohesive...

Facebook and Instagram have applied this practice

in production since 2011

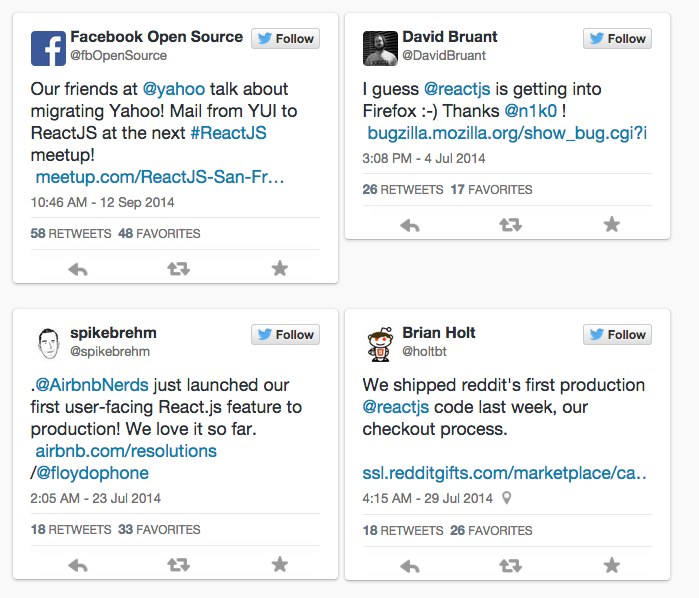

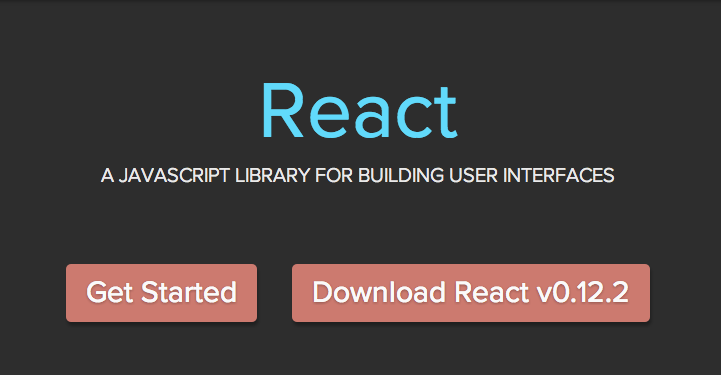

Yahoo,Firefox, Airbnb ...using React.js

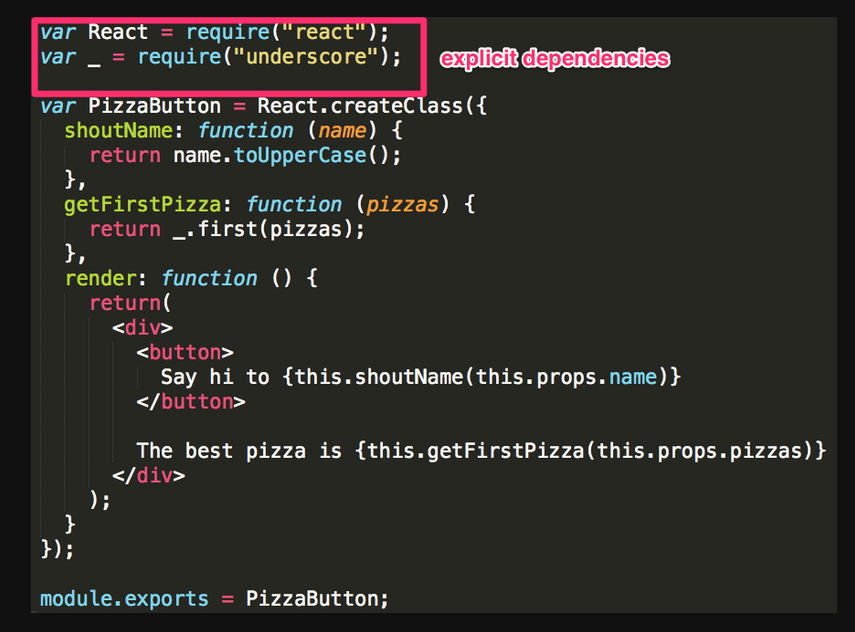

NPM

NPM

NPM

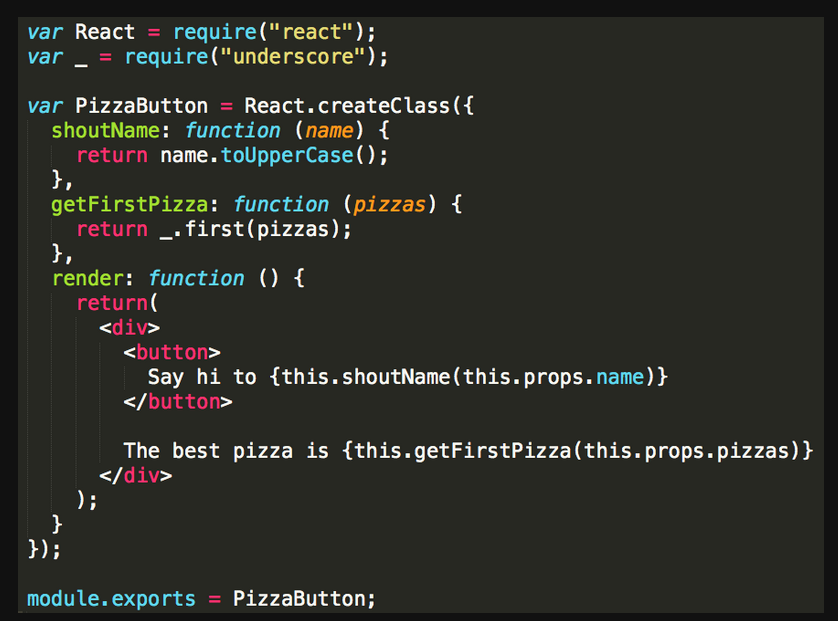

Which means the componets are reusable and composable!

Leverage form Node.js Standard without building its own scope system.

It can require css too!

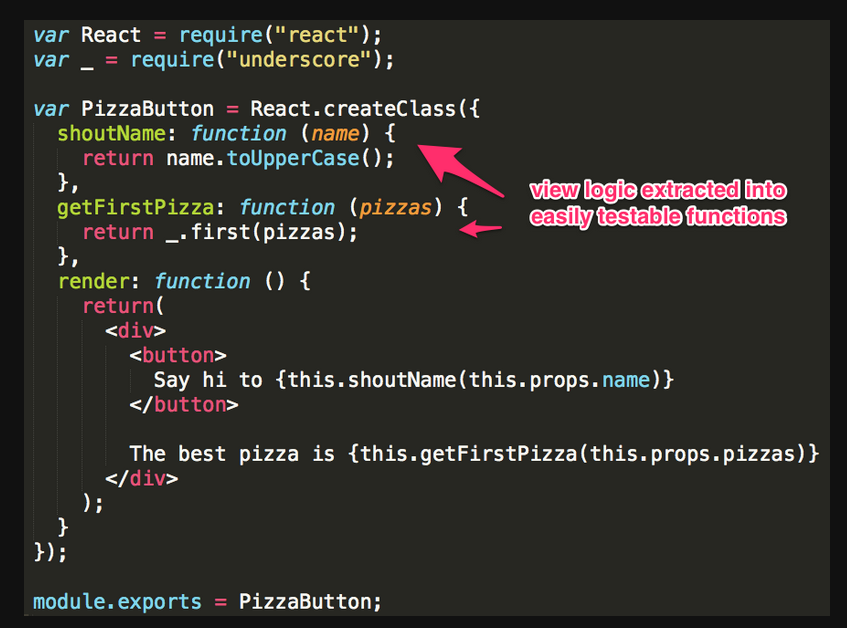

Testable functions

Easy to cowork with Designers

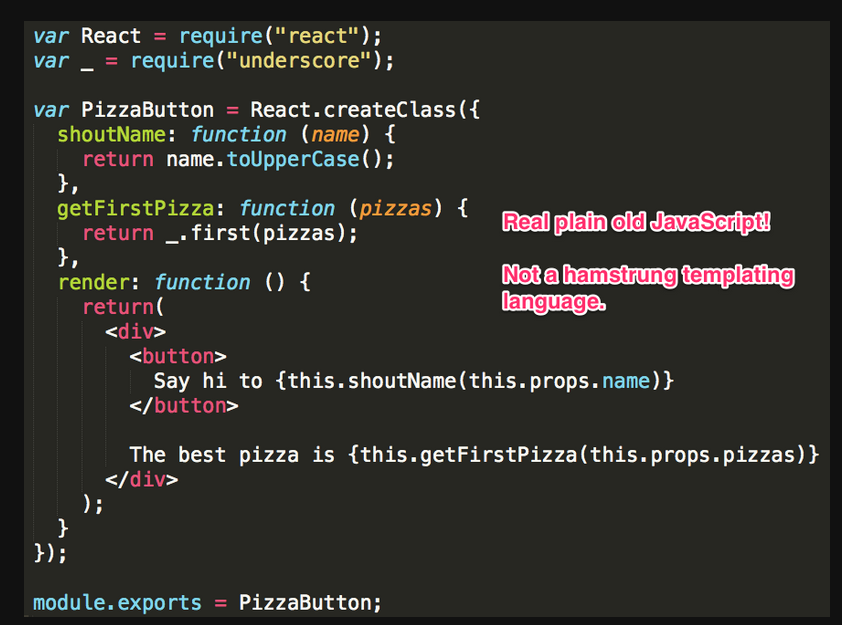

All in one file!!

It's 2015. not in the '90s

1. HTML and JavaScript are cohesive!

(Even CSS!)

2. View and Display logic are coupled!

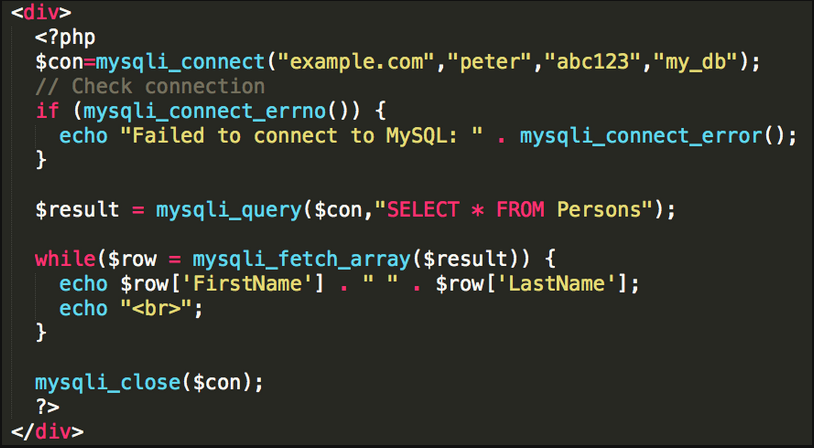

Spaghetti codes?

  • We should put only display logic in it
  • Carefully separate business logic and display logic

We are Engineers!

One more thing...

Where did you put your display logic?

 Server Side way

JSP

JavaScript +  CSS

Server

Client

Display logic here

Not so flexable..

There is always some logic in client side..

 Client Side way

Java or Ruby ...(only API)

Angular.js or Ember.js +  CSS

Server

Client

Display logic here

Not SEO friendly..

and Client side is too heavy

 How about this way?

React.js Componets (JavaScript)

React.js Componets (JavaScript)

Server

Client

Display logic here

One display logic, run everywhere!

Isomorphic JavaScript

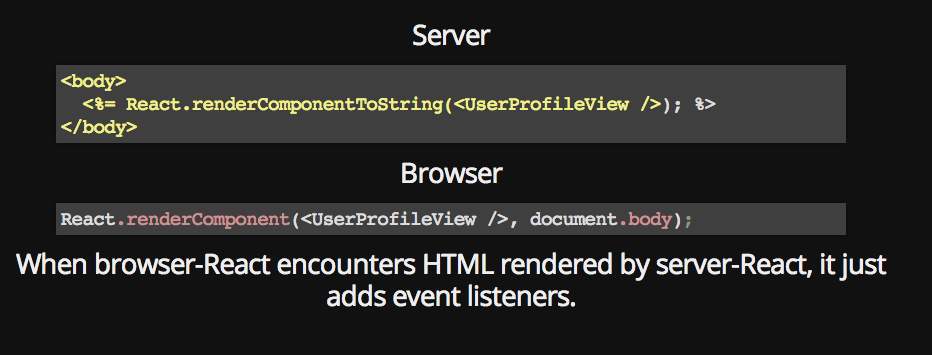

React.js build Virtual DOM to reder DOM on server side!

Isomorphic JavaScript

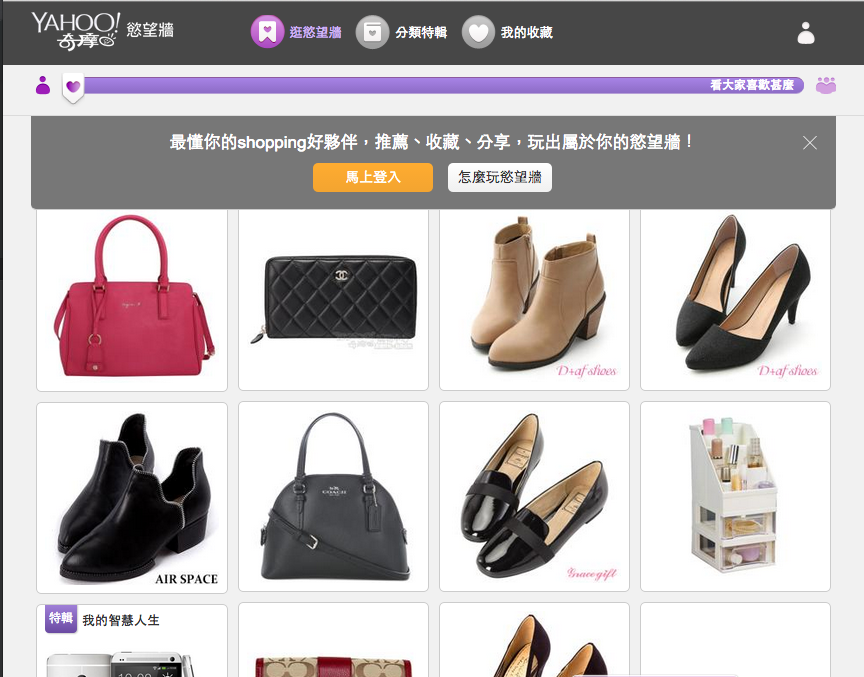

Yahoo Uwant Wall 2013

Cons

1.Need more F2E engineers

2.Need Back-end API support

3.Carefully separate business logic and display logic



Pros

1. SEO friendly

2. Componet Reusable

3. Componet Composable

4. Using NPM standard, easy to deal with dependencies

5. HTML+CSS+JS are cohesive

6. View and display logic are coupled

7. Easy for testing

8. More robust front end

React + Node.js = Isomorphic JavaScript

Q&A

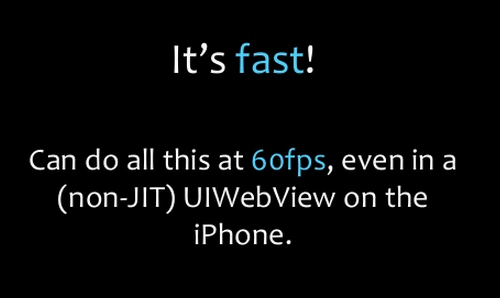

How about Performance?

Virtual DOM

Using diff to update real dom

Extremely fast

 the React.js team at Facebook

How About XSS?

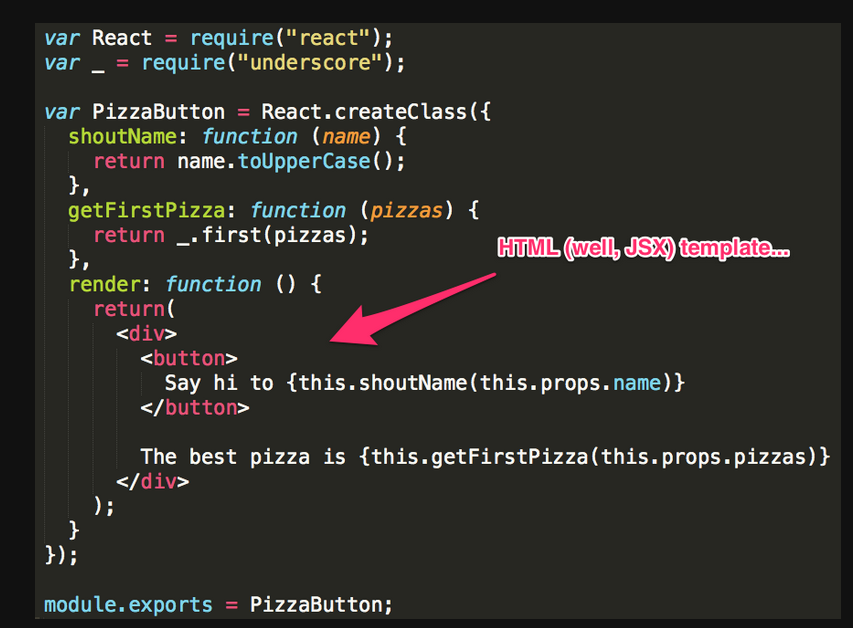

JSX

using JSX to create elements

How about maintainace?

One-way data flow

Easily to spot the bug.

How about work with other stacks?(Java, Ruby, PHP...)

React.js takes care only views



Your app might already talks to other services over HTTP

  • Search Authentication
  • Third party APIs

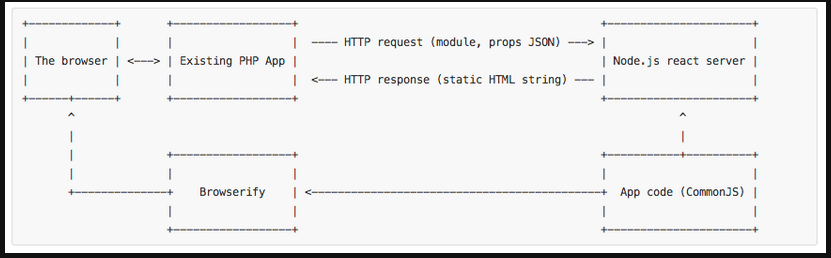

View rendering as a service

https://github.com/facebook/react/tree/master/examples/server-rendering

Thank You!
