Bearings In Real Life
Date:
Time Remaining:
Aim:
Understand how to write, read, and use bearings to navigate in real life.
How you'll know that you've been learning today:
Can correctly record bearings, and follow them as instructions in real life navigation.
Date:
Time Remaining:
Bearings Rules Reminder
1. Start from North
2. Measure Clockwise
3. Write 3 Figures
Starter:

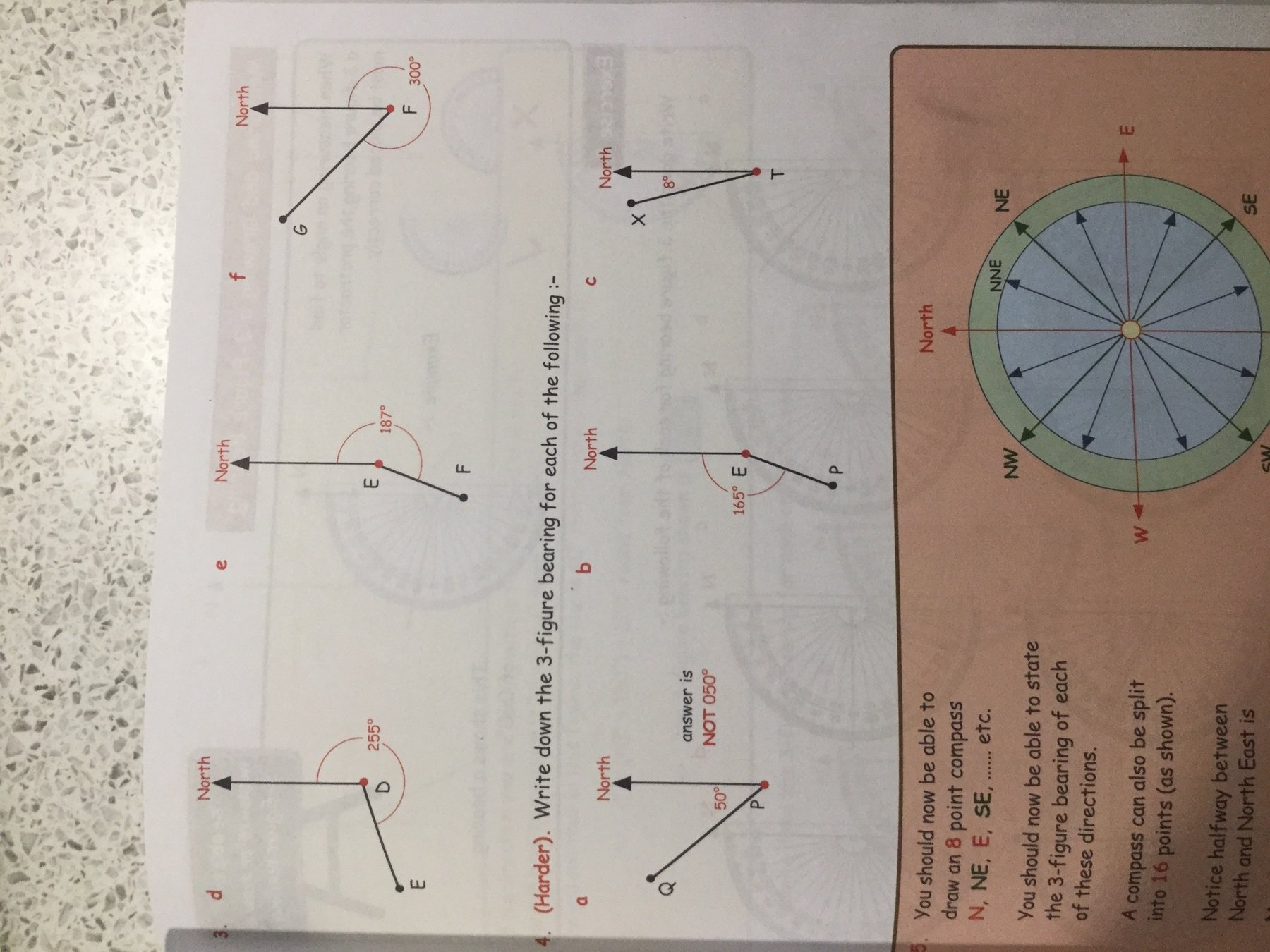

pg60 Ex.4 Q3to4. When finished, paste the cutout of a Compass into jotter.
Date:
Time Remaining:
Time Goal: 5min
Starter:
Question 4 is more tricky. If you aren’t sure how to do it; try it, raise your hand to tell me, and then move on to pasting-in the compass.
Date:
Time Remaining:
Time Goal: 5min
Date:
Time Remaining:
Time Goal: 5min
Algebra for Question 4:
360° = 50° + 310°
360° = 50° + 180° + 130°
50° is that bearing measured counter-clockwise (which is incorrect)
310° is the same bearing, but measured clockwise (which is correct)
This is to prevent us from getting our directions mixed up.
TeeJay 2+ pg60–61 Exercise Answers
1.
a) 180° = S
b) 135° = SE
c) 045° = NE
d) 270° = W
e) 090° = E
f) 225° = SW
g) 315° = NW
h) 000° = N
2.
a) 135° = SE
b) 270° = W
c) 315° = NW
d) 000° = N
e) 180° = S
f) 045° = NE
g) 225° = SW
h) 090° = E
3.
a) 010°
b) 085°
c) 150°
d) 225°
e) 187°
f) 300°
4.
a) 360 - 10 = 310°
b) 360 - 165 = 195°
c) 360 - 8 = 352°
Measuring angles and converting them into bearings:

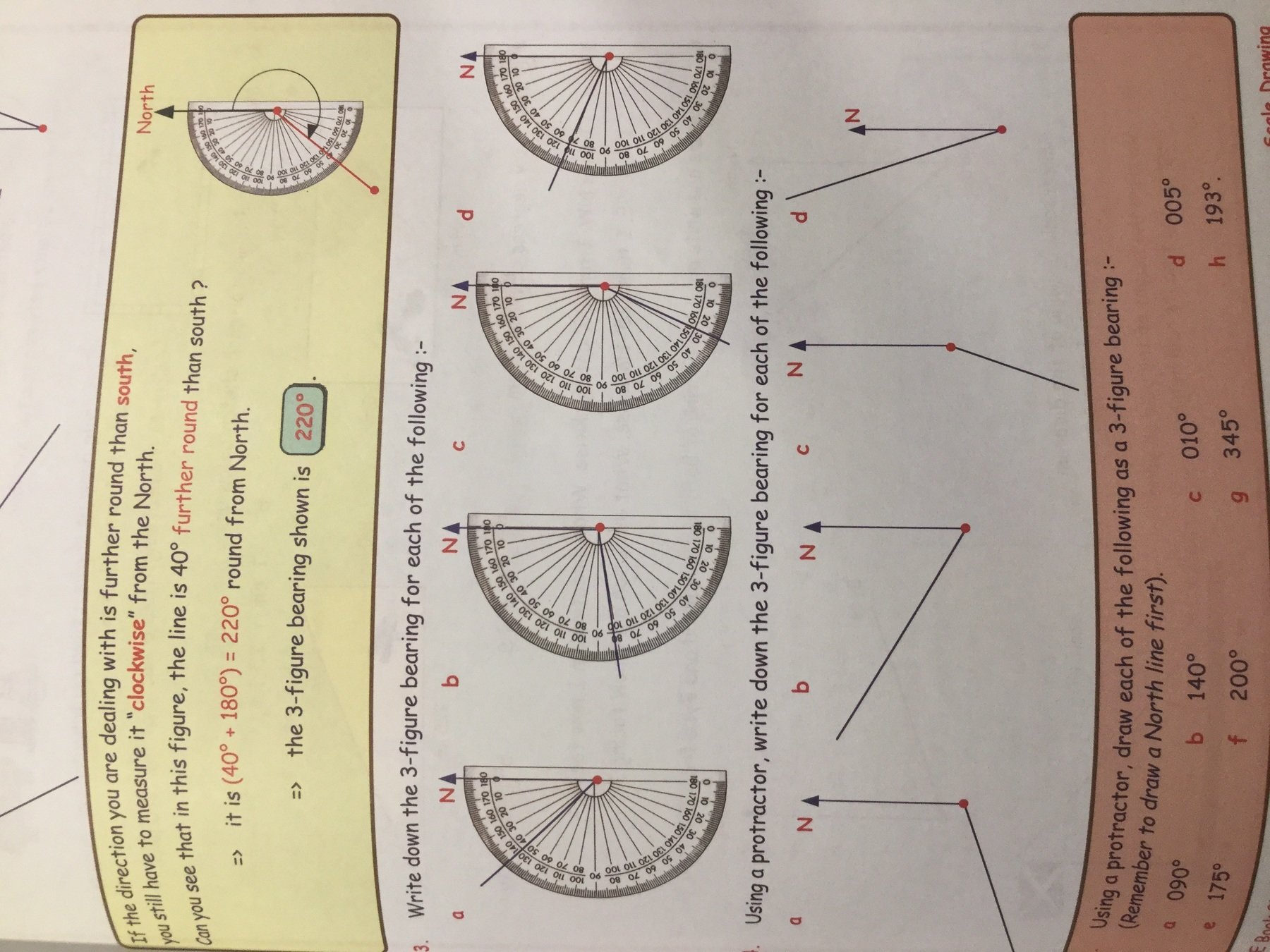

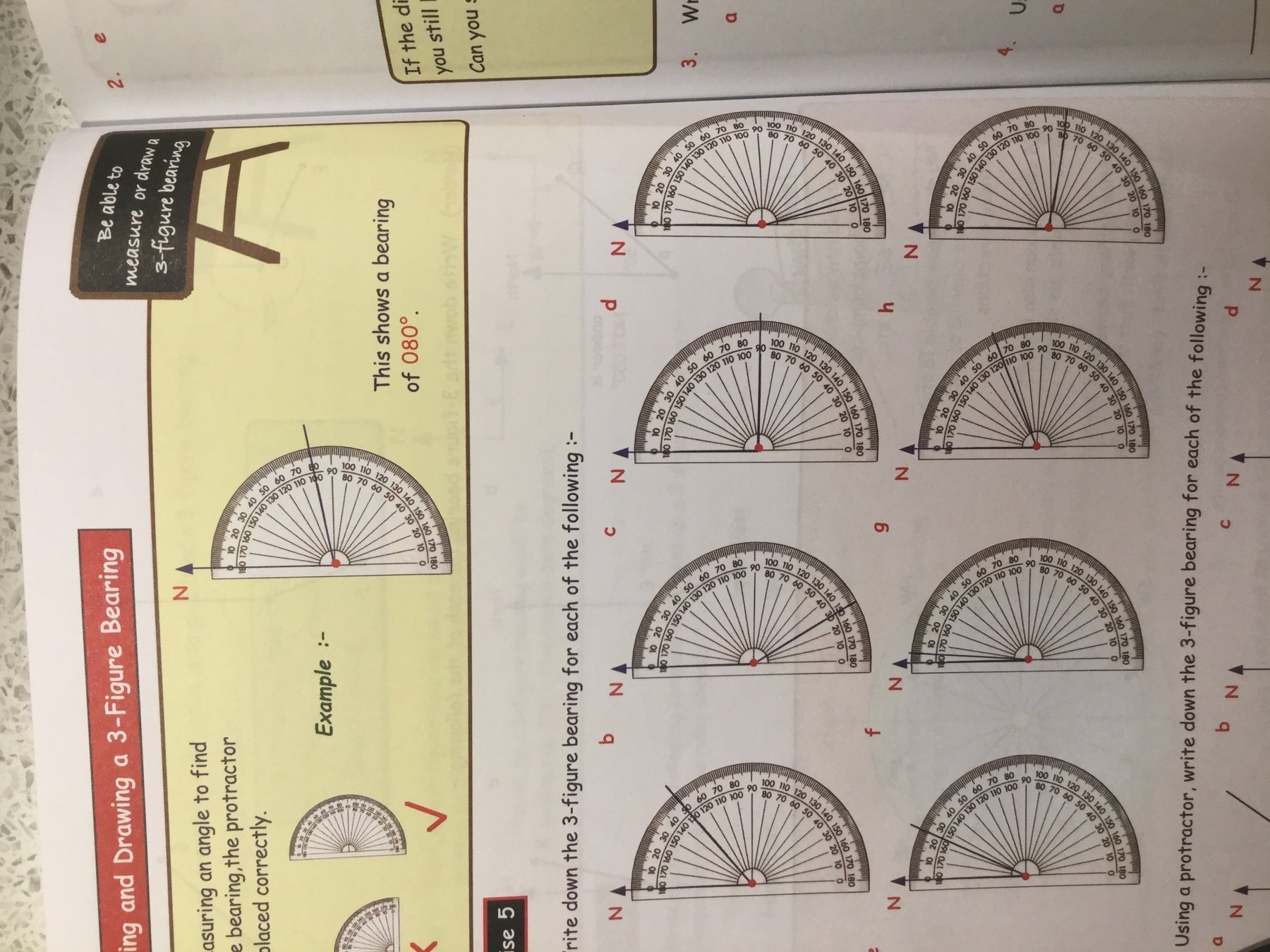

Complete pg62 Ex.5 Q1 a,b,c,d , and Q4 a,b,c,d
Be careful when the angle is larger than 180°
Date:
Time Remaining:
Measuring angles and converting them into bearings:
Date:
Time Remaining:
Measuring angles and converting them into bearings:
Date:
Time Remaining:
Answers:
Date:
Time Remaining:
1.
a) 050°
b) 150°
c) 090°
d)165°
2.
a) 315°
b) 260°
c) 205°
d)290°
(these were rounded to the nearest 5°)
Worksheet: Labeling Bearings
Date:
Time Remaining:
Start and end points are given, you need to construct the ‘North’ lines, then follow the arrow to measure bearing FROM the start TO the end. Apply cardinal direction labels (when appropriate) for N,S,E,W,NE,SE,SW,NW Bonus: Do the same thing but FROM the end TO the start.
If you finish early, do more questions pg 62-63 Ex. 5
Good Behavior expectations for outdoor activity:
Date:
Time Remaining:
You’re not Geits anymore.
Stay within the area,
don’t run or make lots of noise,
and avoid bumping into people.
This will be a fun activity,
but you still need to behave appropriately.
Outdoor Bearings Activity:
- Orient towards North, and draw a ‘North’ line
- In pairs, accurately chalk a large (1m²) compass rose of N,S,E,W,NE,SE,SW,NW. Then also draw large squares, triangles. Challenge: draw a 6-pointed star
- Work out bearings FROM any <start> TO any <finish>
- Give instructions in your pairs to navigate all the way to a destination. First by only using the compass directions. Then more complicated using exact bearings.
- Extension: use trundle wheels to follow/give instructions about directions AND distances. e.g. 5m N, 5m E, 5m S, 5m W should land back on the same spot.
- Precision Challenge: Starting from the NE corner, travelling 5m W, 2m S, 3m NE, 1M SSE, point to a dot and write your name next to it.
Date:
Time Remaining:
Feedback
If it doesn't work, scroll to the pages below for troubleshooting and alternatives
Settings Troubleshooting
There might be some issues with using Mentimeter on iPads.
You will need to 'enable cookies'.
Go to iPad settings, scroll down to 'Safari', and under the 'Privacy & Security' settings disable "Prevent Cross-Site Tracking" and disable "Block all Cookies."
If you are blocked from editing iPad settings, you'll need to show your parents this Slide and ask for permission to change the settings, so that you can use it interactively for class.
Click to Show Settings Screenshot
Feedback Bakcup (input code: 14 39 18) :
Feedback: Class Results
Hidden link to the poll dashboard (need to be logged-in as me to view/edit):
https://www.mentimeter.com/s/4ee455c137bd939842ebe1ef1c1a7ee2/b38ec70a0b9e/edit
Bearings2
By Jay Teach
Bearings2
·# Starter: Labeling bearings from one big circle ·Next to the objects, write down the 3 digit bearing from the center to the different objects. · ·# Measuring angles and converting them into bearings ·## TeeJay pg62,63 Ex.5 Q2 a,b,c,d & Q4 a,b,c,d · ·# Recap what we learned from our experience in the Outdoor Activity · ·# Bearing “from” vs. Bearing “of” (draw diagram example) ·"to": from to ·"of": of from · ·# Complete Dr. Brookman’s 1993 bearings worksheet (finish for prep) · ·You started by reading and interpreting bearings. · ·Now you need to write and explain using bearings. · ·And if we have a scaled map, we can measure it (and do scale-drawing calculations) to calculate real-life distances!
