Bearings
Starter: Fill in the Blank
Calculate Scaled Measurements
\begin{alignedat}{4}
\_\_&cm : &5&m \\
4&cm : &40&m
\end{alignedat}
\begin{alignedat}{4}
1&cm : &15&m \\
8&cm : &\_\_&m
\end{alignedat}
\begin{alignedat}{4}
1&cm : &3&m \\
\_\_&cm : &9&m
\end{alignedat}
\begin{alignedat}{4}
1&cm : &\_\_&m \\
9&cm : &360&m
\end{alignedat}
1.
2.
3.
4.
Answers: 1. 3cm 2. 40m 3. 8cm 4. 90m
Scale Drawings with Angles: Aim
Understand that measurements in drawings can be calculated when we know the drawing’s angles.
Can construct scale drawings using angles and sides, to measure unknown sides.
Bearings: Aim
Understand that a compass points North, which we can use to navigate by picking different directions.
Can name the main directions and write bearings in 3 digit form.
Scale Drawings with Angles: Understanding Check
Bearings: Understanding Check
Bearings
Bearings are used every day to navigate and pilot ships and planes.
This is a
World War 2 Arvo Lancaster Bomber

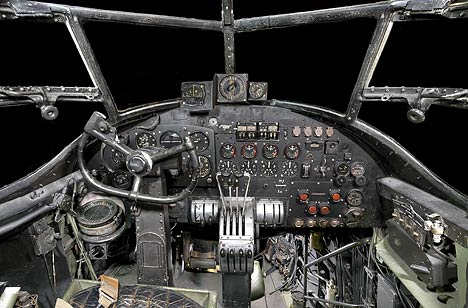

The Cockpit (compass is in the top centre)
The Cockpit (compass is in the top centre)

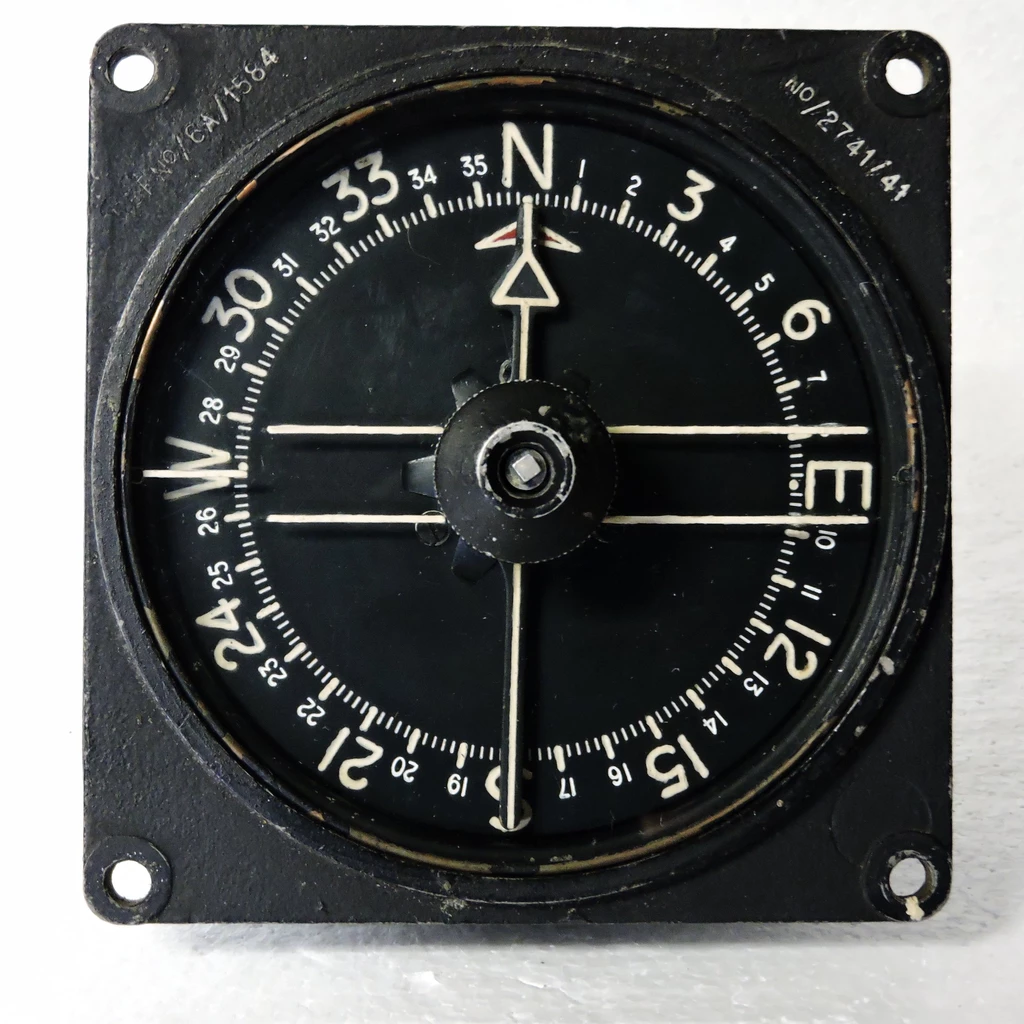

WW2 RAF Compass (30° is written as '3' to make it easy to read from far away)

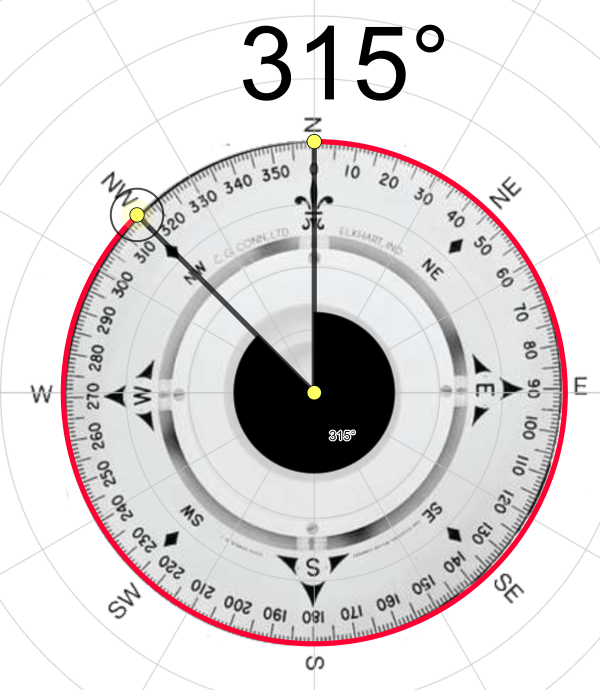

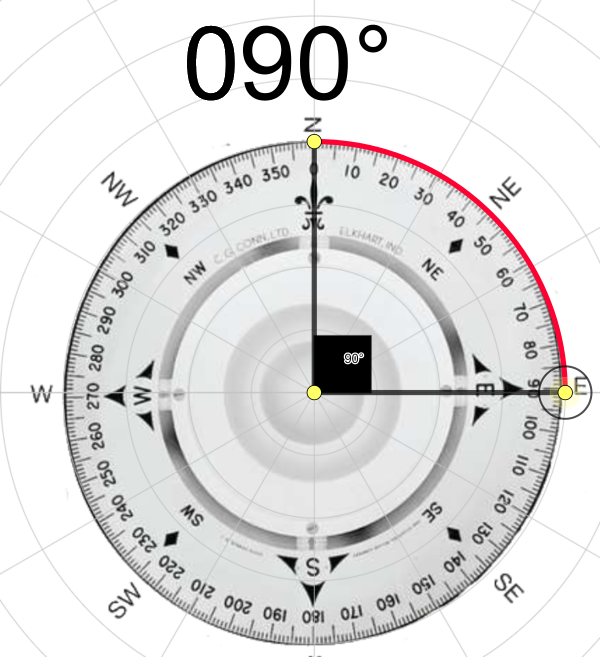

Bearings Rules
1. Start from North
2. Measure Clockwise
3. Write 3 Figures

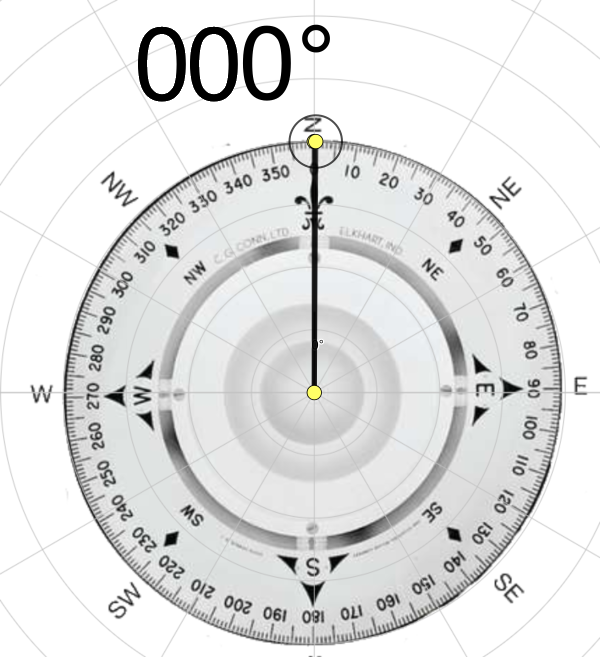

N = North
E = East

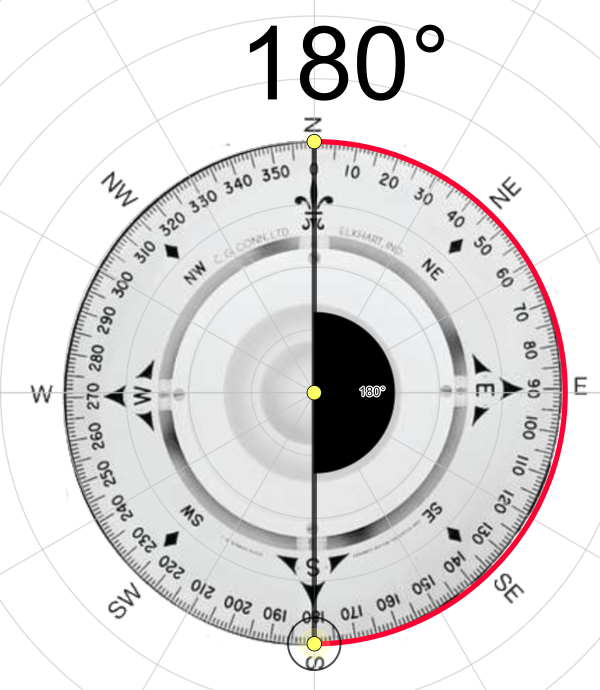

S = South

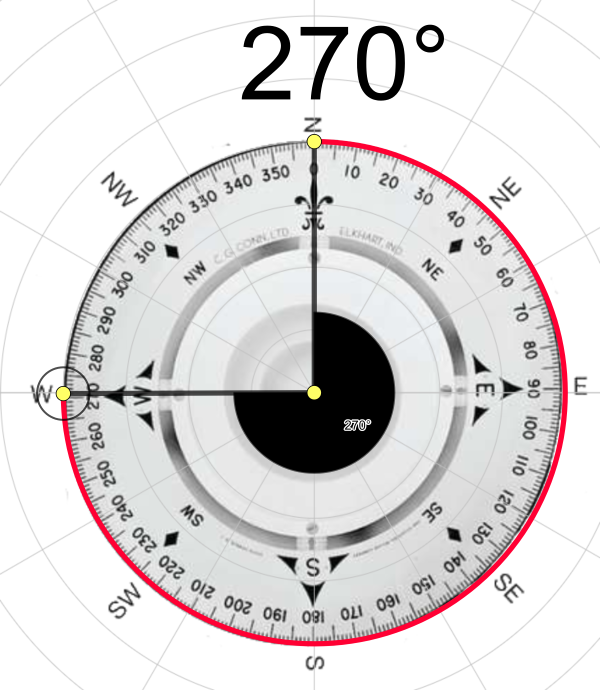

W = West

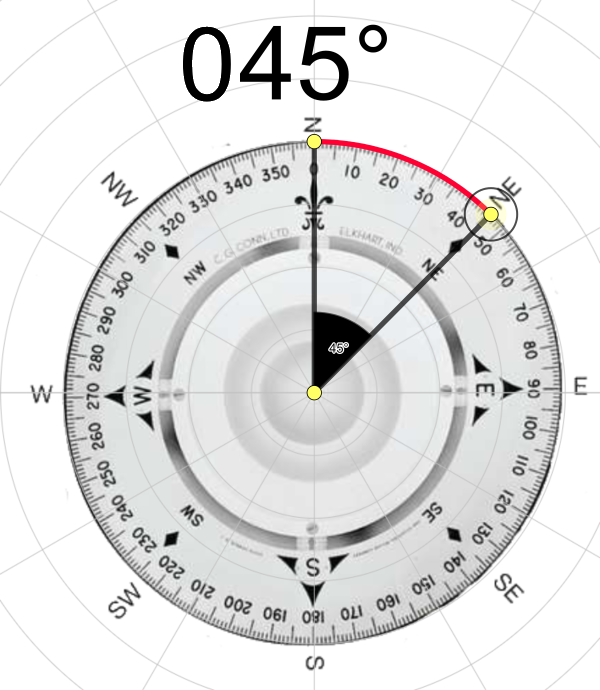

NE = North-East

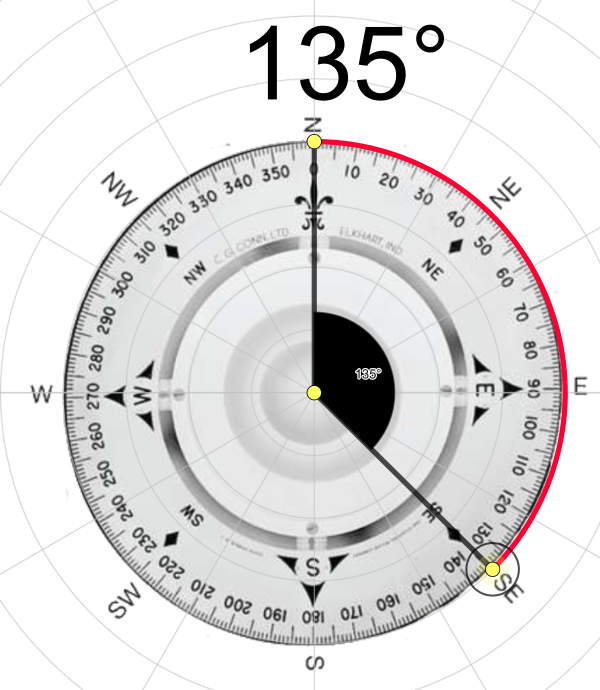

SE = South-East

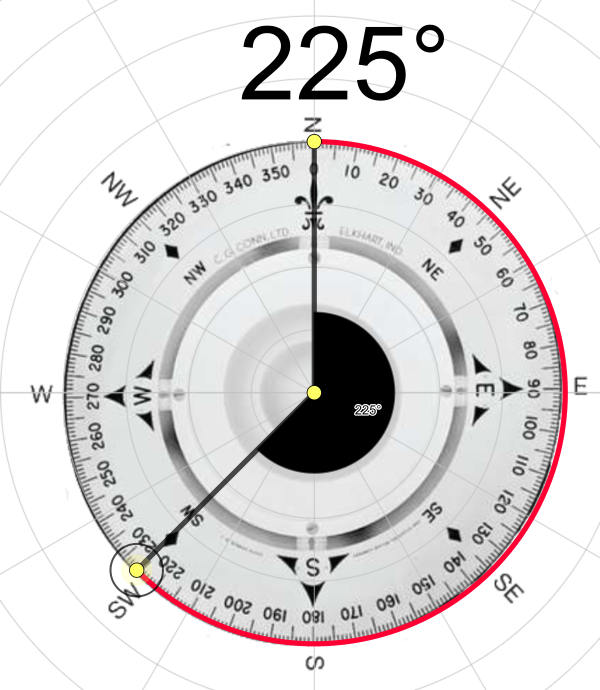

SW = South-West
NW = North-West
Bearing “to” vs. Bearing “of”:
Date:
Time Remaining:
"to":
from <start> to <end>
"of":
of <end> from <start>
