Determining dynamic coupling in JavaScript using object type inference

by

J. Nicolay; C Noguera; C. De Roover; W De Meuter

04/05/2016

1

CSC 868 Presentation by Jens Vanderhaeghe

04/05/2016

2

Overview

• Introduction
• Approach
  • Abstract Interpretation
  • Type Inference
  • Computing Coupling
  • Enhancements
• Technical Implementation
• Applications of this research
• Conclusion

What is Abstract Coupling

04/05/2016

3

• Defined as access to (foreign) variables and instances
• Keep coupling as low as possible
  • Use "Pure" functions
  • Makes code easier to understand and maintain
  • Makes it easy to automate testing

// pure function

function sum (a, b) {
  return a + b;
}

JavaScript

04/05/2016

4

• Used to be a simple scripting language
• Over time:
  • Complexity increased
  • No longer Restricted to the Browser
• Need for good tooling to Assess code quality

The Problem

04/05/2016

5

• Javascript is a dynamic language
• Flexible Object system with Prototypical OO
• No static type information and classes
• Makes it really difficult to build statical analysis tools

Employee.prototype = Object.create(Person.prototype);
Employee.prototype.constructor = Employee;

Employee.prototype.greet = function() {
  if (this.canTalk) {
    console.log('Hi, I am ' + this.name + ', the ' + this.title);
  }
};

This Paper

04/05/2016

6

• Understand the coupling of functions to Object Types
• Since Javascript is dynamic, types have to be inferred
• Demonstrate the usefulness by applying it to the detection of coupling related code smells

Overview

04/05/2016

7

• Introduction
• Approach
  • Abstract Interpretation
  • Type Inference
  • Computing Coupling
  • Enhancements
• Technical Implementation
• Applications of this research
• Conclusion

Approach

04/05/2016

8

1. Approximate a set of all property accesses using an Abstract Interpreter
2. Collect details of each access
3. Get the locality of Each access
4. Compute the Type of Receiver
5. Compute dynamic coupling of each function
6. Enhance the information by discovering relations

04/05/2016

9

Overview

• Introduction
• Approach
  • Abstract Interpretation
  • Type Inference
  • Computing Coupling
  • Enhancements
• Technical Implementation
• Applications of this research
• Conclusion

Abstract Interpretation

04/05/2016

10

• Intepreter based on V8
• Executes the progam
  • Simplified
  • guarantees finite execution in time and space
• Syntactic elements
  • Function expressions
  • Identifiers
  • Keywords like "new"

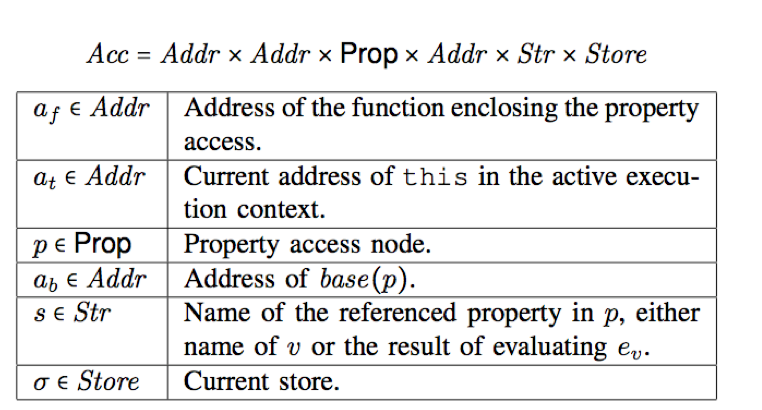

Interpreter Stores Access information

04/05/2016

11

• Address of the function
• Address of this
• Node
• Base Expression
• Stored as a tuple

04/05/2016

12

Overview

• Introduction
• Approach
  • Abstract Interpretation
  • Type Inference
  • Computing Coupling
  • Optimizations
• Technical Implementation
• Applications of this research
• Conclusion

Object Type inference

04/05/2016

13

• function iof()
• Prototype Based inference iof(p)
• Object Based inference   iof(o)

Prototype based Inference

04/05/2016

14

• Follow prototypes up the chain
• Store information in AST
• Repeat until Null is encountered
• Great with instance data
• Not good for non-instance data or literals

function Circle(){
    this.prototype =  Shape.prototype;
}

// instance data
var c = new Circle();

// literal
var point = {
    x: 1,
    y:2
}

//non instance based
Math.sqrt(point.x);

Object Based inference

04/05/2016

15

• Every object is assigned its own type
• Therefore, each object has unique address
• Calculations are limited
• Because we can compare addresses
• Great for builtins or objects created at certain Source Code Locations

Math.sqrt

// Inference of

{Math}

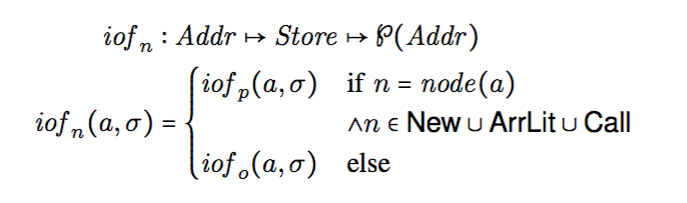

Optimizing IOF

04/05/2016

16

• Differentiate based on creation

• Prototype Based
  • Contructor
  • Array Literal
  • Object.create

• Object Based
  • Addresses for built-ins
  • Literals

04/05/2016

17

Overview

• Introduction
• Approach
  • Abstract Interpretation
  • Type Inference
  • Computing Coupling
  • Enhancements
• Technical Implementation
• Applications of this research
• Conclusion

Computing Coupling

04/05/2016

18

• Metric
• Increase everytime we detect coupling
• Local vs Foreign coupling can be detected using "this"
• External coupling has multiplier

var point = {
    x:1;
    y:2;
}

function Circle() {
    this.point2 = {
        x:2,
        y:2
    }

    // internal coupling
    var x = this.point2.x;

    // external coupling
    var y = point.y;
}

04/05/2016

19

Overview

• Introduction
• Approach
  • Abstract Interpretation
  • Type Inference
  • Computing Coupling
  • Enhancements
• Technical Implementation
• Applications of this research
• Conclusion

Enhancing Object Type information

04/05/2016

20

• IOF information
  • still not accurate enough

• 4 methods
  • Flow of Types
  • Interface types
  • Use property writing information
  • Handling Arrays

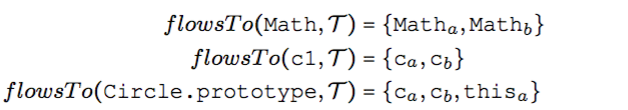

Flow of Types

04/05/2016

21

• Where is the object used as a base object?
• Use flowTo()
• Objects that flow to the same base should be equal

function Circle(x, y, r) { . . . }

Circle.prototype.circumference = function () {
  return 2 * Matha.PI * thisa.r;
}

function area(c) {
   return Mathb.PI * ca.r * cb.r;
}

var c1 = {x:10, y:20, r:30};

Interface Types

04/05/2016

22

• Two Types could be equivalent if they share the same interface
• Do not use standalone!
  • combine with flow types
• A could be a point, while B could be a cipherlock

var a = {
   x: 5,
   y: 3,
   z: 10
}

var b = {
   z: 5,
   x: 3,
   y: 10
}

Writing Properties

04/05/2016

23

• Updating an existing property
  • Generated coupling
• Adding a new property
  • Always works
  • Does not create coupling

var point = {
    x: 5,
    y: 6
}

// update existing property

point.x = 6;

// create new property

point.z = 15

Optimizing how we handle Arrays

04/05/2016

24

• In Javascript
  • Every array access is a property access
  • Property name is array index if its a string representation of an integer
• Functions accessing Arrays will have high coupling scores
• If access is computed
  • Object Access -> Coupling
  • Else -> Not relevant

var arr = [1,2,3]

// property access
arr[1]

var obj {
    '1': 'one'
    'two: 'two'
}

// Array access
obj['1']

// Property access
obj['two']

04/05/2016

25

Overview

• Introduction
• Approach
  • Abstract Interpretation
  • Type Inference
  • Computing Coupling
  • Enhancements
• Technical Implementation
• Applications of this research
• Conclusion

Technical Implementation

04/05/2016

26

• Using Google JIPDA
• Used Chrome's V8
• Can handle a large subset of ES5
• Can not handle real world applications and libraries

04/05/2016

27

Overview

• Introduction
• Approach
  • Abstract Interpretation
  • Type Inference
  • Computing Coupling
  • Enhancements
• Technical Implementation
• Applications of this research
• Conclusion

Applications of this research

04/05/2016

28

• Detecting Feature Envy
• Metrics

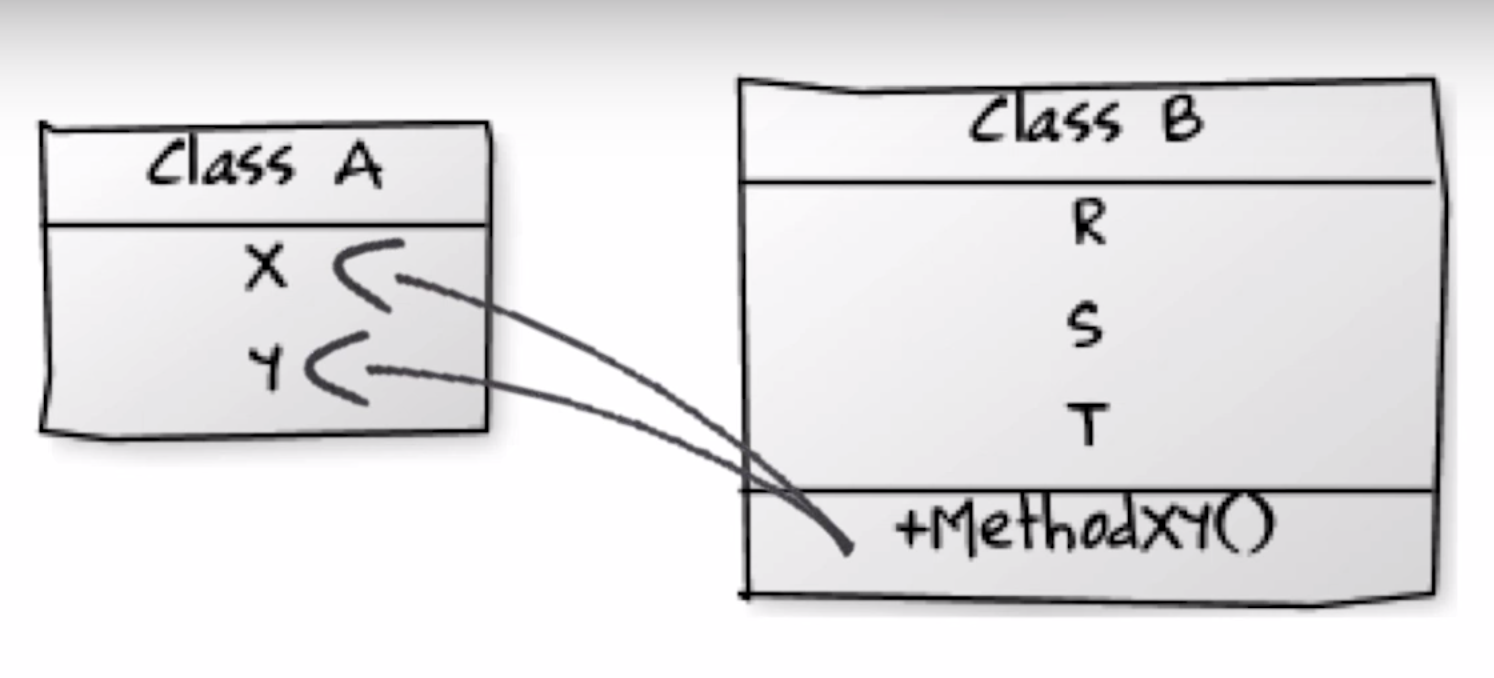

Detecting Feature Envy

04/05/2016

29

• Objects that are more interested in data of other classes than data of their own class
• Detected by
  • Access to foreign data
  • Locality of attribute access
  • Foreign data providers

Metrics

04/05/2016

30

• Try to reduce coupling metrics
• The lower the less coupling
• Try to keep functions pure!

04/05/2016

31

Overview

• Introduction
• Approach
  • Abstract Interpretation
  • Type Inference
  • Computing Coupling
  • Optimizations
• Technical Implementation
• Applications of this research
• Conclusion & Summary

Summary

04/05/2016

32

• Javascript is a dynamic
• Type Inference is incredibly challenging
  • No Classes
  • No static Typing
• Value and control flow need to be tracked separately
• Need an interpreter
  • Executes the code
  • Checks the actual values of the references

Conclusion

04/05/2016

33

• It's possible to determine coupling
• Therefore we can produce metrics
• These metrics can be used to detect bad code smells
• Promising, but needs further exploration to work with real world code
