What's new in ReactJS 16



And how does it affect our work?

Overview

  • New Core Algorithm

  • Error Boundary

  • Fragments

  • Portals

  • Better SSR

  • Other new feature

New Core Algorithm

Stack reconciliation VS Fiber reconciliation

Reconciliation

The "diffing" process of virtual DOM in React is called reconciliation

Reconciliation

Stack VS Fiber

Stack VS Fiber

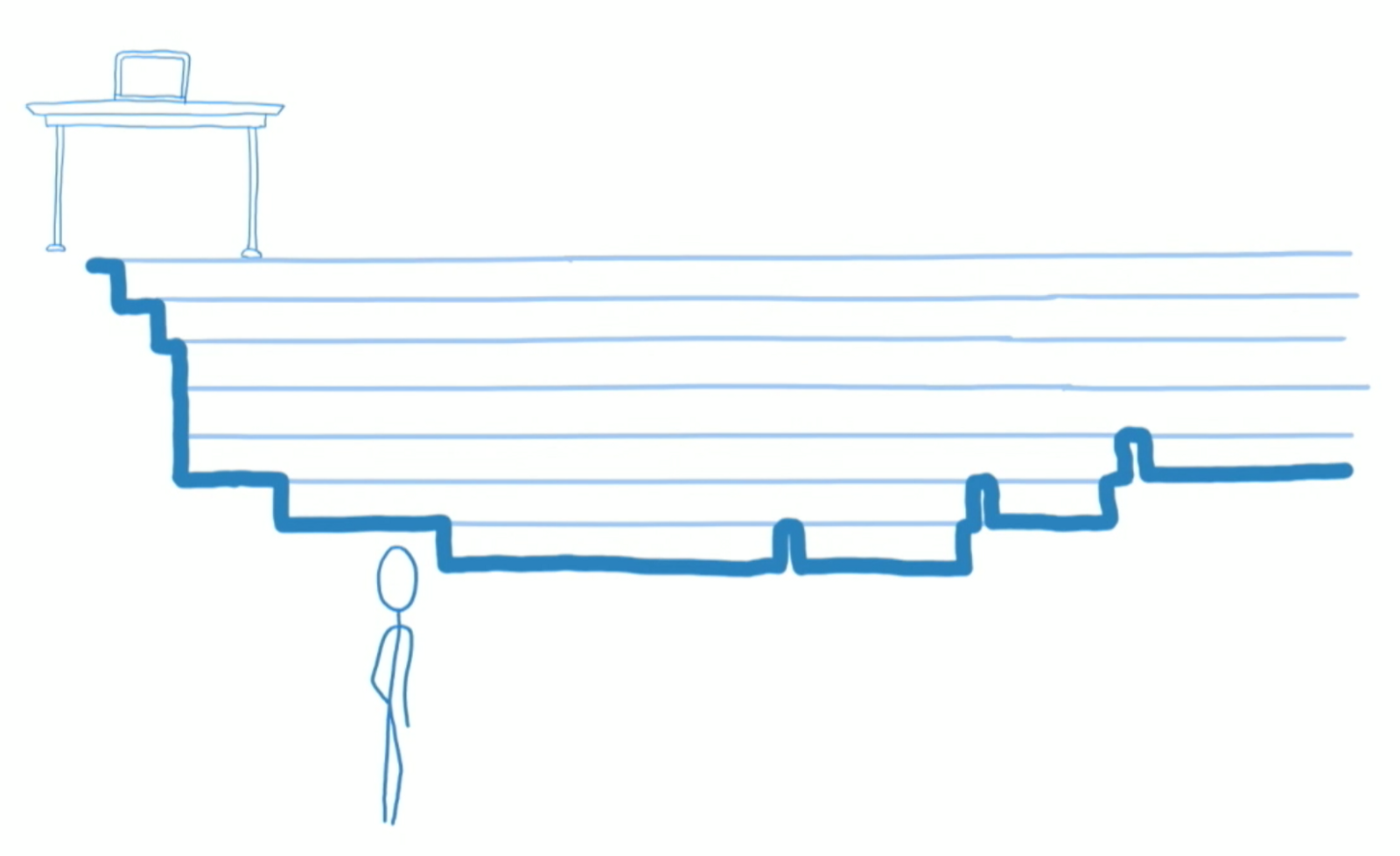

Stack reconciliation

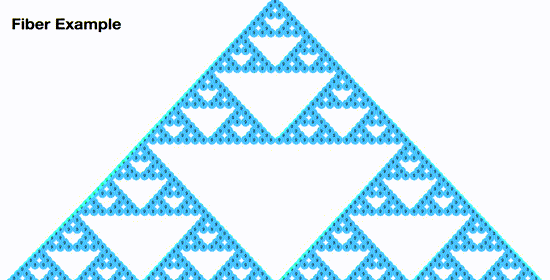

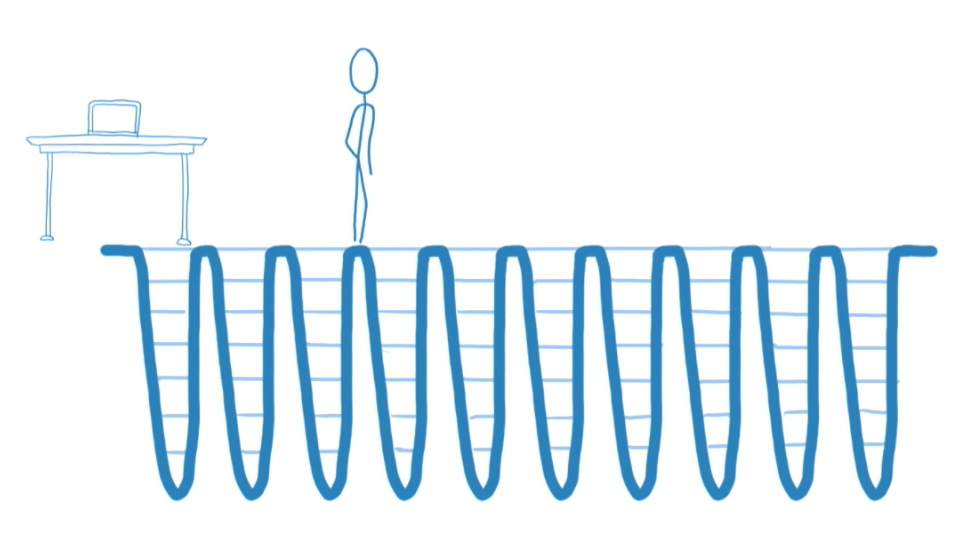

Fiber reconciliation

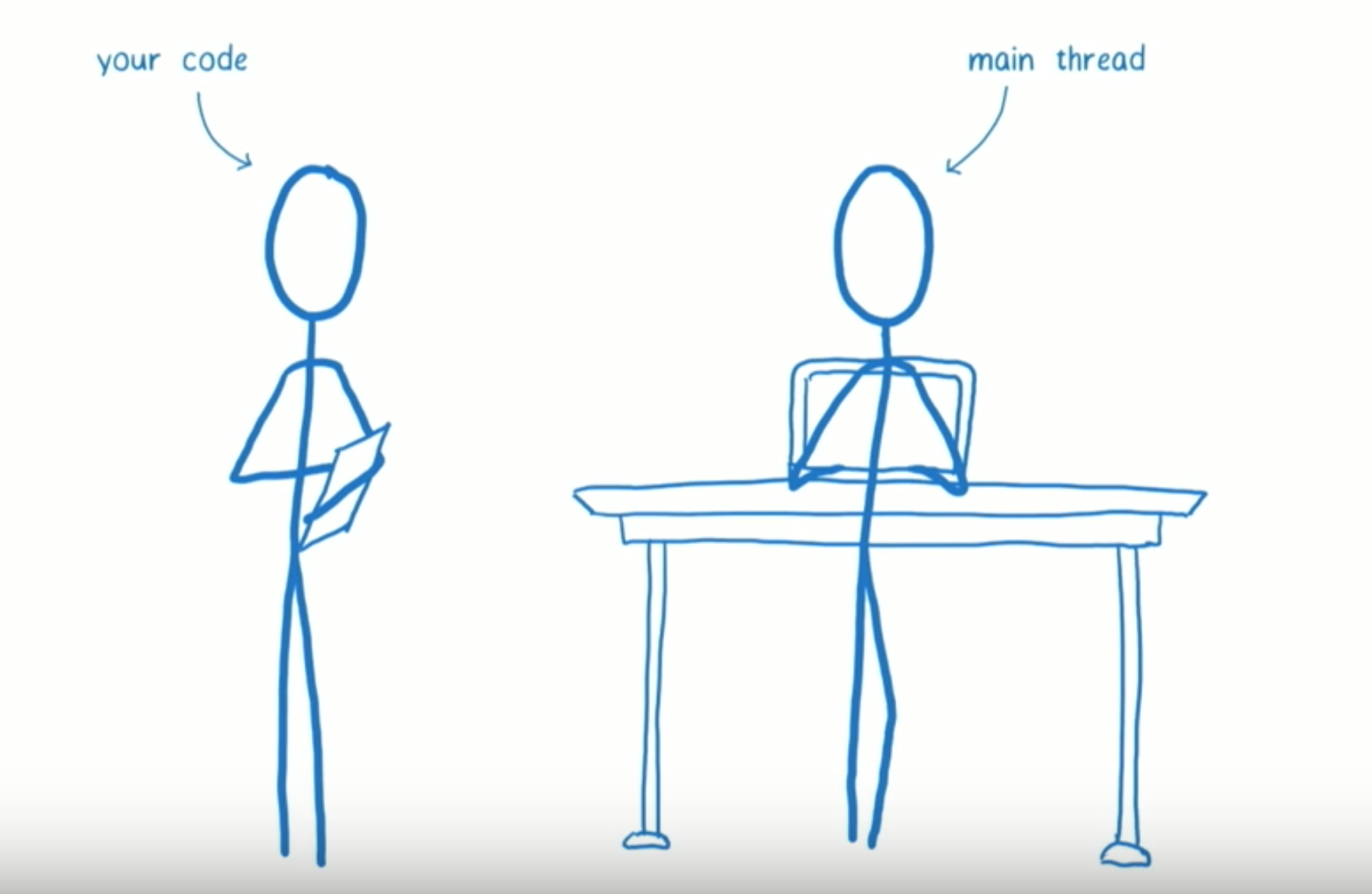

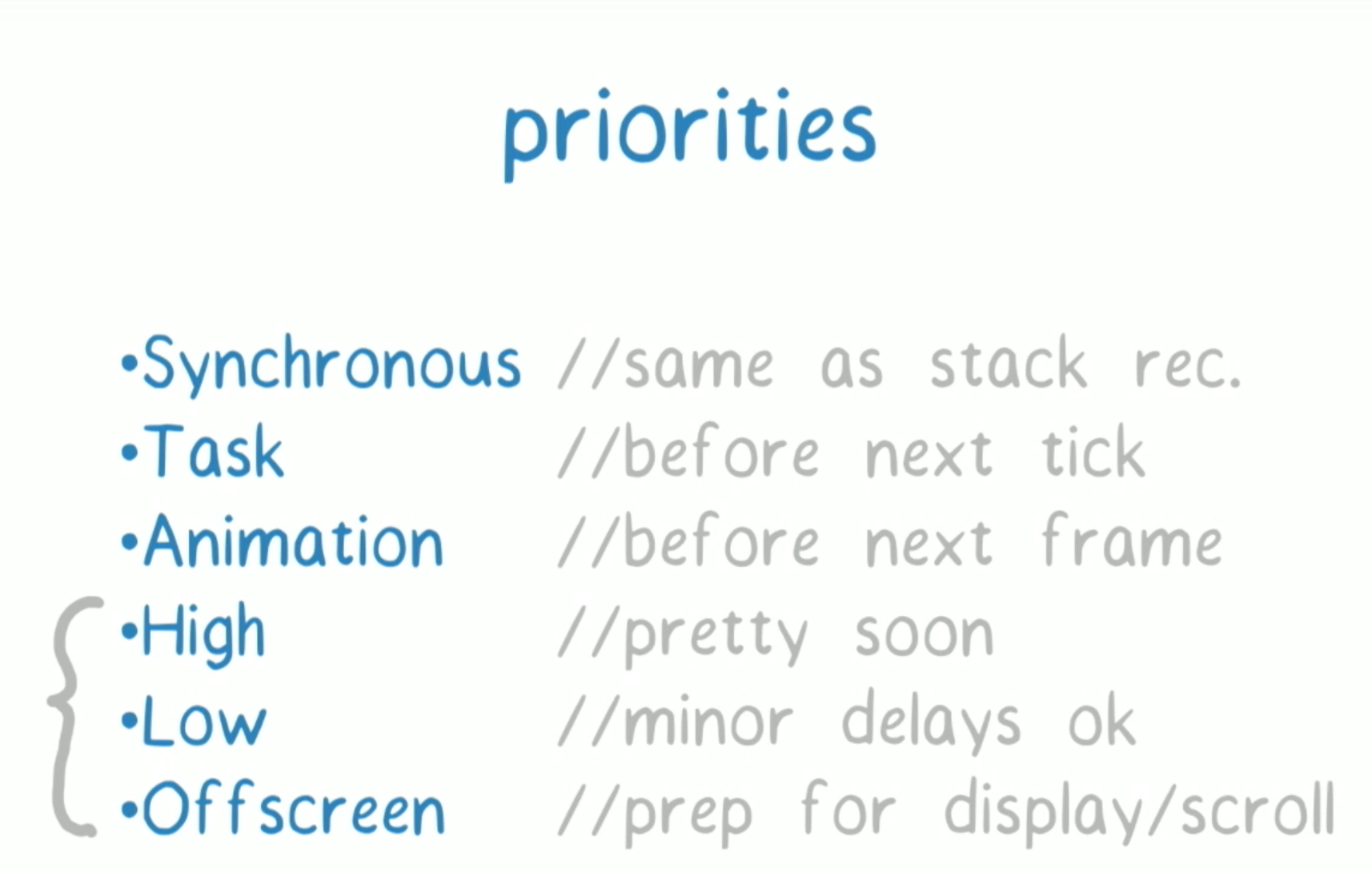

Cooperative scheduling

Async Rendering

To split the rendering work into chunks and spread out over multiple frames

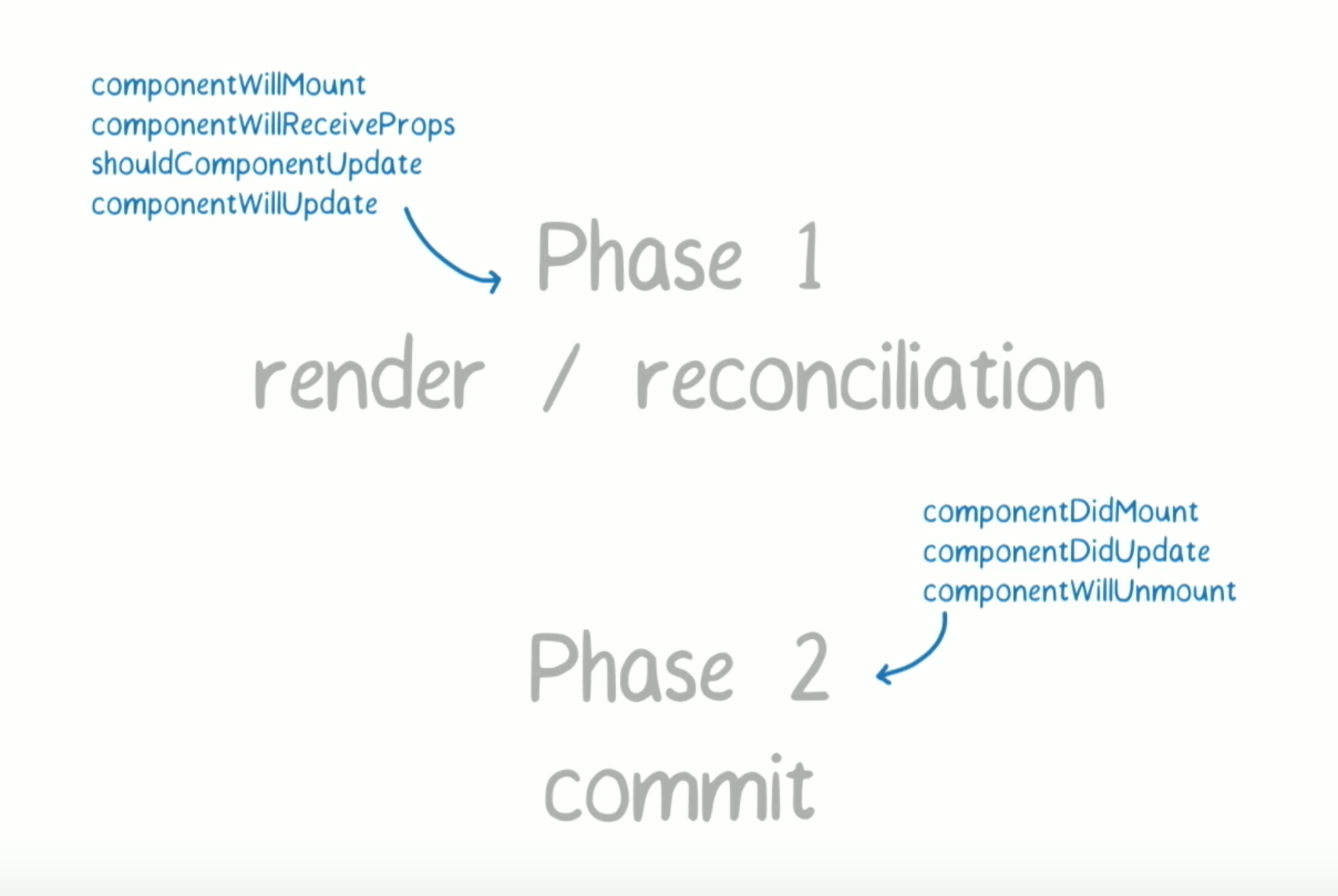

Phases

Phases

The commit phase is usually very fast, but rendering can be slow. For this reason, the upcoming async mode (which is not enabled by default yet) breaks the rendering work into pieces, pausing and resuming the work to avoid blocking the browser

Concurrency

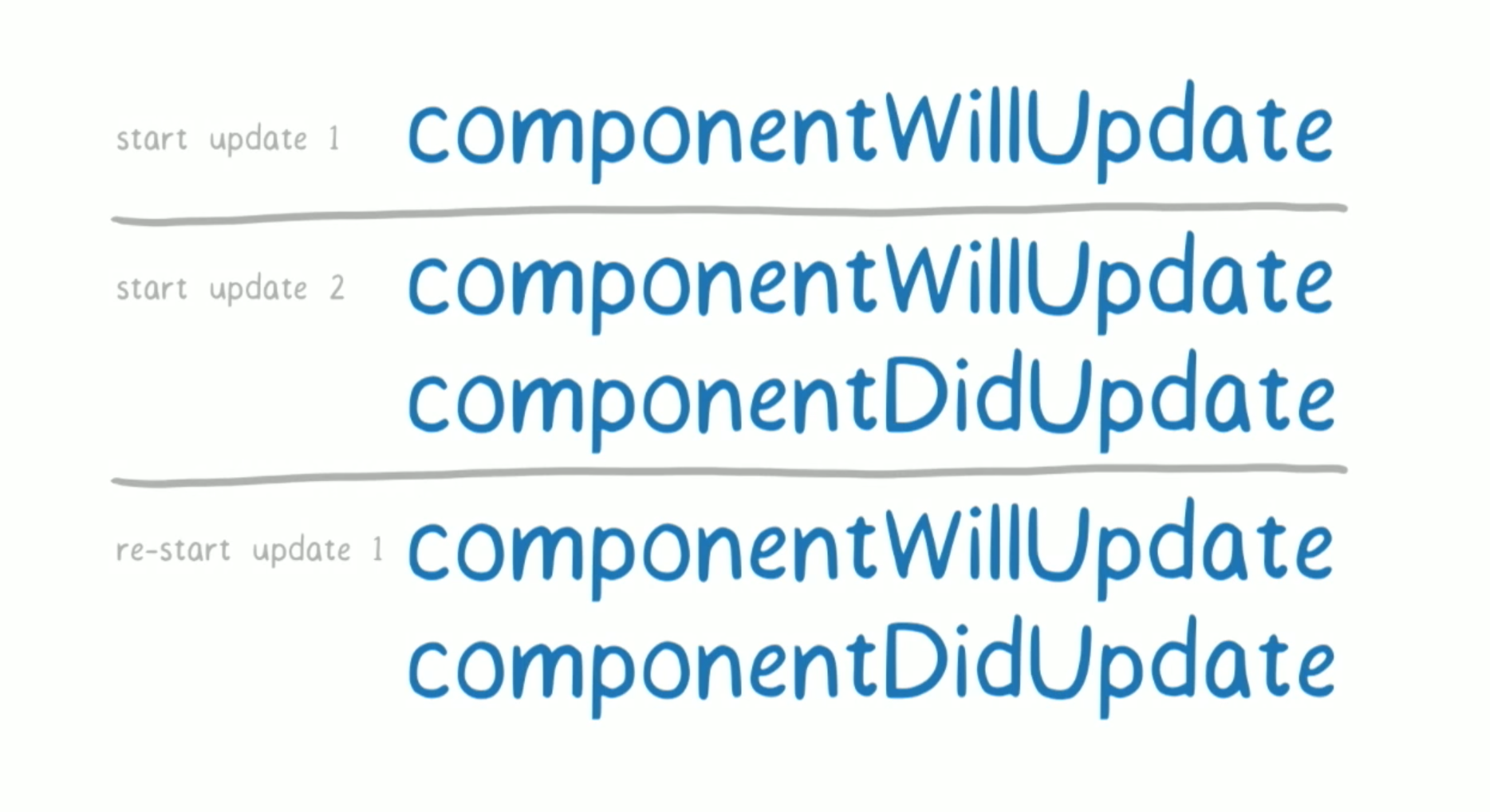

Life Cycle Hooks

The life cycle methods may not fire in the same order you expected.

References

  1. http://raphamorim.io/understanding-react-fiber-incremental-rendering-feature/

  2. https://github.com/acdlite/react-fiber-architecture

  3. https://makersden.io/blog/look-inside-fiber/

  4. https://edgecoders.com/react-16-features-and-fiber-explanation-e779544bb1b7#e1d8

Error Boundary

What?😲 LOL

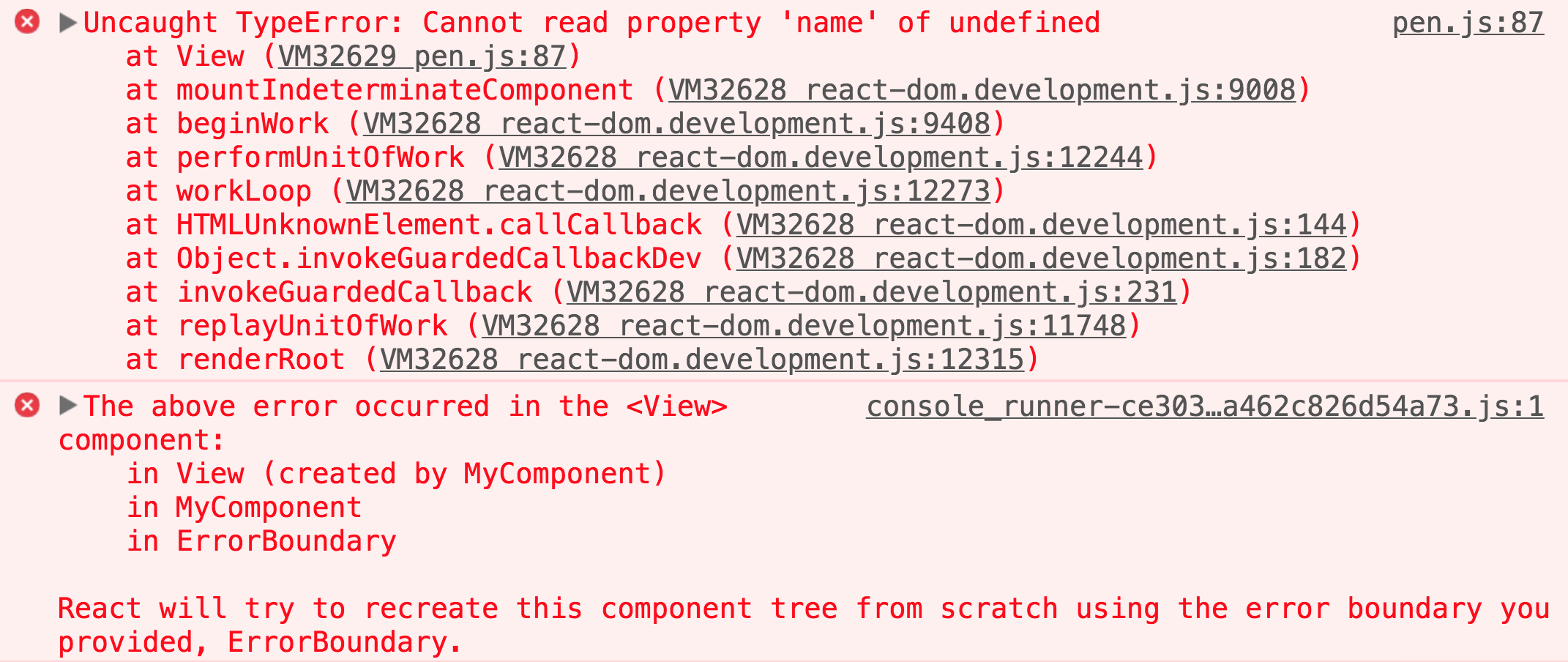

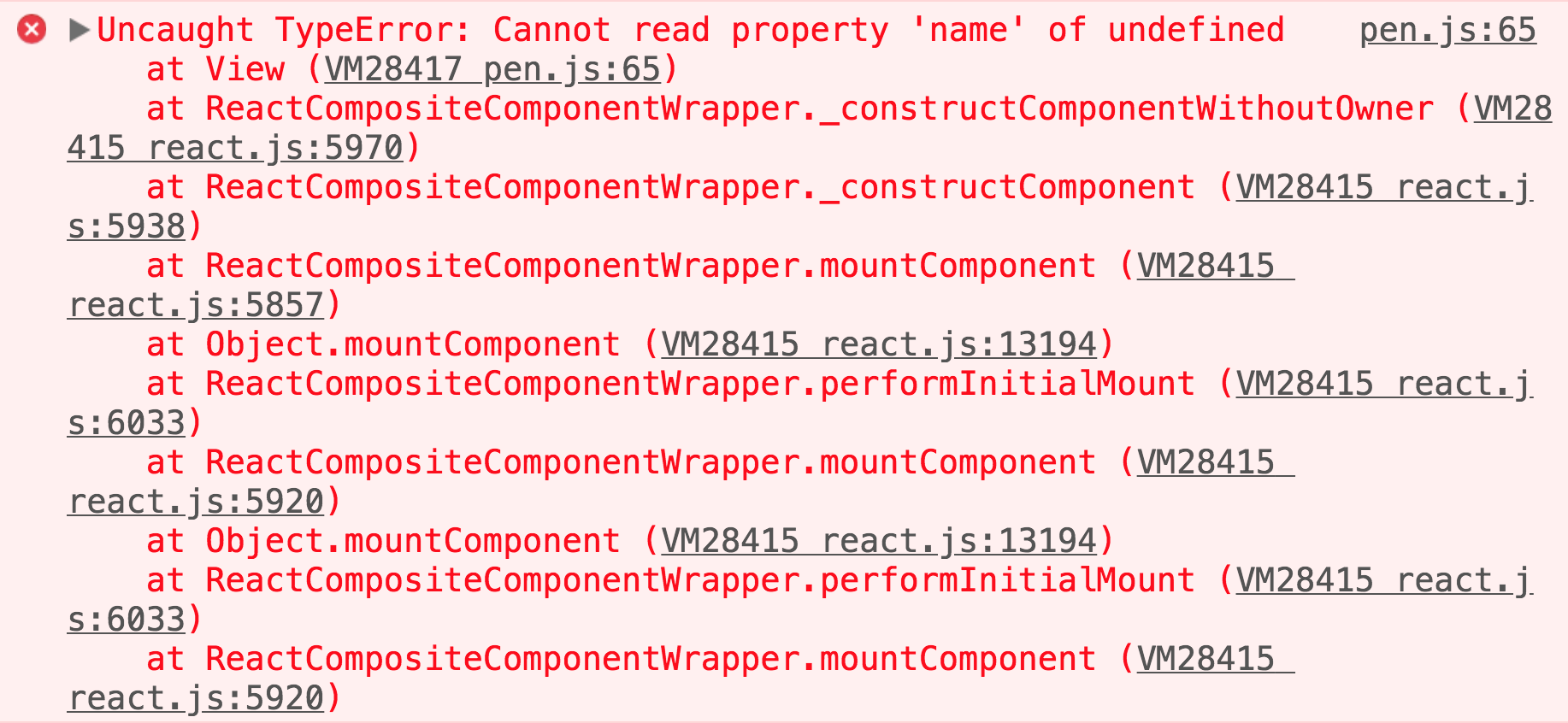

Robust and actionable errors

componentDidCatch(error, info)

class ErrorBoundary extends React.Component {

  constructor(props) {
    super(props);
    this.state = { hasError: false };
  }

  componentDidCatch(error, info) {
    this.setState({ hasError: true });
    console.log(error, info);
  }

  render() {
    if (this.state.hasError) {
      // You can render any custom fallback UI
      return <h1>Something went wrong.</h1>;
    }
    return this.props.children;
  }

}


const entry =
  document.getElementById("root");

ReactDOM.render(
  <ErrorBoundary>
    <MyWidget></MyWidget>
  </ErrorBoundary>,
  entry
);
<div id="root">
  <!-- This div's content will
    be managed by React. -->
</div>
const MyWidget = () => {
  return <h2>My Widget</h2>;
}

Let's have a try

React 15.1.0: https://codepen.io/melonq/pen/WzWpmM​



React 16.3.1: https://codepen.io/melonq/pen/WzWpgd

Error boundaries do not catch errors for

  1. Event handlers
  2. Asynchronous code (e.g. requestAnimationFrame or setTimeout callbacks)
  3. Server side rendering
  4. Errors thrown in the error boundary itself (rather than its children)

References

The return types of render method

Title Text


renderTitles() {
  return (
    <div>
      <h2>MainTitle</h2>
      <h3>SubTitle</h3>
    </div>
  );
}

renderItems() {
  return (
    <div>
      {this.props.items.map((item, index) =>
         <ItemElement data={item} key={index} />)
      }
    </div>
  );
}

renderChildren() {
  return (
    <div>{this.props.children}</div>
  );
}

Return an array

render() {
  // Don't forget the keys
  return [
    <li key="A">First item</li>,
    <li key="B">Second item</li>,
    <li key="C">Third item</li>,
  ];
}

Fragments

render() {
  // No need for comma and keys
  return (
    <React.Fragment>
      <li>First item</li>
      <li>Second item</li>
      <li>Third item</li>
    </React.Fragment>
  );
}

The shorter syntax sugar - 16.2.0

render() {
  return (
    <>
      Some text.
      <h2>A heading</h2>
      More text.
      <h2>Another heading</h2>
      Even more text.
    </>
  );
}

Portals

ReactDOM.createPortal

Portals provide a first-class way to render children into a DOM node that exists outside the DOM hierarchy of the parent component.

Let's have a try

https://codepen.io/melonq/pen/pVogmg

Better SSR

A completely rewritten server renderer

  • Support streaming
  • Compiles away `process.env` checks
  • render()  => hydrate()

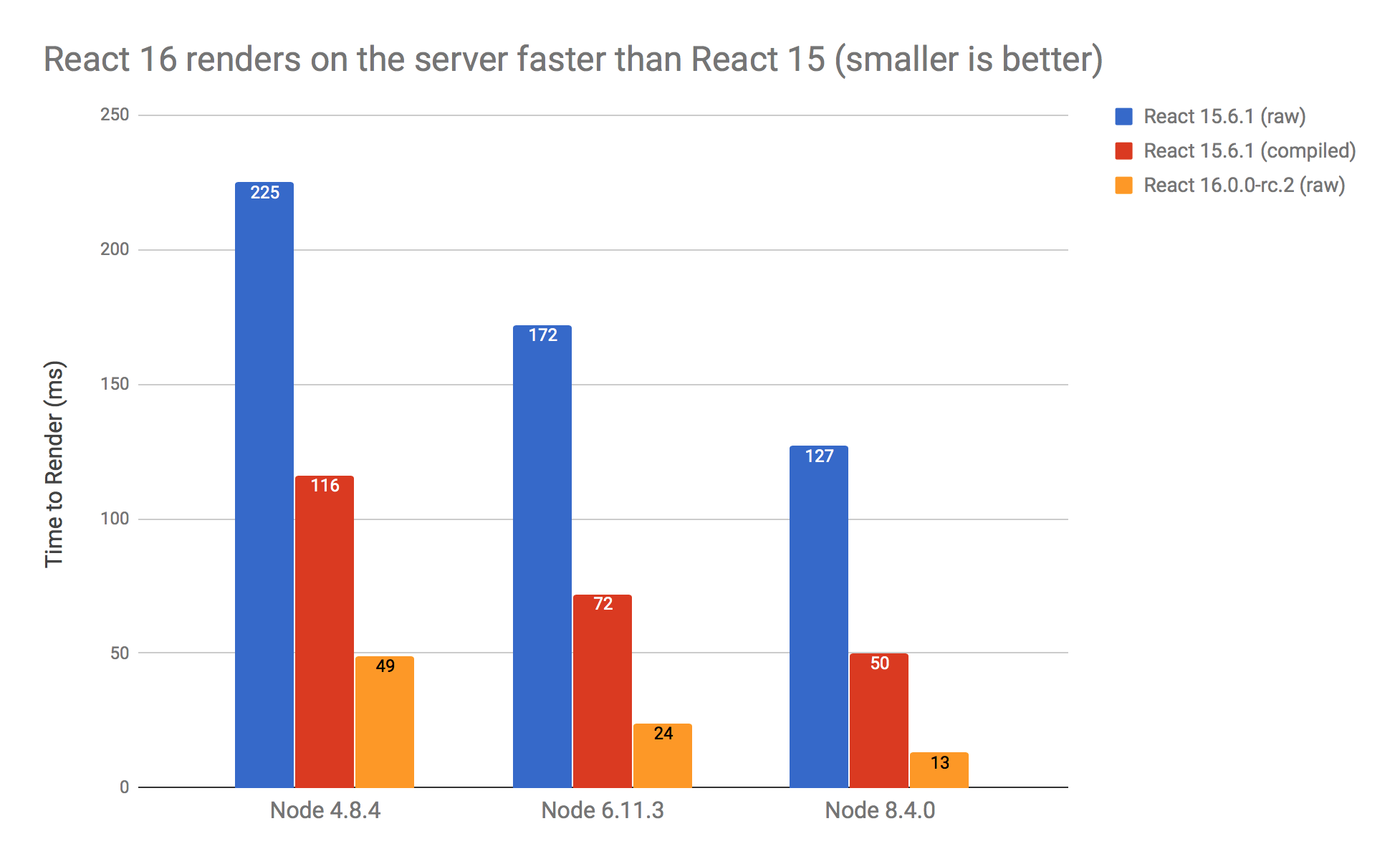

  • Faster

render() => hydrate()

// using Express
import { renderToString } from "react-dom/server"
import MyPage from "./MyPage"

app.get("/", (req, res) => {
  res.write(renderToString(<MyPage/>));
  res.end();
});
import { render } from "react-dom"
import MyPage from "./MyPage"

const rootDom = document.getElementById("content");
render(<MyPage/>, rootDom);

ReactDOM.hydrate()

If you’re reviving server-rendered HTML, use ReactDOM.hydrate instead of ReactDOM.render. Keep using ReactDOM.render if you’re just doing client-side rendering.

References

Other new features

Breaking changes

  • Calling setState with null no longer triggers an update. This allows you to decide in an updater function if you want to re-render.
customCallback(newCount) {
  if (newCount !== 0) {
    this.setState((prevState, props) => {
      return { count: prevState.count + newCount }
    });
  }
}

customCallback(newCount) {
  this.setState((prevState, props) => {
    return (newCount !== 0) ? { count: prevState + 1 } : null;
  });
}

Support for custom DOM attributes

<div whatever-you-like="anyData">123</div>
// Yes, please
<div tabIndex="-1" />

// Warning: Invalid DOM property `tabindex`.
// Did you mean `tabIndex`?
<div tabindex="-1" />

createRef() - v16.3

class AutoFocusTextInput extends React.Component {
  constructor(props) {
    super(props);
    this.textInput = React.createRef();
  }

  componentDidMount() {
    this.textInput.current.focusTextInput();
  }

  render() {
    return (
      <CustomTextInput ref={this.textInput} />
    );
  }
}

Official Context API - v16.3

const Context = React.createContext();

render() {
  return (
    <Context.Provider value={this.state.contextValue}>
      {this.props.children}
    </Context.Provider>
  );
}
render() {
  return (
    <Context.Consumer>
      {context => <Child context={context} />}
    </Context.Consumer>
  )
}

DEMO

Strict Mode

  1. Identifying components with unsafe lifecycles
  2. Warning about legacy string ref API usage
  3. Detecting unexpected side effects

Reduced file size

That amounts to a combined 32% size decrease compared to the previous version (30% post-gzip).

Notes

  • SSR Doesn’t Support Error Boundaries or Portals.
  • React 16 Performs Less Strict Client-Side Checking.
  • React16 is backwards compatible.

https://jinshuju.net/f/sR0et5

 Feedback is welcome essential
