The Life of a Bit

for (int i = 0; i <= 3; i += 2)
{
    --i;
}

C for Loop

for (int i = 0; i <= 3; i += 2)
    --i;

Assembly for Loop

asm
{
        mov REX,0;
        jmp END;
START:  sub REX, 1;
        add REX, 2;
END:    cmp REX, 3;
        jle START;    --Jump if <=
}

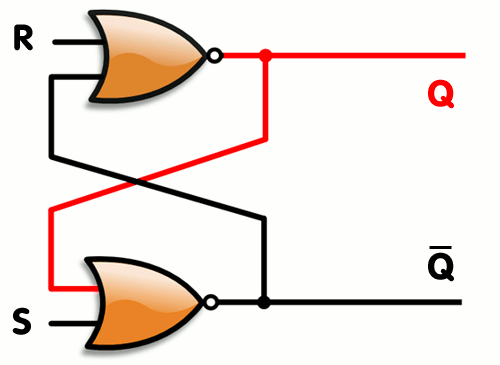

Registers

Assembly to Opcodes



 5:	48 BB 00 00 00 00 00 00 00 00 	mov    rbx,0x0
 f:	EB 08                	        jmp    19 <END>
11:	48 83 EB 01          	        sub    rbx,0x1
15:	48 83 C3 02          	        add    rbx,0x2
19:	48 83 FB 03          	        cmp    rbx,0x3
1d:	7E F2                	        jle    11 <START>

Deconstruction of Sub Instruction

48 83 EB 01        sub    rbx,0x1

01001000 10000011 11101011 00000001

Using 64-bit registers & Using extended registers

Group Code

Immediate Value

11   101   011

Subtract

RBX

Going Deeper!

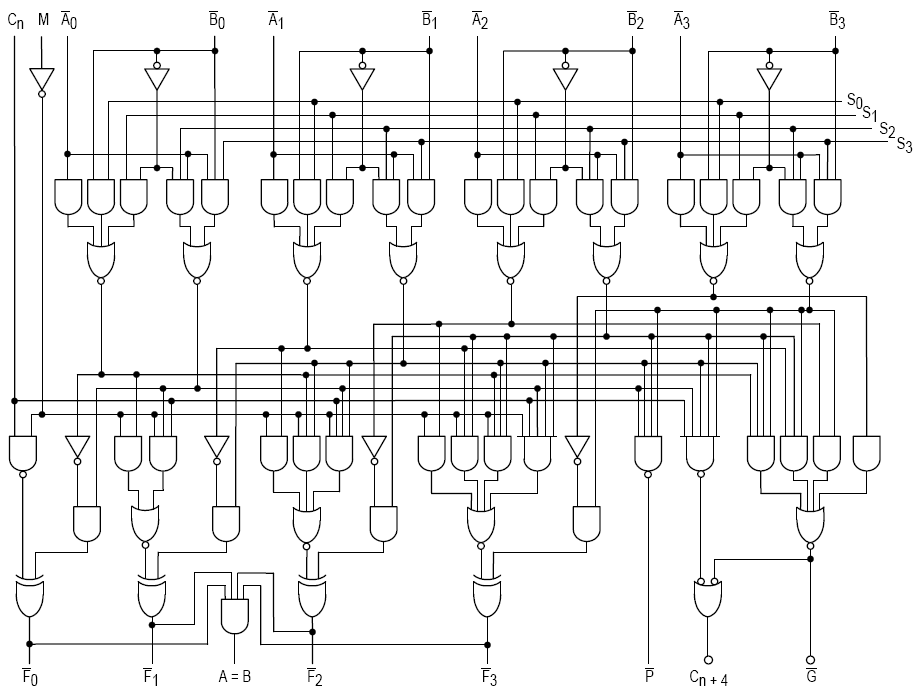

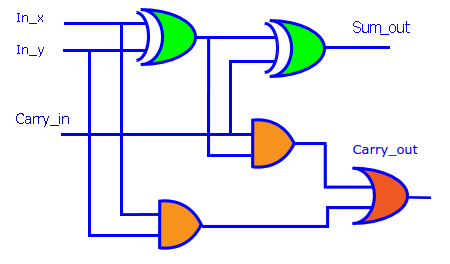

Arithmetic Logic Unit (ALU)

ALU in VHDL



entity Alu is
port ( aValue      :  	in std_logic_vector(31 downto 0);
       bValue      :  	in std_logic_vector(31 downto 0);
       operator    :  	in std_logic_vector(2 downto 0);
       resultValue :  	out std_logic_vector(31 downto 0);
       zeroValue   :   	out std_logic;
       set	   :	out std_logic;
       overflow	   :	out std_logic
     );
end Alu;

ALU in VHDL

architecture rtl of Alu is
begin
Alu_p: process(aValue,bValue,operator)

variable a,b,result : std_logic_vector(31 downto 0);
variable signOfA, signOfB : std_logic;

begin

a := aValue;
b := bValue;
signOfA := aValue(31);
signOfB := bValue(31);

if operator(2) = '1' then
	b := NOT bValue;
end if;


--0000 and; 0001 or; 0010 add; 0110 subtract; 0111 set lt; 1100 nor
case operator(1) is
when '0' =>
	case operator(0)is
	when '0' =>			  --000 AND Operation
		if operator(2) = '1' then --100 NOR Operation. If we inverted B then invert A
			a := NOT aValue;
		end if;
		result := a and b;
		overflow <= '0';
	when others =>
		result := a or b; 	  --X01 OR Operation
		overflow <= '0';
	end case;
when others =>
	case operator(0)is
	when '0' =>
		if operator(2) = '1' then
			b := b + 1;	--110 SUB
		end if;
		result := a + b;	--010 ADD
		if operator(2) = '1' then -- Subtraction check for overflow
			if (signOfA = '0' and signOfB = '1' and result(31) = '1') or
                       	    (signOfA = '1' and signOfB = '0' and result(31) = '0')
		       	then -- Overflow has occurred
            		    overflow <= '1';
            		else
            		    overflow <= '0';
            		end if;
            	else --Addition Occurred. Check for overflow
            		if (signOfA = '0' and signOfB = '0' and result(31) = '1') or
         		    (signOfA = '1' and signOfB = '1' and result(31) = '0')
         		then -- Overflow has occurred
            		    overflow <= '1';
            		else
            		    overflow <= '0';
            		end if;
            	end if;
	when others =>
		if aValue < bValue then --X11 SLT Funct
			result := "00000000000000000000000000000001";
		else
			result := "00000000000000000000000000000000";
		end if;
		overflow <= '0';
	end case;
end case;

resultValue <= result;
if (result = 0) then
	zeroValue <= '1';
else
	zeroValue <= '0';
end if;
set <= result(31);

end process Alu_p;

end rtl;
