Scaling Django To 1 Million Users

(or at least trying to get close)

A bit about me...

  • Lead Infrastructure Engineer @iStrategylabs (here)
  • Python developer
  • Budding Linux Kernel Contributor
  • Hobbyist Operating Systems tinkerer
  • @JulianGindi
  • julian@isl.co

A Quick Poll

tally.tl/3Yv7Y

But first...

The Contract

  • You will leave with a better understand of how to build Django projects with scaling in mind
  • You will learn some fundamental "rules" of building a modern, scalable infrastructure
  • You will learn about a few tools that you can potentially bring into your stack that will help improve performance

Roadmap

  • Concepts/Philosophy
  • Django
  • Server
  • Cluster

Meet Rhino, Our Trusty Scaling Companion

Concepts

12 Factor App

  • 12factor.net
  • Developed by Heroku. It's how they encourage you to build apps that are "Heroku-ready"
  • Great resource on how to build modern, scalable applications

Quick Summary

  • Codebase: One codebase tracked in VC, many deploys
  • Dependencies: Explicitly declare and isolate dependencies
  • Config: Store config in the environment
  • Backing Services: Treat backing services as attached resources
  • Build, release, run: Strictly separate build and run stages
  • Processes: Run app as one or more stateless processes
  • Port binding: Export services via port binding
  • Concurrency: Scale out via the process model
  • Disposability: Fast startup, graceful shutdown
  • Dev/prod parity: Dev, staging, and prod the same

Example Scenario

  • Single Server
  • Save images to local filesystem (think old school Django)
  • You get hit with a ton of traffic. What do you do?

Lesson: Stateless Servers

Don't even think about storing stuff on your server!

Why?

  • Vertical scaling is not a long-term solution
    • Good for resource modifications
  • Redundancy: Do you really only want one server?
  • State is your worst enemy
  • Kill all the servers!
  • Freedom
  • Containers (future)

The Cluster is your friend

Services are your friends

  • Unix Philosophy
    • Small, sharp tools
  • All additional components should be treated as "attached" resources
  • Distribute and schedule services based on availability and resource need

The Application

First line of defense for optimizations

Optimizing Django: Basics

  • Beware of premature optimization
  • Data-driven optimizations
  • 80/20 rule
  • Think about scale early on
  • "Brute force is usually the most performant option when 'n' is small"

Application Monitoring

  • Use NewRelic (even the free tier is helpful)
  • Django debug toolbar

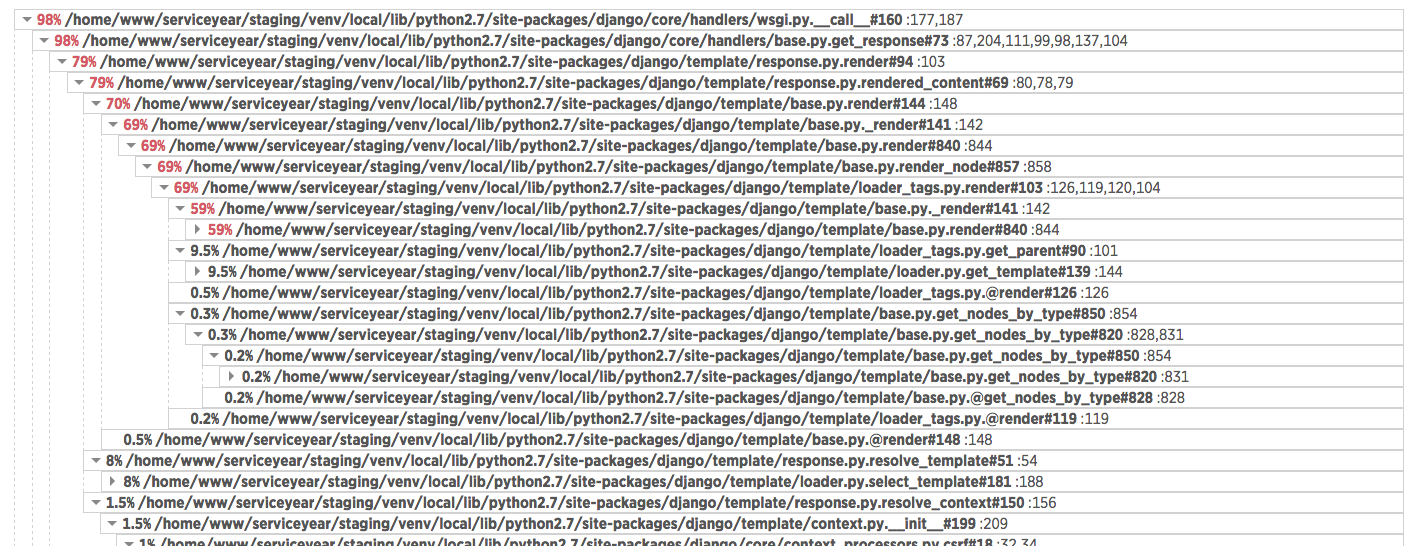

  • Django profiler

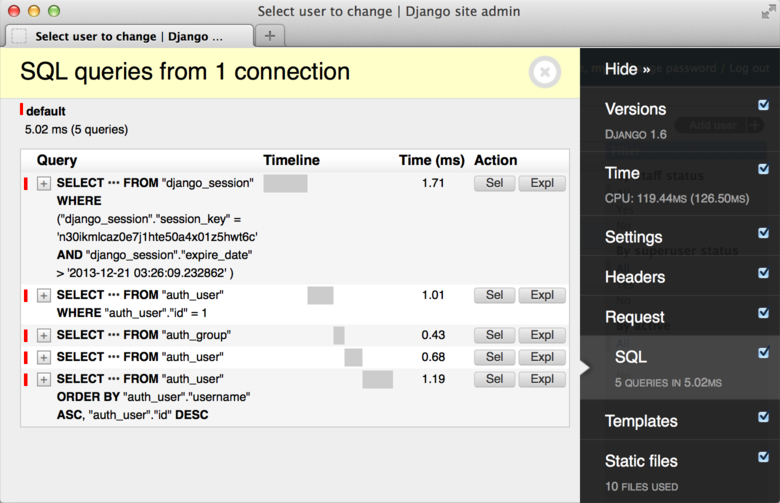

Debug Toolbar

Finding Bottlenecks

Beware of out of control queries

# Bad

def check_for_me(self):
    users = Users.objects.filter(role='developer')
    for el in users:
        # This would execute a db query
        # each iteration
        prof = el.profile
        if prof.real_name is 'Julian Gindi':
            return True
        return False


# Good

def check_for_me(self):
    # This is 'lazy'
    users = Users.objects.filter(role='developer')
    users = users.select_related('profile')
    for el in users:
        # This would NOT execute an additional db query
        prof = el.profile
        if prof.real_name is 'Julian Gindi':
            return True
        return False

Learn to love caching

from django.core.cache import cache


def get_manifest():
    cached = cache.get('asset_manifest')
    if not cached:
        manifest_file = settings.PROJECT_ROOT + '/dist/manifests/assets-manifest.json'
        json_manifest = yaml.load(open(manifest_file))
        cache.set('asset_manifest', json_manifest, 43200)
        return json_manifest
    else:
        return cached

Scenario: Expensive API Call

Celery is Badass

from celery import shared_task

import requests

# If you set up your backend, you can query for status information
# and request the result when the request is complete
@shared_task
def api_call(url, method):
    if method is 'GET':
        r = requests.get(url)
    return r.json()

Kicking Things Into High Gear

uWSGI and Nginx: A love story

Why uWSGI

  • Fast!
  • Speaks many different protocols
    • We use unix sockets + wsgi
  • Highly scalable
    • Zerg mode
    • Cheap mode
  • Highly configurable
  • The Art of Graceful Reloading

Example Config

[uwsgi]
socket = {{ base }}/run/myProject.sock

# Django's wsgi file
module = configuration.wsgi:application

# Creating a pidfile to control individual vassals
pidfile = {{ base }}/run/myProject.pid

# the virtualenv (full path)
home = {{ base }}/venv

master = true

enable-threads = true
single-interpreter = true

# Turning on webscale
cheaper-algo = spare

# number of workers to spawn at startup
cheaper-initial = 2

# maximum number of workers that can be spawned
workers = 10

# how many workers can be spawned at a time
cheaper-step = 2

uWSGI and Nginx

A great pair: They Speak the same language

upstream django {
  server unix:///{{ base }}/run/myProject;
}


# Send all non-media requests to the Django server.
location @uwsgi {

  ...

  uwsgi_pass django;
  include /etc/nginx/uwsgi_params;
  proxy_redirect off;
}

Scenario: You notice a number of connections are erring out and not being handled

Solution

# OS Limits this for you (default 128)
# modify the below file for more
/proc/sys/net/core/somaxconn

# UWSGI Setting
listen = 2000

Modify the listen queue

Increase number of allowed open files (unix sockets are just files)

> vi /etc/sysctl.conf
fs.file-max = 70000

Scaling at the Cluster Level

Steps to ensure a highly scalable app

  • Use a load balancer
  • Utilize auto-scaling
  • Kill servers randomly
  • Re-think your deployment system

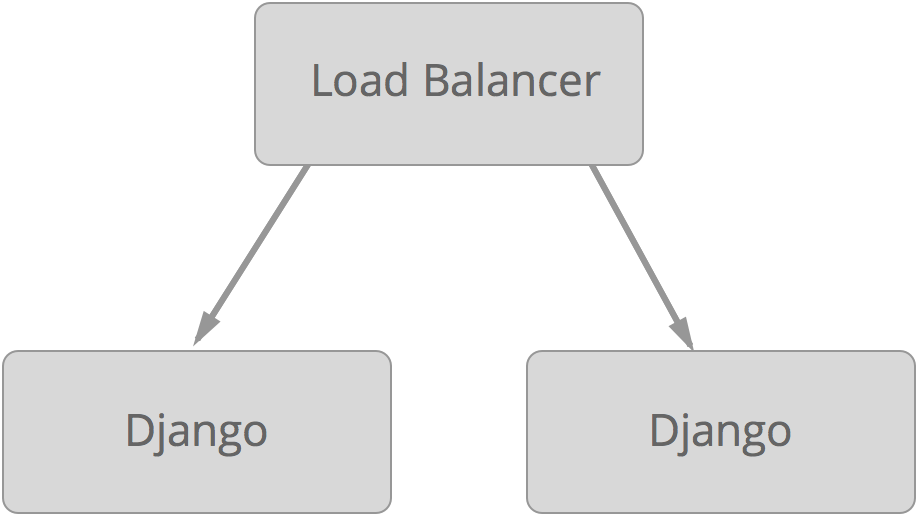

You better be using a load balancer!

  • Utilize health checks
    • Kill unhealthy servers quickly
  • Spread load across many servers in many availability zones

You better be using autoscaling!

  • Scale based on resource need
    • Set resource threshholds to trigger autoscaling
  • Not possible without stateless servers
  • Can also autoscale based on times you receive a higher baseline of traffic

Old Deployment

Would install dependencies (hopefully) using a configuration management system. Servers take a while to become 'ready' to receive new code.

New Deployment

Pre-built images are used that already contain all your dependencies. New code is deployed to a fresh image and deployed using a "canary" system. Since image is "compiled", if the deployment succeeds, one or many servers become active.

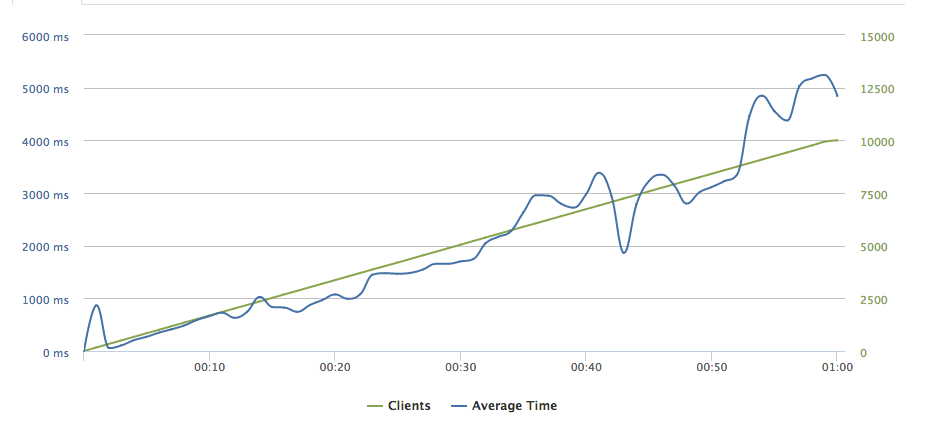

Load Test Early and Often

That's a wrap. Questions?
