VisDock: A Toolkit for Cross-cutting Interactions in Visualization

Jungu Choi, Yuet Ling Wong, Eli Fisher

University of Maryland, College Park, MD

Deok Gun Park, Niklas Elmqvist

Purdue University, W. Lafayette, IN

Cross-cutting Interactions

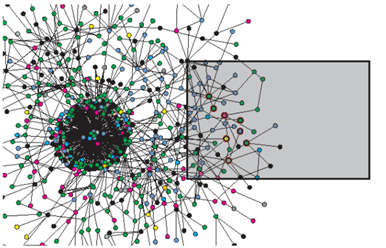

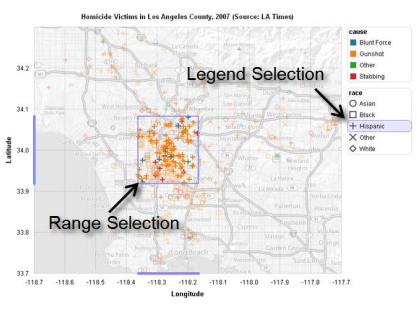

• Spatial Selection
• Navigation
• Layer Management
• Annotation
• Others

Interactive Visualizations

What is VisDock?

VisDock is a mix-in JavaScript library

• to import cross-cutting interactions in any SVG-oriented visualizations
• to connect the interactive events to user-defined functions

Design Space

• Any SVG-oriented Visualizations
• Any data-set
• Concreteness
• Direct maniuplation

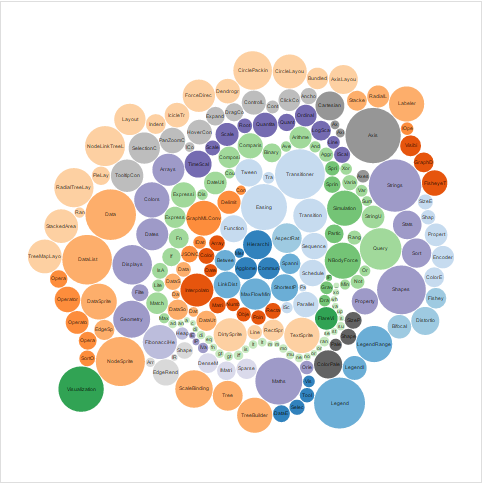

Take a visualization

Visualization built by Derek Watkins

http://bl.ock.org/dwtkns

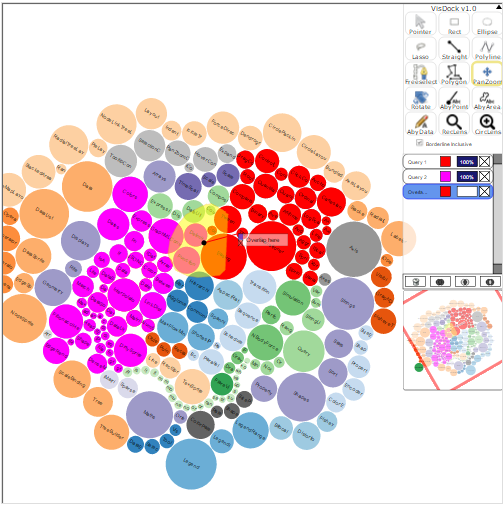

Importing VisDock Tools

Visualization built by Derek Watkins

http://bl.ock.org/dwtkns

Importing VisDock Tools

Visualization built by Derek Watkins

http://bl.ock.org/dwtkns

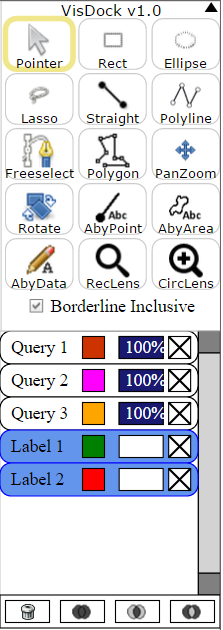

• Button-based tools
  • Selection
  • Navigation
  • Annotation

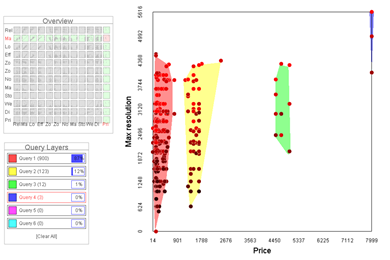

•  Query Manager
  • Set operations
  • Query results

• Miniature View

VisDock Event Handler

Allows the coder to connect the interactions to user-defined functions/events.

Event 1

Event 2

Event 3

Selection

Navigation

Query

Results

VisDock Event Handler

var visdock.eventHandler = {

  // Find intersected items given a shape
  getHits: function(points, inc) { return []; },

  // Mark the selection with a color
  setColor: function(items, queryId) {},

  // Remove a selection
  removeColor: function(queryId) {},

  // Modify an existing selection color/opacity
  changeColor: function(style, queryId) {},
  changeVisibility: function(style, queryId) {},

  // Called when Pan/Zoom/Rotate events occur
  viewChanged: function(view) {}
}

Minimal Coding Effort

Enhancing interactivity

• Adding interactivity to already interactive visualization

// Updating selection layers
VisDock.updateLayers();

• Supporting dynamically changing visualization
  • Animated Transitions
  • Semantic Zooming
  • Annotated by data-space

// Annotated by dataspace declaration
AnnotatedByData.layerTypes = ['.layers'];

// Updating the annotations
AnnotatedByData.update();

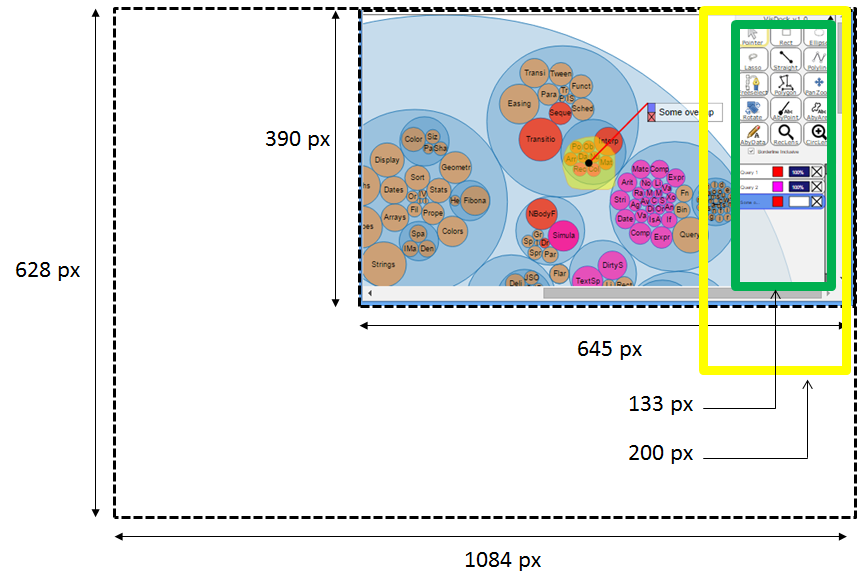

Responsive Javascript

VisDock-enabled

Visualization

Developer

End-User

VisDock Evaluation I

• Informal evaluation study with dozen programmers

Evaluation I Results

• VisDock successfully imported
• VisDock Event Handler partial implementation

VisDock Evaluation II

• 11 paid volunteers to use VisDock-integrated MovieViz visualization.

VisDock Evaluation II

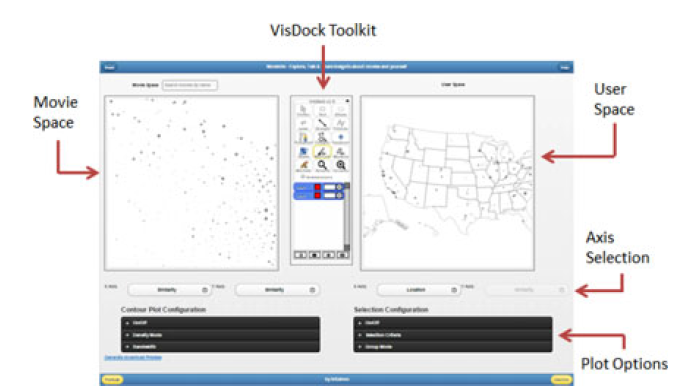

• What is MovieViz?
  • Complex visualization with ~ 1000 multi-variate movie and movie-goers' data

Evaluation II Results

• Most participants (9 out of 10) successfully accomplished all objectives.
• All participants queried data using selection tools
• About 6.5 insightful comments per participant

Conclusions & future works

• VisDock's scientific contributions:
  • various cross-cutting tools
  • minimal coding effort
  • user-defined event handler
• More data-driven interactions
• More interactive functions for multiple canvas visualizations.
