presented by Juraj Mičko

for Research Topics in Software Engineering

on 2.11.2021

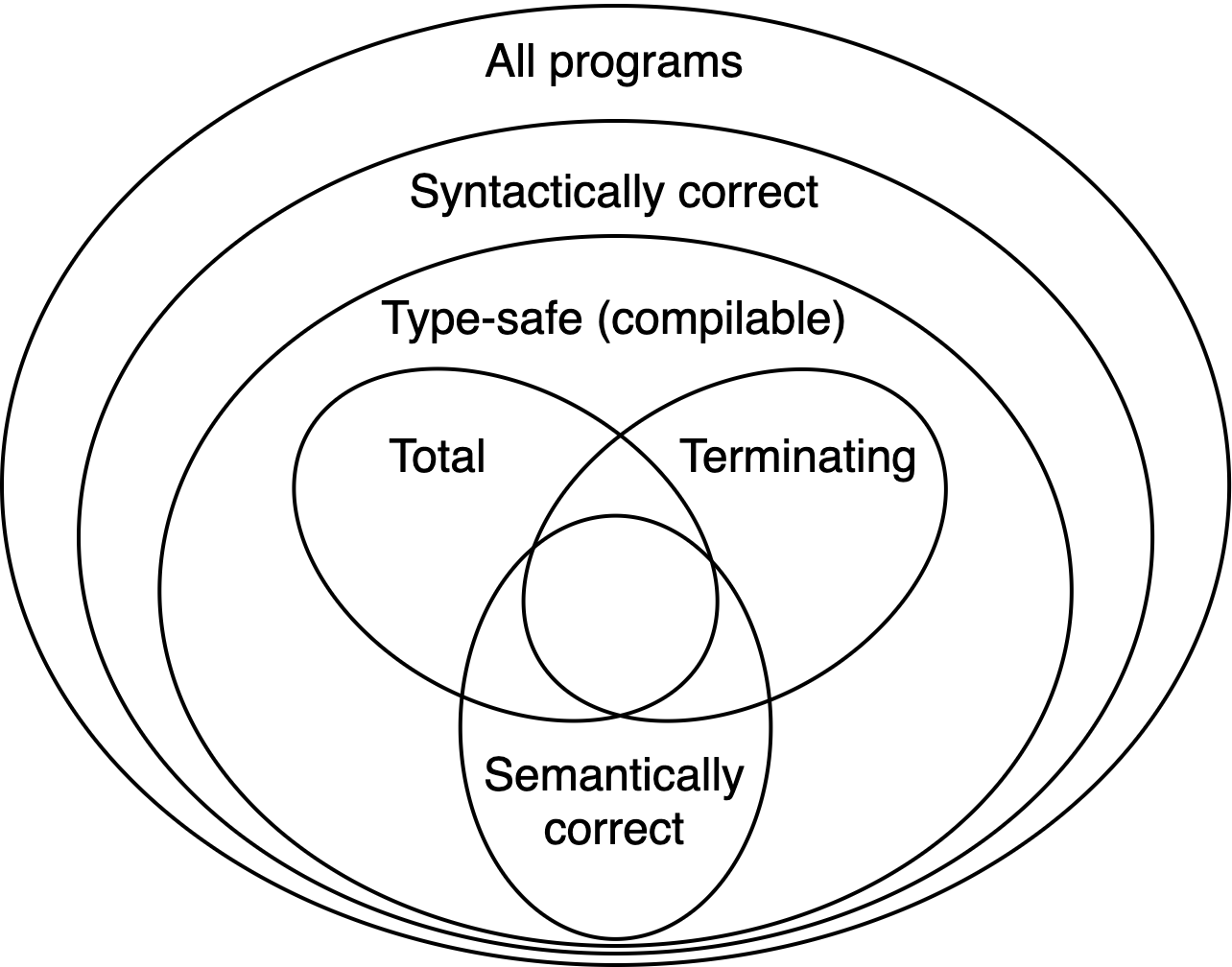

Motivation

-- type-safe, but throws exception
main = print ("Hello" !! 42)

-- total, but non-terminating
main = let z = z in z

-- total, terminating,
-- but probably not functional as expected
main = print (sum 1 2)
  where
    sum a b = a - b

1. Motivation ❯ 2. Paper intro ❯ 3. Example ❯ 4. Verifying programs ❯ 5. Demo ❯ 6. Evaluation

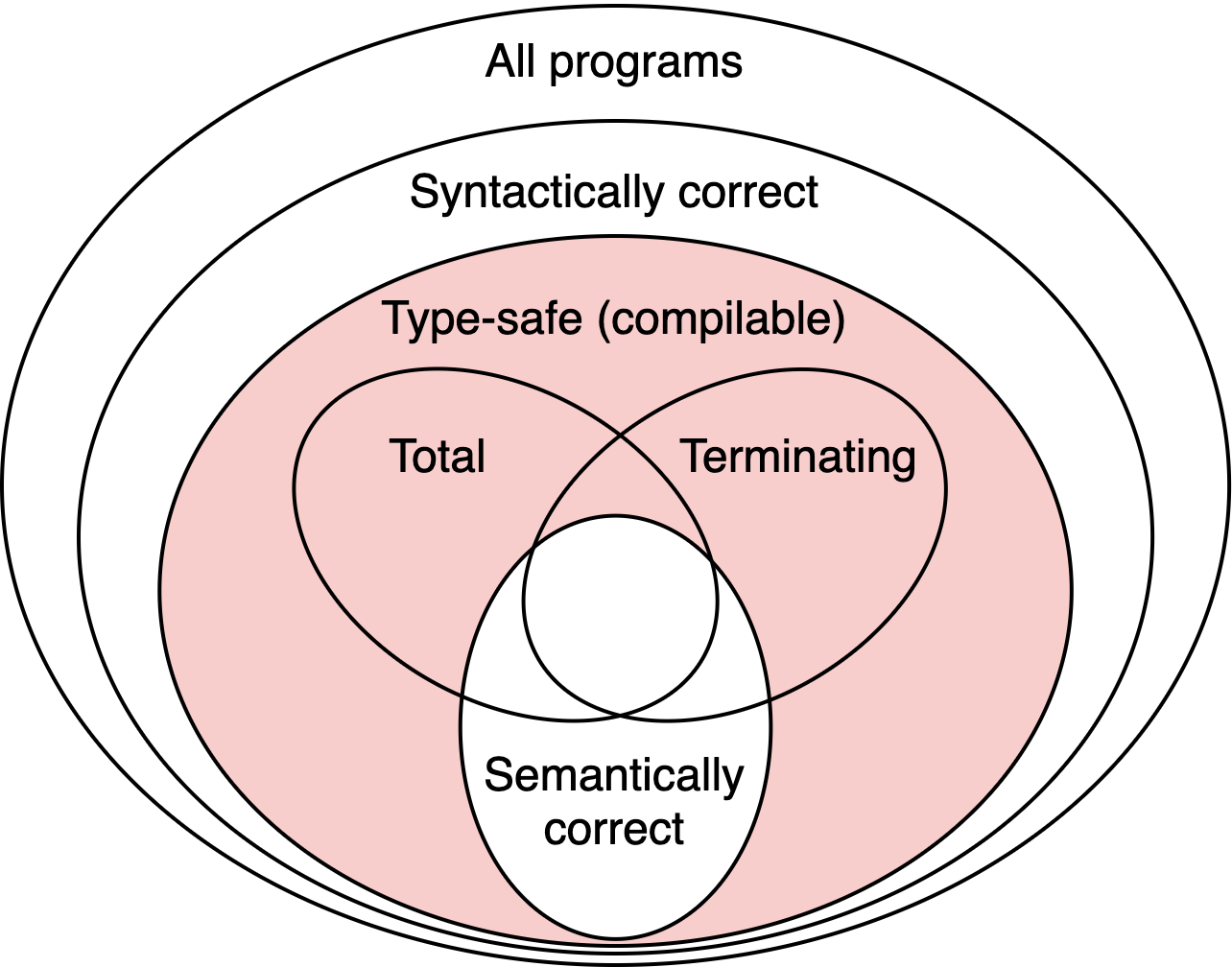

Motivation

1. Motivation ❯ 2. Paper intro ❯ 3. Example ❯ 4. Verifying programs ❯ 5. Demo ❯ 6. Evaluation

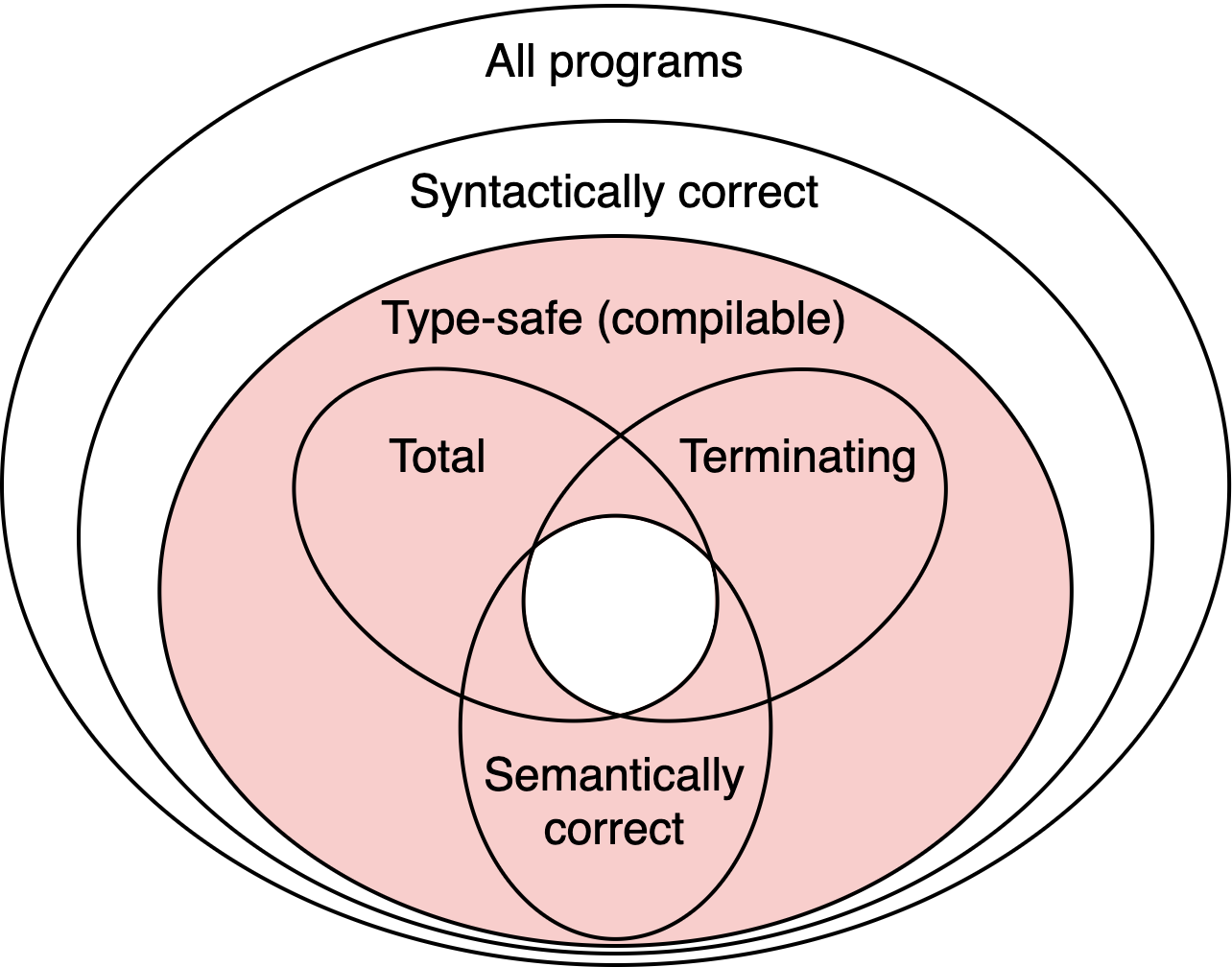

can reject these programs during compile-time

Tradeoff: Some correct programs

are rejected, too

Refinement Types

-- Type specification (Haskell code)
foo :: Int

-- Type refinement (LiquidHaskell code)
{-@ foo :: { v:Int | v >= 42 } @-}
foo = 7  -- does not compile
foo = 42 -- OK

1. Motivation ❯ 2. Paper intro ❯ 3. Example ❯ 4. Verifying programs ❯ 5. Demo ❯ 6. Evaluation

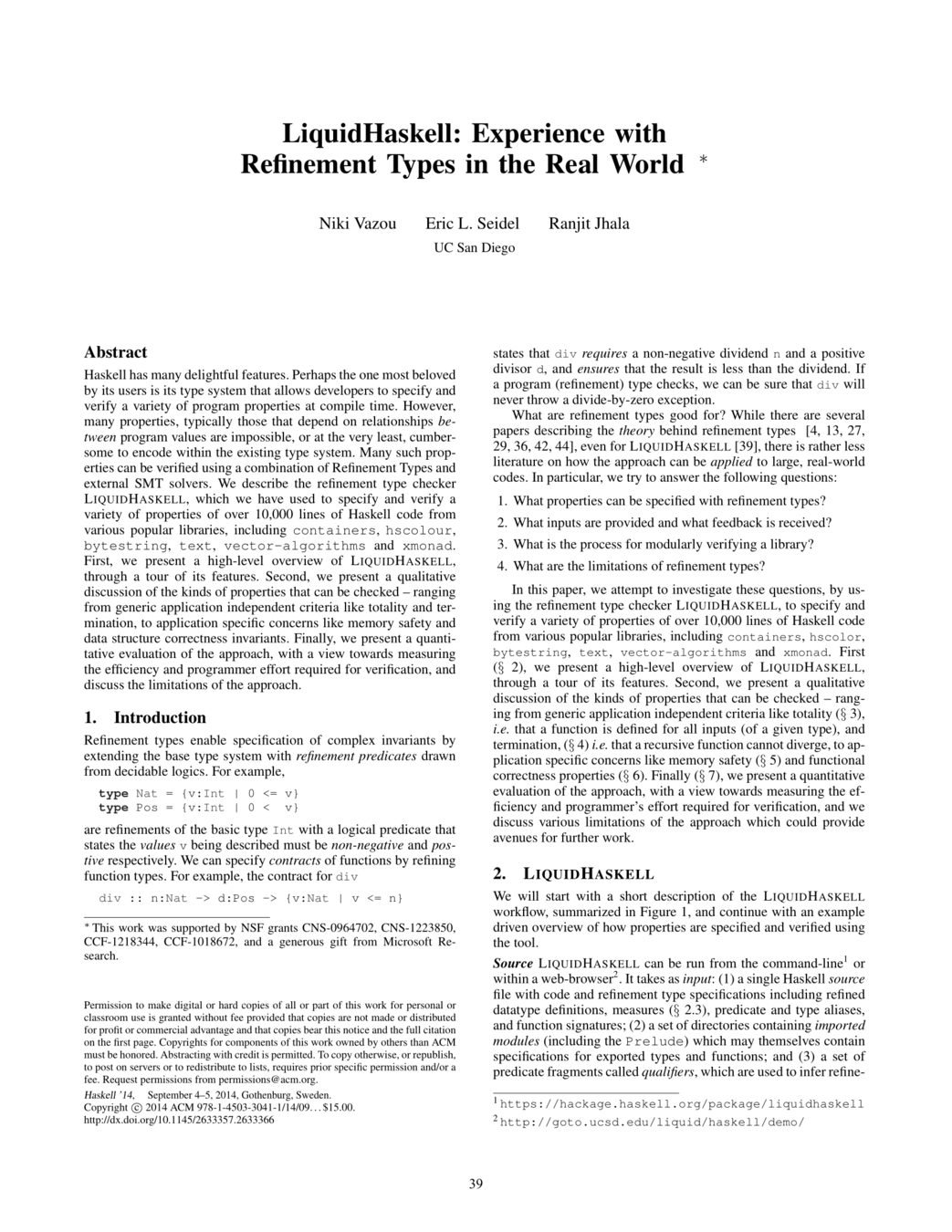

Goals of the paper

Showcase LiquidHaskell
Discuss properties that can be checked
Show how real-world libraries can be verified using LH

1. Motivation ❯ 2. Paper intro ❯ 3. Example ❯ 4. Verifying programs ❯ 5. Demo ❯ 6. Evaluation

take :: t:Text -> i:Int -> Text
take t i =
  if i < len t
  then
    Unsafe.take t i
  else
    error "Out of bounds"

UNSAFE

SLOW

(essentially an array of Unicode characters)

Example of using LiquidHaskell

1. Motivation ❯ 2. Paper intro ❯ 3. Example ❯ 4. Verifying programs ❯ 5. Demo ❯ 6. Evaluation

{-@ take :: t:Text -> { i:Int | i < len t } -> Text @-}
take t i =
  if i < len t
  then
    Unsafe.take t i
  else
    error "Out of bounds"

Example of using LiquidHaskell

LiquidHaskell syntax

1. Motivation ❯ 2. Paper intro ❯ 3. Example ❯ 4. Verifying programs ❯ 5. Demo ❯ 6. Evaluation

{-@ take :: t:Text -> { i:Int | i < len t } -> Text @-}
take t i =
    Unsafe.take t i

SAFE & FAST :)

(under-approximation)

Example of using LiquidHaskell

LiquidHaskell syntax

1. Motivation ❯ 2. Paper intro ❯ 3. Example ❯ 4. Verifying programs ❯ 5. Demo ❯ 6. Evaluation

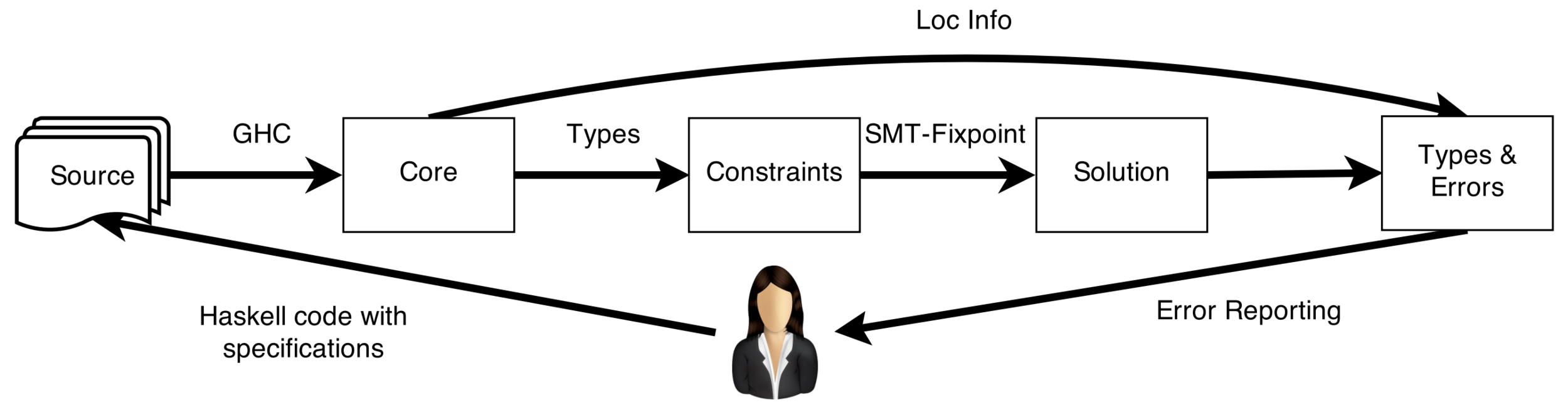

Workflow of LiquidHaskell

(under-approximation)

1. Motivation ❯ 2. Paper intro ❯ 3. Example ❯ 4. Verifying programs ❯ 5. Demo ❯ 6. Evaluation

"refines Haskell's types with logical predicates that let us enforce critical properties at compile time"

totality
termination
application-specific properties

LiquidHaskell can prove:

memory safety
(buffer overflows, dangling pointers)
data structure correctness invariants
(e.g. red-black trees)
functional properties
(e.g. sum)

1. Motivation ❯ 2. Paper intro ❯ 3. Example ❯ 4. Verifying programs ❯ 5. Demo ❯ 6. Evaluation

Specifying correctness

{-@ append :: x:[a] -> y:[a] -> {z:[a] | len z = len x + len y} @-}
append [] ys = ys
append (x:xs) ys = x : append xs ys

1. Motivation ❯ 2. Paper intro ❯ 3. Example ❯ 4. Verifying programs ❯ 5. Demo ❯ 6. Evaluation

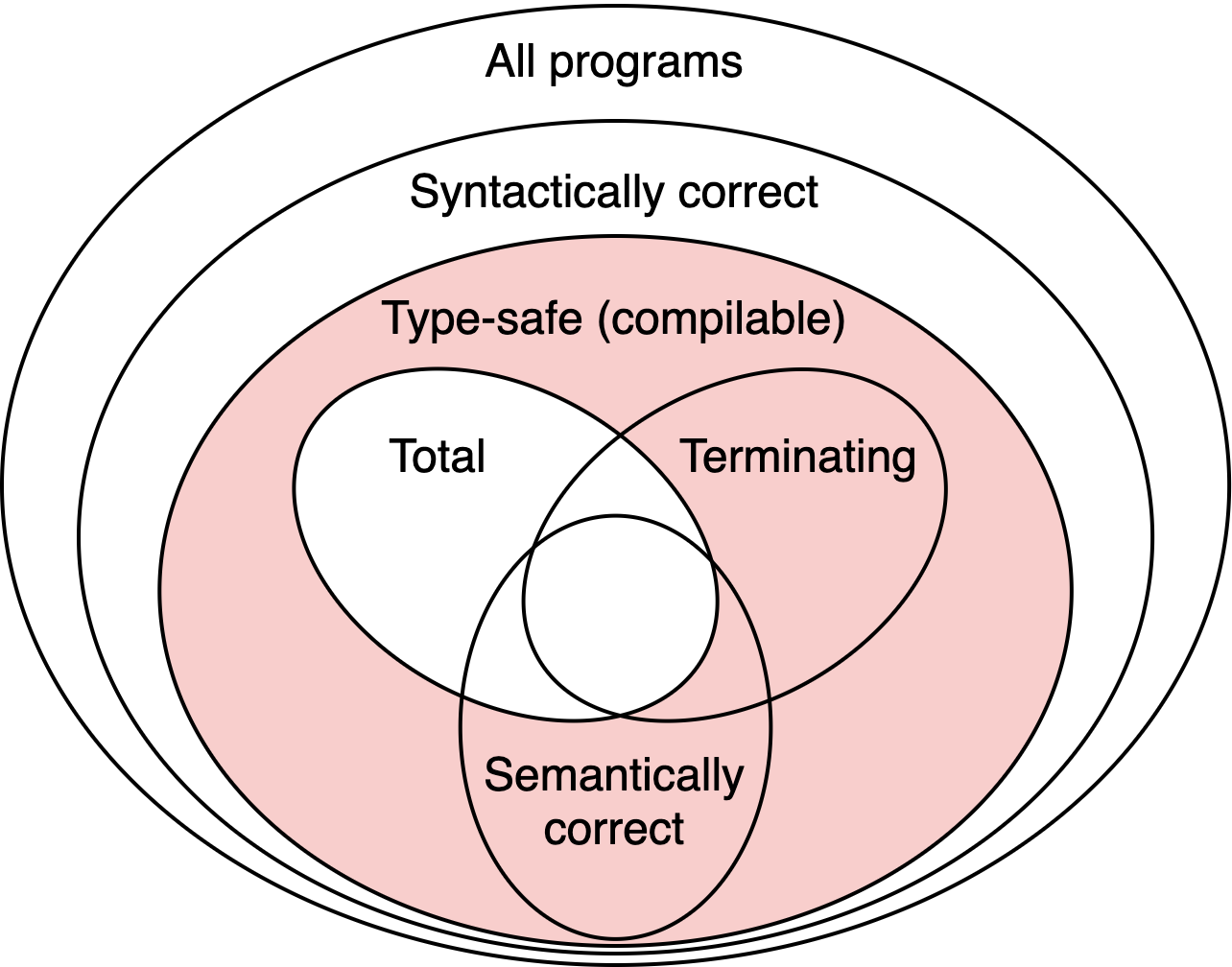

Specifying totality

totality verified out of the box

(no extra annotation needed)

{-@ head :: { v:[_] | 0 < len v } -> _ @-}
head (x:xs) = x

1. Motivation ❯ 2. Paper intro ❯ 3. Example ❯ 4. Verifying programs ❯ 5. Demo ❯ 6. Evaluation

Verifying totality

{-@ head :: { v:[_] | 0 < len v } -> _ @-}
head (x:xs) = x

-- translates to:

head l = case l of
  (x:xs) ->
    x
  [] ->
    error "..."

1. Motivation ❯ 2. Paper intro ❯ 3. Example ❯ 4. Verifying programs ❯ 5. Demo ❯ 6. Evaluation

Verifying totality

{-@ head :: { v:[_] | 0 < len v } -> _ @-}
head (x:xs) = x

-- translates to:

head l = case l of
  (x:xs) ->
    -- l :: { 0 < len l }
    x
  [] ->
    -- l :: { 0 < len l && len l = 0 }
    error "..."

1. Motivation ❯ 2. Paper intro ❯ 3. Example ❯ 4. Verifying programs ❯ 5. Demo ❯ 6. Evaluation

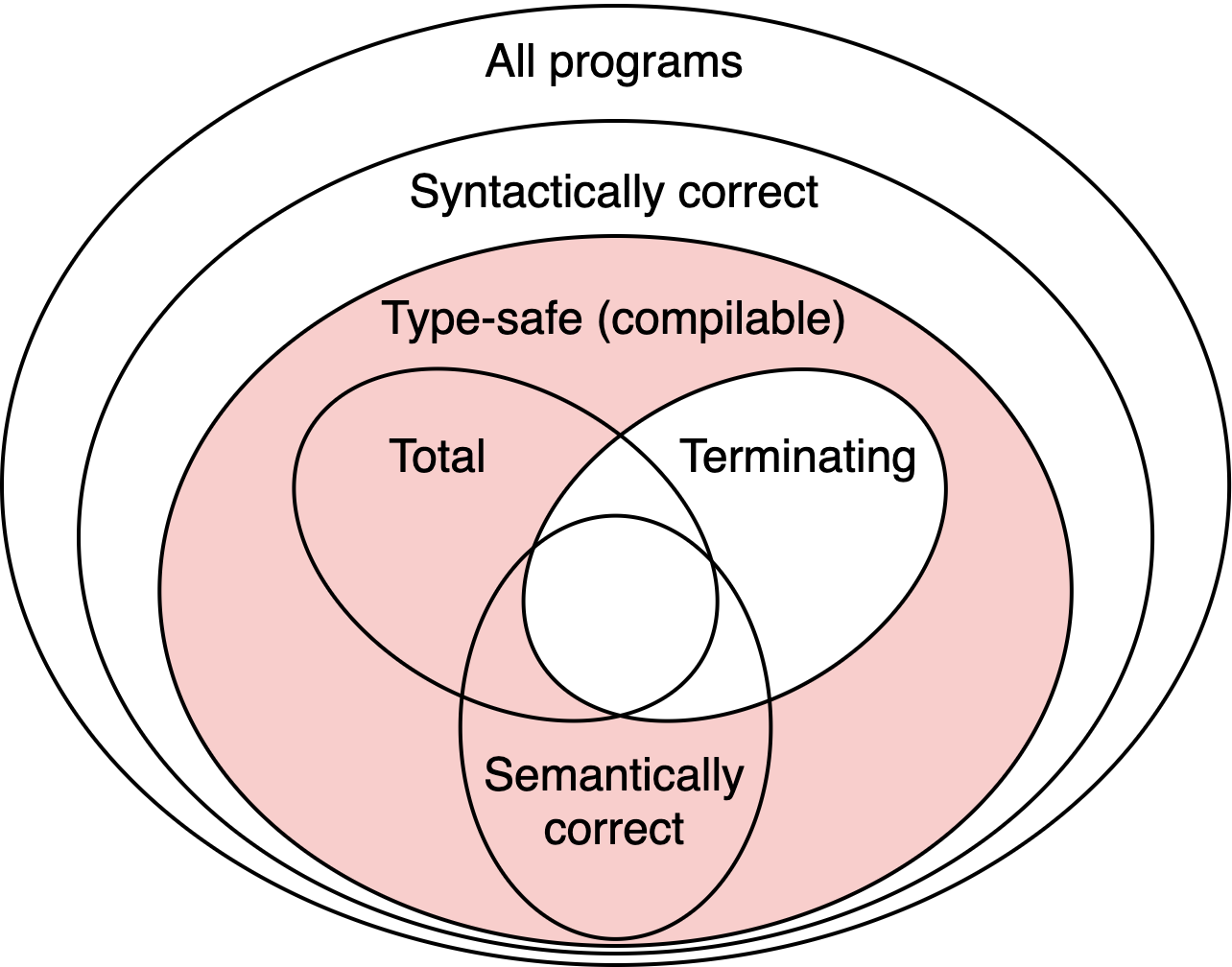

Specifying termination

-- automatic verification
{-@ last :: { v:[Int] | len v > 0 } -> Int @-}
last [x] = x
last (x:xs) = last xs

-- termination expression
{-@ range :: lo:Int -> hi:Int -> [Int] / [hi-lo] @-}
range lo hi
  | lo < hi = lo : range (lo+1) hi
  | otherwise = []

/ [hi-lo]

1. Motivation ❯ 2. Paper intro ❯ 3. Example ❯ 4. Verifying programs ❯ 5. Demo ❯ 6. Evaluation

Demo:

Verify QuickSort

returns an ordered list
is total
terminates

(this still doesn't prove all about quicksort)

1. Motivation ❯ 2. Paper intro ❯ 3. Example ❯ 4. Verifying programs ❯ 5. Demo ❯ 6. Evaluation

Evaluation

found a bug in !

text

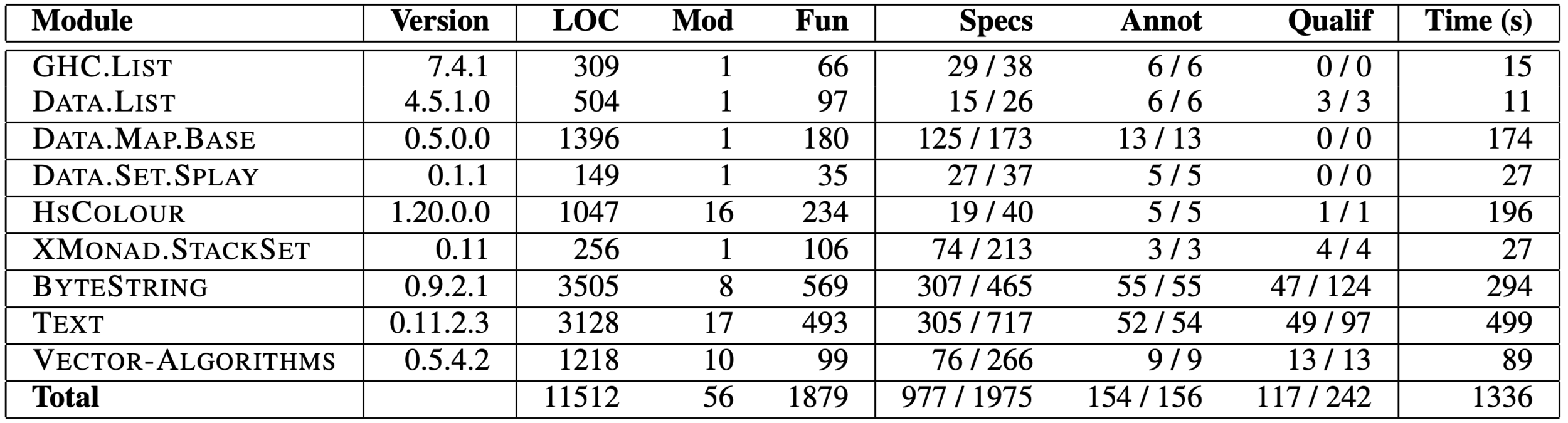

Various properties of popular Haskell libraries (10K LoC, 56 modules)

including

containers, hscolour, bytestring, text, vector-algorithms, xmonad

\frac{\quad 156+242 \quad}{11512} \approx \,\,\, 3.5\% \ \text{overhead \scriptstyle (excl. specification)}

~2 LoC required for specifying a function

!

\frac{1975+156+242}{11512} \approx 20.6\% \ \text{overhead \scriptstyle (incl. specification)}

# of specifications LoC

1. Motivation ❯ 2. Paper intro ❯ 3. Example ❯ 4. Verifying programs ❯ 5. Demo ❯ 6. Evaluation

Limitations

Limited expressivity
Code modifications may be needed
- Ghost parameters
- Abstract specialization of functions
Error reporting
Supports only linear arithmetic

appendSorted pivot [] ys = pivot : ys
appendSorted pivot (x:xs) ys = x : appendSorted pivot xs ys

/Users/jjurm/workspace/liquid-haskell/Main.hs:28:13-33: error:
    • Illegal type specification for `Main.appendableSortedLists`
    Main.appendableSortedLists :: forall a .
                                  (Ord<[]> a) =>
                                  lq_tmp$db##2:(Main.SortedList a) -> lq_tmp$db##3:(Main.SortedList a) -> {VV :
GHC.Types.Bool | VV == Main.appendableSortedLists lq_tmp$db##2 lq_tmp$db##3

      && VV == (if is$GHC.Maybe.Nothing (Main.highBound lq_tmp$db##2) then true else (if is$GHC.Maybe.Nothing
(Main.lowBound lq_tmp$db##3) then true else GHC.Maybe.Just##lqdc##$select##GHC.Maybe.Just##1 (Main.highBound lq_tmp$db##2)
<= GHC.Maybe.Just##lqdc##$select##GHC.Maybe.Just##1 (Main.lowBound lq_tmp$db##3)))}
    Sort Error in Refinement: {VV : bool | (VV == Main.appendableSortedLists lq_tmp$db##2 lq_tmp$db##3
                                            && VV == (if is$GHC.Maybe.Nothing (Main.highBound lq_tmp$db##2) then true else
(if is$GHC.Maybe.Nothing (Main.lowBound lq_tmp$db##3) then true else GHC.Maybe.Just##lqdc##$select##GHC.Maybe.Just##1
(Main.highBound lq_tmp$db##2) <= GHC.Maybe.Just##lqdc##$select##GHC.Maybe.Just##1 (Main.lowBound lq_tmp$db##3))))}
    Unbound symbol Main.lowBound --- perhaps you meant: Main.highBound ?
    •
   |
28 | {-@ reflect appendableSortedLists @-}
   |             ^^^^^^^^^^^^^^^^^^^^^

max :: forall <p :: Int -> Prop>. Int<p> -> Int<p> -> Int<p>

1. Motivation ❯ 2. Paper intro ❯ 3. Example ❯ 4. Verifying programs ❯ 5. Demo ❯ 6. Evaluation

Alternatives

Verification of Haskell code: Coq, Agda, Idris, ...
Other Static Contract Checkers exist

LiquidHaskell reuses specs for: functional correctness, totality, termination

1. Motivation ❯ 2. Paper intro ❯ 3. Example ❯ 4. Verifying programs ❯ 5. Demo ❯ 6. Evaluation

Summary

1. Motivation ❯ 2. Paper intro ❯ 3. Example ❯ 4. Verifying programs ❯ 5. Demo ❯ 6. Evaluation

Syntax:

Specifications for type refinements

-- contracts
{-@ div :: n:Nat -> d:Pos -> { v:Nat | v <= n } @-}
div n d = n / d

-- dependant contracts
{-@ zip :: x:[a] -> { y:[b] | len x = len y } -> { z:[(a, b)] | len x = len z } @-}

-- measures (uninterpreted function)
{-@ measure len :: [a] -> Int @-}
len []     = 0
len (x:xs) = 1 + len xs

-- []  :: { v:[a] | len v = 0 }
-- (:) :: _ -> xs:_ -> { v:[a] | len v = 1 + len xs }

{-@ append :: xs:[a] -> ys:[a] -> { v:[a] | len v = len xs + len ys } @-}

Syntax:

Specifications for type refinements (2)

-- abstract refinements
{-@ max :: forall <p :: Int -> Prop>. Int<p> -> Int<p> -> Int<p> @-}

{-@ evenNumber :: { v: Int | v mod 2 == 0 } @-}
evenNumber = max 4 (-2)

-- type aliases
{-@ predicate NonEmp X = 0 < len X @-}
{-@ type NonEmpList a = { v: [a] | NonEmp v } @-}

{-@ deduplicate :: l:_ -> { v:_ | NonEmp l => NonEmp v } @-}
-- or
{-@ head :: l:NonEmpList a -> a @-}

-- unchecked refinement
{-@ assume answerAnything :: _ -> 42 @-}
answerAnything x = ...

Specifying termination (3)

-- mutual recursion
{-@ isEven :: n:Nat -> Bool / [n, 0] @-}
isEven 0 = True
isEven n = isOdd $ n-1

{-@ isOdd :: n:Nat -> Bool / [n, 1] @-}
isOdd n = not $ isEven n

   [1, 2]
-> [1, 1]
-> [1, 0]
-> [0, 2]
-> [0, 1]
-> [0, 0]

Verifying correctness

-- []  :: { v:[_] | len v = 0 }
-- (:) :: _ -> xs:_ -> { v:[_] | len v = 1 + len xs }

{-@ append :: a:[_] -> b:[_] -> {c:[_] | len c = len a + len b} @-}
append [] ys =
  -- len [] = 0
  ys
  -- len ys = len ys + len []
append (x:xs) ys =
  -- len xs = len (x:xs) - 1
  x : append xs ys
  -- len (x : append xs ys) = 1 + len xs + len ys

Specifying termination (2)

-- lexicographic termination
{-@ ack :: m:Nat -> n:Nat -> Nat / [m, n] @-}
ack m n
  | m == 0 = n + 1
  | n == 0 = ack (m-1) 1
  | otherwise = ack (m-1) (ack m (n-1))

   [1, 2]
-> [1, 1]
-> [1, 0]
-> [0, 2]
-> [0, 1]
-> [0, 0]

Links

Project website: https://ucsd-progsys.github.io/liquidhaskell/
Specifications: https://ucsd-progsys.github.io/liquidhaskell/specifications/
