Flux

What is Flux

Flux is an architecture for handling data.

​Characteristics:

• explicit and understandable update paths
• maintains a strict decoupling of components
• makes tracing changes during development simpler
• bugs are easier to track down and fix

The big picture

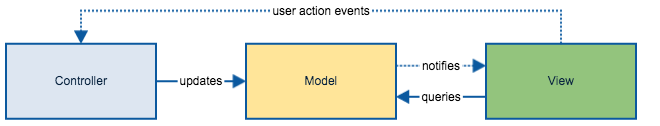

MVC pattern

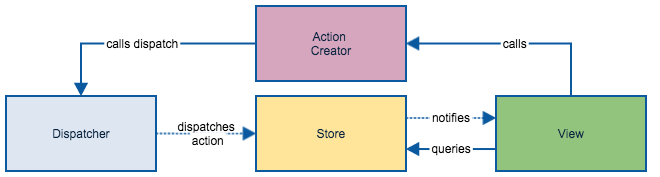

Flux pattern

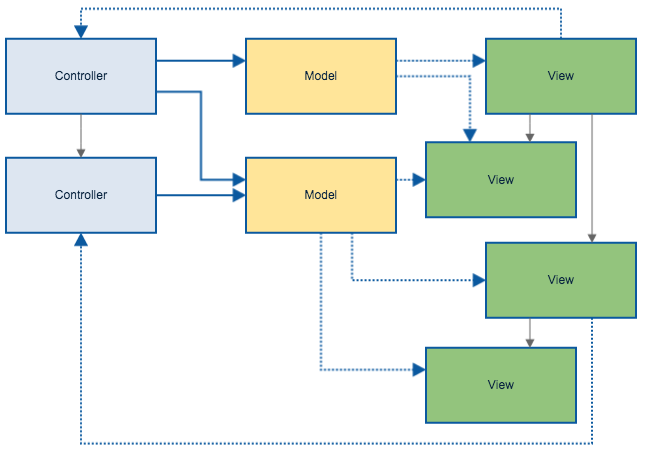

Problems with MVC

When more than one Controller modifies a Model:

• the dependency graph becomes harder to trace
• it's hard to debug when the models have dependencies

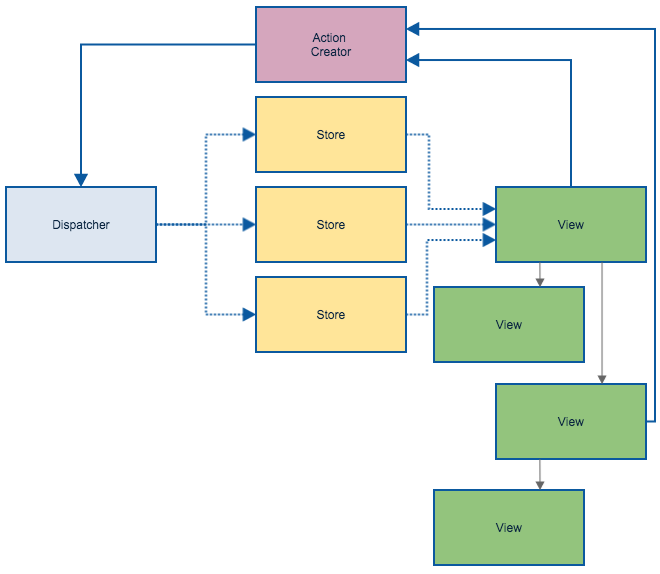

Flux architecture

Main components:

• views
  • are responsible for handling an action by a user
  • send requests for data to the stores via the dispacher
• dispatcher
  • takes requests for actions from the views
  • pass the requests to the pertinent store (or stores)
• stores – store state
  • wake up on a relevant dispatch to retrieve the requested data
  • notify the views of changes
• actions – provide actions for the views

Problems with Flux

• no official architecture implementation
  • Facebook only provides the dispacher
• lots of small competing implementations
• no clear unified way on how to deal with async actions
• no clear way of how to resolve dependency between stores
  • dispatcher contains waitFor method

Flummox

Provides a clean implementation, that is ES6 compatible.

• doesn't rely on mixins
• doesn't use higher order components structure
• based on extending 3 classes Action, Store and Flux

Components:

• Action class

Actions

• we created a single action, createMessage
• the return value is sent through the dispatcher automatically

Async handling:

• if you return a Promise, Flummox will wait for the Promise to resolve and then dispatch the unwrapped value
• can also use the ES7 async-wait pattern

import { Actions } from 'flummox';

class MessageActions extends Actions {
  createMessage(messageContent) {
    return {
      content: messageContent,
      date: Date.now(),
    };
  }
}

Stores

import { Store } from 'flummox';

class MessageStore extends Store {
  constructor(flux) {
    super(); // Don't forget this step

    const messageActionIds = flux.getActionIds('messages');
    this.register(messageActionIds.createMessage, this.handleNewMessage);

    this.state = {
      messages: [],
    };
  }

  handleNewMessage(message) {
    this.setState({
      messages: this.state.messages.concat([message]),
    });
  }
}

• set initial state by assigning to this.state in the constructor
• update state by using this.setState()
• a change event is emitted automatically whenever you call this.setState()
• emit events manually using this.emit()

Flux Class

import { Flux } from 'flummox';

class AppFlux extends Flux {
  constructor() {
    super();

    this.createActions('messages', MessageActions);

    // The extra argument(s) are passed to the MessageStore constructor
    this.createStore('messages', MessageStore, this);
  }
}

• unifies our stores and actions, along with a dispatcher, into a single, self-contained instance.
• registers the Actions and the Stores
• each instance has its own dispatcher

Use it in a view

import FluxComponent from 'flummox/component';

class MessagesView extends React.Component {
  render() {
    return (
      <FluxComponent connectToStores={{
        messages: store => ({
          messages: store.messages
        })
      }}>

        // MessageList is injected with a `messages` prop by FluxContainer
        <MessageList />
      </FluxComponent>
    );
  }
}

<FluxComponent flux={flux}>
  // Immediate children have flux prop
</FluxComponent>

<FluxComponent>
  // Same as last time: immediate children have flux prop
  // flux is already part of context, and remains so
</FluxComponent>

FluxComponent

FluxComponent:

• it uses the React context to expose the Flux instance to nested views
• makes it easy to subscribe to store updates
• the immediate children get the stores as properties
  • so you don't have to explicitly pass properties down the component tree
• pass a flux instance as a prop to a FluxComponent near the top of your app hierarchy, any FluxComponents further down the tree will automatically have access to it

Access flux from context

class MyComponent extends React.Component {
    constructor (props, context) {
        super(props, context);
    }
}

MyComponent.contextTypes = {
  flux: React.PropTypes.object.isRequired
};

<FluxComponent flux={flux}>
    <App>
        <MyComonent/>
    </App>
</FluxComponent>

• pass the context as the second param of the constructor
• define flux in the contextTypes of the React component

Final thoughts

• the maintainer of Flummox recommends using Redux instead
• Redux is less popular than Flummox 271 vs 1255 downloads
• we should consider it if
  • plays nice with ES6 classes
  • no mixins, no higher order components
