Use of Drones for King County Wastewater Treatment
April 28 , 2025
Peter Keum, FAA Part 107/GISP
King County Wastewater Treatment
Drone Program Lead/ GIS Analyst
Learning Objectives
- King County Wastewater GIS
- WTD Drone Program
- Integration of Drone with GIS
CUGOS
So Let's Dive In!
King County of Washington
- 2.3 Million People
- 12th Populus in the US
- Seattle is the Most populous city in the State
King County Wastewater Treatment by Numbers
-
2 million residents
-
424 square miles
-
383 miles sewer pipeline (2.5 inch to 14 ft)
-
74 facilities (PS & RS)
-
5 Treatment Plants: 180 MGD ~ Max. 900 MGD
Seattle, WA --> Medford, OR
WTD GIS Team
- 7 GIS Specialists
Supervisor
WTD GIS
Maintain Sewer GIS Data
-
FIRS (Facility Information Retrieval System) Data
- Maintenance Hole
- Pipes
- Pump Stations
- Regulator Stations
- Treatment Plants
- Outfalls
- Flow Monitors
- CP Stations
- Connection Points
- Site Plan Data
- 3D Models
- Drone Collected Data
- .... many many more
WTD
GIS
DATA

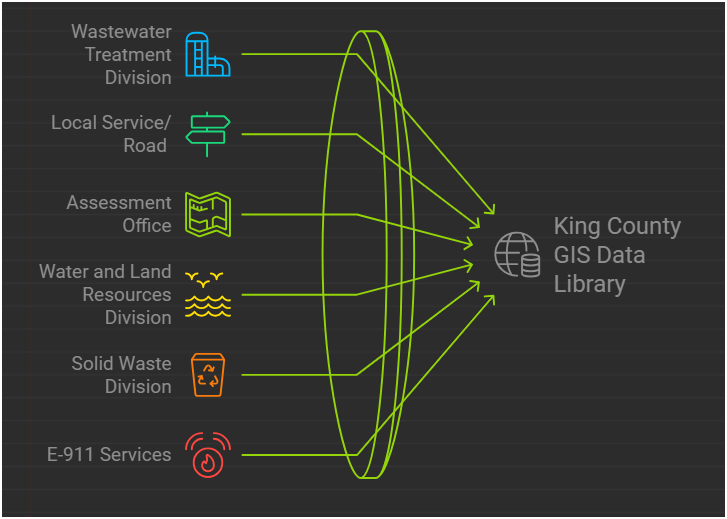

There are 17 county agencies support King County GIS Data Library System
WTD
Project Support
- Capital Construction Projects
- New Treatment Plants
- New Coneyance System
- Upgrade facilities
- many, many, more...
WTD GIS
Feb 2005
Rt 9 - 195th (Brightwater) Conveyance System
Impacted Parcel Analysis
Lake Hills / NW Lake Sammamish
Coal Creek Trunk Upgrade
Georgetown Wet Weather Station
North Mercer Interceptor & Enatai Interceptor Upgrade
Multi-Discipline Data Integration
North Creek Interceptor Sewer Improvement Project
Program Support
- CSO (Combined Sewer Overflow) Control Program
- Modeling Group
- CIFM (Conveyance, Inspection, and Flow Monitoring) Group
- Asset Management Program
- Capacity Charge
- ....many other sections
Program Support
- CSO (Combined Sewer Overflow) Control Program
WTD GIS
KC & SPU
CSO Real-Time Status Viewer
RainWise
Basin Address Look-Up App
CSO Report
Program Support
- CSO (Combined Sewer Overflow) Control Program
- GSI (Green Storm Infrastructure) --> RainWise Program
WTD GIS
Program Support
- CSO (Combined Sewer Overflow) Control Program
- GSI (Green Storm Infrastructure) --> RainWise Program
WTD GIS
Program Support
- Modeling Group & CIFM Group
Meter Installation Tool
Program Support

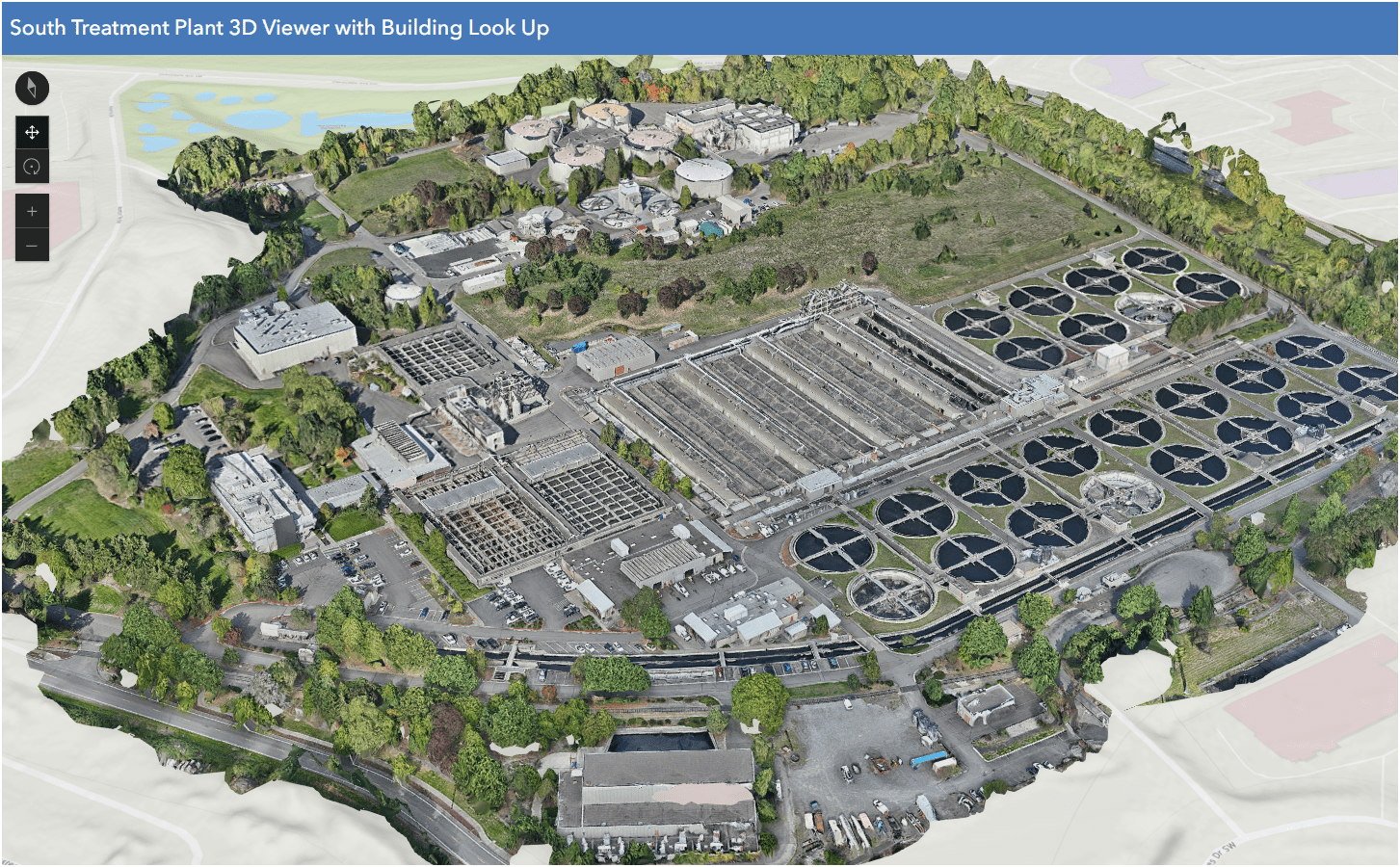

- 3D Modeling Rendering
Program Support
- 3D Modeling Rendering
Program Support
- CIFM (Conveyance, Inspection, and Flow Monitoring) Group
ESJ Support
SVI for Chelan CSO Basin
Short Back Story
David Shean "Ice Man" Ph.D @ UW
CUGOS April 2014
"Google Guys"

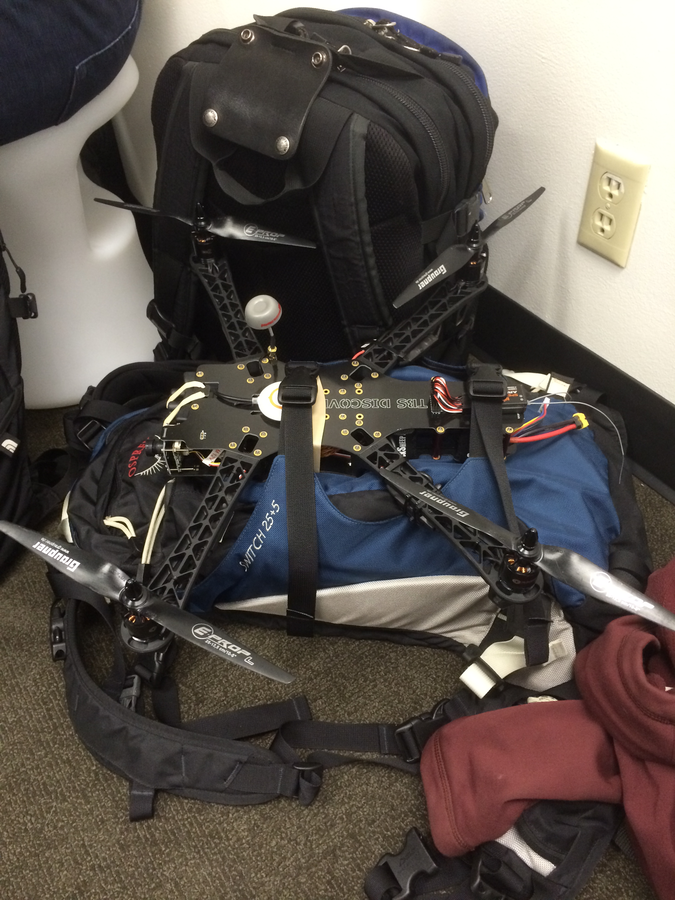

It's just a toy...past examples of what used to be
It's just a toy...
It's just a toy...
It's just a toy...
2016
- Price /Performance
- Easy to use
- Quality data collection
- Adopting Rule by FAA
Why Now?
Cell Phone Technology + Lower $$
- Electronic Control System (ECS)
- Accelerometer & Gyroscope Chip
- GPS Chip
- Lithium Polymer (LiPo) Battery
- Motors
UAV - Unmanned Aerial Vehicle
FAA Definition: Unmanned Aircraft (UA) system that is operated by a pilot via ground control or on-board computer.
UAV Categories
Small - $
- Size: 1 - 2 meters ( 3 ft - 6.5 ft), < 55 lbs.
- Control: Radio control
Medium
- Size: Equivalent to a car, ~ 1000 lbs.
- Control: Visual Line Of Sight (VLOS) & Beyond LOS, RC & Satellite ~ $$$
Large
- Size: > 30,000 lbs.
- Control: Visual Line Of Sight (VLOS) & Beyond LOS, RC & Satellite ~ $$$$
Sensors Payload
Multi-spectral
Thermal Infrared
Lidar Camera
High resolution digital camera (100 MP)
Lidar Camera
Lidar Camera
Methane Gas Dector
RPAS as Platform
Multi-rotors
Fixed-wing & VTOL
- Shorter flight time (< 45 min)
- Cover smaller area
- Highly maneuverable
- Less expensive
- Access to confined spaces
- Long flight time (+ 40min)
- Covers very large area
(vertical take-off & land)
1. Aircraft + Sensor (Data Collection)
2. Data Processing & Analyzing (GIS)
3. Information Products
||
+
Information Products
credit: Esri
Drone
GIS
Great Combo?
&
Great combo !
GIS & DRONE

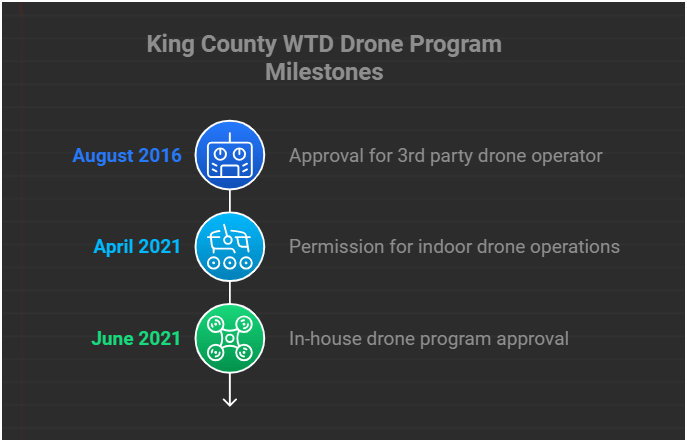

Summary of KC Wastewater Treatment Division RPAS Program
People
+
Technology
+
Organization
=
RPAS Program
WTD GIS RPAS Program
April 2025
- Four FAA Part 107 Drone Certified Pilots - WTD GIS Specialists (Jim, Patrick, Joe, and Peter)
- Helping other departments to stand up their own RPAS programs
Joe
Outdoor
Indoor
DJI Mavic 2 Pro < $1,800
DJI Mavic 2 Pro Ent. Adv ~ $6,500
DJI FPV w/ Modification ~ $1,300
Mavic 3 Ent
~ $3,800
20 MP/ 56x zoom
20 MP
12 MP/ 32x zoom
+ Thermal

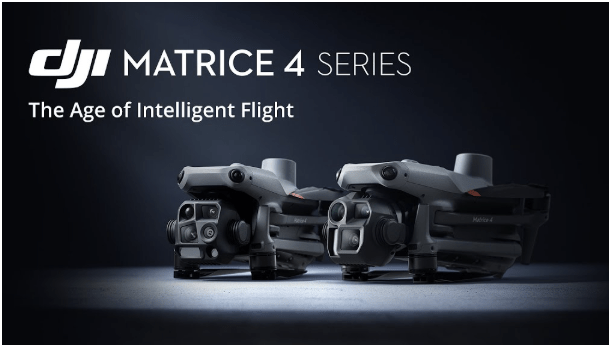

Matrice 4 Ent
~ $5,300/ $8,500

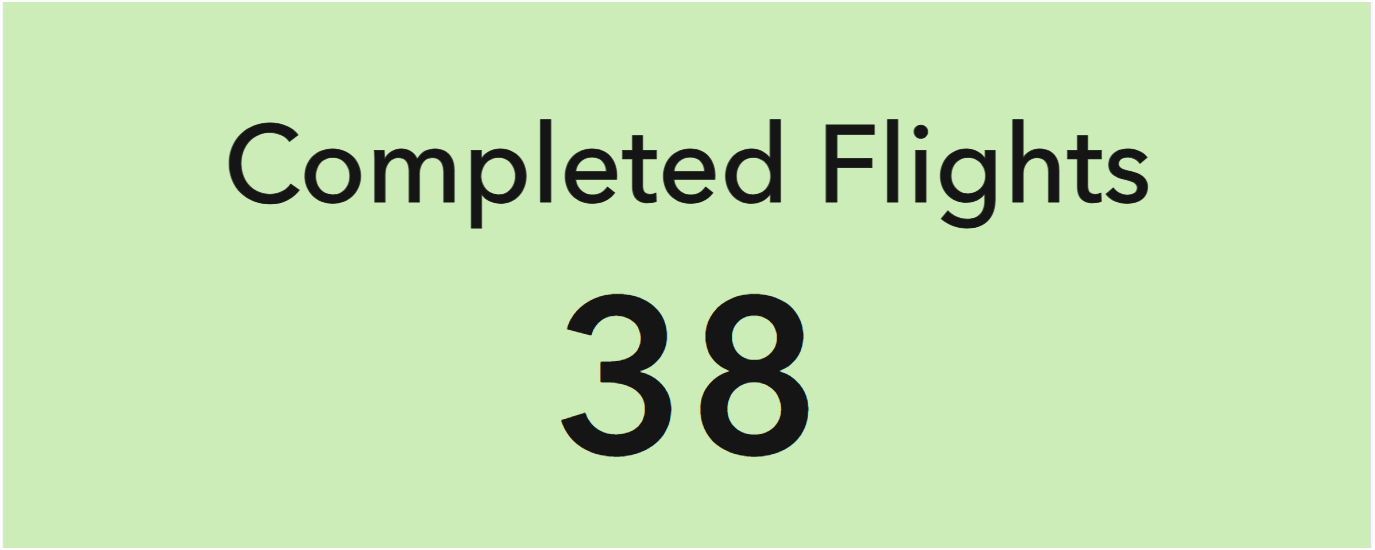

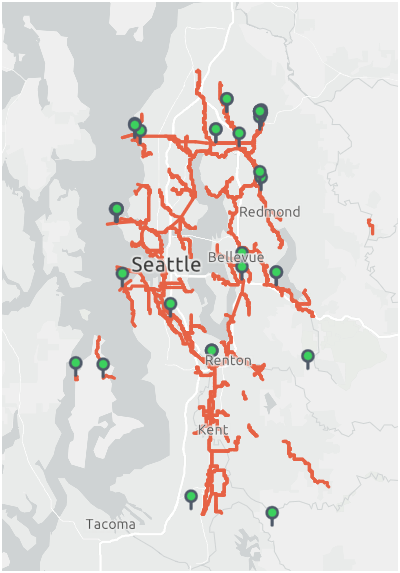

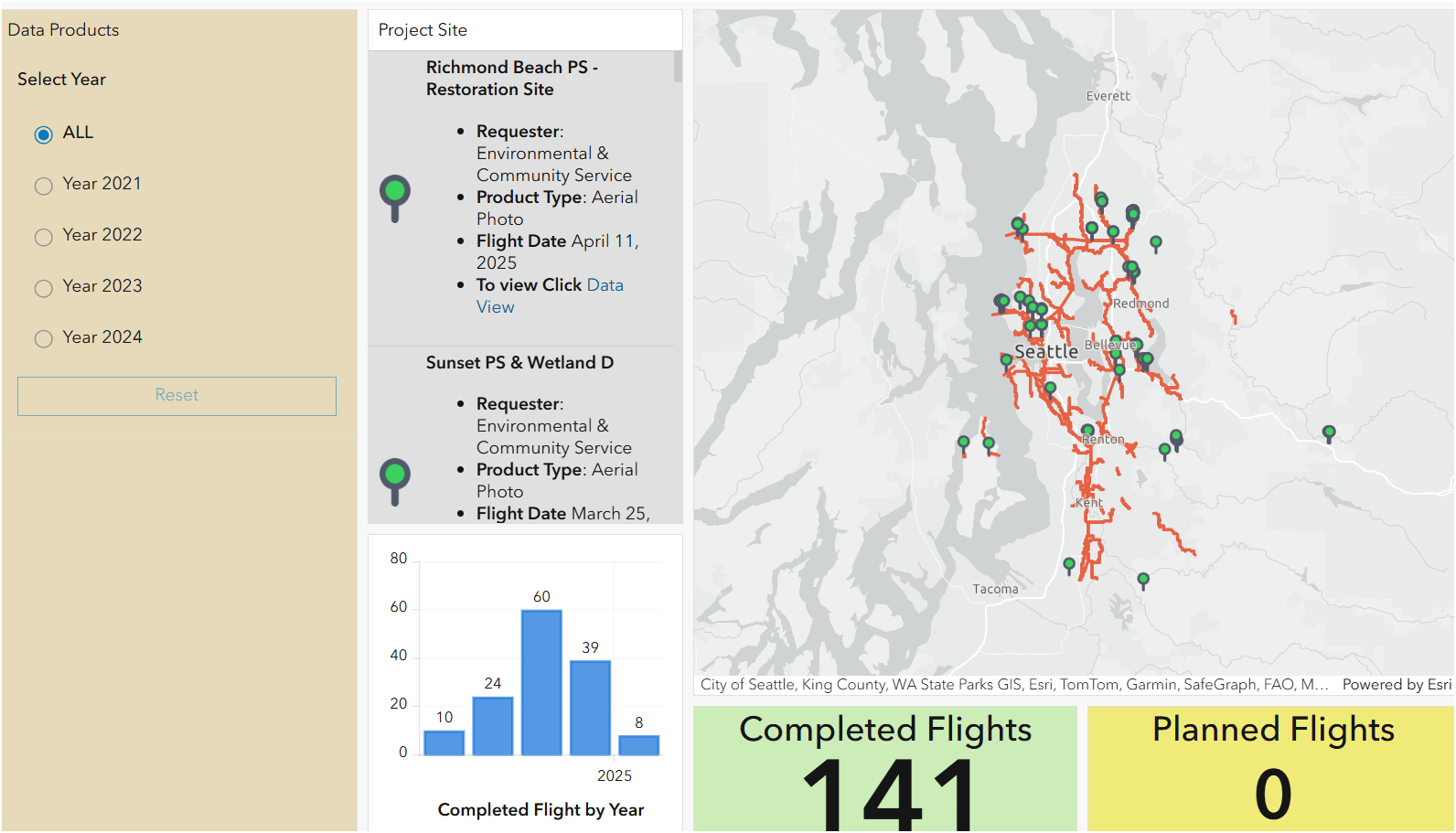

WTD RPAS Dashboard
2021
June - Dec.
2023
Jan. - Nov.
Number of Flights
2022
Jan. - Dec.
+ 480 %
2024
Jan. - Nov.
Where are we now?
Where are we heading?
FAA Regulations - Where are we now?
Regulations
-
Fly under 400 feet above ground level
-
Not to fly < 5 nautical miles around airport
-
Aircraft < 55 lbs.
-
Fly during daytime
-
Fly visual line of sight ( VLOS)
-
No flight over non-participating people
FAA Part 107 Rule
Hobby/Recreation
-
Self register (over 13 yrs old)
-
Fly under 400 feet above ground level
-
Not to fly < 5 nautical miles around airport
-
Aircraft < 55 lbs.
-
Fly during daytime
-
Fly visual line of sight ( VLOS)
- Less than 250 grams (0.55 lbs) - No need to register with FAA
- More than 250 grams register with FAA $5.00
-
Be at least 16 yrs old
-
Pass the initial aeronautical knowledge exam
-
Online recurring training every 24 month
-
Understand recreational flying requirements
-
Take TRUST
-
Online recurring training every 24 month
Why Use Drones?
3 E's
-
Easy
-
Efficient
-
Effective
Why Use Drones?
Easy - Simple with little effort
Efficient - Results without waste
Effective - Producing Results
Why Use Drones?
1. Easy - Simple with little effort
Automatic
Repeatable
Flight Control App
- Automate Flight Planning - Fly Consistently for overlapping images
- Can fly manually but it's like mowing with scissors
Example: Auto flight plan
Result 3D Model
Why Use Drones?
2. Efficient - Results without waste
Safety of staffs
Save Time & $$
Why Use Drones?
South Treatment Plant
Primary Division Channel
Increase Safety for Staff
Why Use Drones?
Increase Safety for Staff

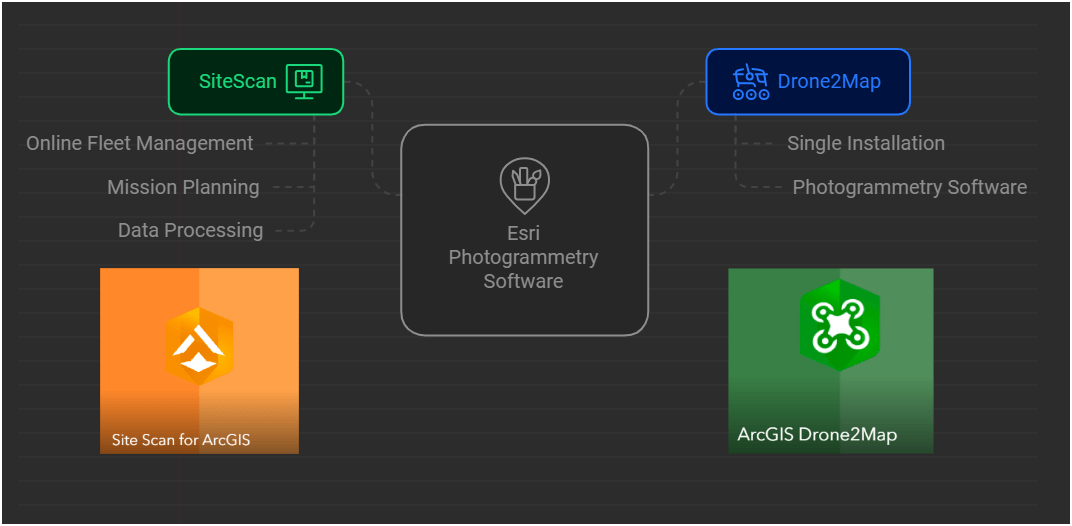

Data Processing - Efficient
- Cloud Storage & Cloud Data Processing
- Flight Planning from Desktop - fly on Mobile (controller)
- Cloud storage/Cloud Processing
- Centralized System
- Project Deliverables
Why Use Drones?
3. Effective - Producing Results
- Environmental Monitoring
Examples - Effective
August 2022
March 2022
April 2023

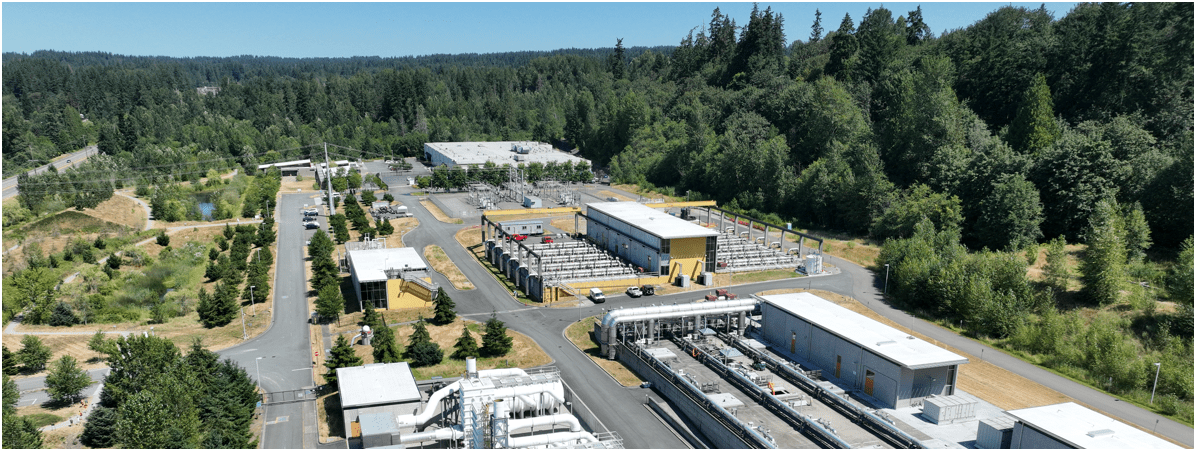

- Update 2D aerial map
Examples - Effective
- 1172 Photos
- 0.57in/px
- Update 2D aerial map
Examples - Effective
0.57 in/px
Sept 2023
3.0 in/px
2021 KC Aerial
- Construction Site Monitoring
Examples - Effective
Just another Layer

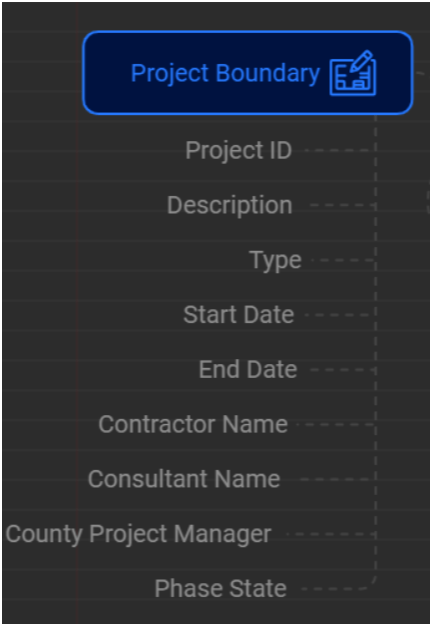

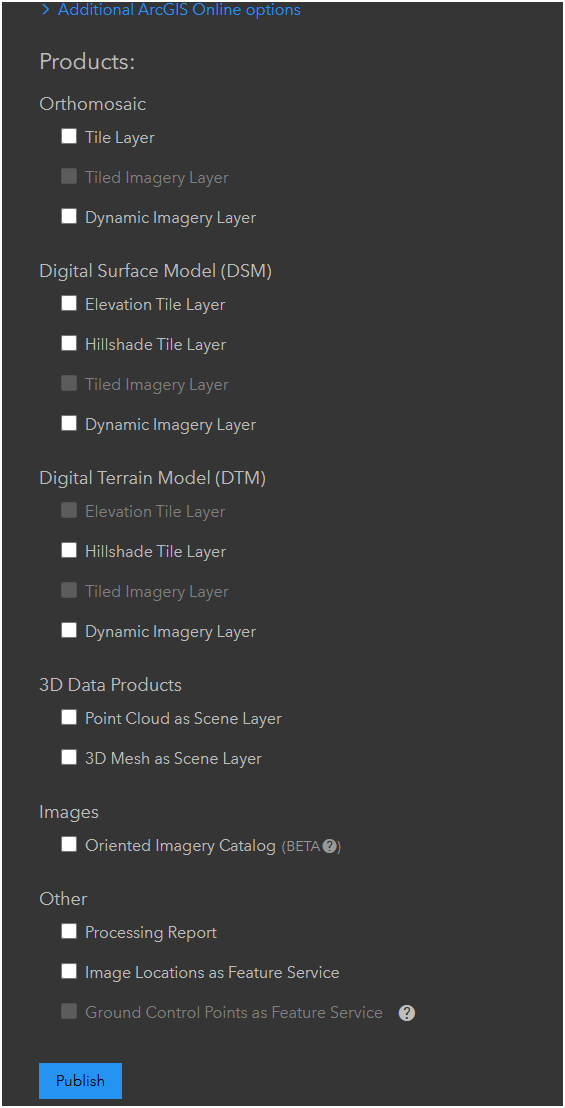

GIS Integration

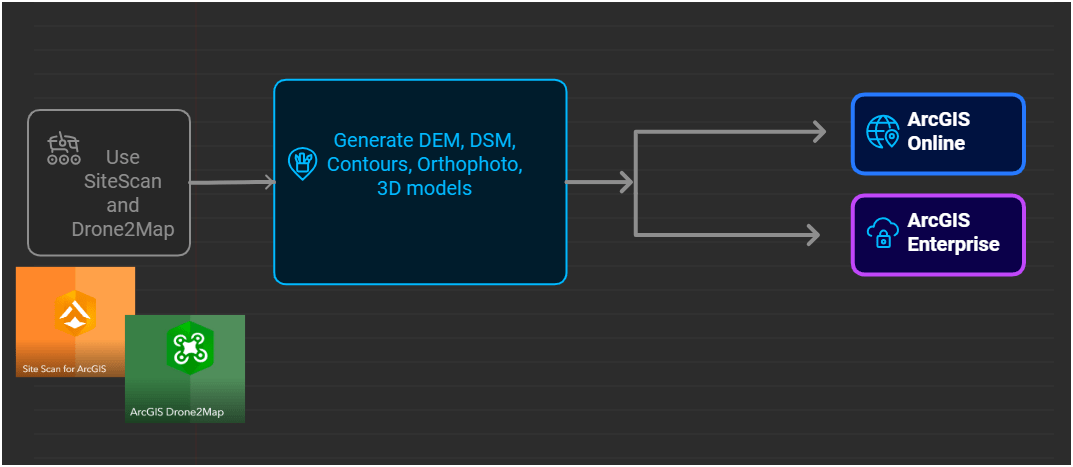

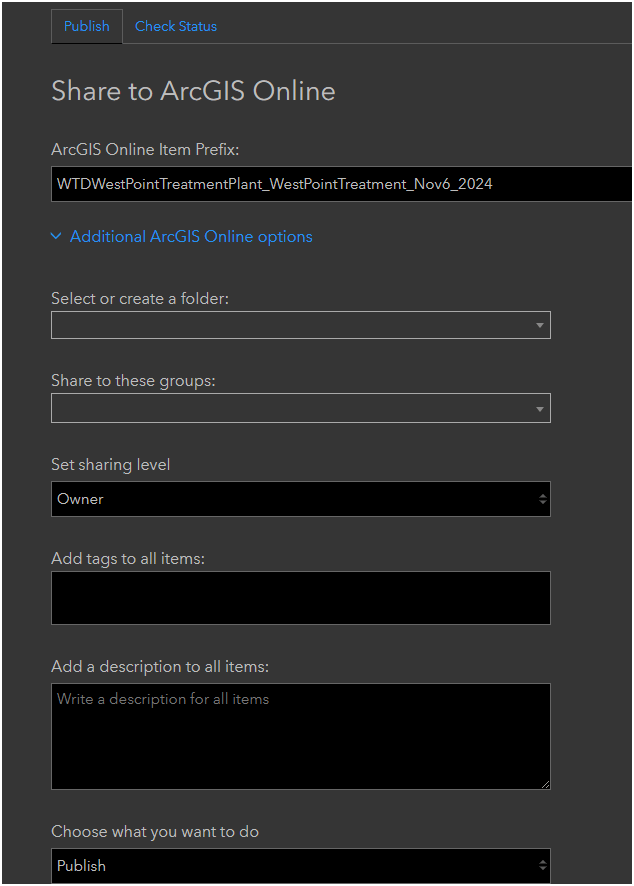

Esri Workflow
- Public
- No AGO Account
- Group Sharing
- Share with everyone
- Security
- Internal Only
- No AGO Account (KC)
- Group Sharing
- Selected Data to share

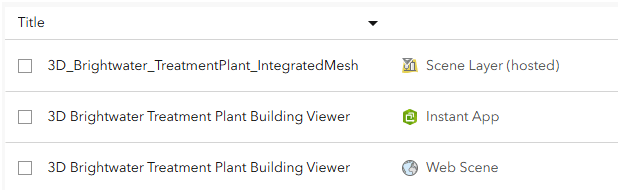

Hosted Feature Layer
Web Map
Web App
Scene Layer (hosted)
Web Scene (3D)
Instant App

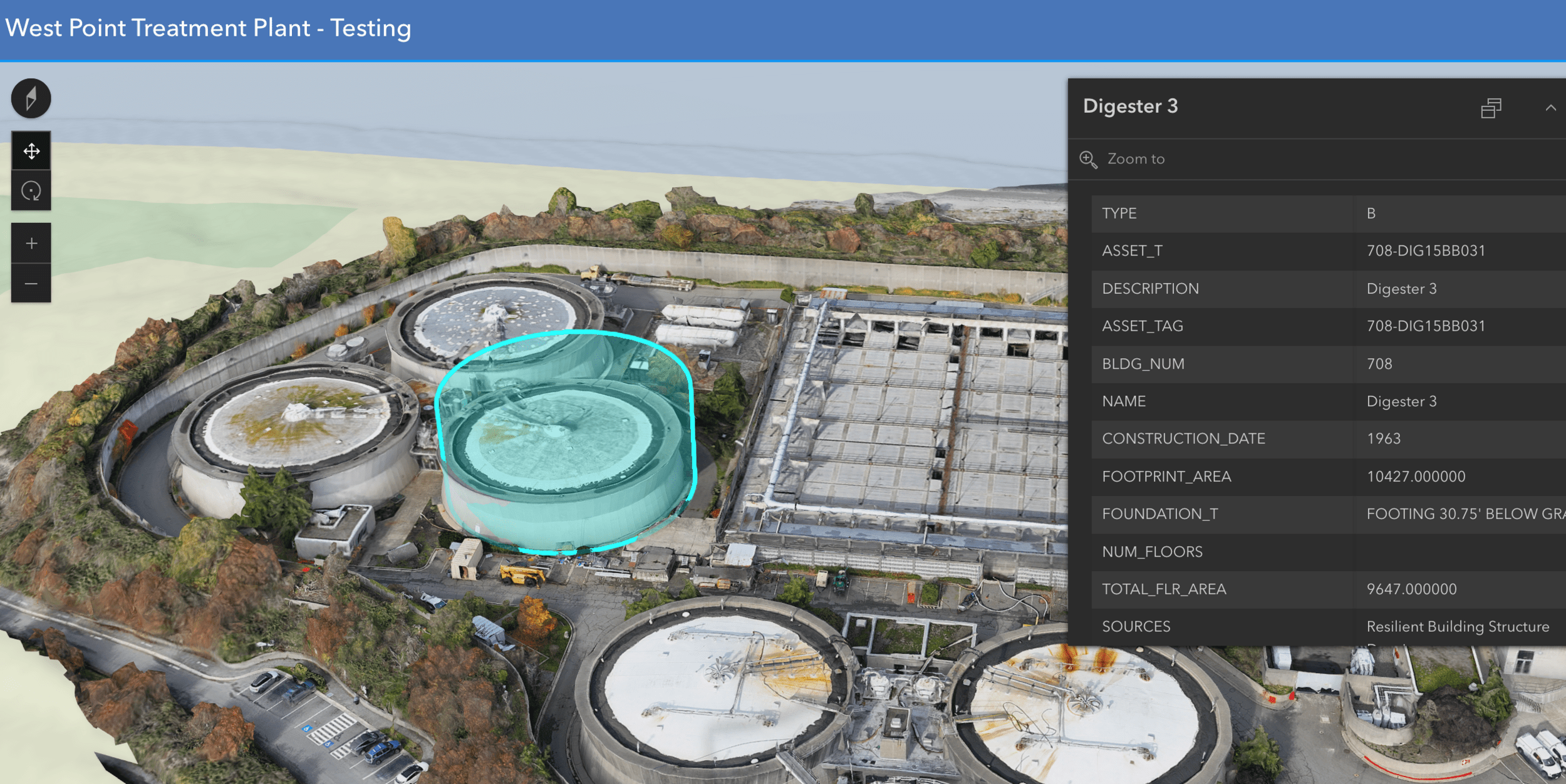

Examples - Integrating with GIS

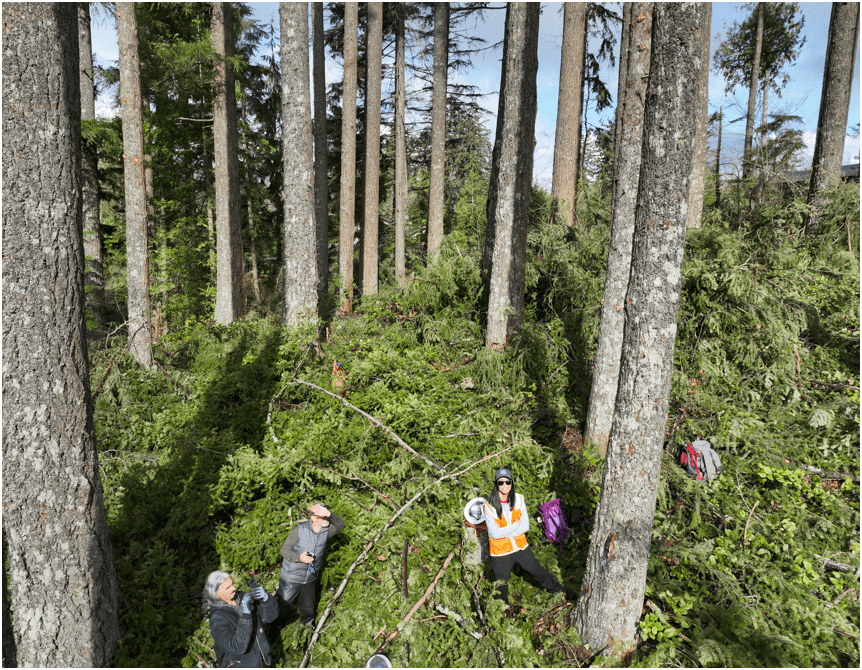

Helping KC Parks
Proof Of Concept

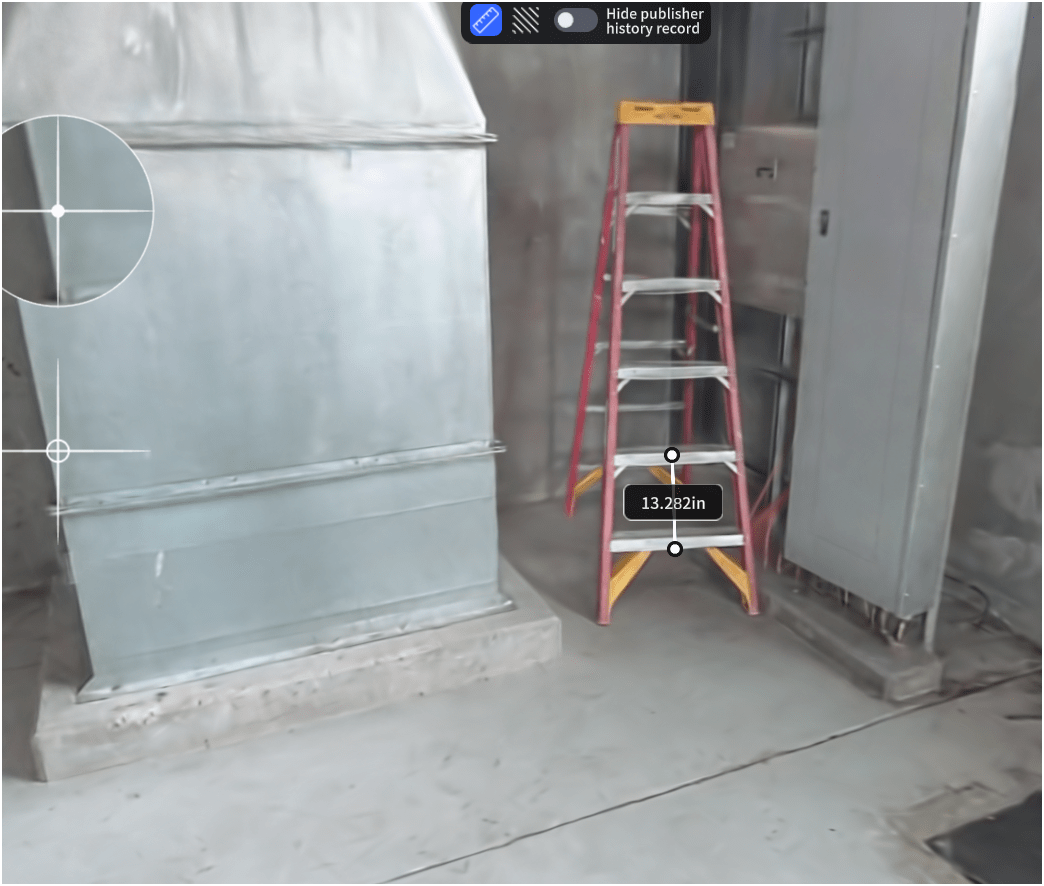

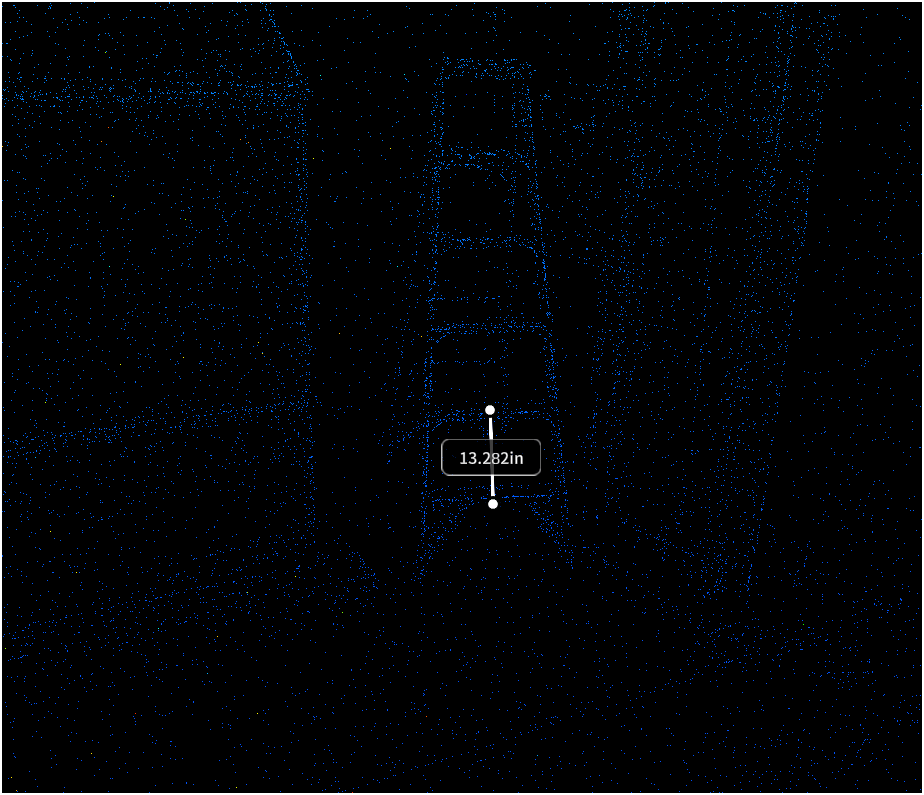

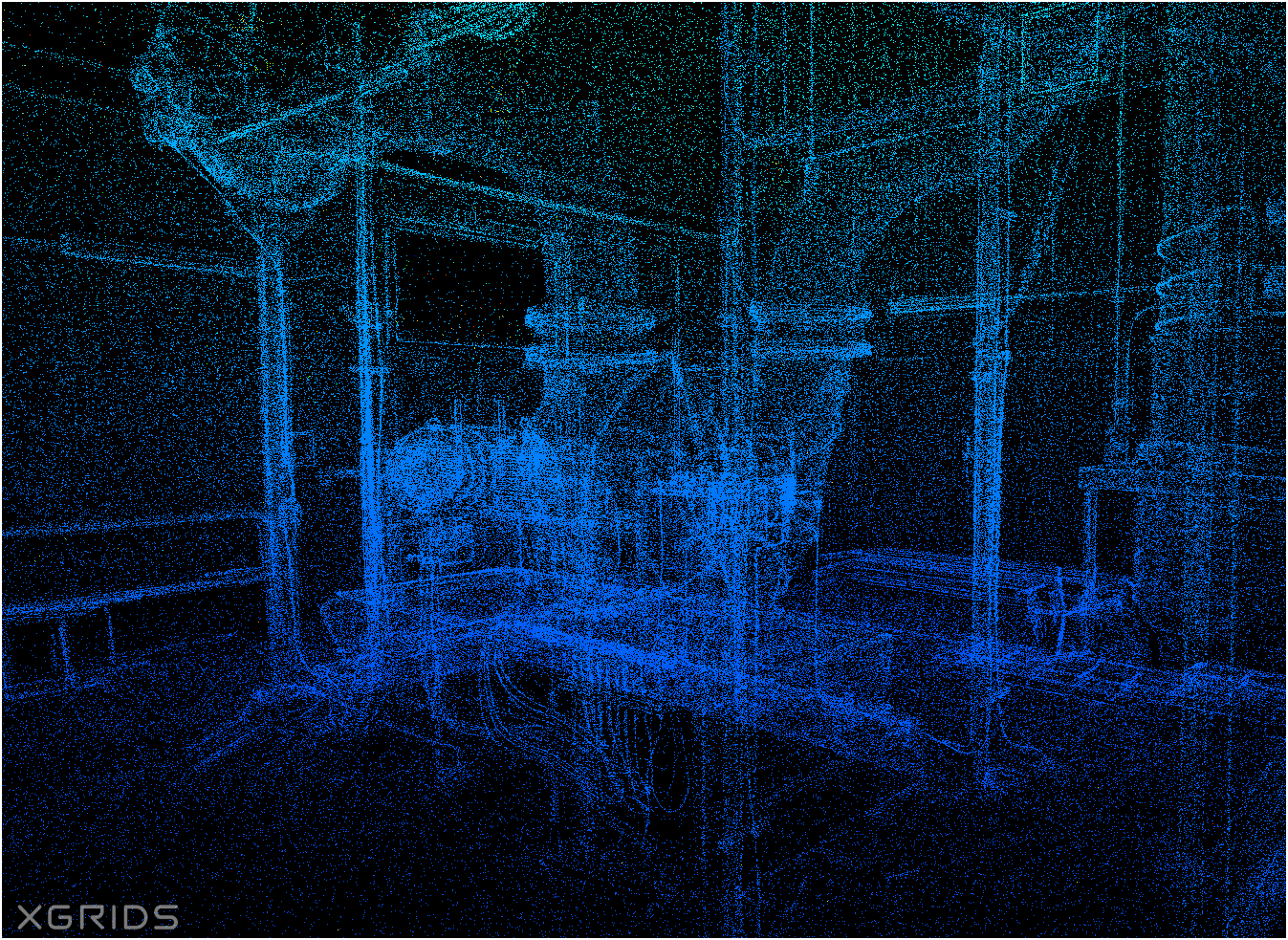

Lidar SLAM Handheld Unit
Video of Scan Path
Proof Of Concept
Lidar SLAM Handheld Unit
Examples
WHOA!
Proof Of Concept
Lidar SLAM Handheld Unit
Examples
Proof Of Concept
Lidar SLAM Handheld Unit
Examples
Let's go find solution
Washington GIS Association Drone Special Interest Group
- Email Sign-up
- Resources
- Every 3rd Thursday
- ZOOM Meeting
- 165 Members
- Monthly Meeting - Every 3rd Thursday over Zoom
- Share resources online
- Help educate and introduce new users to the field of drone mapping and GIS
CUGOS
Cascadia
Users
of
Geospatial
Open
Source
peter.keum@kingcounty.gov
Drone & KC WTD for UVA Grad Students- April 28, 2025
By Peter Keum
Drone & KC WTD for UVA Grad Students- April 28, 2025
Part copy from Maptime Seattle & other slides for presentation for UVA environmental grad students for April 28, 2025
