2022 Western Washington Short School
June 8, 2022
Peter Keum - WTD GIS Specialist
What is it? & Why use it?
GIS : Geographic Information System
CUGOS
King Street Center, Pioneer Square
WTD GIS Team
- 5 GIS Specialists
Part 1: What is it? & Why Use it?
Part 2: How is it being used in WTD?
GIS : Geographic Information System
GIS : Geographic Information Systems
A System designed to
- Capture
- Store
- Manipulate
- Analyze
- Manage
- Present
Spatial Data = Location Information
GIS : Geographic Information Systems
Maps
Maps Are Useful!
Maps Are Cool!
Maps Are Beautiful!
Source: Scott Reinhard
Ancient Map - Saint Belec,
Brittany France
And Maps Have Been Around for Awhile
Maps Tell a Story
John Snow 1854 Cholera Map
Broad Street - City of Westminister, London, England
John Snow 1854 Cholera Map
#1: Water Pump
#2: Work House
#3: Brewery
- People
- Methods (Analysis) - Layer
- Data - Vector & Raster
- Software
- Hardware
What makes up a GIS?
Geospatial Data
- Where?
- What?
- How?
- When?
"Data Sandwich"
GIS
"Data Sandwich"
Vector Data & Raster Data
Vector Data - discrete entities: point, lines and plygons
Vector Data & Raster Data
Raster Data - images consisting or regularly sized and spaced cells where every cell has a value
- Treatment Plants - Points
- Conveyance Line - Lines
- Sewer Service Area - Polygon
Vector Data
- Digital Elevation Model (DEM)
- One elevation value per cell
Raster Data
-
What is it? & Why Use it? -
How is it being used in WTD?
GIS : Geographic Information System
What Makes Up a GIS?
- People
- Methods (Analysis) - Layer
- Data - Vector & Raster
- Software
- Hardware
GIS : Geographic Information System
Part 1: What is it? & Why Use it?
Part 2: How is it being used in WTD?
Why Use GIS?
- Where?
- What?
- How?
- When?
(One Map)
Display GIS Data
Overlay
Why Use GIS?
Why Use GIS?
GIS
Decision Makers
But Be Aware of Dark Side
GIS : Geographic Information System
Part 1: What is it? & Why Use it?
Part 2: How is it being used in WTD?
Capital Improvement Program Support
Phases and Gates in Project Management
Text
GIS
Feb 2005
Rt 9 - 195th (Brightwater) Conveyance System
Impacted Parcel Analysis
Lake Hills / NW Lake Sammamish
Coal Creek Trunk Upgrade
Georgetown Wet Weather Station
North Mercer Interceptor & Enatai Interceptor Upgrade
Multi-Discipline Data Integration
North Creek Interceptor Sewer Improvement Project
WTD GIS
WTD GIS
Maintain Sewer GIS Data
- FIRS (Facility Information Retrieval System) Data
- Maintenance Hole
- Pipes
- Pump Stations
- Regulator Stations
- Treatment Plants
- Outfalls
- Flow Monitors
- CP Stations
- Connection Points
- Site Plan Data
- 3D Models
- Drone Collected Data
- .... many many more
WTD
GIS
DATA
WTD GIS
WTD
King County
GIS
Data Library
There are 17 county agencies support King County GIS Data Library System
WLRD
Assessor
Road
Program Support
- CSO (Combined Sewer Overflow) Control Program
- Modeling Group
- CIFM (Conveyance, Inspection, and Flow Monitoring) Group
- Asset Management Program
- Capacity Charge
- ....many other sections
Program Support
- CSO (Combined Sewer Overflow) Control Program
WTD GIS
KC & SPU
CSO Real-Time Status Viewer
RainWise
Basin Address Look-Up App
CSO Report
Program Support
- CSO (Combined Sewer Overflow) Control Program
- GSI (Green Storm Infrastructure) --> RainWise Program
WTD GIS
Program Support
- CSO (Combined Sewer Overflow) Control Program
- GSI (Green Storm Infrastructure) --> RainWise Program
WTD GIS
Program Support
- Modeling Group & CIFM Group
Site Investigation Tool
Program Support
- Modeling Group & CIFM Group
Meter Installation Tool
Program Support

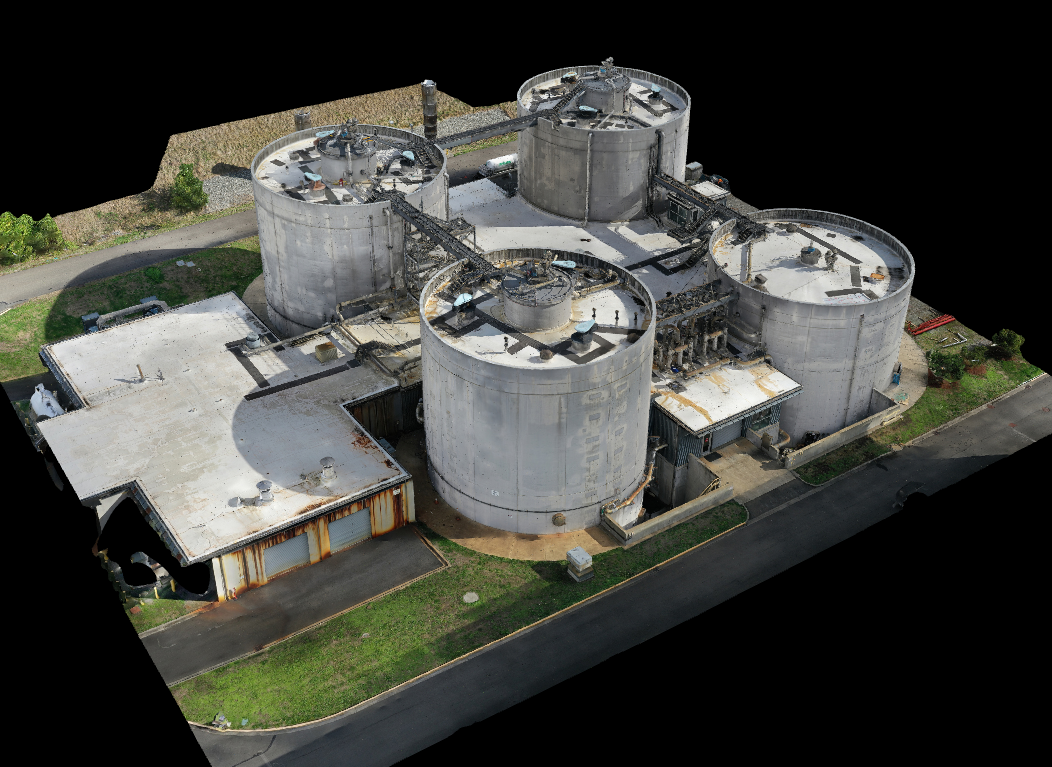

- 3D Modeling Rendering
Program Support
- CIFM (Conveyance, Inspection, and Flow Monitoring) Group
ESJ Support
SVI for Chelan CSO Basin
Program Support
Inspector Gadget
1. Aircraft + Sensor (Data Collection)
2. Data Processing & Analyzing (GIS)
3. Information Products
=
+
Drone Program for WTD
1. Platform + Sensor (Data Collection)
2. Data Processing & Analyzing (GIS)
3. Information Products
Outdoor
Indoor
Drone Program

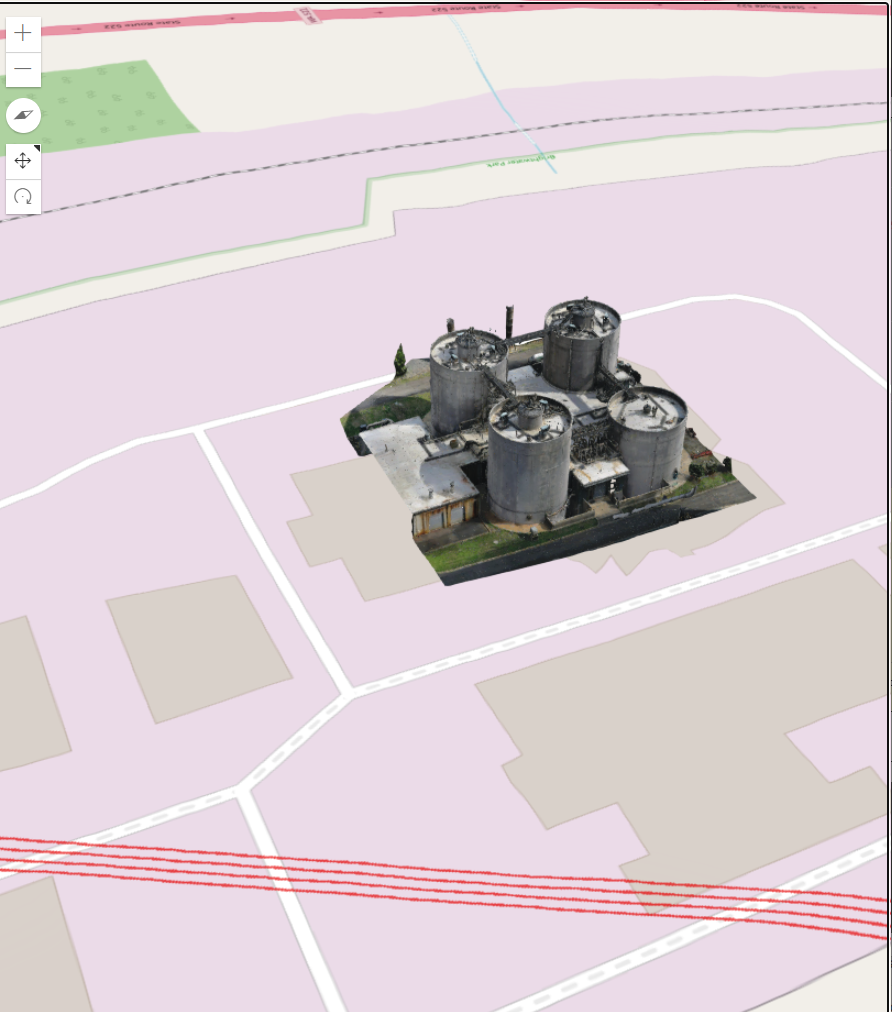

- 3D Modeling Rendering created from Drone imagery then incorporated into GIS system
- Make a request, if you know what you need - In-Take Request Form
- Make a request, even if you don't know what you need
- We will help you find the right answer!
How Should You Use GIS?
Part 1: What is it? & Why Use it?
Part 2: How is it being used in WTD?
GIS : Geographic Information System
Is GIS Useful for My Work Here at WTD?
Let's Go Use GIS
&
Find Solutions
Questions?
peter.keum@kingcounty.gov
2022 -Western Washington Short School Presentation
By Peter Keum
