Microservice Architecture

with

Spring Cloud

Kod Gemisi, Jun 2017
destan@kodgemisi.com

• Destan Sarpkaya
•

• Java (Spring Framework, JavaEE)

• Javascript (React, Angular)

• Consultant

How many of you used...

• Java Enterprise Edition (JavaEE)
• Spring Framework or Spring Boot
• Service Oriented Architecture (SOA)
• Microservices

Microservices

The Ultimate solution?

• Hype?
• Fancy name for good old SOA?
• Cheaper?
• Easier to develop?

Microservices

Image source: https://martinfowler.com/articles/microservices.html

Microservices

Microservices don't solve complexity

just move it somewhere else

Not just does this just move complexity around, it moves it to a place that's less explicit and harder to control.

M. Fowler

Good parts

• Easy to grasp
• Easy to rewrite
• Easy to extend (the whole system)
• Easy to update
• Effective scaling
• Polyglot, no tech-lock-in
• Easy to adapt

Bad parts

• Hard to grasp (the async logic)
• Hard to debug (async and distributed)
• Latency
• Operational burden
• Hard to log
• Requires organizational changes
• Redundant data
• No transactions (Eventual Consistency)
• High initial investment

The

The

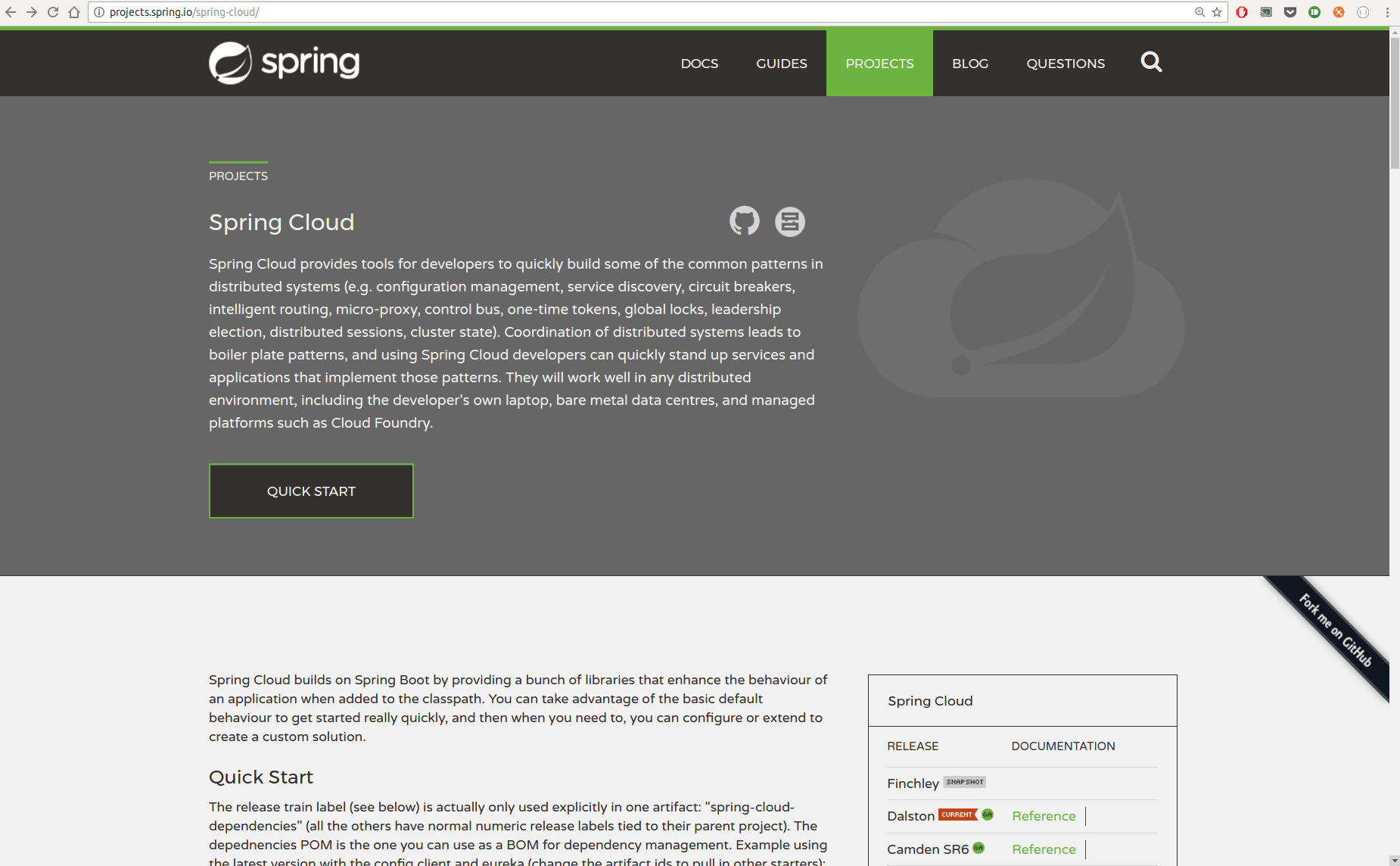

Spring Cloud

Spring Cloud

provides tools for developers to quickly build some of the common patterns in distributed systems

http://projects.spring.io/spring-cloud/

Spring Cloud won't solve your organizational problems!

Talk is Cheap

Show Me the Code

Let's Build Some Microservices

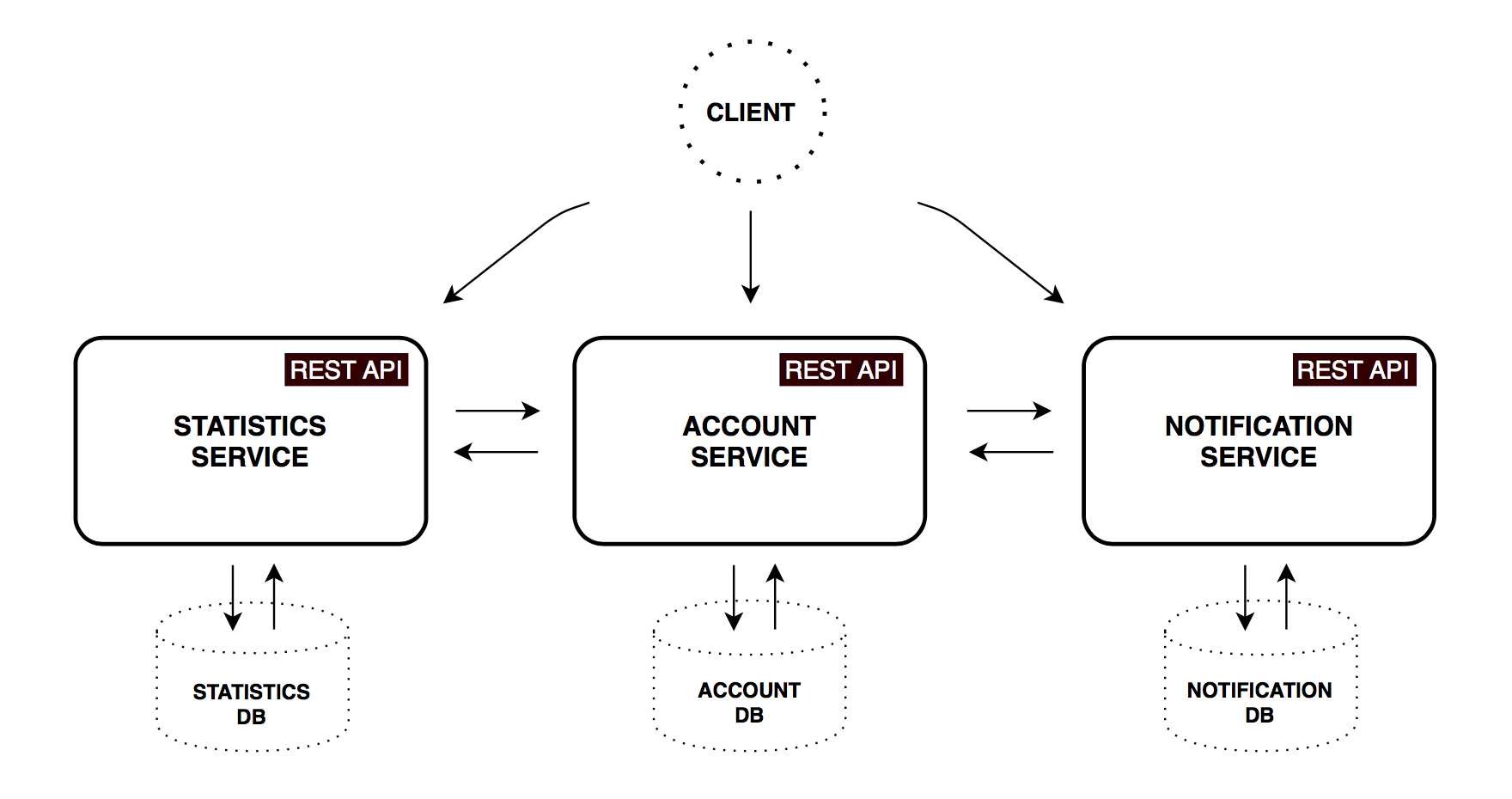

Personal Money Tracker

https://github.com/sqshq/PiggyMetrics

Image source: https://github.com/sqshq/PiggyMetrics

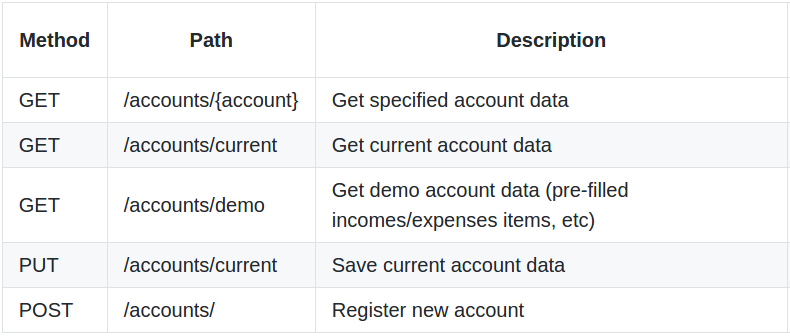

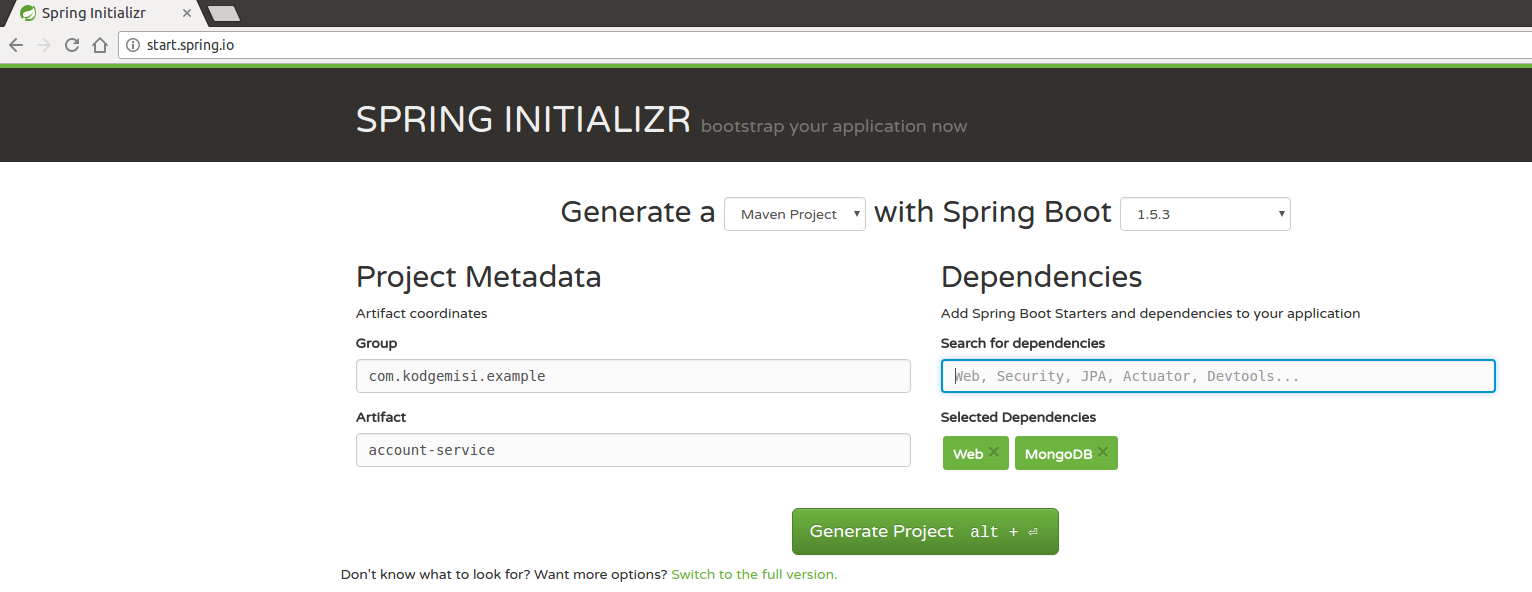

Account Service

Head first implementation!

@Repository
public interface AccountRepository extends CrudRepository<Account, String> {

	Account findByName(String name);

}

@RestController
public class AccountController {

	@Autowired
	private AccountService accountService;

	@RequestMapping(path = "/{name}", method = RequestMethod.GET)
	public Account getAccountByName(@PathVariable String name) {
		return accountService.findByName(name);
	}


	@RequestMapping(path = "/", method = RequestMethod.POST)
	public Account createNewAccount(@Valid @RequestBody User user) {
		return accountService.create(user);
	}

        //...
}

Account service up & running

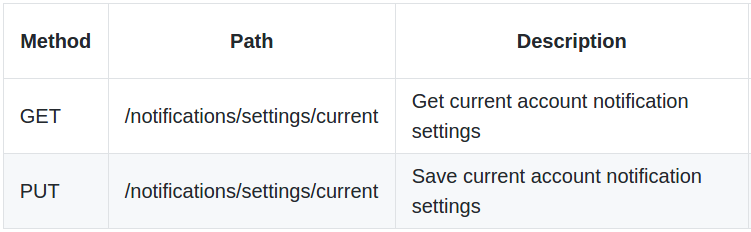

Notification Service

Notification service up & running

We have 2 microservices

What about scaling?

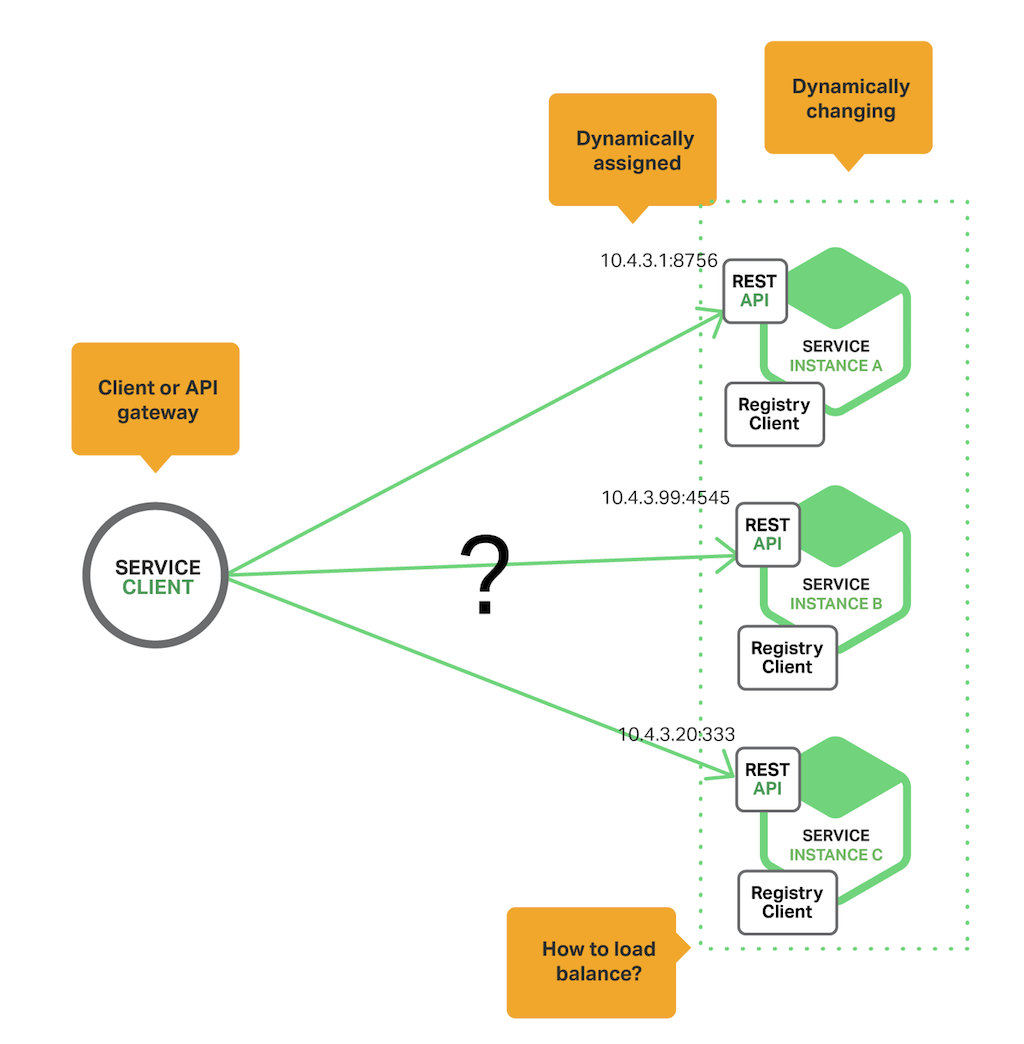

Having Multiple Instances

via dynamic provisioning

Image source: https://www.nginx.com/blog/service-discovery-in-a-microservices-architecture

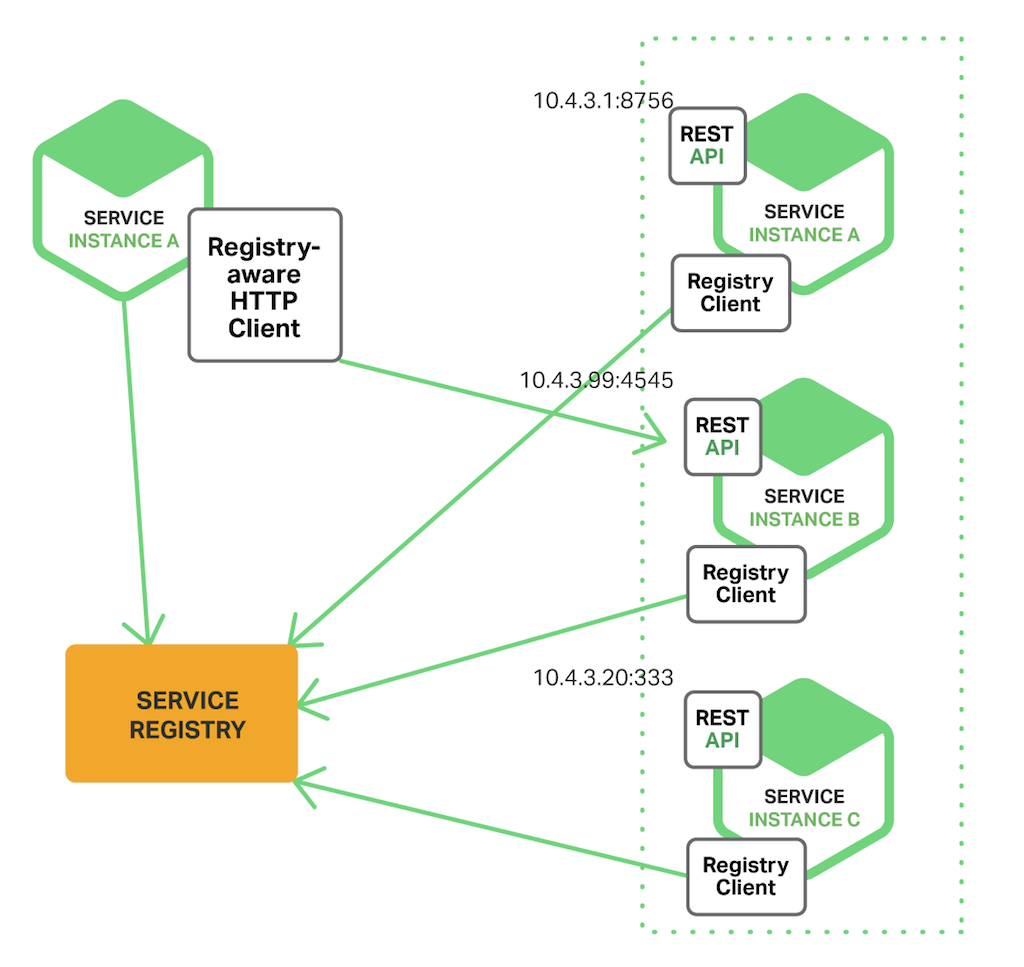

Service Discovery

Image source: https://www.nginx.com/blog/service-discovery-in-a-microservices-architecture

Service Discovery

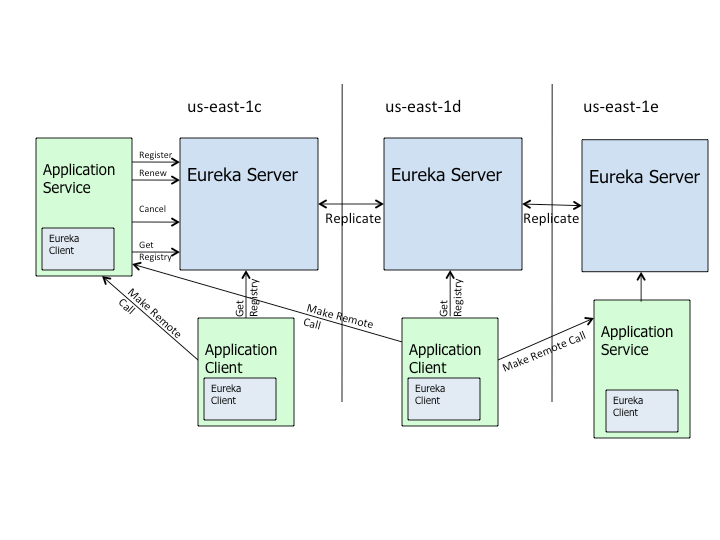

Image source: https://github.com/Netflix/eureka/wiki/Eureka-at-a-glance#high-level-architecture

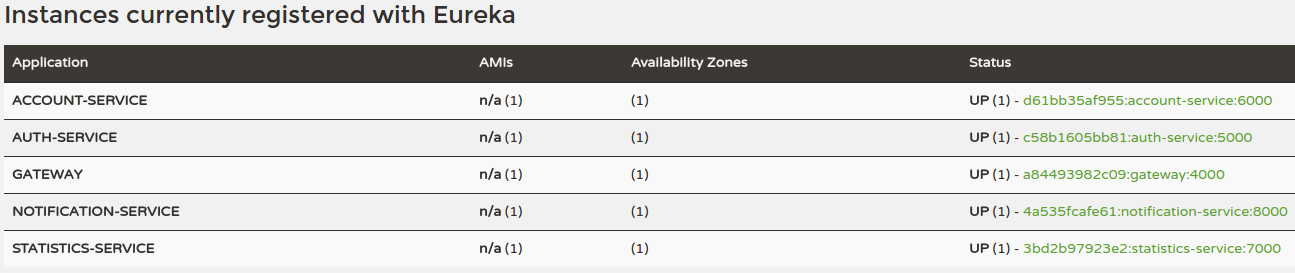

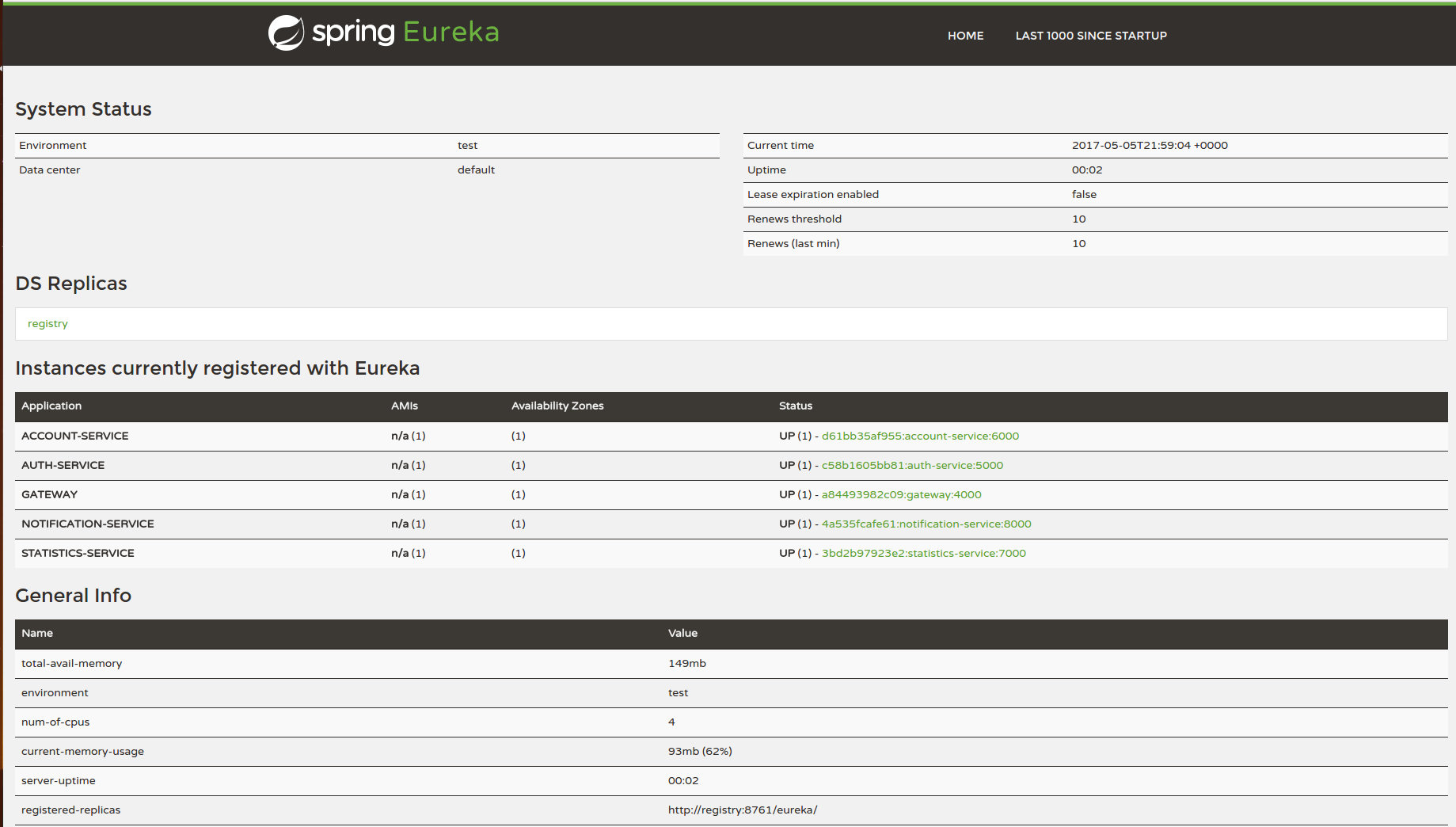

Netflix's Eureka

@SpringBootApplication
@EnableEurekaServer
public class Application {

  public static void main(String[] args) {
    SpringApplication.run(Application.class, args);
  }
}

server:
  port: ${PORT:8761}

eureka:
  client:
    registerWithEureka: false
    fetchRegistry: false
    server:
      waitTimeInMsWhenSyncEmpty: 0

<dependency>
    <groupId>org.springframework.cloud</groupId>
    <artifactId>spring-cloud-starter-eureka-server</artifactId>
</dependency>

@EnableEurekaServer

Eureka Client

@SpringBootApplication
@EnableDiscoveryClient
@Configuration
public class AccountApplication {

    //...
}

@EnableDiscoveryClient

eureka:
  instance:
    prefer-ip-address: true
  client:
    serviceUrl:
      defaultZone: http://registry:8761/eureka/

<dependency>
    <groupId>org.springframework.cloud</groupId>
    <artifactId>spring-cloud-starter-eureka</artifactId>
</dependency>

Keeping track of dynamic instances is done.

What about selecting one?

Netflix's Ribbon

Client Side Load Balancing

Feign Client + Ribbon

package com.piggymetrics.notification.client;

// imports...

@FeignClient(name = "account-service")
public interface AccountServiceClient {

	@RequestMapping(method = RequestMethod.GET,
                                    value = "/accounts/{accountName}",
                                    consumes = MediaType.APPLICATION_JSON_UTF8_VALUE)

	String getAccount(@PathVariable("accountName") String accountName);
}

<dependency>
  <groupId>org.springframework.cloud</groupId>
  <artifactId>spring-cloud-starter-feign</artifactId>
</dependency>

Using Feign Client

@Service
public class NotificationServiceImpl implements NotificationService {

  @Autowired
  private AccountServiceClient client;

  @Override
  public void sendBackupNotifications() {

        //...

    recipients.forEach(recipient -> CompletableFuture.runAsync(() -> {
      try {
        String attachment = client.getAccount(recipient.getAccountName());
        //...
      } catch (Throwable t) {
        log.error("an error during backup notification for {}", recipient, t);
      }
    }));
  }
}

@RestController
public class SampleController {

  @Autowired
  private RestTemplate restTemplate;

  @Autowired
  @LoadBalanced
  private RestTemplate loadBalanced;

  @RequestMapping("/sample-product")
  public Product hi() {
    Product sampleProduct =
            loadBalanced.getForObject("http://izmir-store/sample", Product.class);
    return sampleProduct;
  }
}

Feign Alternative: @LoadBalanced Rest Template

What if configuration changes?

• We need to centralize configuration
• Remember The Twelve-Factor App?
• Can't use hard-coded anymore

<dependency>
  <groupId>org.springframework.cloud</groupId>
  <artifactId>spring-cloud-config-server</artifactId>
</dependency>

@SpringBootApplication
@EnableConfigServer
public class ConfigApplication {

  public static void main(String[] args) {
    SpringApplication.run(ConfigApplication.class, args);
  }
}

Spring Config Server

spring.cloud.config.server.git.uri=${HOME}/Desktop/config

spring.cloud.config.server.native.search-locations: classpath:/shared

Configuring Our Config Server

OR

spring:
  cloud:
    config:
      server:
        native:
          search-locations: classpath:/shared

Config Client

<dependency>
    <groupId>org.springframework.cloud</groupId>
    <artifactId>spring-cloud-starter-config</artifactId>
</dependency>

Refresh configs without restart

@RefreshScope
@RestController
class MessageRestController {

    @Value("${message:Hello default}")
    private String message;

    @RequestMapping("/message")
    String getMessage() {
        return this.message;
    }
}

http://localhost:8080/refresh

Shit Happens!

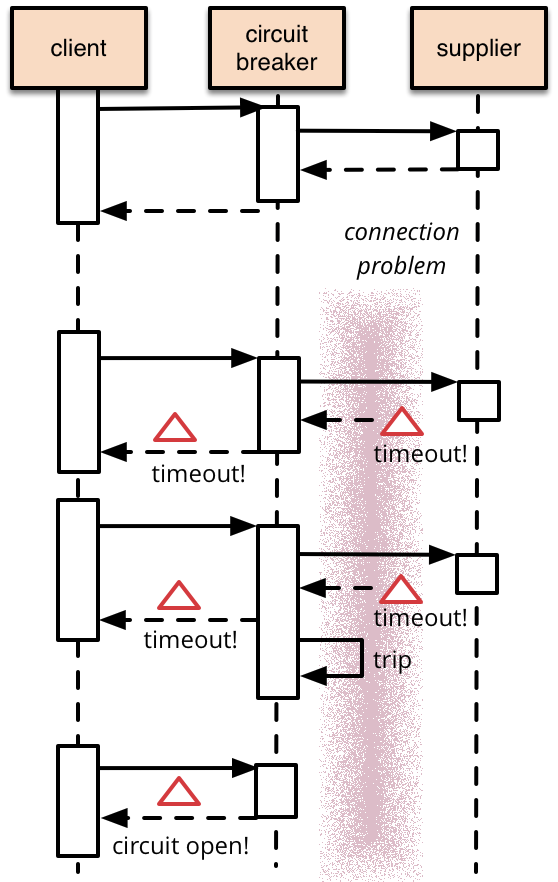

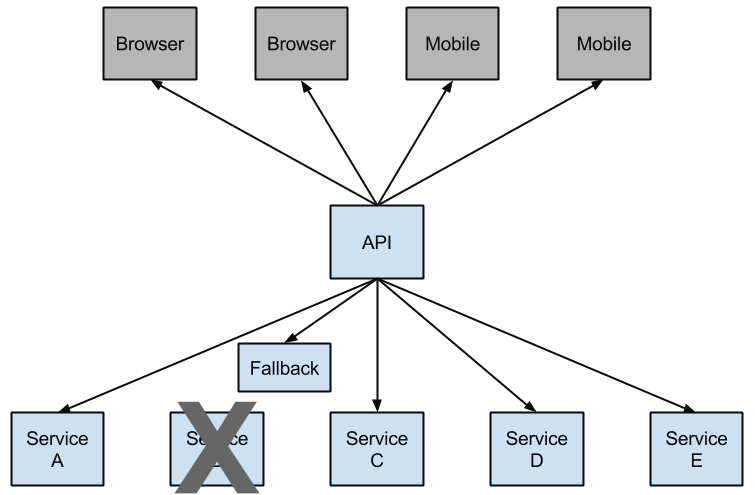

Netflix's Hystrix Circuit Breaker

Image source: https://martinfowler.com/bliki/CircuitBreaker.html

@SpringBootApplication
@EnableCircuitBreaker
public class Application {

    public static void main(String[] args) {
        new SpringApplicationBuilder(Application.class).web(true).run(args);
    }

}

@Component
public class StoreIntegration {

    @HystrixCommand(fallbackMethod = "defaultStores")
    public Object getStores(Map<String, Object> parameters) {
        //do stuff that might fail
    }

    public Object defaultStores(Map<String, Object> parameters) {
        return /* something useful */;
    }
}

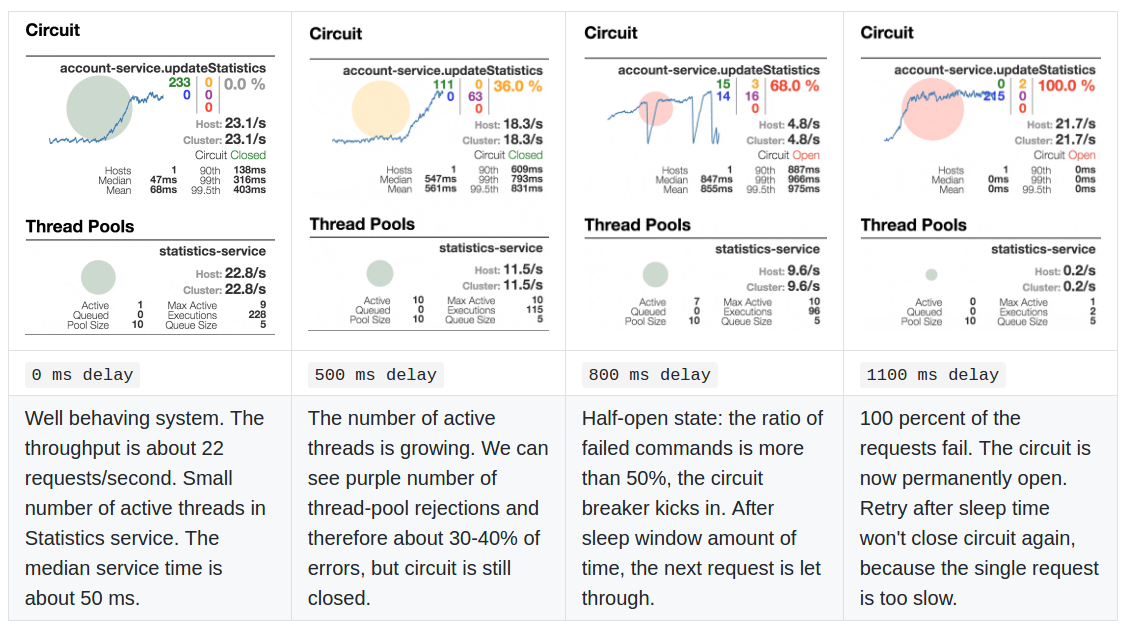

Circuit Breaker: Hystrix Dashboard

spring-cloud-starter-hystrix-dashboard

+

@EnableHystrixDashboard

Hystrix Dashboard

https://github.com/sqshq/PiggyMetrics#monitor-dashboard

Data Aggregation

• Need multiple service call in one request
• Need concurency

@RestController
public class SampleController {

  @Autowired
  private RestTemplate restTemplate;

  @PostMapping("/users")
  public User createUser(@RequestBody User user) {


    BlackList blackList =
            loadBalanced.getForObject(blackListUrl, BlackList.class);

    ValidationResult validationResult =
            loadBalanced.getForObject(tcknValidationUrl, ValidationResult.class);

    // do stuff with both objects

    return user;
  }
}

@RestController
public class SampleController {

  @Autowired
  private AsyncRestTemplate asyncRestTemplate;

  @PostMapping("/users")
  public User createUser(@RequestBody User user) {


    ListenableFuture<ResponseEntity<BlackList>> future1 = asyncRestTemplate
        .getForEntity(blackListUrl, BlackList.class);

    ListenableFuture<ResponseEntity<ValidationResult>> future2 = asyncRestTemplate
        .getForEntity(tcknValidationUrl, ValidationResult.class);

    BlackList blackList = future1.get().getBody();
    ValidationResult validationResult = future2.get().getBody();

    // do stuff with both objects

    return user;
  }
}

@RestController
public class SampleController {

  @Autowired
  private WebClient webClient;

  @PostMapping("/users")
  public Mono<User> createUser(@RequestBody User user) {

    Mono<BlackList> blackList = webClient
        .exchange(blackListRequest)
        .then(response -> response.body(toMono(User.class)));

    Mono<ValidationResult> validationResult = webClient
        .exchange(tcknValidationRequest)
        .then(response -> response.body(toMono(Account.class)));

    Mono<User> user =
            Mono.zip(values -> { /*do stuff with values[0] and values[1] */ }), user, account);

    return user;
  }
}

Image source: https://developers.redhat.com/blog/2016/12/09/spring-cloud-for-microservices-compared-to-kubernetes/

Questions?

https://slides.com/kodgemisi/microservices-javaday-2017
