A High Level Overview of Concepts in Microservice Style Architecture
Destan Sarpkaya, April 2019 selam@kodgemisi.com
Introduction to Microservices
- Yeditepe University, 2011
- Consultant at Kod Gemisi
- Java, Spring Framework
About Me
Destan Sarpkaya
- Graduate?
- Career plans?
- Microservices?
- Java?
About You
Definitions & Concepts
Microservice vs Monolith
Loosely coupled service oriented architecture with bounded contexts
Adrian Cockcroft
An approach to developing a single application as a suite of small services, each running in its own process and communicating with lightweight mechanisms, often an HTTP resource API.
Martin Fowler
Microservices ...
How Small Should a Microservice Be?
Single Responsibility Principle
Gather together those things that change for the same reason, and separate those things that change for different reasons.
Robert C. Martin
Line of Codes?
something that could be rewritten in two weeks?
The smaller the service, the more you maximize the benefits and downsides of microservice architecture.
Sam Newman
How Small Should a Microservice Be?
Unix philosophy
Do one thing and do it well.
Bounded Context

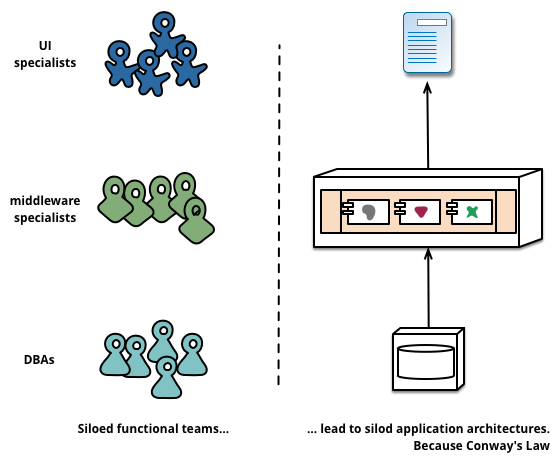

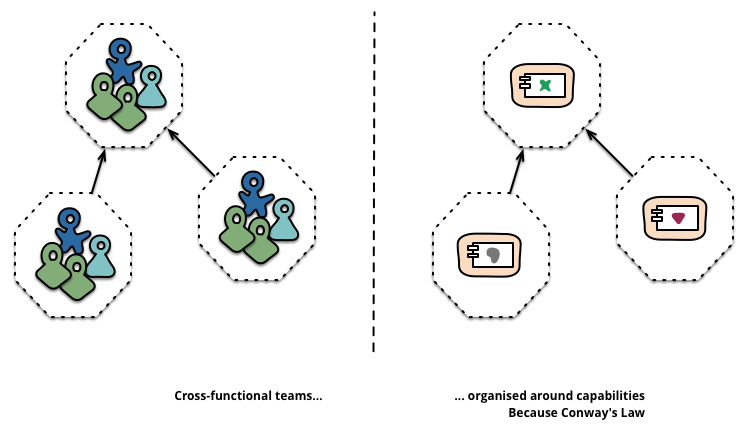

Conway's Law
Any organization that designs a system (defined broadly) will produce a design whose structure is a copy of the organization's communication structure.
Melvyn Conway, 1967
Conway's Law
Conway's Law
Principles of Microservices
intentionally lacking some in this presentation...
Teams own the product
- Products, not projects
- You built it you run it!
- Assist its users to enhance the business capability
- Personal relationships between developers and users
Hide Implementation Details
Service A
Service B
Hide Database Access!
Smart Endpoints and Dumb Pipes
Avoid Enterprise Service Bus (ESB)
which includes sophisticated facilities for:
- message routing
- choreography
- transformation
- applying business rules
Microservices:
- aim to be as decoupled and as cohesive as possible
- own their own domain logic
Autonomy
- Decentralize all the things
- Teams own the product. Remember?
- Give teams freedom to choose
Polyglot Services
Sales
<<Java>>
Web
<<Node.js>>
Support
<<.NET>>
Application

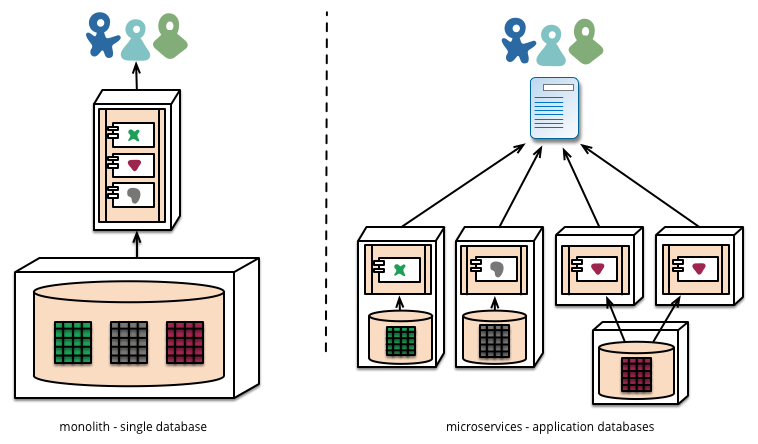

Polyglot Persistence
Culture of Automation
- Continuous Integration
- Continuous Delivery
- Infrastructure Automation

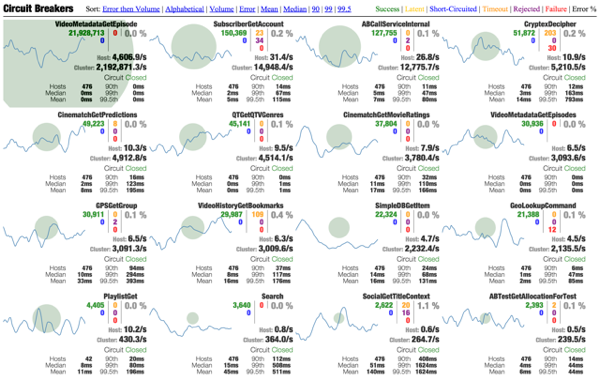

Observability

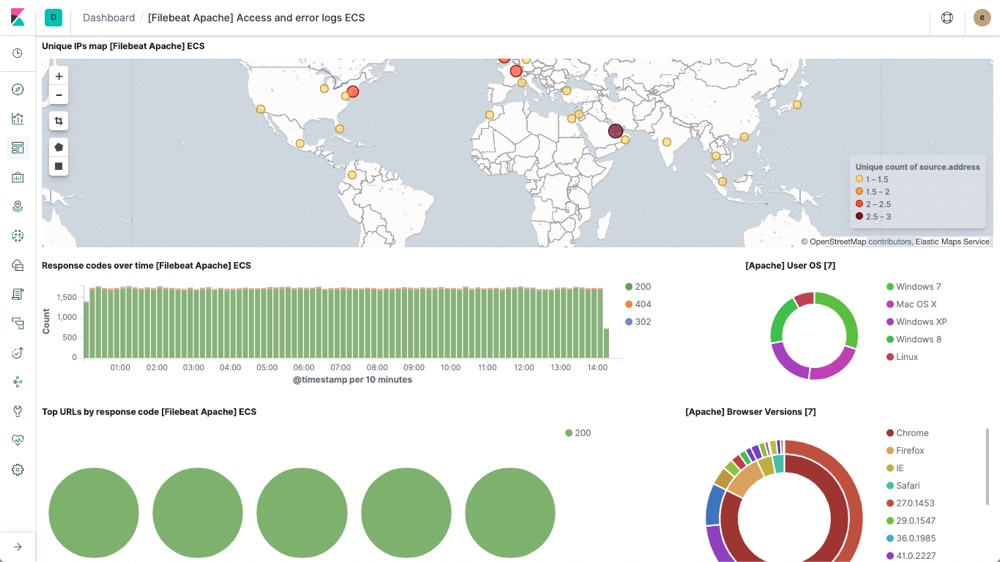

Log Aggregation
Elastic Stack (ELK): Elasticsearch, Logstash, and Kibana
Prerequisites
- Rapid provisioning
- Basic Monitoring
- Rapid application deployment
Prerequisites
Benefits

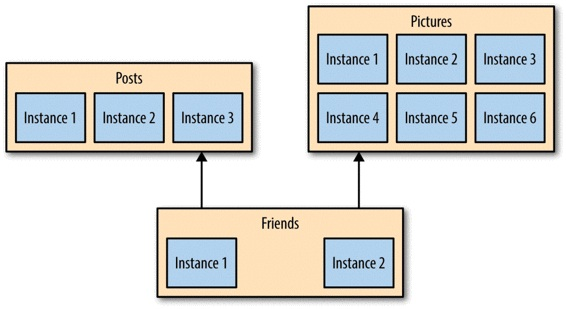

Scalability
Quick Response
- Easy to change
- Easy to fix
- Easy to re-write
- Easy to dispose!
New developers won't be afraid
Caveats
Microservice architecture is just
distributed computing
More Complex Cross-Cutting Concerns
Logging, monitoring and security are just got more complex!
Operational Complexity
- Automatic provisioning
- Continuous delivery
- Load balancing
- Monitoring
- ...
they are not free
Human Factor
- Requires cultural change
- Requires new skill set
- Communication overhead
We trade off operational complexity for development simplicity
Microservices approach just moves complexity from one point to another
The most important benefit is agility
- Decreased inertia
- Increased responsiveness
