Lesson 3: Layout
Layout
# 3
Layout w/ HTML & CSS
What kind of site can we build with our beginner tags?
Video Walkthrough
Audio Walkthrough

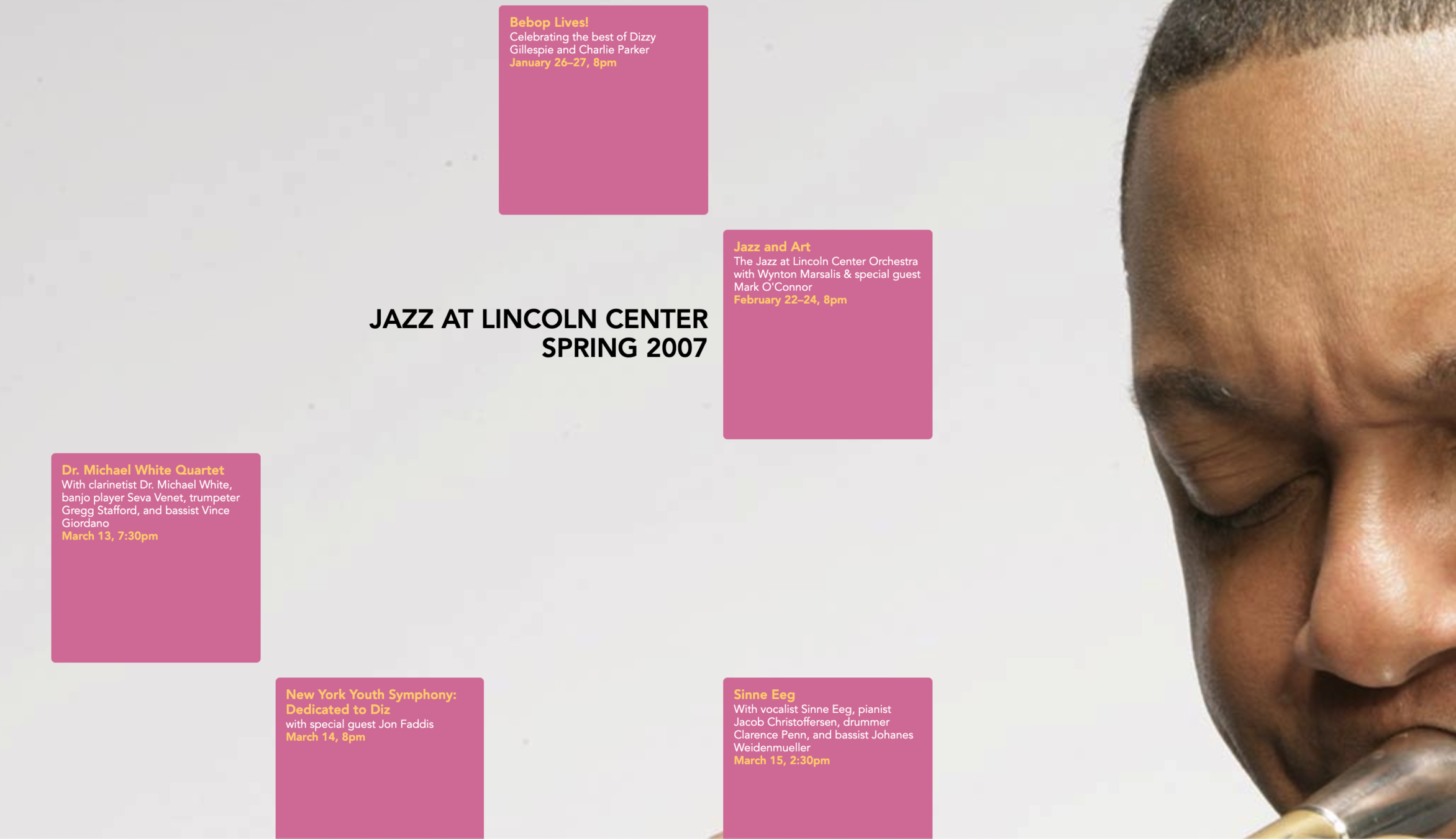

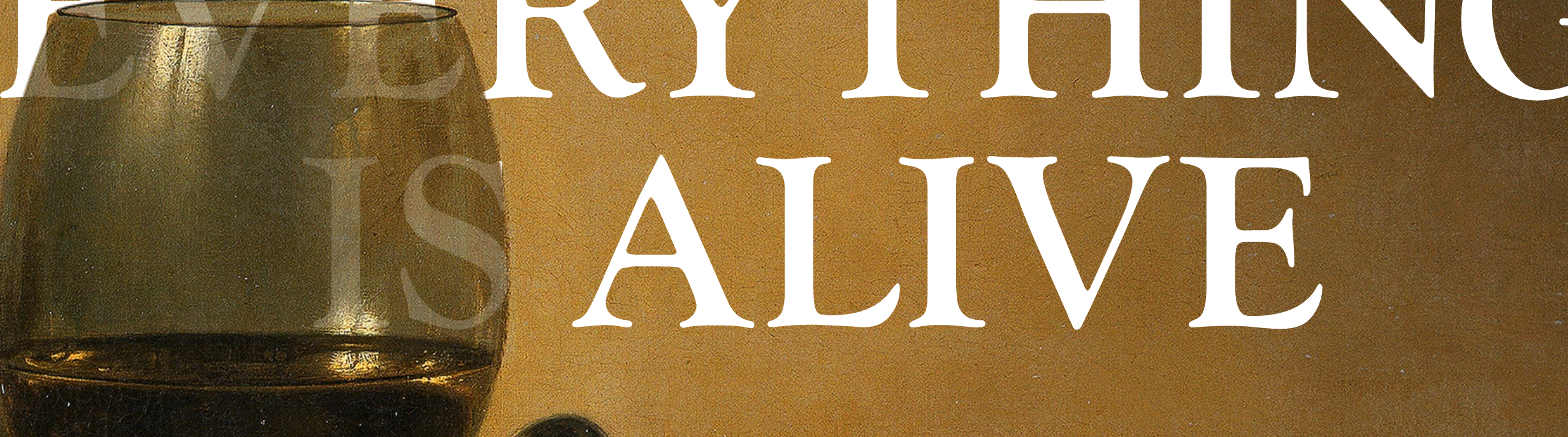

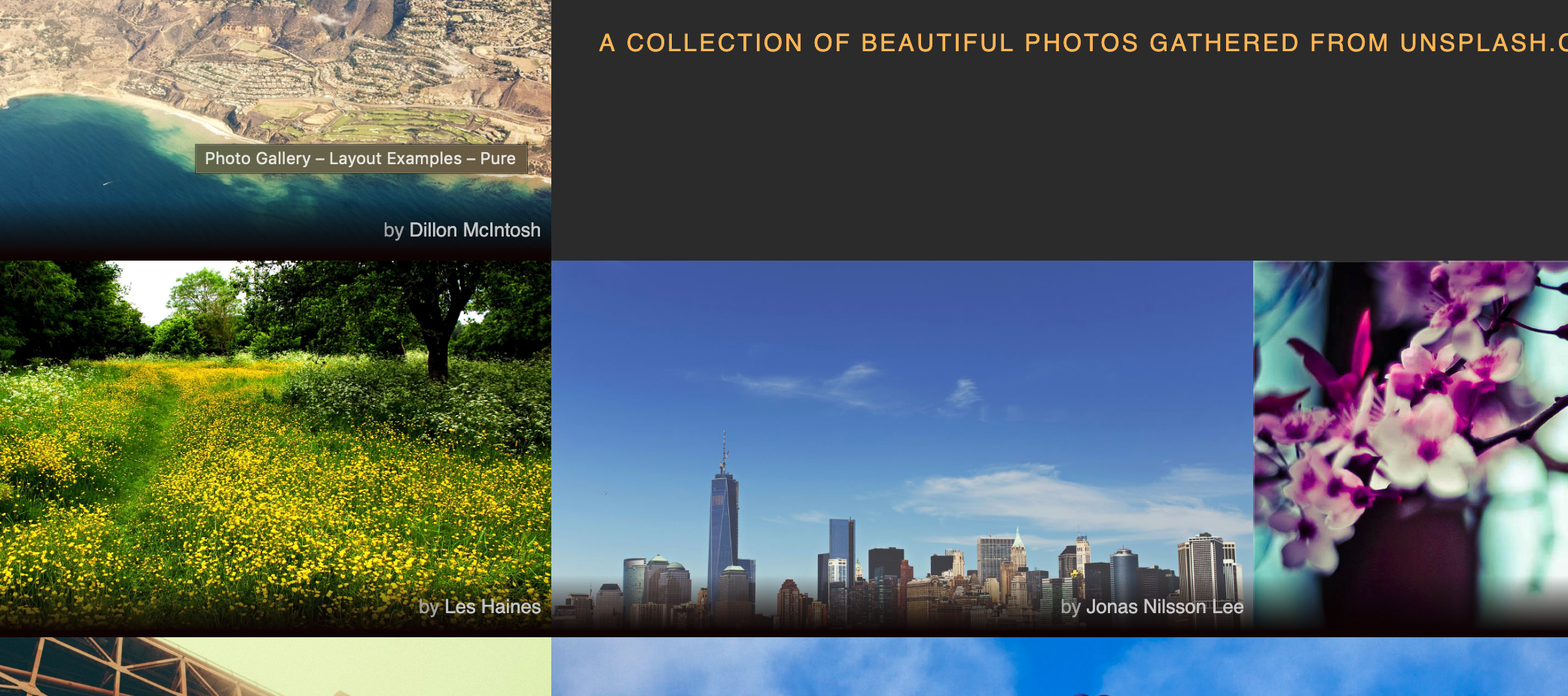

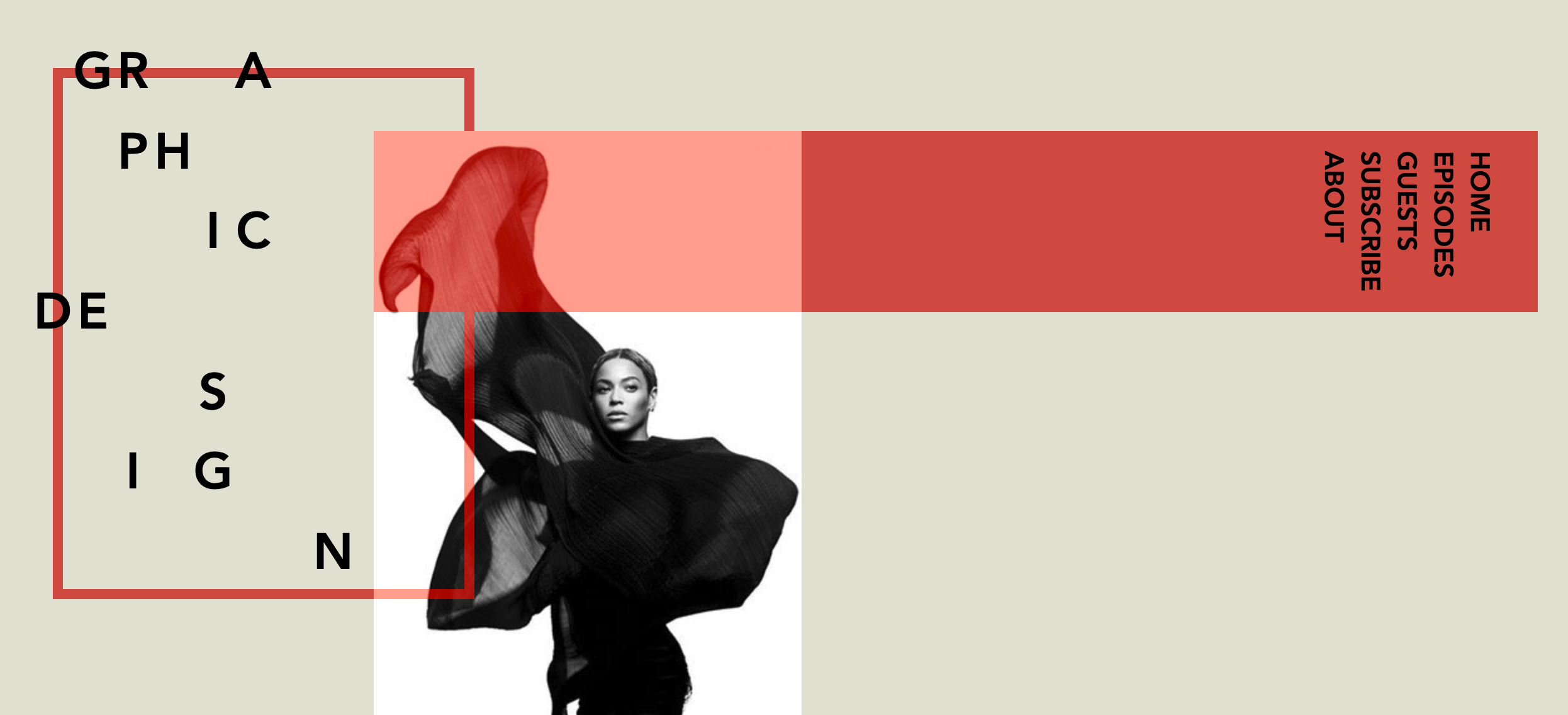

More Complicated Layouts

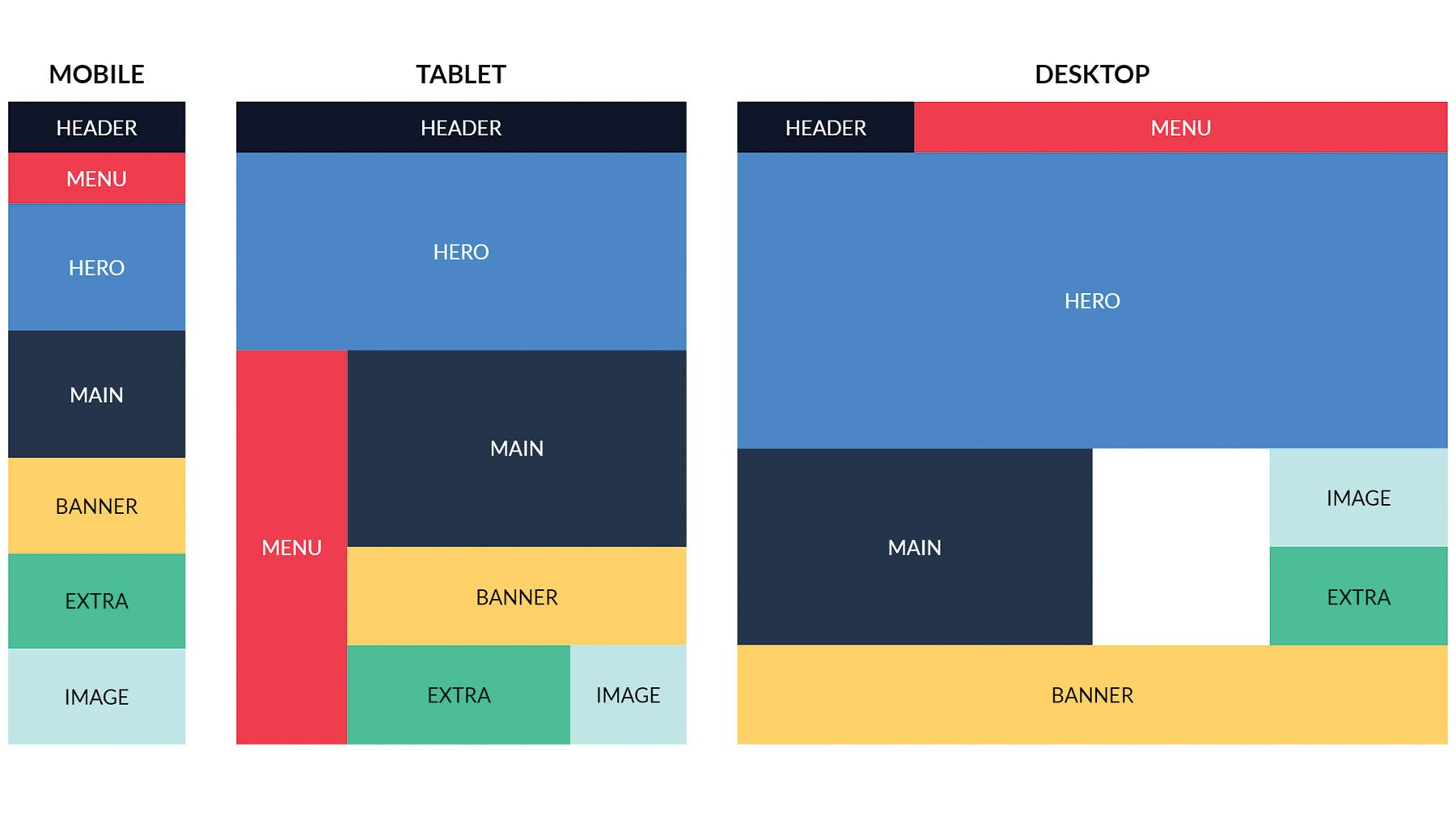

Mobile First
Creating a Layout
Non Semantic
Video Walkthrough
Audio Walkthrough

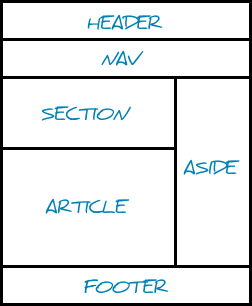

Creating a Layout
Semantic
Video Walkthrough
Audio Walkthrough
Parent Child in HTML
<div> <!-- the PARENT -->
<p>This is the first child</p>
<p>This is the second child</p>
<p>This is the third child</p>
<p>This is the fourth child</p>
<h2>This is the fifth child</p>
</div>
<div> <!-- the PARENT -->
<p>This is the first child</p>
<p>This is the second child</p>
<div> <!-- This div is the third child -->
<p>This is the first grandchild</p>
<p>This is the second grandchild</p>
</div>
</div>
<div> <!-- the PARENT -->
<div class="main-container">
<div class="left-of-screen">
<p> this is main content</p>
</div>
<div class="right-of-screen">
<p>this is sidebar content</p>
</div>
</div>
</div>parent <div> tag
child <p> tag
child <p> tag
child <p> tag
child <p> tag
child <h2> tag
parent <div> tag
child <p> tag
child <p> tag
child <div> tag
grandchild <p> tag
grandchild <p> tag
Video Walkthrough
Audio Walkthrough
<div>
<p>Content</p>
<div>
<p>etc</p>
</div>
</div>The div tag acts as a container for other elements. It is often used to house groups of elements together, this way you can write styles and target them to specific content on the page.
The Div Tag
Video Walkthrough
Audio Walkthrough
Using Divs
Challenge # 1
Creating a <div> tag

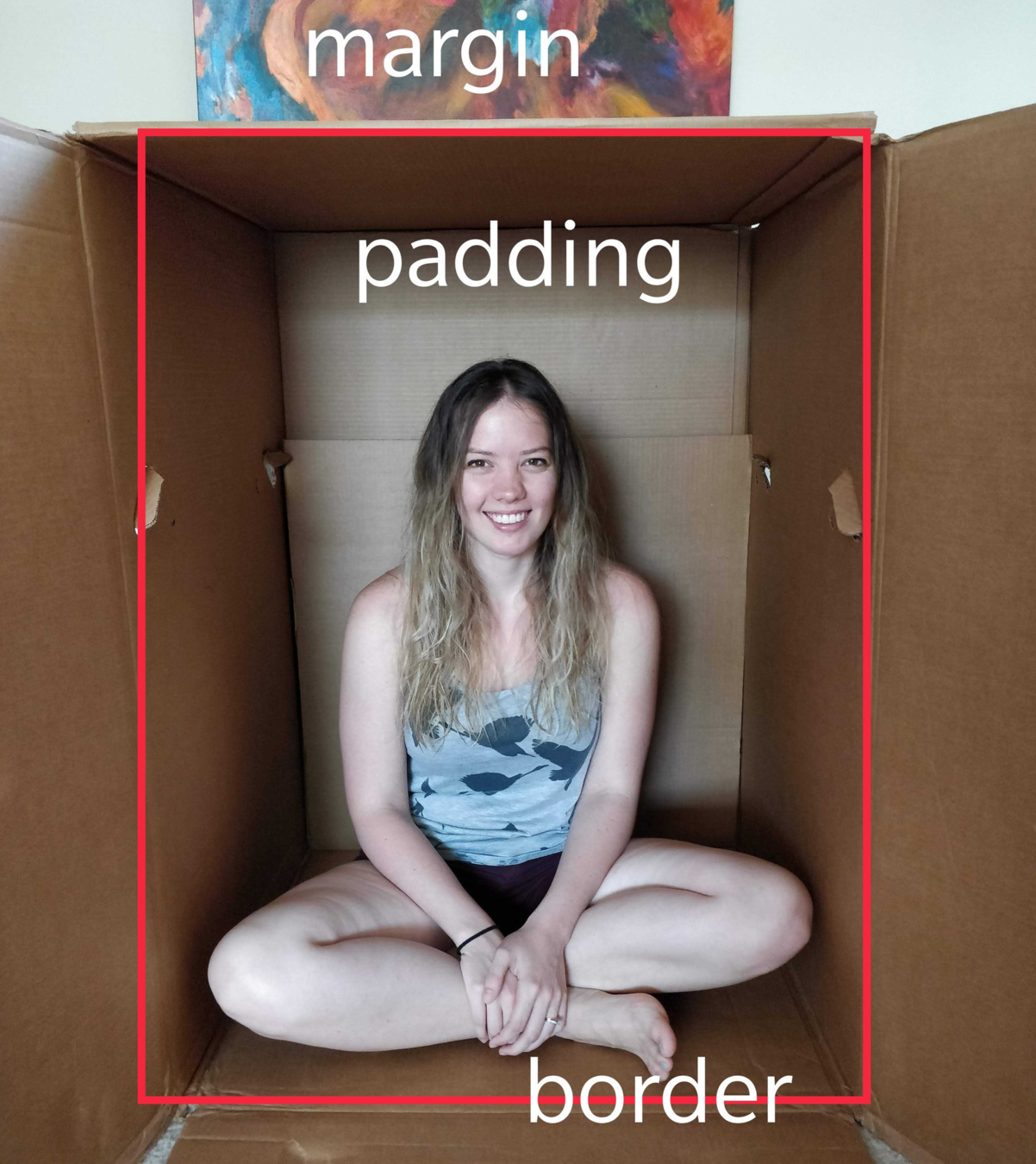

The Box Model
margin => Area outside the element
border => Surrounds the content, outside the padding, before margin.
padding => Area within the element

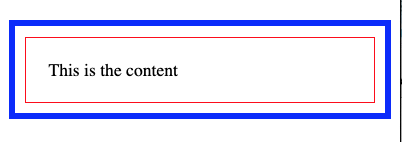

<div>
<p>This is the content</p>
</div>
p{
margin:10px;
padding: 20px;
border:solid red 1px;
}
div{
border:solid 5px blue;
}
Adding Padding

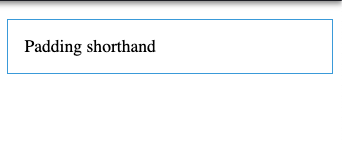

<div>
<p>Padding shorthand</p>
</div>div p{
border:solid #3498db 1px;
padding:15px;
}<div>

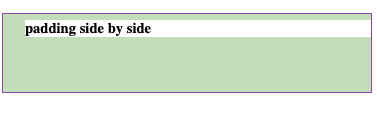

<p>Padding each side</p>
</div>div p{
border:solid #3498db 1px;
padding-top:5px;
padding-left:20px;
padding-bottom:50px;
padding-right:0px;
}
padding:10px;
padding-top:10px;
padding-left:10px;
padding-bottom:10px;
padding-right:10px;
How to use
Adding Margin

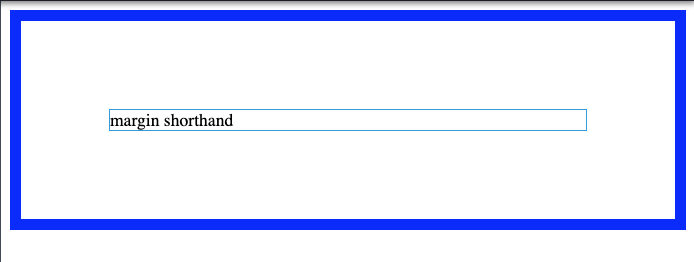

<div>
<p>margin shorthand</p>
</div>body{
border:solid blue 10px;
}
div p{
border:solid #3498db 1px;
margin:80px;

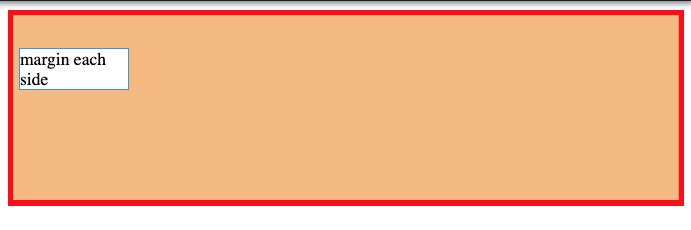

}<div>
<p>Margin each side</p>
</div>div p{
border:solid #3498db 1px;
margin-top:20px;
margin-left:5px;
margin-bottom:200px;
margin-right:1000px;
}margin:10px;
margin-top:10px;
margin-left:10px;
margin-bottom:10px;
margin-right:10px;How to use
Padding & Margin in Action
Challenge #2

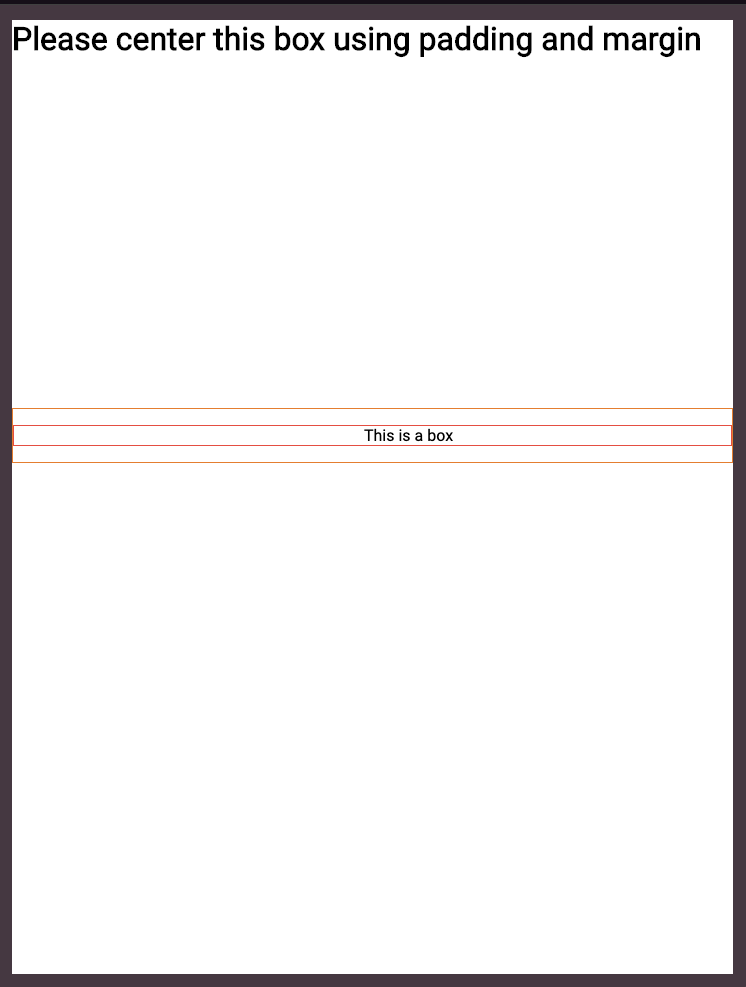

Centering a box
The Goal
Please center the box using only padding and margin
Contact Info
The next slide will be the last slide :)
