Short trip to front-end
1. HTML & CSS fundamentals
Anne Collet & Boris Rorsvort
by night
workshop Outline
- Theoretical intro
- Free tools setup
- Live-code demo (we code, you don't)
- Your turn (you code, we don't)
Ask for help when needed & have fun!
setup free Tools
to build a website :
- Install Google Chrome (web browser)
- Install Sublime Text 3 (text editor)
- Create an account on GitHub
- Deploy your website on GitHub Pages
working with sublime
- On your desktop, create a folder named my_first_website
- Open Sublime Text and a new black window will be displayed

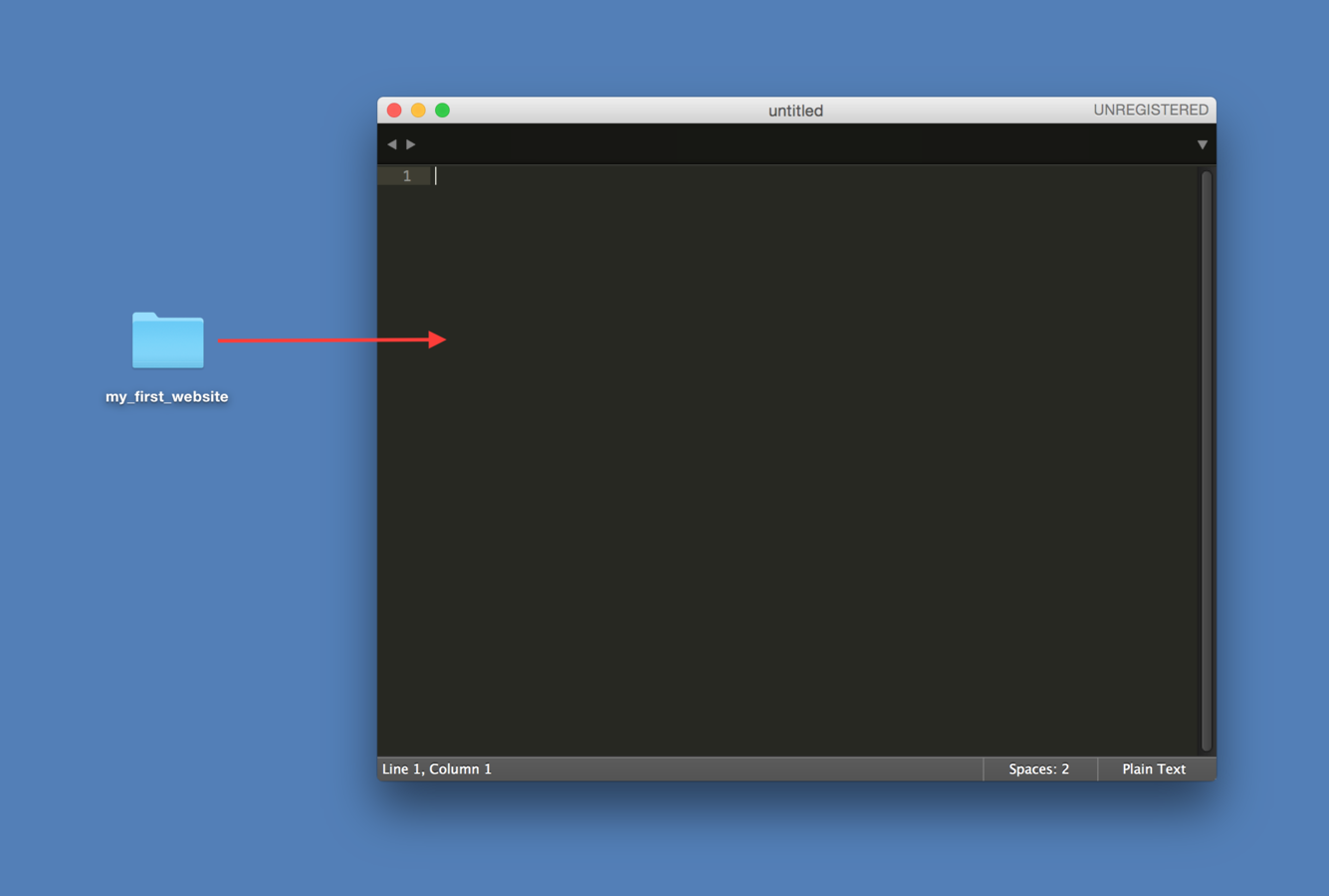

- Drag & drop my_first_website folder into the SublimeText window
your first website
- In SublimeText, right-click on my_first_website folder
- Add a new HTML file named index.html
- Add a new CSS file named style.css
- Open your HTML file in the browser
- Now don't move! You're ready to code!
The Technologies
behind any website
The Web
(= the world wide web idea and its protocol HTTP,
both invented by Tim Berners-Lee in 1989 to
"surf" from one document to another one
by clicking on a hyperlink )
is a just one of the many services...
... relying on the Internet infrastructure
(= INTERconnected NETworks)
( = a serie of interconnected servers/computers,
respecting 2 protocols (TCP & IP), invented in 1964
by 2 guys (Vint Cerf & Bob Kahn), working for a research center
of the American army in order to get a decentralized information system)
http Request/ http response
static website
(aka site vitrine)
+ browser
http Request/ http response
dynamic website
(aka web application)
+ browser
Page built
on the Client-side
( = the front-end part )
Front-end languages
content (-> SEO)
+ structure
style / appearance
dynamic behaviour
+ animation
+ usability
HTML is a markup language.
It structures the content of a web page.
In order to design and animate its elements,
we have to tag them first!
html skeleton
<!DOCTYPE html>
<!-- end of file -->html skeleton
<!DOCTYPE html>
<html>
<!-- your content (text, images,...)
and all the other html tags
to structure this content goes here -->
</html>
<!-- end of file -->html skeleton
<!DOCTYPE html>
<html>
<head>
<!-- intelligence (meta-data) -->
</head>
<body>
<!-- stuff to be displayed on your web page -->
</body>
</html>
<!-- end of file -->html skeleton
<!DOCTYPE html>
<html>
<head>
<title>Hello world</title>
<!-- text appearing in the tab + used by Google in its search results -->
<meta charset="utf-8"/>
<!-- to display properly the special characters -->
</head>
<body>
<!-- stuff to display in the page -->
</body>
</html>
<!-- end of file -->html skeleton
<!DOCTYPE html>
<html>
<head>
<title>Hello world</title>
<!-- Text appearing in the tab + used by Google in its search results -->
<meta charset="utf-8"/>
<!-- To display properly the special characters -->
</head>
<body>
<h1>Hello buddies!</h1>
<!-- Stuff to display in the page -->
</body>
</html>
<!-- end of file -->html syntax
<element_name attribute_name="attribute_value">element_content</element_name>
opening tag
closing tag
-------------------------------------------
---------------

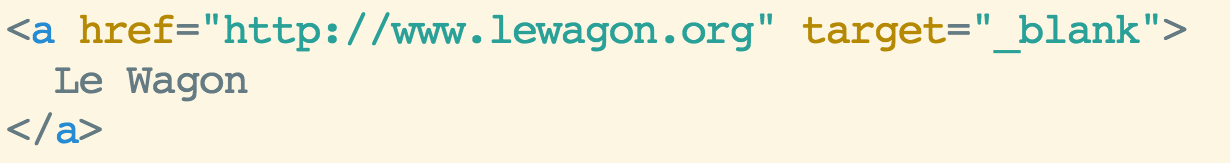

html syntax
result => Le Wagon
QUIZZ:
- What is the element name?
- What is the element content?
- What are the 2 attributes (name and value)?
html elements
<h1>[...]</h1> <!-- Only one per page! SEO important -->
<h2>[...]</h2>
<h3>[...]</h3>
<h4>[...]</h4>
<h5>[...]</h5>
<h6>[...]</h6>titles
html elements
<p>
Lorem ipsum dolor sit amet, consectetur adipisicing elit.
Veritatis laboriosam mollitia autem at ab omnis iure quis
asperiores inventore eos nam aut iusto officiis deserunt
nihil, sequi tempore impedit quae?
</p>paragraphs
html elements
<h2>Shopping List</h2>
<ul>
<li>Milk</li>
<li>Butter</li>
</ul>
<h2>World Cup 2014</h2>
<ol>
<li>Germany</li>
<li>Argentina</li>
<li>Netherlands</li>
<li>Brazil</li>
</ol>lists
html elements
<img src="logo.png" alt="Le Wagon logo"/>images
html elements
<a href="http://www.lewagon.org" target="_blank">Le Wagon</a>links
html elements
<form name="input" action="/subscribe" method="post">
input elements
</form>forms
html elements
<form name="input" action="/subscribe" method="post">
Username: <input type="text" name="firstname">
</form>input - type: text
html elements
<form name="input" action="/subscribe" method="post">
Username: <input type="text" name="firstname"><br>
<input type="radio" name="sex" value="male">Male<br>
<input type="radio" name="sex" value="female">Female
</form>input - type: radio
html elements
<form name="input" action="/subscribe" method="post">
Username: <input type="text" name="firstname"><br>
<input type="radio" name="sex" value="male">Male<br>
<input type="radio" name="sex" value="female">Female<br>
<input type="checkbox" name="vehicle" value="Bike">I have a bike<br>
<input type="checkbox" name="vehicle" value="Car">I have a car
</form>input - type: checkbox
html elements
<form name="input" action="/subscribe" method="post">
Username: <input type="text" name="firstname"><br>
<input type="radio" name="sex" value="male">Male<br>
<input type="radio" name="sex" value="female">Female<br>
<input type="checkbox" name="vehicle" value="Bike">I have a bike<br>
<input type="checkbox" name="vehicle" value="Car">I have a car<br>
<input type="submit" value="Submit">
</form>input - type: submit
we need to configure a server
on the back-end side of our website
to receive and store these user inputs
html elements
resources
CSS is used to add some style properties
to specific & properly selected HTML elements
css power
What would this website surfingla.fr look like without any CSS ?
css power
Well, let's neutralise the CSS by deleting the head of the HTML document in the browser inspector!
css power
Here is the result ! Quite different, isn't it ? ; )
css link
For your CSS stylesheet to be taken into account, you need to
add a link to it in the head of the HTML document

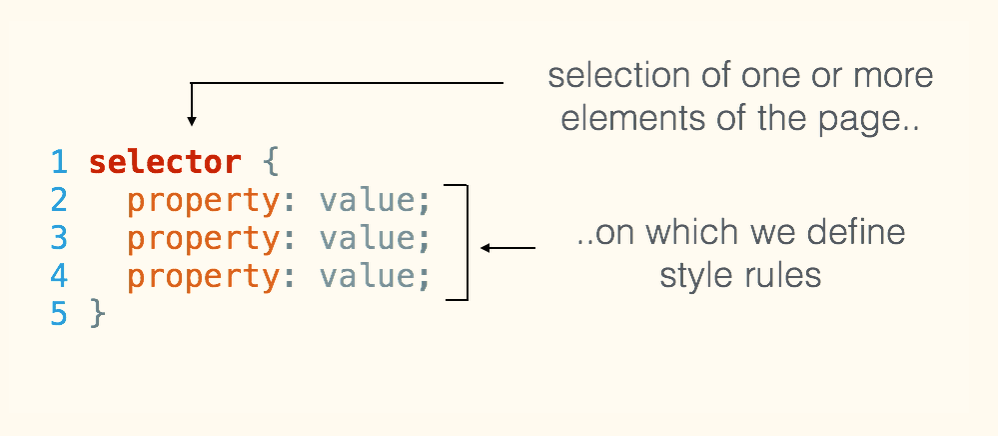

css syntax
css syntax
css syntax
css properties
/* syntax 1 : color name in English */
body {
color: orange;
}color
css properties
/* syntax 2 : hexadecimal color reference */
body {
color: #FFA500;
}color
css properties

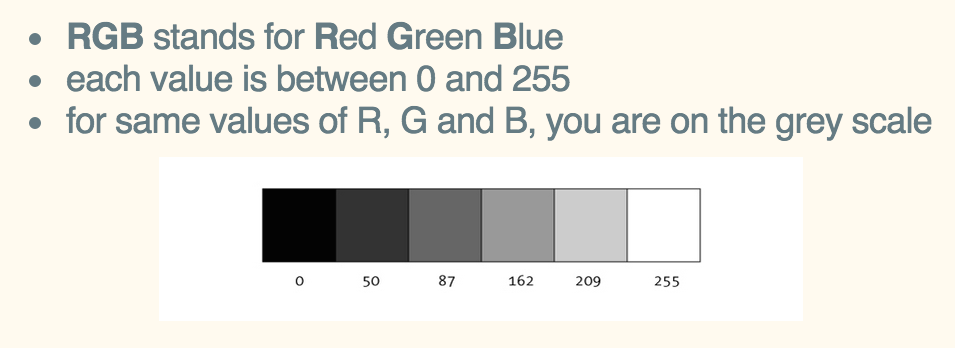

/* syntax 3-a : RGB color reference */
body {
color: rgb(255, 165, 0);
}color
css properties
/* syntax 3-b : RGBA color & opacity reference */
body {
color: rgba(255, 165, 0, 0.8);
}color
RGBA has a 4th parameter: opacity
(which may vary between 0 and 1)
css properties
color tools
- Choose a good color scheme with Adobe Color CC
- Add & use the ColorZilla plug-in to pick nice colors on-the-fly
- A nice tool to help you to select your colors: material palette

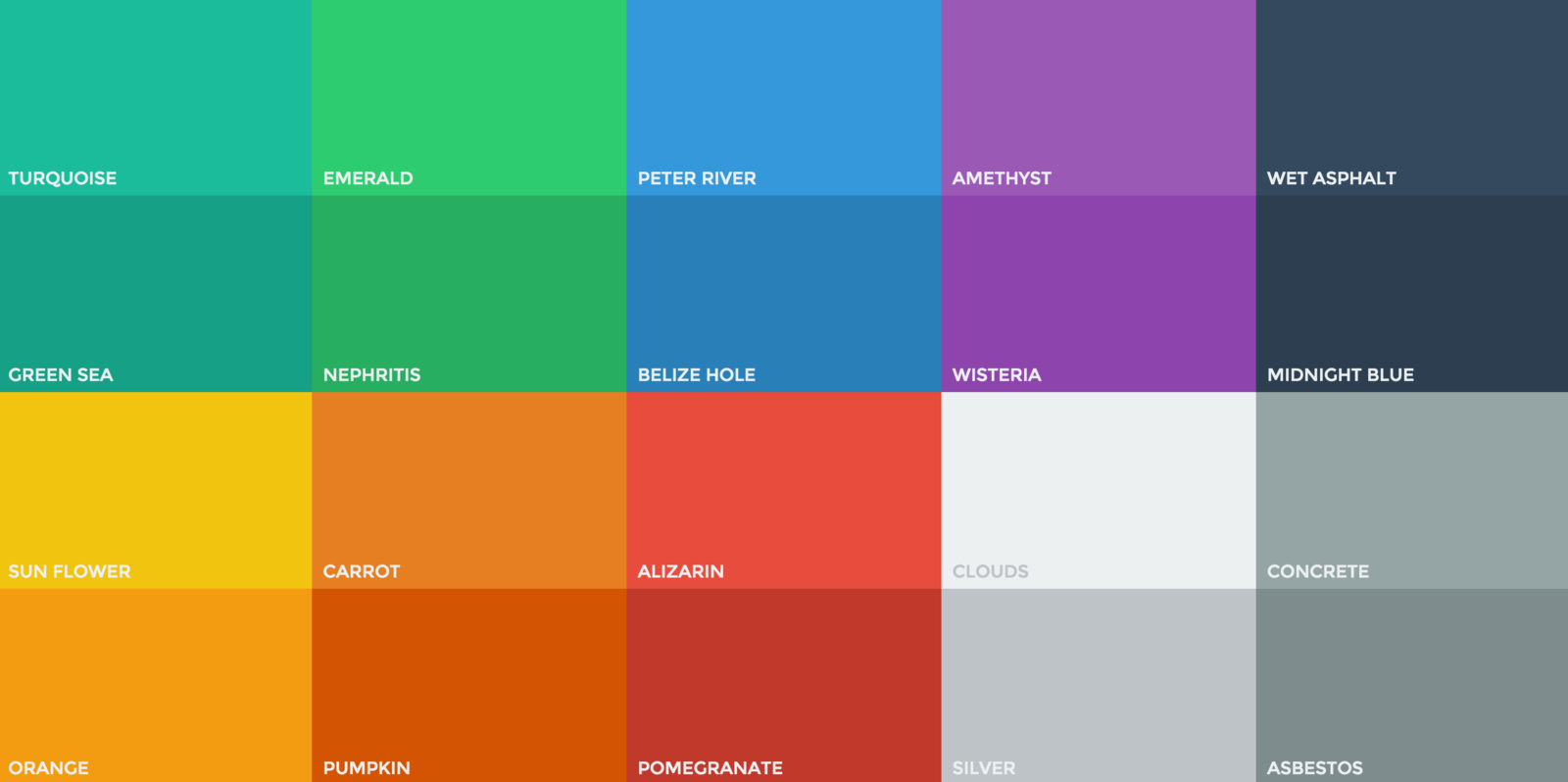

- You can pick them among the trendy flat colors :)
css properties

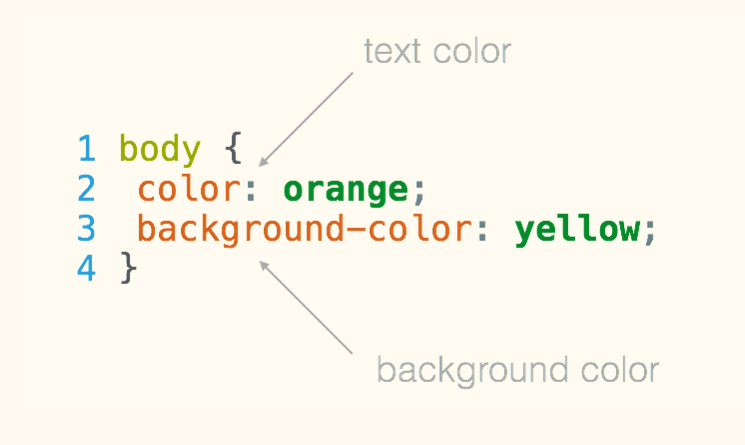

text color vs
background color
css properties
background image
css properties

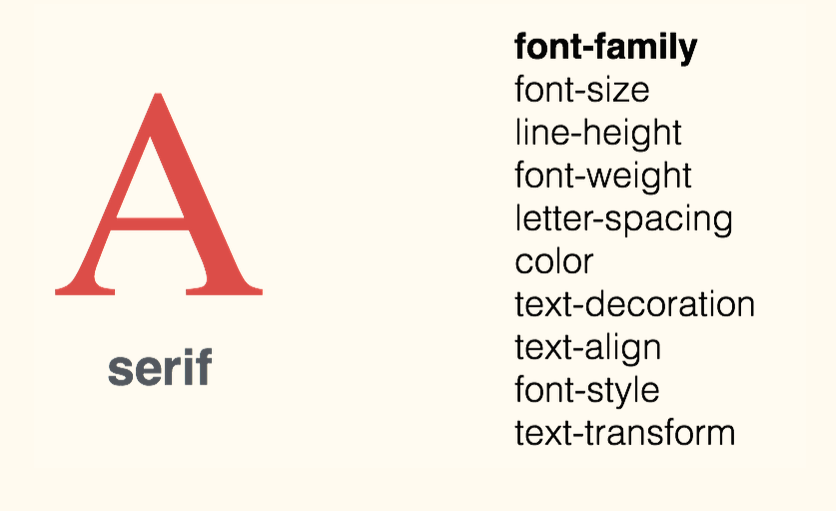

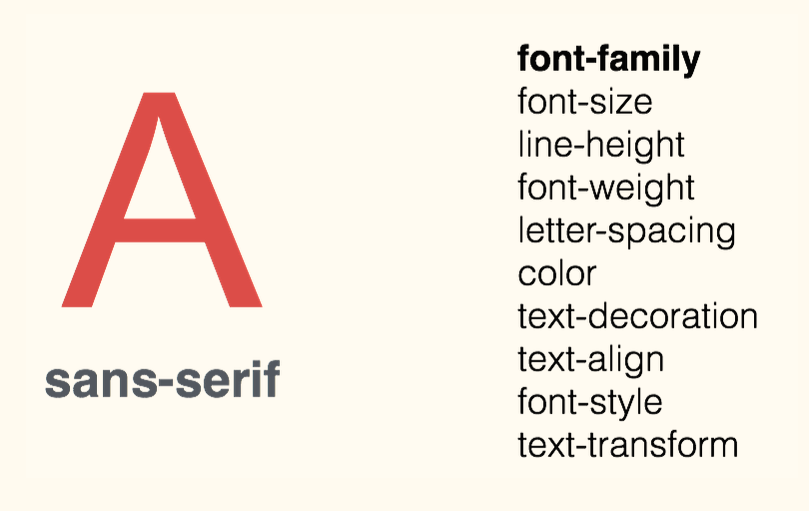

fonts - family (1)
css properties

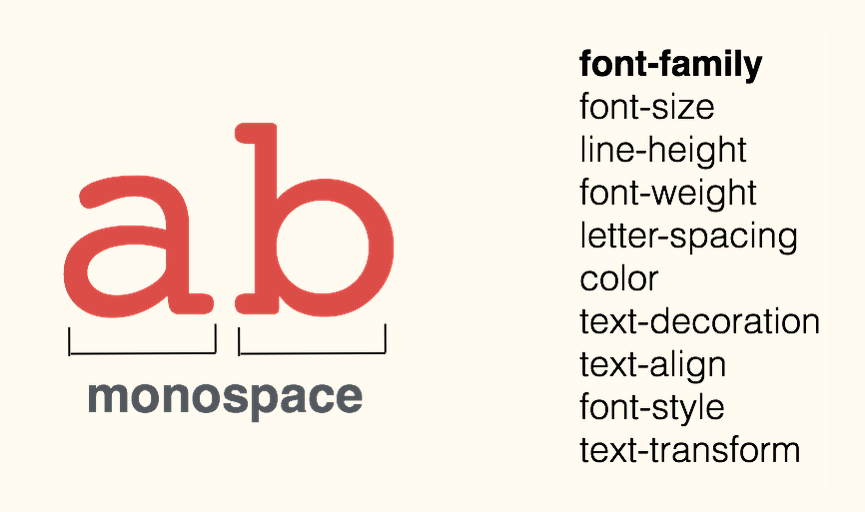

fonts - family (2)
css properties
fonts - family (3)
css properties

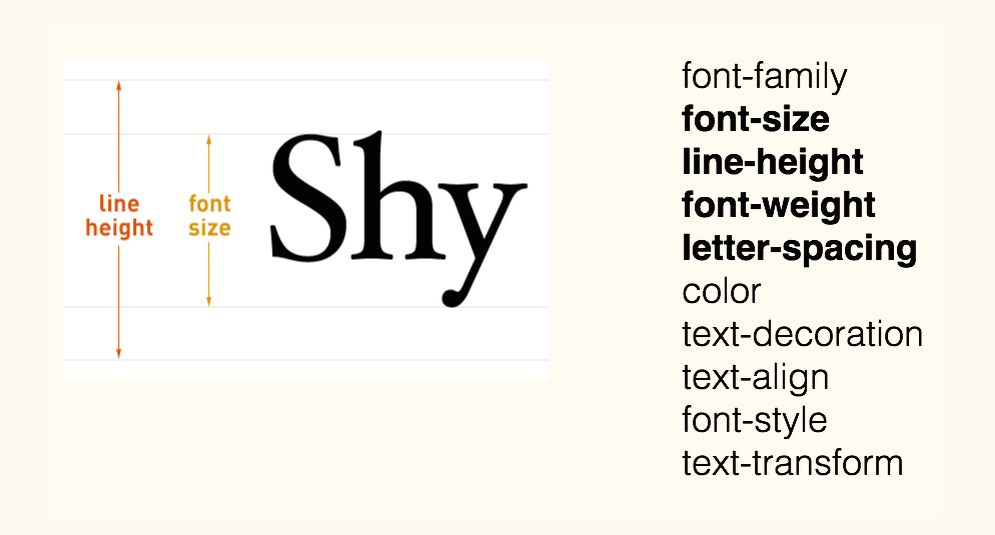

fonts - size & spacing
css properties

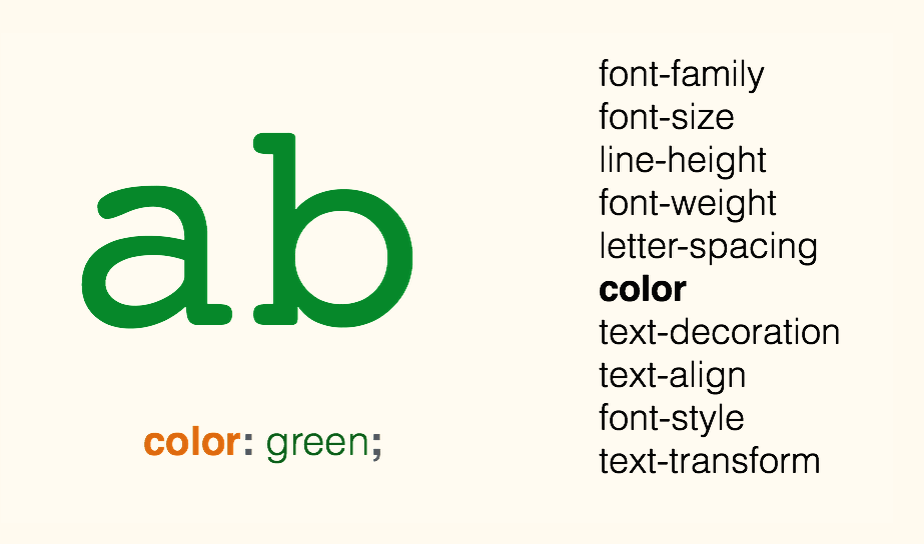

fonts - color
css properties

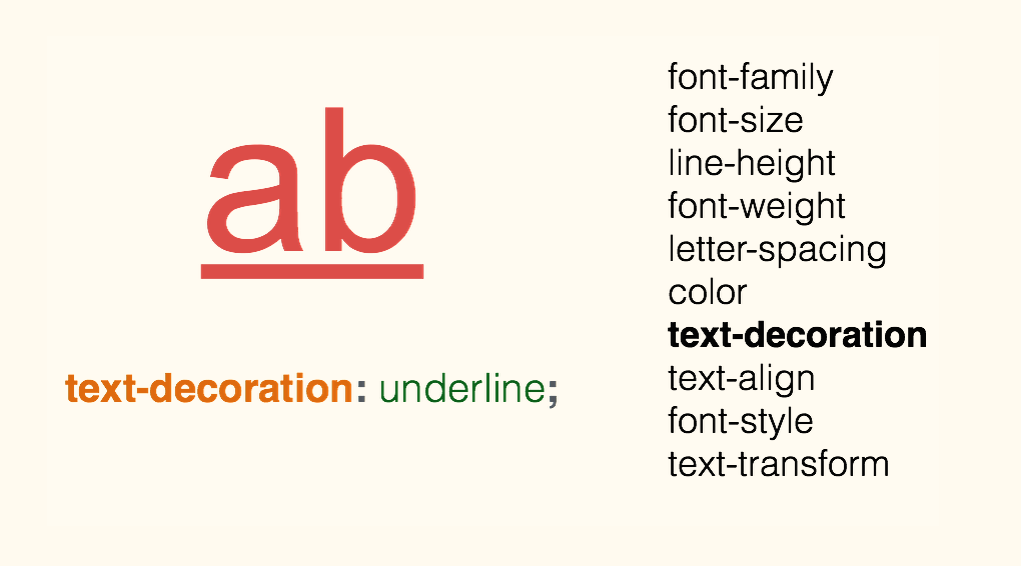

fonts - decoration
css properties

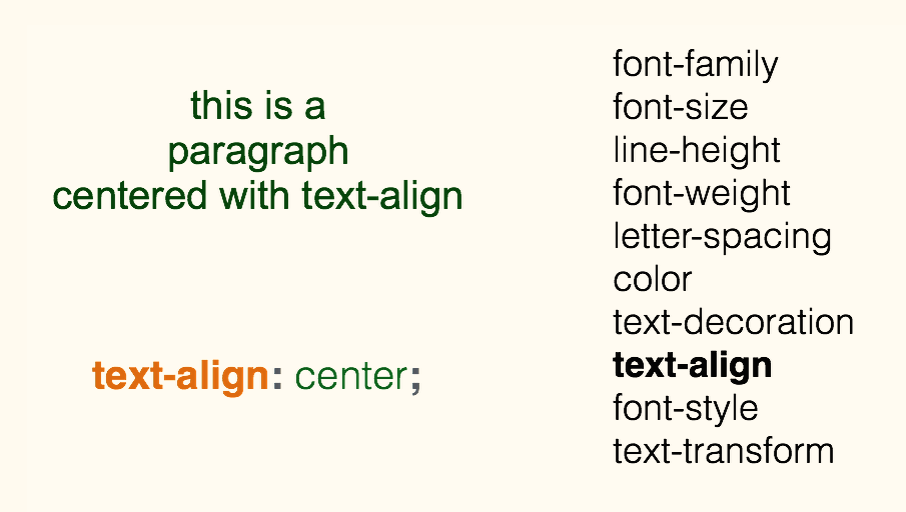

fonts - alignment
css properties
fonts tools
- Choose nice free fonts with Google Fonts
- You can identify any web font with the Fontface Ninja (or WhatFont) plugin
- Good practices: 3 fonts max per website/webpage
- Use sans-serif fonts (such as, Open-Sans for basic text, PillsGothic for h1, h2, Museo-Slab for secondary titles (h3, h4))
icons resources
<link
rel="stylesheet"
href="https://maxcdn.bootstrapcdn.com/font-awesome/4.4.0/css/font-awesome.min.css">textual icons
- A font for icons (hence, to change their color, size, etc. => use CSS!)
- Paste the following code into the <head> section of your HTML file
- Then choose icons from the Font Awesome set

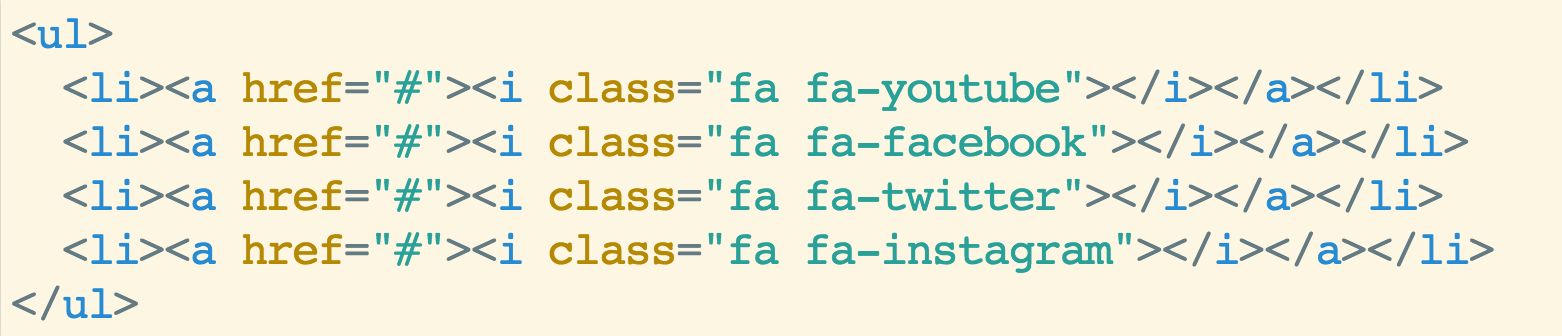

- And integrate each of them in your html file, where you want each of them to be displayed, by adding the <i>...</i> tag provided by Font Awesome
<h1><i class="fa fa-cutlery"></i> MY RESTAURANT</h1>icons resources
graphical icons
You can get these icons both in :
- PNG format = with a transparent background
- SVG format = perfectly resizable and customisable!
Pictures resources
Be careful about the picture/file's size :
too small, it will be blurred;
too big, it will slow down your page load!
=> to compress your pictures: ImageOptim
Select your pictures according to specific criteria (free of rights, landscape, min width 1024 px,...) :
css properties

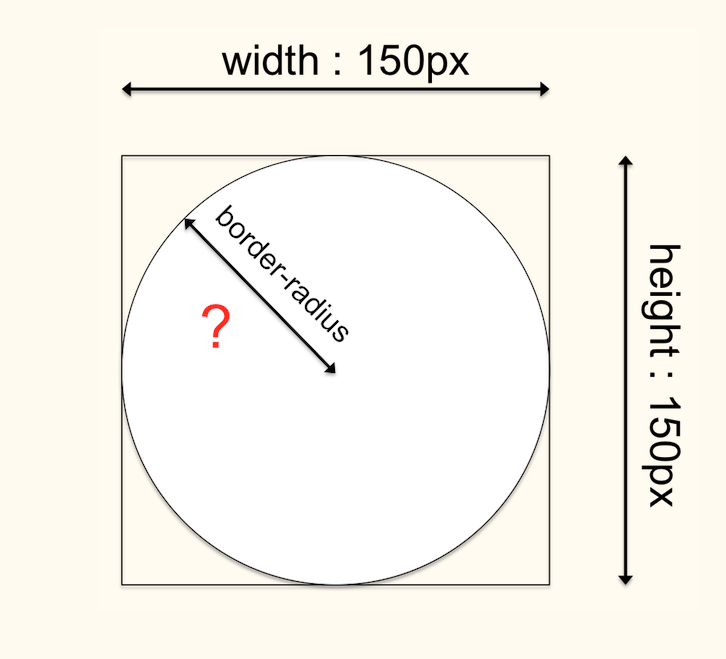

picture size & shape
Play with HTML elements & CSS properties !
coding is about practice
- Change the colors, background, sizes and radius
- Add a new Google font to all the texts of your body
- Add another Google font of your choice for your titles
- Make live-experiments on your CSS using Chrome dev tool
html elements
divisions and box model
Any modern website...
html elements
... is made of <div>
divisions and box model
html elements
=> structure your HTML code with <div> elements,
to group all the contents that fits together
divisions and box model
css properties
the box model
CSS PROPERTIES
the box model
CSS PROPERTIES
syntax and shorcuts
css properties
div{
border-top: 1px solid red;
border-right: 2px dotted black;
border-bottom: 1px dashed green;
border-left: 2px dotted black;
}borders
divisions and box model
div{
background: white;
border: 1px solid lightgrey;
padding: 20px;
margin: 30px;
}you can make the box structure more visible
by adding some CSS rules on this <div>
css properties
id and class
Name your html tags
To add some style only to :
- a specific unique html element, use the id attribute
- a specific set of html elements, use the class attribute
id and class
Name your html tags

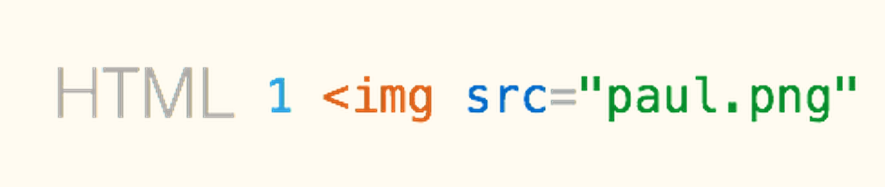

in your HTML file
id and class
Name your html tags
1 #logo {
2 width: 30%;
3 }
4
5 .staff {
6 border-radius: 50%;
7 }in your CSS file
id and class
Name your html tags
example
Now let's build your website !

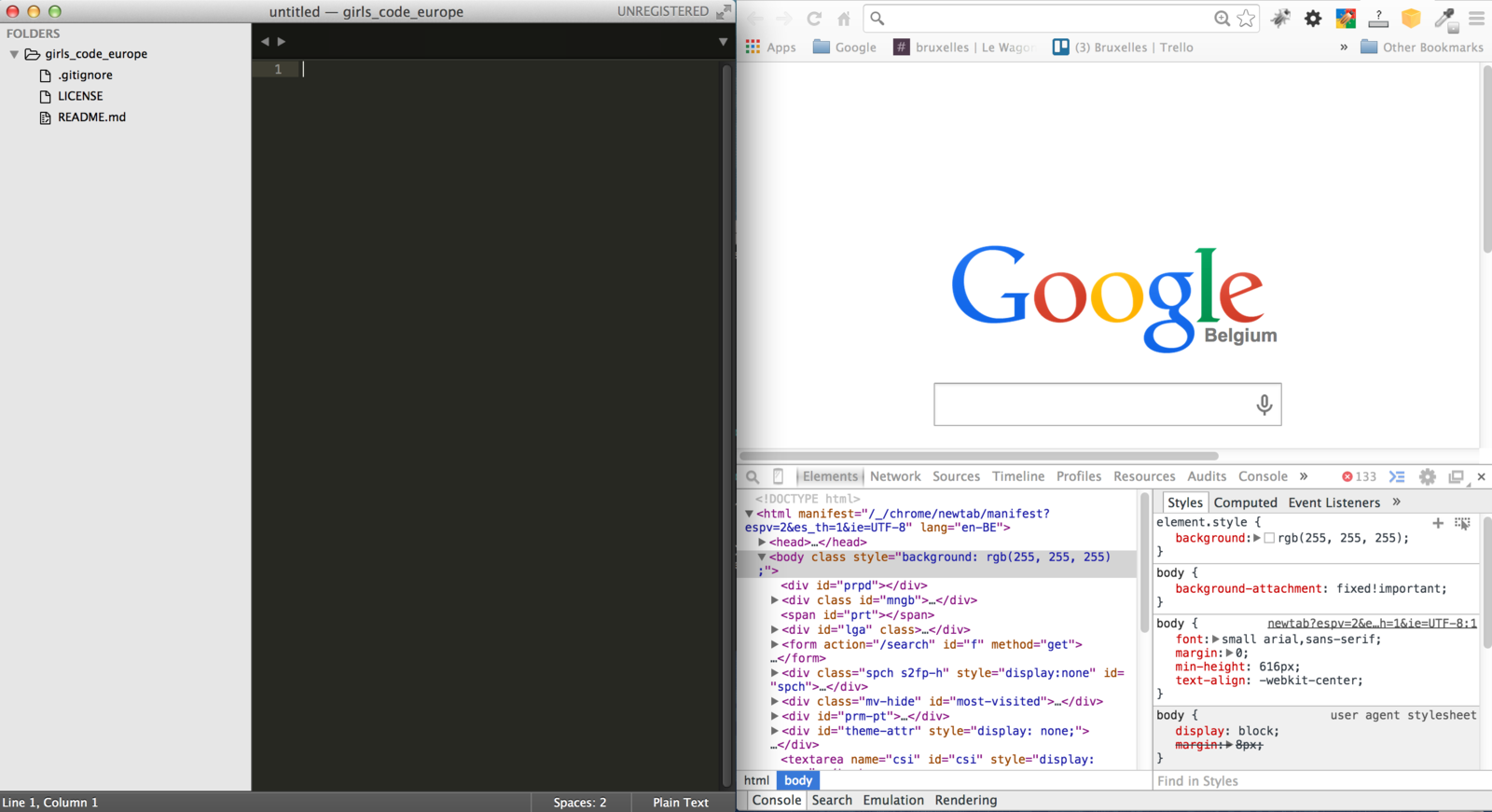

Prerequisites : dev' tool belt
text editor
Sublime Text 3
to work efficiently
browser
+ dev' tools plug-in
Google Chrome
opened
simultanuously
on your screen
Thank you.
See you soon !
Le Wagon by Night
By Le Wagon Brussels
Le Wagon by Night
HTML & CSS fundamentals
