Future of Project Management Education and Research
Dr. Ling Ma
@ University of Huddersfield
-
What to teach?
-
What to research?

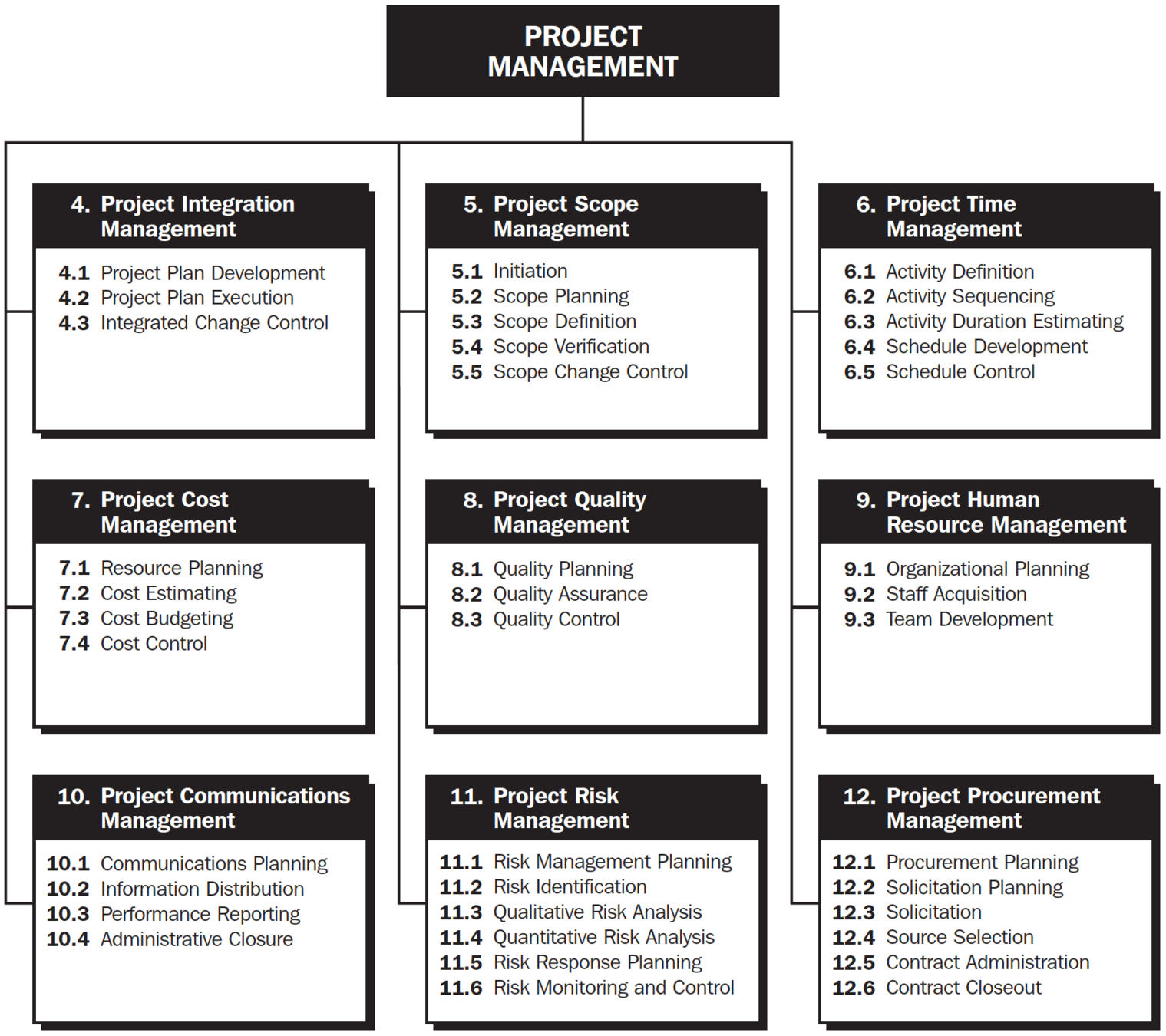

What to teach?
BOT, PPP, etc.
Lean construction
Location-based planning

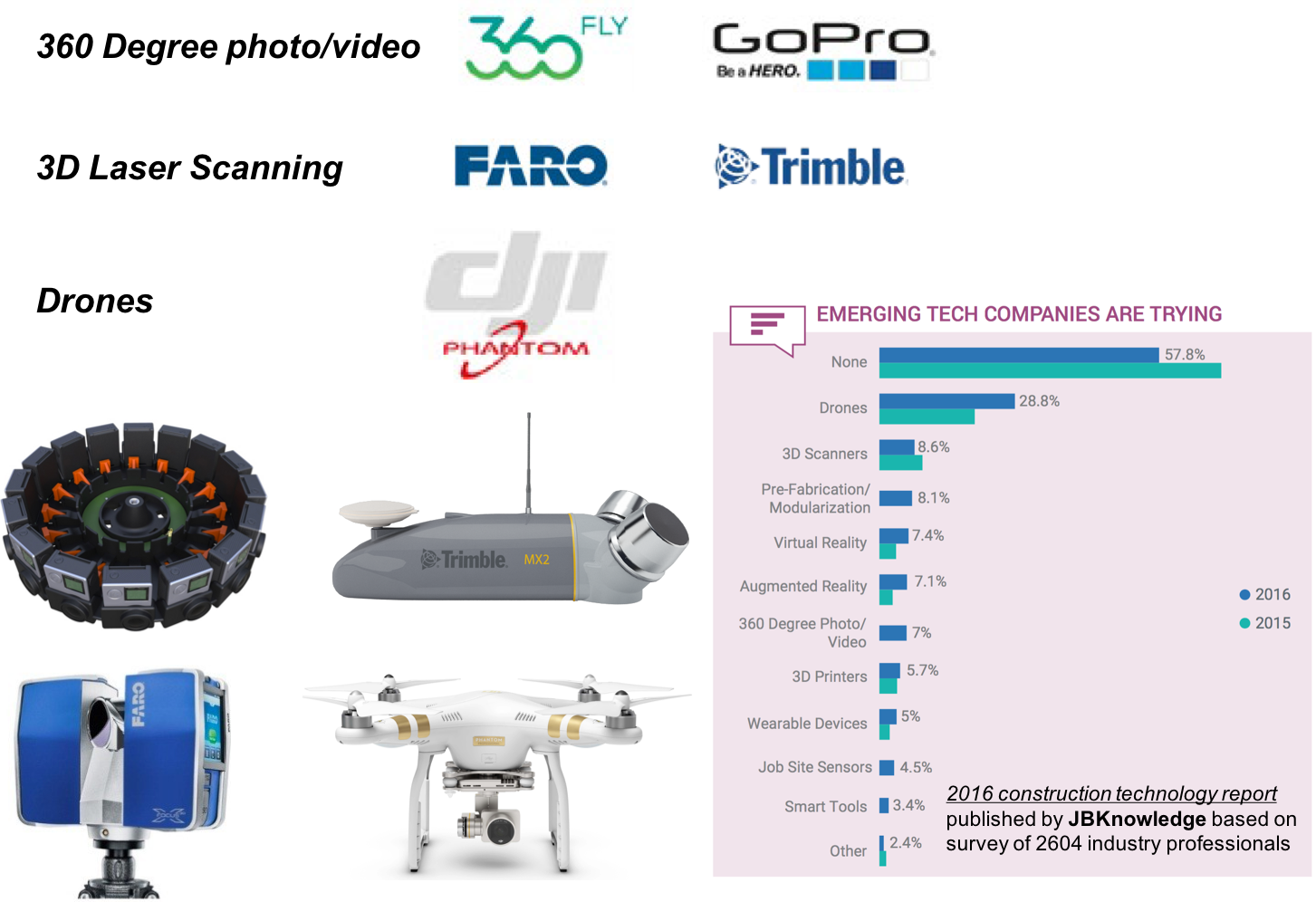

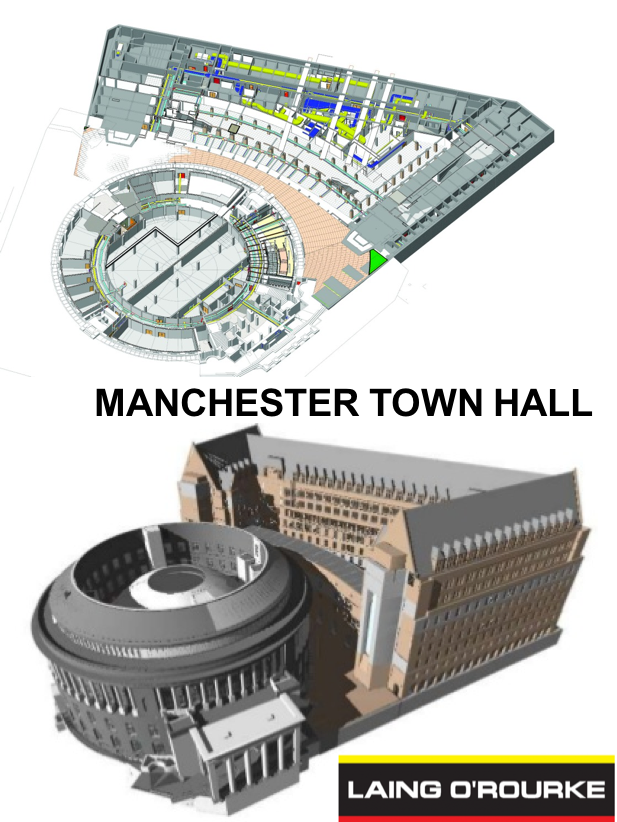

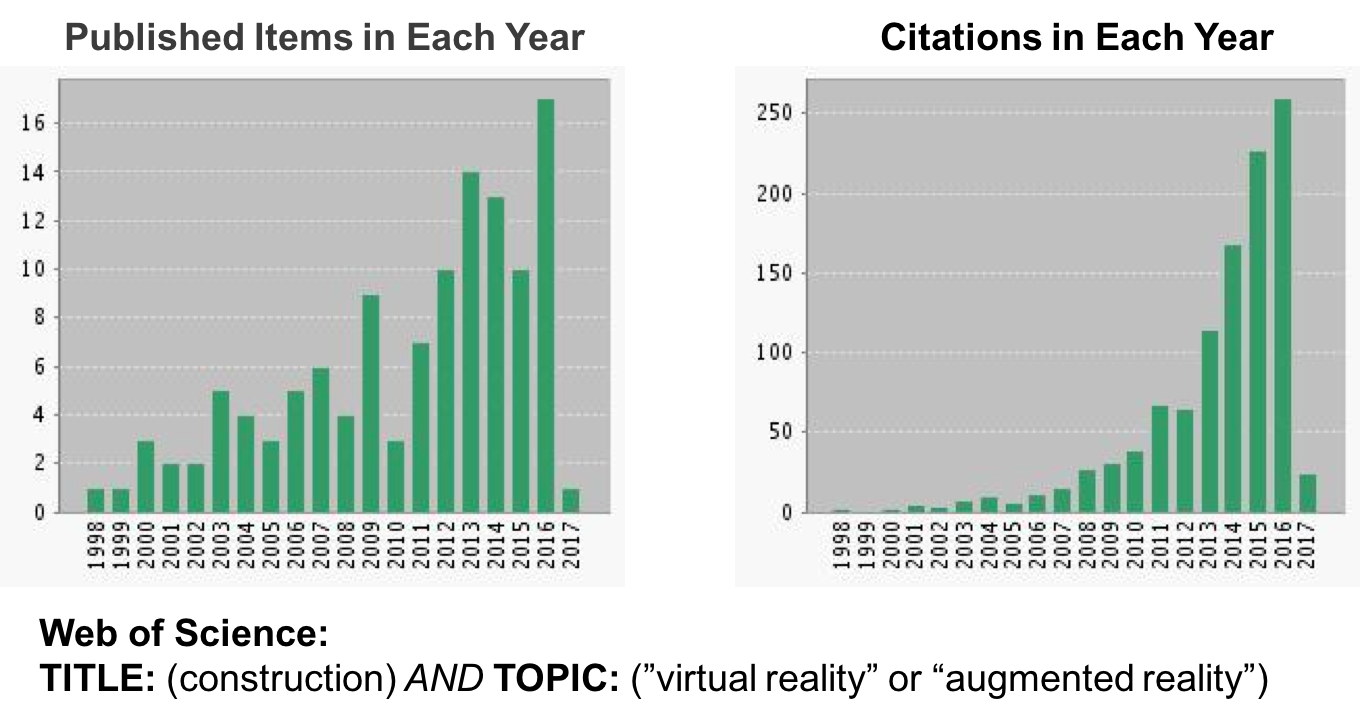

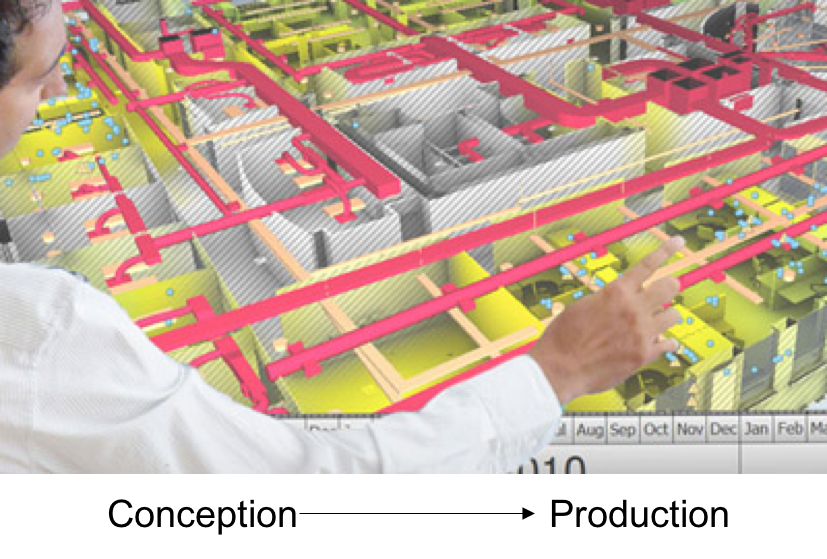

Digital Technologies

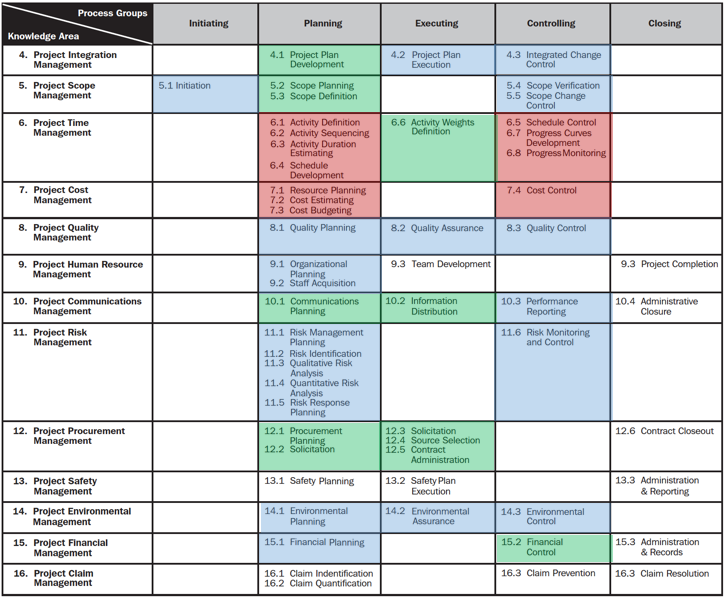

What to teach?
What to teach?
What to teach/research?
What to research?
What to research?
What to research?
Object recognition

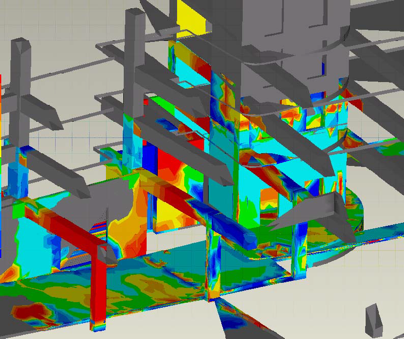

Defect identification
Productivity monitoring & safety early-warning
What to research?
What to research?
What to research?
Research and Teaching Experience
Producing employable Quantity Surveying graduates & linking teaching and research in Quantity Surveying
Dr. Ling Ma
@ University of Huddersfield
-

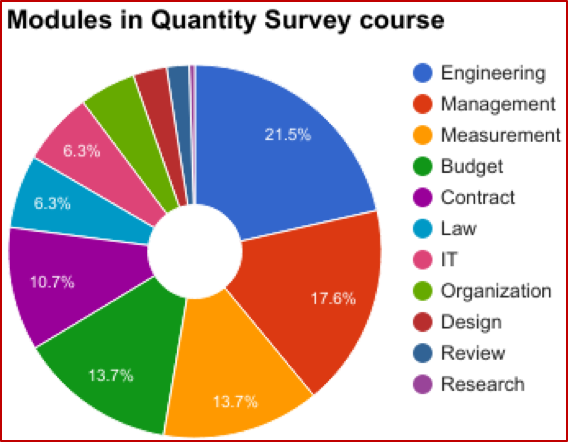

What they need? -
What they offer? -
Why I can? -
How I do?

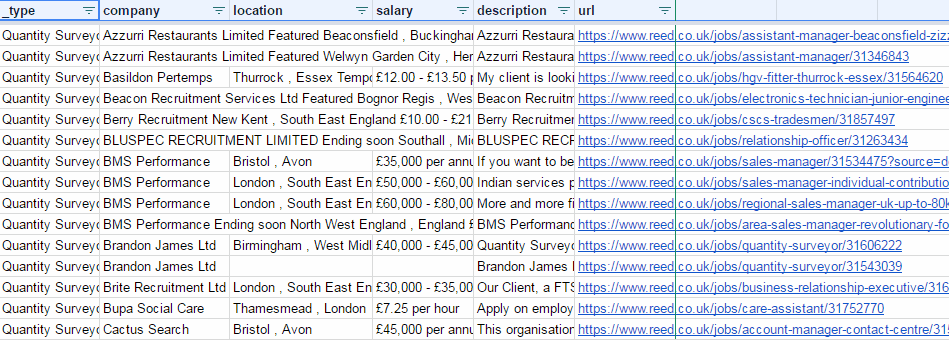

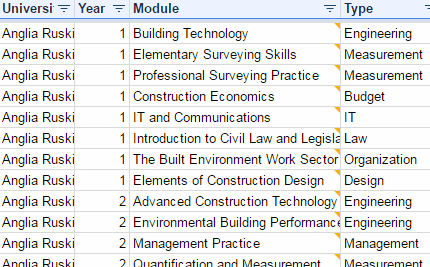

Web crawler

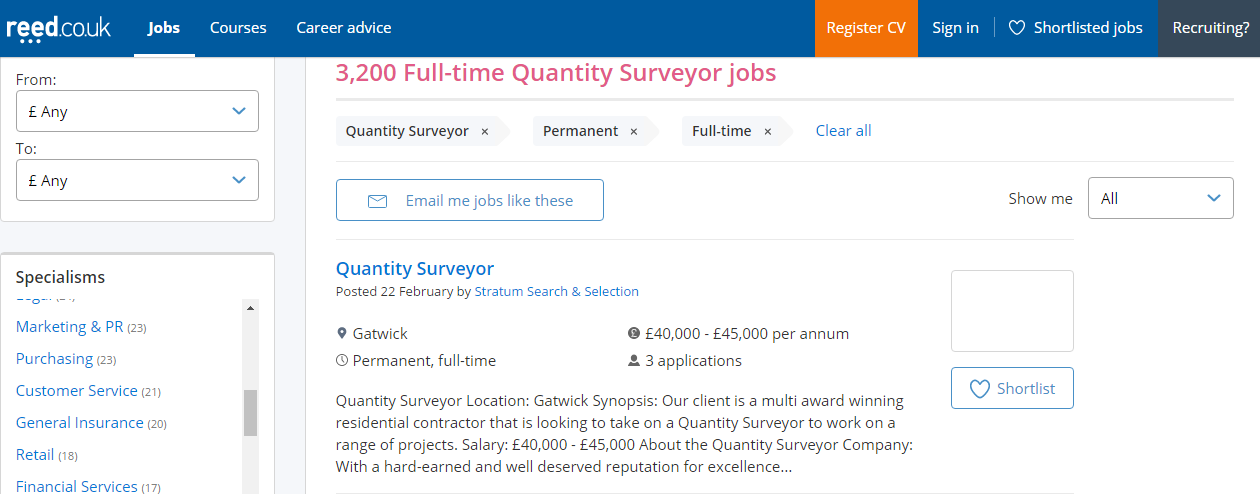

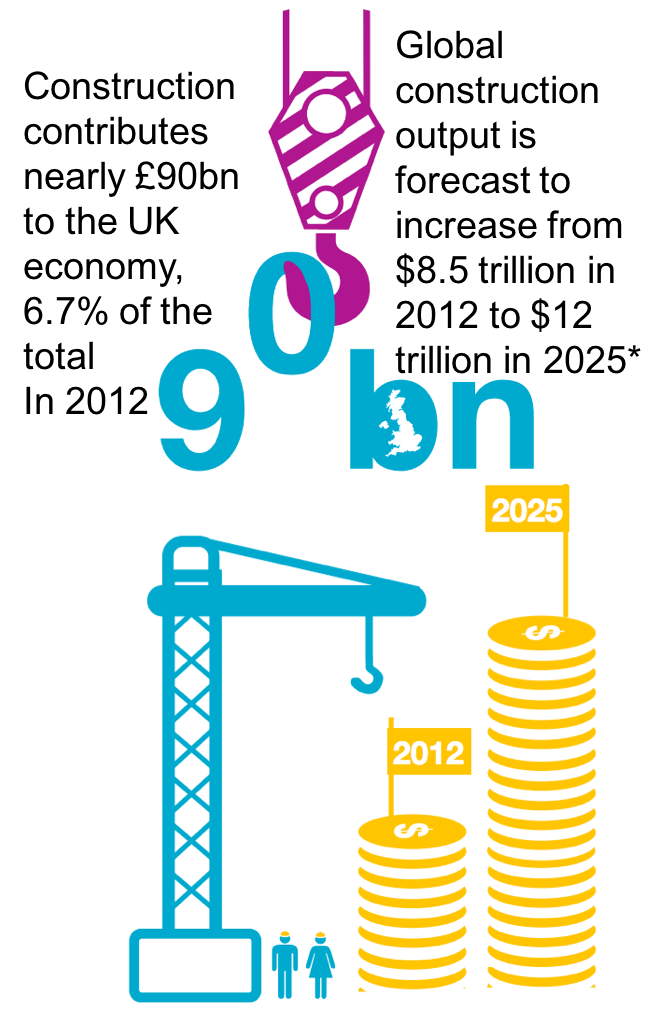

What they need?
What they need?

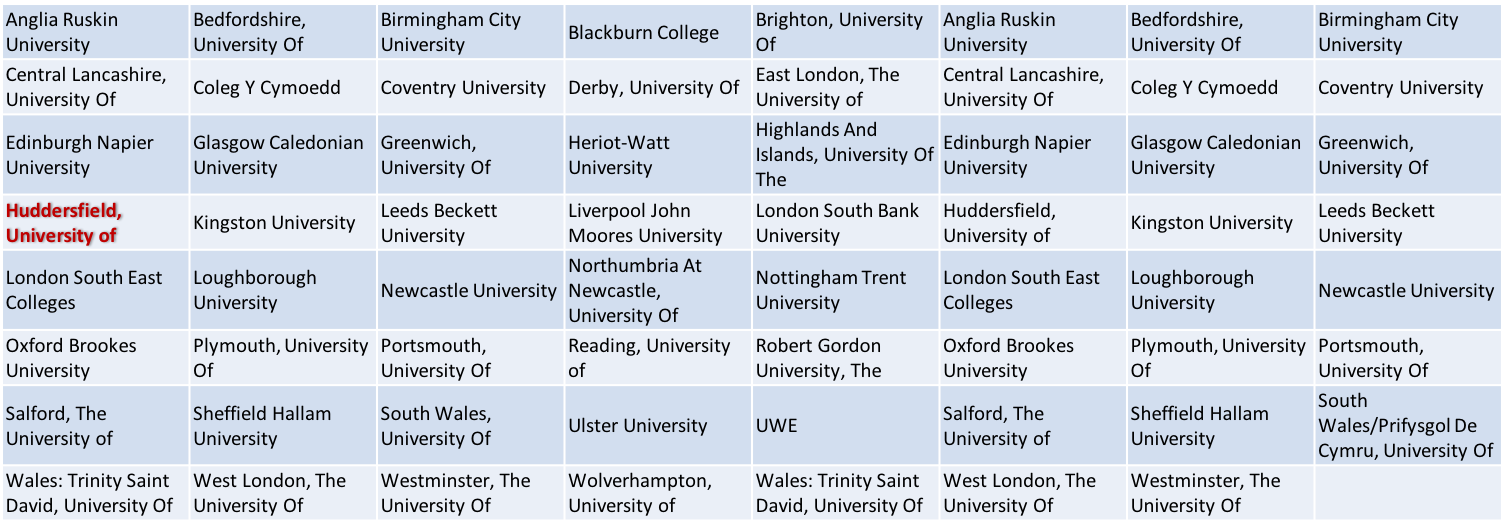

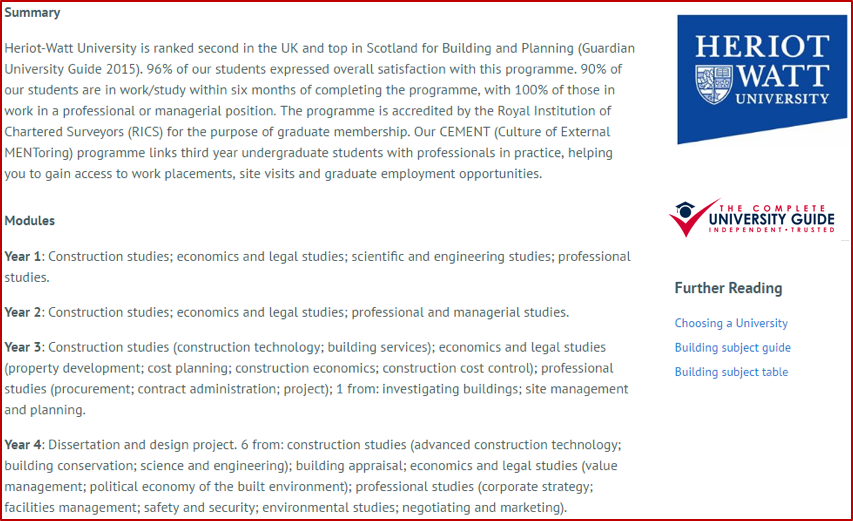

What they offer?
What they offer?
Why I can?
Why I can?

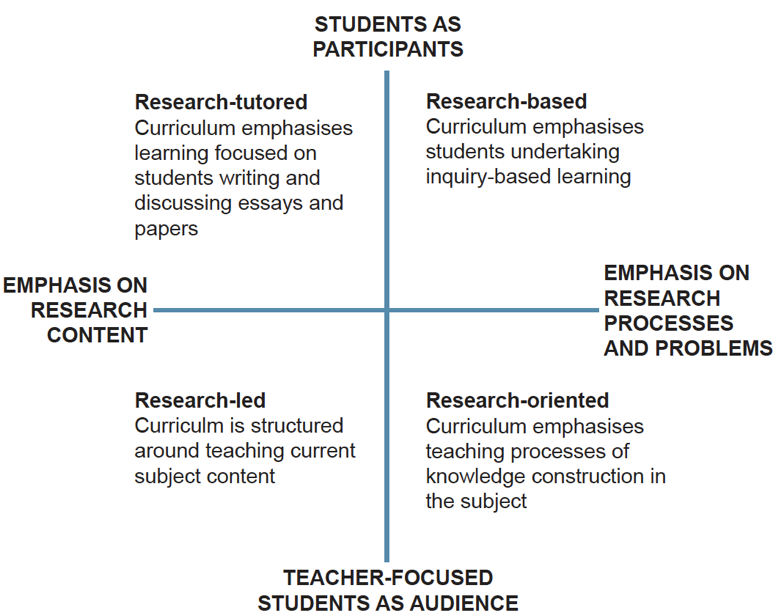

How I do? - linking teaching and research
Teaching methods
Healey, M. (2005a) Linking research and teaching: disciplinary spaces, in: R. Barnett (Ed.) Reshaping the university: new relationships between research, scholarship and teaching, 30-42. Maidenhead: McGraw-Hill/Open University Press.
Exploiting the Benefits of BIM in Social Housing
Dr. Ma, Ling
@ University of Huddersfield

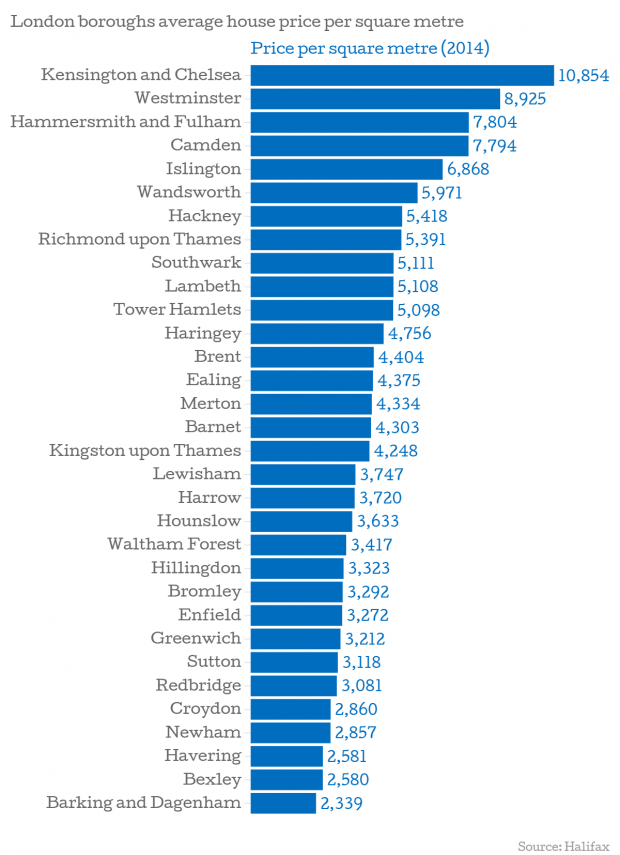

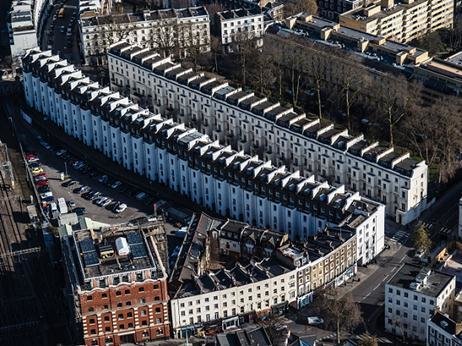

Background - Needs for Social Housing
© 2016, Dr. Ma, Ling

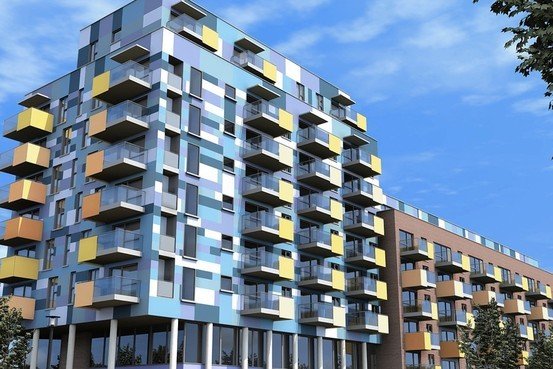

U.K. social housing projects developed by Family Mosaic at Heathside & Lethbridge
http://www.wsj.com/articles/SB10001424052702303630404577392080803676926
Background - Challenges in Social Housing
Labor shortage
Time
Environment protection
Maintenance
© 2016, Dr. Ma, Ling
Research Proposals
Design
Construction
Maintenance
Delivering better social house design using BIM, Virtual Reality and Machine Learning
Lean fabrication of social houses using RFID, BIM and Augmented Reality
Automated compilation of 'as-is' BIM model of deficient social houses for retrofit
© 2016, Dr. Ma, Ling
Delivering better social house design using BIM, Virtual Reality and Machine Learning

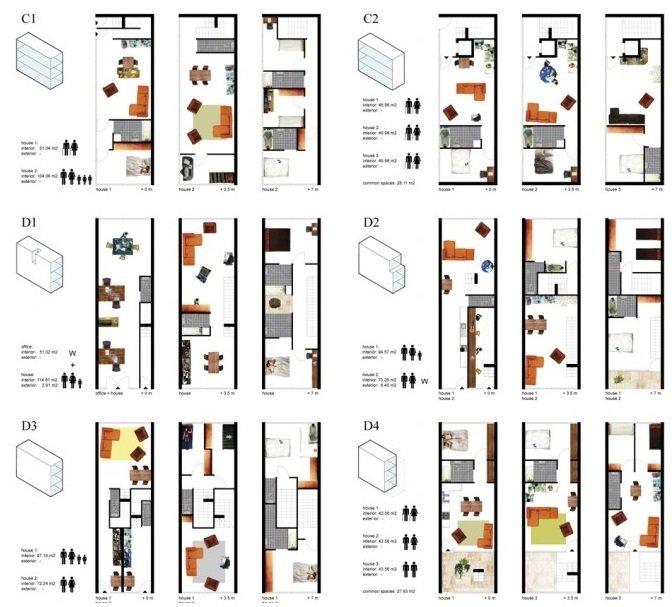

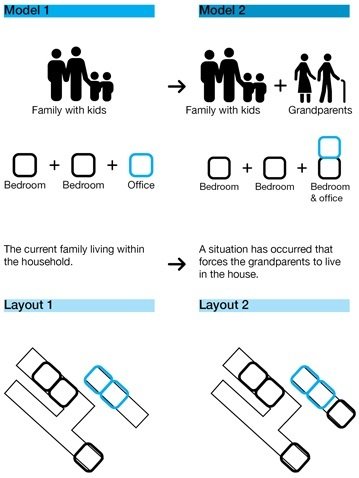

Flexible design example from http://st-ar.nl/the-room-that-was-always-there/
Essentials for social housing delivery:
Economic & Environmental Sustainability
A BIM enabled procedure for
flexible design & mass customization
- Pre-compiled parametric spaces
- Functional analysis of units
© 2016, Dr. Ma, Ling
Delivering better social house design using BIM, Virtual Reality and Machine Learning
VR based online plan selection
| Educational Level |
| Family composition |
| Income |
| Habit |
| Age |
| ... |
Machine learning and intelligent plan
© 2016, Dr. Ma, Ling
Lean fabrication of social houses using RFID, BIM and Augmented Reality

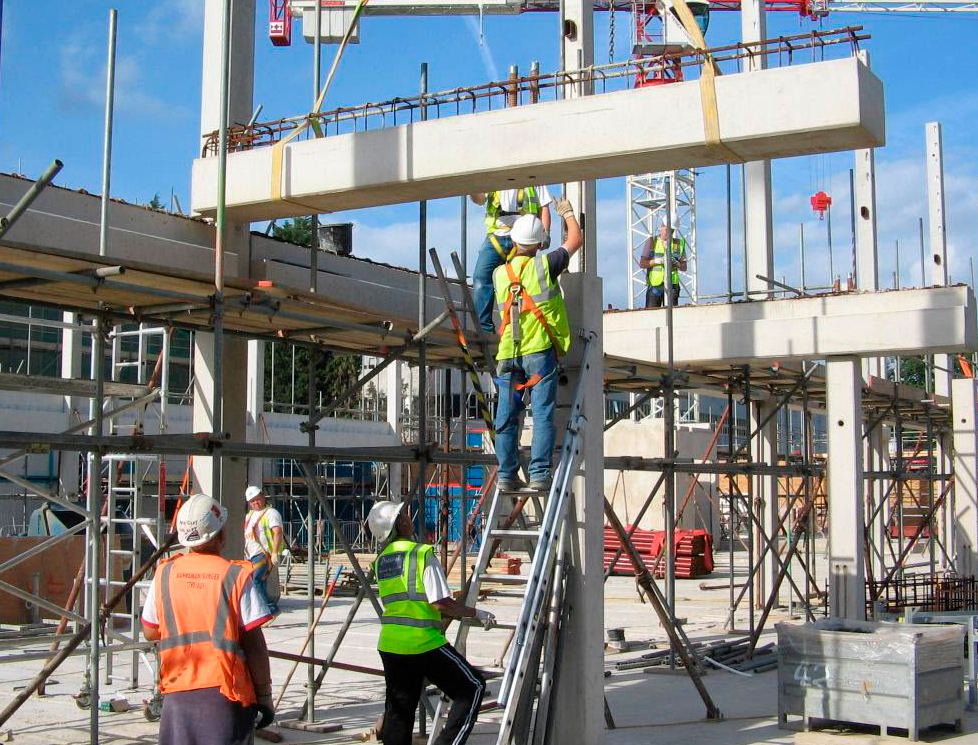

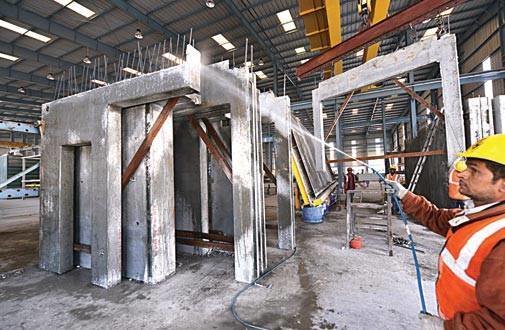

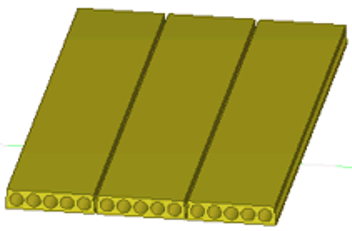

Prefabrication
- Speed up construction process
- Low labor costs
- Better quality control
- Less construction waste and carbon emissions
- Worker safety
- ...
Pull
Receiving orders
Prefab manufactory

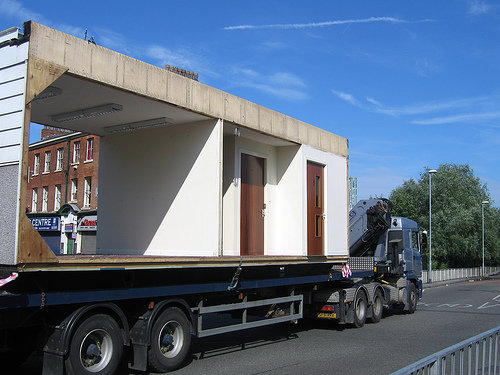

Logistic
RFID
Augmented Reality
Site assembly
© 2016, Dr. Ma, Ling
Automated compilation of 'as-is' BIM model of deficient social houses for retrofit
- Photogrammetry & Laser scanning
- Computer vision
- Semantic enrichment for 'as-is' BIM model
© 2016, Dr. Ma, Ling
Previous experience
Supervised student on parametric modeling of earthquake damaged building
Developed information modeling data schema
Ma, L., Early Warning Analysis for Safety Risk of Metro Tunnel Construction Based on a Spatio-Temporal Model of Ground Settlement, China National Natural Science Funds for Young Scholar, $41,000, PI, 51408247, 2015-2017,
Data mining on over 5 millions of geotechnical mornitoring data for safety early-warning of underground construction
© 2016, Dr. Ma, Ling
Previous experience
Developed algorithm for automated generation of 'as-damaged' BIM model from laser scanned point cloud data
Developed a Semantic Enrichment Engine for BIM
© 2016, Dr. Ma, Ling

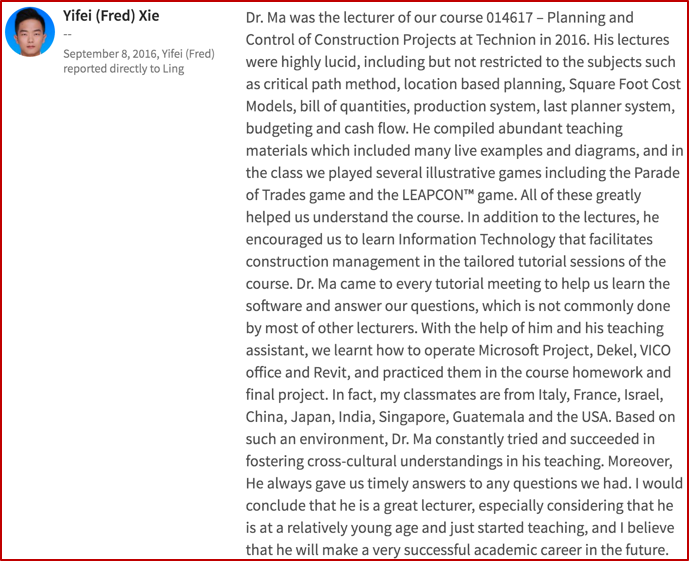

Previous teaching experience

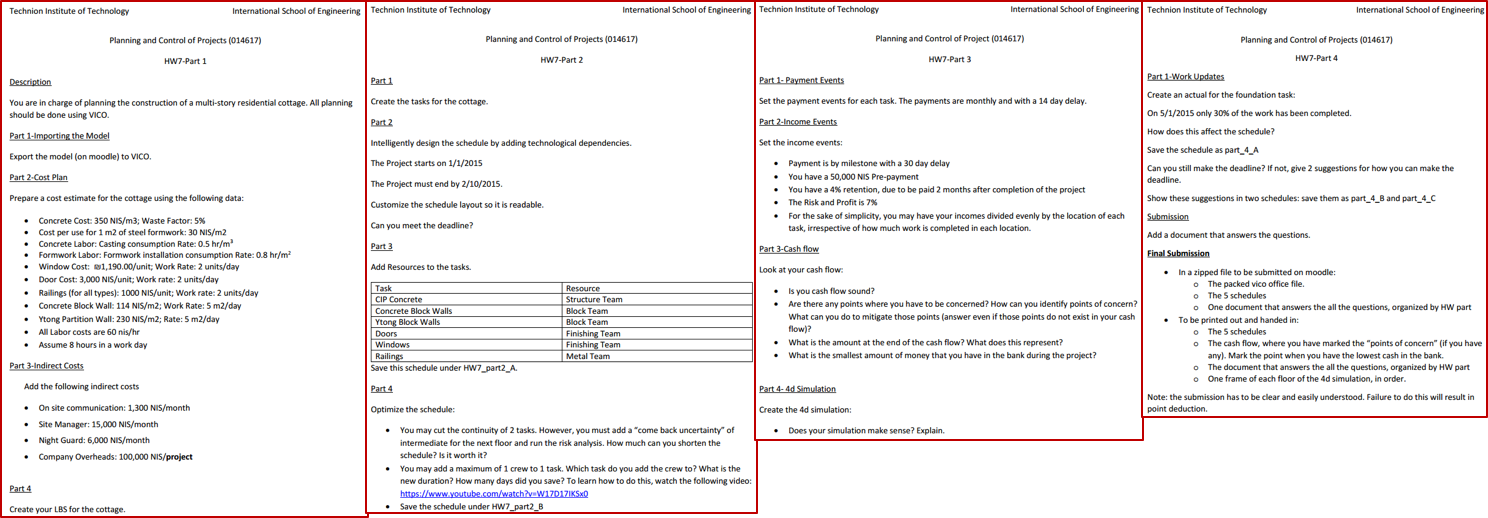

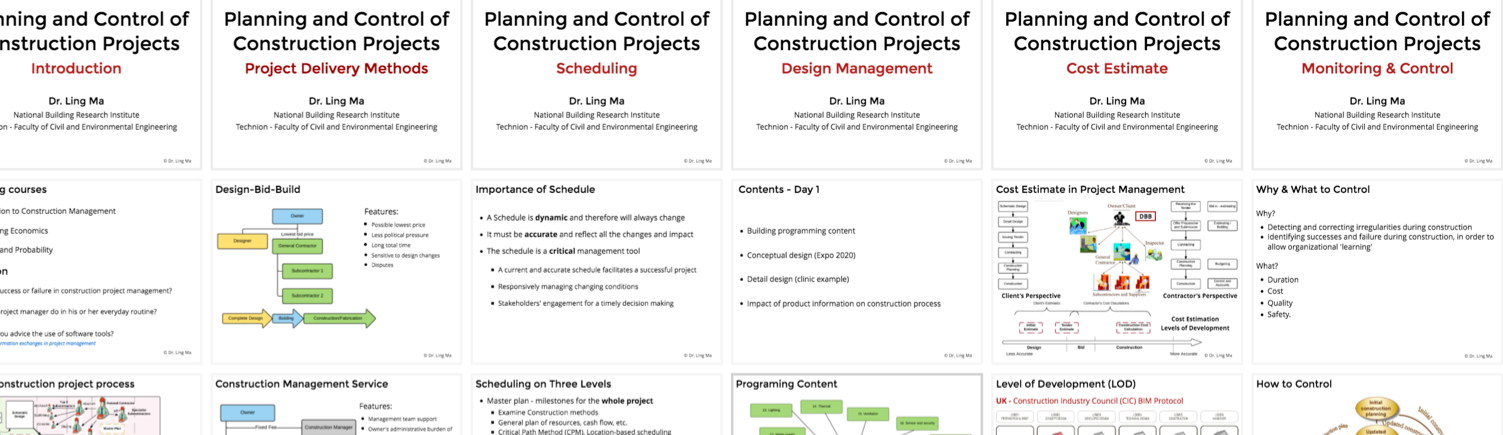

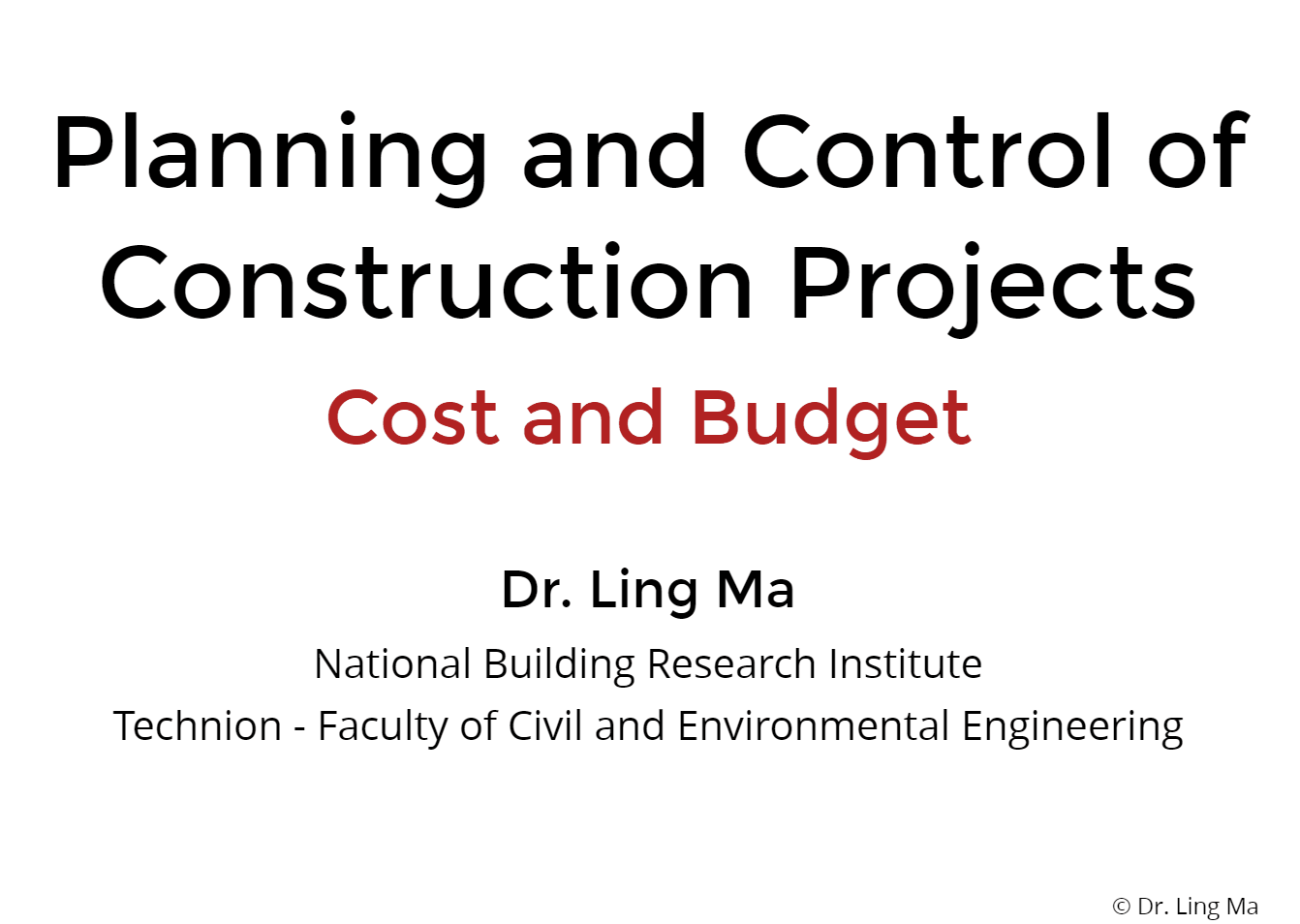

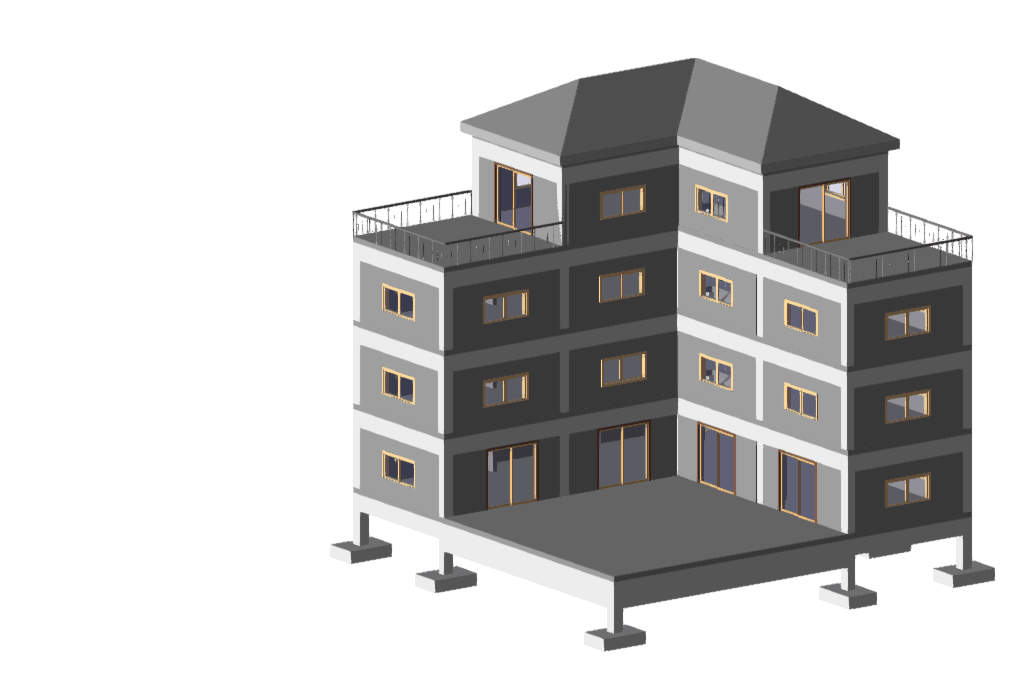

- Have taught Planning and Control of Construction Projects course, which includes topics of the Last Planner System and Pull Production Systems
- Have taught a lecture on information interoperability in Advanced BIM course
© 2016, Dr. Ma, Ling
©2016, Dr. Ma, Ling
Recent Research on BIM
Dr. Ma, Ling
Technion - Faculty of Civil and Environmental Engineering
Rapid assessment of earthquake damaged building using laser scanning and Building Information Modeling
Dr. Ma, Ling
Technion - Faculty of Civil and Environmental Engineering
©2016, Dr. Ma, Ling
Planning of Post-earthquake operations
- Pre-event information
- Seismic response
- Outer appearance
As-built BIM model
Seismic Simulation
Remote Sensing
©2016, Dr. Ma, Ling
©2016, Dr. Ma, Ling
'As-damaged' BIM
©2016, Dr. Ma, Ling
By Jiashu Liang
By Ashrant Aryal
By Ashrant Aryal
Synthetic Specimen
©2016, Dr. Ma, Ling
Scanner emulator
©2016, Dr. Ma, Ling
Experiment setup
©2016, Dr. Ma, Ling
Structure morphing
- Mapping structural cells
- Locating the building elements in the scan
- Compilation of as-damaged BIM model
©2016, Dr. Ma, Ling

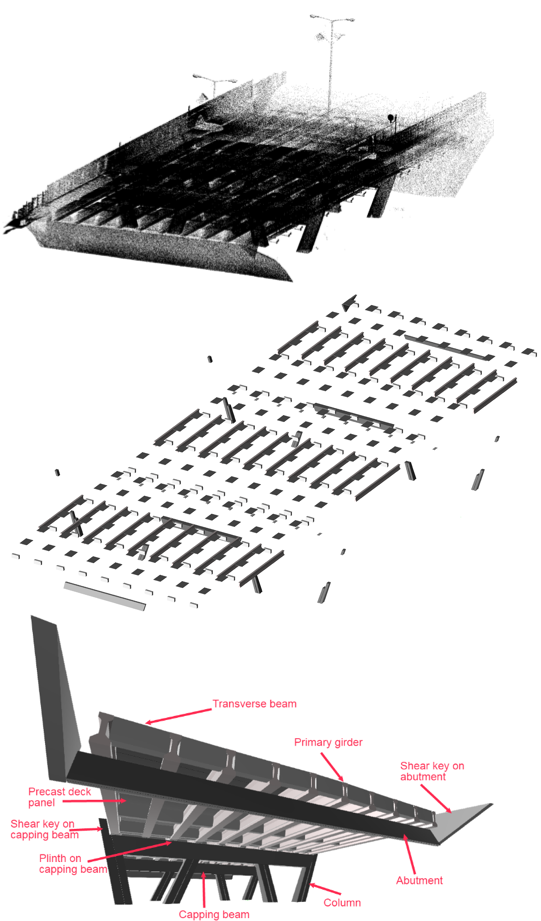

Semantic Enrichment
for BIM
Dr. Ma, Ling
Technion - Faculty of Civil and Environmental Engineering
©2016, Dr. Ma, Ling
Why Enrichment is Important to BIM
©2016, Dr. Ma, Ling

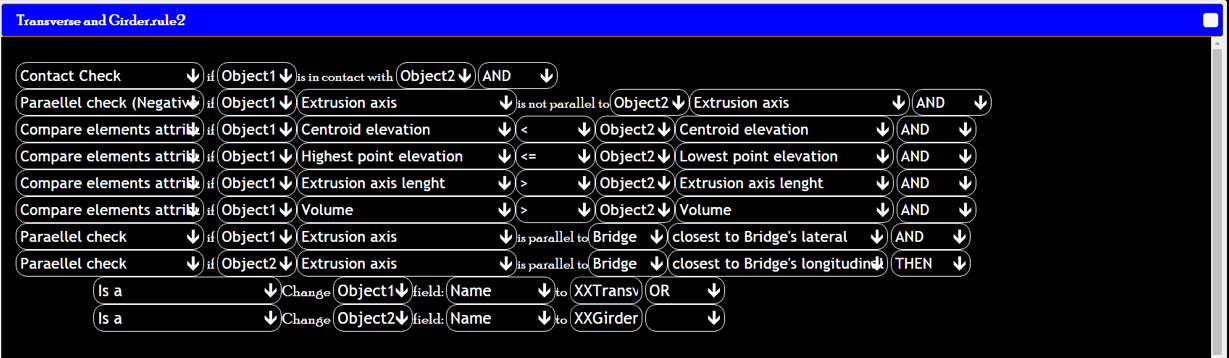

Enrichment Tasks
©2016, Dr. Ma, Ling
Sacks, R., Kedar, A., Borrmann, A., Ma, L., Singer, D., and Kattel, U., SeeBridge Information Delivery Manual (IDM) for Next Generation Bridge Inspection. 33rd International Symposium on Automation and Robotics in Construction, 2016: Auburn, AL
Ma, L., and Sacks, R., (2016). ‘A Cloud-based BIM Platform for Information Collaboration’, ISARC 2016 33rd International Symposium on Automation and Robotics in Construction, Sattineni, A. (ed.), Auburn University, Auburn AL, US, July 2016.
Sacks, R., Ma, L., Yosef, R., Borrmann, A., Daum, S., Kattel, U., Enhancement of a Semantic Enrichment Tool for Building Information Modeling. Advanced Engineering Informatics, in preparation.

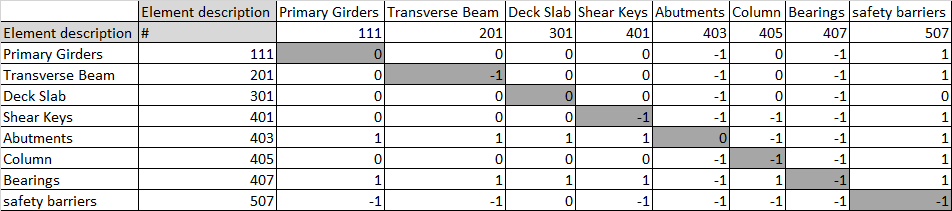

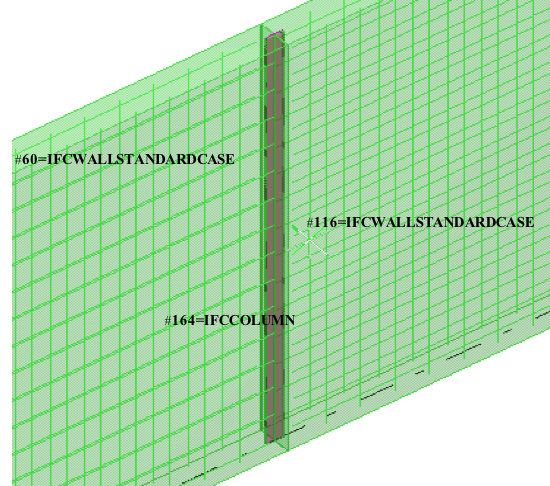

Spatial Relationship Matrix
Transverse beam & Abutment
©2016, Dr. Ma, Ling
Uniqueness Checking
Element pairs are unique in terms of the relational features are unique
©2016, Dr. Ma, Ling
The Root of Object Identification
©2016, Dr. Ma, Ling
Feature Matching
| Longitudinal | Transverse | Vertical | Convex | ... | |
| Primary Girder | 1 | -1 | -1 | -1 | |
| Transverse Beam | -1 | 1 | -1 | 1 | |
| ... | 0 |
Primary Girder = (1,-1,-1,-1)
| Longitudinal | Transverse | Vertical | Convex | |
| Object 1 | -1 | 1 | -1 | 1 |
| Object 2 | 1 | -1 | -1 | -1 |
| Object 3 | 1 | -1 | -1 | 1 |
Object 1 = (-1,1,-1,1)
| Primary Girder | Transverse Beam | |
| Object 1 | 180 degree | 0 degree |
| Object 2 | 0 degree | 180 degree |
| Object 3 | 60 degree | 90 degree |
©2016, Dr. Ma, Ling

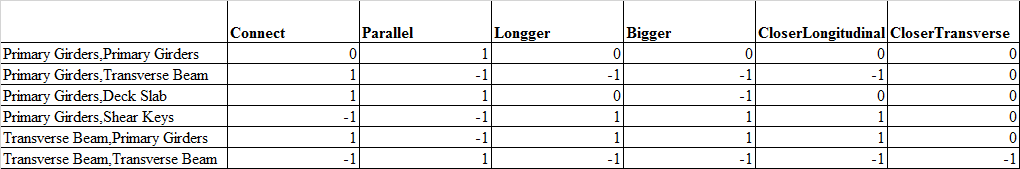

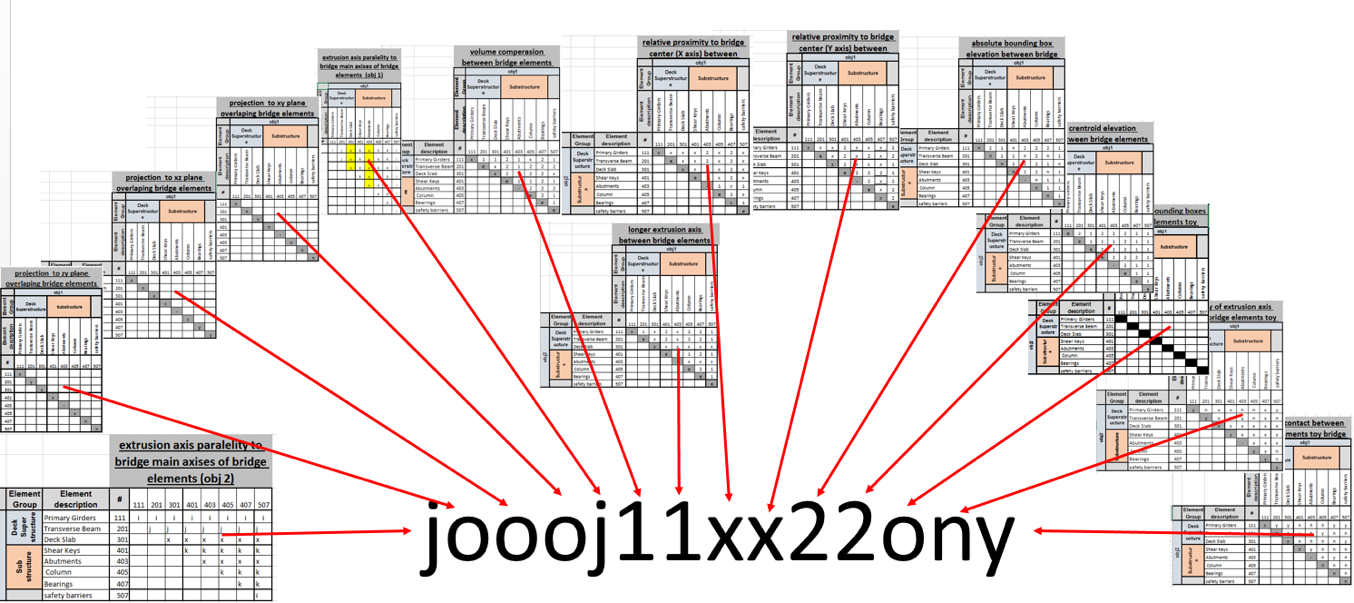

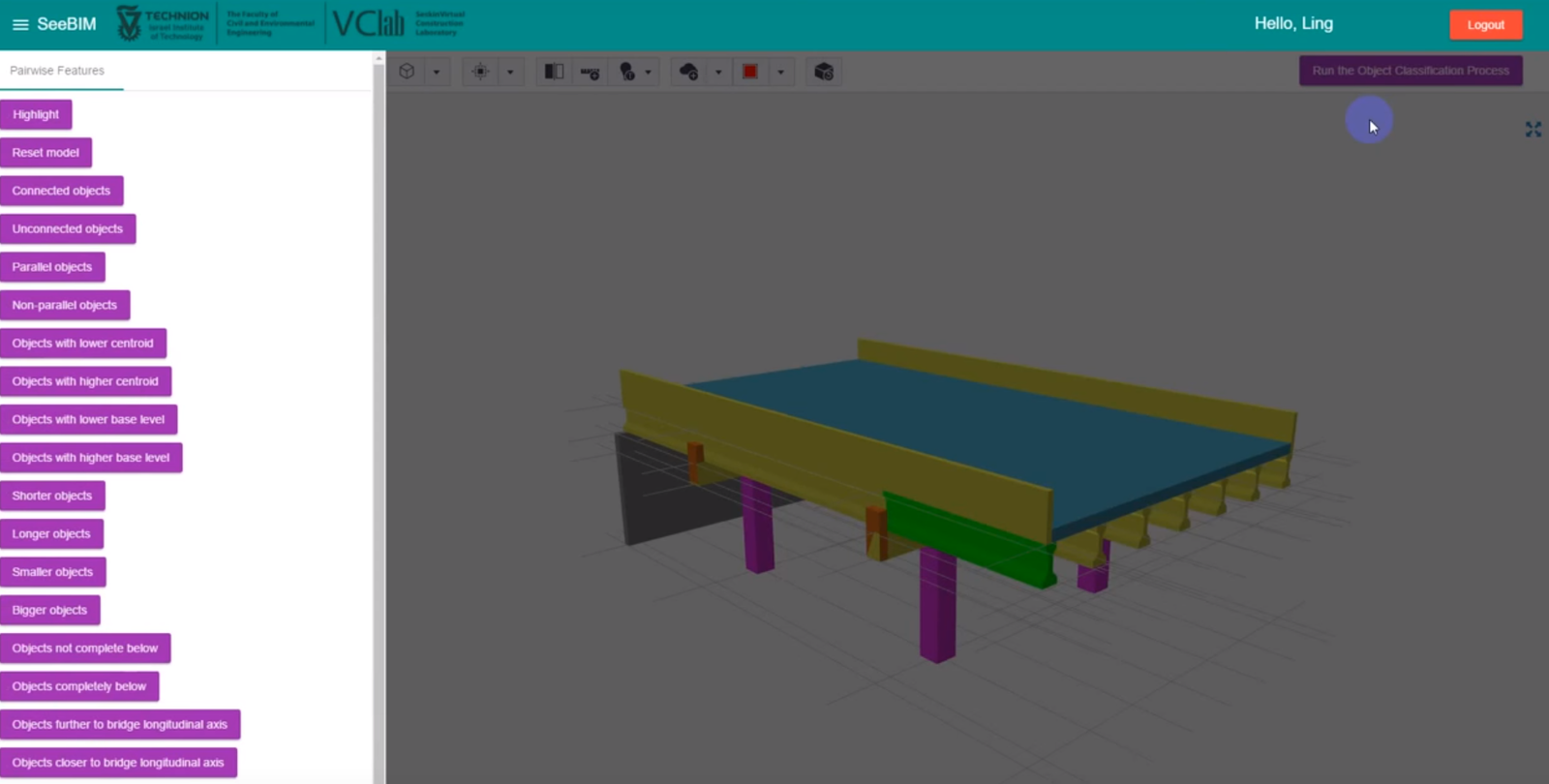

Pairwise Features
Closer to the transverse ?
Pairwise feature matrix
©2016, Dr. Ma, Ling
Feature examples
© 2016, Dr. Ling Ma
Pairwise Feature Matching
| f1 | f2 | f3 | |
|---|---|---|---|
| E1,E1 | 1 | 1 | 1 |
| E1,E2 | -1 | 0 | 0 |
| E1,E3 | -1 | -1 | 0 |
| E2,E1 | 0 | 0 | 0 |
| E2,E2 | 1 | 1 | 0 |
| E2,E3 | 0 | 0 | -1 |
| E3,E1 | -1 | -1 | -1 |
| E3,E2 | 0 | -1 | 0 |
| E3,E3 | 0 | 0 | -1 |
| f1 | f2 | f3 | |
|---|---|---|---|
| O1,O2 | 1 | 1 | 1 |
| O1,O3 | -1 | 1 | -1 |
| O1,O4 | -1 | -1 | 1 |
| O1,O5 | 1 | 1 | 1 |
| O2,O1 | 1 | 1 | 1 |
| O2,O3 | -1 | -1 | 1 |
| O2,O4 | 1 | 1 | 1 |
| O2,O5 | 1 | 1 | 1 |
| O3,O1 | 1 | 1 | 1 |
| O3,O2 | -1 | -1 | 1 |
| O3,O4 | -1 | -1 | 1 |
| O3,O5 | 1 | 1 | -1 |
| O4,O1 | 1 | 1 | -1 |
| O4,O2 | 1 | 1 | -1 |
| O4,O3 | -1 | -1 | -1 |
| O4,O5 | -1 | -1 | 1 |
| O5,O1 | -1 | 1 | -1 |
| O5,O2 | -1 | 1 | -1 |
| O5,O3 | -1 | 1 | -1 |
| O5,O4 | 1 | -1 | 1 |
3 types of bridge elements (e.g., girder, sheer key etc.)
5 objects in the model
3 types of features
| E1,E1 | E1,E2 | E1,E3 | E2,E1 | E2,E2 | E2,E3 | E3,E1 | E3,E2 | E3,E3 | |
|---|---|---|---|---|---|---|---|---|---|
| O1,O2 | 1 | 3 | -3 | 1 | -5 | 2 | -3 | 2 | 1 |
| O1,O3 | -5 | 1 | -3 | 2 | -3 | -3 | 2 | 2 | -2 |
| O1,O4 | -2 | 3 | -3 | 5 | 3 | -1 | -5 | -2 | -2 |
| O1,O5 | -1 | 5 | 1 | 5 | 2 | 1 | 3 | 2 | 1 |
| O2,O1 | -3 | 4 | 2 | 0 | 1 | -1 | -4 | 3 | -5 |
| O2,O3 | -1 | 3 | 5 | -5 | 0 | 0 | -3 | 4 | -2 |
| O2,O4 | 1 | 3 | -4 | 4 | 0 | 4 | -1 | 5 | -5 |
| O2,O5 | -5 | -2 | -1 | 0 | 1 | 3 | 2 | 0 | 1 |
| O3,O1 | -3 | 5 | 0 | -2 | -3 | 1 | 5 | -1 | 5 |
| O3,O2 | 4 | 1 | -2 | 3 | -2 | 3 | 1 | 0 | -1 |
| O3,O4 | -2 | 5 | -2 | 0 | -5 | 4 | 5 | 2 | -2 |
| O3,O5 | -2 | -5 | -4 | 3 | -2 | -3 | 1 | 1 | -2 |
| O4,O1 | -4 | 1 | 0 | -4 | 4 | -5 | -5 | 1 | -4 |
| O4,O2 | 5 | 2 | 5 | -5 | 3 | -4 | -4 | -2 | -5 |
| O4,O3 | -5 | 0 | 3 | 1 | 4 | -1 | 2 | 5 | 1 |
| O4,O5 | -1 | -3 | 3 | -5 | 3 | 2 | -5 | -5 | -5 |
| O5,O1 | 1 | 5 | 2 | 5 | 1 | 5 | 0 | 0 | 1 |
| O5,O2 | -3 | -4 | 0 | 4 | 5 | 0 | 1 | -4 | 2 |
| O5,O3 | -5 | 0 | 5 | 3 | -1 | 4 | 2 | 4 | 2 |
| O5,O4 | 3 | 5 | -5 | 5 | 1 | -4 | -1 | 3 | 2 |
obj1?=element1
(m-1)*(2n-1) relations
m : n
©2016, Dr. Ma, Ling
Matching Result
Similarity Instead of Determinate Result
| O1 | E1 | E3 | E2 |
| O2 | E2 | E1 | E2 |
| O3 | E2 | E1 | E3 |
| O4 | E2 | E1 | E3 |
| O5 | E1 | E3 | E2 |
| 1st Candidate | 2nd Candidate | 3rd Candidate |
©2016, Dr. Ma, Ling
Advanced Building Information Modeling
Information Interoperability
Guest lecturer: Dr. Ma, Ling
Technion - Faculty of Civil and Environmental Engineering
©2016, Dr. Ma, Ling
© 2016, Ling Ma

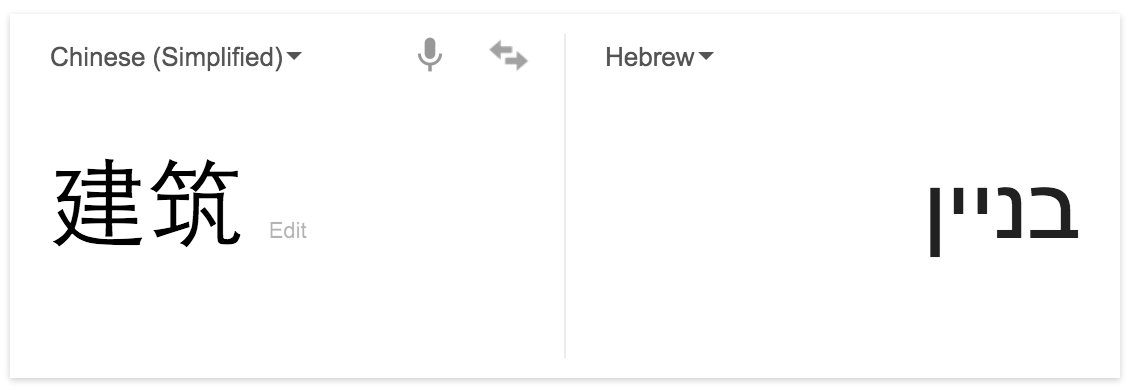

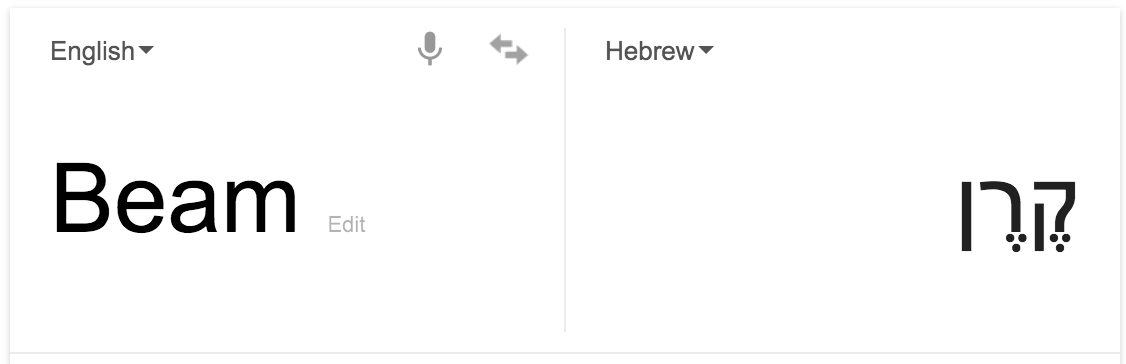

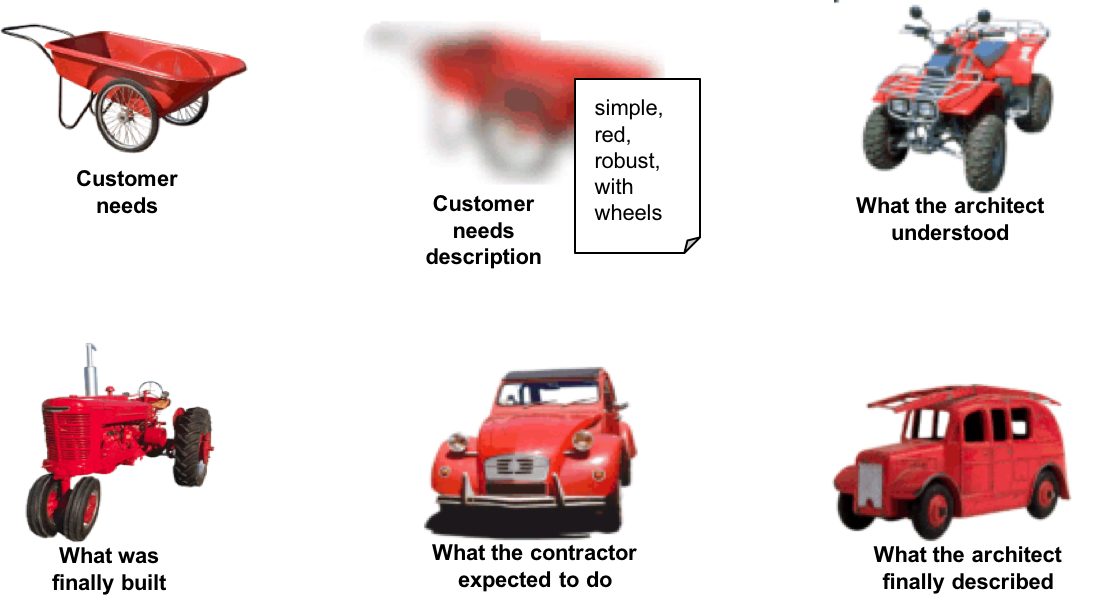

Language
שלום
Information Interoperability
©2016, Dr. Ma, Ling
© 2016, Ling Ma

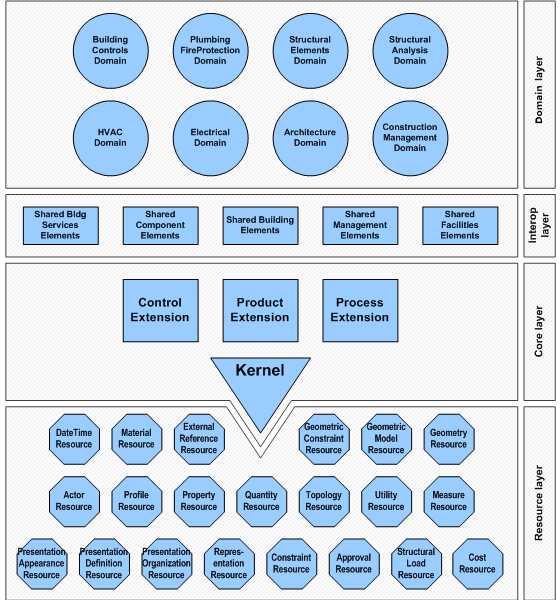

Industry Foundation Classes (IFC)
- Domain layer
The highest layer includes schemas containing entity definitions that are specializations of products, processes or resources specific to a certain discipline, those definitions are typically utilized for intra-domain exchange and sharing of information.
- Interoperability layer
The next layer includes schemas containing entity definitions that are specific to a general product, process or resource specialization used across several disciplines, those definitions are typically utilized for inter-domain exchange and sharing of construction information.
- Core layer
The next layer includes the kernel schema and the core extension schemas, containing the most general entity definitions, all entities defined at the core layer, or above carry a globally unique id and optionally owner and history information.
- Resource layer
The lowest layer includes all individual schemas containing resource definitions, those definitions do not include an globally unique identifier and shall not be used independently of a definition declared at a higher layer.
© 2016, Ling Ma
Industry Foundation Classes (IFC)

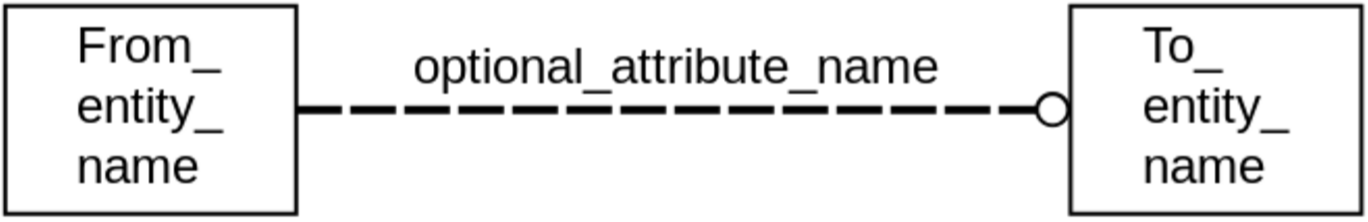

Schema Development - Express Language

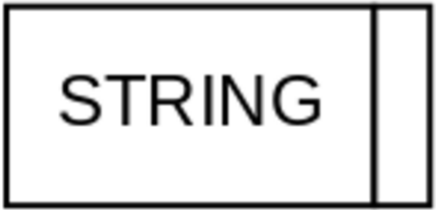

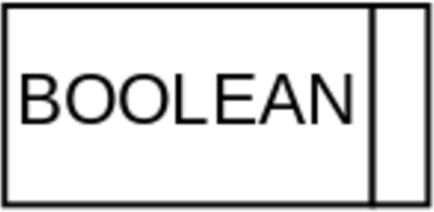

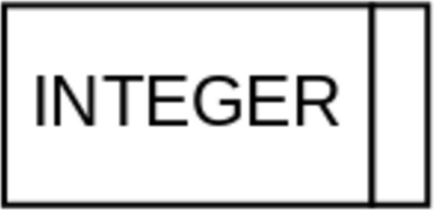

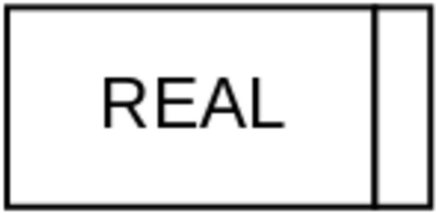

Simple
Data Type
Aggregation
Data Type
LIST [?:?]
E.g. Coordinates:
LIST [1:3] OF REAL

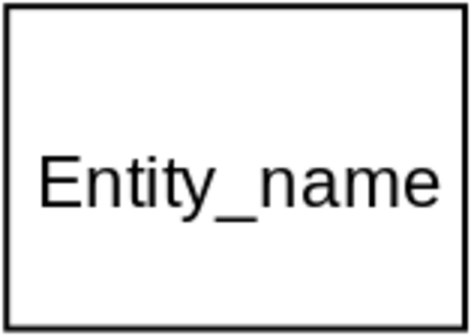

Entity
Data Type
ENTITY IfcCartesianPoint
SUBTYPE OF (IfcPoint);
Coordinates : LIST [1:3] OF IfcLengthMeasure;
...
END_ENTITY;

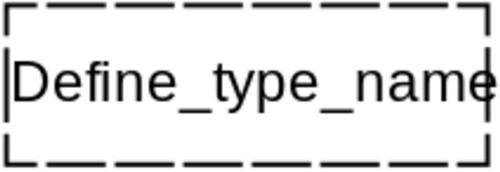

Defined
Data Type
TYPE IfcLengthMeasure = REAL;
END_TYPE;

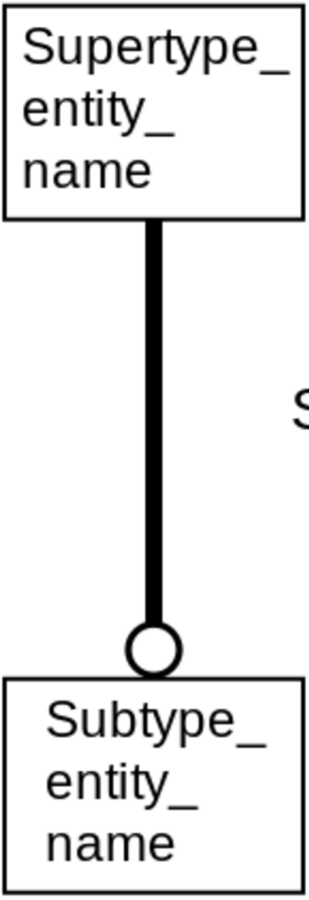

- Entity Name
- Supertype/Subtype
- Attribute
© 2016, Ling Ma
Industry Foundation Classes (IFC)

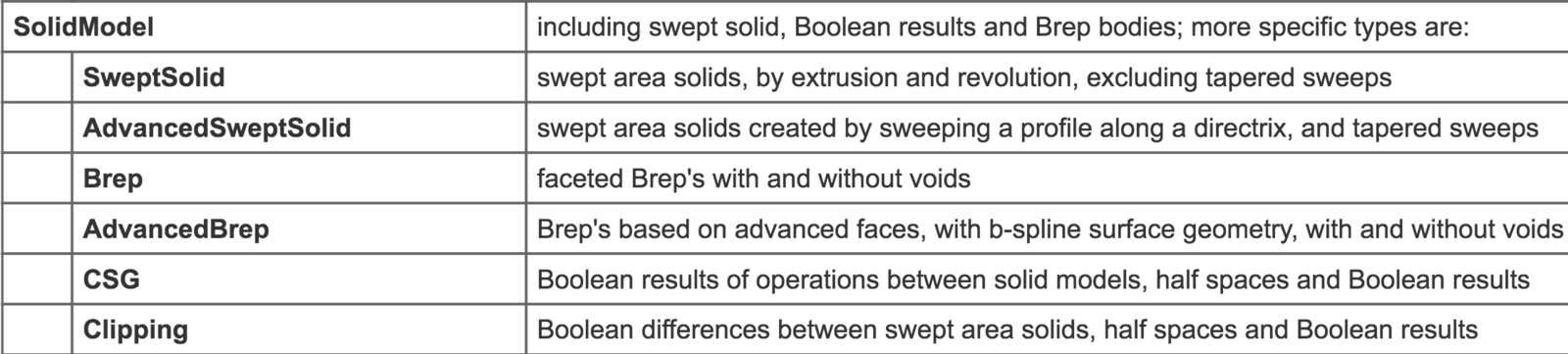

Shape Representations ?
Brep
Swept solid
CSG
© 2016, Ling Ma
Industry Foundation Classes (IFC)

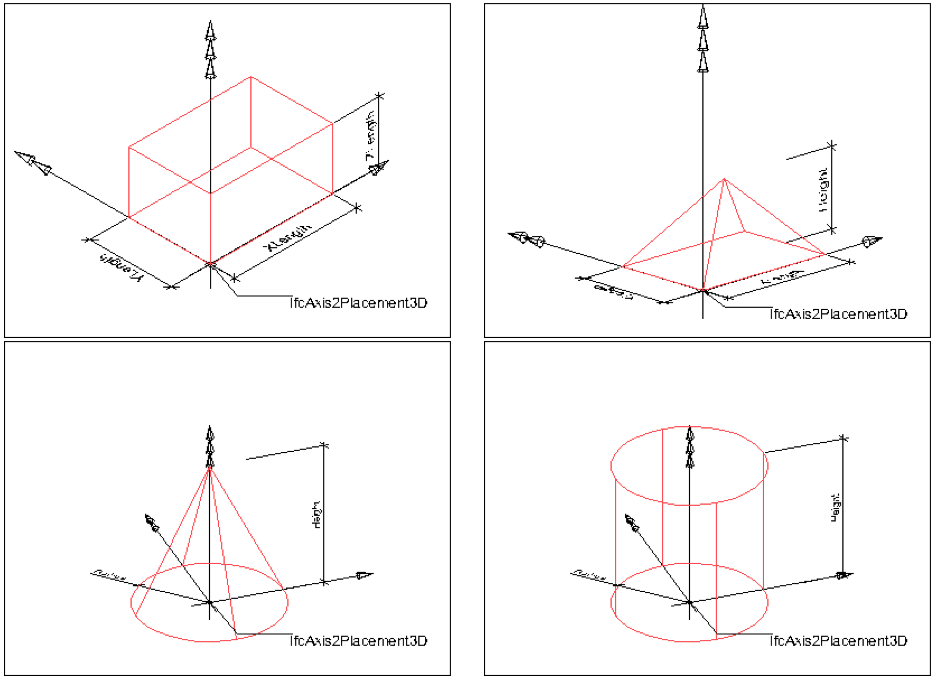

Shape Representations - CSG
ENTITY IfcBlock
SUBTYPE OF (IfcCsgPrimitive3D);
XLength : IfcPositiveLengthMeasure;
YLength : IfcPositiveLengthMeasure;
ZLength : IfcPositiveLengthMeasure;
END_ENTITY;
#1022= IfcBlock(#1001,1000.,1000.,2000.);
ENTITY IfcCsgPrimitive3D
Position : IfcAxis2Placement3D;
...
END_ENTITY;
Modeling a block
#1001= IFCAXIS2PLACEMENT3D(#901,#902,#903);
© 2016, Ling Ma
Industry Foundation Classes (IFC)

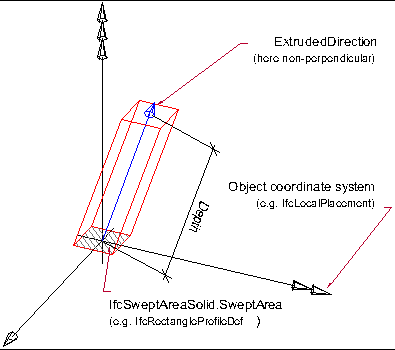

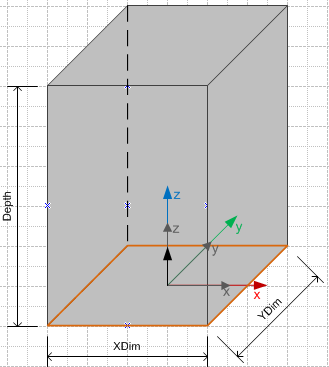

Shape Representations - Swept Solid
Modeling a block
© 2016, Ling Ma
Industry Foundation Classes (IFC)

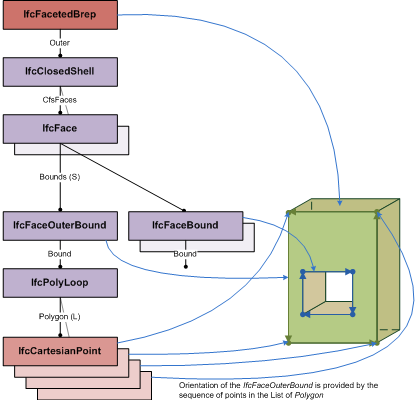

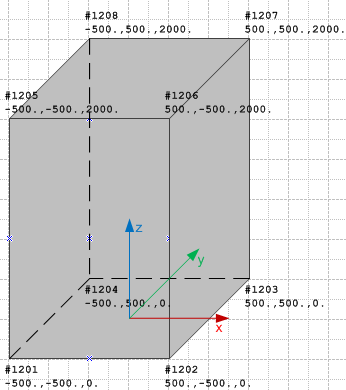

Shape Representations - Brep
Modeling a block

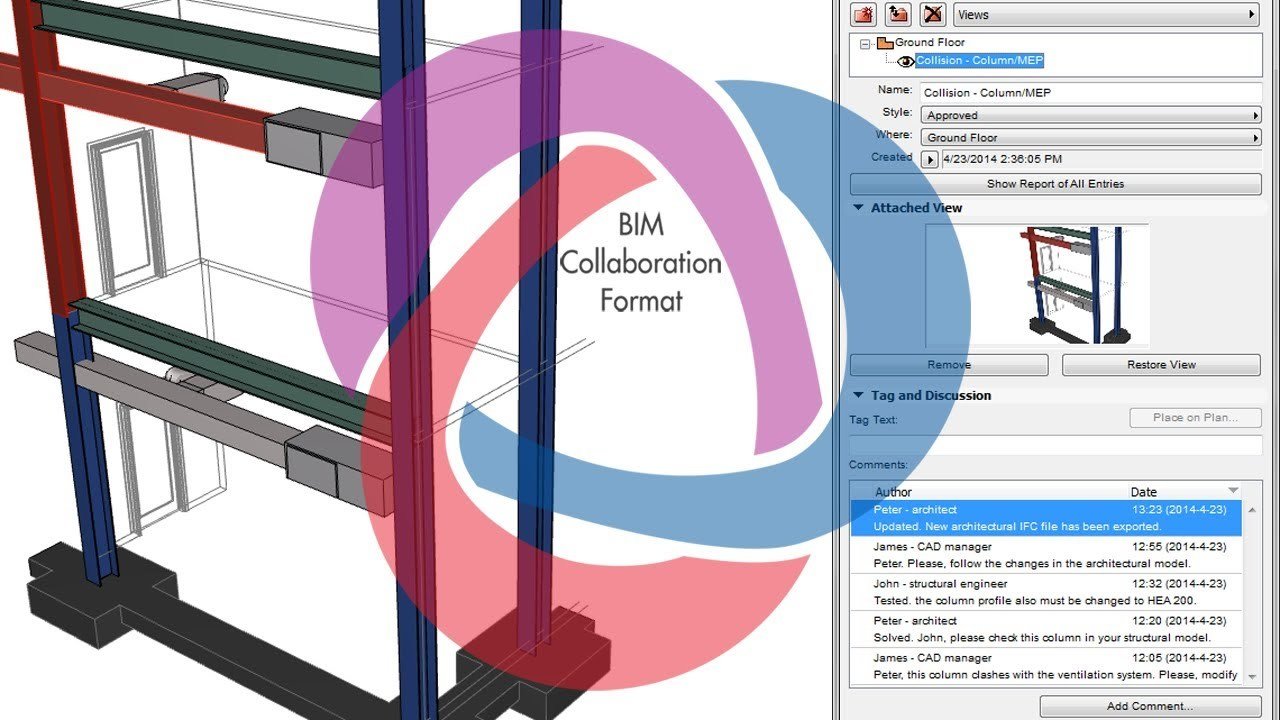

BIM Collaboration Format
© 2016, Ling Ma
© 2016, Ling Ma
Enjoy BIM
