Semantic Abstract Graphs in Scala
Krzysztof Borowski
Simple example
//File A.scala package com.virtuslab.semanticgraphs class A(a: String)
//File B.scala package com.virtuslab.semanticgraphs class B(b: String, a: A)
Abstract Syntax Tree (AST)
a tree representation of the abstract syntactic structure of source code
Represents the exact code structure for given code fragment

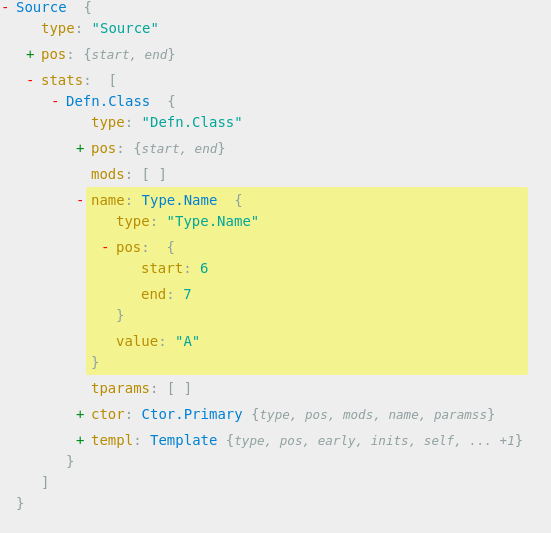

Scala Trees (scalameta)
What about semantic data?
The tree has only information about the code and structure in particular file.
Can we know more about semantic data?
- Where is a definition of the class instantiated in the file?
- How can we easily gather and present information about types, scopes, modifiers etc.?
SemanticDB
- the standard way of representing semantic data
- contains symbols (definitions) and occurrences (symbols' references)
- unique stable symbol identifiers
- the exact location of each symbol and occurrence
SemanticDB - example
A.scala ------- Summary: Schema => SemanticDB v4 Uri => A.scala Text => empty Language => Scala Symbols => 4 entries Occurrences => 7 entries Symbols: org/virtuslab/semanticgraphs/A# => class A extends AnyRef { +2 decls } org/virtuslab/semanticgraphs/A#`<init>`(). => primary ctor <init>(a: String) org/virtuslab/semanticgraphs/A#`<init>`().(a) => param a: String org/virtuslab/semanticgraphs/A#a. => private[this] val method a: String Occurrences: [0:8..0:11) => org/ [0:12..0:21) => org/virtuslab/ [0:22..0:36) => org/virtuslab/semanticgraphs/ [1:6..1:7) <= org/virtuslab/semanticgraphs/A# [1:7..1:7) <= org/virtuslab/semanticgraphs/A#`<init>`(). [1:8..1:9) <= org/virtuslab/semanticgraphs/A#a. [1:11..1:17) => scala/Predef.String#
A.scala ------- Summary: Schema => SemanticDB v4 Uri => A.scala Text => empty Language => Scala Symbols => 4 entries Occurrences => 7 entries Symbols: org/virtuslab/semanticgraphs/A# => class A extends AnyRef { +2 decls } org/virtuslab/semanticgraphs/A#`<init>`(). => primary ctor <init>(a: String) org/virtuslab/semanticgraphs/A#`<init>`().(a) => param a: String org/virtuslab/semanticgraphs/A#a. => private[this] val method a: String Occurrences: [0:8..0:11) => org/ [0:12..0:21) => org/virtuslab/ [0:22..0:36) => org/virtuslab/semanticgraphs/ [1:6..1:7) <= org/virtuslab/semanticgraphs/A# [1:7..1:7) <= org/virtuslab/semanticgraphs/A#`<init>`(). [1:8..1:9) <= org/virtuslab/semanticgraphs/A#a. [1:11..1:17) => scala/Predef.String#
A.scala ------- Summary: Schema => SemanticDB v4 Uri => A.scala Text => empty Language => Scala Symbols => 4 entries Occurrences => 7 entries Symbols: org/virtuslab/semanticgraphs/A# => class A extends AnyRef { +2 decls } org/virtuslab/semanticgraphs/A#`<init>`(). => primary ctor <init>(a: String) org/virtuslab/semanticgraphs/A#`<init>`().(a) => param a: String org/virtuslab/semanticgraphs/A#a. => private[this] val method a: String Occurrences: [0:8..0:11) => org/ [0:12..0:21) => org/virtuslab/ [0:22..0:36) => org/virtuslab/semanticgraphs/ [1:6..1:7) <= org/virtuslab/semanticgraphs/A# [1:7..1:7) <= org/virtuslab/semanticgraphs/A#`<init>`(). [1:8..1:9) <= org/virtuslab/semanticgraphs/A#a. [1:11..1:17) => scala/Predef.String#
A.scala ------- Summary: Schema => SemanticDB v4 Uri => A.scala Text => empty Language => Scala Symbols => 4 entries Occurrences => 7 entries Symbols: org/virtuslab/semanticgraphs/A# => class A extends AnyRef { +2 decls } org/virtuslab/semanticgraphs/A#`<init>`(). => primary ctor <init>(a: String) org/virtuslab/semanticgraphs/A#`<init>`().(a) => param a: String org/virtuslab/semanticgraphs/A#a. => private[this] val method a: String Occurrences: [0:8..0:11) => org/ [0:12..0:21) => org/virtuslab/ [0:22..0:36) => org/virtuslab/semanticgraphs/ [1:6..1:7) <= org/virtuslab/semanticgraphs/A# [1:7..1:7) <= org/virtuslab/semanticgraphs/A#`<init>`(). [1:8..1:9) <= org/virtuslab/semanticgraphs/A#a. [1:11..1:17) => scala/Predef.String#
A.scala ------- Summary: Schema => SemanticDB v4 Uri => A.scala Text => empty Language => Scala Symbols => 4 entries Occurrences => 7 entries Symbols: org/virtuslab/semanticgraphs/A# => class A extends AnyRef { +2 decls } org/virtuslab/semanticgraphs/A#`<init>`(). => primary ctor <init>(a: String) org/virtuslab/semanticgraphs/A#`<init>`().(a) => param a: String org/virtuslab/semanticgraphs/A#a. => private[this] val method a: String Occurrences: [0:8..0:11) => org/ [0:12..0:21) => org/virtuslab/ [0:22..0:36) => org/virtuslab/semanticgraphs/ [1:6..1:7) <= org/virtuslab/semanticgraphs/A# [1:7..1:7) <= org/virtuslab/semanticgraphs/A#`<init>`(). [1:8..1:9) <= org/virtuslab/semanticgraphs/A#a. [1:11..1:17) => scala/Predef.String#
A.scala ------- Summary: Schema => SemanticDB v4 Uri => A.scala Text => empty Language => Scala Symbols => 4 entries Occurrences => 7 entries Symbols: org/virtuslab/semanticgraphs/A# => class A extends AnyRef { +2 decls } org/virtuslab/semanticgraphs/A#`<init>`(). => primary ctor <init>(a: String) org/virtuslab/semanticgraphs/A#`<init>`().(a) => param a: String org/virtuslab/semanticgraphs/A#a. => private[this] val method a: String Occurrences: [0:8..0:11) => org/ [0:12..0:21) => org/virtuslab/ [0:22..0:36) => org/virtuslab/semanticgraphs/ [1:6..1:7) <= org/virtuslab/semanticgraphs/A# [1:7..1:7) <= org/virtuslab/semanticgraphs/A#`<init>`(). [1:8..1:9) <= org/virtuslab/semanticgraphs/A#a. [1:11..1:17) => scala/Predef.String#
A.scala ------- Summary: Schema => SemanticDB v4 Uri => A.scala Text => empty Language => Scala Symbols => 4 entries Occurrences => 7 entries Symbols: org/virtuslab/semanticgraphs/A# => class A extends AnyRef { +2 decls } org/virtuslab/semanticgraphs/A#`<init>`(). => primary ctor <init>(a: String) org/virtuslab/semanticgraphs/A#`<init>`().(a) => param a: String org/virtuslab/semanticgraphs/A#a. => private[this] val method a: String Occurrences: [0:8..0:11) => org/ [0:12..0:21) => org/virtuslab/ [0:22..0:36) => org/virtuslab/semanticgraphs/ [1:6..1:7) <= org/virtuslab/semanticgraphs/A# [1:7..1:7) <= org/virtuslab/semanticgraphs/A#`<init>`(). [1:8..1:9) <= org/virtuslab/semanticgraphs/A#a. [1:11..1:17) => scala/Predef.String#
Scala Trees + SemanticDB
- Scala Trees: information about the code structure
- SemanticDB:
- Unique stable symbols across the source code
- Additional semantic data (signatures, types, modifiers, return types and more)
Scala Trees + SemanticDB
Abstract Semantic Graph
- is a form of abstract syntax in which an expression of a programming language is represented by a graph
- a higher level of abstraction than an abstract syntax tree (or AST)
Graph Indexer
- Generate SemanticDB files
- For each SemanticDB file:
- Read the source file and parse it
- Traverse the Tree:
- Bind the node with SemanticDB (by location)
- Upsert all semantic information as a graph node properties
- Create new links between symbols

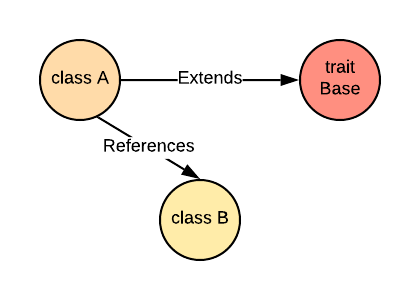

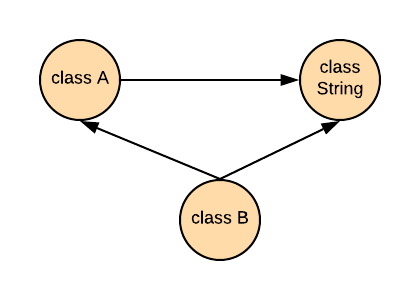

Semantic Graphs
//File A.scala package com.virtuslab.semanticgraphs class A(a: String)
//File B.scala package com.virtuslab.semanticgraphs class B(b: String, a: A)

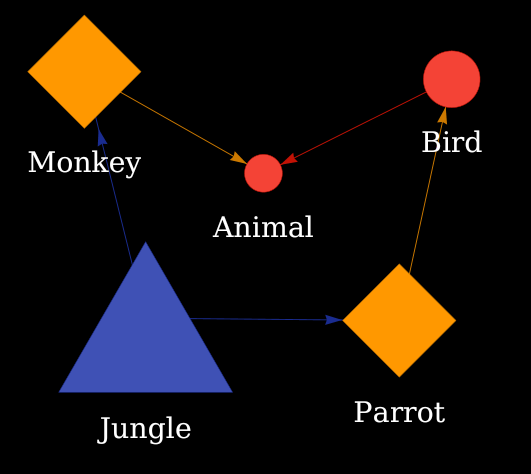

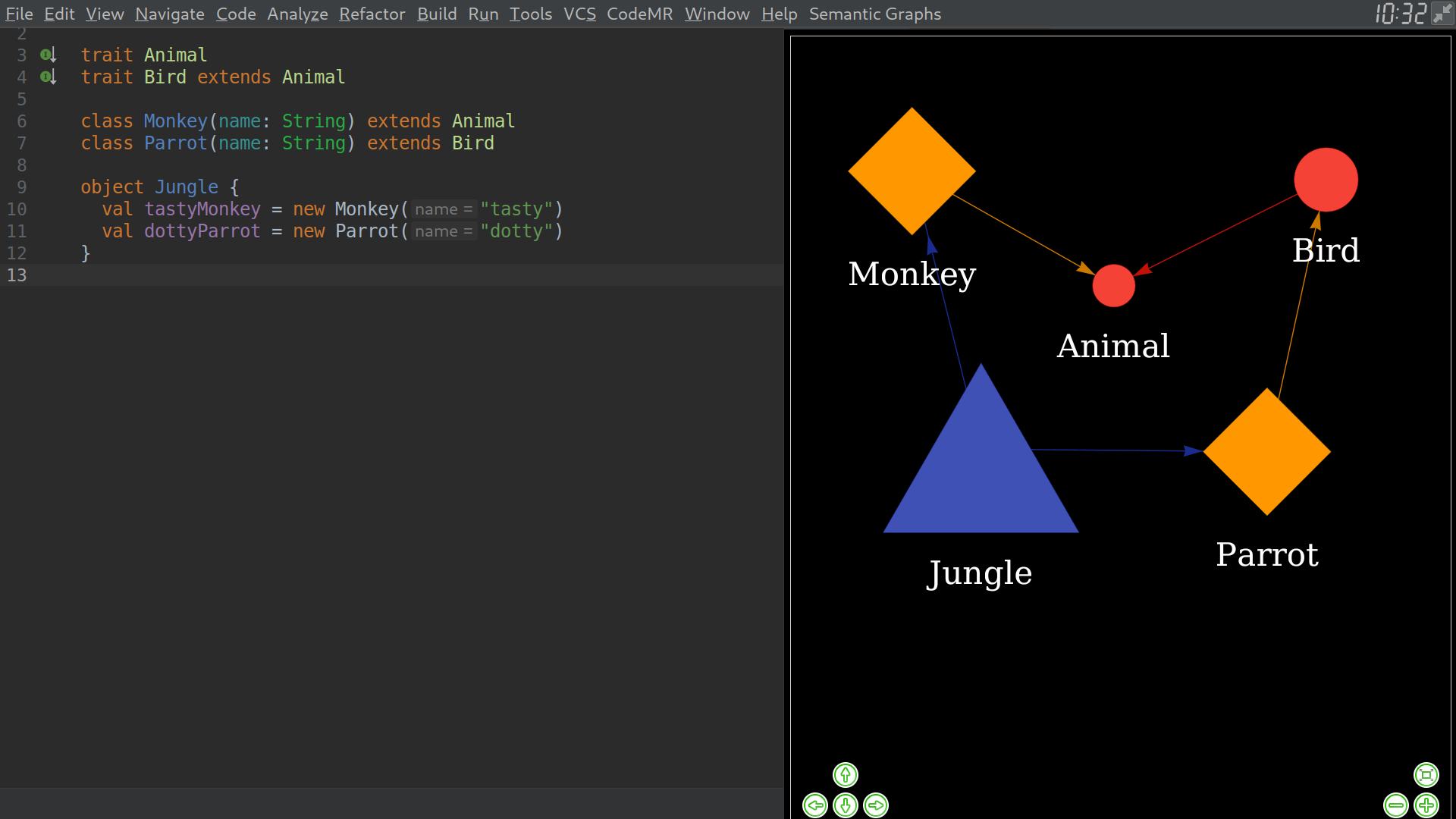

The Jungle
Intellij plugin

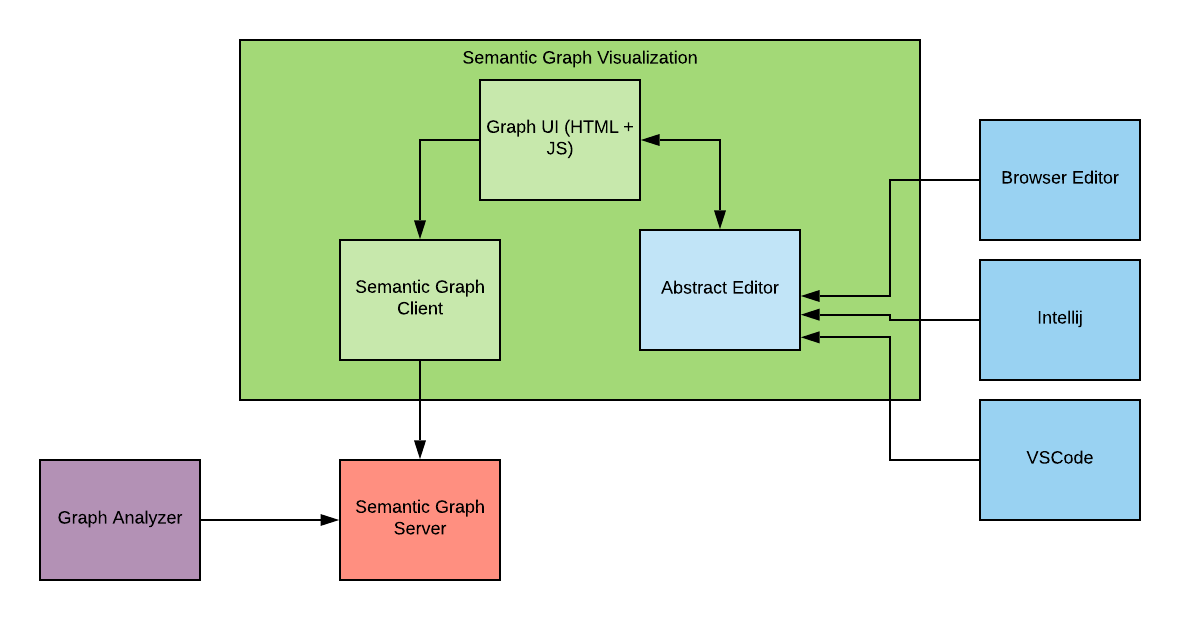

IDE integration
New LSP extension?

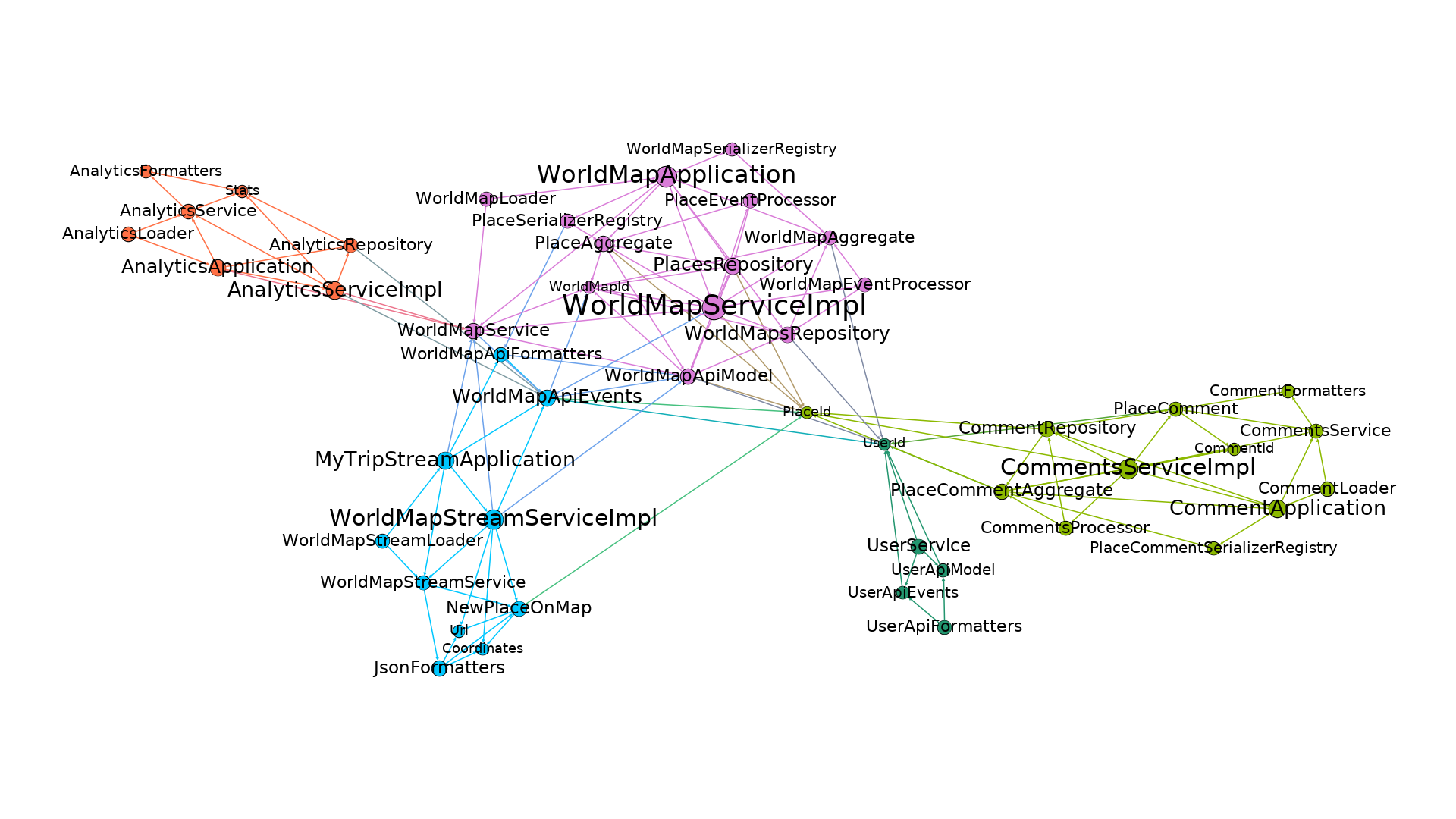

Visualisation

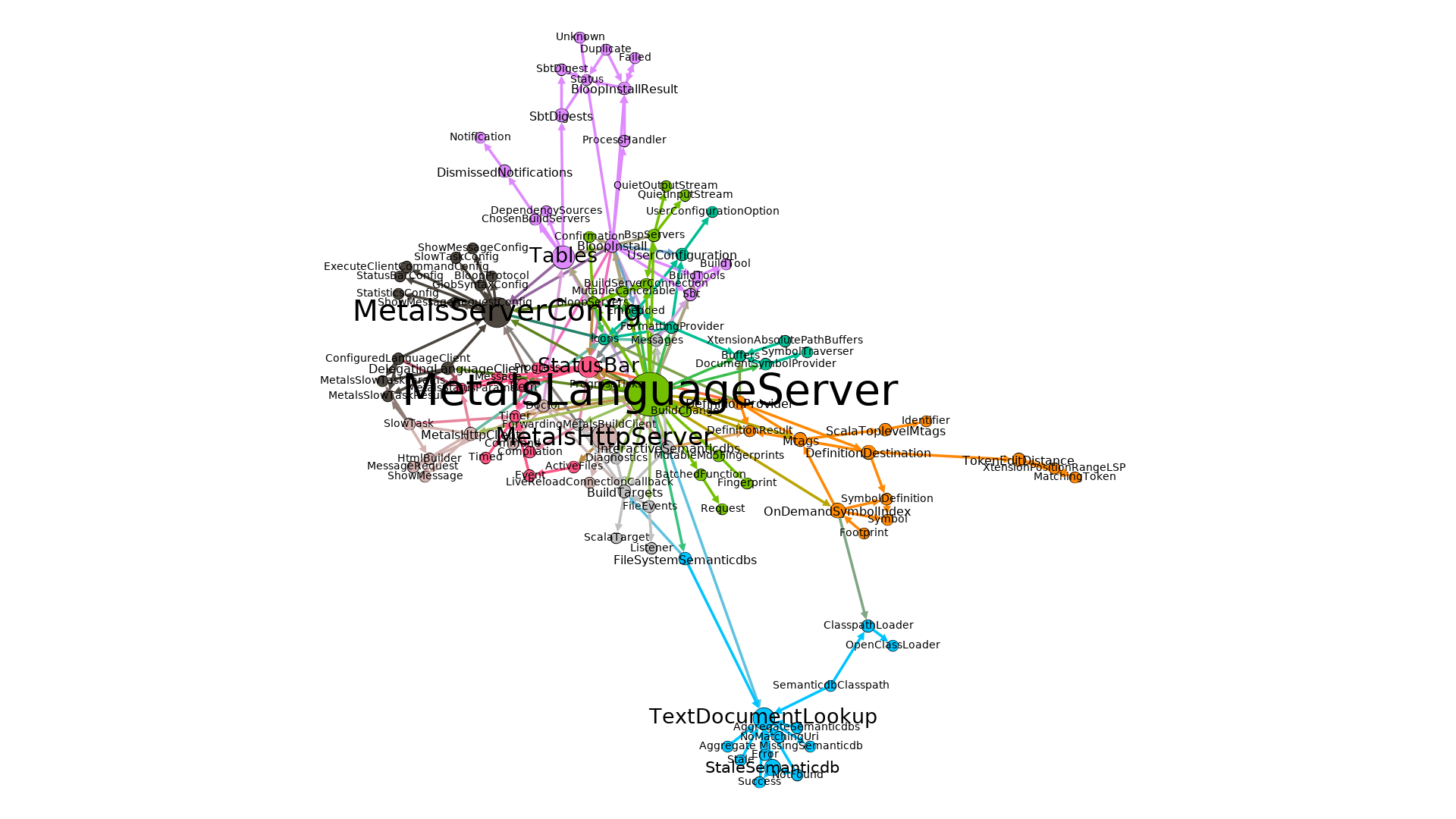

Visualisation - metals
Possible use cases
- Learning about the project
- Project visualisation
- Project evolution visualisation
- Refactoring (Rory Graves - tomorrow at 10:15)
- Automatic module extraction
- Complex dependency elimination
- Maintaining
- Anomaly detaction (automatic with CI)
- Cleaner architecture advices
