機器學習小社-4

講師 000

  • 你可以叫我 000 / Lucas

  • 建國中學資訊社37th學術長

  • 建國中學電子計算機研習社44th學術

  • 校際交流群創群者

  • 不會音遊不會競程不會數學的笨

  • 資訊技能樹亂點但都一樣爛

  • 專案爛尾大師

  • IZCC x SCINT x Ruby Taiwan 聯課負責人

講師 章魚

  • 建國中學電子計算機研習社44th學術+總務

  • 是的，我是總務。在座的你各位下次記得交社費束脩給我

  • 技能樹貧乏

  • 想拿機器學習做專題結果只學會使用API

  • 上屆社展烙跑到資訊社的叛徒

  • 科班墊神

  • 複習

  • 神經網路實作

  • 訓練

  • 參數初始化

  • 梯度下降優化

  • 批次標準化

  • 過擬合

  • 其他優化

目錄

複習

\vec X
\vec Y

Input Layer

Hidden Layer

Output Layer

= \left[ \begin{matrix} x_{0} \\ x_{1} \\ \vdots \\ x_{n} \\ \end{matrix} \right] \cdot \left[ \begin{matrix} w_{00} & w_{10} & \cdots & w_{m0}\\ w_{01} & w_{11} & \cdots & w_{m1}\\ \vdots & \vdots & \cdots & \vdots\\ w_{0n} & w_{1n} & \cdots & w_{mn}\\ \end{matrix} \right] + \left[ \begin{matrix} b_{0} \\ b_{1} \\ \vdots \\ b_{n} \\ \end{matrix} \right]
\sigma(\vec X \cdot \vec W + \vec B) = \vec Y
\vec X
\vec Y

神經網路實作

記得先匯入需要的函式庫

pip install numpy
pip install matplotlib
pip install keras
pip install tensorflow

numpy：提供矩陣功能

matplotlib：繪製圖表使用

keras&tensorflow：提供MNIST資料庫

MNIST數據集：一堆手寫數字圖片的數據集

常被用於人工智慧測試辨識數字使用

先設定好 activation functions

# act.py
import numpy as np

def relu(x):
    return np.maximum(0, x)

def drelu(x):
    return np.where(x > 0, 1, 0)

np.maximum(a, x)

相當於對陣列內每個元素取 max(a, x)

np.where(condition, a, b)

會將x的每一項使用參數中的判斷式做判斷

根據 true or false 會將輸出陣列的那一項

設定為a or b

事前準備完成後就可以來刻神經網路了

事前準備完成後就可以來刻神經網路了

第一步先來初始化一個神經網路的物件

class NeuralNetwork:
    def __init__(self, layers: list[int], activation_function: Callable, dactivation_function: Callable=None, learning_rate: float=1e-3) -> None:
        self.layers = layers
        self.learning_rate = learning_rate
        self.act = activation_function
        self.dact = dactivation_function or self.d(activation_function)
        self.delta = 1e-10
        self.Z: list[np.ndarray] = [np.zeros(layers[0])]
        self.W: list[np.ndarray] = [np.zeros(layers[0])]
        self.B: list[np.ndarray] = [np.zeros(layers[0])]
        self.output: list[np.ndarray]  = [np.zeros(layers[0])]

        for i in range(1, len(self.layers)):
            self.W.append(np.random.randn(self.layers[i], self.layers[i-1]) * np.sqrt(2/layers[i-1]))
            self.B.append(np.zeros(self.layers[i]))
            self.Z.append(np.zeros(self.layers[i]))
            self.output.append(np.zeros(self.layers[i]))


    def d(self, f: Callable) -> Callable:
        delta = 1e-10j
        def df(x): return f(x + delta).imag / delta.imag
        return df

第一步先來初始化一個神經網路的物件

class NeuralNetwork:
    def __init__(self, layers: list[int], activation_function: Callable, dactivation_function: Callable=None, learning_rate: float=1e-3) -> None:
        self.layers = layers
        self.learning_rate = learning_rate
        self.act = activation_function
        self.dact = dactivation_function or self.d(activation_function)
        self.delta = 1e-10
        self.Z: list[np.ndarray] = [np.zeros(layers[0])]
        self.W: list[np.ndarray] = [np.zeros(layers[0])]
        self.B: list[np.ndarray] = [np.zeros(layers[0])]
        self.output: list[np.ndarray]  = [np.zeros(layers[0])]

        for i in range(1, len(self.layers)):
            self.W.append(np.random.randn(self.layers[i], self.layers[i-1]) * np.sqrt(2/layers[i-1]))
            self.B.append(np.zeros(self.layers[i]))
            self.Z.append(np.zeros(self.layers[i]))
            self.output.append(np.zeros(self.layers[i]))


    def d(self, f: Callable) -> Callable:
        delta = 1e-10j
        def df(x): return f(x + delta).imag / delta.imag
        return df

我們希望能夠透過輸入來決定神經網路的結構

e.g. layers = [16, 32, 64, 32, 10]

那麼輸入層 = 16 輸出層 = 10 其他層同理

class NeuralNetwork:
    def __init__(self, layers: list[int], activation_function: Callable, dactivation_function: Callable=None, learning_rate: float=1e-3) -> None:
        self.layers = layers
        self.learning_rate = learning_rate
        self.act = activation_function
        self.dact = dactivation_function or self.d(activation_function)
        self.delta = 1e-10
        self.Z: list[np.ndarray] = [np.zeros(layers[0])]
        self.W: list[np.ndarray] = [np.zeros(layers[0])]
        self.B: list[np.ndarray] = [np.zeros(layers[0])]
        self.output: list[np.ndarray]  = [np.zeros(layers[0])]

        for i in range(1, len(self.layers)):
            self.W.append(np.random.randn(self.layers[i], self.layers[i-1]) * np.sqrt(2/layers[i-1]))
            self.B.append(np.zeros(self.layers[i]))
            self.Z.append(np.zeros(self.layers[i]))
            self.output.append(np.zeros(self.layers[i]))


    def d(self, f: Callable) -> Callable:
        delta = 1e-10j
        def df(x): return f(x + delta).imag / delta.imag
        return df

設定學習率 梯度下降會使用到

class NeuralNetwork:
    def __init__(self, layers: list[int], activation_function: Callable, dactivation_function: Callable=None, learning_rate: float=1e-3) -> None:
        self.layers = layers
        self.learning_rate = learning_rate
        self.act = activation_function
        self.dact = dactivation_function or self.d(activation_function)
        self.delta = 1e-10
        self.Z: list[np.ndarray] = [np.zeros(layers[0])]
        self.W: list[np.ndarray] = [np.zeros(layers[0])]
        self.B: list[np.ndarray] = [np.zeros(layers[0])]
        self.output: list[np.ndarray]  = [np.zeros(layers[0])]

        for i in range(1, len(self.layers)):
            self.W.append(np.random.randn(self.layers[i], self.layers[i-1]) * np.sqrt(2/layers[i-1]))
            self.B.append(np.zeros(self.layers[i]))
            self.Z.append(np.zeros(self.layers[i]))
            self.output.append(np.zeros(self.layers[i]))


    def d(self, f: Callable) -> Callable:
        delta = 1e-10j
        def df(x): return f(x + delta).imag / delta.imag
        return df

設定 activation functions

另外構建了一個函數在未給予dact的情況下自動微分

class NeuralNetwork:
    def __init__(self, layers: list[int], activation_function: Callable, dactivation_function: Callable=None, learning_rate: float=1e-3) -> None:
        self.layers = layers
        self.learning_rate = learning_rate
        self.act = activation_function
        self.dact = dactivation_function or self.d(activation_function)
        self.delta = 1e-10
        self.Z: list[np.ndarray] = [np.zeros(layers[0])]
        self.W: list[np.ndarray] = [np.zeros(layers[0])]
        self.B: list[np.ndarray] = [np.zeros(layers[0])]
        self.output: list[np.ndarray]  = [np.zeros(layers[0])]

        for i in range(1, len(self.layers)):
            self.W.append(np.random.randn(self.layers[i], self.layers[i-1]) * np.sqrt(2/layers[i-1]))
            self.B.append(np.zeros(self.layers[i]))
            self.Z.append(np.zeros(self.layers[i]))
            self.output.append(np.zeros(self.layers[i]))


    def d(self, f: Callable) -> Callable:
        delta = 1e-10j
        def df(x): return f(x + delta).imag / delta.imag
        return df

設定一個很小的數字

用以防止特定地方可能除以0導致程式發生錯誤

class NeuralNetwork:
    def __init__(self, layers: list[int], activation_function: Callable, dactivation_function: Callable=None, learning_rate: float=1e-3) -> None:
        self.layers = layers
        self.learning_rate = learning_rate
        self.act = activation_function
        self.dact = dactivation_function or self.d(activation_function)
        self.delta = 1e-10
        self.Z: list[np.ndarray] = [np.zeros(layers[0])]
        self.W: list[np.ndarray] = [np.zeros(layers[0])]
        self.B: list[np.ndarray] = [np.zeros(layers[0])]
        self.output: list[np.ndarray]  = [np.zeros(layers[0])]

        for i in range(1, len(self.layers)):
            self.W.append(np.random.randn(self.layers[i], self.layers[i-1]) * np.sqrt(2/layers[i-1]))
            self.B.append(np.zeros(self.layers[i]))
            self.Z.append(np.zeros(self.layers[i]))
            self.output.append(np.zeros(self.layers[i]))


    def d(self, f: Callable) -> Callable:
        delta = 1e-10j
        def df(x): return f(x + delta).imag / delta.imag
        return df

建立存放參數的陣列

並且事先以填充0初始化每個神經元的參數陣列大小

class NeuralNetwork:
    def __init__(self, layers: list[int], activation_function: Callable, dactivation_function: Callable=None, learning_rate: float=1e-3) -> None:
        self.layers = layers
        self.learning_rate = learning_rate
        self.act = activation_function
        self.dact = dactivation_function or self.d(activation_function)
        self.delta = 1e-10
        self.Z: list[np.ndarray] = [np.zeros(layers[0])]
        self.W: list[np.ndarray] = [np.zeros(layers[0])]
        self.B: list[np.ndarray] = [np.zeros(layers[0])]
        self.output: list[np.ndarray]  = [np.zeros(layers[0])]

        for i in range(1, len(self.layers)):
            self.W.append(np.random.randn(self.layers[i], self.layers[i-1]) * np.sqrt(2/layers[i-1]))
            self.B.append(np.zeros(self.layers[i]))
            self.Z.append(np.zeros(self.layers[i]))
            self.output.append(np.zeros(self.layers[i]))


    def d(self, f: Callable) -> Callable:
        delta = 1e-10j
        def df(x): return f(x + delta).imag / delta.imag
        return df

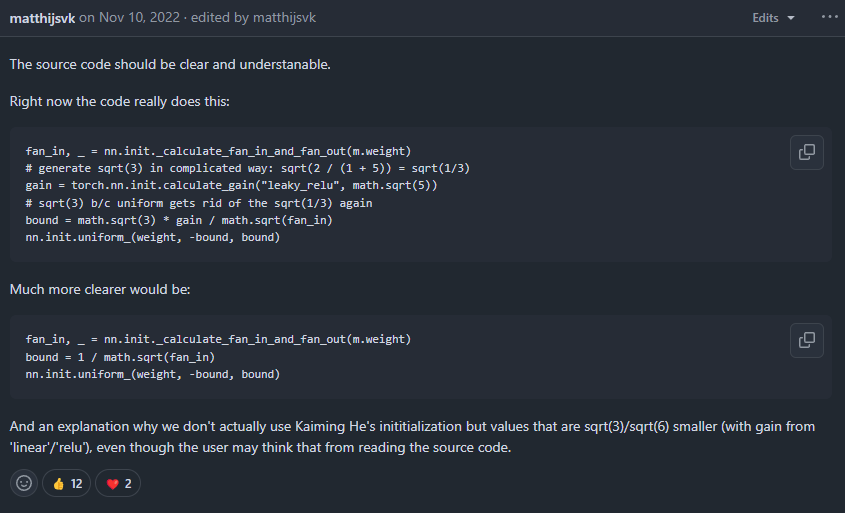

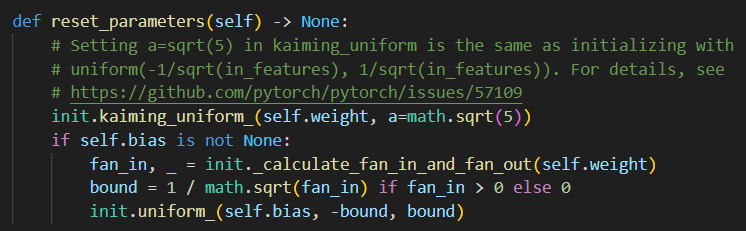

有人可能會好奇這行的初始化方式

關於參數的初始化方式詳細會在

Problems 章節進行說明

def softmax(self, x):
  exp_x = np.exp(x - np.max(x))
  return exp_x / np.sum(exp_x)


def cross_entropy(self, y: np.ndarray) -> np.float64:
  return -np.dot(y.T, np.log(self.output[-1] + self.delta))

在物件內建立好待會會使用到的算式

另外前面提到的delta在cross entropy時便使用到了

np.dot(x, y)

內積 詳細可見線性代數章節

np.exp(x)

對每個x的元素取 e^x

def save_params(self, filename: str="params.json"):
    with open(filename, "w") as f:
		json.dump({"W": self.W, "B": self.B}, f, indent=4, cls=NumpyArrayEncoder)


def load_params(self, filename: str="params.json"):
	with open(filename, "r") as f:
		params = json.load(f)
		self.W = []
		self.B = []
		for w in params["W"]: self.W.append(np.asarray(w))
		for b in params["B"]: self.B.append(np.asarray(b))

設定個儲存參數的東西

可以避免每次都要重複花時間去訓練

def save_params(self, filename: str="params.json"):
    with open(filename, "w") as f:
		json.dump({"W": self.W, "B": self.B}, f, indent=4, cls=NumpyArrayEncoder)


def load_params(self, filename: str="params.json"):
	with open(filename, "r") as f:
		params = json.load(f)
		self.W = []
		self.B = []
		for w in params["W"]: self.W.append(np.asarray(w))
		for b in params["B"]: self.B.append(np.asarray(b))

設定個儲存參數的東西

可以避免每次都要重複花時間去訓練



另外由於 numpy array 無法被 json 序列化

因此需要使用自訂的 encoder

# encoder.py
import json
import numpy as np

class NumpyArrayEncoder(json.JSONEncoder):
    def default(self, obj):
        if isinstance(obj, np.ndarray):
            return obj.tolist()
        return json.JSONEncoder.default(self, obj)

另外由於 numpy array 無法被 json 序列化

因此需要使用自訂的 encoder

自訂 encoder 會將物件內的每個 numpy array

進行 tolist() 操作

讓他可以變成 python 內建的 list 被儲存到 json

def forward(self, x: np.ndarray) -> np.ndarray:
    assert x.shape[0] == self.layers[0]
    self.output[0] = x

    for i in range(1, len(self.layers)):
        self.Z[i] = np.dot(self.W[i], self.output[i-1]) + self.B[i]
        if i == len(self.layers)-1: self.output[i] = self.softmax(self.Z[i])
        else: self.output[i] = self.act(self.Z[i])

    return self.output[-1]

前向傳播 啟動

def forward(self, x: np.ndarray) -> np.ndarray:
    assert x.shape[0] == self.layers[0]
    self.output[0] = x

    for i in range(1, len(self.layers)):
        self.Z[i] = np.dot(self.W[i], self.output[i-1]) + self.B[i]
        if i == len(self.layers)-1: self.output[i] = self.softmax(self.Z[i])
        else: self.output[i] = self.act(self.Z[i])

    return self.output[-1]
\vec Z = \vec X \cdot \vec W + \vec B
def forward(self, x: np.ndarray) -> np.ndarray:
    assert x.shape[0] == self.layers[0]
    self.output[0] = x

    for i in range(1, len(self.layers)):
        self.Z[i] = np.dot(self.W[i], self.output[i-1]) + self.B[i]
        if i == len(self.layers)-1: self.output[i] = self.softmax(self.Z[i])
        else: self.output[i] = self.act(self.Z[i])

    return self.output[-1]
\vec Z = \vec X \cdot \vec W + \vec B
\vec{\mathtt{output}}_i = \sigma(\vec Z) \\
\vec{\mathtt{output}}_n = \sigma_{softmax}(\vec Z)
def backward(self, y: np.ndarray) -> None:
    x = self.output[-1] - y

    for i in range(len(self.layers)-1, 0, -1):
        t = x * self.dact(self.Z[i])
        x = np.dot(self.W[i].T, t)
        self.W[i] -= self.learning_rate * np.outer(t, self.output[i-1])
        self.B[i] -= self.learning_rate * t

反向傳播 啟動

def backward(self, y: np.ndarray) -> None:
    x = self.output[-1] - y

    for i in range(len(self.layers)-1, 0, -1):
        t = x * self.dact(self.Z[i])
        x = np.dot(self.W[i].T, t)
        self.W[i] -= self.learning_rate * np.outer(t, self.output[i-1])
        self.B[i] -= self.learning_rate * t
def backward(self, y: np.ndarray) -> None:
    x = self.output[-1] - y

    for i in range(len(self.layers)-1, 0, -1):
        t = x * self.dact(self.Z[i])
        x = np.dot(self.W[i].T, t)
        self.W[i] -= self.learning_rate * np.outer(t, self.output[i-1])
        self.B[i] -= self.learning_rate * t
def backward(self, y: np.ndarray) -> None:
    x = self.output[-1] - y

    for i in range(len(self.layers)-1, 0, -1):
        t = x * self.dact(self.Z[i])
        x = np.dot(self.W[i].T, t)
        self.W[i] -= self.learning_rate * np.outer(t, self.output[i-1])
        self.B[i] -= self.learning_rate * t
def backward(self, y: np.ndarray) -> None:
    x = self.output[-1] - y

    for i in range(len(self.layers)-1, 0, -1):
        t = x * self.dact(self.Z[i])
        x = np.dot(self.W[i].T, t)
        self.W[i] -= self.learning_rate * np.outer(t, self.output[i-1])
        self.B[i] -= self.learning_rate * t
def backward(self, y: np.ndarray) -> None:
    x = self.output[-1] - y

    for i in range(len(self.layers)-1, 0, -1):
        t = x * self.dact(self.Z[i])
        x = np.dot(self.W[i].T, t)
        self.W[i] -= self.learning_rate * np.outer(t, self.output[i-1])
        self.B[i] -= self.learning_rate * t

將反向傳播得到的資訊

乘上權重

def backward(self, y: np.ndarray) -> None:
    x = self.output[-1] - y

    for i in range(len(self.layers)-1, 0, -1):
        t = x * self.dact(self.Z[i])
        x = np.dot(self.W[i].T, t)
        self.W[i] -= self.learning_rate * np.outer(t, self.output[i-1])
        self.B[i] -= self.learning_rate * t
\frac{\partial z_i^{(n)}}{\partial w_i^{(n)}} = \sigma(z_i^{(n-1)})
\frac{\partial z_i^{(n)}}{\partial b_i^{(n)}} = 1
def backward(self, y: np.ndarray) -> None:
    x = self.output[-1] - y

    for i in range(len(self.layers)-1, 0, -1):
        t = x * self.dact(self.Z[i])
        x = np.dot(self.W[i].T, t)
        self.W[i] -= self.learning_rate * np.outer(t, self.output[i-1])
        self.B[i] -= self.learning_rate * t
\frac{\partial z_i^{(n)}}{\partial w_i^{(n)}} = \sigma(z_i^{(n-1)})
\frac{\partial z_i^{(n)}}{\partial b_i^{(n)}} = 1

因此w要多乘一個過未經微分的sigmoid的x

def fit(self, x: np.ndarray, y: np.ndarray) -> np.float64:
    self.forward(x)
    loss = self.cross_entropy(y)
    self.backward(y)
    return loss

每次進行一次最佳化就

過一次正向傳播計算loss後

進行反向傳播更新參數

完整Code

# act.py
import numpy as np

def relu(x):
    return np.maximum(0, x)

def drelu(x):
    return np.where(x > 0, 1, 0)
# *)#$#*)%*)#$#)*%

完整Code

# encoder.py
import json
import numpy as np

class NumpyArrayEncoder(json.JSONEncoder):
    def default(self, obj):
        if isinstance(obj, np.ndarray):
            return obj.tolist()
        return json.JSONEncoder.default(self, obj)
# *)#$#*)%*)#$#)*%

完整Code

# nn.py
import json
from datetime import datetime
from typing import Callable

import numpy as np

from np_encoder import NumpyArrayEncoder


class NeuralNetwork:
    def __init__(self, layers: list[int], activation_function: Callable, dactivation_function: Callable=None, learning_rate: float=1e-3) -> None:
        self.layers = layers
        self.learning_rate = learning_rate
        self.act = activation_function
        self.dact = dactivation_function or self.d(activation_function)
        self.delta = 1e-10
        self.Z: list[np.ndarray] = [np.zeros(layers[0])]
        self.W: list[np.ndarray] = [np.zeros(layers[0])]
        self.B: list[np.ndarray] = [np.zeros(layers[0])]
        self.output: list[np.ndarray]  = [np.zeros(layers[0])]

        for i in range(1, len(self.layers)):
            self.W.append(np.random.randn(self.layers[i], self.layers[i-1]) * np.sqrt(2/layers[i-1]))
            self.B.append(np.zeros(self.layers[i]))
            self.Z.append(np.zeros(self.layers[i]))
            self.output.append(np.zeros(self.layers[i]))


    def d(self, f: Callable) -> Callable:
        delta = 1e-10j
        def df(x): return f(x + delta).imag / delta.imag
        return df


    def softmax(self, x):
        exp_x = np.exp(x - np.max(x))
        return exp_x / np.sum(exp_x)


    def cross_entropy(self, y: np.ndarray) -> np.float64:
        return -np.dot(y.T, np.log(self.output[-1] + self.delta))


    def forward(self, x: np.ndarray) -> np.ndarray:
        assert x.shape[0] == self.layers[0]
        self.output[0] = x

        for i in range(1, len(self.layers)):
            self.Z[i] = np.dot(self.W[i], self.output[i-1]) + self.B[i]
            if i == len(self.layers)-1: self.output[i] = self.softmax(self.Z[i])
            else: self.output[i] = self.act(self.Z[i])

        return self.output[-1]


    def backward(self, y: np.ndarray) -> np.ndarray:
        x = self.output[-1] - y

        for i in reversed(range(1, len(self.layers))):
            t = x * self.dact(self.Z[i])
            x = np.dot(self.W[i].T, t)
            self.W[i] -= self.learning_rate * np.outer(t, self.output[i-1])
            self.B[i] -= self.learning_rate * t

        return x


    def fit(self, x: np.ndarray, y: np.ndarray) -> np.float64:
        self.forward(x)
        loss = self.cross_entropy(y)
        self.backward(y)
        return loss


    def save_params(self, filename: str="params.json"):
        with open(filename, "w") as f:
            json.dump({"W": self.W, "B": self.B}, f, indent=4, cls=NumpyArrayEncoder)


    def load_params(self, filename: str="params.json"):
        with open(filename, "r") as f:
            params = json.load(f)
            self.W = []
            self.B = []
            for w in params["W"]: self.W.append(np.asarray(w))
            for b in params["B"]: self.B.append(np.asarray(b))
# *)#$#*)%*)#$#)*%

訓練

我們期望運行神經網路的流程如下

訓練神經網路 => 測試模型準確率

也就是說我們的啟動檔案

會匯入模型以及MNIST

並且進行訓練與測試

最後會得到準確率的結果與過程的loss變化

建立一個 main.py

此時檔案結構應如下

接著來編寫 main.py

import numpy as np
import matplotlib.pyplot as plt
from keras.datasets import mnist

from nn import NeuralNetwork
from act import relu, drelu

先引入所需函式庫

設定參數

learning_rate: 學習率
data_size: 資料大小(等同輸入層的層數)
batch_size: 每次訓練並輸出的批次量
max_trains: 最大訓練次數
epochs: 總共訓練幾個epoch
save: 是否要儲存參數

learning_rate = 1e-3
data_size = 784
batch_size = 64
max_trains = 60000
epochs = 3
save = True
(x_train_image, y_train_label), (x_test_image, y_test_label) = mnist.load_data()
x_trains = np.array(x_train_image).reshape(len(x_train_image), 784).astype("float64")/255
x_tests = np.array(x_test_image).reshape(len(x_test_image), 784).astype("float64")/255
y_trains = np.eye(10)[y_train_label]
y_tests = np.eye(10)[y_test_label]

從MNIST中載入資料

並且將圖片轉換成一維陣列後設定型別

除以255是為了讓灰階區間從[0, 255]->[0, 1]

(x_train_image, y_train_label), (x_test_image, y_test_label) = mnist.load_data()
x_trains = np.array(x_train_image).reshape(len(x_train_image), 784).astype("float64")/255
x_tests = np.array(x_test_image).reshape(len(x_test_image), 784).astype("float64")/255
y_trains = np.eye(10)[y_train_label]
y_tests = np.eye(10)[y_test_label]

np.eye(n)會建立一個n*n的單位矩陣

(x_train_image, y_train_label), (x_test_image, y_test_label) = mnist.load_data()
x_trains = np.array(x_train_image).reshape(len(x_train_image), 784).astype("float64")/255
x_tests = np.array(x_test_image).reshape(len(x_test_image), 784).astype("float64")/255
y_trains = np.eye(10)[y_train_label]
y_tests = np.eye(10)[y_test_label]

np.eye(n)會建立一個n*n的單位矩陣

np.eye(3) = \left[ \begin{matrix} 1 & 0 & 0 \\ 0 & 1 & 0 \\ 0 & 0 & 1 \end{matrix} \right]
(x_train_image, y_train_label), (x_test_image, y_test_label) = mnist.load_data()
x_trains = np.array(x_train_image).reshape(len(x_train_image), 784).astype("float64")/255
x_tests = np.array(x_test_image).reshape(len(x_test_image), 784).astype("float64")/255
y_trains = np.eye(10)[y_train_label]
y_tests = np.eye(10)[y_test_label]

那為什麼要這麼做呢

因為我們要讓label的形式轉換一下

(x_train_image, y_train_label), (x_test_image, y_test_label) = mnist.load_data()
x_trains = np.array(x_train_image).reshape(len(x_train_image), 784).astype("float64")/255
x_tests = np.array(x_test_image).reshape(len(x_test_image), 784).astype("float64")/255
y_trains = np.eye(10)[y_train_label]
y_tests = np.eye(10)[y_test_label]

那為什麼要這麼做呢

因為我們要讓label的形式轉換一下

3 \rightarrow \left[ \begin{matrix} 0&0&0&1&0& 0&0&0&0&0 \end{matrix} \right]

※它給的label是0-based 不用減一

nn = NeuralNetwork(layers=[784, 256, 128, 64, 10], activation_function=relu, dactivation_function=drelu, learning_rate=learning_rate)

train_loss = nn.train(x_trains, y_trains, epochs, batch_size, max_trains, save)
test_loss = nn.predict(x_tests, y_tests)

創建神經網路物件

並依序從訓練及預測函式拿到loss

(函式內容會在後面章節提到)

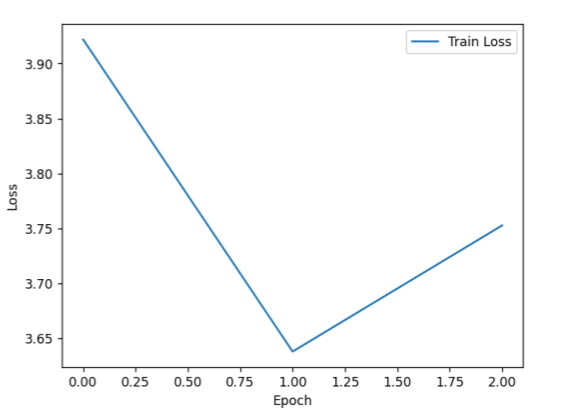

plt.plot(train_loss, label="Train Loss")
plt.xlabel("Epoch")
plt.ylabel("Loss")
plt.legend()
plt.show()

使用matplotlib函式庫繪製loss的變化圖表

完整Code

# *)#$#*)%*)#$#)*%
# main.py

import numpy as np
import matplotlib.pyplot as plt
from keras.datasets import mnist

from nn import NeuralNetwork
from act import relu, drelu


learning_rate = 1e-3
data_size = 784
batch_size = 64
max_trains = 60000
epochs = 3
save = True

(x_train_image, y_train_label), (x_test_image, y_test_label) = mnist.load_data()
x_trains = np.array(x_train_image).reshape(len(x_train_image), 784).astype("float64")/255
x_tests = np.array(x_test_image).reshape(len(x_test_image), 784).astype("float64")/255
y_trains = np.eye(10)[y_train_label]
y_tests = np.eye(10)[y_test_label]

nn = NeuralNetwork(layers=[784, 256, 128, 64, 10], activation_function=relu, dactivation_function=drelu, learning_rate=learning_rate)

train_loss = nn.train(x_trains, y_trains, epochs, batch_size, max_trains, save)
test_loss = nn.predict(x_tests, y_tests)


plt.plot(train_loss, label="Train Loss")
plt.xlabel("Epoch")
plt.ylabel("Loss")
plt.legend()
plt.show()

接著來處理訓練(train)跟預測(predict)的函式

訓練

為了讓每次訓練的輸出

不要因為單次的偏差而顯得數據差過大



我們通常會以一個批次(batch)為單位去做訓練

而批次的大小



另外批次還有其他作用會在後續章節提到

訓練

而訓練也可以藉由重複訓練來加強參數

每個epoch便是將整個數據集訓練一遍

而epoch的次數越高 訓練時長越高

但相對的準確率就會提高

另外

最大訓練次數純粹是因為我懶得訓練太久而強制中止的東東

在不包含測試資料的資料集中也可以拿來保留資料做測試

def train(self, x_trains: np.ndarray, y_trains: np.ndarray, epochs: int, batch_size: int=64, max_trains: int=60000, save: bool=False) -> list[np.float64]:
    train_loss = []

    for epoch in range(epochs):
        max_trains = min(max_trains, len(x_trains))
        total_loss = 0
        start_time = datetime.now()

        for i in range(0, max_trains, batch_size):
            x_batch = x_trains[i:i + batch_size]
            y_batch = y_trains[i:i + batch_size]
            batch_loss = 0

            for x_train, y_train in zip(x_batch, y_batch):
                batch_loss += self.fit(x_train, y_train)

            loss = batch_loss / batch_size
            total_loss += loss
            train_loss.append(loss)

            batch = i // batch_size + 1
            batchs = max_trains // batch_size + 1

            print(
                "Batch {space}{batch}/{batchs}, Loss: {loss}, Average Loss: {avg_loss}"
                .format(
                    space=" " * (len(str(batchs)) - len(str(batch))),
                    batch=batch,
                    batchs=batchs,
                    loss='%.5f' % loss,
                    avg_loss='%.5f' % (total_loss / batch)
                )
            )

        print(
            "Epoch {space}{epoch}/{epochs}, Loss: {loss}, Save: {save}, Time: {time}"
            .format(
                space=" " * (len(str(epochs)) + len(str(batchs)) * 2 - len(str(epoch)) * 3),
                epoch=epoch + 1,
                epochs=epochs,
                loss='%.5f' % (total_loss / (max_trains // batch_size + 1)),
                save=save,
                time=datetime.now() - start_time
            )
        )

        if save:
            self.save_params()

    return train_loss

預測

幾乎同訓練

不過不會更新參數

並且加上準確率

def predict(self, x_tests: np.ndarray, y_tests: np.ndarray) -> list[np.float64]:
    test_loss = []
    accuracy = 0

    for i, (x_test, y_test) in enumerate(zip(x_tests, y_tests)):
        output = self.forward(x_test)
        loss = self.cross_entropy(y_test)
        correct = output.argmax() == y_test.argmax()

        if correct:
            accuracy += 1

        test_loss.append(loss)
        print(
            "Test {space}{test}/{tests}, Loss: {loss}, Correct: {correct}"
            .format(
                space=" " * (len(str(len(x_tests))) - len(str(i+1))),
                test=i + 1,
                tests=len(x_tests),
                loss='%.5f' % loss,
                correct=correct
            )
        )

    print(f"Average test loss: {sum(test_loss) / len(test_loss)}")
    print(f"Accuracy: {accuracy / len(x_tests)}")

    return test_loss

完整Code

# nn.py
import json
from datetime import datetime
from typing import Callable

import numpy as np

from np_encoder import NumpyArrayEncoder


class NeuralNetwork:
    def __init__(self, layers: list[int], activation_function: Callable, dactivation_function: Callable=None, learning_rate: float=1e-3) -> None:
        self.layers = layers
        self.learning_rate = learning_rate
        self.act = activation_function
        self.dact = dactivation_function or self.d(activation_function)
        self.delta = 1e-10
        self.Z: list[np.ndarray] = [np.zeros(layers[0])]
        self.W: list[np.ndarray] = [np.zeros(layers[0])]
        self.B: list[np.ndarray] = [np.zeros(layers[0])]
        self.output: list[np.ndarray]  = [np.zeros(layers[0])]

        for i in range(1, len(self.layers)):
            self.W.append(np.random.randn(self.layers[i], self.layers[i-1]) * np.sqrt(2/layers[i-1]))
            self.B.append(np.zeros(self.layers[i]))
            self.Z.append(np.zeros(self.layers[i]))
            self.output.append(np.zeros(self.layers[i]))


    def d(self, f: Callable) -> Callable:
        delta = 1e-10j
        def df(x): return f(x + delta).imag / delta.imag
        return df


    def softmax(self, x):
        exp_x = np.exp(x - np.max(x))
        return exp_x / np.sum(exp_x)


    def cross_entropy(self, y: np.ndarray) -> np.float64:
        return -np.dot(y.T, np.log(self.output[-1] + self.delta))


    def forward(self, x: np.ndarray) -> np.ndarray:
        assert x.shape[0] == self.layers[0]
        self.output[0] = x

        for i in range(1, len(self.layers)):
            self.Z[i] = np.dot(self.W[i], self.output[i-1]) + self.B[i]
            if i == len(self.layers)-1: self.output[i] = self.softmax(self.Z[i])
            else: self.output[i] = self.act(self.Z[i])

        return self.output[-1]


    def backward(self, y: np.ndarray) -> np.ndarray:
        x = self.output[-1] - y

        for i in reversed(range(1, len(self.layers))):
            t = x * self.dact(self.Z[i])
            x = np.dot(self.W[i].T, t)
            self.W[i] -= self.learning_rate * np.outer(t, self.output[i-1])
            self.B[i] -= self.learning_rate * t

        return x


    def fit(self, x: np.ndarray, y: np.ndarray) -> np.float64:
        self.forward(x)
        loss = self.cross_entropy(y)
        self.backward(y)
        return loss


    def predict(self, x_tests: np.ndarray, y_tests: np.ndarray) -> list[np.float64]:
        test_loss = []
        accuracy = 0

        for i, (x_test, y_test) in enumerate(zip(x_tests, y_tests)):
            output = self.forward(x_test)
            loss = self.cross_entropy(y_test)
            correct = output.argmax() == y_test.argmax()

            if correct:
                accuracy += 1

            test_loss.append(loss)
            print(
                "Test {space}{test}/{tests}, Loss: {loss}, Correct: {correct}"
                .format(
                    space=" " * (len(str(len(x_tests))) - len(str(i+1))),
                    test=i + 1,
                    tests=len(x_tests),
                    loss='%.5f' % loss,
                    correct=correct
                )
            )

        print(f"Average test loss: {sum(test_loss) / len(test_loss)}")
        print(f"Accuracy: {accuracy / len(x_tests)}")

        return test_loss


    def train(self, x_trains: np.ndarray, y_trains: np.ndarray, epochs: int, batch_size: int=64, max_trains: int=60000, save: bool=False) -> list[np.float64]:
        train_loss = []

        for epoch in range(epochs):
            max_trains = min(max_trains, len(x_trains))
            total_loss = 0
            start_time = datetime.now()

            for i in range(0, max_trains, batch_size):
                x_batch = x_trains[i:i + batch_size]
                y_batch = y_trains[i:i + batch_size]
                batch_loss = 0

                for x_train, y_train in zip(x_batch, y_batch):
                    batch_loss += self.fit(x_train, y_train)

                loss = batch_loss / batch_size
                total_loss += loss
                train_loss.append(loss)

                batch = i // batch_size + 1
                batchs = max_trains // batch_size + 1

                print(
                    "Batch {space}{batch}/{batchs}, Loss: {loss}, Average Loss: {avg_loss}"
                    .format(
                        space=" " * (len(str(batchs)) - len(str(batch))),
                        batch=batch,
                        batchs=batchs,
                        loss='%.5f' % loss,
                        avg_loss='%.5f' % (total_loss / batch)
                    )
                )

            print(
                "Epoch {space}{epoch}/{epochs}, Loss: {loss}, Save: {save}, Time: {time}"
                .format(
                    space=" " * (len(str(epochs)) + len(str(batchs)) * 2 - len(str(epoch)) * 3),
                    epoch=epoch + 1,
                    epochs=epochs,
                    loss='%.5f' % (total_loss / (max_trains // batch_size + 1)),
                    save=save,
                    time=datetime.now() - start_time
                )
            )

            if save:
                self.save_params()

        return train_loss


    def save_params(self, filename: str="params.json"):
        with open(filename, "w") as f:
            json.dump({"W": self.W, "B": self.B}, f, indent=4, cls=NumpyArrayEncoder)


    def load_params(self, filename: str="params.json"):
        with open(filename, "r") as f:
            params = json.load(f)
            self.W = []
            self.B = []
            for w in params["W"]: self.W.append(np.asarray(w))
            for b in params["B"]: self.B.append(np.asarray(b))
# *)#$#*)%*)#$#)*%

參數初始化

參數初始化

Parameter Initialization

Xavier

Kaiming

for i in range(1, len(self.layers)):
    self.W.append(np.random.randn(self.layers[i], self.layers[i-1]) * np.sqrt(2/layers[i-1]))
    self.B.append(np.zeros(self.layers[i]))
    self.Z.append(np.zeros(self.layers[i]))
    self.output.append(np.zeros(self.layers[i]))
np.random.randn(self.layers[i], self.layers[i-1]) * np.sqrt(2/layers[i-1])
for i in range(1, len(self.layers)):
    self.W.append(np.random.randn(self.layers[i], self.layers[i-1]) * np.sqrt(2/layers[i-1]))
    self.B.append(np.zeros(self.layers[i]))
    self.Z.append(np.zeros(self.layers[i]))
    self.output.append(np.zeros(self.layers[i]))
np.zeros(self.layers[i])

梯度下降優化

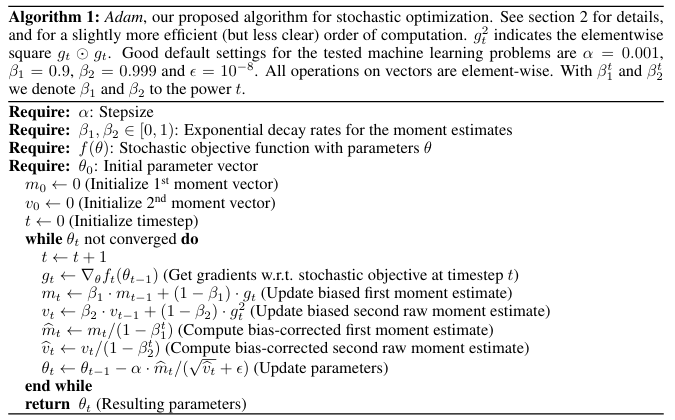

論文連結

def adam(self, grad: np.ndarray, t: int) -> np.ndarray:

    self.m[self.gd_tag] = self.beta1 * self.m[self.gd_tag] + (1 - self.beta1) * grad
    self.v[self.gd_tag] = self.beta2 * self.v[self.gd_tag] + (1 - self.beta2) * np.square(grad)

    m_hat = self.m[self.gd_tag] / (1 - np.float_power(self.beta1, t))
    v_hat = self.v[self.gd_tag] / (1 - np.float_power(self.beta2, t))

    self.gd_tag += 1

    return self.learning_rate * m_hat / (np.sqrt(v_hat) + self.delta)
m^{(t)} = \beta_1 m^{(t-1)} + (1 - \beta_1) g^{(t)}
v^{(t)} = \beta_2 v^{(t-1)} + (1 - \beta_2) (g^{(t)})^2
def adam(self, grad: np.ndarray, t: int) -> np.ndarray:

    self.m[self.gd_tag] = self.beta1 * self.m[self.gd_tag] + (1 - self.beta1) * grad
    self.v[self.gd_tag] = self.beta2 * self.v[self.gd_tag] + (1 - self.beta2) * np.square(grad)

    m_hat = self.m[self.gd_tag] / (1 - np.float_power(self.beta1, t))
    v_hat = self.v[self.gd_tag] / (1 - np.float_power(self.beta2, t))

    self.gd_tag += 1

    return self.learning_rate * m_hat / (np.sqrt(v_hat) + self.delta)
m^{(t)} = \beta_1 m^{(t-1)} + (1 - \beta_1) g^{(t)}
v^{(t)} = \beta_2 v^{(t-1)} + (1 - \beta_2) (g^{(t)})^2
def adam(self, grad: np.ndarray, t: int) -> np.ndarray:

    self.m[self.gd_tag] = self.beta1 * self.m[self.gd_tag] + (1 - self.beta1) * grad
    self.v[self.gd_tag] = self.beta2 * self.v[self.gd_tag] + (1 - self.beta2) * np.square(grad)

    m_hat = self.m[self.gd_tag] / (1 - np.float_power(self.beta1, t))
    v_hat = self.v[self.gd_tag] / (1 - np.float_power(self.beta2, t))

    self.gd_tag += 1

    return self.learning_rate * m_hat / (np.sqrt(v_hat) + self.delta)
\hat m^{(t)} = \frac{m^{(t)}}{1 - \beta_1^t}
\hat v^{(t)} = \frac{v^{(t)}}{1 - \beta_2^t}
def adam(self, grad: np.ndarray, t: int) -> np.ndarray:

    self.m[self.gd_tag] = self.beta1 * self.m[self.gd_tag] + (1 - self.beta1) * grad
    self.v[self.gd_tag] = self.beta2 * self.v[self.gd_tag] + (1 - self.beta2) * np.square(grad)

    m_hat = self.m[self.gd_tag] / (1 - np.float_power(self.beta1, t))
    v_hat = self.v[self.gd_tag] / (1 - np.float_power(self.beta2, t))

    self.gd_tag += 1

    return self.learning_rate * m_hat / (np.sqrt(v_hat) + self.delta)
x_i^{(t+1)} = x_i^{(t)} - \frac{\gamma}{\sqrt{\hat v^{(t)} + \varepsilon}} \hat m^{(t)}

完整Code

# nn.py
import json
from datetime import datetime
from typing import Callable

import numpy as np

from np_encoder import NumpyArrayEncoder


class NeuralNetwork:
    def __init__(self, layers: list[int], activation_function: Callable, dactivation_function: Callable=None, learning_rate: float=1e-3) -> None:
        self.layers = layers
        self.learning_rate = learning_rate
        self.act = activation_function
        self.dact = dactivation_function or self.d(activation_function)
        self.delta = 1e-10
        self.Z: list[np.ndarray] = [np.zeros(layers[0])]
        self.W: list[np.ndarray] = [np.zeros(layers[0])]
        self.B: list[np.ndarray] = [np.zeros(layers[0])]
        self.output: list[np.ndarray]  = [np.zeros(layers[0])]

        self.m: list[np.ndarray] = [0 for _ in range((len(layers)-1)*2)]
        self.v: list[np.ndarray] = [0 for _ in range((len(layers)-1)*2)]
        self.beta1 = 0.9
        self.beta2 = 0.999
        self.gd_times = 1
        self.gd_tag = 0

        for i in range(1, len(self.layers)):
            self.W.append(np.random.randn(self.layers[i], self.layers[i-1]) * np.sqrt(2/layers[i-1]))
            self.B.append(np.zeros(self.layers[i]))
            self.Z.append(np.zeros(self.layers[i]))
            self.output.append(np.zeros(self.layers[i]))


    def d(self, f: Callable) -> Callable:
        delta = 1e-10j
        def df(x): return f(x + delta).imag / delta.imag
        return df


    def softmax(self, x):
        exp_x = np.exp(x - np.max(x))
        return exp_x / np.sum(exp_x)


    def cross_entropy(self, y: np.ndarray) -> np.float64:
        return -np.dot(y.T, np.log(self.output[-1] + self.delta))


    def adam(self, grad: np.ndarray, t: int) -> np.ndarray:

        self.m[self.gd_tag] = self.beta1 * self.m[self.gd_tag] + (1 - self.beta1) * grad
        self.v[self.gd_tag] = self.beta2 * self.v[self.gd_tag] + (1 - self.beta2) * np.square(grad)

        m_hat = self.m[self.gd_tag] / (1 - np.float_power(self.beta1, t))
        v_hat = self.v[self.gd_tag] / (1 - np.float_power(self.beta2, t))

        self.gd_tag += 1

        return self.learning_rate * m_hat / (np.sqrt(v_hat) + self.delta)


    def forward(self, x: np.ndarray) -> np.ndarray:
        assert x.shape[0] == self.layers[0]
        self.output[0] = x

        for i in range(1, len(self.layers)):
            self.Z[i] = np.dot(self.W[i], self.output[i-1]) + self.B[i]
            if i == len(self.layers)-1: self.output[i] = self.softmax(self.Z[i])
            else: self.output[i] = self.act(self.Z[i])

        return self.output[-1]


    def backward(self, y: np.ndarray) -> np.ndarray:
        x = self.output[-1] - y

        for i in reversed(range(1, len(self.layers))):
            t = x * self.dact(self.Z[i])
            x = np.dot(self.W[i].T, t)
            self.W[i] -= self.adam(np.outer(t, self.output[i-1]), self.gd_times)
            self.B[i] -= self.adam(t, self.gd_times)

        self.gd_times += 1
        self.gd_tag = 0

        return x


    def fit(self, x: np.ndarray, y: np.ndarray) -> np.float64:
        self.forward(x)
        loss = self.cross_entropy(y)
        self.backward(y)
        return loss


    def predict(self, x_tests: np.ndarray, y_tests: np.ndarray) -> list[np.float64]:
        test_loss = []
        accuracy = 0

        for i, (x_test, y_test) in enumerate(zip(x_tests, y_tests)):
            output = self.forward(x_test)
            loss = self.cross_entropy(y_test)
            correct = output.argmax() == y_test.argmax()

            if correct:
                accuracy += 1

            test_loss.append(loss)
            print(
                "Test {space}{test}/{tests}, Loss: {loss}, Correct: {correct}"
                .format(
                    space=" " * (len(str(len(x_tests))) - len(str(i+1))),
                    test=i + 1,
                    tests=len(x_tests),
                    loss='%.5f' % loss,
                    correct=correct
                )
            )

        print(f"Average test loss: {sum(test_loss) / len(test_loss)}")
        print(f"Accuracy: {accuracy / len(x_tests)}")

        return test_loss


    def train(self, x_trains: np.ndarray, y_trains: np.ndarray, epochs: int, batch_size: int=64, max_trains: int=60000, save: bool=False) -> list[np.float64]:
        train_loss = []

        for epoch in range(epochs):
            max_trains = min(max_trains, len(x_trains))
            total_loss = 0
            start_time = datetime.now()

            for i in range(0, max_trains, batch_size):
                x_batch = x_trains[i:i + batch_size]
                y_batch = y_trains[i:i + batch_size]
                batch_loss = 0

                for x_train, y_train in zip(x_batch, y_batch):
                    batch_loss += self.fit(x_train, y_train)

                loss = batch_loss / batch_size
                total_loss += loss
                train_loss.append(loss)

                batch = i // batch_size + 1
                batchs = max_trains // batch_size + 1

                print(
                    "Batch {space}{batch}/{batchs}, Loss: {loss}, Average Loss: {avg_loss}"
                    .format(
                        space=" " * (len(str(batchs)) - len(str(batch))),
                        batch=batch,
                        batchs=batchs,
                        loss='%.5f' % loss,
                        avg_loss='%.5f' % (total_loss / batch)
                    )
                )

            print(
                "Epoch {space}{epoch}/{epochs}, Loss: {loss}, Average Loss: {avg_loss}, Save: {save}, Time: {time}"
                .format(
                    space=" " * (len(str(epochs)) + len(str(batchs)) * 2 - len(str(epoch)) * 3),
                    epoch=epoch + 1,
                    epochs=epochs,
                    loss='%.5f' % (total_loss / batch_size),
                    avg_loss='%.5f' % (total_loss / (max_trains // batch_size + 1)),
                    save=save,
                    time=datetime.now() - start_time
                )
            )

            if save:
                self.save_params()

        return train_loss


    def save_params(self, filename: str="params.json"):
        with open(filename, "w") as f:
            json.dump({"W": self.W, "B": self.B}, f, indent=4, cls=NumpyArrayEncoder)


    def load_params(self, filename: str="params.json"):
        with open(filename, "r") as f:
            params = json.load(f)
            self.W = []
            self.B = []
            for w in params["W"]: self.W.append(np.asarray(w))
            for b in params["B"]: self.B.append(np.asarray(b))
# *)#$#*)%*)#$#)*%

鞍點

Saddle Point

有興趣的可以去看台大教授的影片

Hessian(維基百科)

鞍點(維基百科)

批次標準化

還記得我們講過可以將資料進行標準化

來讓梯度下降時效率更好

同時也可以一定程度上限制數值範圍

批次標準化

Batch Normalization

還記得我們講過可以將資料進行標準化

來讓梯度下降時效率更好

同時也可以一定程度上限制數值範圍

批次標準化

Batch Normalization

因此我們會對每層輸出後的資料
(wx+b / act(wx+b))

在每個輸入資料上做標準化

批次標準化

Batch Normalization

而我們常會使用一個批次作為單位

對他做標準化

Batch Normalization

How Does Batch Normalization Help Optimization

批次標準化

Batch Normalization

\hat z = \frac{z - \mu}{\sigma}
z = wx + b

一般標準化的式子如下

批次標準化

Batch Normalization

一般標準化的式子如下

而我們通常會加上兩個參數做線性調整

這兩個參數是會被更新的

z = wx + b
\hat z = \gamma \cdot \frac{z - \mu}{\sigma} + \beta

批次標準化

Batch Normalization

然後難受的就是反向傳播了

我相信我在這邊再解一次偏微分要變催眠大會了

所以廢話不多說直接上結果

別人的推導

批次標準化

Batch Normalization

d\beta = \sum dy
d\gamma = \sum dy \cdot x_{std}
dx = \frac {\sigma \cdot ( N \cdot \gamma dy - \sum \gamma dy - x_{std} \cdot \sum \gamma dy \cdot x_{std} )}N
N = sizeof(dy)

批次標準化

Batch Normalization

有了要傳播到前面的dx以及

要更新的dgamma&dbeta後

就可以完成反向傳播了

批次標準化

Batch Normalization

有了要傳播到前面的dx以及

要更新的dgamma&dbeta後

就可以完成反向傳播了

然後就是我覺得反正應該沒有時間所以就不做實作了的環節了

批次標準化

Batch Normalization

另外

在測試時由於資料沒辦法一筆一筆batch的給

所以呢平均數跟變異數的計算時

會以當前所有吃過的資料的數值和做計算

批次標準化

Batch Normalization

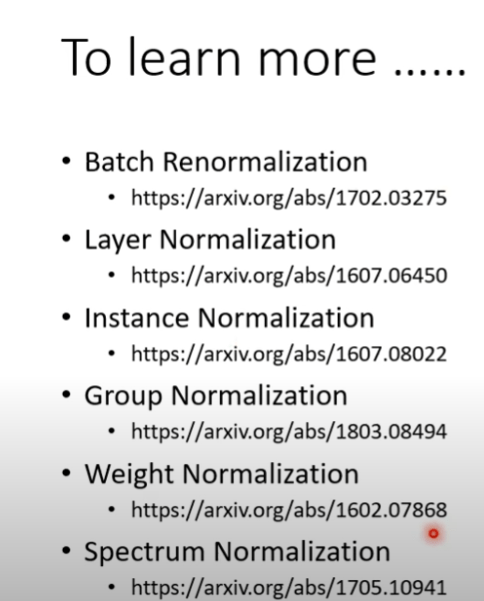

更多資訊可以參考台大教授的影片

裡面最後還有提供其他的標準化方式

有興趣的可以慢慢研究

影片

過擬合

過擬合

Overfitting

你的程式在資料集中跑出了99%的優異成績

正當你興高采烈的丟測試資料進去時

你可能會發現



怎麼跑這麼爛

過擬合

Overfitting

這是因為你的程式已經

完全變成訓練資料的形狀了



簡單來講也就是擬合程度太高

使得他變成專解

這個訓練資料

而不是相同類型資料的函式了

過擬合

Overfitting

這是因為你的程式已經

完全變成訓練資料的形狀了



簡單來講也就是擬合程度太高

使得他變成專解

這個訓練資料

而不是相同類型資料的函式了

這種情況我們稱之為過擬合

過擬合

Overfitting

​「共適應（Co-adaptation）是生物學中的一個概念

指的是兩個或多個相互作用的

特徵、基因或物種在自然選擇壓力下共同演化

彼此之間的適應性變化使得它們在一起時更具優勢



​這些特徵只有在相互作用時才具有益處

這種過程有時會導致它們之間的相互依賴性增加」



​by wiki+chatgpt

過擬合

Overfitting

這樣一個特性也適用於神經網路中

並且可以透過抑制共適應來達到減緩過擬合

Co-adaptation

過擬合

Overfitting

Dropout

而現今最常使用的方式稱為Dropout

簡單來說就是透過在訓練時捨棄某些神經元

來抑制共適應

過擬合

Overfitting

實作就給他個機率

對每個神經元在傳播時根據機率傳播值會變0



然後為了讓訓練跟測試時的期望值不受到dropout影響

通常會將測試時神經元輸出乘上(1 - dropout機率)

相當於訓練階段時的期望值

同理你也可以在訓練階段除以(1 - dropout機率)

完整Code

import random
import json
from datetime import datetime
from typing import Callable

import numpy as np

from np_encoder import NumpyArrayEncoder


class NeuralNetwork:
    def __init__(self, layers: list[int], activation_function: Callable, dactivation_function: Callable=None, learning_rate: float=1e-3, dropout: float=0.5) -> None:
        self.layers = layers
        self.learning_rate = learning_rate
        self.act = activation_function
        self.dact = dactivation_function or self.d(activation_function)
        self.dropout = dropout
        self.is_training = True
        self.delta = 1e-10
        self.Z: list[np.ndarray] = [np.zeros(layers[0])]
        self.W: list[np.ndarray] = [np.zeros(layers[0])]
        self.B: list[np.ndarray] = [np.zeros(layers[0])]
        self.output: list[np.ndarray]  = [np.zeros(layers[0])]

        for i in range(1, len(self.layers)):
            self.W.append(np.random.randn(self.layers[i], self.layers[i-1]) * np.sqrt(2/layers[i-1]))
            self.B.append(np.zeros(self.layers[i]))
            self.Z.append(np.zeros(self.layers[i]))
            self.output.append(np.zeros(self.layers[i]))


    def d(self, f: Callable) -> Callable:
        delta = 1e-10j
        def df(x): return f(x + delta).imag / delta.imag
        return df


    def softmax(self, x):
        exp_x = np.exp(x - np.max(x))
        return exp_x / np.sum(exp_x)


    def cross_entropy(self, y: np.ndarray) -> np.float64:
        return -np.dot(y.T, np.log(self.output[-1] + self.delta))


    def forward(self, x: np.ndarray) -> np.ndarray:
        assert x.shape[0] == self.layers[0]
        self.output[0] = x

        for i in range(1, len(self.layers)):
            self.Z[i] = (np.dot(self.W[i], self.output[i-1]) + self.B[i])

            if self.is_training:
                self.Z[i] = np.where(np.random.rand(*self.Z[i].shape) < self.dropout, self.Z[i], 0) / (1 - self.dropout)

            if i == len(self.layers)-1: self.output[i] = self.softmax(self.Z[i])
            else: self.output[i] = self.act(self.Z[i])

        return self.output[-1]


    def backward(self, y: np.ndarray) -> np.ndarray:
        x = self.output[-1] - y

        for i in reversed(range(1, len(self.layers))):
            t = x * self.dact(self.Z[i])
            x = np.dot(self.W[i].T, t)
            self.W[i] -= self.learning_rate * np.outer(t, self.output[i-1])
            self.B[i] -= self.learning_rate * t

        return x


    def fit(self, x: np.ndarray, y: np.ndarray) -> np.float64:
        self.forward(x)
        loss = self.cross_entropy(y)
        self.backward(y)
        return loss


    def predict(self, x_tests: np.ndarray, y_tests: np.ndarray) -> list[np.float64]:
        self.is_training = False
        test_loss = []
        accuracy = 0

        for i, (x_test, y_test) in enumerate(zip(x_tests, y_tests)):
            output = self.forward(x_test)
            loss = self.cross_entropy(y_test)
            correct = output.argmax() == y_test.argmax()

            if correct:
                accuracy += 1

            test_loss.append(loss)
            print(
                "Test {space}{test}/{tests}, Loss: {loss}, Correct: {correct}"
                .format(
                    space=" " * (len(str(len(x_tests))) - len(str(i+1))),
                    test=i + 1,
                    tests=len(x_tests),
                    loss='%.5f' % loss,
                    correct=correct
                )
            )

        print(f"Average test loss: {sum(test_loss) / len(test_loss)}")
        print(f"Accuracy: {accuracy / len(x_tests)}")

        return test_loss


    def train(self, x_trains: np.ndarray, y_trains: np.ndarray, epochs: int, batch_size: int=64, max_trains: int=60000, save: bool=False) -> list[np.float64]:
        self.is_training = True
        train_loss = []

        for epoch in range(epochs):
            max_trains = min(max_trains, len(x_trains))
            total_loss = 0
            start_time = datetime.now()

            for i in range(0, max_trains, batch_size):
                x_batch = x_trains[i:i + batch_size]
                y_batch = y_trains[i:i + batch_size]
                batch_loss = 0

                for x_train, y_train in zip(x_batch, y_batch):
                    batch_loss += self.fit(x_train, y_train)

                loss = batch_loss / batch_size
                total_loss += loss
                train_loss.append(loss)

                batch = i // batch_size + 1
                batchs = max_trains // batch_size + 1

                print(
                    "Batch {space}{batch}/{batchs}, Loss: {loss}, Average Loss: {avg_loss}"
                    .format(
                        space=" " * (len(str(batchs)) - len(str(batch))),
                        batch=batch,
                        batchs=batchs,
                        loss='%.5f' % loss,
                        avg_loss='%.5f' % (total_loss / batch)
                    )
                )

            print(
                "Epoch {space}{epoch}/{epochs}, Loss: {loss}, Save: {save}, Time: {time}"
                .format(
                    space=" " * (len(str(epochs)) + len(str(batchs)) * 2 - len(str(epoch)) * 3),
                    epoch=epoch + 1,
                    epochs=epochs,
                    loss='%.5f' % (total_loss / (max_trains // batch_size + 1)),
                    save=save,
                    time=datetime.now() - start_time
                )
            )

            if save:
                self.save_params()

        return train_loss


    def save_params(self, filename: str="params.json"):
        with open(filename, "w") as f:
            json.dump({"W": self.W, "B": self.B}, f, indent=4, cls=NumpyArrayEncoder)


    def load_params(self, filename: str="params.json"):
        with open(filename, "r") as f:
            params = json.load(f)
            self.W = []
            self.B = []
            for w in params["W"]: self.W.append(np.asarray(w))
            for b in params["B"]: self.B.append(np.asarray(b))
# *)#$#*)%*)#$#)*%

其他優化

運行速率低下

Slow Processing Speed

有人可能會好奇為什麼不連矩陣一起手刻

因為numpy的程式是基於C語言

因此可以有比一般Python程式更快速的運算速度

運行速率低下

Slow Processing Speed

有人可能會好奇為什麼不連矩陣一起手刻

因為numpy的程式是基於C語言

因此可以有比一般Python程式更快速的運算速度

但它還是有個缺點

那就是它是使用CPU在跑

運行速率低下

Slow Processing Speed

CuPy

讓numpy可以使用GPU跑的函式庫

使用方式就是把原本的

import numpy
import cupy

運行速率低下

Slow Processing Speed

缺點是安裝麻煩一點

視情況要根據你的cuda版本安裝不同的函式庫

文檔

運行速率低下

Slow Processing Speed

那當然還有個更快的辦法

也就是直接使用別人造好的輪子

整個神經網路都經過最完美的優化

從底層幫你做好

像是pytorch之類的

運行速率低下

Slow Processing Speed

那當然還有個更快的辦法

也就是直接使用別人造好的輪子

整個神經網路都經過最完美的優化

從底層幫你做好

像是pytorch之類的

但這樣就不好玩了嘛

運行速率低下

Slow Processing Speed

# by chatgpt
import torch
import torch.nn as nn
import torch.optim as optim
from torchvision import datasets, transforms
from torch.utils.data import DataLoader


batch_size = 64
learning_rate = 1e-3
epochs = 10
device = torch.device("cuda" if torch.cuda.is_available() else "cpu")

train_dataset = datasets.MNIST(root='./data', train=True, download=True, transform=transforms.ToTensor())
train_loader = DataLoader(train_dataset, batch_size=batch_size, shuffle=True)


class NN(nn.Module):
    def __init__(self):
        super(NN, self).__init__()
        self.model = nn.Sequential(
            nn.Flatten(),
            nn.Linear(28*28, 256),
            nn.ReLU(),
            nn.Linear(256, 128),
            nn.ReLU(),
            nn.Linear(128, 64),
            nn.ReLU(),
            nn.Linear(64, 10)
        )

    def forward(self, x):
        return self.model(x)

model = NN().to(torch.device("cuda" if torch.cuda.is_available() else "cpu"))

criterion = nn.CrossEntropyLoss()
optimizer = optim.Adam(model.parameters(), lr=learning_rate)

for epoch in range(1, epochs + 1):
    model.train()
    running_loss = 0.0
    correct = 0
    total = 0

    for images, labels in train_loader:
        images, labels = images.to(device), labels.to(device)

        outputs = model(images)
        loss = criterion(outputs, labels)

        optimizer.zero_grad()
        loss.backward()
        optimizer.step()

        running_loss += loss.item() * images.size(0)
        _, predicted = torch.max(outputs.data, 1)
        total += labels.size(0)
        correct += (predicted == labels).sum().item()

    epoch_loss = running_loss / len(train_loader.dataset)
    epoch_acc = 100 * correct / total
    print(f"Epoch {epoch}/{epochs}, Loss: {epoch_loss:.4f}, Accuracy: {epoch_acc:.2f}%")

啊為什麼人家跑出來這麼好看?

豐富的玩具 (?

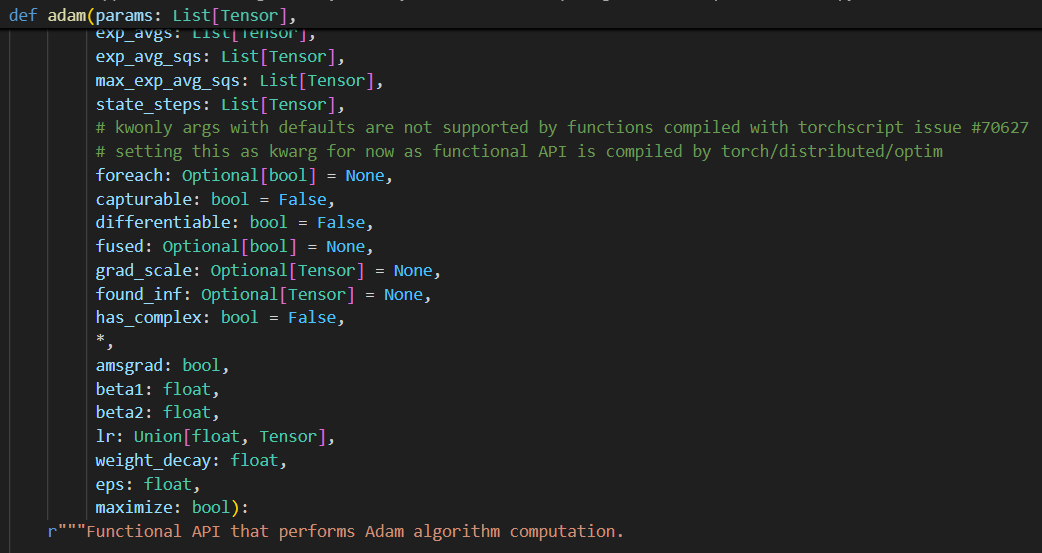

優化/黑科技下好下滿

參數細項極多

所以有興趣都建議去玩玩看這些函式庫

手刻最主要是帶大家理解它的結構以及背後的數學

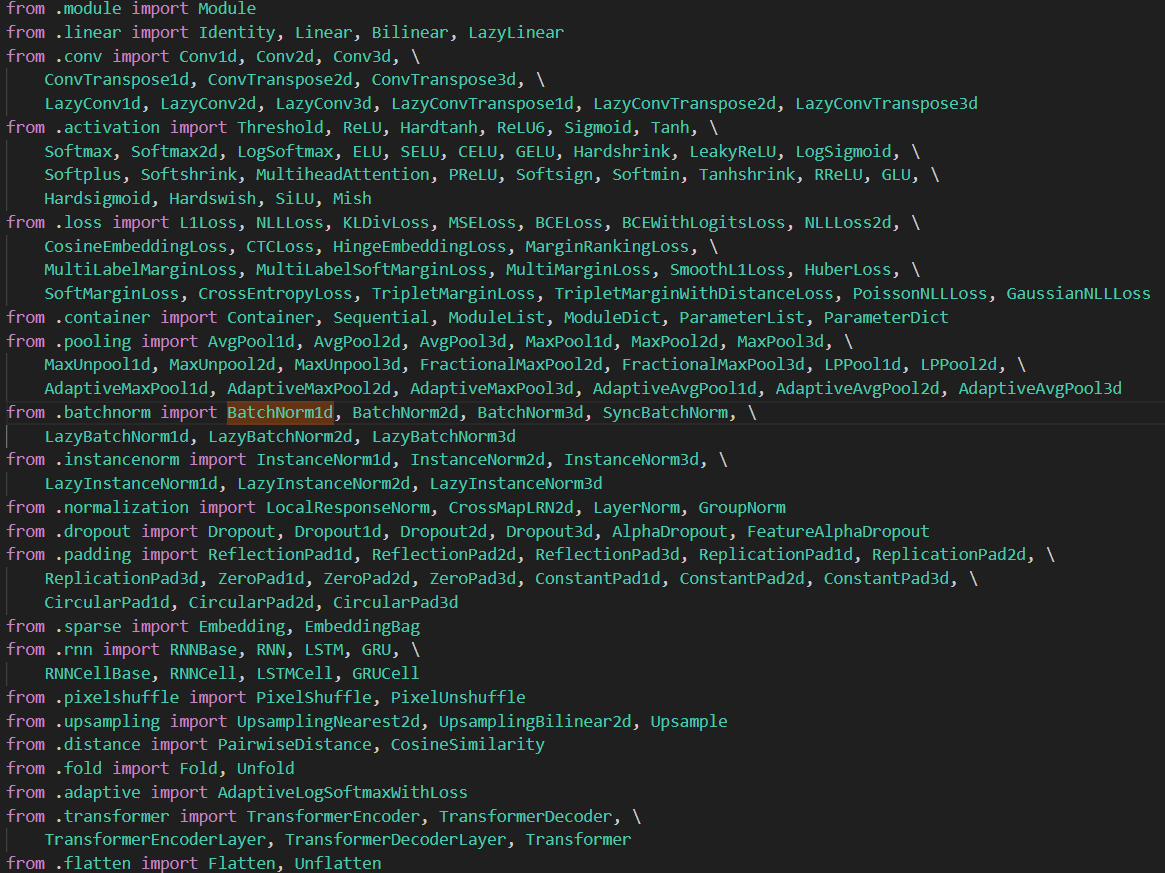

這邊手刻的各種東西你都能在裡面找到現成品

並且你知道這東西該怎麼調參、使用了

早停法

Early Stopping

有時候你叛逆的神經網路會送你一個這樣的圖

讓你Train出來突然變一坨

早停法

Early Stopping

有時候你叛逆的神經網路會送你一個這樣的圖

讓你Train出來突然變一坨

因此我們可以設定每N個Batch / Epoch做完時

紀錄Loss與當時的參數資料

這麼一來可以在發現Loss開始非期望中的變大時

直接將他停止繼續訓練

超參數

Hyperparameter

所有需要由使用者自行調整的皆為超參數

像是每層的神經元個數、批次大小、學習率等

這些參數在設定時可以參考現有模型的設定

或是網路上的文章教學

拿前人試出的結果總比自己花時間試好 (?

手寫辨識...?

Handwriting Recognition

你會發現它在辨識不在資料集內的圖片時

表現的成果異常拙劣

手寫辨識...?

Handwriting Recognition

一部份是由於沒給到其他風格的資料

但另一部份是我們的辨識方式

沒有經由特徵的判斷

而是直接根據像素點的位置去做計算

手寫辨識...?

Handwriting Recognition

這要如何改善呢?

手寫辨識...?

Handwriting Recognition

這要如何改善呢?

Convolutional Neural Network

卷積神經網路

手寫辨識...?

Handwriting Recognition

Convolutional Neural Network

卷積神經網路

手寫辨識...?

Handwriting Recognition

Convolutional Neural Network

卷積神經網路

To be Continued...

機器學習社課 第四堂

By lucasw

Made with Slides.com

機器學習社課 第四堂

  • 217

More from lucasw

  • 機器學習社課 第十堂
    lucasw
    136
  • 機器學習社課 第九堂
    lucasw
    89
  • 機器學習社課 第八堂
    lucasw
    154
  • 機器學習社課 第七堂
    lucasw
    113
