Spanner: Google’s Globally-Distributed Database





Fernanda Mora

Luis Román



Corbett, James C., et al. "Spanner: Google’s globally distributed database." ACM Transactions on Computer Systems (TOCS) 31.3 (2013): 8.



Content

  • Introduction
  • Key ideas
  • Implementation
  • Concurrency control
  • Evaluation
  •  Future work & Conclusions

Introduction

Storage now has multiple

requirements

  • Scalability

  • Responsiveness

  • Durability and consistency

  • Fault tolerant

  • Easy to use

Previous attempts

  • Relational DBMS: MySQL, MS SQL, Oracle RDB
    • Rich features (ACID)
    • Difficult to scale



  • NoSQL: BigTable, Dynamo, Cassandra
    • Highly scalable
    • Limited API

Motivation

Spanner: Time will never be the same again

-Gustavo Fring

To build a transactional storage system replicated globally

¿What is the main idea behind Spanner?

How?

  • Main enabler is introducing a global "proper" notion of time

Key ideas

Key ideas



  • Relational data model with SQL and general purpose transactions

  • External consistency: transactions can be ordered by their commit time, and commit times correspond to real world notions of time

  • Paxos-based replication, with number of replicas and distance to replicas controllable

  • Data partitioned across thousands of servers

Basic Diagram

Data center 1

Data center 2

Data center 3

Spanservers

s_{1,1}
s1,1s_{1,1}
s_{1,2}
s1,2s_{1,2}
s_{1,n}
s1,ns_{1,n}

...

Spanservers

Spanservers

...

s_{2,2}
s2,2s_{2,2}
s_{3,2}
s3,2s_{3,2}
s_{2,n}
s2,ns_{2,n}
s_{3,n}
s3,ns_{3,n}
s_{2,1}
s2,1s_{2,1}
s_{3,1}
s3,1s_{3,1}

...

Replication

Replication

Millions of nodes, hundreds of datacenters, trillions of database rows

Implementation

Server organization

Storage data  model: tablets

  • Each spanserver has 100-1000 tablets

  • Optimized data structure to track data by row/column and location (stored in Colossus)

  • Table mapping:

  • Tablet's state is tracked and stored
(key:string, timestamp:int64) ->  string

Storage data  model

  • Each tablet has a Paxos state machine that mantains its log and state

  • Paxos has long-lived leaders

  • Paxos is used to maintain consistency among replicas: writes must initiate at the leader, reads from any recent replica

Paxos Group

Storage data  model

  • Each leader has a lock table with state for two phase locking, mapping range  of keys to lock states

  • Transaction manager supports distributed transactions and selects participant leader, which coordinates Paxos between participant groups

Data movement

  • Directories: smallest units of data placement

  • Looking for similarity or closeness

So how does Spanner distribute data?

External consistency

  • All writes in a transaction are globally ordered by timestamp

  • If the start of a transaction T2 occurs after the commit of a transaction T1, then

  • We need sinchronized clocks to determine the most recent write to each objects

    •
T_{2,c} > T_{1,c}
T2,c>T1,cT_{2,c} > T_{1,c}

More difficulties!

  • Sinchronization algorithms


  • Implementation


  • Practical use


  • Global scale

First option: Lamport timestamps

  • But we can't distinguish concurrent events!

Another option: Vector clocks

  • Only partial order: what about concurrent events?!

How do we ensure that all nodes have consistent clock values?



  • Use time synchronization (GPS + atomic clocks on some nodes)

  • Plus network time synchronization protocols (where nodes exchange times with each other and adjust their clocks accordingly)



Can't there still be small differences between clocks on nodes?





  • Yes: API TrueTime is able to estimate the accuracy of a node's clock, guaranteeing that



=> tt.earliest\leq t_{abs} \leq tt.latest
=>tt.earliest≤tabs≤tt.latest=> tt.earliest\leq t_{abs} \leq tt.latest
tt=TT.now()
tt=TT.now()tt=TT.now()

Can't there still be small differences between clocks on nodes?





  • Yes: API TrueTime is able to estimate the accuracy of a node's clock, guaranteeing that



=> tt.earliest\leq t_{abs} \leq tt.latest
=>tt.earliest≤tabs≤tt.latest=> tt.earliest\leq t_{abs} \leq tt.latest
tt=TT.now()
tt=TT.now()tt=TT.now()

How does this function?

  • Suppose T1 commits at time t1 on N1, and T2 commits at time t2 on N2. We want to ensure that T1 is assigned a commit time that is before T2's. How do we do this?

  • We could do it trivially by ensuring that T2 doesn't commit until after t1.latest , e.g., that t2.earliest > t1.latest. But then N1 and N2 would have to know about all of each other's transactions.

  • Instead, if we just ensure that T1 holds its locks until t1.latest, then we can ensure that T1 commits before T2 commits.

How is TrueTime implemented?

  • Set of time master machines per data center

  • Timeslave daemon per machine

GPS receivers

Atomic clocks

Concurrency control

Concurrency Control

How to use TrueTime to guarantee:



  • Externally consistent transactions
  • Lock-free read-only transactions
  • Non-blocking reads in the past

Concurrency Control

Timestamp Managment





Operation Concurrency Control Replica Required
Read-write pessimistic leader
Read-only lock-free leader for timestamp
Snapshot read lock-free any

Concurrency Control

Timestamp Managment

Spanner's Paxos implementation uses timed leases to make leadership long-lived

Discovers has a quorum of lease votes

No longer  has a quorum of lease votes

Spanner depends on the following invariant: for each Paxos group, each Paxos leader's lease interval is disjoint from every other leader's

Concurrency Control

Timestamp Managment

Transactional reads and writes use two-phase locking. As a result, timestamps can be assigned at any time after the locks have been acquired but before they've been released.

Monotonicity Invariant: Spanner assigns timestamps to Paxos writes in monotonically increasing order, even across leaders.

Concurrency Control

Timestamp Managment



Spanner also enforces the following external consistency invariant: Define the start and commit events for transaction Ti by:

e_i^{start}
eistarte_i^{start}
e_i^{commit}
eicommite_i^{commit}

and the commit timestamp as

s_i
sis_i
t_{abs}(e_1^{commit})< t_{abs}(e_2^{start})\Rightarrow s_1 < s_2
tabs(e1commit)<tabs(e2start)⇒s1<s2t_{abs}(e_1^{commit})< t_{abs}(e_2^{start})\Rightarrow s_1 < s_2

Timestamp Managment



Enforced by two rules:

1.- The coordinator  assigns a commit timestamp no less than the value of                                 computed after

TT.now().latest
TT.now().latestTT.now().latest
e_i^{server}
eiservere_i^{server}

Timestamp Managment



Enforced by two rules:

2.- The coordinator leader ensures that clients cannot see any data commited until after TT.after(si) is true

Concurrency Control

Timestamp Managment



Enforced by two rules:



s_1 < t_{abs}(e_1^{commit})
s1<tabs(e1commit)s_1 < t_{abs}(e_1^{commit})
t_{abs}(e_1^{commit}) < t_{abs}(e_2^{start})
tabs(e1commit)<tabs(e2start) t_{abs}(e_1^{commit}) < t_{abs}(e_2^{start})
t_{abs}(e_2^{start}) \leq t_{abs}(e_2^{server})
tabs(e2start)≤tabs(e2server) t_{abs}(e_2^{start}) \leq t_{abs}(e_2^{server})
t_{abs}(e_2^{server})\leq s_2
tabs(e2server)≤s2t_{abs}(e_2^{server})\leq s_2

Concurrency Control

Timestamp Managment


Serving reads at a timestamp:


Every replica tracks a value called safe time           which is the maximum timestamp at which replica is up-to-date. A replica can satisfy a read at timestamp t if t<=


t_{safe}
tsafet_{safe}
t_{safe}
tsafet_{safe}
t_{safe}=min(t_{safe}^{Paxos},t_{safe}^{TM})
tsafe=min(tsafePaxos,tsafeTM)t_{safe}=min(t_{safe}^{Paxos},t_{safe}^{TM})

Concurrency Control

Timestamp Managment



Serving reads at a timestamp:

              : timestamp of the highest-applied Paxos write.







            Is the prepare timestamp assigned by the participant leader Ti in a group g.

t_{safe}^{TM}=min_i(s_{i,g}^{prepare})-1
tsafeTM=mini(si,gprepare)−1t_{safe}^{TM}=min_i(s_{i,g}^{prepare})-1
t_{safe}^{Paxos}
tsafePaxost_{safe}^{Paxos}
s_{i,g}^{prepare}
si,gprepares_{i,g}^{prepare}

Concurrency Control

Timestamp Managment



Read only transactions:



read-only transactions executes intwo phases:



1.- assign a timestamp

2.- execute the transaction's read at

s_{read}
sreads_{read}
s_{read}
sreads_{read}

Concurrency Control

Timestamp Managment



Read only transactions:



read-only transactions executes intwo phases:



1.- assign a timestamp

2.- execute the transaction's read at

s_{read}
sreads_{read}
s_{read}
sreads_{read}

Concurrency Control

Details



  • Writes are buffered at the client until commit
  • Reads within read-write transactions use wound-wait to avoid deadlocks.
  • When a client has completed all reads and buffered all writes, it begins two phase commit.

Concurrency Control

Details

Aquired locks

Aquired locks

Aquired locks

T_c
TcT_c
T_{p1}
Tp1T_{p1}
T_{p2}
Tp2T_{p2}

Compute ts

Start logging

Done logging

Prepared + ts

Commit overall ts

Commit wait done

Release locks

Release locks

Release locks

Evaluation

Microbenchmarks

Distribution of TrueTime values, sampled right after timeslave daemon polls the time masters. 90th, 99th and 99.9th percentiles

Scalability

2PC scalability. Mean and sd over 10 runs

Avalability

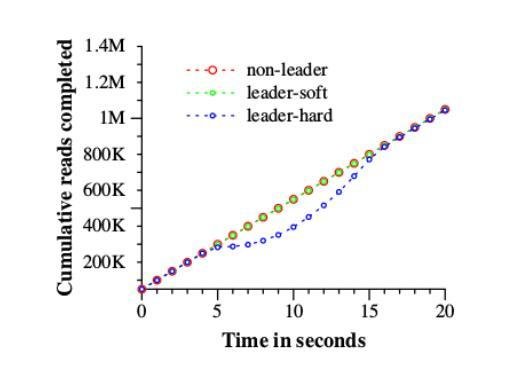

Effect of killing servers on throughput

TrueTime

Distribution of TrueTime values (percentiles), sampled right after timeslave daemon polls the time masters.

Future Work & Conclusions

Future work

  • Doing reads in parallel: non-trivial

  • Support direct changes on Paxos configurations

  • Reduce TrueTime < 1 ms

  • Poor single-node performance

  • Automatically movement of client-application processes

Summary

  • Replica consistency: using Paxos

  • Concurrency control: using two-phase locking

  • Transaction coordinator: using 2PC

  • Timestamps for transactions and data items

Global scale database with strict transactional guarantees

Conclusions

Easy-to-use

Semi-relational interface

SQL-based query language

Scalability

Automatic sharding

Fault tolerance

Consistent replication

External consistency

Wide-area distribution
