This is FFIne

Building Foreign Function Interfaces without shooting yourself in the foot

Marten Wijnja

Infra Team, Channable

Lots of ground to cover for 20mins, here we go!

We have Haskell and Python codebases
We have a Hackathon-day every 10 weeks
This is the story of one such day

Foreign Function Interfaces: Why?

Do things that are difficult (or impossible) in Python
Circumvent the Global Interpreter Lock (GIL)
Do things faster than in Python
Use a library for which there is no good Python alternative

many of the libraries you commonly use are secretly FFI!

List of Ingredients

The 'host' language: Python (CPython)
The 'embedded' language:
Anything that can compile to a dynamic library(`.so` / `.dll`)
- C, C++, Rust, Haskell, Go, Fortran, Zig, (Chicken) Scheme, ... etc.
- (Other interpreted languages work too, but require glue code in a compiled lang)
Python's: 'ctypes' module

Hello FFI world: ctypes in detail

# helloffi.zig -> libhelloffi.so
zig build-lib helloffi.zig -dynamic

# helloffi.zig

export fn fancy_add(a: i32, b: i32) i32 {
    return a + b;
}

# example.py
import ctypes

helloffi = ctypes.CDLL("./libhelloffi.so")

helloffi.fancy_add.argtypes = (ctypes.c_int32, ctypes.c_int32)
helloffi.fancy_add.restype = ctypes.c_int32

def fancy_add(lhs: int, rhs: int): int
    "Addition, sneakily using FFI"
	return helloffi.fancy_add(lhs, rhs)

Hello FFI world: ctypes in detail

>>> example.fancy_add(10, 20)
30

>>> example.fancy_add(10, 1000000000)
1000000010

>>> example.fancy_add(10, 100000000000000000)
1569325066 # Whoops!

Foreign Function Interfaces: Why?

Mapping datatypes between languages is hard
Manual memory management is hard
C is difficult to use and rife with undefined behaviour
etc...

But it's complex, hard and a lot of work...

source: https://gunshowcomic.com/648

What's the alternative?

Separate webservices

Subprocesses

Easy to build, large overhead

full-fledged FFI

Hard to build, low overhead

What's the alternative?

Separate webservices

Subprocesses

Easy to build, large overhead

full-fledged FFI

Hard to build, low overhead

???

What's the alternative?

A simpler FFI!

What's the alternative?

A simpler FFI!

What's the alternative?

A simpler FFI!

no C required
higher-level communication between languages
- Support for exceptions
- Support for callbacks
Only some footguns, which we'll dodge

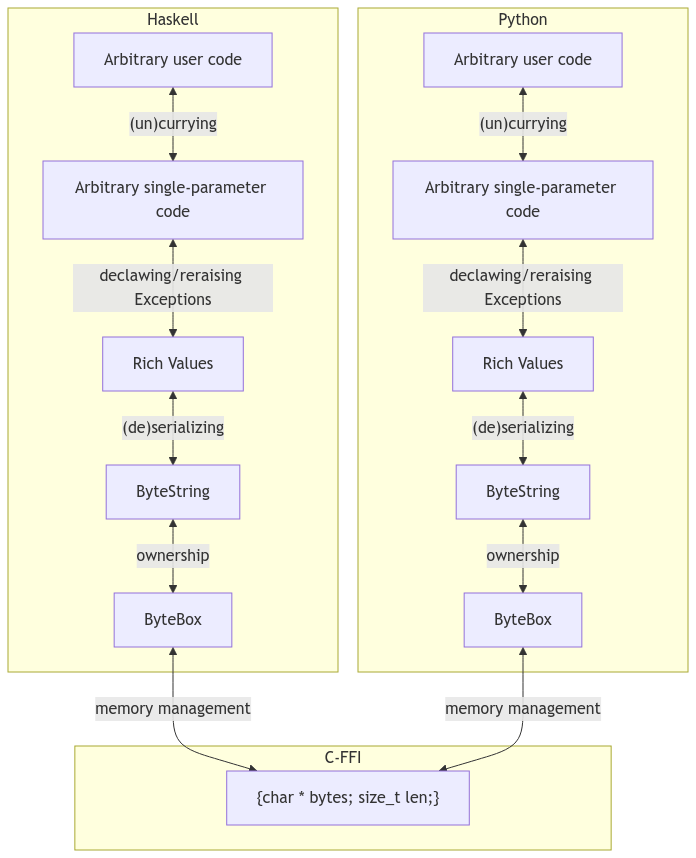

We'll build it up in layers

aside: If you want to use Rust, look into PyO3!

Layer 1: ByteStrings & Ownership

C does not support bytestrings!

=> convention:

elems: *byte

size: usize

actual bytestring content here... can contain \0 bytes

}

ByteBox {

Layer 1: ByteStrings & Ownership

class ByteBox(ctypes.Structure):
  _fields_ = [
    ('elems', ctypes.POINTER(ctypes.c_char)),
    ("size", ctypes.c_size_t)
  ]

  def __init__(self, bytestring):
    self.elems = ctypes.create_string_buffer(bytes(bytestring), len(bytestring))
    self.size = len(bytestring)

  def __bytes__
    return self.elems[0:self.size]

Layer 1: ByteStrings & Ownership

# What we want
def myfun(input: ByteBox) -> ByteBox:
  ...

# What we do (better support):
def myfun(input: const ByteBox *, output: mutable ByteBox *) -> None:
  ...

Layer 1: ByteStrings & Ownership

def wrap_external_fun(cdll, fun_name):
  fun = getattr(cdll, fun_name)
  fun.argtypes = [ctypes.POINTER(ByteBox), ctypes.POINTER(ByteBox)]
  fun.restype = None
  return fun

def lift0to1(self, lower_fun):
  def fun(in_bytes: bytes) -> bytes:
    in_box = self.ByteBox(in_bytes)
    out_box = self.ByteBox()
    lower_fun(in_box, out_box)
    out_bytes = bytes(out_box)
    return out_bytes
  return fun

Layer 1: ByteStrings & Ownership

def lower1to0(self, higher_fun):
    def fun(in_box_ptr, out_box_ptr):
        in_bytes = bytes(in_box_ptr.contents)
        out_bytes = higher_fun(in_bytes)
        out_box_ptr.contents.fill_with(out_bytes)
    return fun

def lift0to1(self, lower_fun):
    def fun(in_bytes: bytes) -> bytes:
        in_box = self.ByteBox(in_bytes)
        out_box = self.ByteBox()
        lower_fun(in_box, out_box)
        out_bytes = bytes(out_box)
        return out_bytes
    return fun

Actually, let's go both ways:

So we can keep talking 100% Python
Testability: `myfun(x) == lift(lower(myfun))(x)`
- Hypothesis: property-based testing
Used for callbacks later

Footgun: Memory allocators

Different languages allocate differently
Solution: expose realloc(target_ptr, size)

import ctypes

class AllocHelper():
    def __init__(self, dynamic_library):
        self.dynamic_library = dynamic_library

        # Will break at load-time if no function called `realloc` was exported
        self.dynamic_library.realloc.argtypes = [ctypes.c_void_p, ctypes.c_size_t]
        self.dynamic_library.realloc.restype = ctypes.c_void_p

    def malloc(self, size):
        return self.dynamic_library.realloc(None, size)

    def free(self, ptr):
        self.dynamic_library.realloc(ptr, 0)
        return None

Layer 1: ByteString support

def BYTE_BOX(dynamic_library):
  allocator = AllocHelper(dynamic_library)

  class ByteBox(ctypes.Structure):
    _fields_ = [
      ('elems', ctypes.POINTER(ctypes.c_char)),
      ("size", ctypes.c_size_t)
    ]

    def __init__(self, bytestring):
      ptr = allocator.alloc(len(bytestring))
      ctypes.memmove(ptr, bytestring, len(bytestring))

      self.elems = ptr
      self.size = len(bytestring)

    def __del__(self):
      allocator.free(self.elems)

   ... # Rest is unchanged

ByteBox, properly:

Layer 2: (de)serialization

    def lift1to2(self, lower_fun):
        def fun(param):
            in_bytes = json.dumps(param)
            out_bytes = lower_fun(in_bytes)
            try:
                out_obj = json.loads(out_bytes)
                return {'Ok': out_obj}
            except json.JsonDecodeError as ex:
                return {'Error': ex}
        return fun

    def lower2to1(self, higher_fun):
        def fun(in_bytes):
            try:
                in_obj = json.loads(in_bytes)
                in_obj = {'Ok': in_obj}
            except json.JSONDecodeError as ex:
                in_obj = {'Error': sys.exc_info()}
            out_obj = higher_fun(in_obj)
            out_bytes = json.dumps(out_obj)
            return out_bytes
        return fun

layer 1: bytes -> bytes

layer 2: Any -> Ok(Any) | Error(Any)

Layer 2: (de)serialization

Result type: FFI supports no exceptions
Once this works with JSON,
let's replace it with a binary format like CBOR (or BSON, Msgpack, ...)
- significantly more performant
- supports more datatypes (datetimes, dicts with non-string keys, ...)

Layer 3: Exceptions

What is an exception?

Name
Message (details, humanly readable)
Cause (some other exception?)
Traceback (AKA stack trace, callstack, ...)
- Conceptually* an array
- tblib library: helps manipulating them

* CPython builds them as an intrusive linked list, oh joy!

Layer 3: Exceptions

def lift2to3(self, lower_fun):
    def fun(params):
        out = lower_fun(params)
        if 'Error' in out:
            # Parsing failed, rethrow parse error
            raise Exception(out['Ok'])
        elif 'Ok' in out:
            out = out['Ok']
            if 'Error' in out:
                # Running callback failed, reraise foreign exception
                error = out['Error']
                serializable_exception.raise_exception_from_value(
                    error['name'],
                    error['message'],
                    error['callstack'],
                    error['annotations']
                )
            elif 'Ok' in out:
                # Running callback succeeded, return result
                return out['Ok']
            else:
                raise Exception(f"Unexpected format returned from FFI call: {out}")
    return fun

def lower3to2(self, higher_fun):
    def fun(params_result):
        if 'Error' in params_result:
            raise Exception(params_result['Error'])
        elif 'Ok' in params_result:
            try:
                out = higher_fun(params_result['Ok'])
                return {'Ok': out}
            except Exception as ex:
                exception_info = sys.exc_info()
                out = serializable_exception.exception_to_value(exception_info)
                return {'Error': out}
        else:
            raise Exception(f"Value not in expected format; expected dict with 'Left' or 'Right' key but got: {params_result}")
    return fun

Layer 4: (Un)currying

    def lift3To4(self, lower_fun):
      def fun(*params):
          return lower_fun(params)
      return fun

    def lower4To3(self, higher_fun):
      def fun(params):
        return higher_fun(*params)
      return fun

layer 3: Any -> Any

layer 4:

() -> Any,
Any -> Any,
(Any, Any) -> Any
...

Done, sort of

def lift(self, fun):
    return lift3to4(lift2to3(lift1to2(lift0to1(fun))))

def lower(self, fun):
    return lower1to0(lower2to1(lower3to2(lower4to3(fun))))


def lift_full(self, fun_name):
    return lift(wrap_external_fun(fun_name))

Extra: Support callbacks

self.ForeignClosure = ctypes.CFUNCTYPE(None, ctypes.POINTER(self.ByteBox), ctypes.POINTER(self.ByteBox))

...

def lowerFull(self, fun):
    return self.ForeignClosure(lower(fun))



# Pass this to your JSON/CBOR/etc. encoder:
def customEncoder(self, encoder, obj: Any):
    if isinstance(obj, self.ForeignClosure):
        ptr = ctypes.cast(obj, ctypes.c_void_p).value
        encoder.encode({'foreignClosureAddr': ptr})

# Pass this to your JSON/CBOR/etc. decoder as object_hook:
def custom_decoder(self, obj):
  if 'foreignClosureAddr' in obj:
    ptr = ctypes.c_void_p(obj['foreignClosureAddr'])
    return ctypes.cast(ptr, self.ForeignClosure)

not shown: finalization

Extra: Support callbacks

The same technique can be used to support other objects that are hard or impossible to serialize
You chose where you need extra performance

extra: callbacks

Closing Thoughts

If someone else already made a library (e.g. PyO3), use that
But rolling your own simple FFI to combine two languages:
- can be done in a day
- requires no C
- is reasonably production ready (no segfaults, no memory leaks)
- is reasonably performant (you choose where to extend it)

https://github.com/channable/virgil-ffi
