IBM

Agenda

Challenge Approach

Challenge Solution

Demo

Transcription

Reflection

Business Challenge

IBM

IBM

Business Challenge

IBM

Business Challenge

Lack of understanding of customer needs and their pain points

IBM

Business Challenge

Large amount of unused data

IBM

Business Challenge

High manual effort after customer calls to process their claims

IBM

Business Challenge

IBM

Business Challenge

The challenges PostFinance faces in the callcenter are:

  • Lack of understanding of customer needs and their pain points
  • High manual effort after customer calls to process their claims
  • Large amount of unusued data (previously recorded customer calls)



Our solution was built to address these challenges with an additional focus on the transcription of the previously recorded customer calls.

IBM

Challenge Approach

IBM

Challenge Approach

Abstract

Concrete

Analysis

Synthesis

Inspiration

Ideation

Implementation

Informal Conversations

IBM

Challenge Approach

Abstract

Concrete

Analysis

Synthesis

Inspiration

Ideation

Implementation

Personas

IBM

Challenge Approach

Abstract

Concrete

Analysis

Synthesis

Inspiration

Ideation

Implementation

Value benefit analysis

IBM

Challenge Approach

Abstract

Concrete

Analysis

Synthesis

Inspiration

Ideation

Implementation

LLM capability analysis

IBM

Challenge Approach

Abstract

Concrete

Analysis

Synthesis

Inspiration

Ideation

Implementation

PoC implementation

IBM

Challenge Approach

Abstract

Concrete

Analysis

Synthesis

Inspiration

Ideation

Implementation

PoC evaluation

IBM

Challenge Approach

Abstract

Concrete

Analysis

Synthesis

Inspiration

Ideation

Implementation

MVP creation

IBM

Challenge Approach

  1. Informal Conversation
  2. Personas
  3. Value benefit analysis
  4. LLM capability analysis
  5. PoC implementation
  6. PoC evaluation
  7. MVP creation

IBM

Challenge Approach

  1. Design Thinking
  2. Personas
  3. Technical Solutions evaluation
  4. PoC & Feedback
  5. MVP development
  6. Evaluation





Process:

  • IS-Research model adapted to the PostFinance case
  • Main focus on Design Thinking

IBM

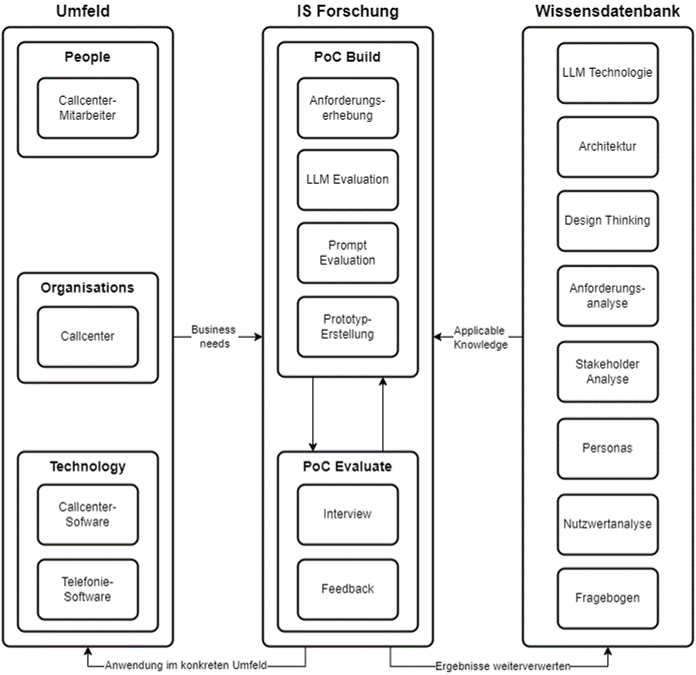

IS-Research

Design Science in Information Systems Research - Hevner et al. (2004, S. 80)

IBM

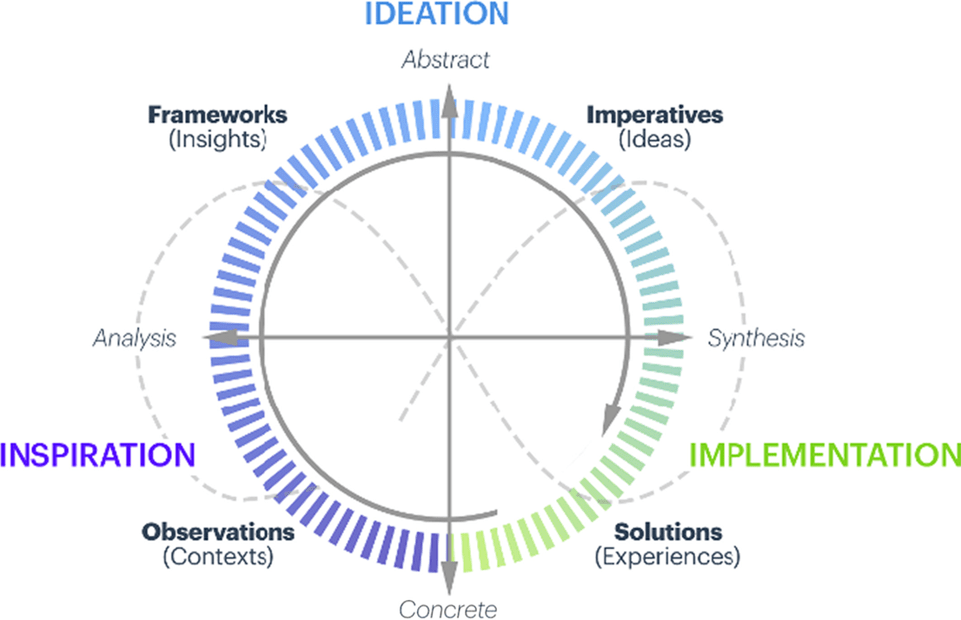

Method - Design Thinking

Design Thinking - (Bender-Salazar, 2023, S.9)

Challenge Solution

IBM

Challenge Solution

IBM

Challenge Solution

IBM

Challenge Solution

IBM

Challenge Solution

IBM

Topic: What?

Intents: Why?

Process Mining: How?

Named Entities: Who?

Challenge Solution

IBM

Solution

IBM

Architecture

IBM

Speech2Text

 Data Store

Architecture

IBM

 LLM

 RAG

 Data Store

 Process Discovery

Demo - Understand

IBM

Demo - Generate

IBM

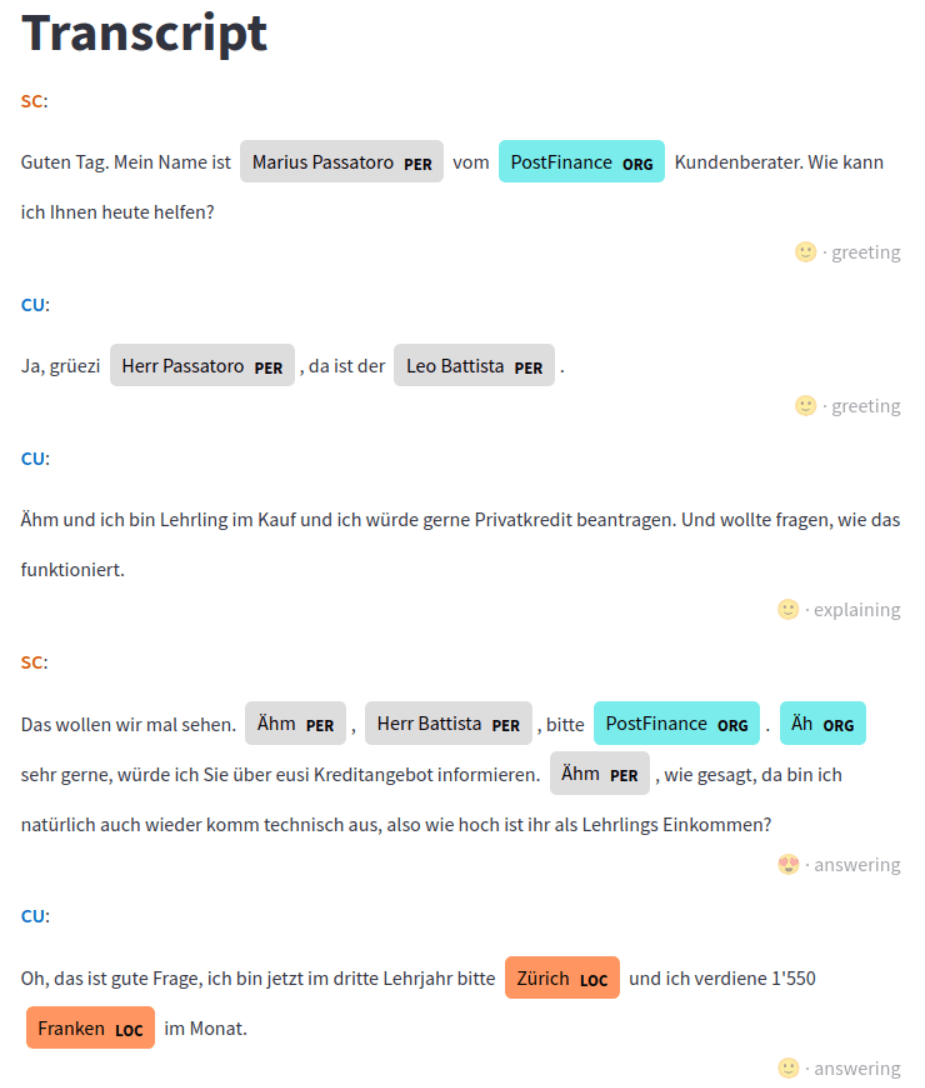

Demo - Transcription

IBM

Demo - Transcription

IBM

Demo - Analysis

IBM

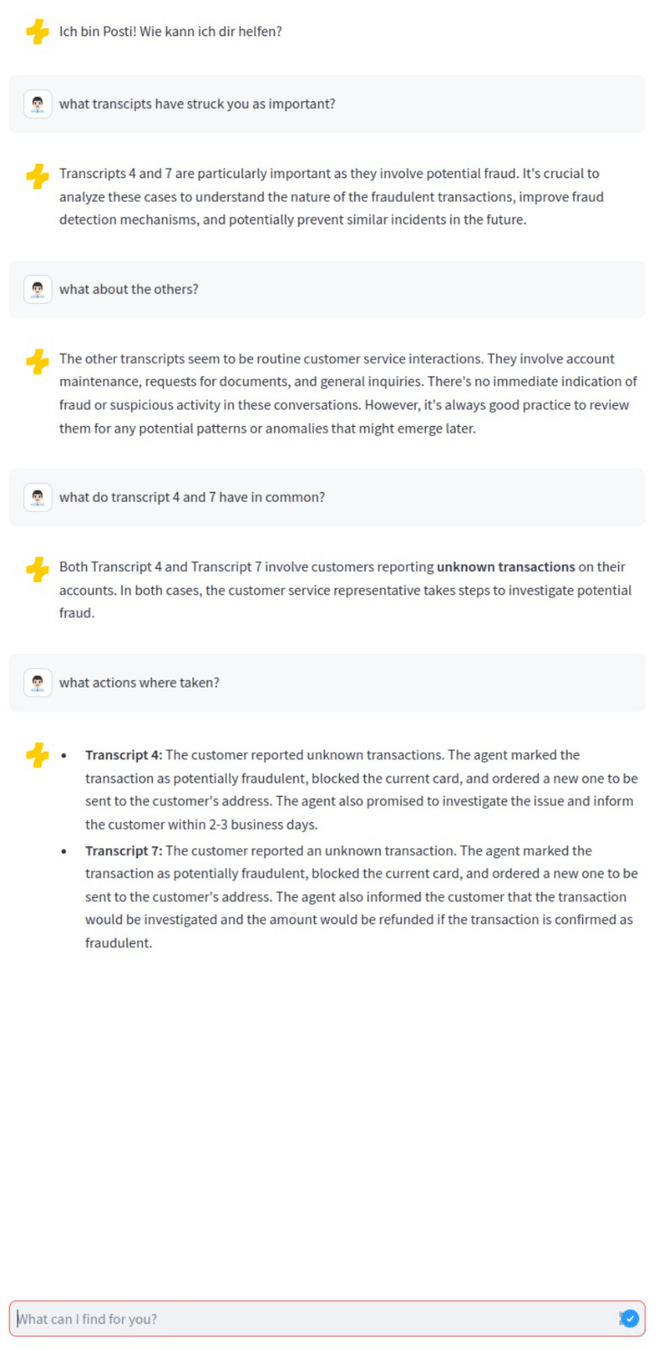

Demo - Chat

IBM

Demo - Chat / RAG

IBM

Demo - Chat / RAG

IBM

IBM

Transcription

Transcription

IBM

Audio / Transcript / Insights



Dedicated steps

more predictable

fine tuning

Audio / Transcript + Insights



Multi modality

 extract sentiment from audio

single step pipeline

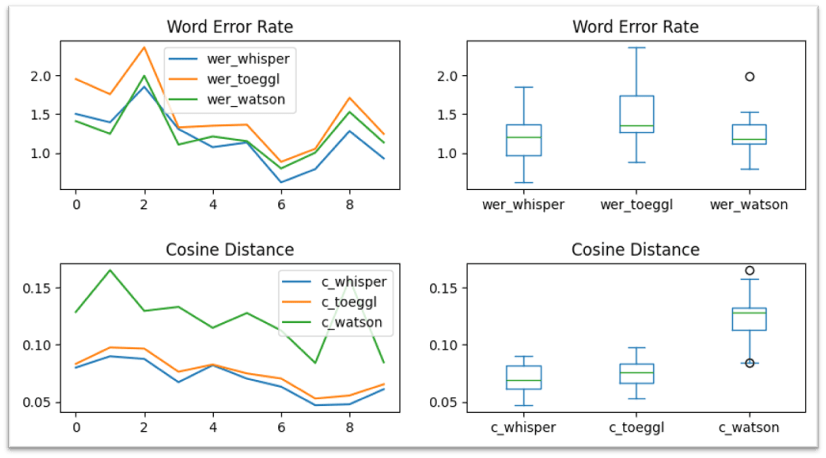

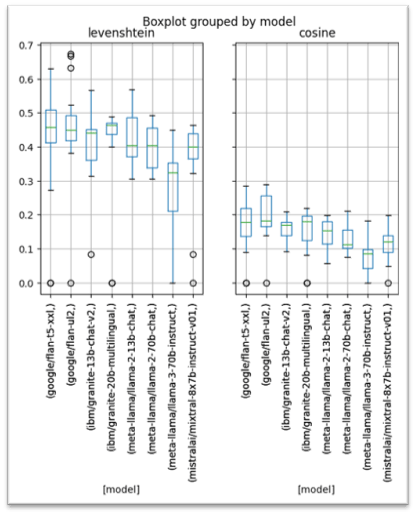

Evaluation of LLMs & Speech2Text Models

IBM

IBM

import streamlit as st
from config import MODEL_STRING
from langchain_google_vertexai import VertexAI
from langchain_core.messages import HumanMessage
from vertexai.generative_models import GenerativeModel, Part
import vertexai.preview.generative_models as generative_models
import base64
import json
import os
import time

def invoke(audio):
    llm = GenerativeModel(MODEL_STRING)

    text = """Summarize the conversation in maximun 1 sentence.
        Then diarize this conversation in German. Mark the service center agent with SC and the customer with CU. Keep all successive sentences of the same speaker in the same string if sentiments does not change.
        Possible products are: E-Finance, Privatkonto, Sparkonto, Yuh, Twint, Kreditkarte
        Use the format: {"summary": "SUMMARY", "tags": [TAG1, TAG2], "products": [PRODUCT1, PRODUCT2], "wordcloud":[W1, W2, W3], "diarization": ["(SC|CU) (SENTIMENT) (greeting|answering|complaining|acknowledging|explaining|concluding|closing|requesting|other) (TIME): TEXT"]}
        Sample output: {"summary": "The customer has questions about fees and interests on his account", "tags": ["fees", "taxes"], "products": ["e-finance", "savings account", "account"], "wordcloud":["Address Change", "Paper Documents"], "diarization": ["(CU) (neutral) (requesting) (2:10): "How can I change my address? I tried to do it in the e-banking without any luck! Can you help mi with that?", "(SC) (friendly) (answering) (2:43): "You can change the address in the my-profiles page. Do you have all the logins with you at the moment?"]}
        """
    file = Part.from_data(mime_type="audio/mpeg", data=audio)

    return llm.generate_content(
        [text, file],
        generation_config={
            "max_output_tokens": 8192,
            "temperature": 1,
            "top_p": 0.95,
        },
        safety_settings={
            generative_models.HarmCategory.HARM_CATEGORY_HATE_SPEECH: generative_models.HarmBlockThreshold.BLOCK_ONLY_HIGH,
            generative_models.HarmCategory.HARM_CATEGORY_DANGEROUS_CONTENT: generative_models.HarmBlockThreshold.BLOCK_ONLY_HIGH,
            generative_models.HarmCategory.HARM_CATEGORY_SEXUALLY_EXPLICIT: generative_models.HarmBlockThreshold.BLOCK_ONLY_HIGH,
            generative_models.HarmCategory.HARM_CATEGORY_HARASSMENT: generative_models.HarmBlockThreshold.BLOCK_ONLY_HIGH,
        }
    )

st.markdown("# Upload an audio file\n Keep in mind that hate speach or sexual content can not be processes")
uploaded_file = st.file_uploader("Upload an .mp3 for transcription", type=["mp3"])
if uploaded_file is not None:
    audio = uploaded_file.getvalue()
    filename = uploaded_file.name.strip().replace(" ", "_").replace("-", "_")
    result = invoke(audio)
    content = json.loads(result.text.strip().rstrip("."))
    content["filename"] = filename
    ts = time.strftime("%Y%m%d-%H%M%S")
    with open(os.path.join("uploads", f"{ts}.json"), "w") as file:
        file.write(json.dumps(content))

    with open(os.path.join("uploads", f"{ts}.mp3"), "w") as file:
        file.write(json.dumps(content))
    st.markdown("# Raw Transcript Data from LLM \n")
    st.write(content)

Transcription

Understand

IBM

Placeholder:



- add some information about process miners

import streamlit as st
import re
import pandas
import pm4py
import datetime
import os
from wordcloud import WordCloud
from PIL import Image
import numpy as np
from data import get_transcripts
transcripts = get_transcripts()


def flatten(xss):
    return [x for xs in xss for x in xs]


st.set_page_config(page_title="Analyse multiple calls", page_icon="open_book")
st.title("Process Analysis")
st.sidebar.title("Filter")

selected_tag1 = st.sidebar.selectbox(
    "Select first tags",
    flatten([transcript.tags for transcript in transcripts]),
    index=None,
)
selected_tag2 = st.sidebar.selectbox(
    "Select second tags",
    [
        t
        for t in flatten(
            [
                transcript.tags
                for transcript in transcripts
                if selected_tag1 in transcript.tags
            ]
        )
        if t != selected_tag1
    ],
    index=None,
)
selected_tags = [t for t in [selected_tag1, selected_tag2] if t]

selected_product = st.sidebar.selectbox(
    "Select the product",
    list(set(flatten([transcript.products for transcript in transcripts]))),
    index=None,
)

selected_transcripts = [
    transcript
    for transcript in transcripts
    if all([tag in transcript.tags for tag in selected_tags])
    and (selected_product in transcript.products if selected_product else True)
]

if len(selected_transcripts):
    words = flatten([transcript.wordcloud for transcript in selected_transcripts])
    st.markdown("# Word cloud \n")
    pf_mask = np.array(
        Image.open(
            os.path.join(
                os.path.dirname(__file__) if "__file__" in locals() else os.getcwd(),
                "pf.png",
            )
        )
    )
    wc = WordCloud(
        background_color="white",
        colormap="Oranges",
        mask=pf_mask,
        contour_color="#FFCC00",
       contour_width=2,
    ).generate(" ".join(words))
    st.image(wc.to_array())

    start = datetime.datetime.now()
    df = pandas.DataFrame()
    for index, transcript in list(enumerate(selected_transcripts)):
        df = pandas.concat(
            [
                df,
                pandas.DataFrame(
                    [
                        {
                            "case_id": index,
                            "speaker": entry.speaker,
                            "activity": entry.activity,
                            "text": entry.text,
                            "timestamp": start
                            + datetime.timedelta(minutes=int(entry.time.split(":")[0]))
                            + datetime.timedelta(seconds=int(entry.time.split(":")[1])),
                        }
                        for id, entry in enumerate(transcript.diary)
                    ]
                ),
            ]
        )

    log = pm4py.format_dataframe(
        df, case_id="case_id", activity_key="activity", timestamp_key="timestamp"
    )
    map = pm4py.discover_heuristics_net(log)
    ts = pm4py.convert_to_bpmn(map)
    pm4py.save_vis_bpmn(ts, file_path="/tmp/model-net.svg", format="svg")
    l, s, e = pm4py.discover_dfg(log)
    pm4py.save_vis_dfg(
        l, s, e, file_path="/tmp/model-tree.svg", format="svg", rankdir="LR"
    )

    st.markdown(
        "# Statistics \n- "
        + "\n- ".join(
            [
                f"Selected tags: {', '.join(selected_tags)}",
                f"Selected product: {selected_product}",
                f"Count transcripts: {len(selected_transcripts)}",
            ]
        )
    )
    st.markdown("# Models \n")
    st.markdown(
        "## DFG \n" + f"- Start: {','.join(s.keys())} \n- End: {', '.join(e.keys())}"
    )
    st.image("/tmp/model-tree.svg", caption="Directly-follows graph")
    st.markdown("## BPMN Model \n")
    st.image("/tmp/model-net.svg", caption="BPMN Model")

    st.markdown("# Raw Data \n")
    st.dataframe(log)
else:
    st.markdown("No Transcripts found, sorry!")

Understand

IBM

IBM

Transcription

Audio / Transcript / Insights



Dedicated steps

more predictable

fine tuning

Audio / Transcript + Insights



Multi modality

 extract sentiment from audio

single step pipeline

Reflection

IBM

Reflection

IBM

  • Swiss German is a difficult language to understand for Speech-to-Text-Models with its many dialects and variants
  • The advancements in the AI-field are from large-scale and very fast
  • The usage of AI has huge potential in callcenters, it can optimize processes in an effective and efficient way
  • Our PoC confirms the feasibility of the planned solution
  • Different models and LLMs have significantly different performance results



Reflection

IBM

Feasibility

Usability

Improved Workflow

Conclusion & Next Steps

IBM

  • PoC works and usuability was confirmed in our tests
    • Concept could be integrated by PF
  • Still some finetuning needed



Next Steps:

  • Evaluation for newly available LLMs important as they can optimize the performance significantly
  • RAG integration
  • Testing
  • Finetuning
  • How to get it runing @postfinance



Next Steps

IBM

Try it out:

https://ibmpf.eigenmann.dev



  • nFDPA / Compliance
  • Evaluate with real data
  • Finetune for swiss german
  • Improve performance (and costs)
  • Deploy and use

Call to Action

IBM

Let's meet up for a coffee to further discuss the implementation!

IBM

How to apply @PostFinance

How can we apply IBM's solutions at PF?

Check notes from Q&A from 21.05.24

Limitations

IBM

  • Monetary resources have been to scarce for large testing in combination with time scarcity
  • No real data from the customer calls available, because of data protection
  • Only the LLMs which are integrated in WatsonX have been easily available to work with

Thank You!

Value Mapping

Area Value
Approach Design Thinking: Interview / Persona / Value Benefit analysis / technical analysis / PoC & evaluation / MVP
Technical Speech2Text / LLM / RAG / Process mining & discovery
Usability Customer needs: tags, summaries, discovery and tagging
High effort: viable pipeline
Unused data: scalability and RAG
Artifacts Personas, MVP
Compliance everything works on premise or @ IBM
Know-how Well known tech stack: Steamlit (Python), docker and jupiter notebooks.
(Works in any container-engine/k8s-cluster)

Literature

IBM

Bender-Salazar, R. (2023). Design thinking as an effective method for problem-setting and needfinding for entrepreneurial teams addressing wicked problems. Journal of Innovation and Entrepreneurship, 12(1), 24. https://doi.org/10.1186/s13731-023-00291-2



Hevner, March, Park, & Ram. (2004). Design Science in Information Systems Research. MIS Quarterly, 28(1), 75. https://doi.org/10.2307/25148625
