NGXS

The power of selectors

NGXS Core Team

NGBE Core Team

Angular Architect at Riaktr

Coach at HackYourFuture

Mateus Carniatto

Writer for inDepth.dev

Why NGXS?

Levrage TS decorators (less boilerplate)
Dependency Injection
Progressive (Plugins and NGXS-labs)
Has a great community

Key concepts

import { Injectable } from '@angular/core';
import { State } from '@ngxs/store';

export interface Todo {
  name: string;
  completed: boolean;
}

@State<Todo[]>({
  name: 'todos',
  defaults: []
})
@Injectable()
export class TodoState {}

State

$ npm i @ngxs/store --save

Module

import { NgModule } from '@angular/core';
import { NgxsModule } from '@ngxs/store';
import environment from 'environment';

@NgModule({
  imports: [
    NgxsModule.forRoot([TodoState], {
      developmentMode: !environment.production
    })
  ]
})
export class AppModule {}

export namespace TodoActions {
  export class Load {
    static readonly type = '[Todo] Load';
  }

  export class Add {
    static readonly type = '[Todo] Add';
    constructor(public todo: Todo) {}
  }
}

Action

import { State, Action, StateContext } from '@ngxs/store';
import { TodoActions } from './state/todo.actions'

@State<Todo[]>({...})
@Injectable()
export class TodoState {

  constructor(private backendService: BackendService) {}

  @Action(TodoActions.Add)
  add(ctx: StateContext<Todo[]>, { name }: TodoActions.Add) {
    const newTodo = {name, completed: false};
    ctx.setState([...ctx.getState, newTodo])
  }

  @Action(TodoActions.Load)
  load(ctx: StateContext<Todo[]>) {
    return this.backendService.loadTodos().pipe(
      tap( (todos: Todo[]) => ctx.setState(todos))
    );
  }

}

Action Handlers

Dispatching Actions

import { TodoActions } from './state/todo.actions'

@Component({ ... })
export class TodoComponent implements OnInit{

  constructor(private store: Store) {}

  ngOnInit() {
    this.store.dispatch(new TodoActions.Load());
  }

  todoAdded(todo: Todo) {
    this.store.dispatch(new TodoActions.Add(todo))
  }
}

Select

import { Select, Store } from "@ngxs/store";

@Component({ ... })
export class TodoComponent implements OnInit{
  @Select(state => state.todos) todos$: Observable<Todo[]>;

  constructor(private store: Store) {}

  ngOnInit() {

    const completed$ = this.store.select(state => state.todos).pipe(
      map(todos => todos.filter(todo => todo.completed))
    );

  }
}

Selectors

import { State, Selector, Select } from '@ngxs/store'

@State<Todo[]>({...})
@Injectable()
export class TodoState {

  @Selector()
  static getCompleted(state: Todo[]) {
    return state.filter(todo => todo.completed);
  }

}

@Component{...}
export class TodoComponent {
  @Select(TodoState.getCompleted) completed$: Observable<Todo[]>;

  constructor(private store: Store) {
    this.completed$ = this.store.select(TodoState.getCompleted);
  }
}

State Operators

insertItem
removeItem
updateItem
append
patch
compose

State Operators

import { TodoActions } from './state/todo.actions'
import { updateItem  } from '@ngxs/store/operators'

@State<Todo[]>({...})
@Injectable()
export class TodoState {
  /* ... */

  @Action(TodoActions.CompleteTodo)
  completeTodo(ctx: StateContext<Todo[]>, { id }: TodoActions.CompleteTodo) {
    ctx.setState(updateItem(id, patch({completed: true})))
  }

}

State Operators

import { TodoActions } from './state/todo.actions'
import { insertItem, removeItem, updateItem  } from '@ngxs/store/operators'

@State<Todo[]>({...})
@Injectable()
export class TodoState {

  constructor(private backendService: BackendService) {}

  @Action(TodoActions.AddTodo)
  completeTodo(ctx: StateContext<Todo[]>, { todo }: TodoActions.AddTodo) {
    ctx.setState(insertItem(todo))
  }

  @Action(TodoActions.RemoveTodo)
  completeTodo(ctx: StateContext<Todo[]>, { id }: TodoActions.RemoveTodo) {
    ctx.setState(removeItem(id))
  }

  @Action(TodoActions.CompleteTodo)
  completeTodo(ctx: StateContext<Todo[]>, { id }: TodoActions.CompleteTodo) {
    ctx.setState(updateItem(id, todo => ({...todo, completed: true})))
  }
}

Demo

export interface RecipeStateModel {
  recipes: Recipe[];
  selectedRecipes: number[];
}

export interface Recipe {
  id: number;
  name: string;
  type: RecipeType;
  ingredients: Ingredient[];
}

export interface Ingredient {
  name: string;
  quantity: number;
  unit: string;
}

export type RecipeType = 'breakfast' | 'lunch' | 'dinner';

Model

Selectors

@State<RecipeStateModel>({
  name: "recipes",
  defaults: {
    recipes: [],
    selectedRecipes: [],
  }
})
@Injectable()
export class RecipeState {

  @Selector()
  static recipes(state: RecipeStateModel) {
    return state.recipes;
  }

  @Selector()
  static selectedRecipes(state: RecipeStateModel) {
    return state.selectedRecipes;
  }

}

Selector Options

import { NgModule } from '@angular/core';
import { NgxsModule } from '@ngxs/store';

@NgModule({
  imports: [
    NgxsModule.forRoot([TodoState], {
      developmentMode: !environment.production,
      selectorOptions: {
        suppressErrors: false,
        injectContainerState: false
      },
    }),
  ]
})
export class AppModule {}

Update Selectors

@State<RecipeStateModel>({
  name: "recipes",
  defaults: {
    recipes: [],
    selectedRecipes: [],
  }
})
@Injectable()
export class RecipeState {

  @Selector([RecipeState])
  static recipes(state: RecipeStateModel) {
    return state.recipes;
  }

  @Selector([RecipeState])
  static selectedRecipes(state: RecipeStateModel) {
    return state.selectedRecipes;
  }

}

Extract Selectors

export class StateSelectors {

  @Selector([RecipeState])
  static recipes(state: RecipeStateModel) {
    return state.recipes;
  }

  @Selector([RecipeState])
  static selectedRecipes(state: RecipeStateModel) {
    return state.selectedRecipes;
  }

}

@Component({...})
export class AppComponent {
  @Select(StateSelectors.recipes) recipes$: Observable<Recipe[]>;
}

take aways

Adjust your selector options:

enable selector errors
control your dependencies

Extract your selectors to their own class:

easier to test
separation of concerns

Selection count

Initial approach

export class StateSelectors {

  @Selector([RecipeState])
  static recipes(state: RecipeStateModel) {
    return state.recipes;
  }

  @Selector([RecipeState])
  static selectedRecipes(state: RecipeStateModel) {
    return state.selectedRecipes;
  }

  @Selector([RecipeState])
  static selectedCount(state: RecipeStateModel) {
    return state.selectedRecipes.length;
  }

}

@Component({...})
export class AppComponent {
  @Select(StateSelectors.selectedCount) selectedCount$: Observable<number>;
}

Composing selectors

export class StateSelectors {

  @Selector([RecipeState])
  static recipes(state: RecipeStateModel) {
    return state.recipes;
  }

  @Selector([RecipeState])
  static selectedRecipes(state: RecipeStateModel) {
    return state.selectedRecipes;
  }

  @Selector([StateSelectors.selectedRecipes])
  static selectedCount(selectedRecipes: Recipe[]) {
    return selectedRecipes.length;
  }

}

@Component({...})
export class AppComponent {
  @Select(StateSelectors.selectedCount) selectedCount$: Observable<number>;
}

take aways

Compose selectors:

recalculate only when needed
reduces code repetition

Shopping List

Advanced issue found

▲

export function retrieveShoppingList(recipes, selectedRecipes) {
  const count = _countBy(selectedRecipes)
  return Object.keys(count)
    .map( id => {
    const recipe = recipes.find(rcp => rcp.id === +id)
    return recipe.ingredients.map( ingredient => ({
      ...ingredient,
      quantity: ingredient.quantity * count[id]
    } as Ingredient)
                                 )
  }).reduce((acc, curr) => {
    return acc = [...acc, ...curr];
  }, []);
}

Initial approach

@Component({...})
export class AppComponent implements OnInit {
  @Select(StateSelectors.recipes) recipes$: Observable<Recipe[]>;

  @Select(StateSelectors.selectedRecipes)
  selectedRecipes$: Observable<number[]>;

  shoppingList$: Observable<Ingredient[]>;

  ngOnInit() {
    this.shoppingList$ = combineLatest([
      recipes$,
      selectedRecipes$
    ]).pipe(
      map(([recipes, selectedRecipes]) => {
        retrieveShoppingList(recipes, selectedRecipes))
      }
    )
  }
}

Moving to selectors

export class StateSelectors {

 /* previous selectors ... */

  @Selector([StateSelectors.recipes, StateSelectors.selectedRecipes])
  static shoppingList(recipes: Recipe[], selectedRecipes: number[]) {
    return retrieveShoppingtList(recipes, selectedRecipes)
  }

}

take aways

Move your business logic to selectors:

keep your presentational components dumb
improves maintainability
reduces the need of manipulating streams

Filter by type

Initial approach

export class StateSelectors {

  @Selector([RecipeState])
  static recipes(state: RecipeStateModel) {
    return state.recipes;
  }

  @Selector([RecipeState])
  static filter(state: RecipeStateModel) {
    return state.filter;
  }

  @Selector([RecipeState])
  static selectedRecipes(state: RecipeStateModel) {
    return state.selectedRecipes;
  }

  @Selector([StateSelectors.recipes, StateSelectors.filter])
  static recipesByType(recipes: Recipe[], filter: RecipeType) {
    return !filter
      ? recipes
      : recipes.filter(recipe => recipe.type === filter);
  }

}

Using lazy selector

export class StateSelectors {

  @Selector([RecipeState])
  static recipes(state: RecipeStateModel) {
    return state.recipes;
  }

  @Selector([RecipeState])
  static selectedRecipes(state: RecipeStateModel) {
    return state.selectedRecipes;
  }

  @Selector([StateSelectors.recipes])
  static getRecipesByTypeFn(recipes: Recipe[]) {
    return (filter: RecipeType) => !filter
      ? recipes
      : recipes.filter(recipe => recipe.type === filter);
  }

}

Using lazy selector

@Component({...})
export class AppComponent {
  @Select(StateSelectors.getRecipesByTypeFn)
  getRecipesByTypeFn: Observable<(filter: RecipeType) => Recipe[]>;

  filter: RecipeType;

  selectFilter(filter: RecipeType) {
    this.filter = filter;
  }
}

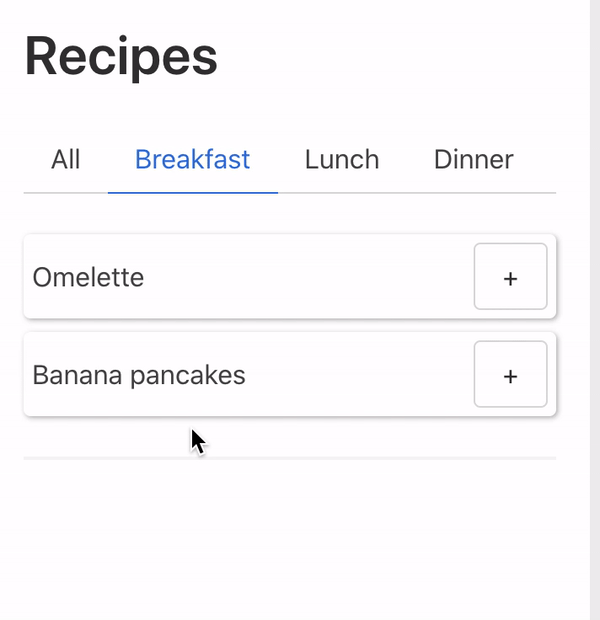

Using lazy selector

  <div class="tabs">
    <ul>
      <li [class.is-active]="!filter"
          (click)="selectFilter(null)">
        <a>All</a>
      </li>
      <li [class.is-active]="filter === 'breakfast'"
          (click)="selectFilter('breakfast')">
        <a>Breakfast</a>
      </li>
      <li [class.is-active]="filter === 'lunch'"
          (click)="selectFilter('lunch')">
        <a>Lunch</a>
      </li>
      <li [class.is-active]="filter === 'dinner'"
          (click)="selectFilter('dinner')">
        <a>Dinner</a>
      </li>
    </ul>
  </div>

  <ng-container *ngIf="recipeByTypeFn$ | async as recipeByTypeFn">
    <div class="recipe" *ngFor="let recipe of recipeByTypeFn(filter)">
      {{recipe.name}}
      <button class="button" (click)="selectRecipe(recipe.id)"> + </button>
    </div>
  </ng-container>

take aways

Leverage lazy selectors:

only run the code when needed
avoid running the same code twice (memoization)
keep your state lean

Bonus tip

import { NgModule } from '@angular/core';
import { NgxsModule } from '@ngxs/store';

@NgModule({
  imports: [
    NgxsModule.forRoot([TodoState], {...}),

    // Enables Redux devTools
    NgxsReduxDevtoolsPluginModule.forRoot({
      name: 'Recipes App',
      disabled: environment.production
    })

  ]
})
export class AppModule {}

$ npm install @ngxs/devtools-plugin --save-dev

Main takeaways

Use TS namespace for actions
Use state operators
Adjust your selector options
Extract selectors to their on class
Compose selectors
Move your business logic to selectors
Leverage lazy selectors

@c4rniatto

Thank You

ngxs.io

NGXS: Power of Selectors

By Mateus Carniatto

NGXS: Power of Selectors

https://stackblitz.com/edit/ngxs-selector-talk

NGXS

The power of selectors

Why NGXS?

Key concepts

State

Module

Action

Action Handlers

Dispatching Actions

Select

Selectors

State Operators

State Operators

State Operators

Demo

Model

Selectors

Selector Options

Update Selectors

Extract Selectors

take aways

Selection count

Initial approach

Composing selectors

take aways

Shopping List

Shopping List

Initial approach

Moving to selectors

take aways

Filter by type

Initial approach

Using lazy selector

Using lazy selector

Using lazy selector

take aways

Bonus tip

Main takeaways

Thank You

NGXS: Power of Selectors

More from Mateus Carniatto
