Part1: Client-side Apps

Why clientside App Frameworks?

• helps you write rich web applications that are well structured (MVC) and backend agnostic.

• Helps you cut down the amount of boiler plate code within your application significantly

• Easily integrates with third party JavaScript libraries and CSS libraries

• Improves usability and app reactivity

• Technology of tomorrow for building responsive web applications

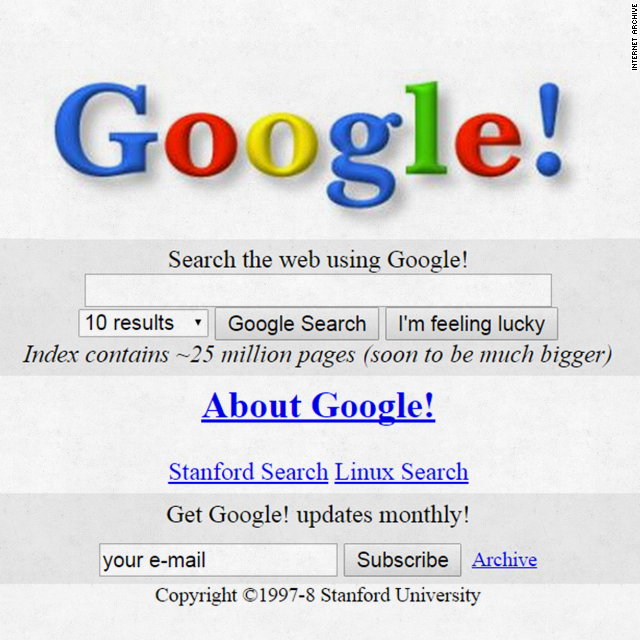

Traditional Websites

Client-side Apps

Why clientside App Frameworks?

Traditional Websites

Client-side Apps

• HTML, CSS and JavaScript serialized on the Server-side and passed to the client
• Full-page refresh when the user clicks on links
• Heavily reliant on the traditional HTTP Request/response lifecycle
• Easy to cache the website pages on the server

• Full JavaScript application sent on the first request

• Subsequent requests only transmit data

• Usually have a rich application-like user interface

• Faster navigation and user interaction

• Supports the rich feature set that users have come to expect from modern web based applications

Why is client-side better?

Keeps both the application state and each user’s state on the server

If the user requests data to be updated, a complete new page is generated and transferred over the wire to the browser

Traditional server-side app

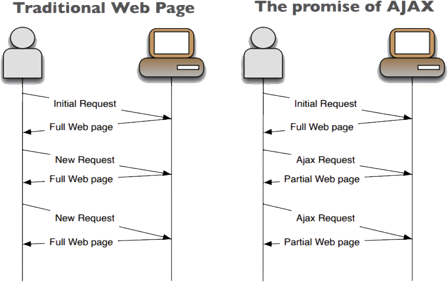

Why is client-side better?

Still Keeps both the application state and each user’s state on the server

Still the same number of page requests and processes on the server-side, less overall data transferred results in less bandwidth consumption.

server-side app with Ajax

5. Partial Response

Why is client-side better?

Application and user state is maintained on the client side.

One full page request at the start of the session. Then just data requests.

Huge reduction in server-side resources, since application only invokes API methods when data is needed, not necessarily whenever a new page is viewed.

Why is client-side better?

Comparison: Click on 10 static pages (100KB/ea) and perform 5 dynamic actions on data (10KB) in each page (with 10,000 daily users).

Per Day

server-side

10∗10,000 = 100,000 page loads

10 ∗ 5 ∗ 10,000 = 500,000 loads with data

100,000 ∗100KB + 500,000 ∗110KB

= 65 GB bandwidth consumed

server-side w/ajax

10∗10,000= 100,000 page loads

10∗5∗10000=500,000 partial page loads

100,000 ∗100KB + 500,000∗10KB

= 15 GB bandwidth consumed

Faster page transitions

client-side

1 ∗ 10,000 page loads

10 ∗ 5 ∗ 10000=500,000 data api calls

10,000 ∗ 100KB + 500,000∗10KB =

6 GB bandwidth consumed

Instant page transitions

Why is client-side better?

Comparison: Click on 10 static pages (100KB/ea) and perform 5 dynamic actions on data (10KB) in each page (with 10,000 daily users).

The savings adds up

59 GB / Day

413 GB / Week

21535 GB / Year (21.5TB)

Amazon WS Charges about 8¢ per GB

So… over the year that’s about $1722 in savings from pure server-side to client-side app. If you scale up to 100k daily users its $17,220, 1M daily users $172,200…etc

Facebook has 936M daily users

Hence this kind of change is about 159 million dollars in savings yearly for them.

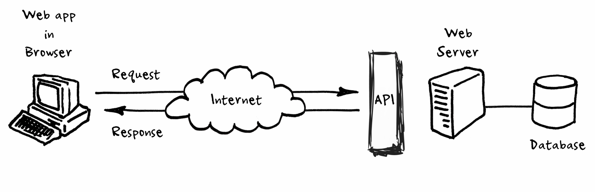

Reference Architecture

REST API

Endpoint

Endpoint

Endpoint

Endpoint

Client-side app

Part 2: Case STudy - Ember.js

What is ember

• Browser-based MVC framework

• Eliminates spaghetti code

• Provides a standard (good) architecture for building apps

• Makes hard things (variable bindings) easy to do

• Uses Virtual DOM Diffing for efficient rendering

• Very Opinionated framework

Who uses ember?

Ember (High level) Architecture

REST API

Endpoint

Endpoint

Endpoint

Endpoint

Model

Model

Model

Model

Data Store

Router

Components

Components

Components

Components

Components

Templates

Components

Components

Routes

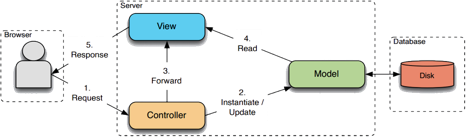

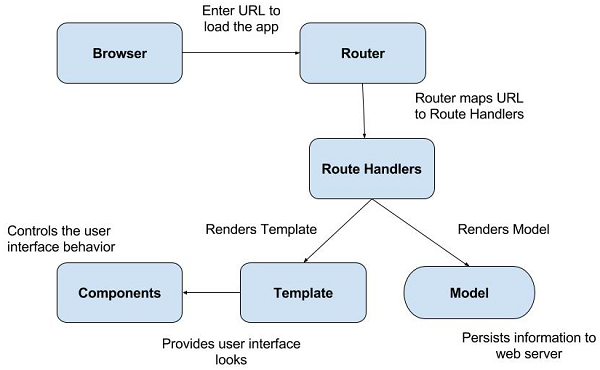

Workflow

Credit: https://images.app.goo.gl/doSiuXjjm2523Yxx9

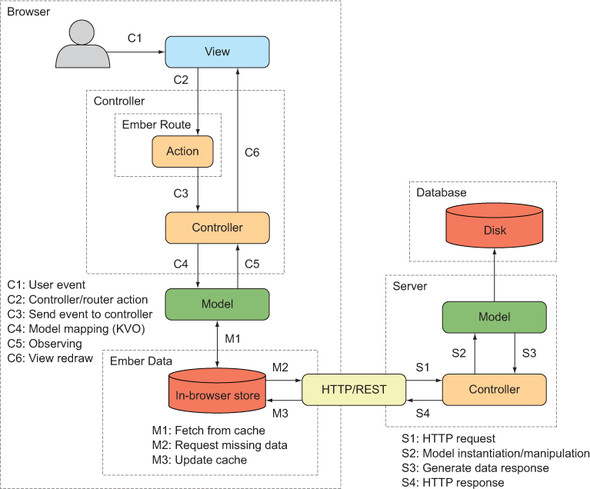

Client and Server workflow

Credit: https://images.app.goo.gl/doSiuXjjm2523Yxx9

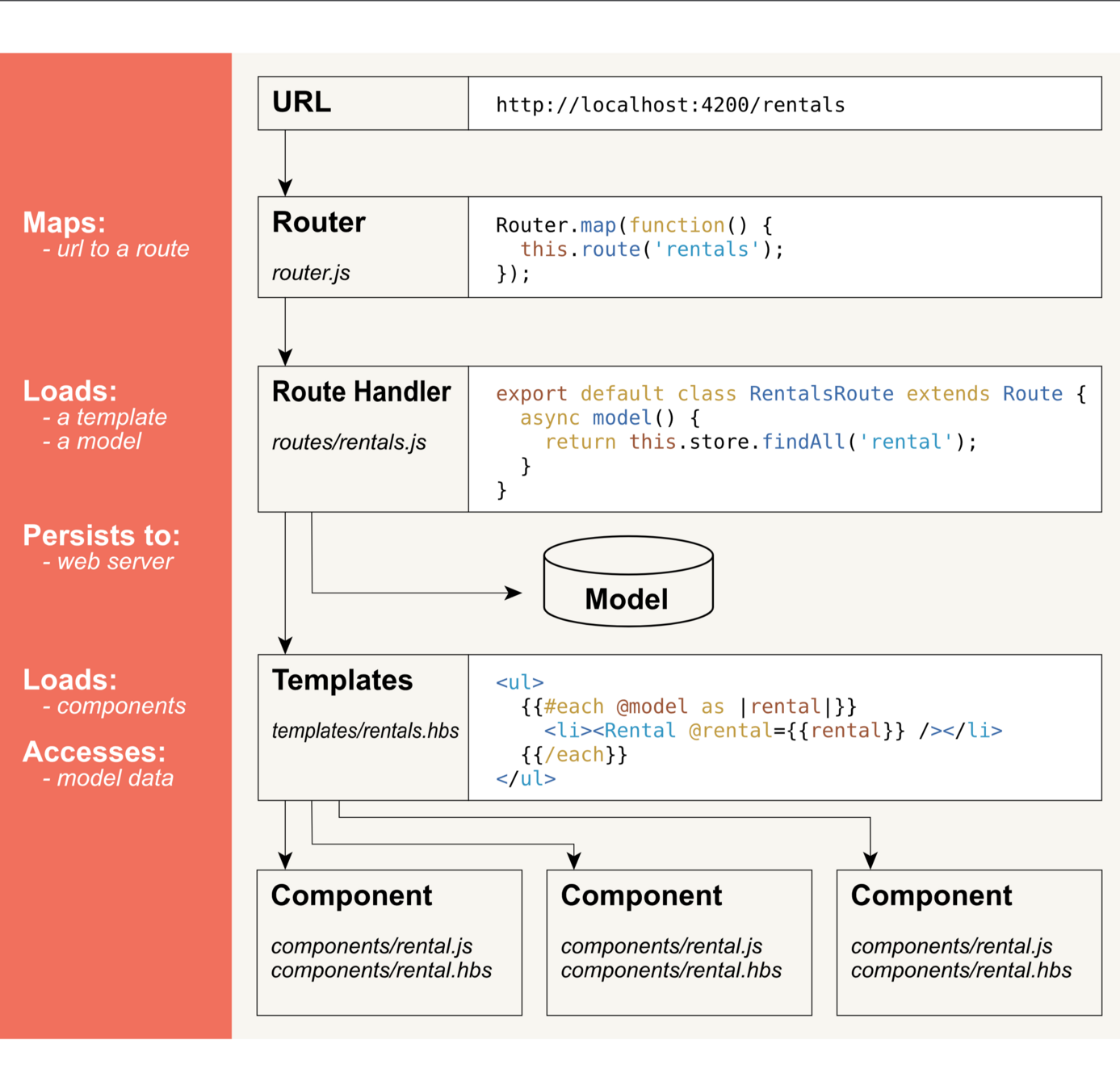

Ember Detailed

Architecture

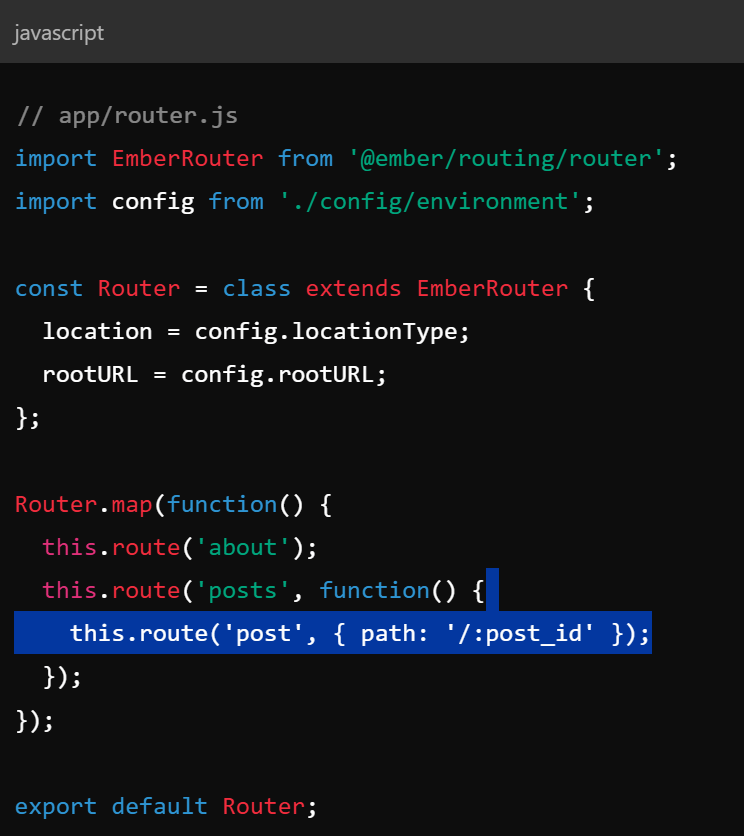

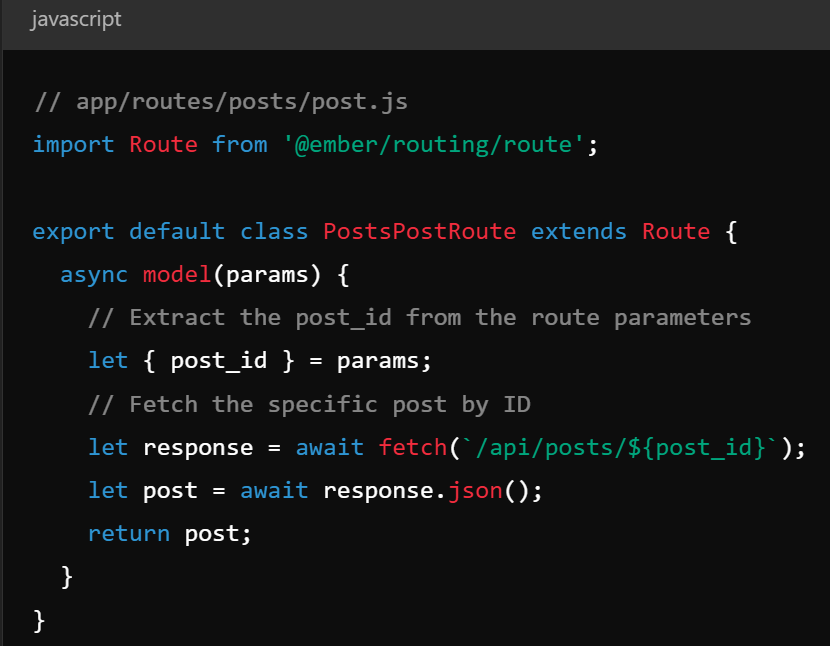

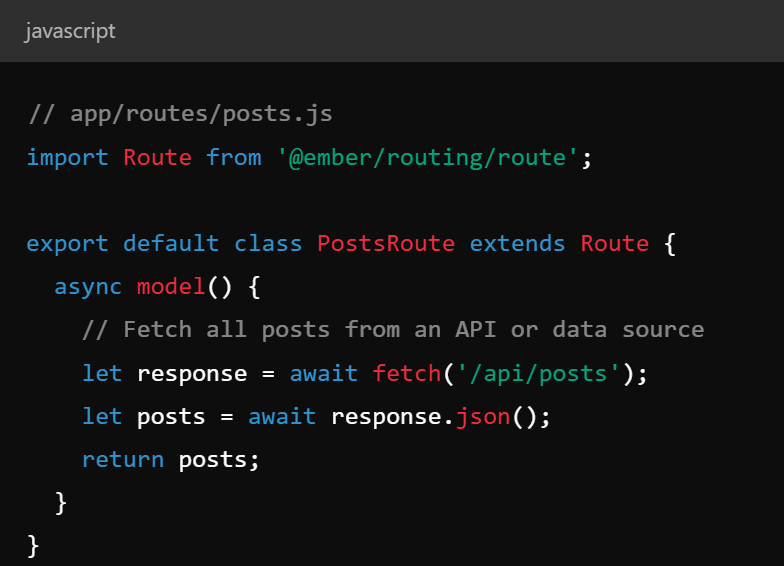

Key Concepts - Router & Routes

• Router is a switchboard that maps urls to routes and manages state
• Routes fetch data and setup a model for template, can be nested

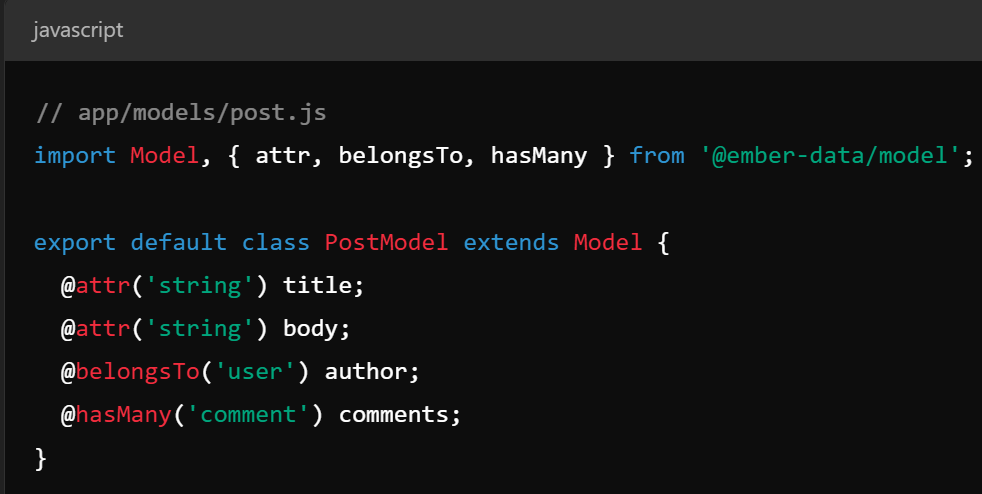

Key Concepts - Models & Ember Data

• Models - represent data objects, similar to django models
• Ember data - provides a consistent way to manage data, handles CRUD with REST or graphQL

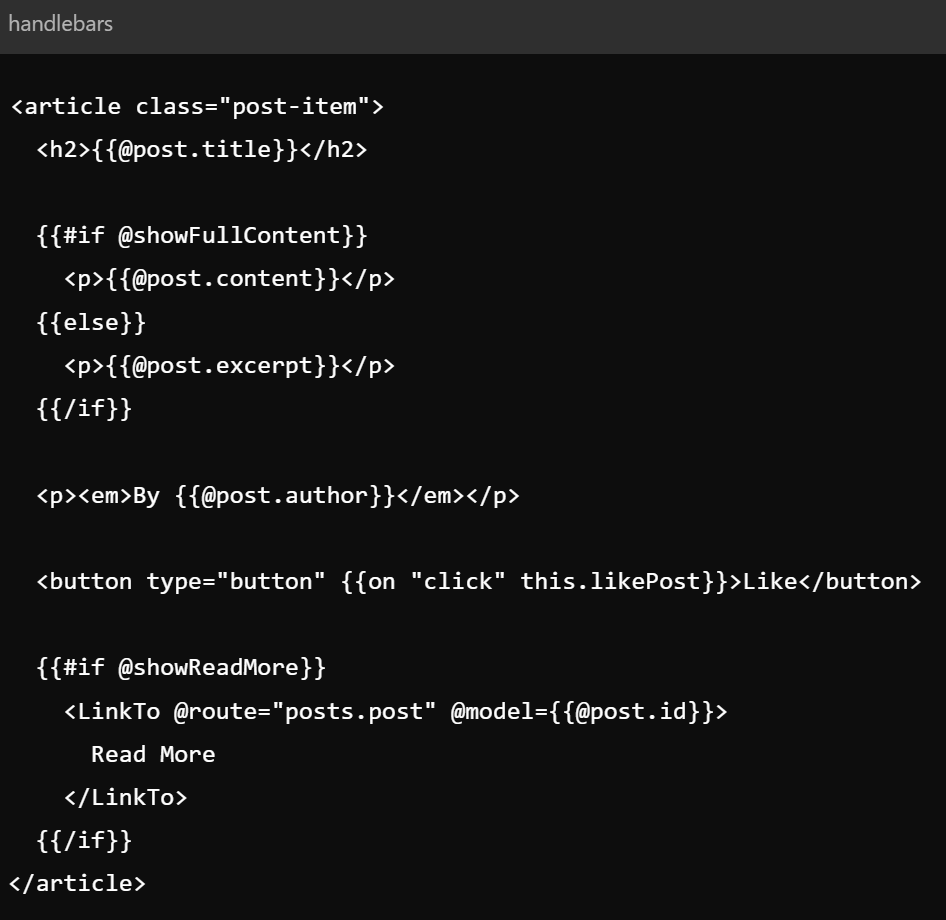

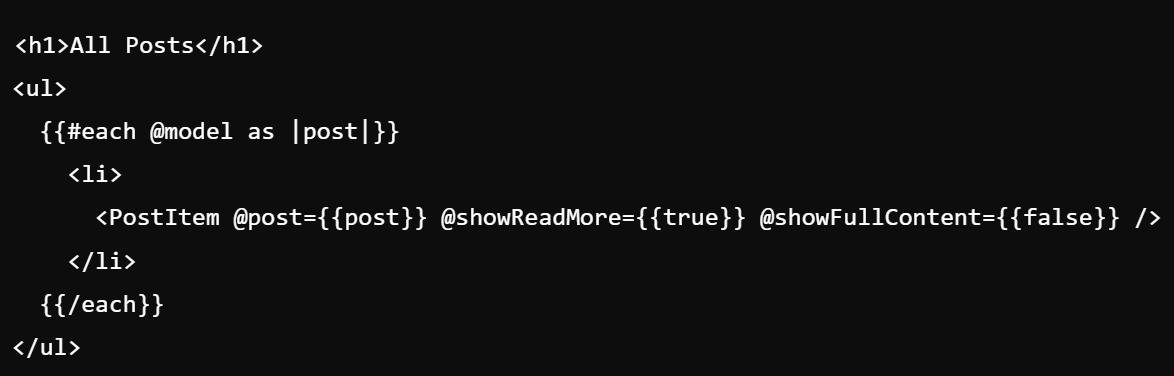

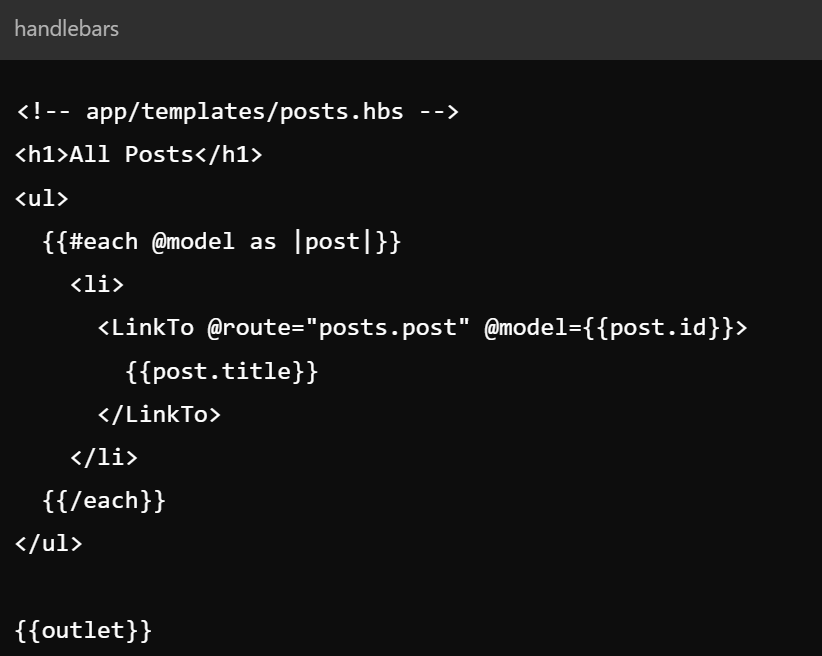

Key Concepts - Templates

• Templates - the UI portion of a route or component, written in handlebars
• Templates render as HTML and are automagically updated when state changes using bindings

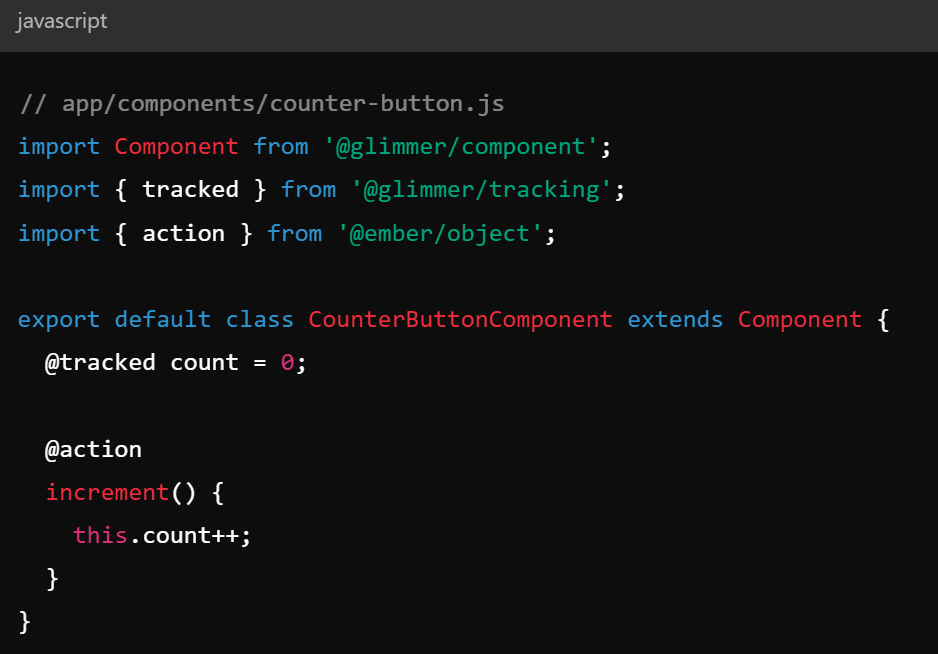

Key Concepts - Components

• Reusable UI elements encapsulating markup and logic
• Used for creating interactive parts of the UI

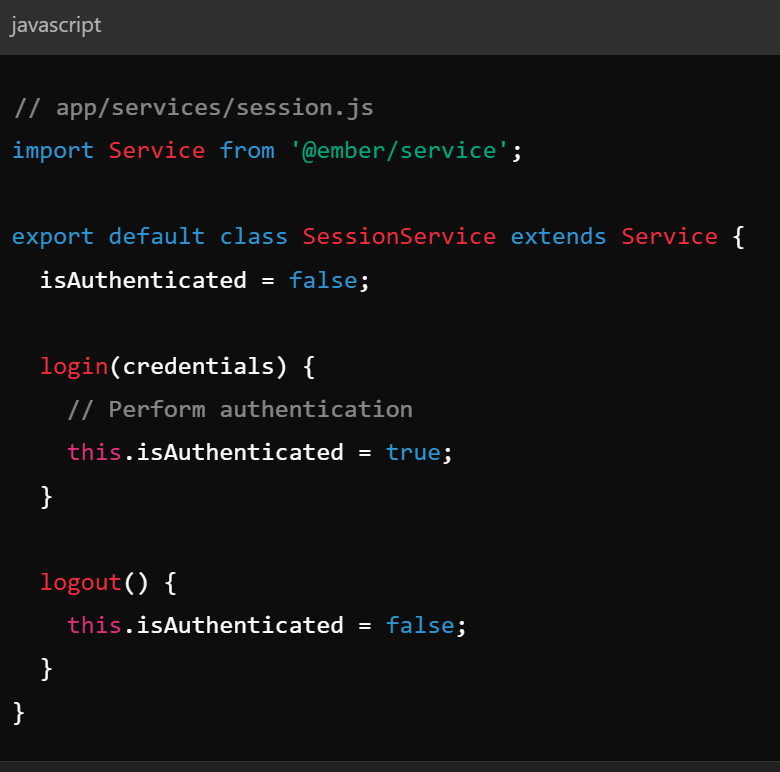

Key Concepts - Services

• Services - objects that persist across the application and allow for state sharing
  • Often used for authentication, logging, etc
  • Can be accessed across routes / components

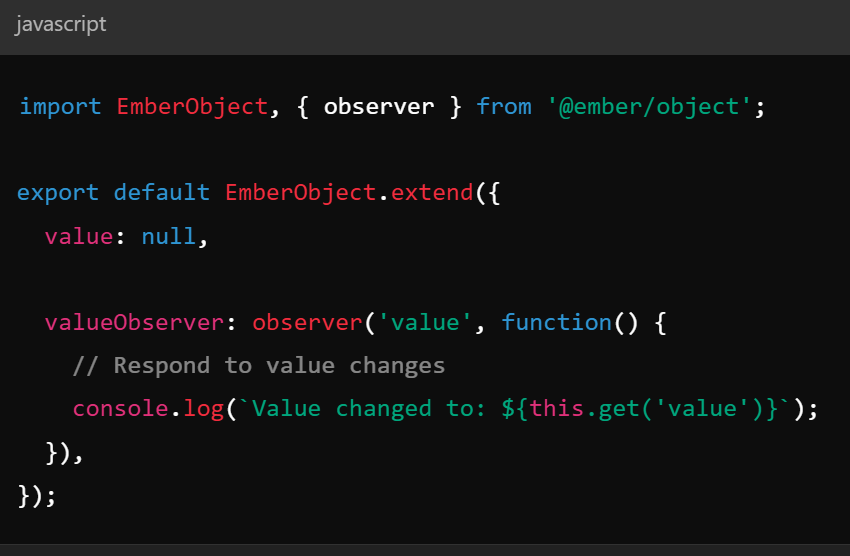

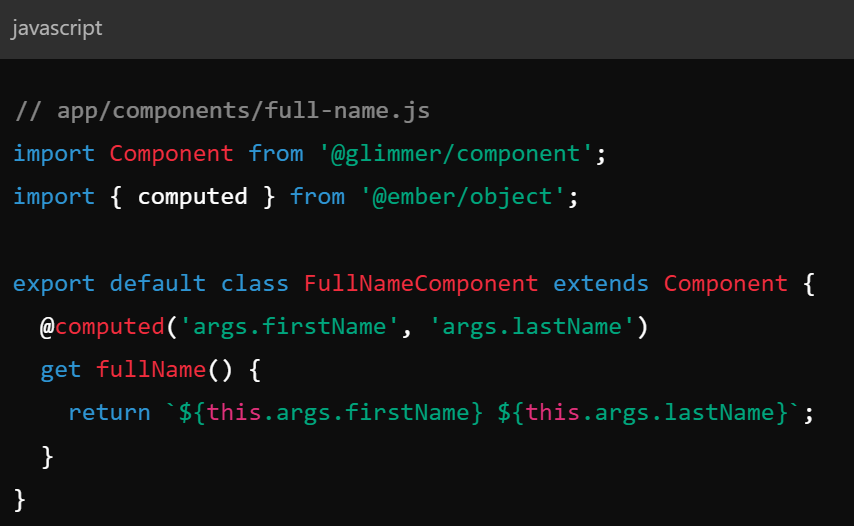

Key Concepts - Computed Properties / Observers

• Computed Properties - dynamically updated values computed from other properties
• Observers - watch or changes on properties and execute code

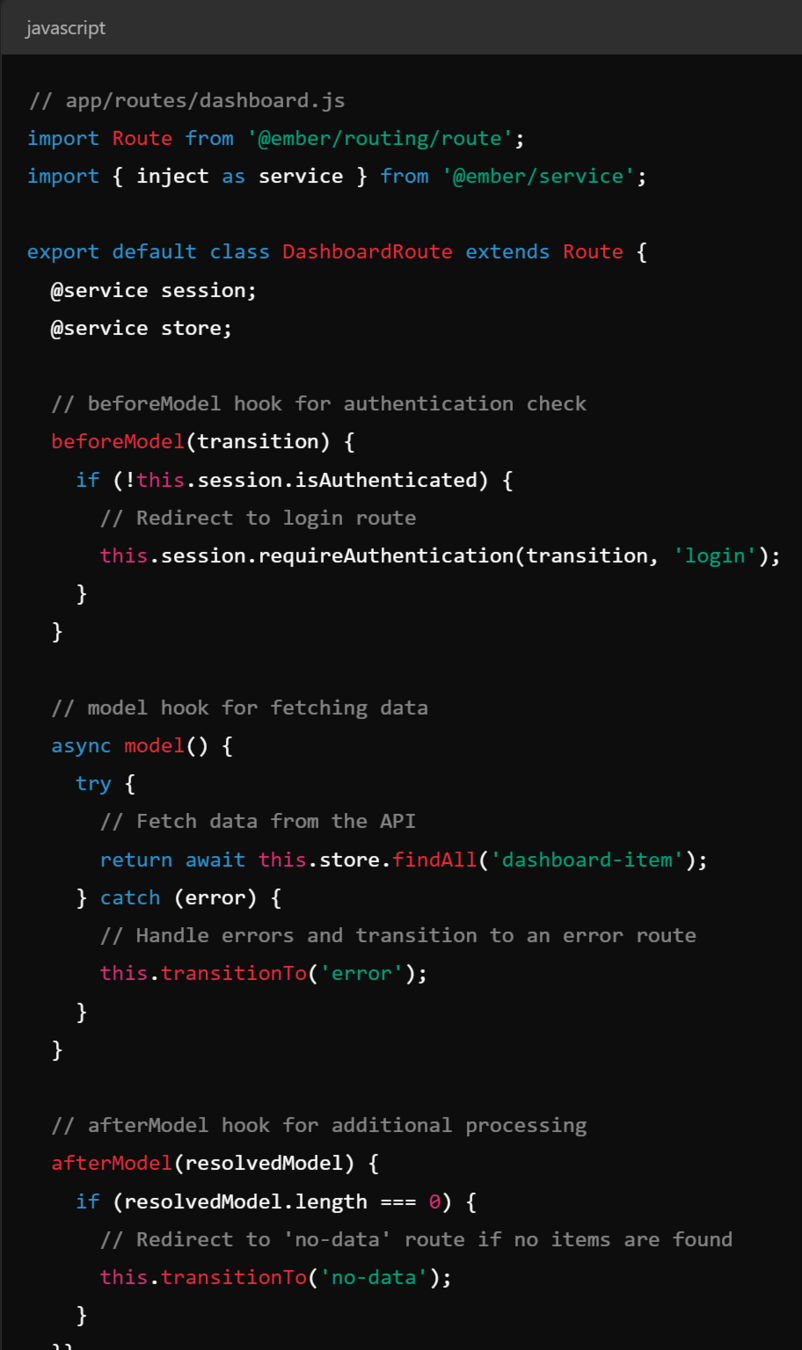

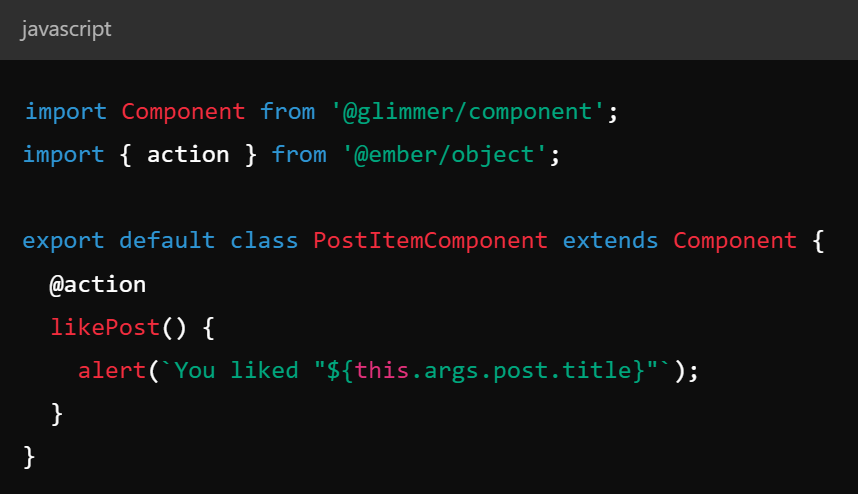

Key Concepts - Actions and hooks

• Actions - used to handle user interactions
• Hooks - Execute code based on state
  (of a router or component)

Part 2: Case STudy - REACT.js

What is REact.js?

• Javascript library primarily focused on user interfaces
• Built/maintained by Facebook (Meta)
• Component-based architecture
• Uses Virtual DOM diffing for efficient rendering
• Has a server-side/mobile version (React Native)
• Much less unopinionated than Ember

Who uses REACT?

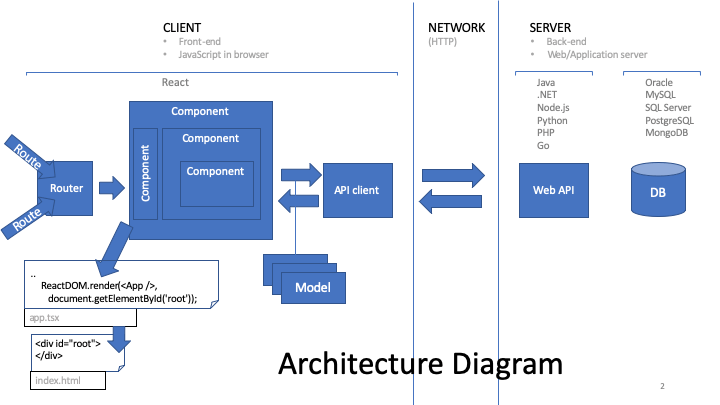

REact.js ARCHITECTURE

img credit: https://handsonreact.com/docs/architecture

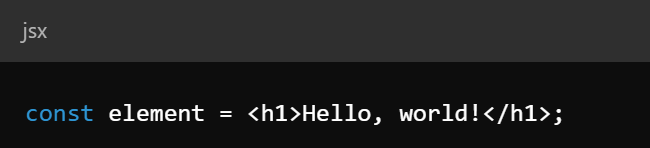

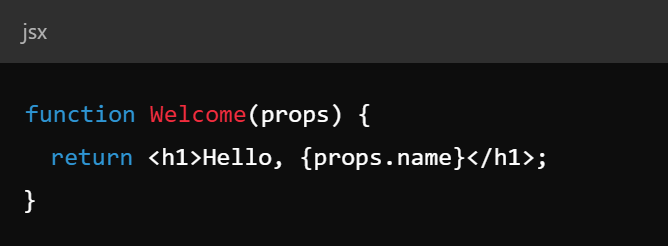

Key Concepts - Components / JSX

• Components - reusable, independent pieces of UI

• JSX - A syntax extension that allows mixing HTML with JavaScript

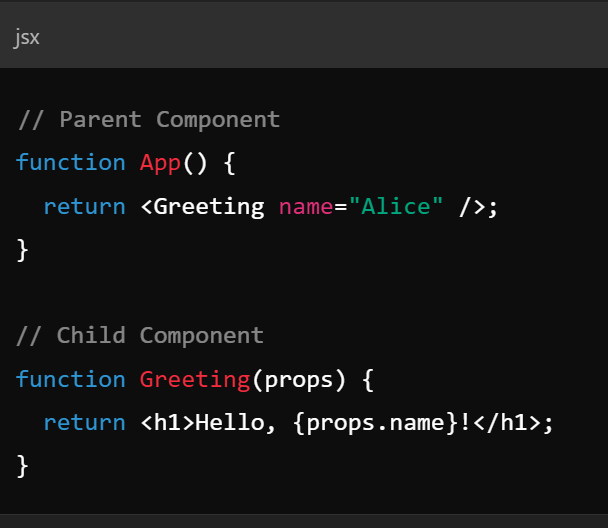

Key Concepts - State and Props

• State - mutable data managed within components
• Props - read-only data passed to components

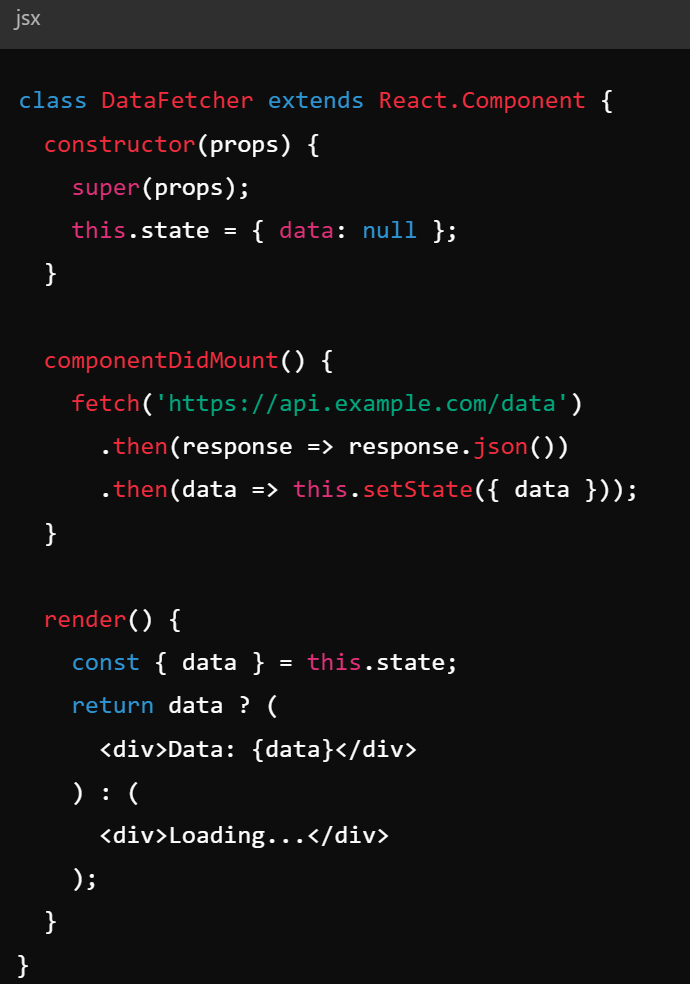

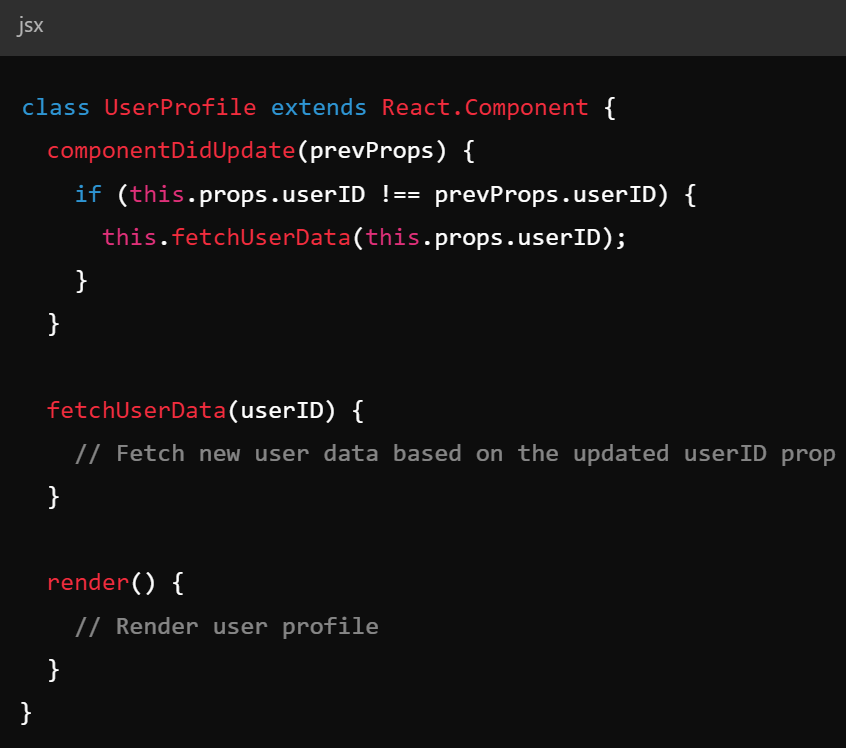

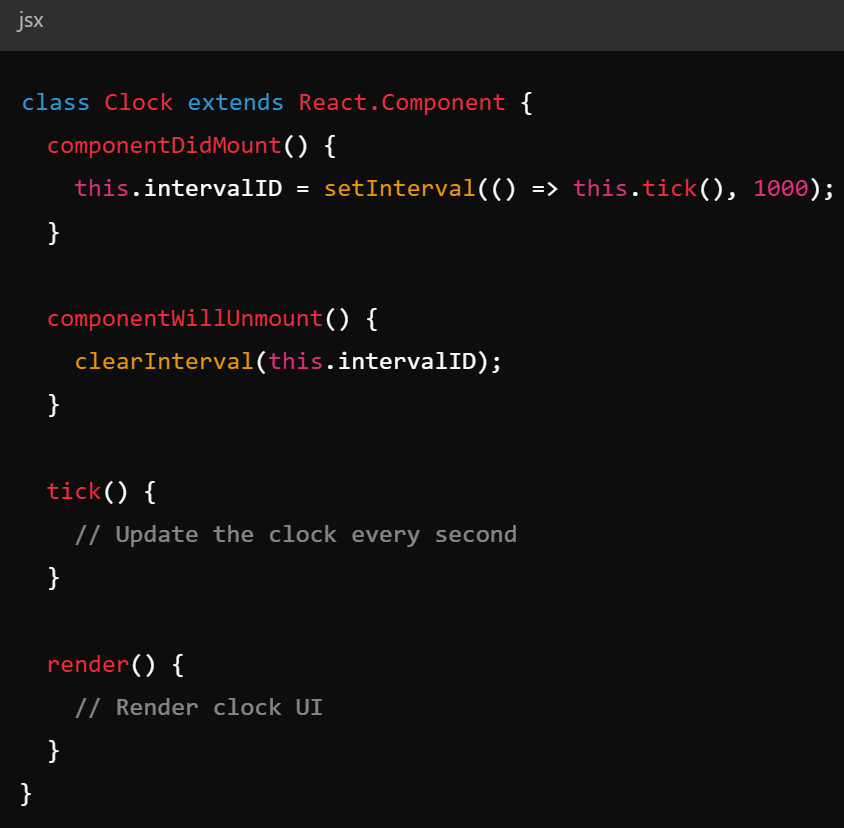

Key Concepts - Lifecycle Methods

• Lifecycle methods - invoked at different stages of a components life
• React components go through at least 3 phases
  • Mounting (componentDidMount())
  • Updating (componentDidUpdate(prevProps, prevState))
  • Unmounting (componentWillUnmount())
• Functions allow operations on these states

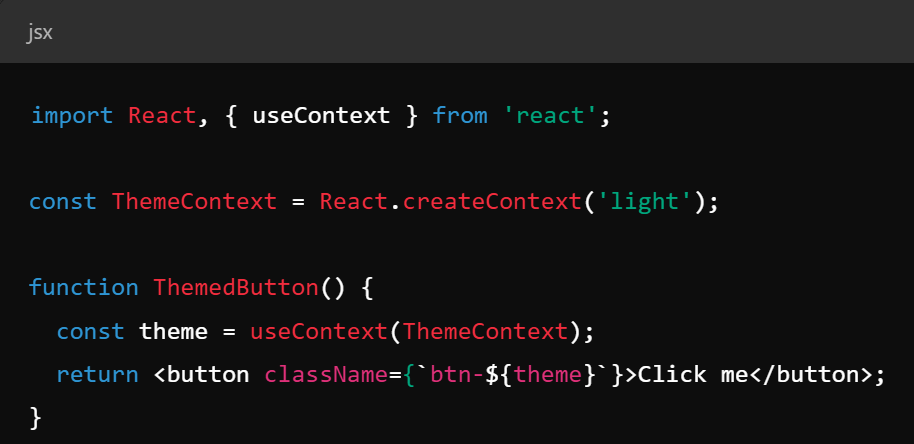

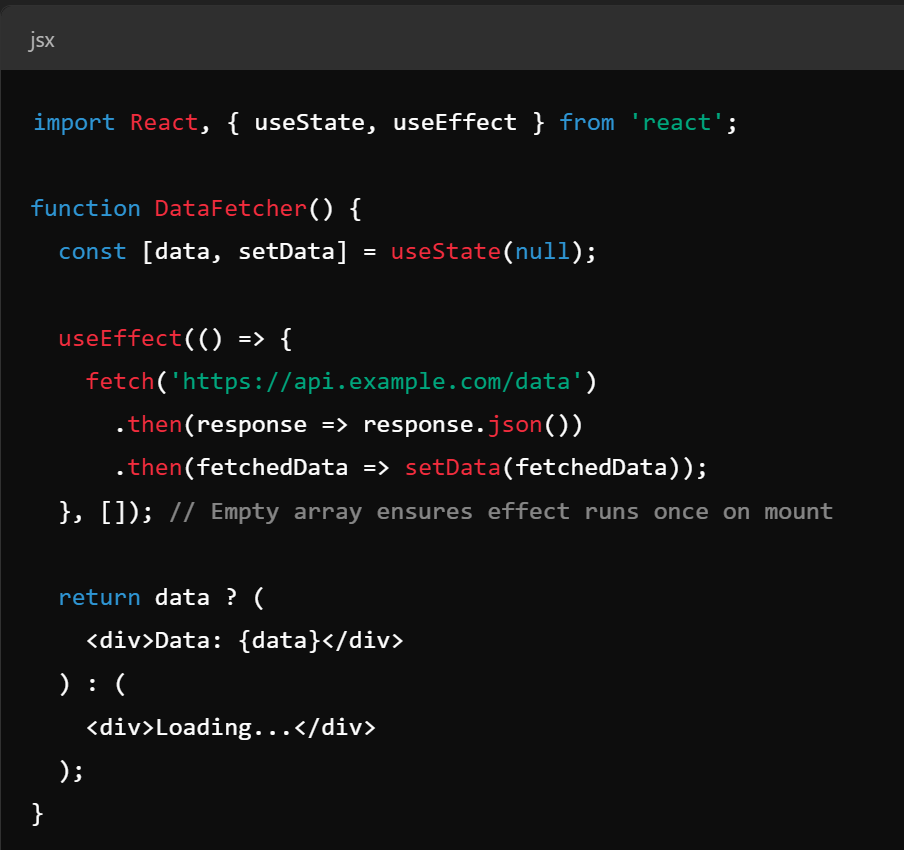

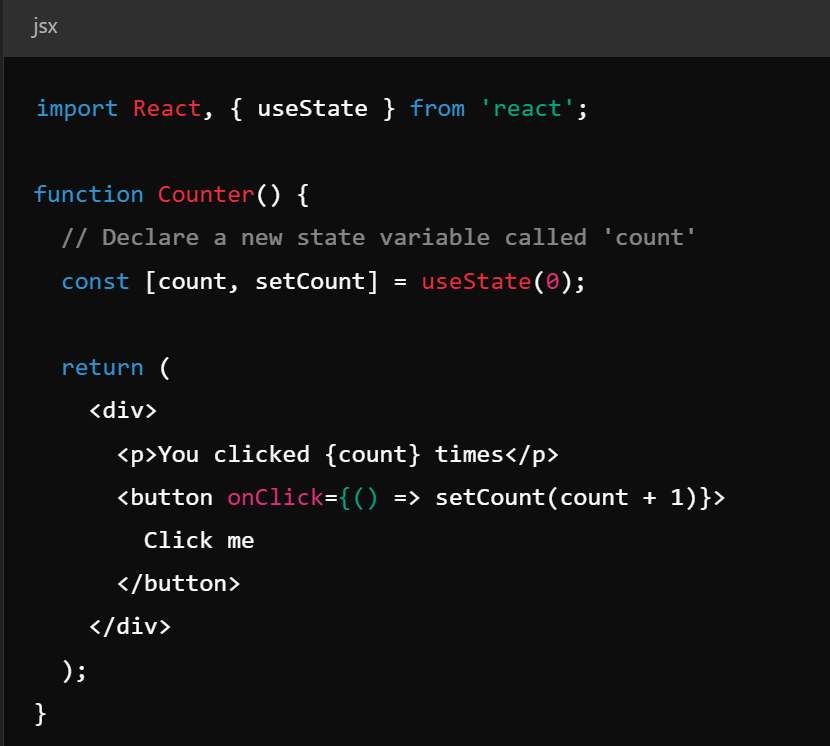

Key Concepts - Hooks

• In newer react (16.8+, current version is 18 at time of writing), the concept of "hooks" has been introduced to allow state management without a class
  • eliminates the need for class components
  • reuses stateful logic between components
• useEffect, useContext, useState most common
