COMP2511

Tutorial 5

Today

  • Overview
  • Strategy Pattern
  • Observer Pattern
  • State Pattern

Reminders

  • Assignment 1 is due this Friday
    • Remember to submit via give
  • Assignment 2 has been released
    • Get in contact with your partner if you haven't already
  • Lab 05 is due Week 7, Monday 1pm

Review of the term

  1. Introduction to Java and its syntax
  2. Classes, encapsulation, inheritance, and polymorphism
  3. Design by contract and unit testing
  4. Design principles (coupling, LOD, LSP, ...)

What's next?

Going Forward

  1. Design patterns are useful tools that you can use solve problems
    • They are typical solutions to common problems in software
  2. They are developed upon the OOP principles we've seen so far
  3. Don't use any design patterns if you don't need to (KISS)
  4. Design patterns are mostly language agnostic
    • Not limited to just Java

Design patterns will be the primary focus from now on!

Strategy Pattern

Strategy Pattern

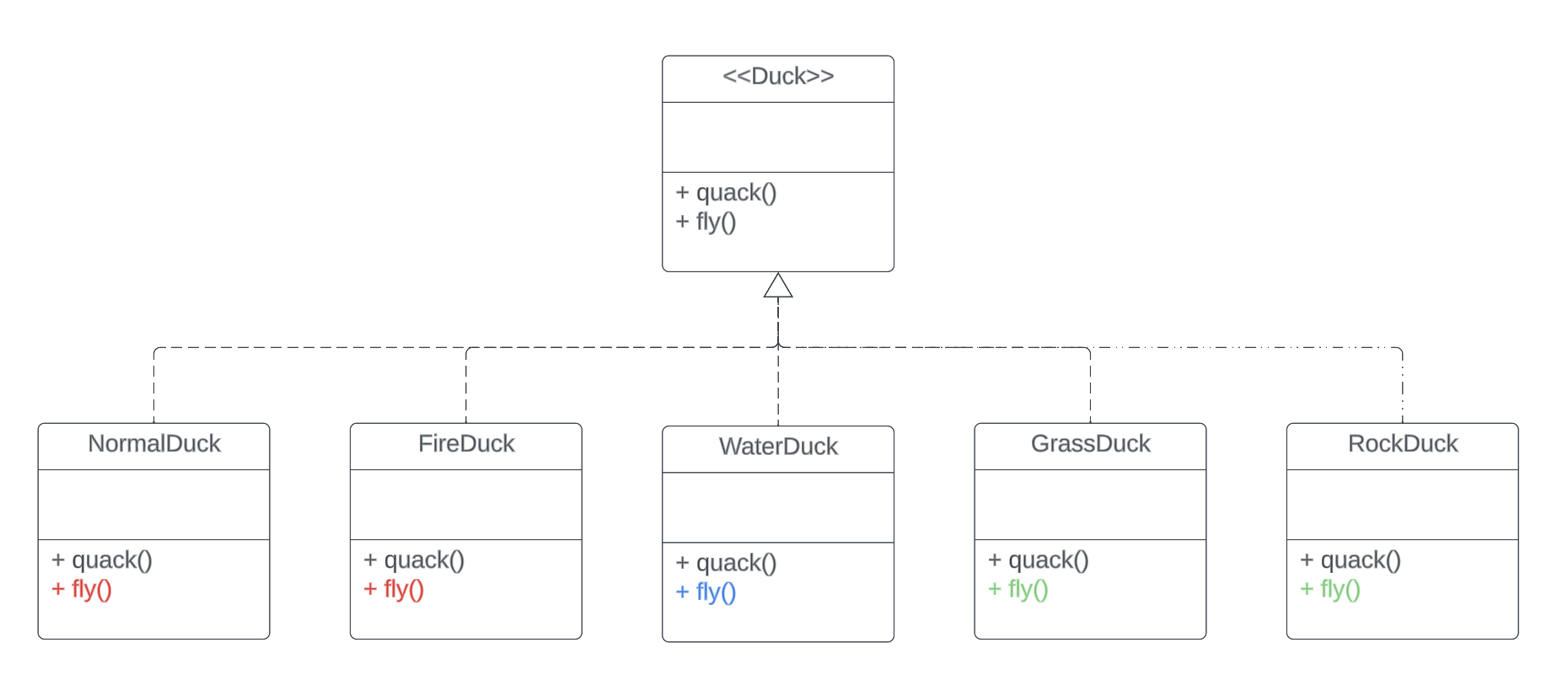

Suppose some of the subclasses implement the fly method in the same way

What changes do we need to make to implement this feature without duplicating code?

Strategy Pattern

Suppose only some of the subclasses implement the fly method in the same way.

Attempt:

Since some subclasses share the same implementation, let's introduce two new abstract classes in between Duck and our existing subclasses to maximise code re-use.

What changes do we need to make to implement this feature?

Strategy Pattern

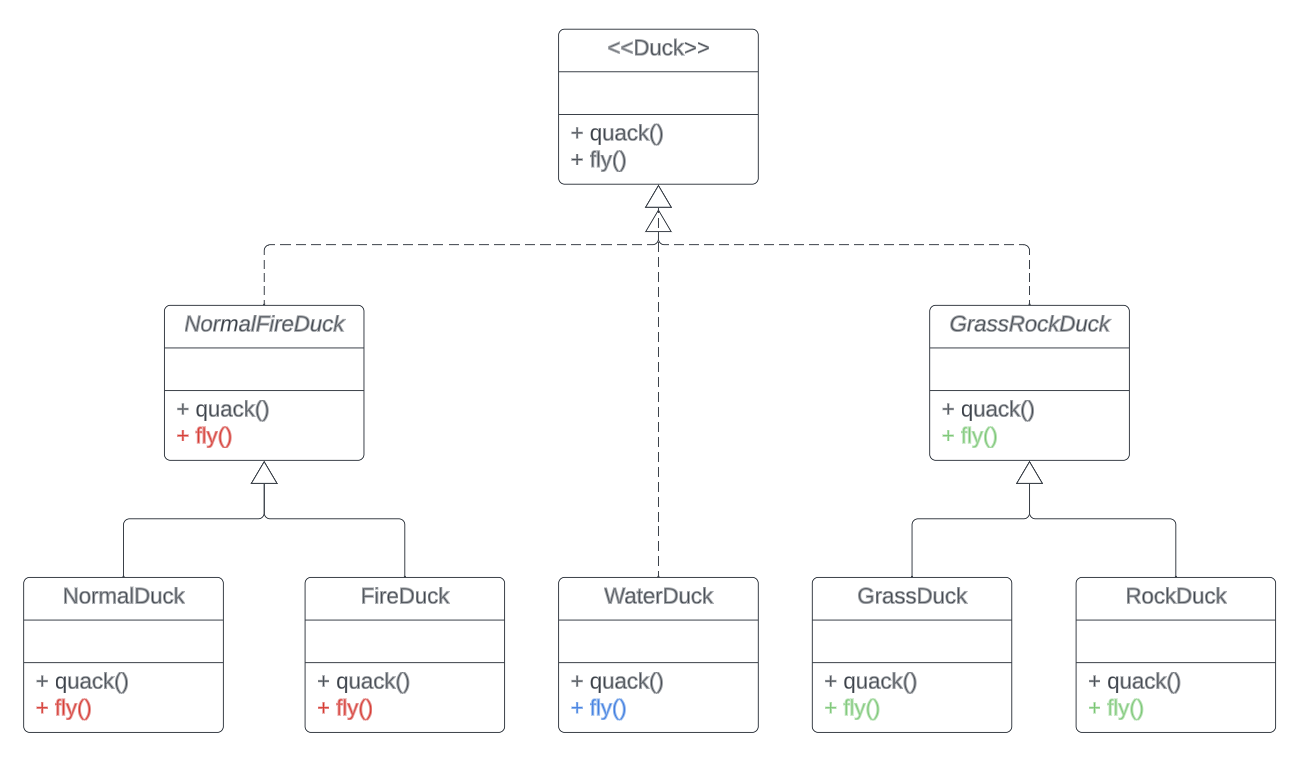

Attempt: introduce two new abstract classes

Requirements update:

GrassDuck and FireDuck share the same implementation for Quack

Strategy Pattern

Requirement update: Suppose now given an instance of any type of Duck, we need to be able to change the way it flies at runtime

How would we implement this feature?

We currently don't have any tools that can achieve this :(

Strategy Pattern

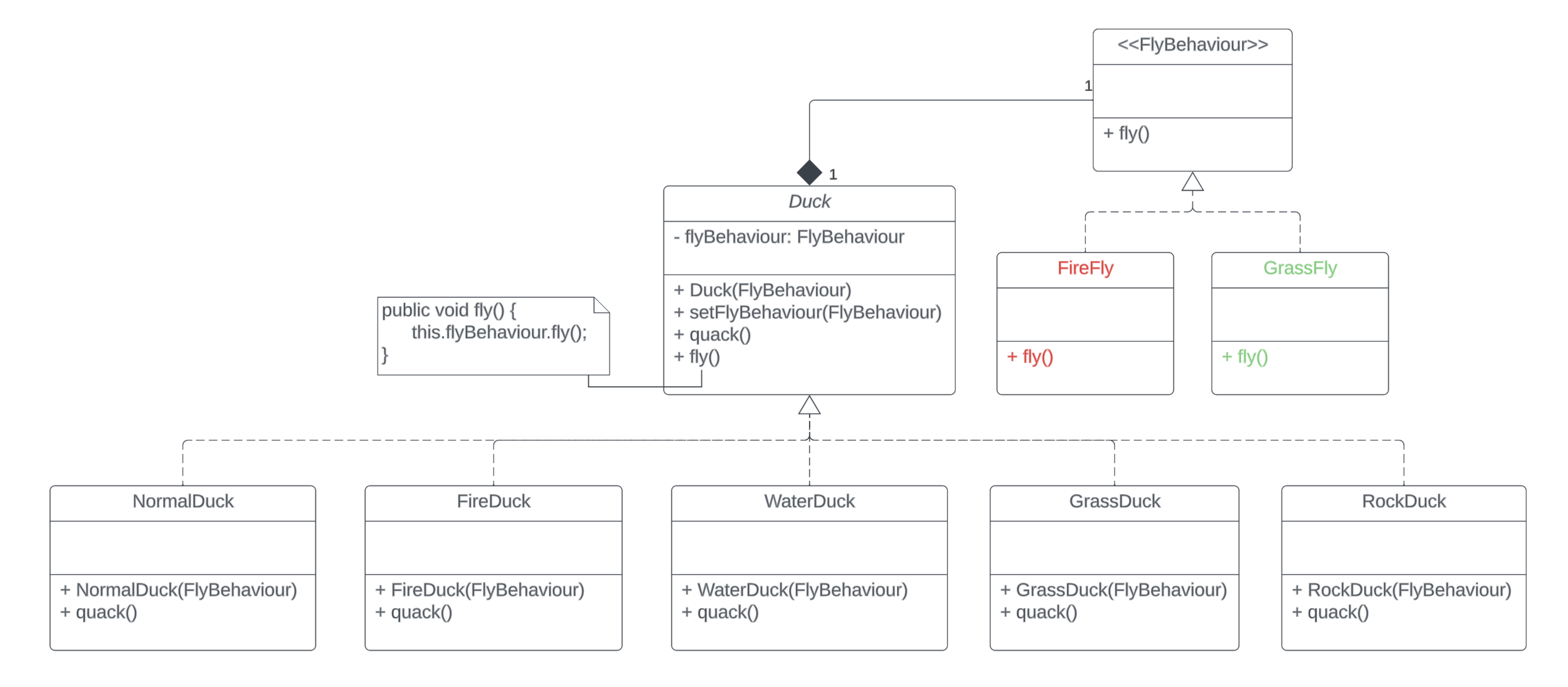

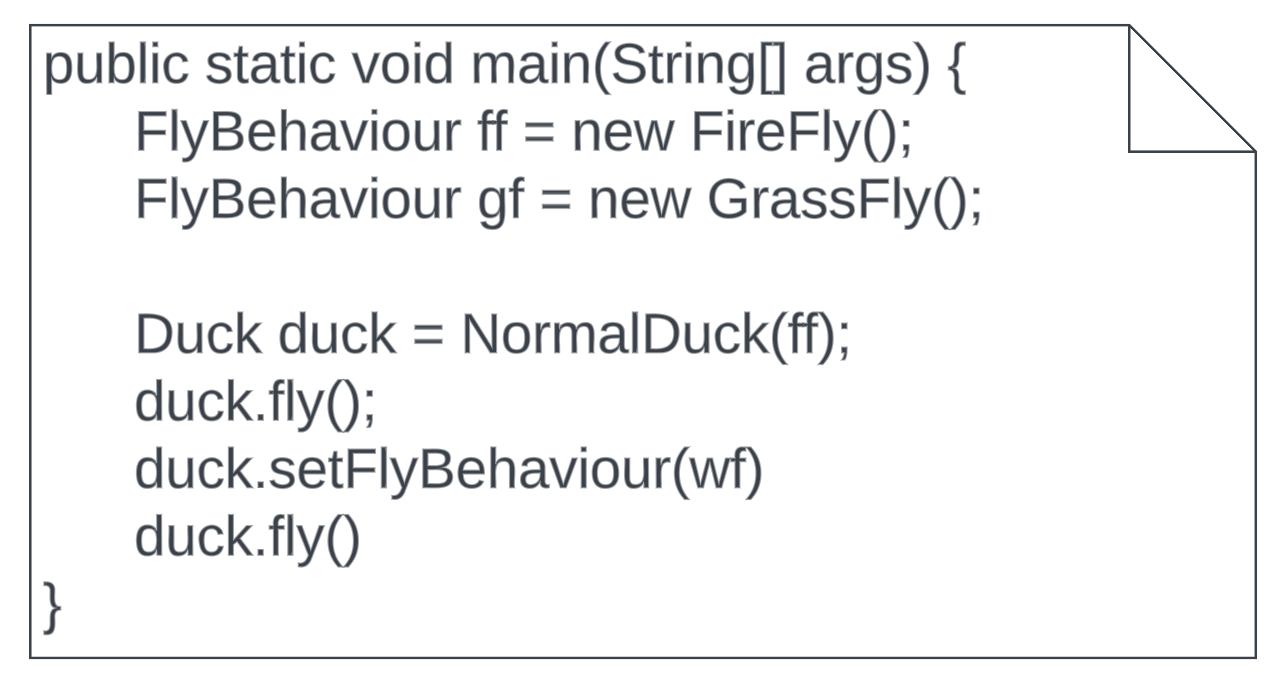

Solution: extract each implementation of flying into a separate class and let the Duck class compose it

  • Share behaviour between classes without duplication
  • Allow behaviour to change at runtime

✅

✅

What is it?



Strategy Pattern

  • Use composition instead of inheritance (more flexibility)
  • Allow behaviour to change at runtime (dependency injection)
    • Encapsulate interchangeable behaviours into classes

  • Introduce new behaviours without violating the Open-Closed principle

  • Allow behaviour to be re-used without duplication

Why use it?

Behavioural Design pattern that lets you define a family of methods that are interchangeable at runtime

Strategy Pattern

How does the code violate the open/closed principle?

  • Not closed for modification / open for extension.
  • Each new case requires a new switch statement.

Strategy Pattern

Let's refactor it!

Currently, the code uses switch statements to handle each of the different cases.

Strategy Pattern

public interface ChargingStrategy {
    // Calculate the cost of their order.
    public double cost(List<Meal> order, boolean isMember);


    // Modifying factors of charges for customers.
    public double standardChargeModifier();
}

Strategy Pattern

Find out more at Strategy (refactoring.guru)

Observer Pattern

Observer Pattern

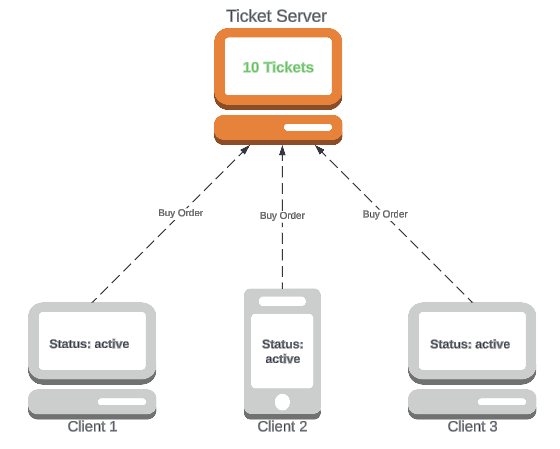

Suppose we have:

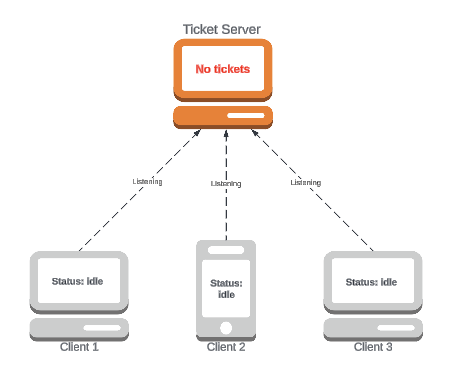

  • A TicketServer that will periodically release tickets for a concert

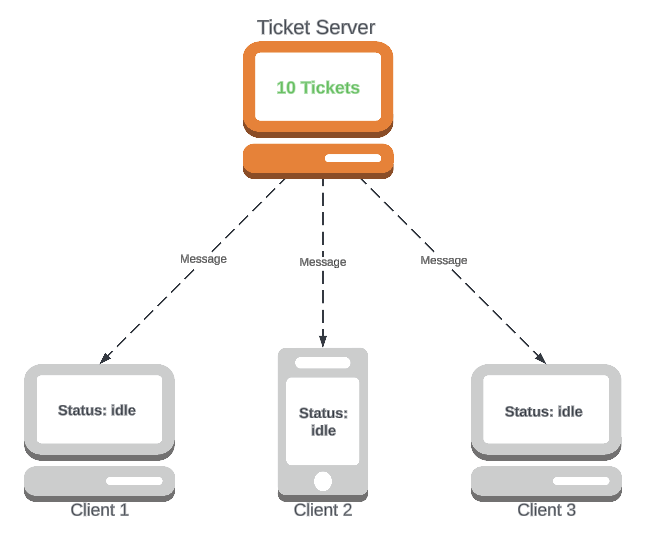

    • It will inform all clients when tickets are available
  • Some Clients listening to the TicketServer, buying tickets as soon as they become available

It's a subscription system!

Observer Pattern

Why do we need to use it?

  • Modelling a push system with a one-to-many relationship can easily lead to tight coupling
  • The observer pattern is a convenient tool that can be used to simplify the problem

What is it?

Behavioural design pattern to model a push-based subscription mechanism between observers and a subject

  • Subject: notify observers of any changes (i.e. broadcast available tickets)
  • Observers: receive updates from the subject and perform some action (i.e. buying tickets)

Observer Pattern

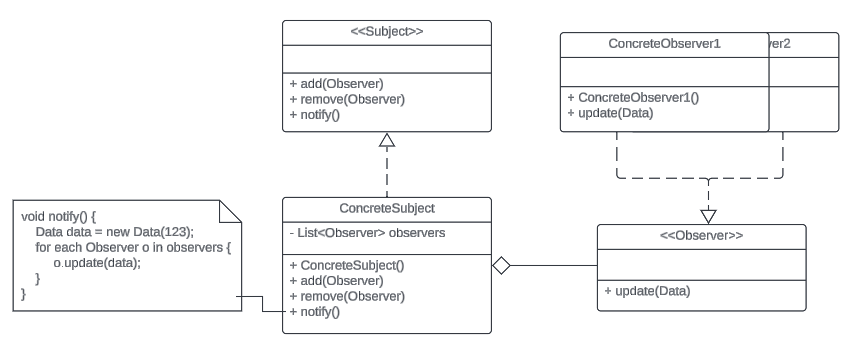

UML Diagram

Model the system in Java!

Observer Pattern

Observer Pattern

public class Producer implements Subject {
    private List<Observer> subscribers = new ArrayList<>();
    private String name;

    public Producer(String name) {
        this.name = name;
    }

    @Override
    public void addSubscriber(Observer subscriber) {
        this.subscribers.add(subscriber);
    }

    @Override
    public void upload(Video video) {
        for (Observer subscriber : this.subscribers) {
            subscriber.alertNewVideo(video);
        }
    }
}

public interface Subject {
    public void upload(Video video);
    public void addSubscriber(Observer subscriber);
}

public interface Observer {
    public void subscribe(Subject producer);
    public void alertNewVideo(Video video);
}

Implementation of interfaces and the Producer

Observer Pattern

public class User implements Observer {
    private String name;

    public User(String name) {
        this.name = name;
    }

    @Override
    public String toString() {
        return name;
    }

    @Override
    public void subscribe(Subject producer) {
        producer.addSubscriber(this);
    }

    @Override
    public void alertNewVideo(Video video) {
        System.out.println("Video: " + video.getName() + "was posted");
    }
}

Implementation of the User

Observer Pattern



Find out more at Observer (refactoring.guru)

State Pattern

State Pattern

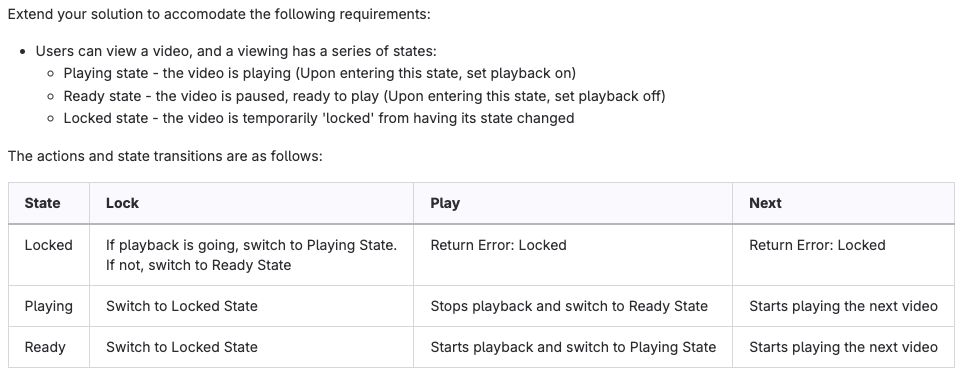

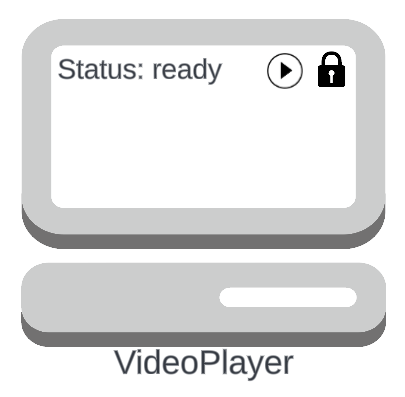

Suppose we have:

  • A VideoPlayer with a play and lock button
  • If we press play while the status is ready,
    then we play a video

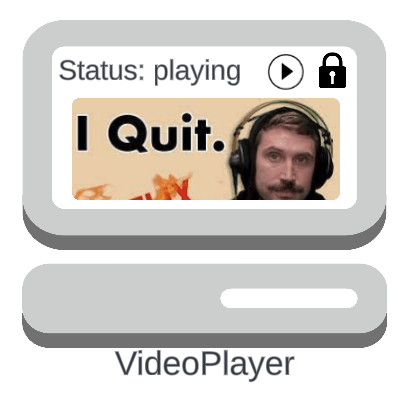

  • If we press play while the status is playing, then we pause the video

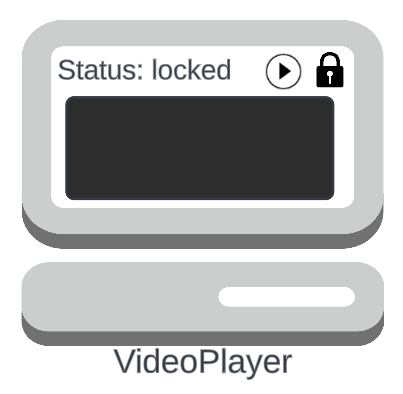

  • If we press lock in either state, we turn off the screen

It's a state machine!

What is it?

State Pattern

  • Each state and its associated behaviour is encapsulated into a separate class
  • Delegation (i.e. method calls) is used to switch between states (and behaviours)
  • Reduce conditional complexity by minimising the use of if / switch statements (i.e. if state is a do b, else if state is c do d, etc)
  • Functionality cannot be added at run-time, only switched

Behavioural design pattern to model a state machine where the behaviour of an object changes depending on its internal state

State Pattern

Transition Diagram

State Pattern

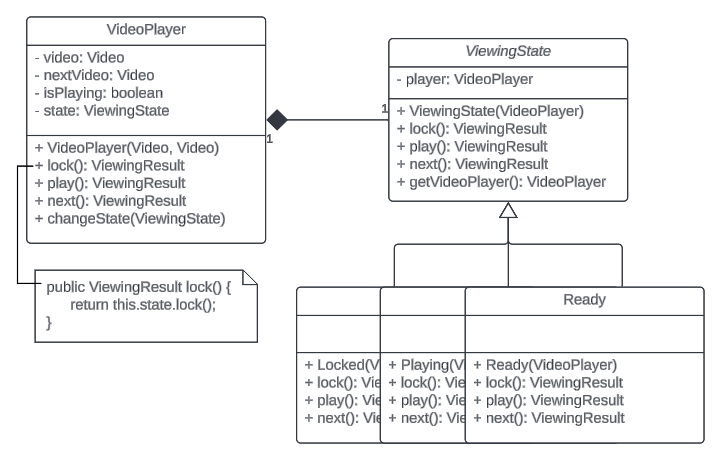

UML Diagram

State Pattern

Find out more at State (refactoring.guru)
