Mohamed BOUCHENAFA

DevOps - AWS Lead Consultant

Join me here :

http://tiny.cc/awscicd

DEVOPS : Build youR CI/CD USING

AWS Code* SERVICES

http://tiny.cc/awscicd

DEVOPS & CI/CD
CODE SERVICES
- Control your code
- Build your BUILDS
- DEPLOY YOUR APPS
- MANAGE YOUR CI/CD WORKFLOW

http://tiny.cc/awscicd

DEVOPS FIGURES

Deploy more often

46x

Source: Puppet 2017 State of DevOps Report

440x

Faster changes

Recover

96x faster

Failures changes 5x lower

-21%

less time spent on unplanned work and rework

+44%

more time for new features

Is DEVOPS IMPORTANT ?

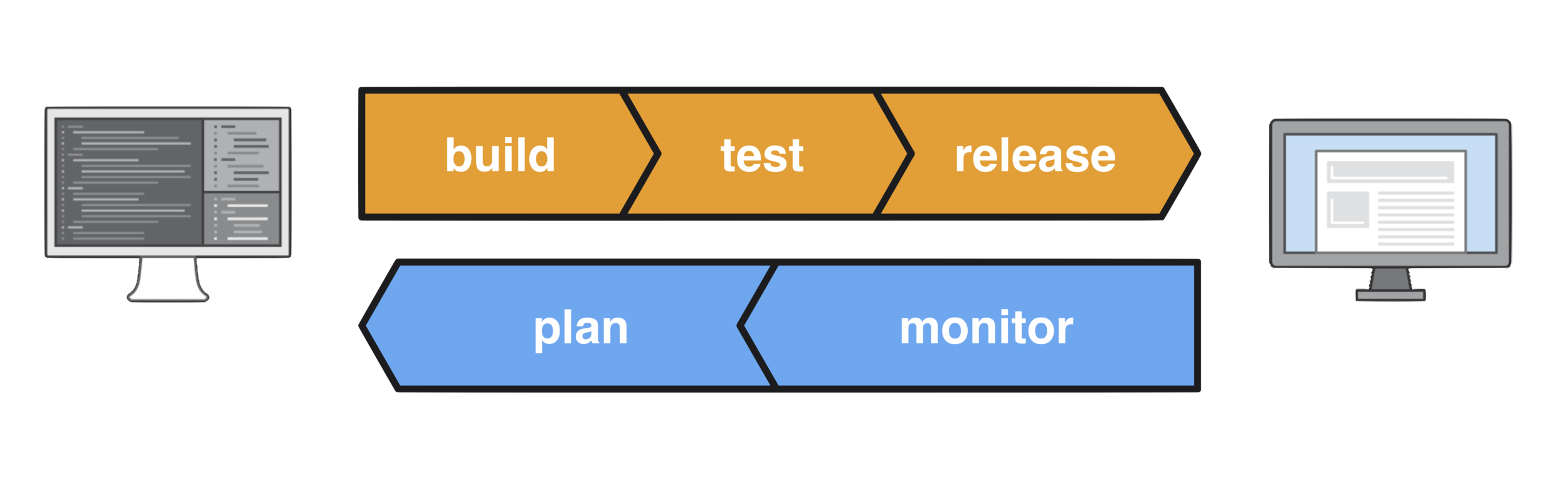

Software LiFECYCLE

DevOps = more efficient lifecycle

Developers

Customers

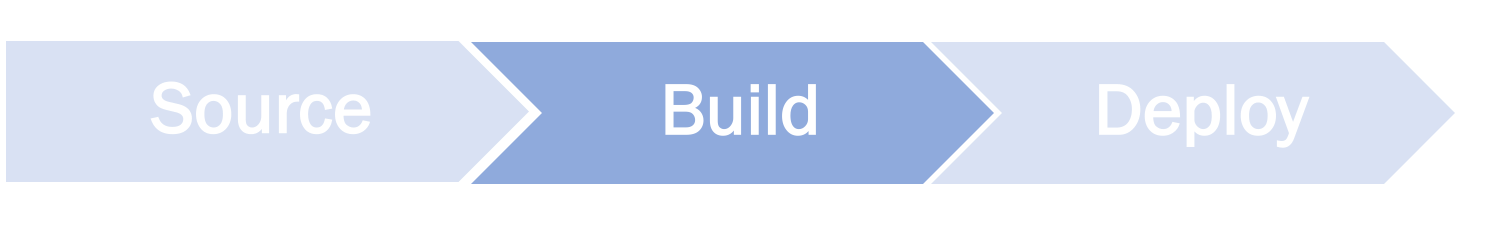

Delivery Pipeline

Feeback Loop

AWS DEVOPS TOOLS

CodeCommit

CodeBuild

CodeDeploy

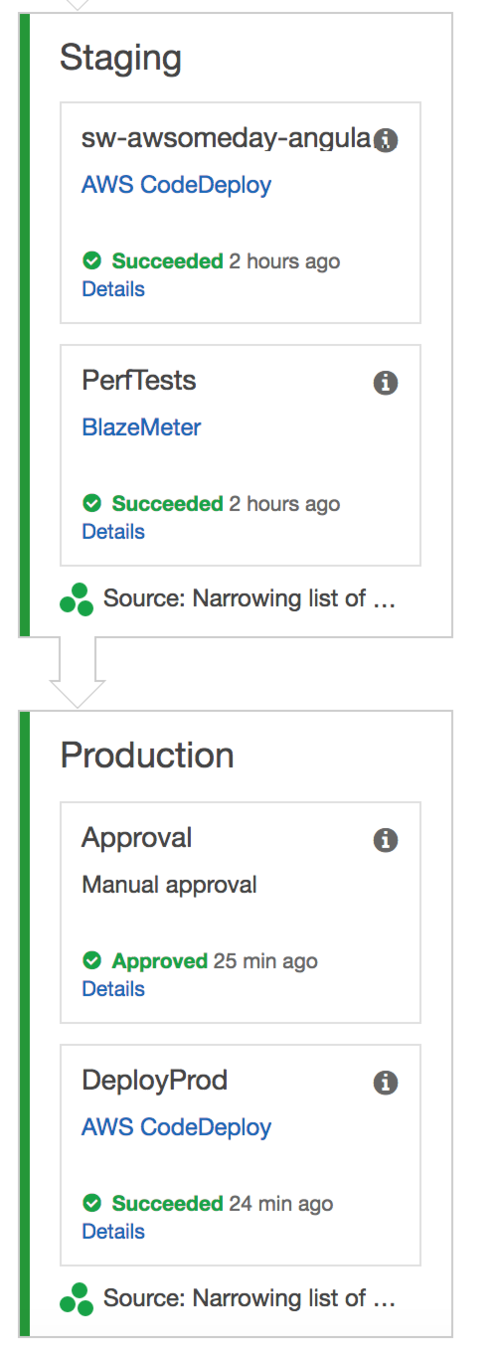

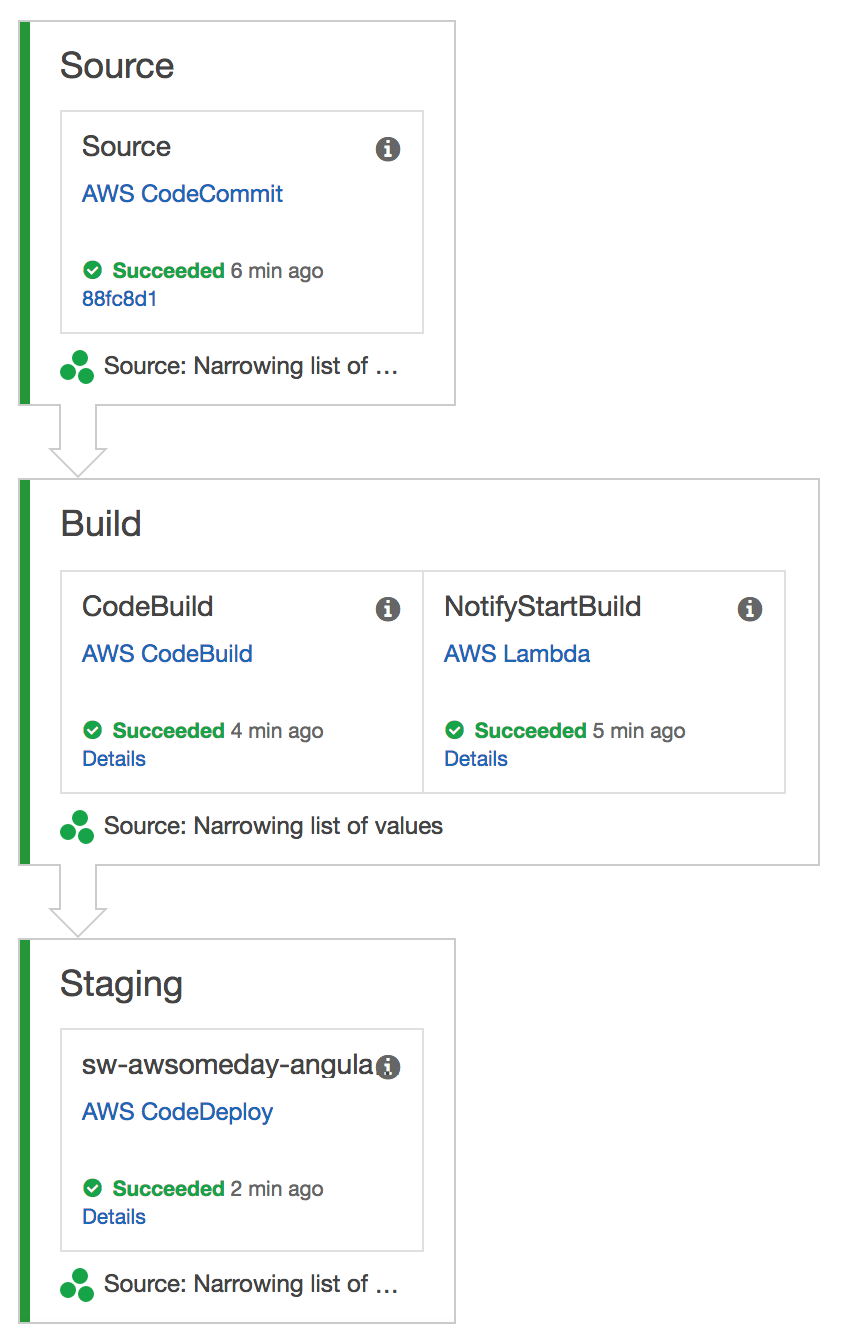

CodePipeline

CodeStar

CloudFormation

OpsWork

XRay

CloudWatch

CloudTrail

Config

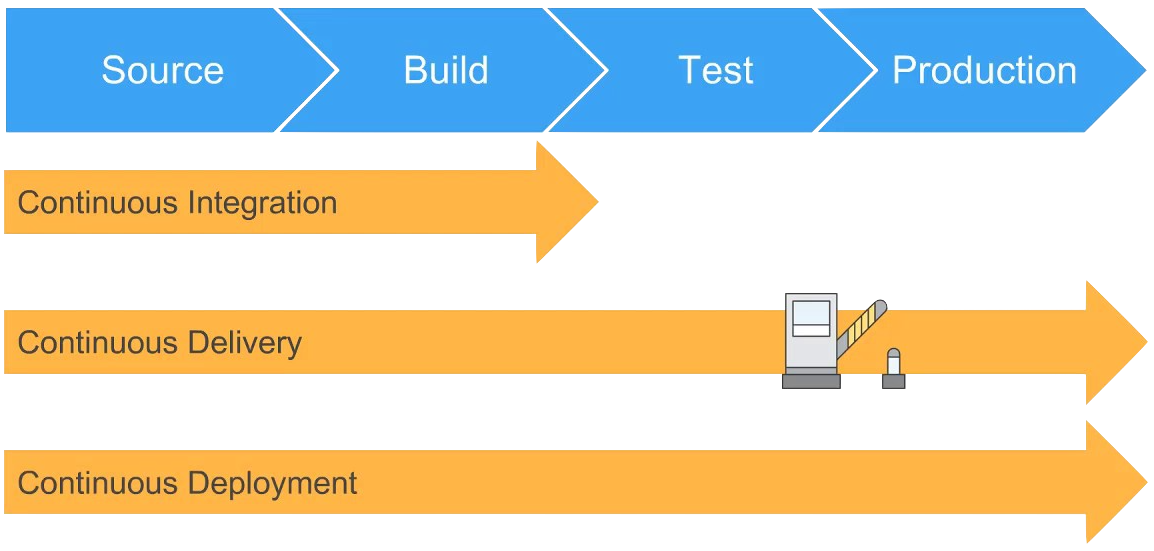

CI/CD

Infrastructure as Code

Logging/Monitoring

CI/CD

CodeCommit

CodeBuild

CodeDeploy

CodePipeline

CodeStar

CI/CD

Secure

Fully Managed

High availability

Store

anything

Source control in the Cloud

Use standard Git tools

Secure, scalable, and managed Git source control

Encryption at rest with customer-specific keys

No repo size limit

Post commit hooks to call out to Amazon SNS or Lambda

$1 per active user per month (first five users free)

AWS CodeCommit

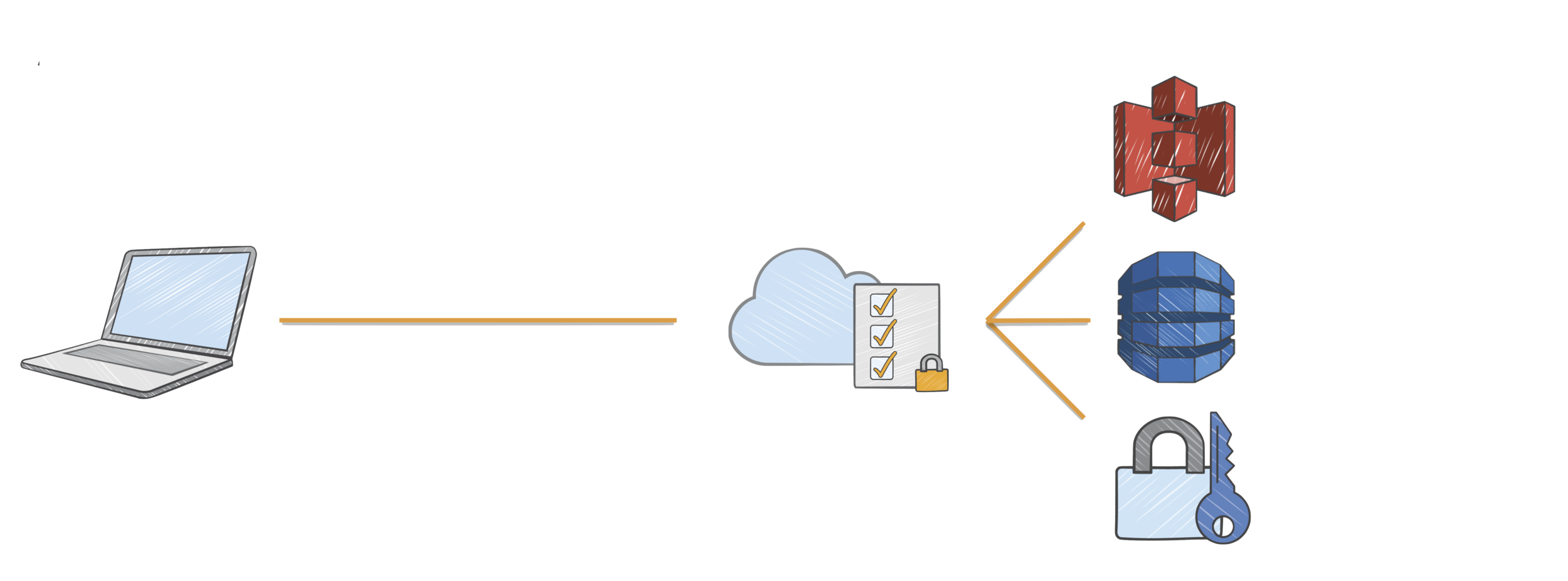

AWS CODECOMMIT

git push

HTTPS or SSH

CodeCommit

Git objects is S3

Git index in DynamoDB

Enkryption keys in KMS

AWS CODEBUILD

Fully managed service to build apps

Scales continuously and processes multiple builds concurrently

Customization via Docker images

Pay by the minute for the compute resources you use

AWS CodePipeline and Jenkins integration

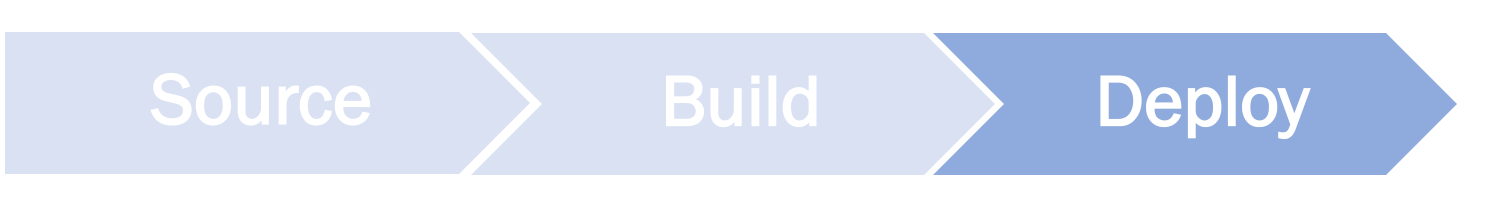

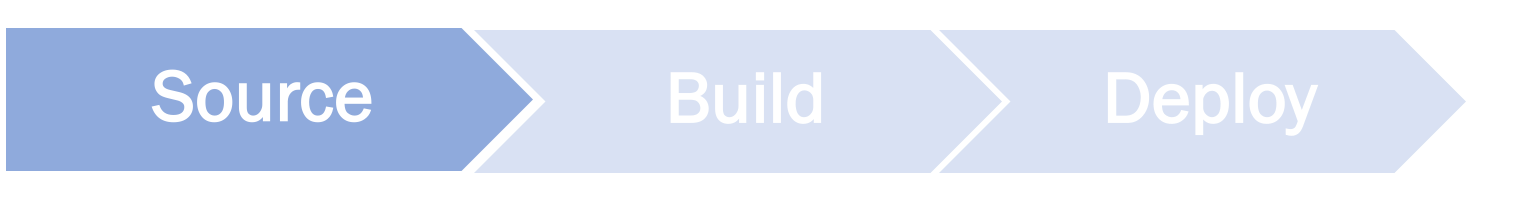

How does it work

Get source

Execute spec steps

Streams output

Store

Artefact

BUILDSPEC.YML

version: 0.1
environment_variables: plaintext:
JAVA_HOME: "/usr/lib/jvm/java-8-openjdk-amd64"
phases:
  install:
    commands:
     - apt-get update -y
     - apt-get install -y maven
  pre_build:
    commands:
     - echo Nothing to do in the pre_build phase...
  build:
    commands:
     - echo Build started on `date`
     - mvn install
post_build:
    commands:
     - echo Build completed on `date`
  artifacts:
    type: zip
    files:
      - target/messageUtil-1.0.jar discard-paths: yes

AWS CODEBUILD - DETAILS

Source

Runtime

Compute type

3 GB memory, 2 vCPU

7 GB memory, 4 vCPU

15 GB memory, 8 vCPU

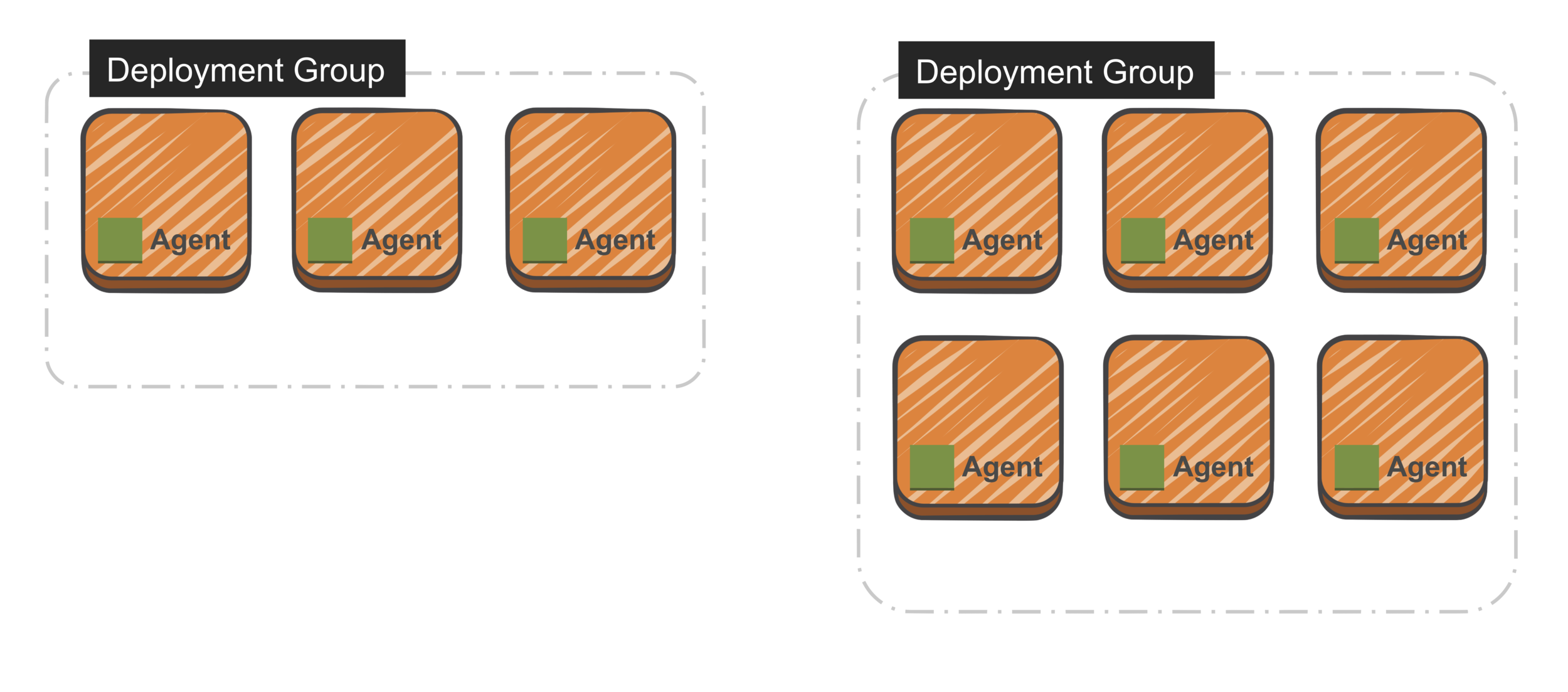

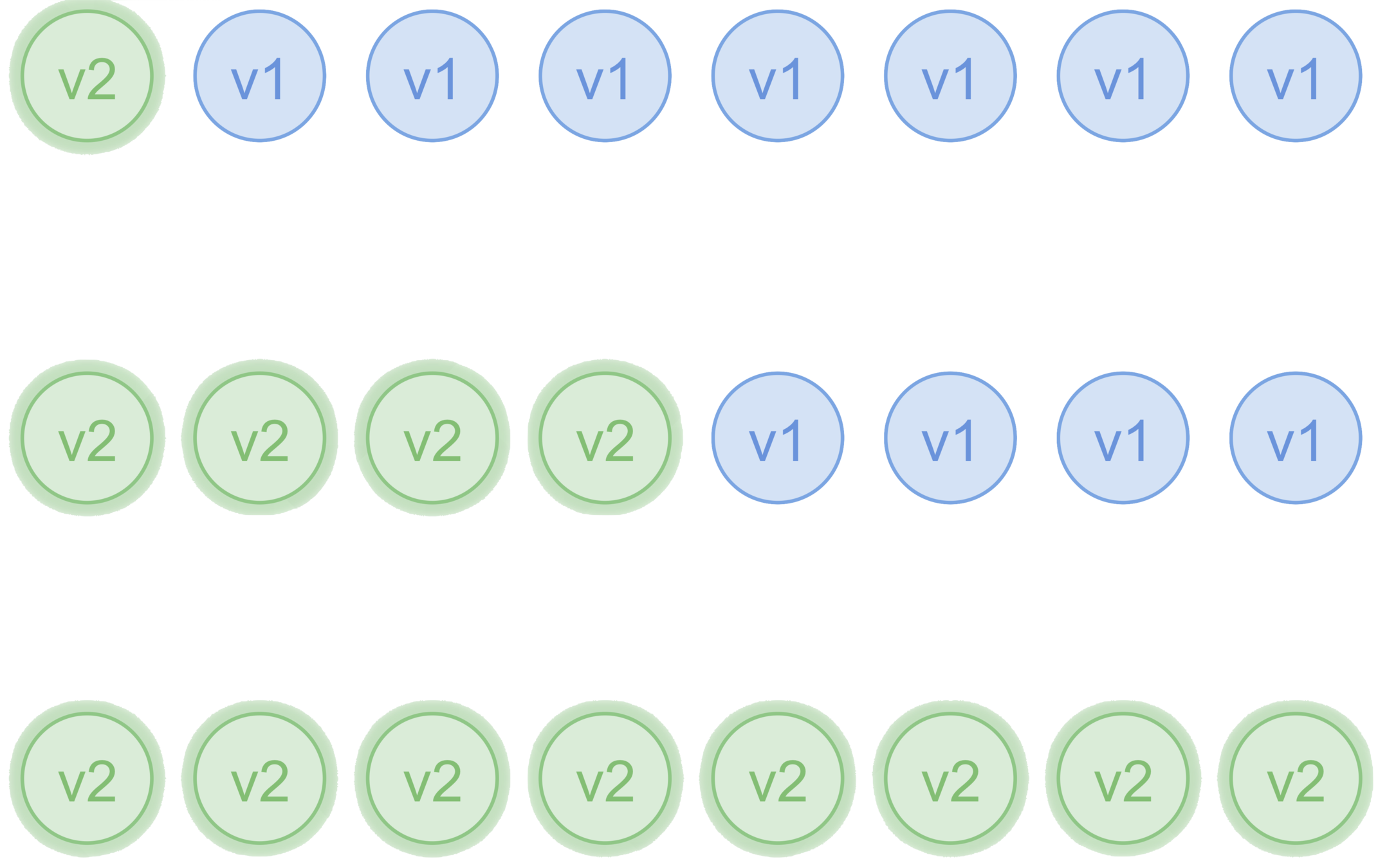

AWS CODEDEPLOY

Automates your apps deployments to any instance

Handles the complexity of updating your applications

Avoid downtime during application deployment

Rollback automatically if failure detected

Deploy to Amazon EC2 or on-premises servers, in any language and on any operating system

Integrates with third-party tools and AWS

Free for EC2 - $0.02 per update to on-premises server

AppSPEC.YML

version: 0.0
os: linux
files:
  - source: /target/SampleMavenTomcatApp.war
    destination: /tmp/codedeploy-deployment-staging-area/
  - source: /scripts/configure_http_port.xsl
    destination: /tmp/codedeploy-deployment-staging-area/

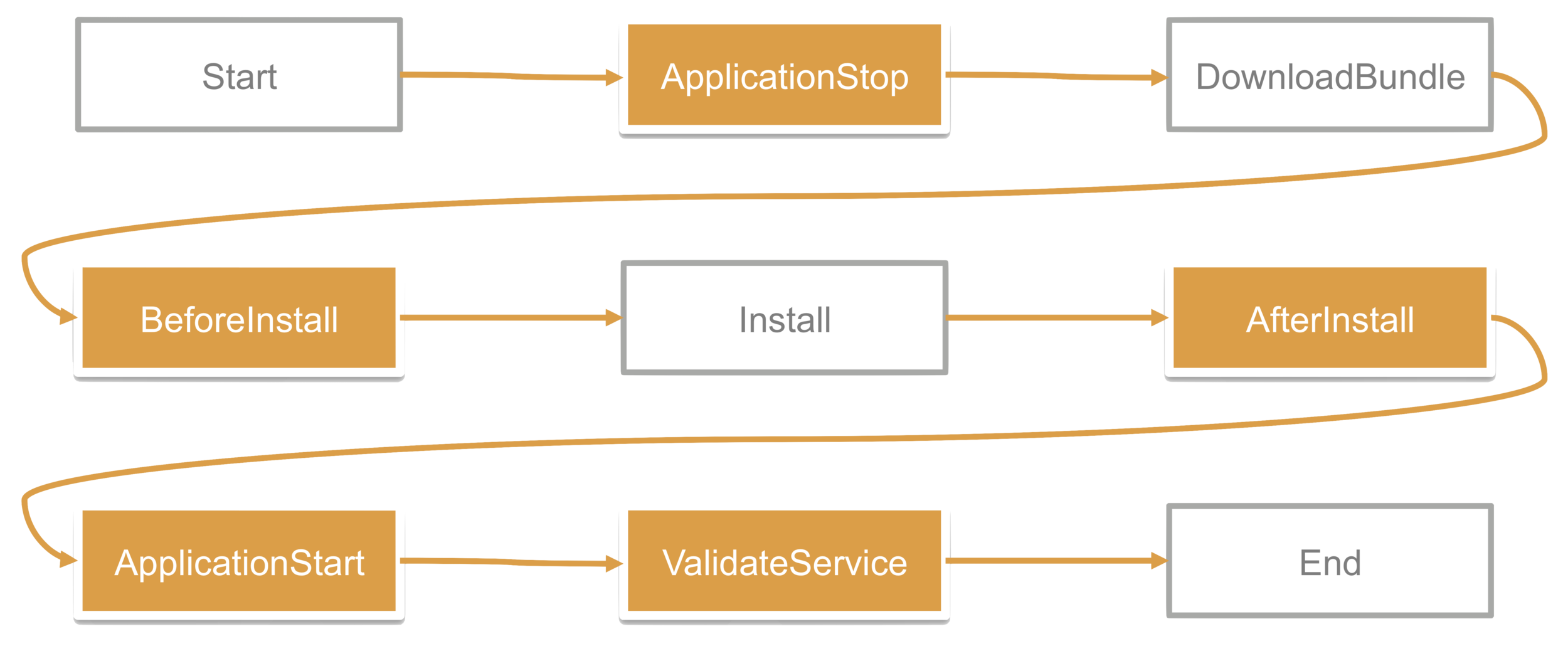

hooks:
  ApplicationStop:
    - location: scripts/stop_application
      timeout: 300
  BeforeInstall:
    - location: scripts/install_dependencies
      timeout: 300
  ApplicationStart:
    - location: scripts/write_codedeploy_config.sh
    - location: scripts/start_application
      timeout: 300
  ValidateService:
    - location: scripts/basic_health_check.sh
