Airflow

Agenda

  • Get to know what is Airflow
  • Get a better understanding on when should I use it
  • Case study: How we did in R**

Overview

  • It started at Airbnb in October 2014.

  • Became a Top-Level Apache Software Foundation project in January 2019.

Start your first airflow pipeline

export AIRFLOW_HOME=~/airflow

pip install apache-airflow

airflow initdb
(You may need to `pip install werkzeug==0.16.0`)

airflow webserver -p 8080
  • Web server
  • Scheduler
  • Worker

Concept

  • DAG
  • Task
  • Operator

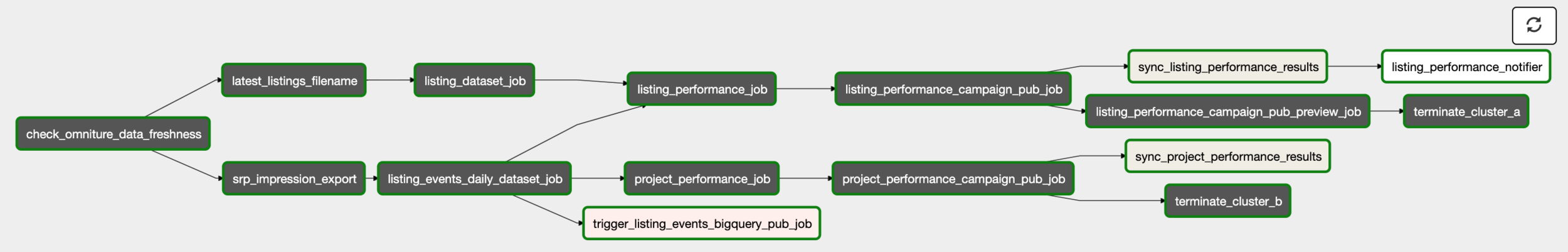

DAG

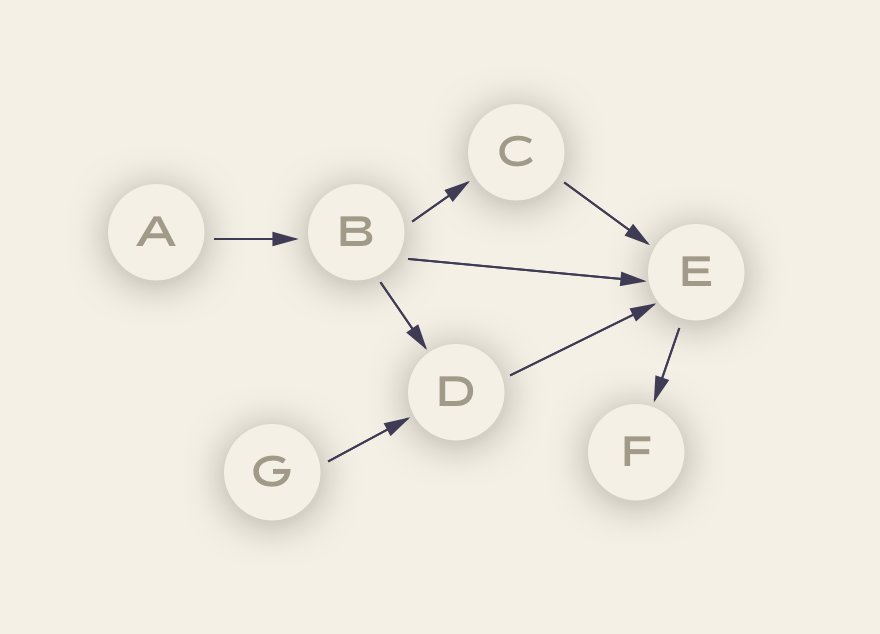

  • Directed Acyclic Graph
  • A collection of all the tasks you want to run, organized in a way that reflects their relationships and dependencies.
  • Defined in a Python script



A DAG run is a physical instance of a DAG, containing task instances that run for a specific execution_date.

DAG

Directed - If multiple tasks exist, each must have at least one defined upstream (previous) or downstream (subsequent) tasks, although they could easily have both.

Acyclic - No task can create data that goes on to reference itself. This could cause an infinite loop.

Graph - All tasks are laid out in a clear structure with discrete processes occurring at set points and clear relationships made to other tasks.

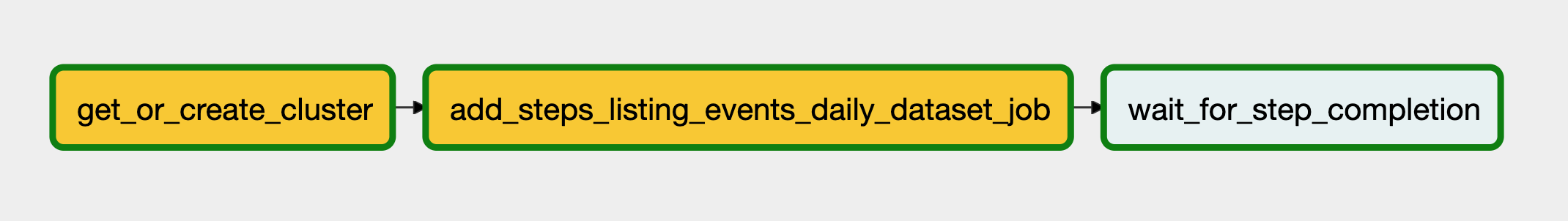

Task

  • Defines a unit of work within a DAG.
  • Represented as a node in the DAG graph.
  • Implements an operator by defining specific values for that operator.

Operator

with DAG('my_dag', start_date=datetime(2016, 1, 1)) as dag:
    task_1 = PythonOperator('task_1')
    task_2 = BashOperator('task_2')
    task_1 >> task_2 # Define dependencies

SubDAGs TaskGroups

with TaskGroup("group1") as group1:
    task1 = DummyOperator(task_id="task1")
    task2 = DummyOperator(task_id="task2")

task3 = DummyOperator(task_id="task3")

group1 >> task3

Now let's talk about something unique here

Is that a CI tool?

Airflow

CI tool

Scheduler



Worker



Web Server

Master



Slave/Client



Web Server

Airflow

CI tool

plugin



logging



monitoring



visualizing

plugin



logging



monitoring



visualizing

Airflow

CI tool

What's the difference?

Airflow

CI tool

For a scheduled pipeline, its output will be the same no matter when we run it.



Focus on CODE.



For a scheduled pipeline, executing on different days will have different results.



Focus on DATA.



Airflow

CI tool

Manage a list of shell commands.

Manage variant task groups.

- Abstraction

- Modular

  • Reusability
  • Extensibility

Airflow in R**(AU)

怎样更加高效地使用Airflow （用R当例子

/data-platform/airflow

/data-platform/airflow-rea-common

  • Shared python library for Airflow DAGs

As fragile as global CSS

  • python dev？

  • focus on data makes it hard to test in local

  • you may break the whole Airflow

/data-platform/bg-ingestor

/data-management/airflow-audmax

/data-platform/breeze

Improvement Areas

More friendly concept

  • execution_date - can we stop the confusion?

Real event-based triggering

  • Time-based trigger based on a cron schedule
  • On-demand/ad-hoc trigger using APIs.
  • Using TriggerDagRunOperator
  • ?

Airflow in Cloud

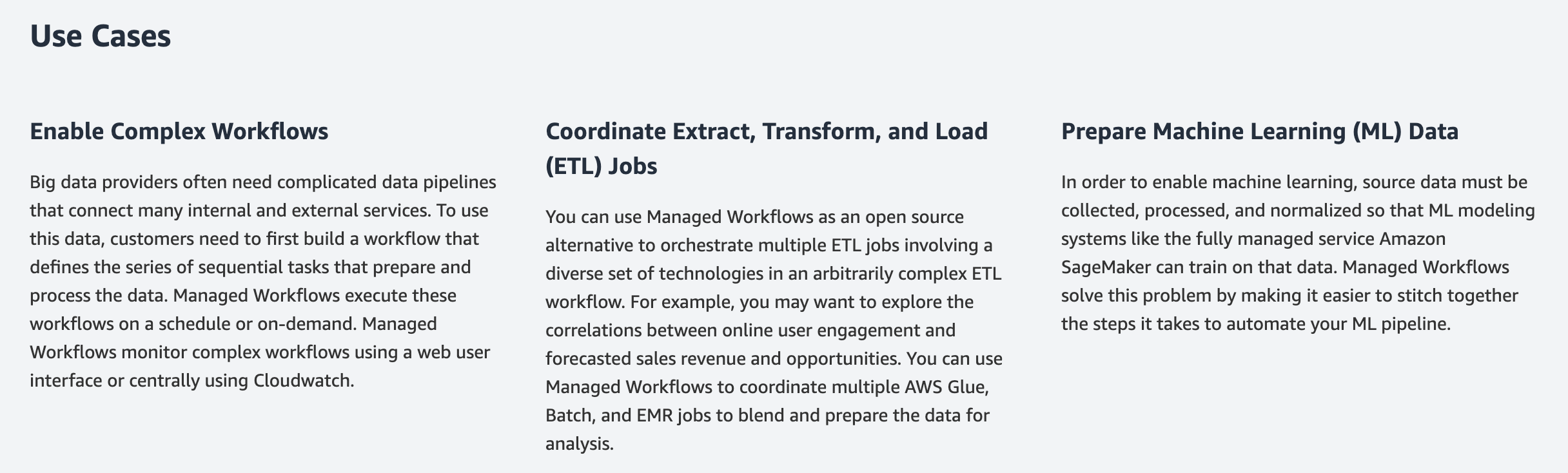

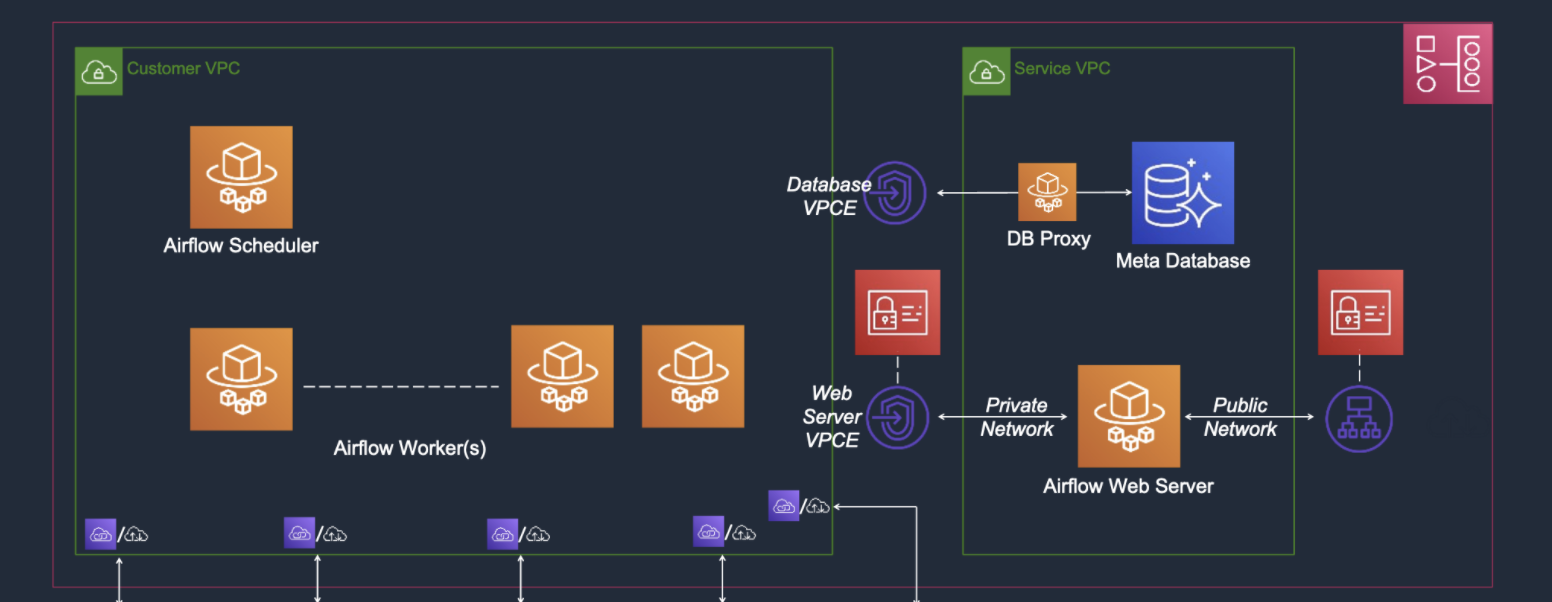

MWAA in AWS

Amazon Managed Workflows for Apache Airflow starting from November 2020

Cloud Composer in GCP

astronomer.io (SaaS)

Q & A
