End-to-end type safety with GraphQL, Apollo, TypeScript, and React
+
+
+
Buzzwords!
What are we really talking about?
Leveraging a GraphQL schema as a source of truth can elevate confidence, improve quality, and hyper charge velocity
Mike DeWitt
Director of Engineering, First Dollar
AKA: It's a bank account
What is First Dollar?

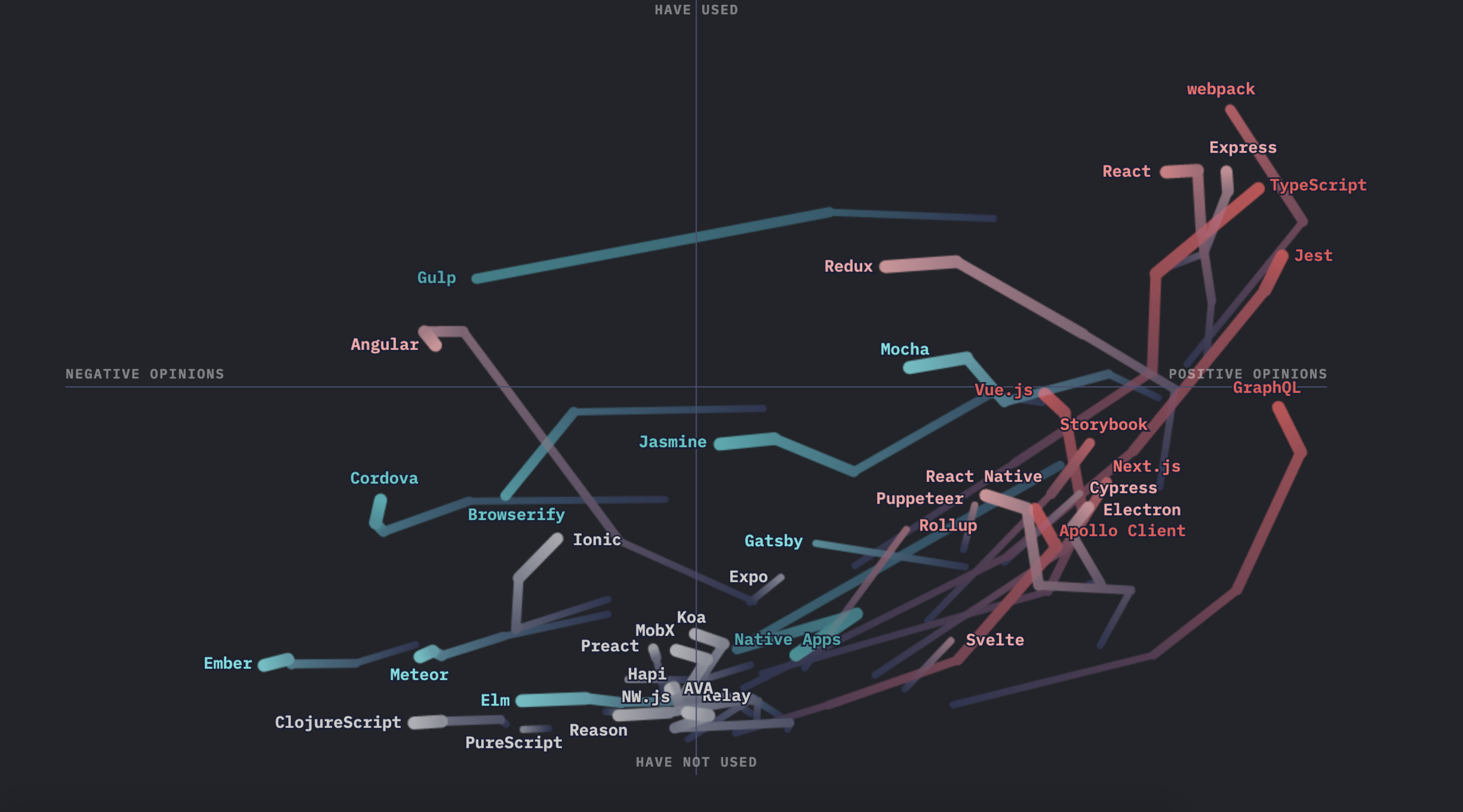

State of JS: 2020
https://2020.stateofjs.com/en-US/

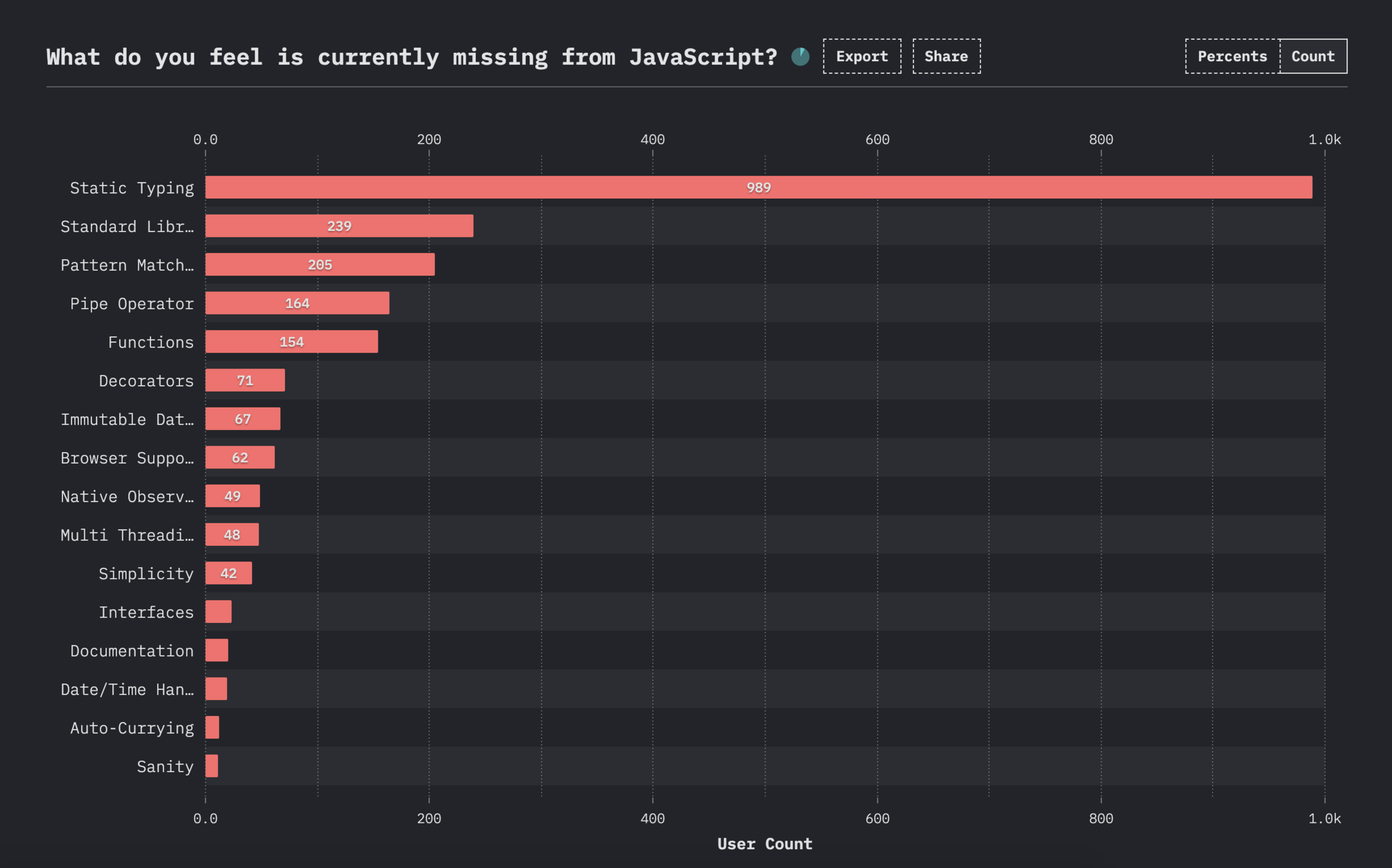

State of JS: 2020
https://2020.stateofjs.com/en-US/

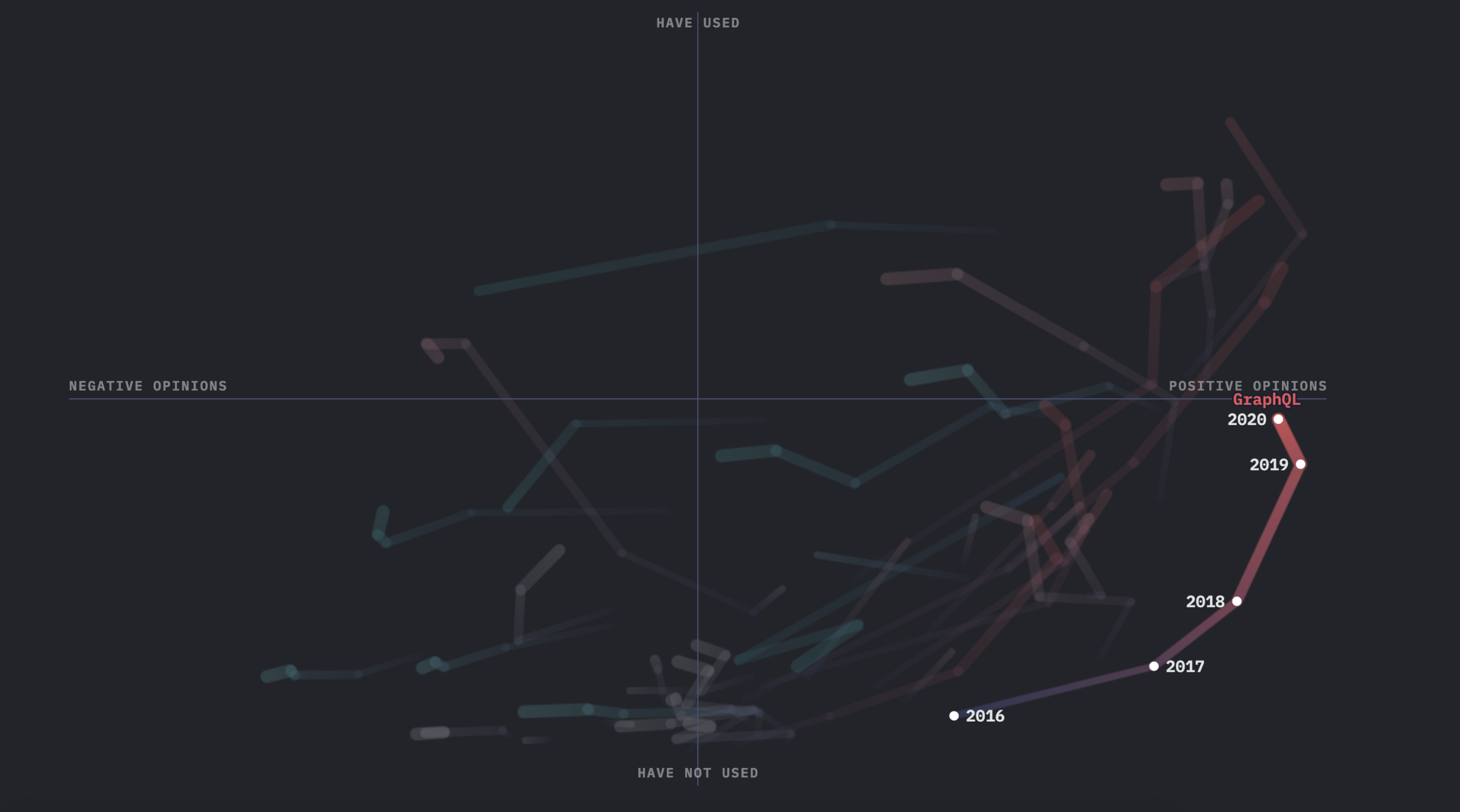

State of JS: 2020
https://2020.stateofjs.com/en-US/
GraphQL
- Describe your data (Schema)
- Query, mutate, or subscribe
- Ask only for what you need
Simple GraphQL Schema
type Query { books: [Book!]! } type Mutation { addBookToCart(bookId: String!): Book! } type Book { id: String! inStock: Boolean! title: String! author: String! thumbnail: String! description: String! price: String! }
TypeScript
- Brings static typing to JavaScript
- Provides compile time errors instead of runtime errors
- TypeScript plays great with React
Book Type Safety
type Book = { id: string inStock: boolean title: string author: string thumbnail: string description: string price: string } const myBook: Book = { id: "fk903", title: "Untamed", price: "$25.99", inStock: false, author: "Glennon Doyle", description: "description", thumbnail: "https://pic.com", } // Valid myBook.title.toLowerCase() // TS Failure: Property 'salePrice' does not exist on type 'Book' myBook.salePrice.toLowerCase() // TS Failure: Property 'toLowerCase' does not exist on type 'boolean'. myBook.inStock.toLowerCase()
We have to define a schema for GraphQL, and we want type safety on the frontend...

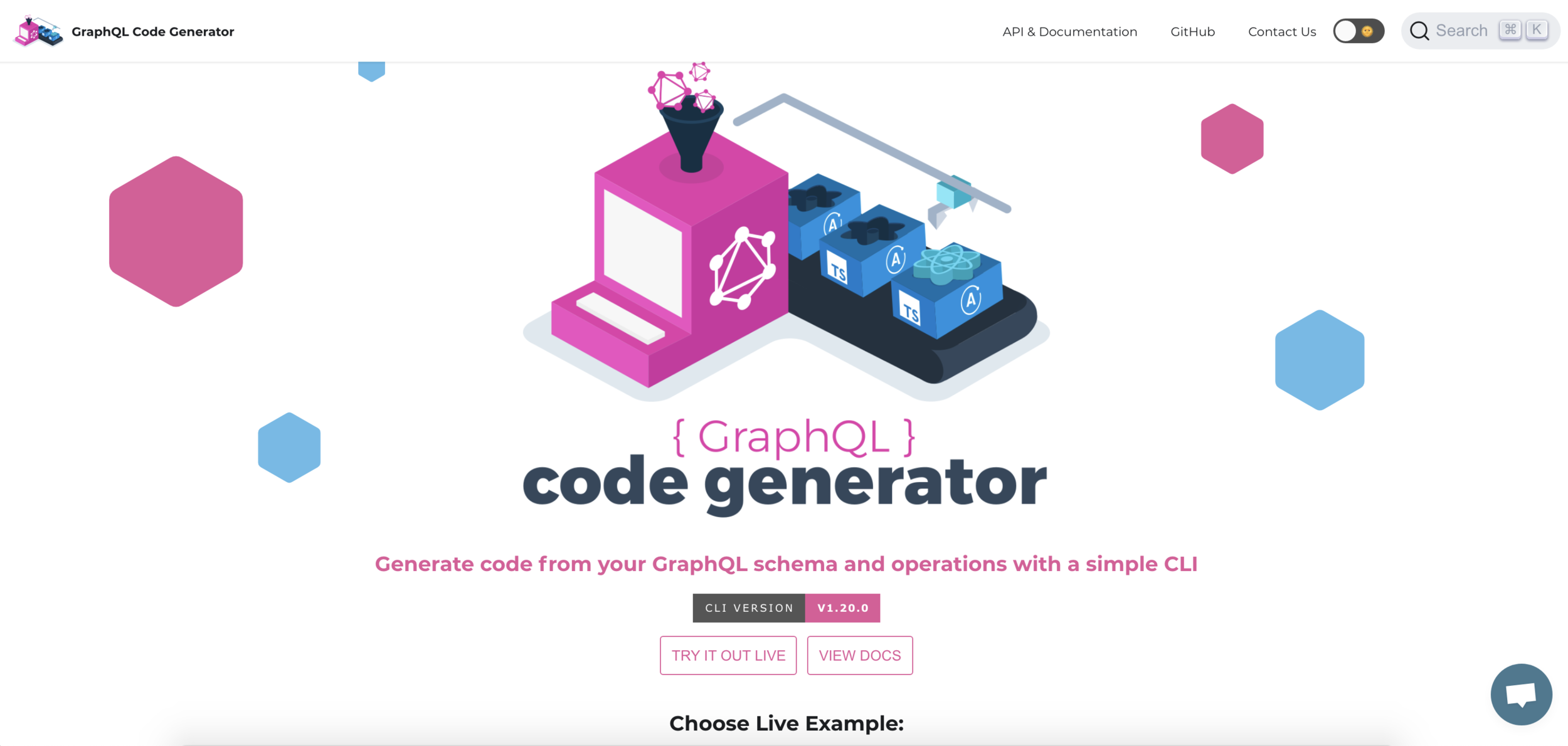

https://graphql-code-generator.com/
GraphQL Code Generator
- Install and Configure
- NPM Scripts
- Import types to components

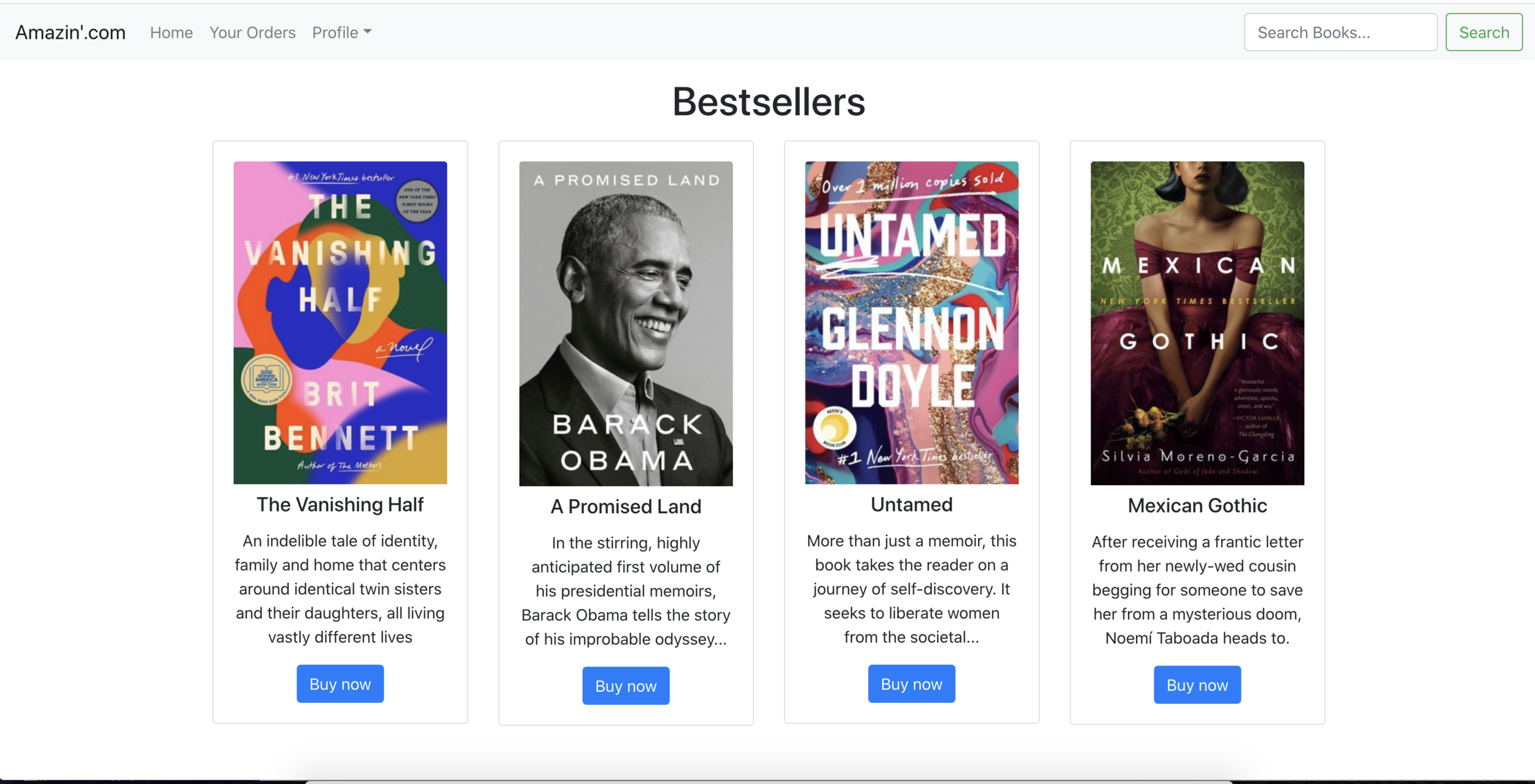

Demo #1
Thumbnail is not required, and we forgot to add price
Demo #2
We should probably write tests
currentUserProfile
- Called in 14 components
- Mocked in 8 tests
First Dollar React App
Other facts
- 37 total queries, 36 mutations
- We have a small/medium sized app
query AccountTransfers($fromDate: String, $toDate: String, $page: PageInput) { accountTransfers(fromDate: $fromDate, toDate: $toDate, page: $page) { transfers { node { id createdAt linkedBankAccountId direction amount amountCurrency amountForDisplay note contributionType contributionYear withdrawalCategoryCode withdrawalExpenseDate withdrawalReceipts { bucket fullPath } status effectiveDate errorCode } } pageInfo { hasNextPage endCursor } } }
Demo #3
Better feedback eslint-plugin-graphql
Is your client safe to ship?
- When you deploy the production GQL server, export the schema and keep in cloud storage
- When deploying client, download latest production schema and eslint it
- This should prevent you from ever shipping clients that are querying things on your dev server that haven't been released to prod
Worth mentioning... With a Node.js backend, this same tooling can be applied, in reverse!
In closing...
Thanks! Questions?
Demo
Title Text
- Bullet One
- Bullet Two
- Bullet Three
End-to-end type safety with GraphQL, Apollo, TypeScript, and React + + +
