SSR

created by Apptension

Kaj Białas

Daniel Capeletti

Artur Kudeł

Michał Przyszczypkowski

What is Single Page App?

How SPA works?

A web application that fits on a single web page with the goal of providing a user experience similar to that of a desktop application. In an SPA, either all necessary code – HTML, JavaScript, and CSS – is retrieved with a single page load or the appropriate resources are dynamically loaded and added to the page as necessary, usually in response to user actions.

What problem this has?

problems with SEO
sharing single pages/urls
performance in big applications
- large application size
- long loading time

Posible ways to solve problems?

problems with SEO
- problem only with special search engines (asian markets etc.)
- pre-rendering
sharing single pages/urls
performance in big applications
- code optimization and asynchronous loading of resources

Probably the best way to solve problems?

Server Side Rendering

What SSR gives us?

Sharing

Speed

Cache

Additional layer

How?

A bit of history...

Fully server side rendering

SPA

(without server side rendering)

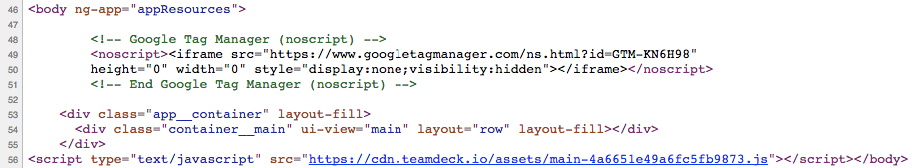

How bots see SPA

Users happy

but sad bots...

A bit of history...

Fully server side rendering

SPA

(without server side rendering)

Server Side Rendering

SPA

problem solved?

people and robots are happy

but how does it exactly work?

BROWSER

PROXY (RENDERING) SERVER

API SERVER

URL

API

requests

responses

Generated html

CDN

GET

STATIC

ASSETS

main.min.js
main.min.css
...

non-interactive

time

What we need?

on server side:

But in our example will be

python-react
React.NET
react-php-v8js
and more...

On client side?

React
Angular 2+
Vue.js
and probably some more frameworks...

SSR in React + Redux

App

switch (action.type) {
    case PREPARE_NUMBER:
      return Object.assign({}, state, { number: action.number * 10 });

    default:
      return state;
  }

export class App extends React.Component {
  render() {
    return (
      <Switch>
        <Route exact={true} path="/:id" component={StaticContainer} />
        <Route component={NotFound} />
      </Switch>
    )
  }
}

constructor(props) {
    super(props);
    this.props.prepareNumber(this.props.match.params.id);
  }

  render() {
    return (
      <div>
        <h1>Static number: {this.props.number} </h1>
      </div>
    )
  }

Server side code

import Express from 'express';
import React from 'react';
import { renderToString } from 'react-dom/server';
import { createStore } from 'redux';
import { App } from './app/App';
import createReducer from './app/reducers/app.redux';
import { StaticRouter } from 'react-router';
import { Provider } from 'react-redux';
const app = Express();
const port = 3000;

app.use(Express.static('public'));

app.use(handleRender);

function handleRender(req, res) {
  let store = createStore(createReducer());
  const context = {};
  renderToString(
    <Provider store={store}>
      <StaticRouter context={context} location={req.url}>
        <App/>
      </StaticRouter>
    </Provider>
  );

  const preloadedState = store.getState();
  store = createStore(createReducer(), preloadedState);

  const html = renderToString(
    <Provider store={store}>
      <StaticRouter context={context} location={req.url}>
        <App/>
      </StaticRouter>
    </Provider>
  );


  res.send(`
    <!doctype html>
    <html>
        <header>
            <title>Simple SSR in React</title>
        </header>
        <body>
           <script>window.__PRELOADED_STATE__ = ${JSON.stringify(preloadedState).replace(/</g, '\\u003c')}</script>
            <div id='app'>${html}</div>
            <script src='bundle.js'></script>
        </body>
    </html>
`)
}

app.listen(port);

Client side code

import React from 'react';
import ReactDOM from 'react-dom';
import { BrowserRouter } from 'react-router-dom';
import { Provider } from 'react-redux';
import { createStore } from 'redux';
import {App} from './App';
import createReducer from './reducers/app.redux';

const preloadedState = window.__PRELOADED_STATE__;

delete window.__PRELOADED_STATE__;

const store = createStore(createReducer(), preloadedState);

export default class Main extends React.Component {
  render() {
    return (
      <Provider store={store}>
        <BrowserRouter>
          <App/>
        </BrowserRouter>
      </Provider>
    );
  }
}

ReactDOM.render((
  <Main/>
), document.getElementById('app'));

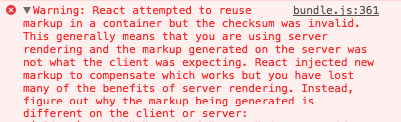

React checksum

Problems?

Fetching data

server needs to wait for all API calls if data is needed to render the page
it may overload server if there is a lot of API calls for each request
use caching when possible
only load data that is required to render the page
don't load same data twice (don't requst on client if it is already loaded by server)

Different JS environment

node.js vs browser
some objects are not available on server side (document, window etc.)
don't run any code that need browser-specific objects on server
- measuring window / orientation
- initializing iScroll etc.
- checking browser compatibility

React Lifecycle

componentWillMount & contructor are run on server
anything else is run on client only

Caching strategies

cache API calls
cache whole server requests
cache components instances
- https://github.com/walmartlabs/react-ssr-optimization

SSR in practice (Apptension Boilerplate)

First things first

We need a NodeJS server

const express = require('express');
const app = express();
.
.
.

// Start your app.
app.listen(port, host, (err) => {
  if (err) {
    return logger.error(err.message);
  }

  // Connect to ngrok in dev mode
  if (ngrok) {
    ngrok.connect(port, (innerErr, url) => {
      if (innerErr) {
        return logger.error(innerErr);
      }

      logger.appStarted(port, prettyHost, url);
    });
  } else {
    logger.appStarted(port, prettyHost);
  }
});

Let's handle a connection

//Somewhere in the server:
const handleSSR = require('./middlewares/handleSSR');
app.get('*', handleSSR);

/* --------- */

const app = express();
app.use(handleSSR);

/* --------- */

module.exports = function handleSSR(req, res) {
  const options = {
    assets,
    webpackDllNames: extractWebpackDllNamesFromPackage(),
    lang: req.acceptsLanguages(appLocales),
  };

  renderAppToStringAtLocation(req.url, options, (response) => {
    if (response.error) {
      res.status(500).send(response.error.message);
      printError(response.error);
    } else if (response.redirectLocation) {
      res.redirect(302, response.redirectLocation);
    } else if (response.notFound) {
      res.status(404).send(response.html);
    } else {
      res.status(200).send(response.html);
    }
  });
};

What do we need to render a react application on backend? (in a nutshell)

// In a nutshell
import { renderToStaticMarkup } from 'react-dom/server';

const doc = renderToStaticMarkup(
   <HtmlDocument
       appMarkup={appMarkup}
       lang={state.locales.language}
       state={state}
       head={Helmet.rewind()}
       assets={assets}
   />
);

Well... we need a bit more than that

import 'babel-polyfill';

import React from 'react';
import { Provider } from 'react-redux';
import { renderToString, renderToStaticMarkup } from 'react-dom/server';
import { createMemoryHistory, match, RouterContext } from 'react-router';
import { syncHistoryWithStore } from 'react-router-redux';
import Helmet from 'react-helmet';
import configureStore from './modules/store';
import routes from './routes';
import HtmlDocument from './htmlDocument';

import { selectLocationState } from './modules/router/router.selectors';

function renderAppToString(store, renderProps) {
  return renderToString(
    <Provider store={store}>
      <RouterContext {...renderProps} />
    </Provider>
  );
}

function renderAppToStringAtLocation(url, { webpackDllNames = [], assets, lang }, callback) {
  const memoryHistory = createMemoryHistory(url);
  const store = configureStore({}, memoryHistory);

  syncHistoryWithStore(memoryHistory, store, {
    selectLocationState: selectLocationState(),
  });

  match({ routes, location: url }, (error, redirectLocation, renderProps) => {
    if (error) {
      callback({ error });
    } else if (redirectLocation) {
      callback({ redirectLocation: redirectLocation.pathname + redirectLocation.search });
    } else if (renderProps) {
      store.rootSaga.done.then(() => {
        const state = store.getState().toJS();

        const appMarkup = renderAppToString(store, renderProps);

        const doc = renderToStaticMarkup(
          <HtmlDocument
            appMarkup={appMarkup}
            lang={state.locales.language}
            state={state}
            head={Helmet.rewind()}
            assets={assets}
            webpackDllNames={webpackDllNames}
          />
        );

        const html = `<!DOCTYPE html>\n${doc}`;
        callback({ html });
      }).catch((e) => {
        callback({ e });
      });

      renderAppToString(store, renderProps);
      store.close();
    } else {
      callback({ error: new Error('Unknown error') });
    }
  });
}

export {
  renderAppToStringAtLocation,
};

Let's break this down a bit

React router match

function renderAppToStringAtLocation(url, { webpackDllNames = [], assets, lang }, callback) {

 match({ routes, location: url }, (error, redirectLocation, renderProps) => {
    if (error) {
      callback({ error });
    } else if (redirectLocation) {
      callback({ redirectLocation: redirectLocation.pathname + redirectLocation.search });
    } else if (renderProps) {

//Rest of code goes here

This function is to be used for server-side rendering. It matches a set of routes to a location, without rendering, and calls a callback(error, redirectLocation, renderProps) when it's done.

http://knowbody.github.io/react-router-docs/api/match.html

After we match the route

.
.
} else if (renderProps) {
    //Stuff going on here, will get back in a minute ;)
    .
    .
    .
    .
    .
    .
    .
    .
    .
    .
    .
    .
    .
    .
    .
    .
    .
    .
    .
      renderAppToString(store, renderProps);
      store.close();

We call renderApptoString

here

This will render the application, trigger the sagas, make the API calls and so on!

Next, we gonna stop the sagas

store.close = () => store.dispatch(END);

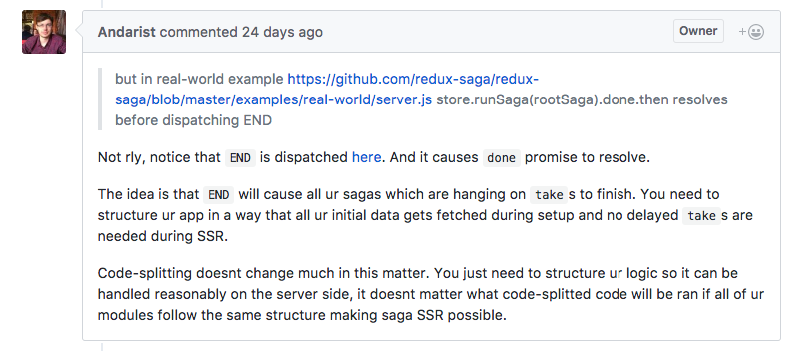

Why do we stop sagas?

After we stop sagas

store.rootSaga = sagaMiddleware.run(rootSaga);



    store.rootSaga.done.then(() => {
        const state = store.getState().toJS();

        const appMarkup = renderAppToString(store, renderProps);

        const doc = renderToStaticMarkup(
          <HtmlDocument
            appMarkup={appMarkup}
            lang={state.locales.language}
            state={state}
            head={Helmet.rewind()}
            assets={assets}
            webpackDllNames={webpackDllNames}
          />
        );

        const html = `<!DOCTYPE html>\n${doc}`;
        callback({ html });
      }).catch((e) => {
        callback({ e });
      });

      renderAppToString(store, renderProps);
      store.close();

So, when our sagas finishes

We render the app again with new state

Render to static markup (html)

Respond our rendered html :)

Curious about HtmlDocument?

render() {
    const { lang, head, appMarkup, state, assets, webpackDllNames } = this.props;
    const attrs = head.htmlAttributes.toComponent();

    return (
      <html lang={lang} {...attrs}>

      <head>
        <meta charSet="utf-8" />
        <meta name="viewport" content="width=device-width, initial-scale=1" />

        <meta name="mobile-web-app-capable" content="yes" />

        {head.title.toComponent()}
        {head.meta.toComponent()}

        <link href="https://fonts.googleapis.com/css?family=Open+Sans:400,700" rel="stylesheet" />
        <link href={assets.main.css} rel="stylesheet" />
      </head>

      <body>

      <noscript>
        If you are seeing this message, that means <strong>JavaScript has been disabled on your browser</strong>
        , please <strong>enable JS</strong> to make this app work.
      </noscript>

      <div id="app">
        <div dangerouslySetInnerHTML={{ __html: appMarkup }} />
      </div>

      <script dangerouslySetInnerHTML={{ __html: `APP_STATE = ${htmlescape(state)}` }} />


      {(webpackDllNames || []).map((dllName) =>
        <script data-dll key={dllName} src={`/${dllName}.dll.js`}></script>
      )}

      <script type="text/javascript" src={assets.main.js}></script>

      </body>
      </html>
    );
  }

Webpack

module.exports = {
  name: 'server',
  target: 'web',
  externals: [
    nodeExternals(),
  ],
  entry: [
    path.join(process.cwd(), 'app/server.js'),
  ],
  output: {
    path: outputPath,
    filename: 'server.js',
    publicPath: '/',
    libraryTarget: 'commonjs2',
  },

Webpack - Server side

      new webpack.DefinePlugin({
        'process.env': {
          NODE_ENV: JSON.stringify(process.env.NODE_ENV),
        },
        '__SERVER__': false,
        '__CLIENT__': true,
      }),

    new webpack.DefinePlugin({
      'process.env': {
        NODE_ENV: JSON.stringify(process.env.NODE_ENV),
      },
      '__CLIENT__': false,
      '__SERVER__': true,
    }),

Webpack - Frontend side

So you could..

if (__SERVER__) {
    //do server-specific code
}


if (__CLIENT__) {
    //do client-specific code
    //i.e. window.location = 'http://google.com'
}

Problems and Optimizations

We have a problem with routing, when using /en, /pt and so on

App dispatches the redux actions on Backend and Frontend

The code deserves a refactoring

Currently hosted at https://github.com/cpBurn/redux-saga-ssr

SSR -devtalk

By Michał Przyszczypkowski

SSR

created by Apptension

What is Single Page App?

What SSR gives us?

What SSR gives us?

How?

A bit of history...

How bots see SPA

A bit of history...

people and robots are happy

but how does it exactly work?

What we need?

On client side?

SSR in React + Redux

App

Server side code

Client side code

React checksum

Problems?

SSR in practice (Apptension Boilerplate)

SSR -devtalk

More from Michał Przyszczypkowski
