Anonymous Tokens
Michele Orrù
joint work with Ben Kreuter, Tancrède Lepoint, Mariana Raykova
Definition
Anonymous tokens are lightweight, single-use anonymous credentials.
… we focus on secret-key tokens with a private metadata bit.
The Problem
\(\mathcal{U}\)
[CloudFlare]
[Tor User]
[CDN]
request
solution?
challenge
\(\mathcal{I}\)
\(\mathcal{W}\)
request
response
response / no
Privacy Pass: Bypassing Internet Challenges Anonymously. [PETS'18]
Website protection.
CloudFlare's story
\(\mathcal{U}\)
[CloudFlare]
[Tor User]
[CDN]
request
solution?
\(\mathcal{I}\)
\(\mathcal{W}\)
request
response
response / no
Privacy Pass: Bypassing Internet Challenges Anonymously. [PETS'18]
CAPTCHA, CAPTCHA, CAPTCHA
CloudFlare's story
Website protection.
Art credits: Marie Gutbub. [source]
\(\mathcal{U}\)
[CloudFlare]
[Tor User]
[CDN]
challenge
solution?
challenge
\(\mathcal{I}\)
\(\mathcal{W}\)
request
response
response + tokens / no
Privacy Pass: Bypassing Internet Challenges Anonymously. [PETS'18]
CloudFlare's story
request
Website protection.
\(\mathcal{U}\)
[CloudFlare]
[Tor User]
[CDN]
request, token
\(\mathcal{I}\)
\(\mathcal{W}\)
request
response
Privacy Pass: Bypassing Internet Challenges Anonymously. [PETS'18]
response / no
CloudFlare's story
Website protection.
Micro payments.
Other stories
Challenge bypass on the Ristretto group. [Github]
Fraud prevention.
Other stories
Fighting fraud using partially blind signatures. [Facebook Engeneering Blog]
Deprecating 3rd party cookies.
Other stories
Building a more private web: A path towards making third party cookies obsolete. [Chromium Blog]
Private medatada
token?
✗
\(\mathcal{I}\)
𝒜

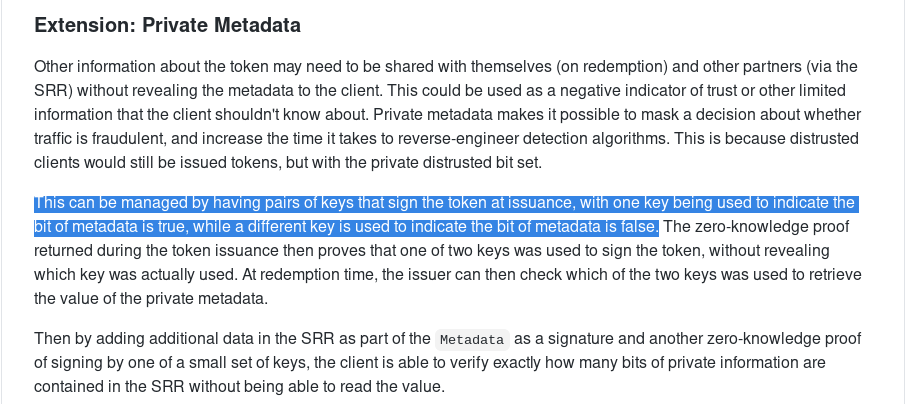

Private metadata
\(\mathcal{I}\)
token?
\(\dots\)
request, \(\sigma^{(b)}\)
\(\sigma^{(b)}\)
\(b\)
𝒜
The (formal) problem
\(\sigma \gets \langle \mathcal{U}(\mathsf{pp}, t), \mathcal{I}(\mathsf{sk}, b)\rangle\)
Issuance protocol:
Redemption algorithm:
\(\{0, 1,\perp\}\gets \mathcal{V}(\mathsf{sk}, t, \sigma)\)
Security notions
- Unlinkability
𝒜
\(\mathcal{U}_1\)
\(\vdots\)
\((t_i, \sigma_i)\)
\(i\)
\(\mathcal{U}_2\)
\(\mathcal{U}_n\)
Security notions
- Unlinkability
- One-more unforgeability
\(\mathcal{I}\)
𝒜
\((t_i, \sigma_i)_{i=1}^{\ell+1}\)
\(\vdots\)
\((\ell)\)
\((1)\)
Security Notions
- Unnlinkability
- One-more unforgeability
- Privacy of the metadata bit
\(\mathcal{I} (\mathsf{sk}, b\!=\!0)\)
\(\mathcal{I} (\mathsf{sk}, b\!=\!1)\)
\({\stackrel{\tiny\textsf{ind.}}{\equiv}}\)
Standardization
W3C: Trust Token API
IETF: Privacy Pass draft
fetch('https://iacr.org/.well-known/trust-token', {
trustToken: {
type: 'token-request',
issuer: 'ens.fr'
}
});
[Example derived from the original proposal.]
fetch('https://eprint.iacr.org/2020/072.pdf', {
trustToken: {
type: 'raw-token-redemption',
issuer: 'ens.fr'
}
});
1. Introduction
In some situations, it may only be necessary to check that a client
has been previously authorized by a service; without learning any
other information. Such lightweight authorization mechanisms can be
useful in quickly assessing the reputation of a client in latency-
sensitive communication.
[Draft version 00.]
Our contribution
- Formalization of Anonymous Tokens;
- Private Metadata extension;
- New techniques for removal of zk proofs.
Related works
- Anonymous Credentials
- Algebraic MACs
- Blind Singatures
Privacy Pass
\(W' := x T'\)
\(T'\)
\(W'\)
\(\cdots\) redemption \(\cdots\)
\(t, W\)
- check \(x\mathsf{H}(t) = W\)
- add \(t\) to spent tokens.
User
Issuer
\(\Gamma := (p, \mathbb{G}, G)\)
\(r \gets \mathbb{Z}_p^*\)
\(T' := r^{-1}\mathsf{H}(t)\)
\(W := r W'\)
\(X = xG\)
\(\pi := \mathsf{zkp}\left\{ x\begin{bmatrix}G\\T'\end{bmatrix} = \begin{bmatrix}X\\ W'\end{bmatrix}\right\} \)
, \(\pi\)
check \(\pi\)
Privacy Pass
\(W' := x T'\)
\(T'\)
\(W'\)
\(\cdots\) redemption \(\cdots\)
\(t, W\)
- check \(x\mathsf{H}(t) = W\)
- add \(t\) to spent tokens.
User
Issuer
\(\Gamma := (p, \mathbb{G}, G)\)
\(r \gets \mathbb{Z}_p^*\)
\(T' := r^{-1}\mathsf{H}(t)\)
\(W := r W'\)
\(X = xG\)
\(\pi := \mathsf{zkp}\left\{ x_b\begin{bmatrix}G\\T'\end{bmatrix} = \begin{bmatrix}X_b\\ W'\end{bmatrix}\right\} \)
\(W' := x_b T'\)
\(X = x_bG,~~ b \in \{0, 1\}\)
- check \(b\) s.t. \(x_b\mathsf{H}(t) = W\)
- add \(t\) to spent tokens.
Private metadata?
, \(\pi\)
check \(\pi\)
\(T'\)
\(W'\)
\(\cdots\) redemption \(\cdots\)
\(t, W\)
User
Issuer
\(\Gamma := (p, \mathbb{G}, G)\)
\(r \gets \mathbb{Z}_p^*\)
\(T' := r^{-1}\mathsf{H}(t)\)
\(W := r W'\)
Attack
\(r, s \gets \mathbb{Z}_p^*\)
\(T' := r^{-1}\mathsf{H}(t)\)
\(S' := s^{-1}\mathsf{H}(t)\)
\(W' := x_0 T'\)
Adversary
\(r W' \stackrel{?}{=} s V'\)
Issuer
\(T'\)
\(W'\)
\(X_b = x_bG,~~ b \in \{0, 1\}\)
\(\Gamma := (p, \mathbb{G}, G)\)
\(S'\)
\(V' := x_1 S'\)
\(V'\)
\(W := x T' + yS'\)
\(\pi := \mathsf{zkp}\left\{x\begin{bmatrix}G\\T'\end{bmatrix} + y\begin{bmatrix}H\\S'\end{bmatrix} = \begin{bmatrix}X\\ W'\end{bmatrix}\right\} \)
\(W := r W'\)
\(S := r \mathsf{H}(T', s)\)
check \(\pi\)
\(T'\)
\(s, W'\)
, \(\pi\)
\(s \gets \{0, 1\}^\lambda;~ S' := \mathsf{H}(T', s)\)
\(X = xG +yH\)
\(\cdots\) redemption \(\cdots\)
\(t, S, W\)
- check \(x\mathsf{H}(t) + yS= W\)
- add \(t\) to spent tokens.
Privacy Pass variant
User
Issuer
\(\Gamma := (p, \mathbb{G}, G, H)\)
\(r \gets \mathbb{Z}_p^*\)
\(T' := r^{-1}\mathsf{H}(t)\)
\(\pi := \mathsf{zkp}\left\{x_b\begin{bmatrix}G\\T'\end{bmatrix} + y_b\begin{bmatrix}H\\S'\end{bmatrix} = \begin{bmatrix}X_b\\ W'\end{bmatrix}\right\} \)
\(W := r W'\)
\(S := r \mathsf{H}(T', s)\)
check \(\pi\)
\(T'\)
\(s, W'\)
, \(\pi\)
\(X_b = x_bG +y_bH,~~ b \in \{0, 1\}\)
\(\cdots\) redemption \(\cdots\)
\(t, S, W\)
- check \(b\) s.t. \(x_b\mathsf{H}(t) + y_b S = W\)
- add \(t\) to spent tokens.
Private metadata
User
Issuer
\(\Gamma := (p, \mathbb{G}, G, H)\)
\(r \gets \mathbb{Z}_p^*\)
\(T' := r^{-1}\mathsf{H}(t)\)
\(W := x_b T' + y_bS'\)
\(s \gets \{0, 1\}^\lambda;~ S' := \mathsf{H}(T', s)\)
Removing the zk proof
\(W' := x T'\)
\(T'\)
\(W'\)
\(\cdots\) redemption \(\cdots\)
\(t, W\)
- check \(x\mathsf{H}(t) = W\)
- add \(t\) to spent tokens.
User
Issuer
\(\Gamma := (p, \mathbb{G}, G)\)
\(r, \rho \gets \mathbb{Z}_p^*\)
\(T' := r(\mathsf{H}(t) - \rho G)\)
\(W := r^{-1} W' + \rho X\)
\(X = xG\)
Concrete security
- One-more Diffie-Hellman is not extensively studied;
- Token Hijacking;
- Engeneering issues.
Implementation
#[test]
fn it_works() {
let mut csrng = rand::rngs::OsRng;
// generate a keypair
let keypair = KeyPair::generate(&mut csrng);
// get the public parameters
let pp = PublicParams::from(&keypair);
// client's first message (the blinded token)
let blinded_token = pp.generate_token(&mut csrng);
// server's reponse (the signed token) with hidden metadata bit 0
let signed_token = keypair.sign(&mut csrng, &blinded_token.to_bytes(), 0);
// clien'ts unbliding (the final token)
let token = blinded_token.unblind(signed_token);
assert!(token.is_ok());
// verification of the token
assert!(keypair.verify(&token.unwrap()).is_ok());
}
In Rust, using curve25519-dalek::Ristretto.
Check out [benchmarks report] for fancy stats.
Future directions
Anonymous Tokens
By Michele Orrù
Anonymous Tokens
Anonymous Tokens enable an issuer to provide a user with anonymous trust tokens that can embed a single private bit, which is accessible only to the party who holds the secret authority key and is private with respect to anyone else. Our construction extends the functionality of Privacy Pass (PETS 2018) with this private metadata bit capability.
