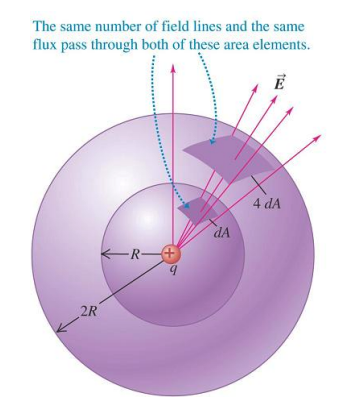

Gauss's Law for a point charge

E \propto 1/R^2 \\ A \propto R^2

E \propto 1/R^2 \\ A \propto R^2

Flux is independent of R

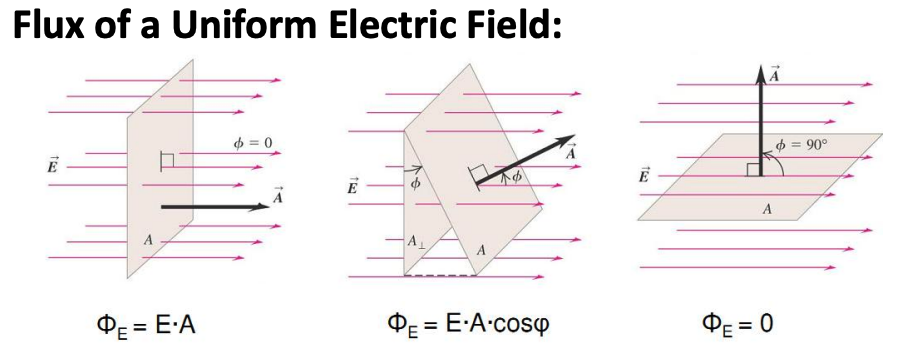

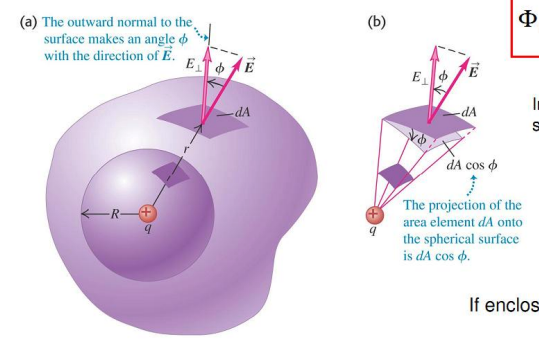

E_\perp \propto \cos{\phi} \\ A \propto 1/\cos{\phi}

E_\perp \propto \cos{\phi} \\ A \propto 1/\cos{\phi}

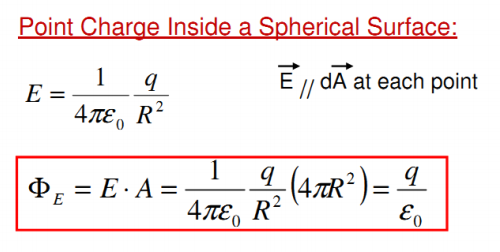

Gauss's Law for a point charge

Flux is independent of the surface shape!

For charges outside of the enclosing surface flux cancels out

\Phi = 0

\Phi = 0

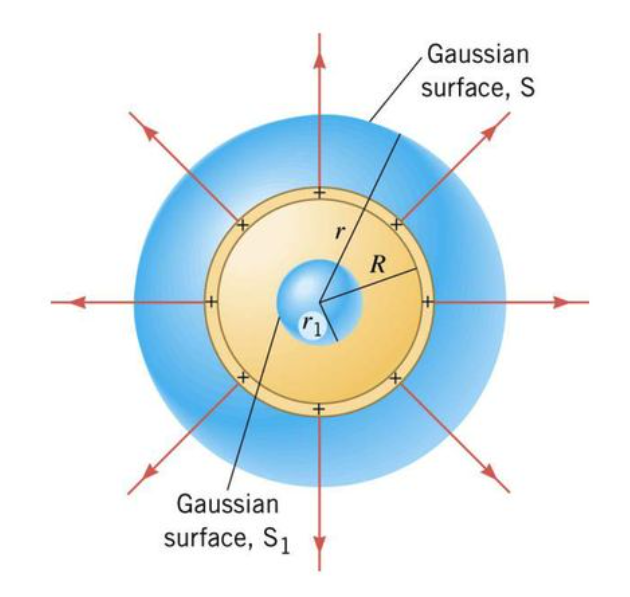

For charges not at the center of the enclosing surface, the flux is the same as if they were in the center

Gauss's Law

\Phi \ =\ \oint \vec{E} \cdot \overrightarrow{dA} \ =\ \frac{Q_{enc}}{\epsilon _{o}}

\Phi \ =\ \oint \vec{E} \cdot \overrightarrow{dA} \ =\ \frac{Q_{enc}}{\epsilon _{o}}

According to Gauss’s law, the flux of the electric field through any closed surface, also called a Gaussian surface, is equal to the net charge enclosed divided by the permittivity of free space

Gauss's Law

Gauss's Law for a point charge

Gauss's Law for a point charge

Gauss's Law

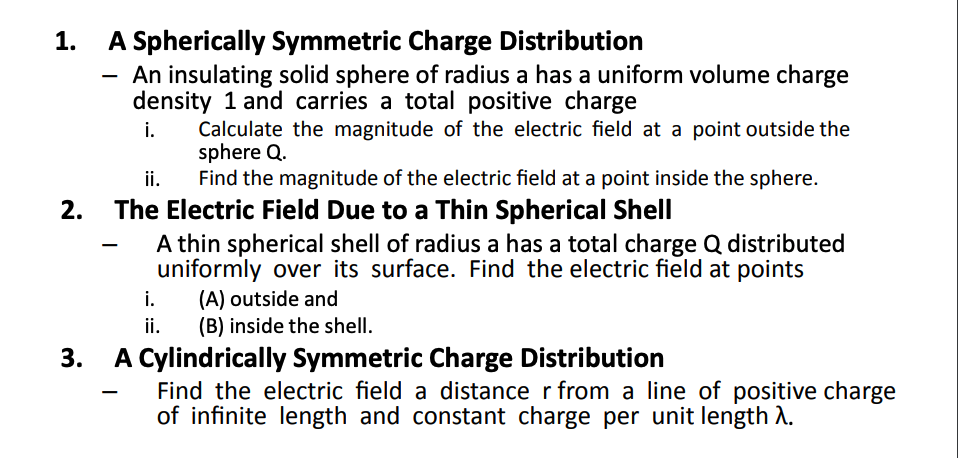

Exercises

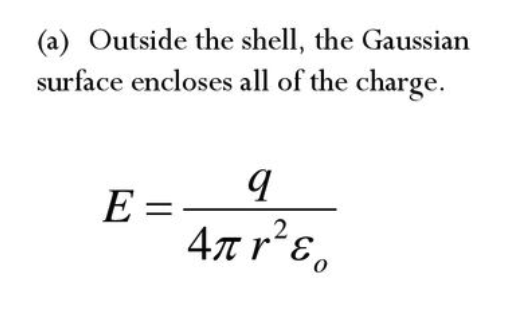

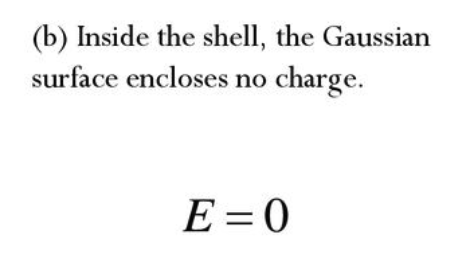

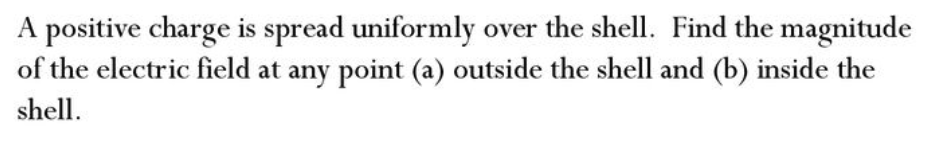

Exercises

Exercises

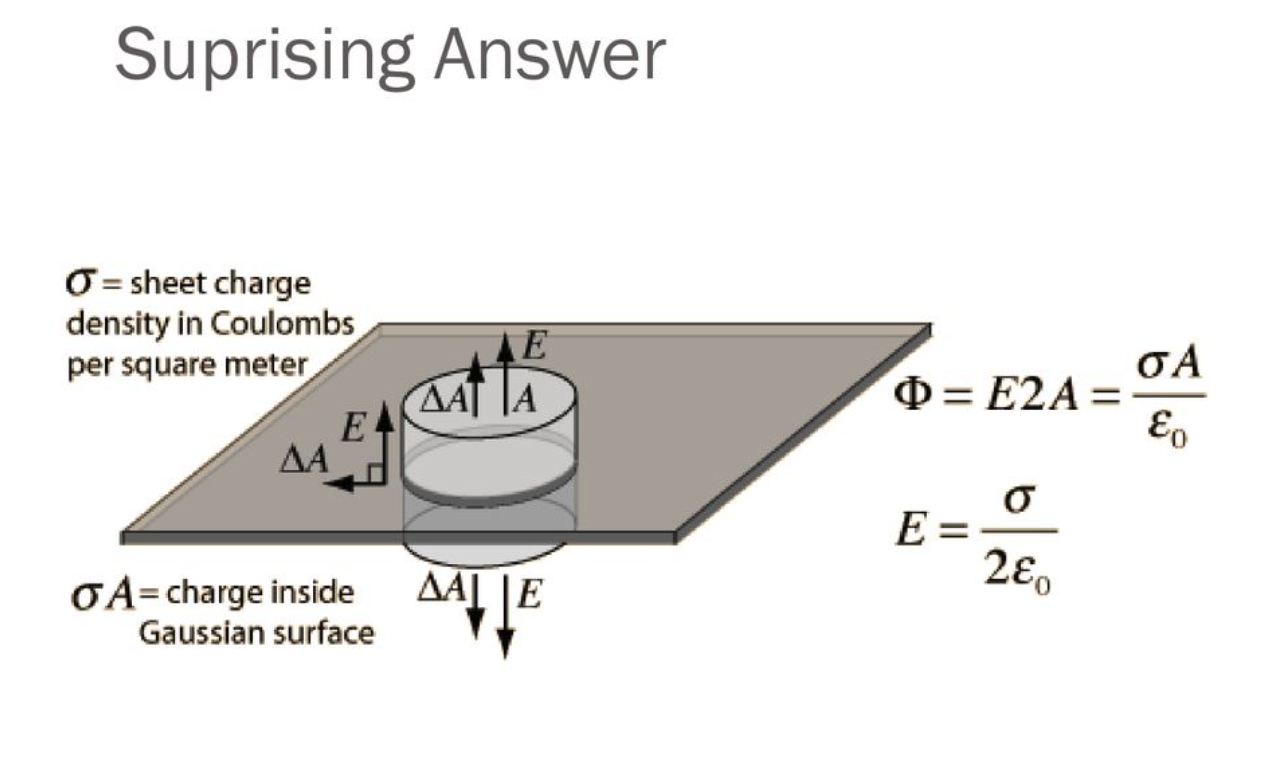

Surface Charge

Gauss's Law

Gauss's Law
