Front-end Microservices Architecture
Mykhailo Churilov
Lead Software Engineer
Preconditions
Application Scale
To-do App
Average Enterprise
Damn big app
Lead Developer
Middle Developer
Standalone App #1
Standalone splitting
Standalone App #1
Legacy Mono App
Redirect to external
Back-end
REST communication
JWT
Standalone splitting
Standalone splitting
- TypeScript
- Component structure
- Self generated docs
- UI library
Text
App #2
Requirements
- Divide Legacy system to multiple apps, to make possible split the Team
- Have consistent UI across all applications
- Make single authentication point to all applications, without code duplication
New Team
Shell keeper
App#1 Keeper
App#2 Keeper
App#3 Keeper

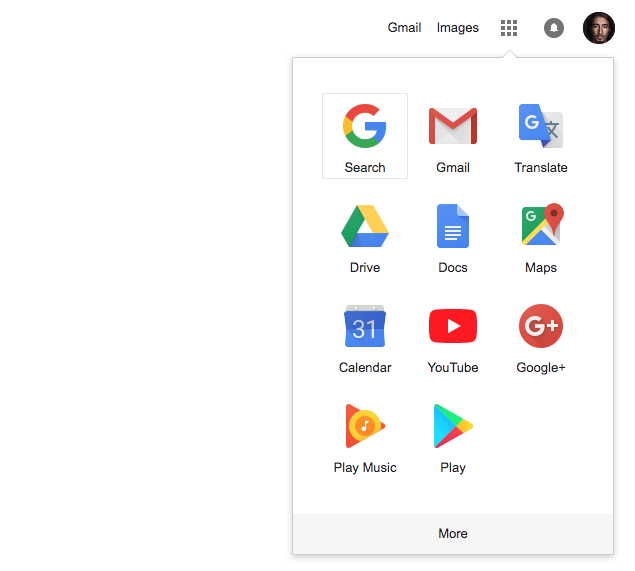

Research
Iframe
- Content Scroll
- Nesting level
- Bundle size
Downsides

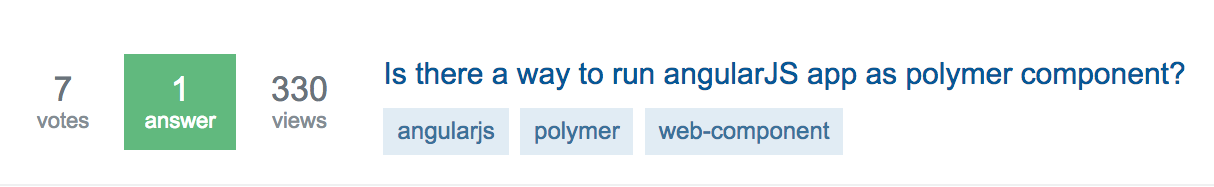

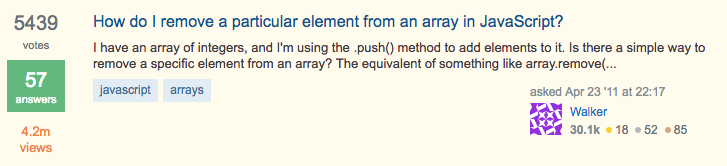

StackOverflow
Polymer
Web Comonents
Polyfills
Theory
Shell
Header
Container
App #1
App #2
App #3
CSS, HTML
CSS, HTML
CSS, HTML
inners CustomElement depend on the route
/app1/root/route
changes route
Script Loader
Identity Service
defines
custom elements
UI lib
Header Component
Responsibilities:
- changes location url
Script Loader
Responsibilities:
Parses elements schema
Creates node for each item
Register custom DOM element for each node
const components = [{
name: 'vue',
scriptName: 'vue-bundle.min.js',
template: '<div id="app"></div>',
cssPath: null
}, {
name: 'angular',
scriptName: 'ng-bundle.min.js',
template: '<app-root id="app"></app-root>',
cssPath: null
}];components.forEach((el) => {
const node = Object.create(HTMLElement.prototype);
node.attachedCallback = () => {
const remote = DEFAULT_PATH;
this.appendChild(
document.createRange()
.createContextualFragment(el.template)
);
$.getScript(remote + '/' + el.scriptName)
.done(() => {
window[el.name] = true;
});
};
document.registerElement(el.name + '-app', {
prototype: node
});
});Container
1. Parses app name in the route
2. Inserts {{app_name}}-app to the DOM
Routing - single point of truth
/app1/products/12
/app2/products/12
/error_page
app1 loaded
app2 loaded
no app loaded
Apps communication
App #1
App #2
App #3
CSS, HTML
CSS, HTML
CSS, HTML
Wrapper
Shared Store
Real Battle

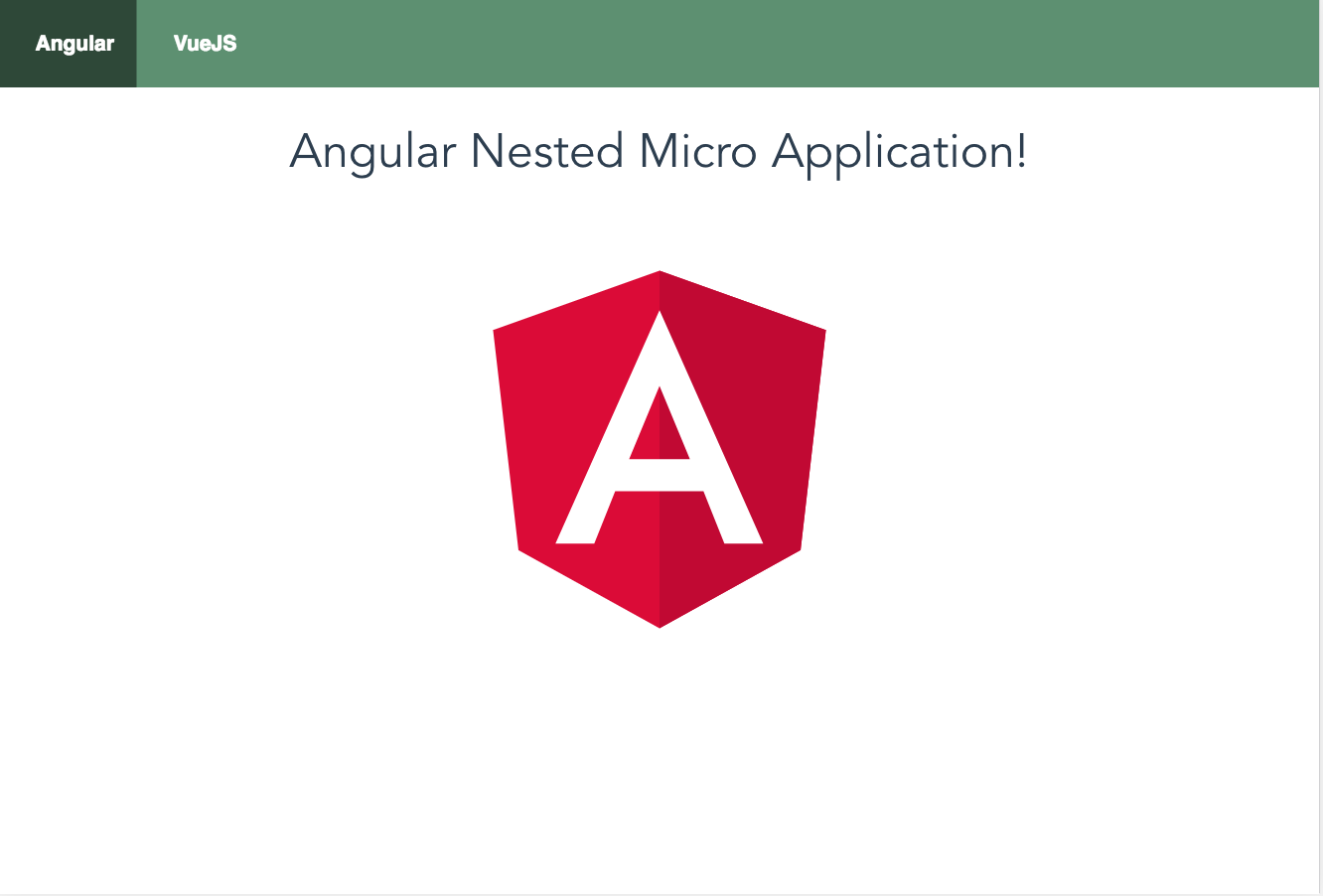

ROUTE: /angular/home

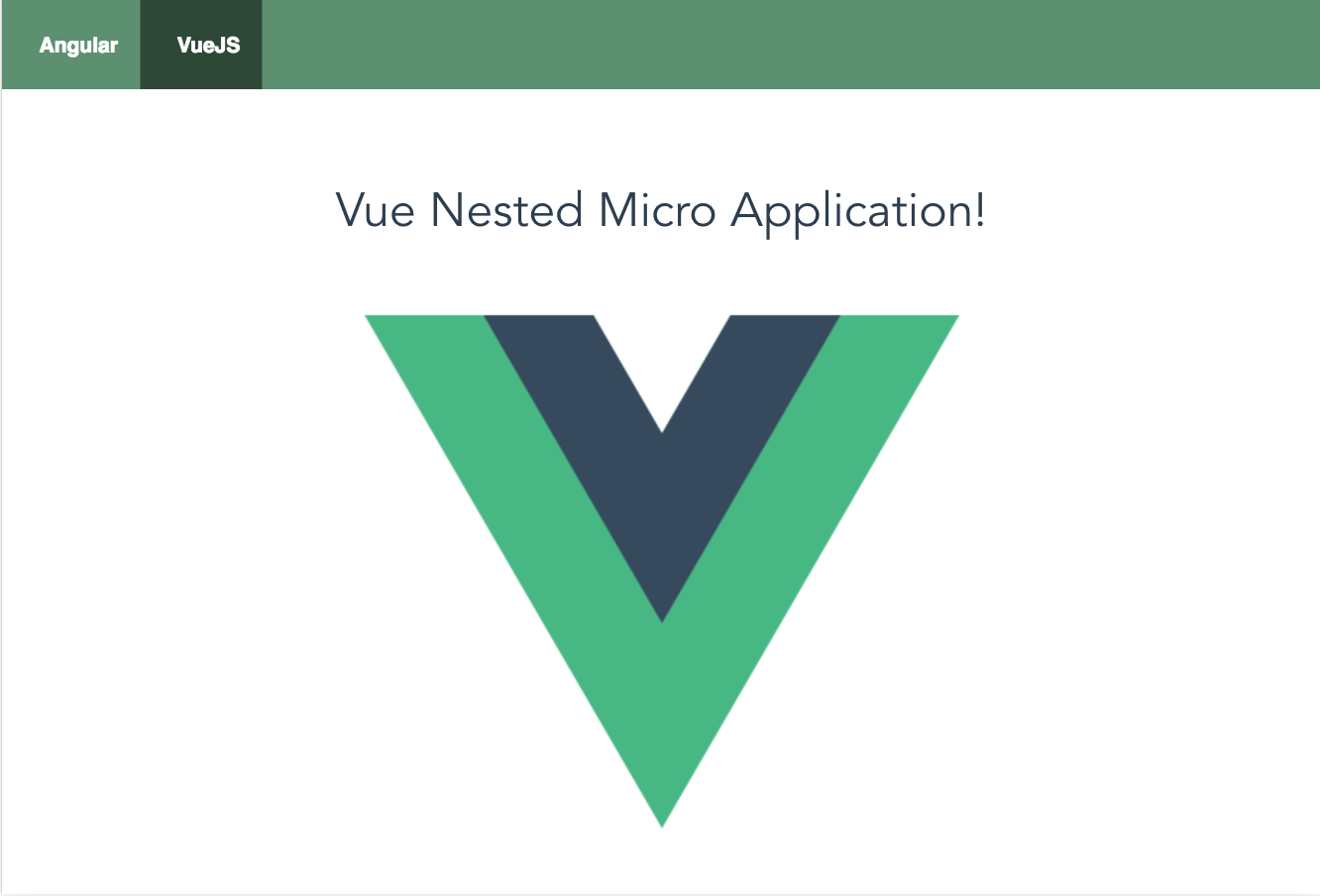

ROUTE: /vue/home
For what?
WTF?
App#1 Keeper
App#2 Keeper
App#3 Keeper
events leaks
CSS inject duplications
styles overriding
Resources Guard
Resource management service
Container Stage
Active app #cur
Store events for #cur
Release events for #last
OnAppActivated()
app #1
app #2
app #3
Resource management service
Micro-apps restrictions
Isolate own styles
Prevent app run on the different app in location
Keep tracking all listeners, so on Exit of app we can easily destroy them
Bootstrap application from JS code
Forget about document and window
Deployment
CDN for app #1
v_1
v_2
v_3
CDN for app #2
v_1
v_2
v_3
CDN for app #3
v_1
v_2
v_3
Shell
Script Loader
Server
{Config}
GET app#1 v_2
app_1_v_2
bundle
Testing
1. Unit Testing of micro-apps
2. E2E
3. Resources Guard
4. Visual testing
Q & A
@kobvel
